SKELETON BUCKET for 25 – 30 ton excavator
Product Gallery
Categories: Work Attachments & Tools
$20.000,00
10 in stock
- Our spare parts are engineered to seamlessly integrate with your machinery.
- Delivery anywhere in the world in max. 10 days
- 1 year manufacturer warranty
- Your transactions are protected by the most advanced security measures.
- Shipping fees are included in the prices of all our products.
Product Video
Product Description

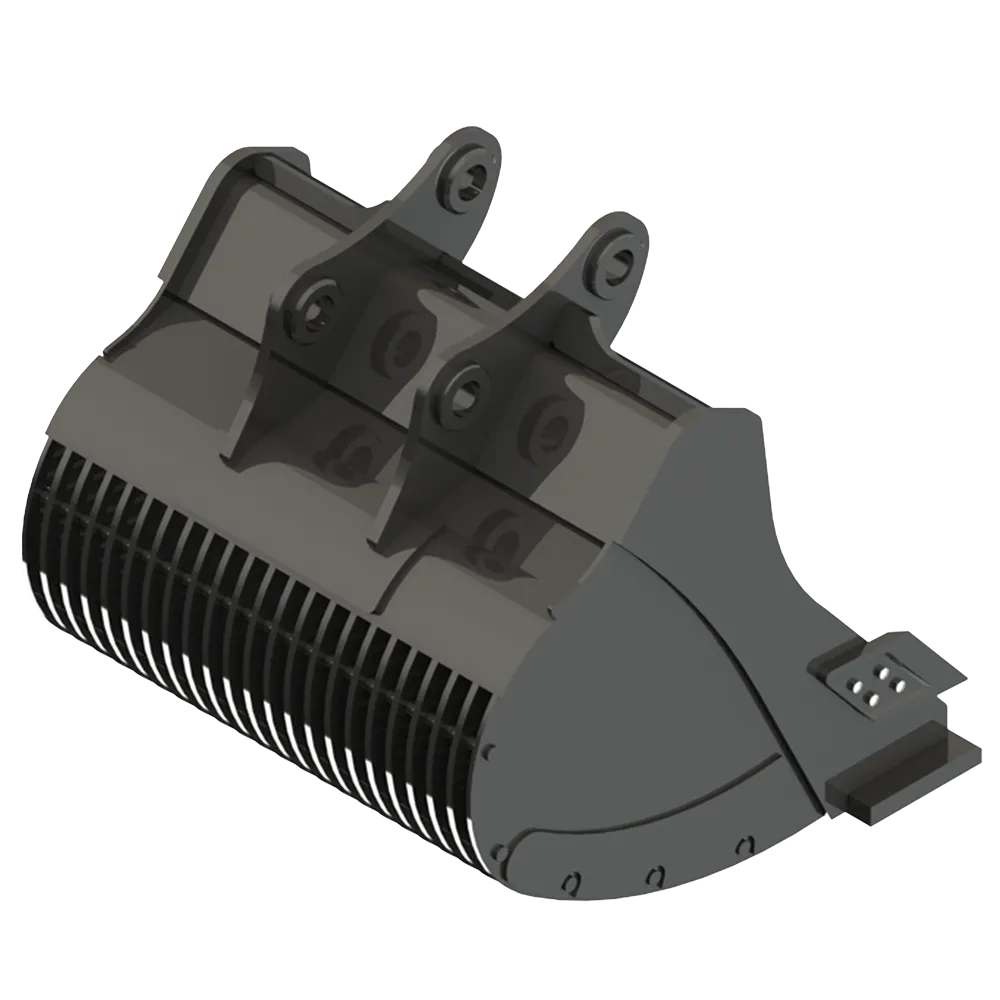

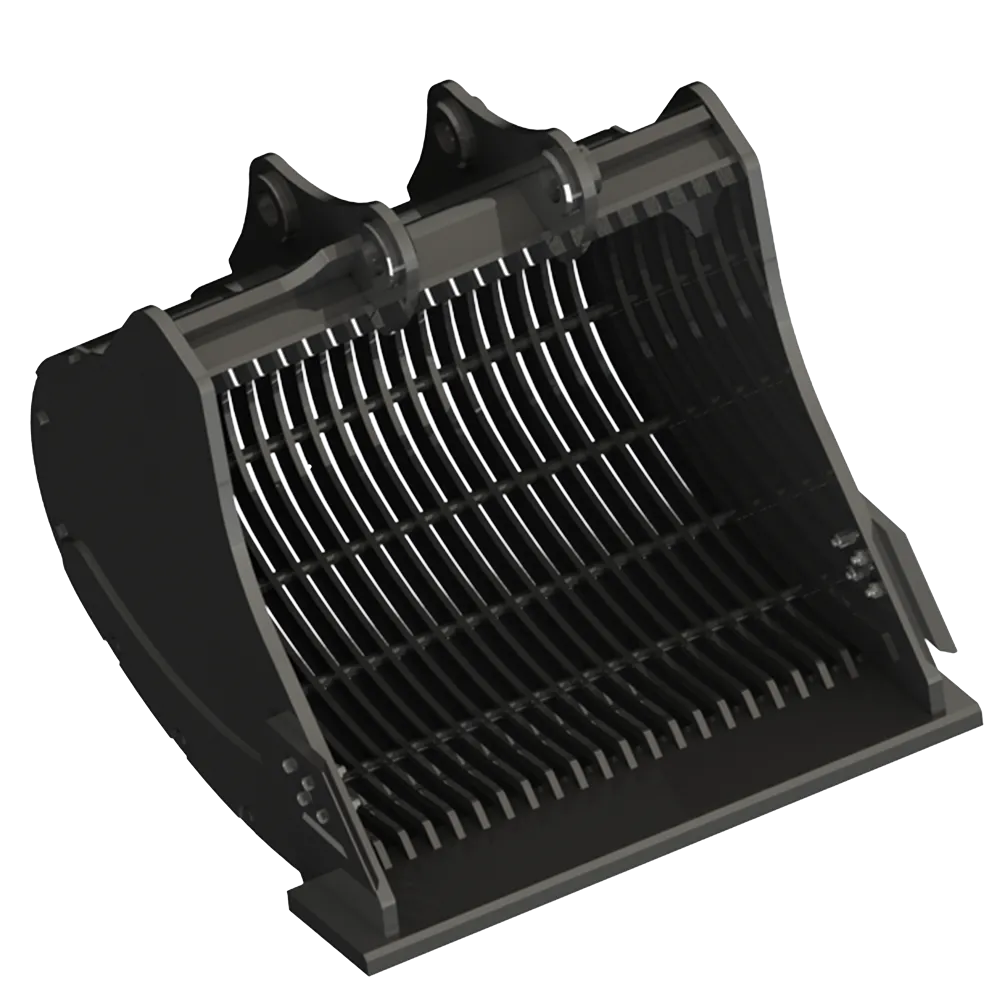

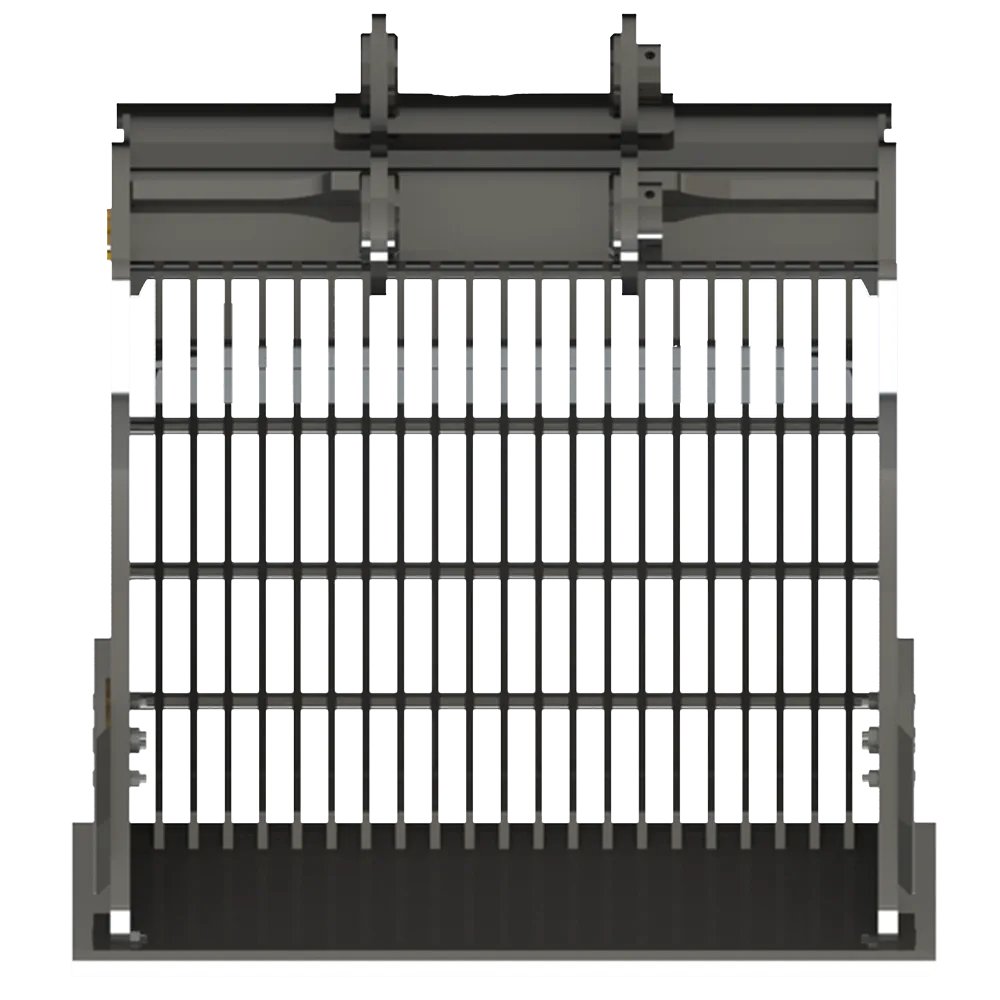

Skeleton Bucket for 25–30 Ton Excavator
Overview & Core Applications
The Skeleton Bucket for 25–30 Ton Excavator is your go-to attachment when efficient material filtering, load handling, and debris separation are essential. Tailored for 25–30 ton machines, its rugged open-grid design allows fine materials like soil, sand, and smaller debris to pass through, while retaining larger fragments such as stones, roots, and construction waste.
Ideal for demolition sites, forestry clearing, landscaping, recycling operations, and land development, this skeleton bucket speeds up cleanup and sorting with unmatched precision and strength.
Why Choose the Skeleton Bucket for 25–30 Ton Excavator?
Superior Material Separation
Equipped with precisely spaced vertical tines, this bucket filters out unwanted fine material, making debris sorting effortless. Less pausing, more productivity.
Robust, Long-Wear Structure
Built from tough, abrasion-resistant heavy steel, the skeleton bucket endures constant abuse in harsh environments. Reinforced tines and optional bolt-on teeth or wear plates ensure long life.
Versatile Sizing & Quick Fit
Available in custom widths, from approximately 1,400 mm to 1,800 mm, to match a variety of excavator models. Designed to integrate seamlessly with standard couplers.
Lightweight with High Efficiency
The skeleton configuration allows for easier handling by letting lighter materials fall away, reducing effective load and fuel consumption while increasing cycle speed.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | Approx. 1,200 kg based on a 1,500 mm model |
| Grid Spacing | Typically around 100 × 150 mm for efficient sorting |
| Material | Heavy-duty, wear-resistant steel with optional bolt-on teeth |
| Width Range | Available from 1,400 mm up to 1,800 mm |
| Hydraulic Impact | No hydraulic components required, purely mechanical attachment |
Compatible Excavator Models
Optimally crafted for 25–30 ton excavators across top brands:
-
Caterpillar: Cat 324, Cat 330
-
Komatsu: PC300, PC350
-
Volvo: EC300, EC350
-
Hitachi: ZX300, ZX350
-
Doosan: DX300, DX340
-
Hyundai: HX300, HX360
(Always check machine coupler compatibility and hydraulic specs before purchasing.)
OEM-Level Build & Worldwide Delivery
At 3GEN Export, this Skeleton Bucket for 25–30 Ton Excavator delivers OEM-grade workmanship, engineered for precision fit and lasting performance. Best of all, it ships globally in just 5 working days, so downtime is never an option.
Key Benefits Summary
-
Effective sorting, filters debris while retaining large materials
-
Long-lasting durability, built with wear-resistant reinforcements
-
Smart design, lighter effective loads increase efficiency
-
Wide compatibility, tailored to 25–30 ton excavator models
-
Fast delivery, OEM quality, shipped globally via 3GEN Export
