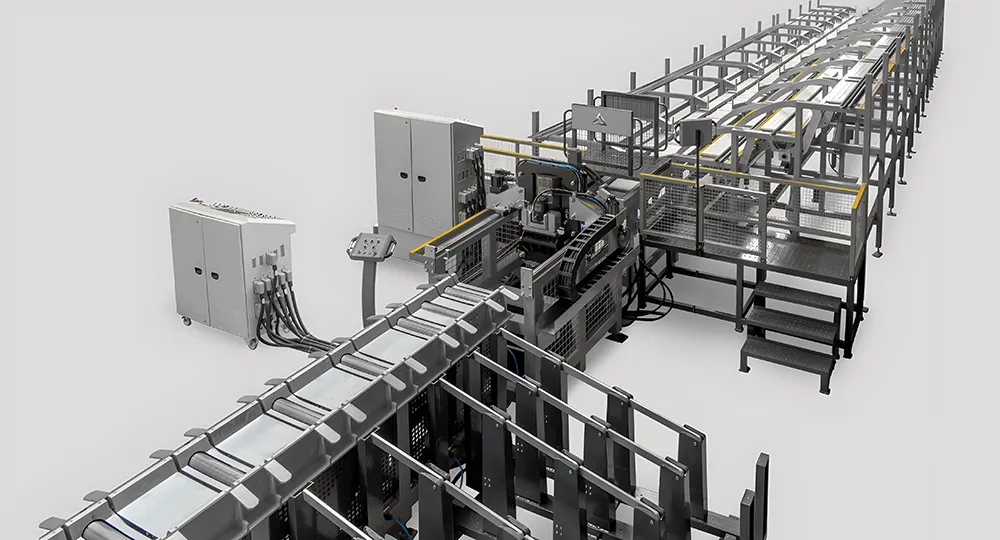

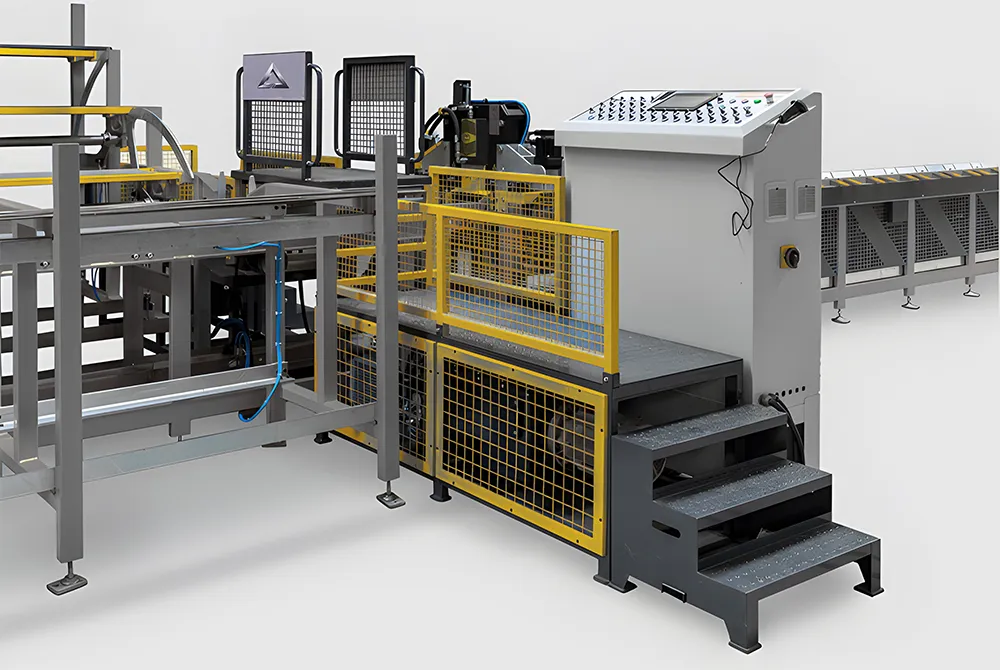

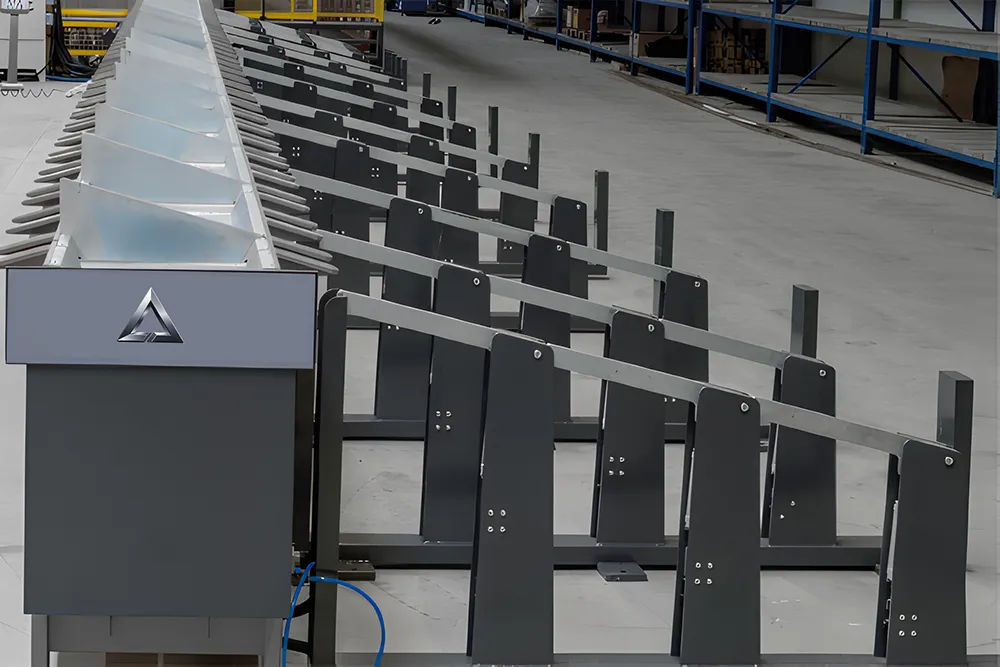

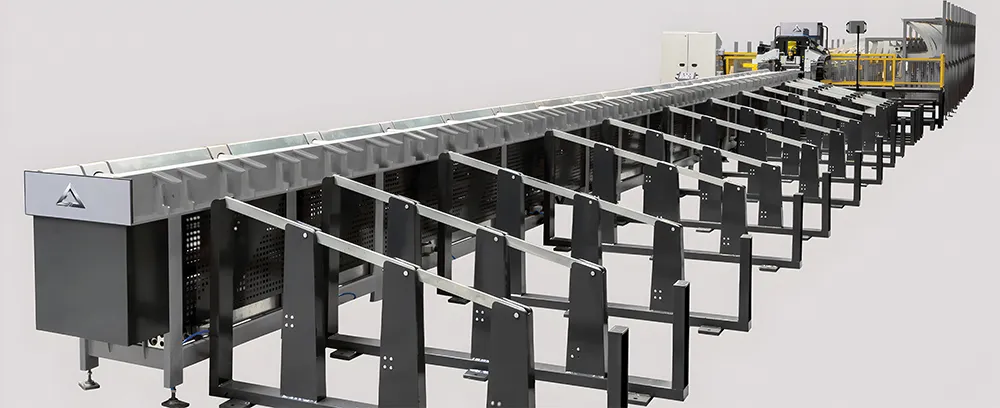

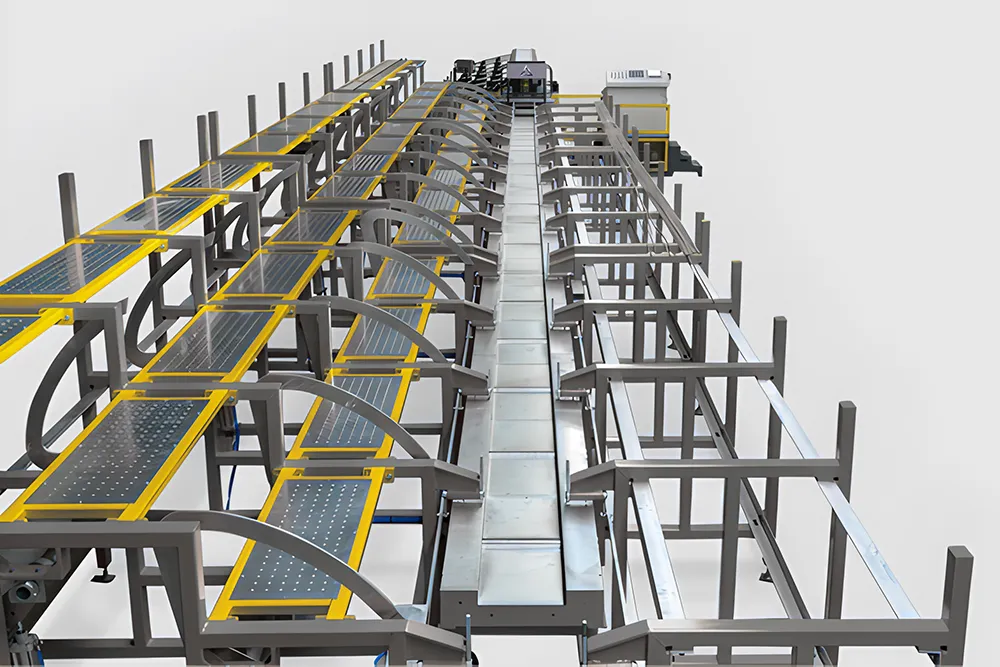

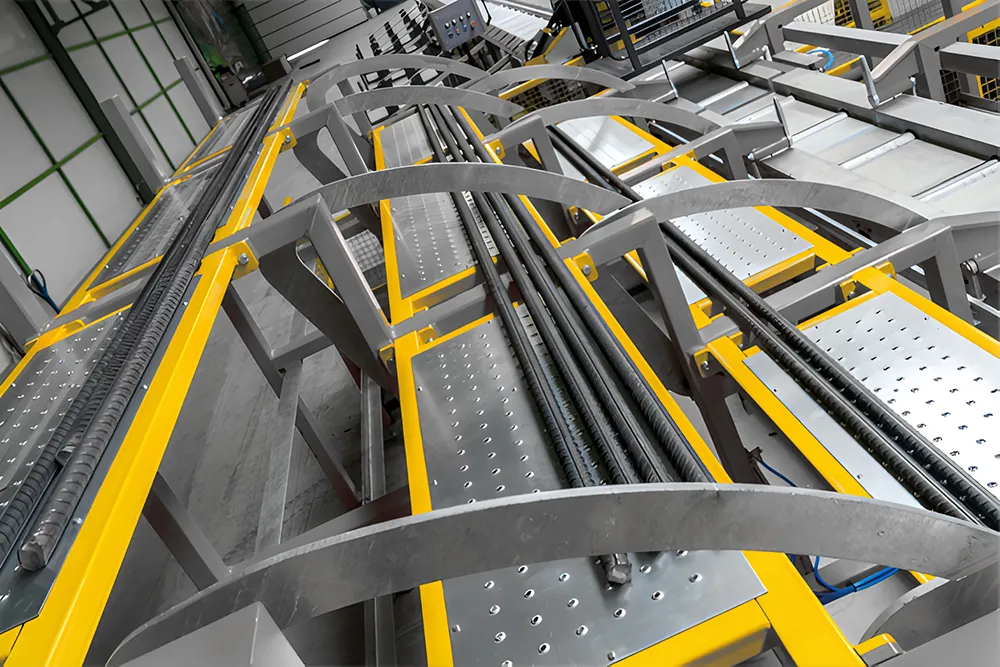

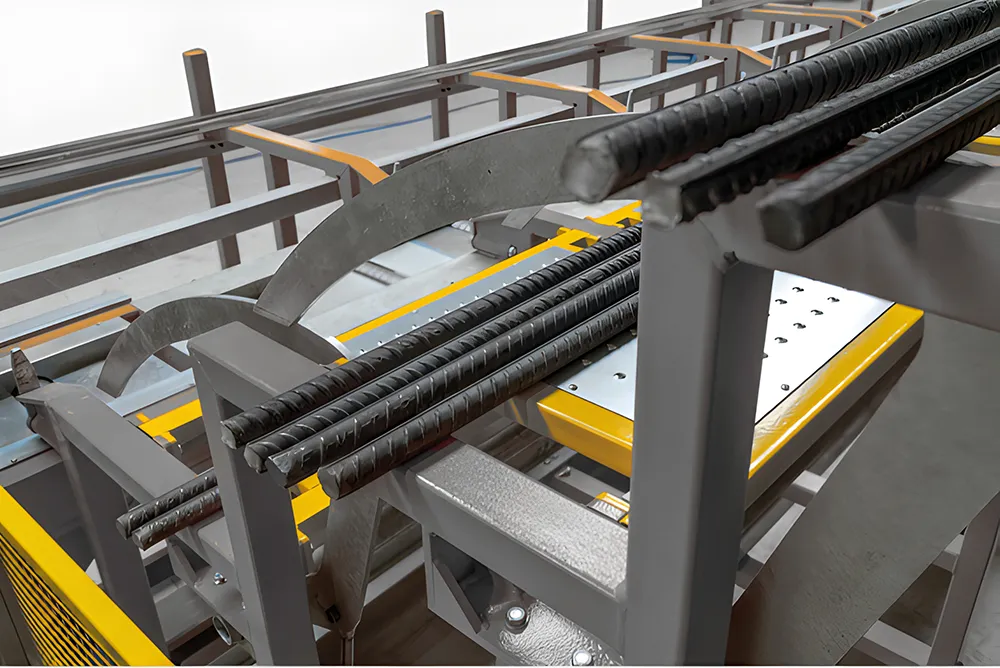

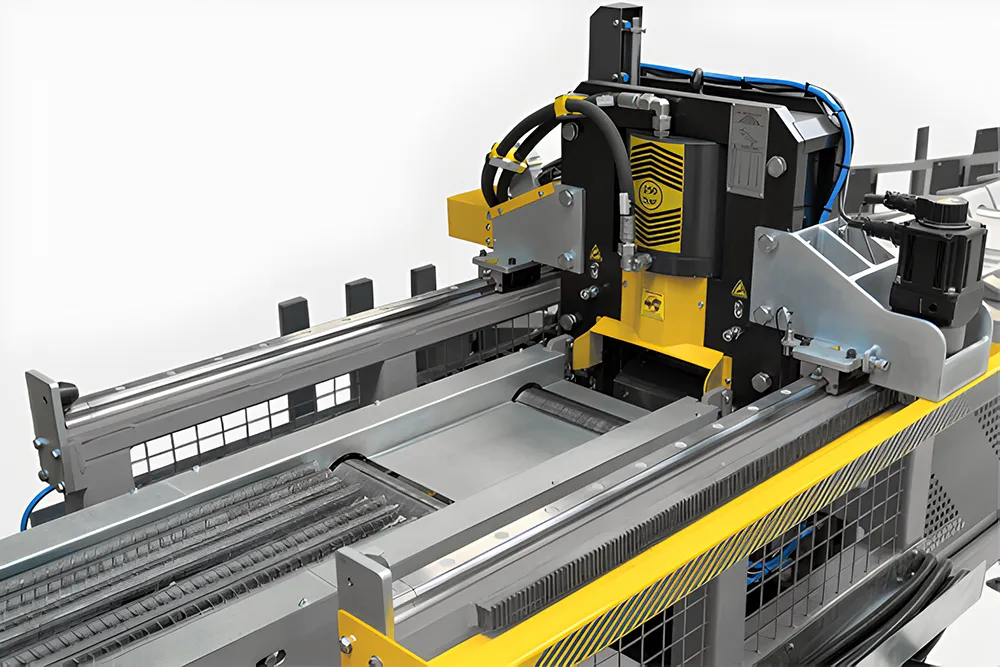

MATRIX 55S MEASURING AND CUTTING MACHINE

Brand: 3GEN Export
Category: Bending & Cutting Machines
Part Number: MATRIX55S
Availability: In Stock

Description

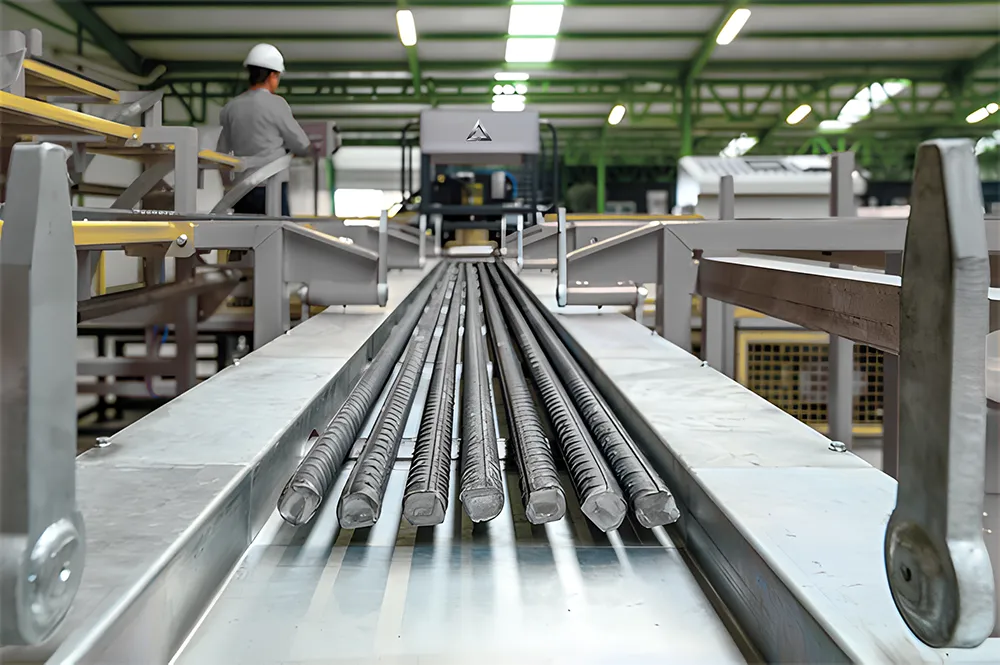

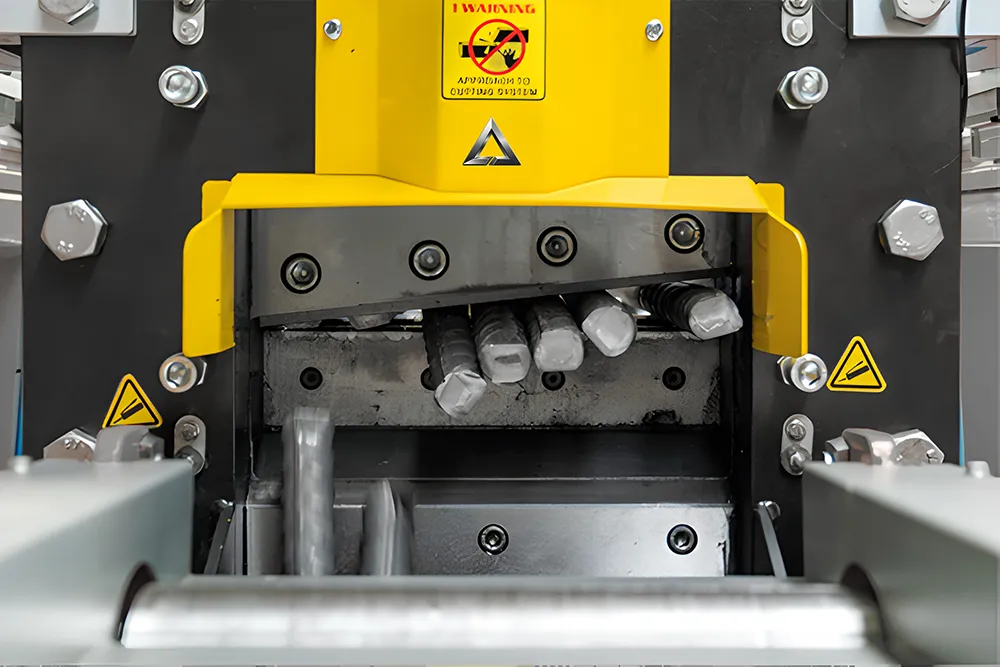

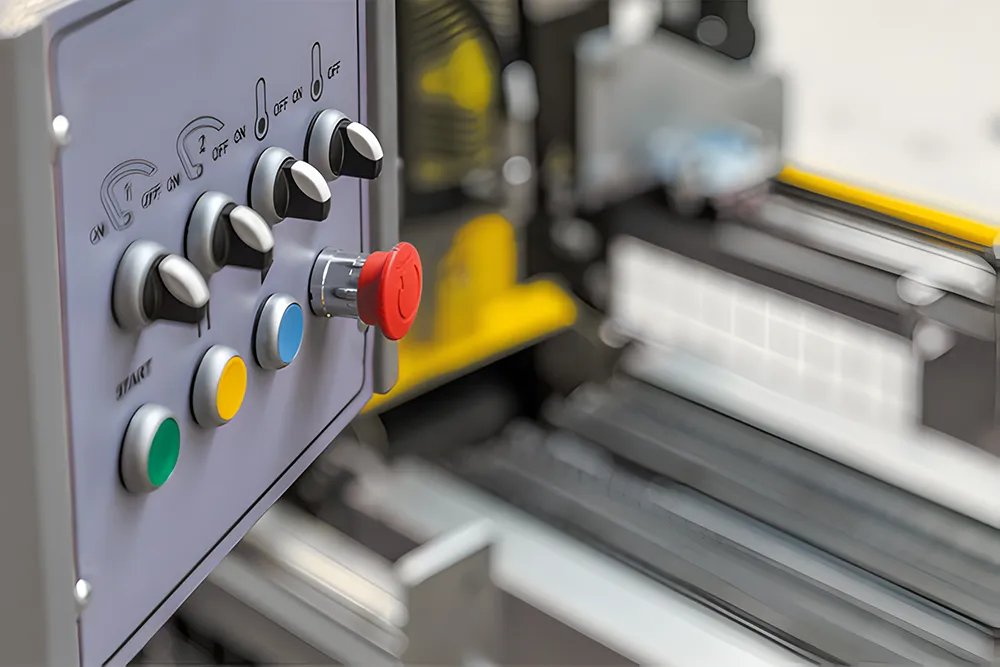

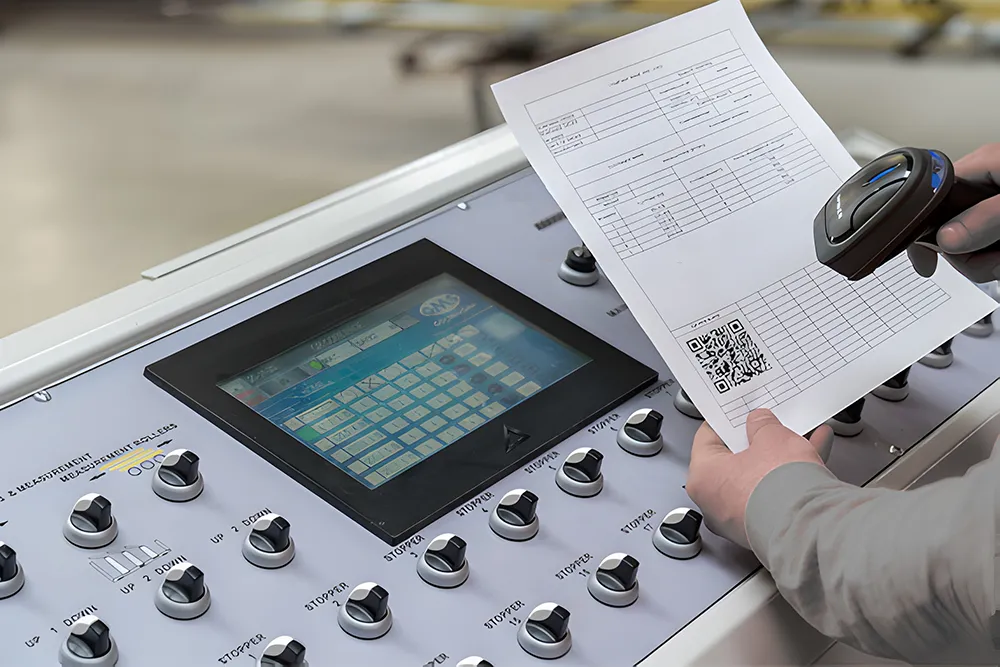

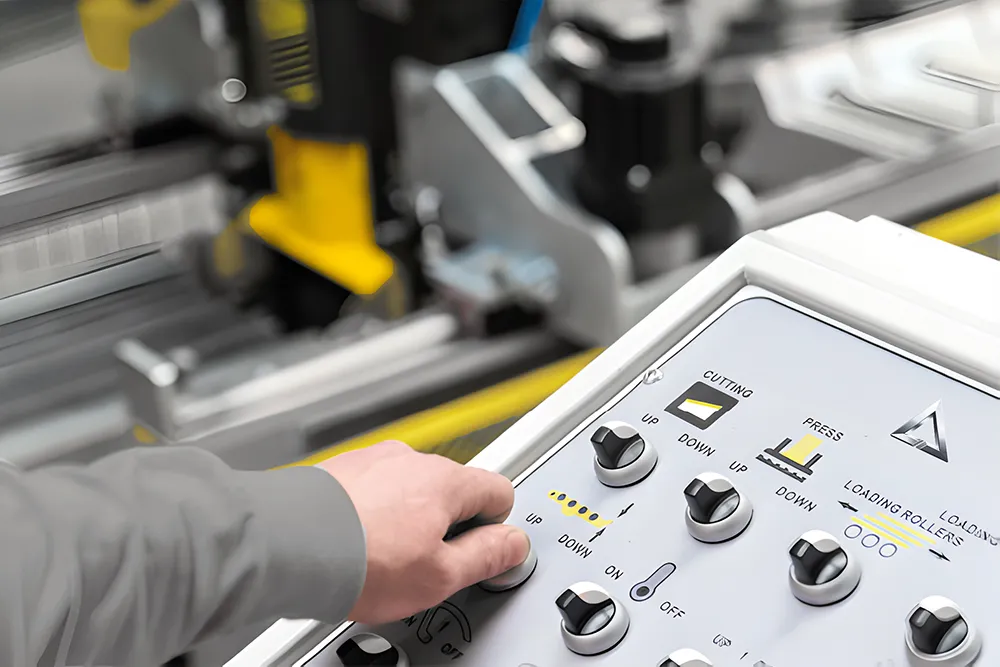

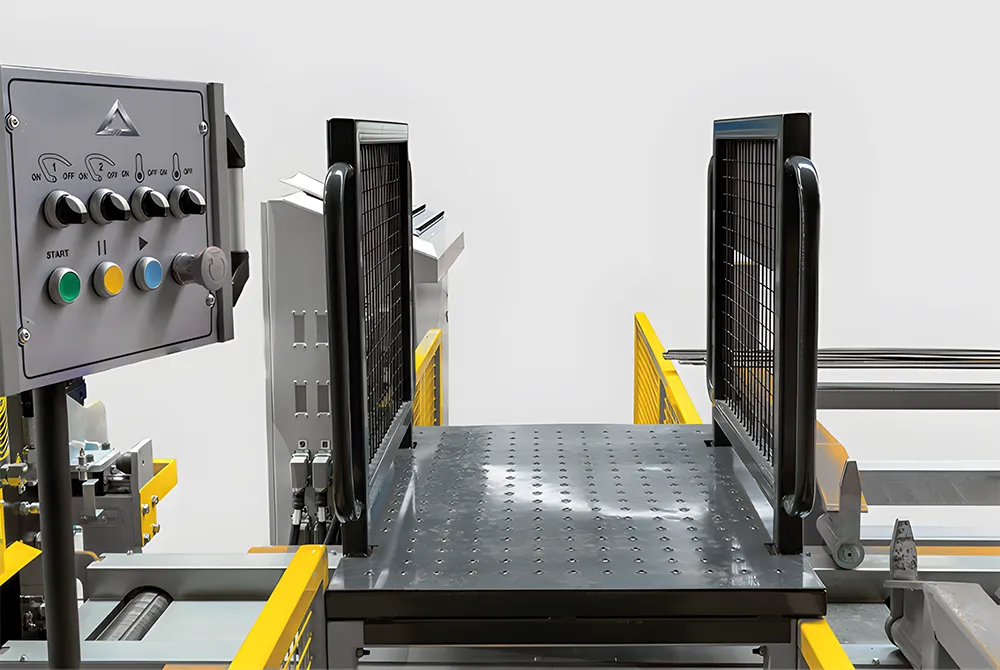

The MATRIX 55S Shearline Heavy Iron Measuring and Cutting Machines are cutting-edge industrial machines designed to provide precise measurement and efficient cutting of heavy iron and steel rods. Perfect for large-scale construction, metal fabrication, and steel reinforcement projects, these machines combine high-speed performance with exceptional accuracy. The MATRIX 55S drastically improves workflow by automating the measuring and cutting process, reducing manual labor while ensuring consistent, high-quality cuts. Powered by advanced automation technology, the MATRIX 55S features user-friendly controls that allow operators to program specific measurements and customize cutting sequences to meet different project needs. This machine is built to handle heavy-duty materials, processing thick iron and steel rods with ease, making it a vital tool for high-volume production environments. Its robust construction ensures smooth operation, even under demanding conditions. The MATRIX 55S is constructed with industrial-grade materials, designed to withstand the rigors of continuous use in challenging work environments. It minimizes vibration during cutting, ensuring precision and stability in every cut. Additionally, the machine is equipped with safety features like overload protection and an emergency stop function, providing secure operation and protecting both the machine and the operator. For industrial professionals seeking a powerful and reliable solution for measuring and cutting heavy iron and steel, the MATRIX 55S Shearline is the ideal choice, delivering superior accuracy, efficiency, and safety for large-scale operations. MATRIX 55S SHEARLINE MATRIX 55-S, enables to maximize customer productivity and saving time when cutting operations and eliminating 2-3 labor force with the assistance of software programming. Consist of 12 meters ( 40 ft ) standard infeed conveyor. OPERATOR PLATFORM - EXTENDED ON 2 SIDES WITH BRIDGE - All electrical panel and units exist in this bridge. - GMS uses all branded models on electrical components and easy to get from local markets. DIGITAL PANEL 10.1 Touch Screen will be used in both machines digital panel. Machines all functions can be controlled as full automatic as well as also manual. One operator can handle these issues. PLC screen Windows base systems is using in digital panel. Remote controller is available to connect if something happens on machine All required cuttings and amount of rebar requirements can be calculated & measurement as automatic from this digital screen Barcode System is also available on Matrix55S Shearline upon request. Instant Scanning is also available in Barcode System. MAIN HYDRAULIC BODY & CUTTING UNIT - All required sizes of cuttings will be organized by hydraulic system and detailed shear requests organized by servo systems. All required small and big sizes are organized with also servo control systems. Movement is hydraulic. Servo system is also using in Matrix55S. - Sensitive measurement and cutting is enabled with this unit with the support of moveable main cutting body. ( Can move 1 meter forward and backwars. ) - Cutting and pressure system mentality works with the assistance of hydraulic OUTFEED CONVEYOR & COLLECTING BINS Consist of 6 meters ( 20 ft ) 4 pockets of collecting bins on one side and consist of 6 meters ( 20 ft ) 4 pockets of collecting bins on other side. Decoilers can open as automatic with the support of pneumatic system Consist of 6 meters ( 20ft ) 4 pockets collecting bins. All arms can open as automatic. Sheared rebars can be unloaded automatic to desired bin Modular base pockets, the length can be also arrangeable Here’s a clear and organized table summarizing the Cutting Capacity based on the Diameter/Inch Bar Size and the Strength of Steel (45 kg/mm², 65 kg/mm², and 85 kg/mm²): Diameter / Inch Bar Size 45 kg/mm² (Pieces) 65 kg/mm² (Pieces) 85 kg/mm² (Pieces) Ø 55 / #14 1 1 1 Ø 40 / #14 5 4 4 Ø 36 / #11 6 5 5 Ø 32 / #10 7 6 6 Ø 28 / #9 8 7 7 Ø 26 / #8 11 10 10 Ø 22 / #7 13 12 12 Ø 20 / #6 14 13 13 Ø 16 / #5 18 18 18 Ø 12 / #4 24 24 24 Ø 10 / #3 30 30 30 Ø 8 / #3 35 35 35 This table provides a detailed breakdown of the cutting capacity for various bar sizes and steel strengths. Here is a detailed table summarizing the Technical Specifications for the MATRIX 55S : Technical Specifications MATRIX 55S Hydraulic Motor (KW / HP) 7.5 KW / 9.38 HP Loading Rollers Motor 3 x 1.1 KW Loading Rollers Motor 1 x 0.75 KW Discharging Roller Motor 3 x 1.1 KW Remote Control (Remote Connection) Available Moving Stopper Control Motor (KW / HP) 0.75 KW Servo Control / 2 HP Cutting System Hydraulic System Electrical Working System PLC Controlled Control Panel 10.1" Digital Screen Collecting Bins Available (Manual) Discharging One Side Only Discharging System Hydraulic System Total Power (KW / HP) 15.85 KW / 21.2 HP Energy Consumption (KWh) 14.65 KWh Total Weight (KG / LBS) 5200 KG / 11,46 LBS Cutting Sensitivity ± 3 mm Hydraulic System Pressure (BAR / PSI) 250 BAR / 3625 PSI This table provides a comprehensive summary of the MATRIX 55S technical specifications, covering motor power, cutting system, power consumption, and other important details. Here’s a clear comparison between the MATRIX 55 and MATRIX 55S , highlighting both standard features and optional configurations: Feature MATRIX 55 Optional (MATRIX 55) MATRIX 55S Optional (MATRIX 55S) Infeed Conveyor 12 meters / 40 ft 18 meters / 60 ft 12 meters / 40 ft 18 meters / 60 ft Infeed Platform 12 meters / 40 ft 18 meters / 60 ft 12 meters / 40 ft 18 meters / 60 ft Storage System 1 storey 1 side 2 storey / 3 storey - 2 sides 3 storey one side / 1 storey other side 2 sided 3 storey Digital Controller 360-degree turnable - Separately - Cutting System Hydraulic - Hydraulic - Stopper / Discharging Pneumatic - Pneumatic - Outfeed Conveyor 6 meters / 20 ft 12 meters / 40 ft, 18 meters / 60 ft 6 meters / 20 ft 12 meters / 40 ft, 18 meters / 60 ft Collecting Bins 2 pockets 1 side 3, 4 pockets bins optional 4 pockets one side / 4 pockets other side - Collecting Bins Length 6 meters / 20 ft 12 meters / 40 ft, 18 meters / 60 ft 6 meters / 20 ft 12 meters / 40 ft, 18 meters / 60 ft Rebar Discharging 1 side - 2 sides - Rebar Bins Storage Manual - Automatic - Operator Platform Unavailable - Available - Barcode System Unavailable Available Unavailable Available This table provides a detailed comparison of the MATRIX 55 and MATRIX 55S , outlining their key features and optional configurations.
