2323253130, 232-32-53130 SHOE ASSY KOMATSU

When buyers search for 2323253130, 232-32-53130 SHOE ASSY KOMATSU, they are usually looking for a grader parking brake component, not a universal brake lining. Public Komatsu parts references identify 232-32-53130 as SHOE ASS’Y, place it in the parking brake group, and show a reference weight of 0.5 kg. Public catalog results also connect the part with a wide GD-series grader family.

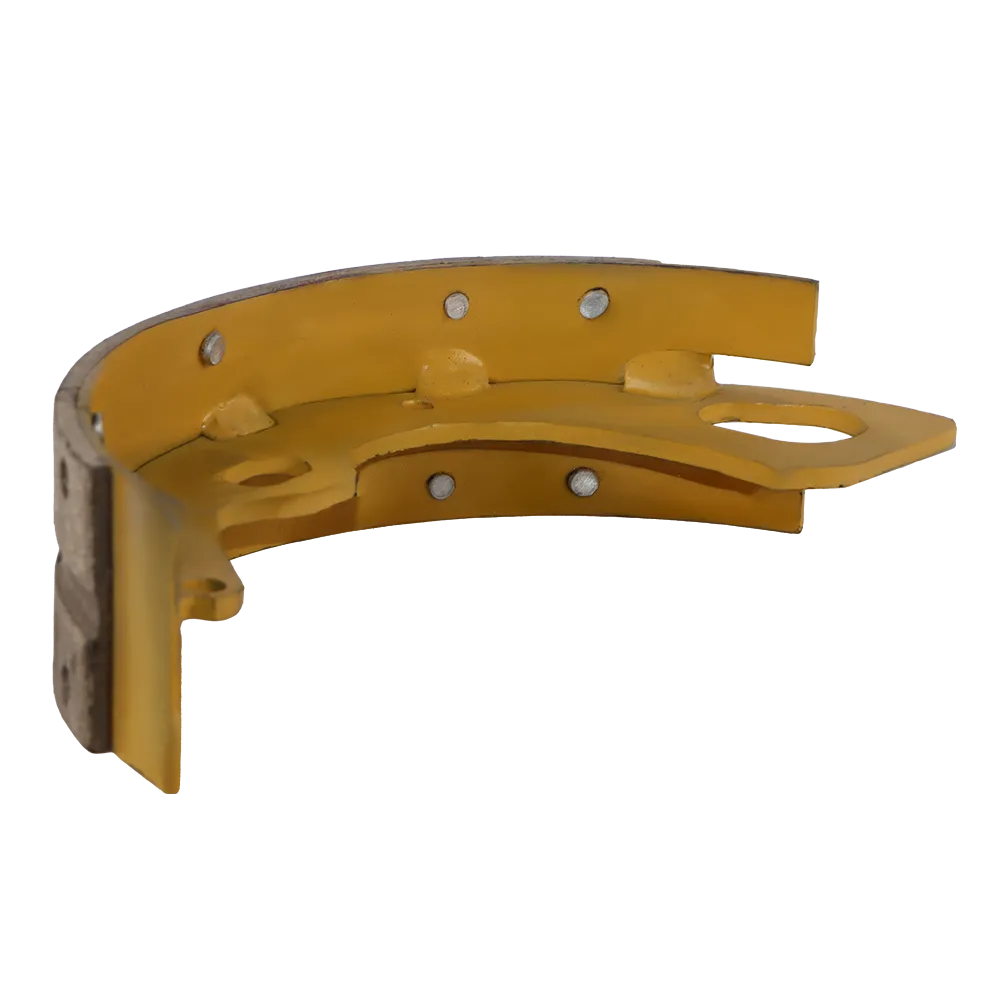

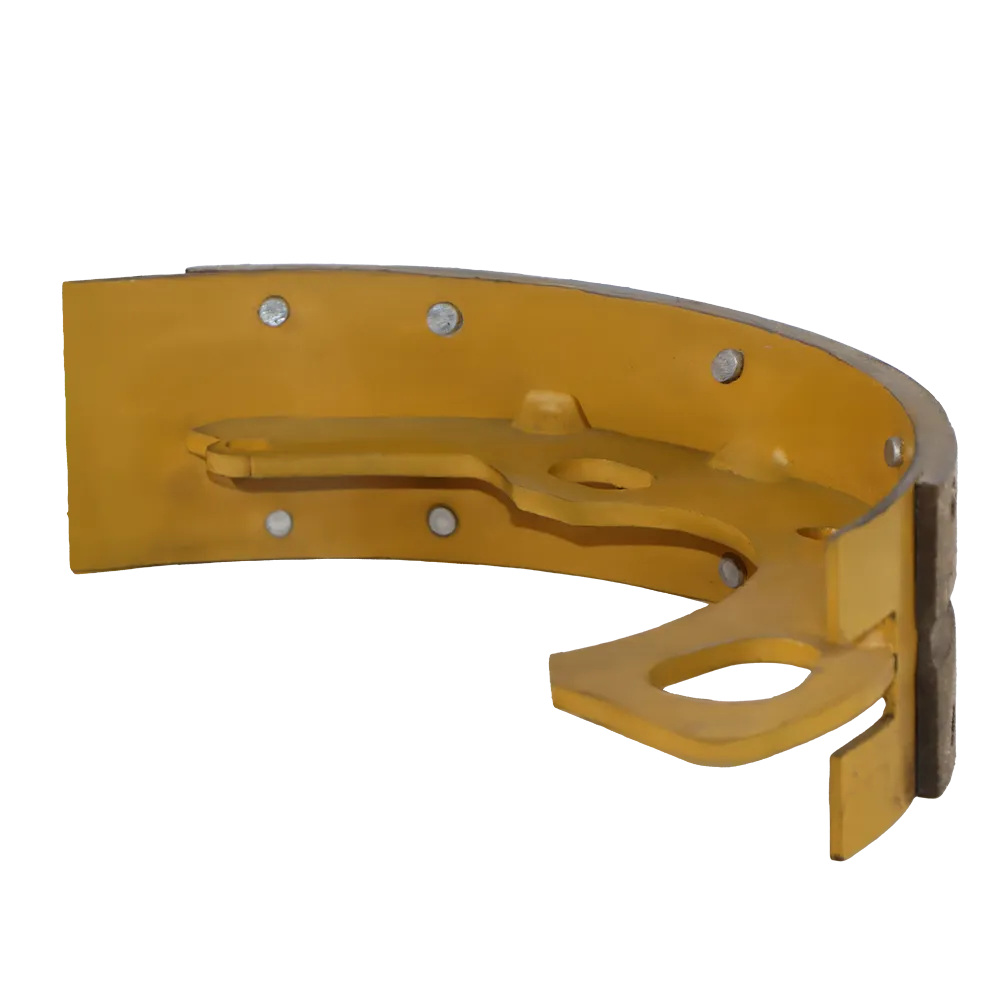

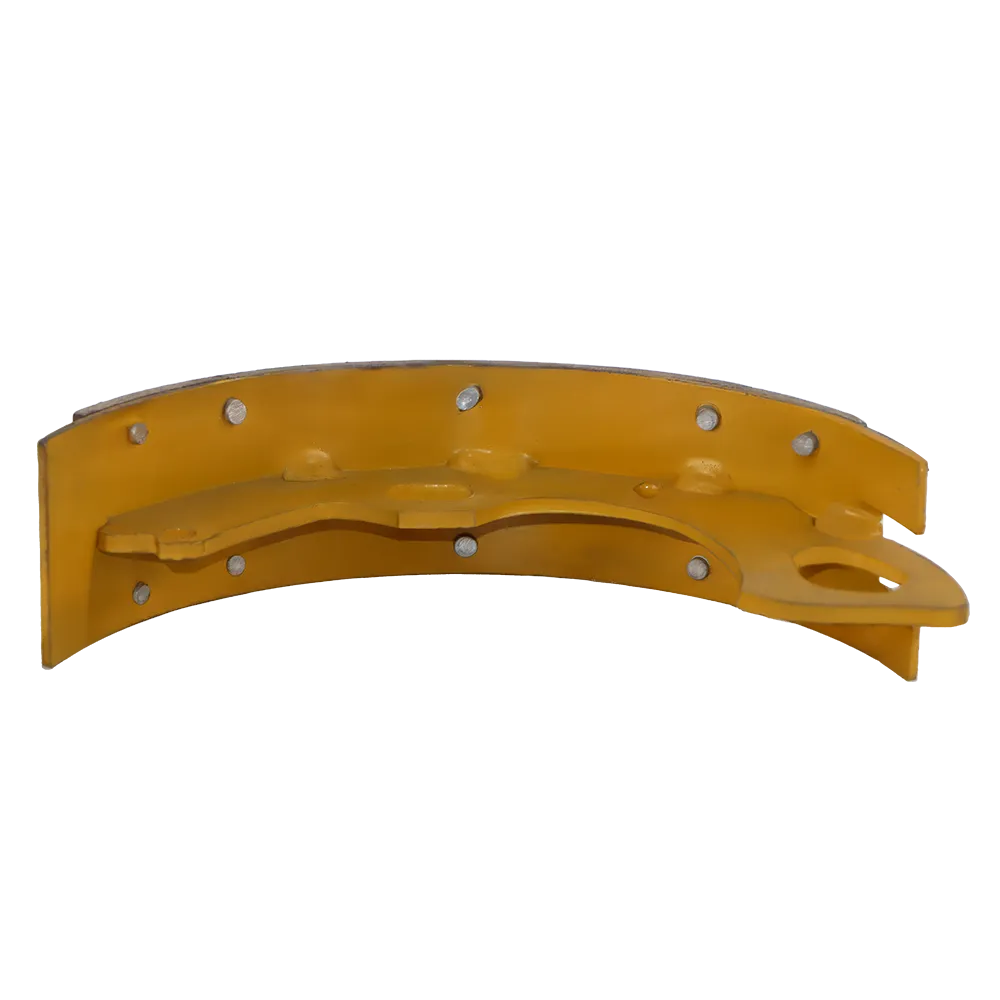

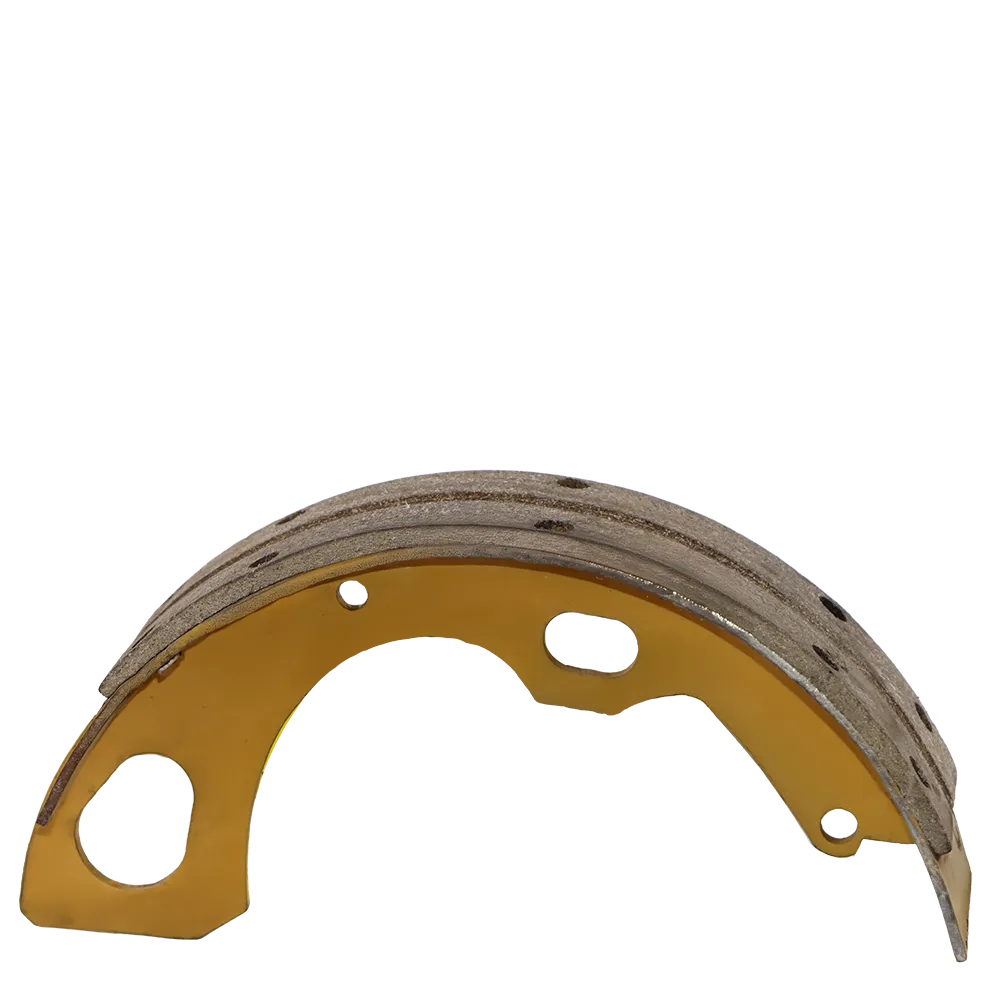

From the uploaded images, this part clearly follows the structure of a drum-style brake shoe assembly. The curved steel carrier, riveted friction material, formed side tabs, and reinforced inner plate shape all point to a complete shoe unit designed to work inside a parking brake drum. Visually, it is not just a loose lining strip or a plain backing plate. It is a ready-to-match friction assembly for a machine-specific brake system.

For search visibility, it is still important to include the common number formats buyers use in the market. Industrial customers may search 2323253130, 232-32-53130, or 232 32 53130, so the best product page keeps those references visible without repeating the full keyword in every paragraph. Public parts sites already show the number in both hyphenated and unhyphenated forms, which supports that approach.

Product Overview

232-32-53130 SHOE ASSY KOMATSU is publicly described as a parking brake shoe assembly used on Komatsu graders. In the GD511A-1 parts manual view, the part appears inside the parking brake section with quantity 2, alongside related items such as the plate assembly, back plate, cam shaft, return spring, pin, washer, drum assembly, collar, O-rings, and holder. That context makes the application very clear: this is a working friction part inside a complete parking brake mechanism.

That distinction matters in real service work. A grader parking brake shoe is not just another wear item on a shelf. It affects machine holding performance, brake engagement consistency, and service reliability. Because this part belongs to a defined parking brake assembly, correct fit is more important than broad visual similarity. That is why buyers usually search the exact Komatsu code rather than a generic term like “brake shoe.”

At 3GEN Export, we supply this part as an OEM supplier for heavy machinery spare parts and support worldwide delivery in 5 working days. For dealers, workshops, and fleet operators, that means faster sourcing for a grader brake part that needs exact identification.

What This Brake Shoe Assembly Does

The function of 2323253130, 232-32-53130 SHOE ASSY KOMATSU is to provide controlled friction inside the grader parking brake system. Public catalog placement in the parking brake group, together with the visible riveted lining, supports the same conclusion: this part works against the mating drum surface when the parking brake is engaged.

In practical terms, that means the shoe assembly helps the parked machine stay where it should. If the lining is worn, the carrier is distorted, or the shoe no longer fits correctly in the drum, holding performance can drop. That is one reason maintenance teams often replace this part by exact number during parking brake service rather than trying to identify it by shape alone.

Visible Features from the Product Images

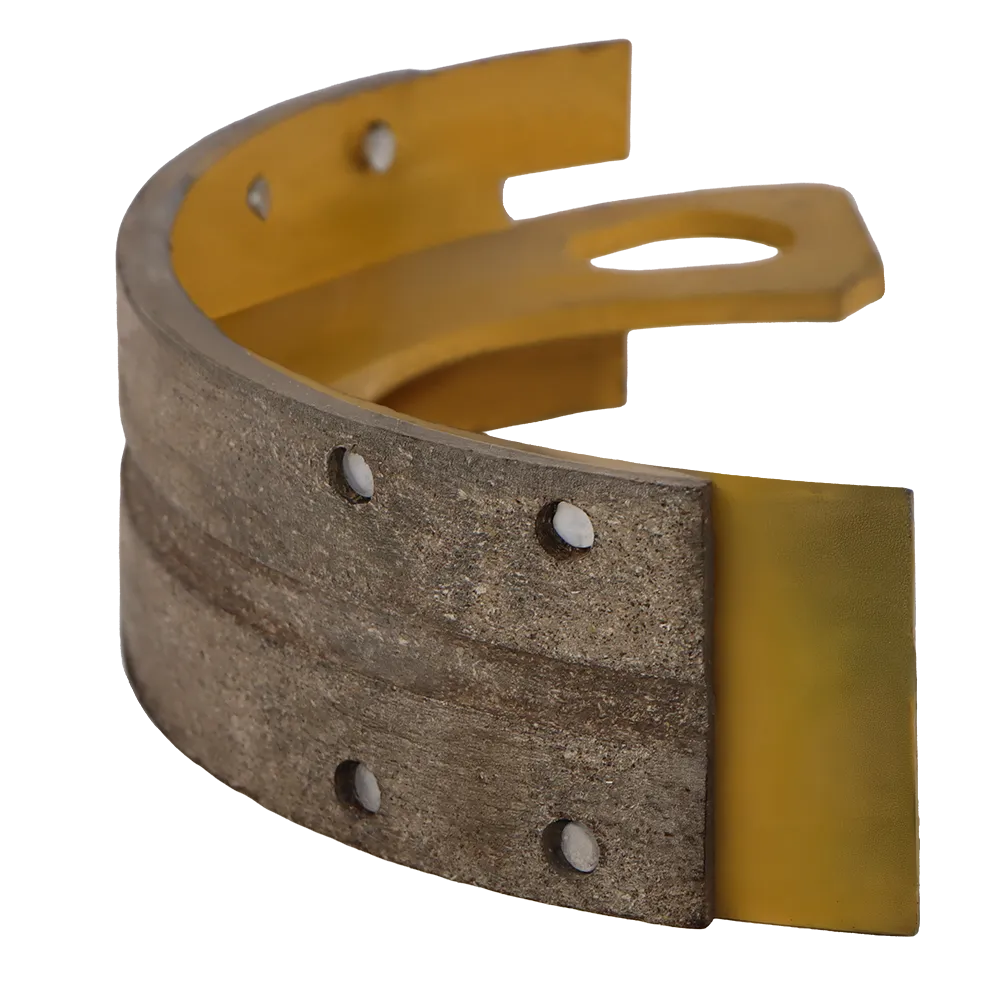

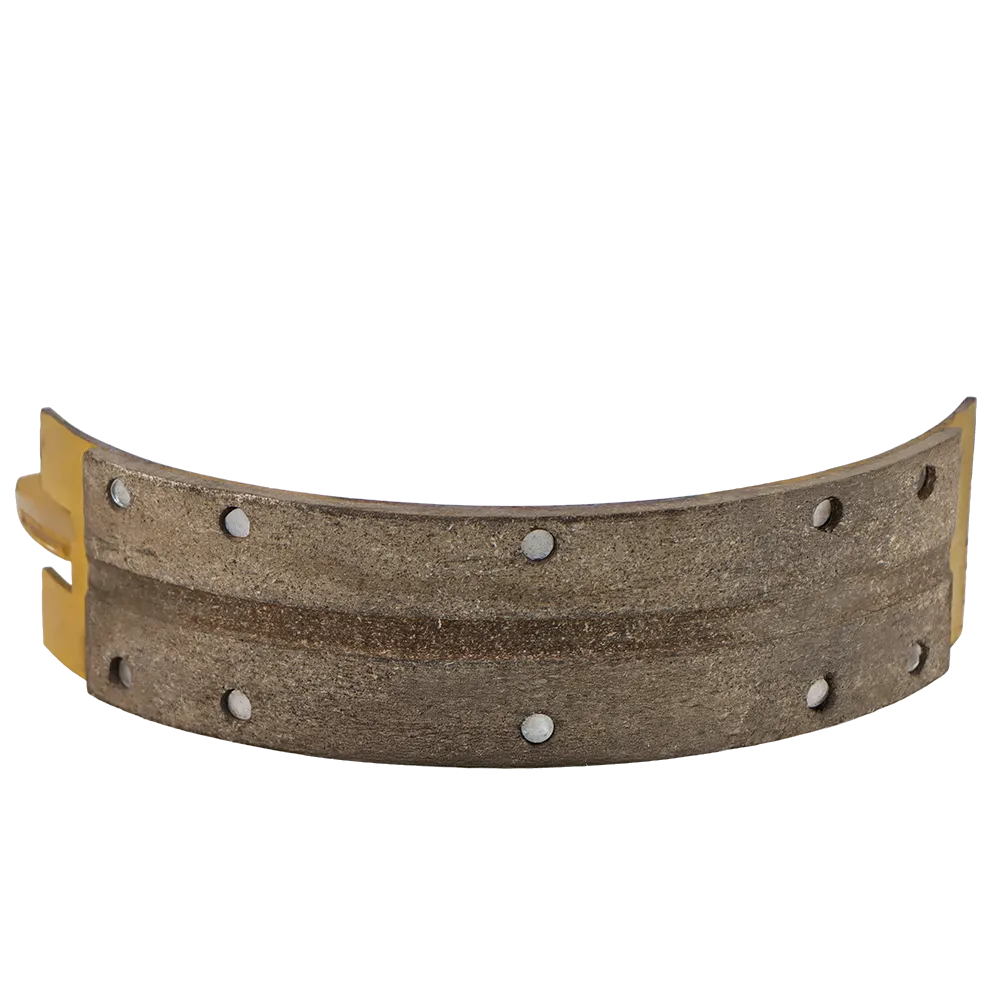

Riveted friction lining

The outer arc carries a friction layer secured with evenly spaced rivets. This is one of the clearest signs that the part is built for drum-brake contact and repeated braking load.

Curved steel shoe body

The carrier follows the shape expected from a drum-style brake shoe. That curved profile allows the friction surface to sit correctly against the internal drum surface during brake engagement.

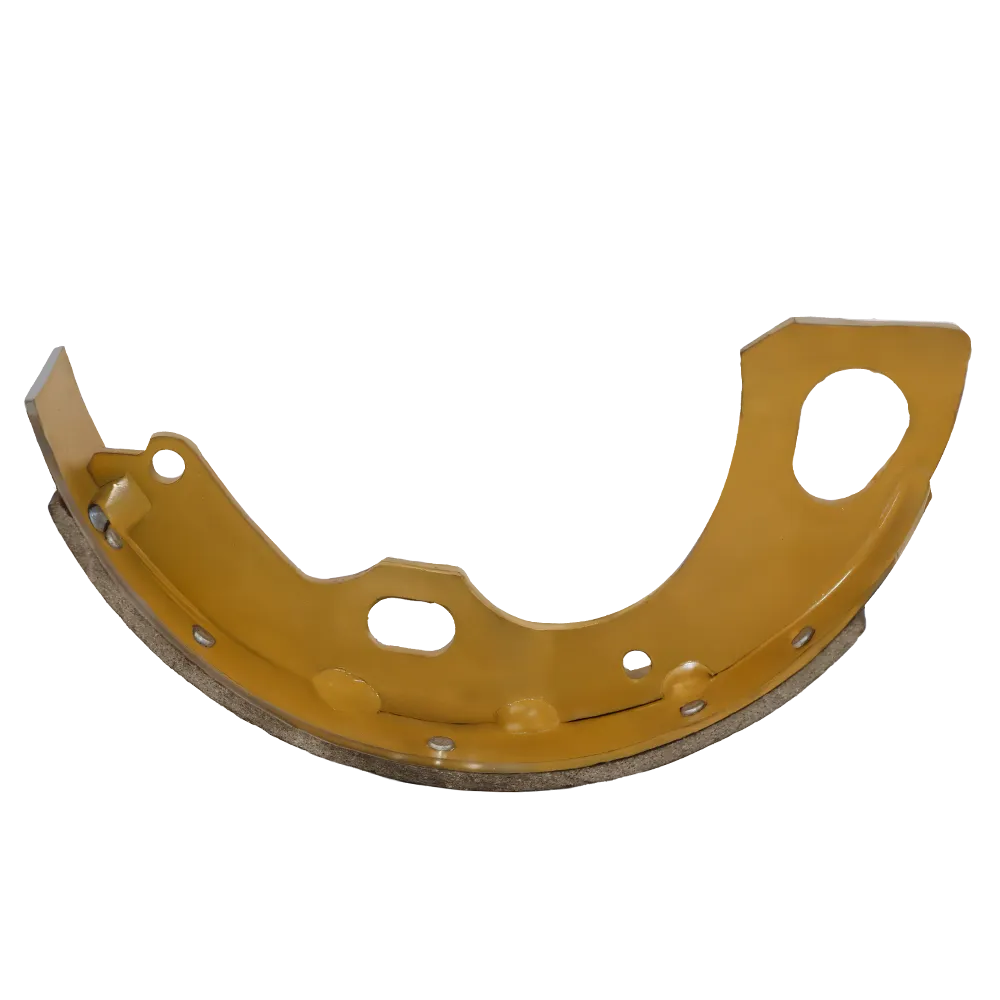

Formed mounting tabs and openings

The inner yellow structure includes shaped tabs, holes, and mounting features that show this is a complete shoe assembly rather than only a lining segment. These details help it connect with the surrounding brake hardware.

Reinforced inner plate geometry

The inner structure adds rigidity and helps the shoe maintain shape under working load. On a grader parking brake system, that kind of reinforcement matters because the assembly must hold alignment as it engages and releases.

Technical Identity

Public parts sources are consistent on the core identity of this part. The number 232-32-53130 is listed as SHOE ASS’Y, the reference weight is shown as 0.5 kg, and compatibility results associate it with graders and wheel stabilizers in the Komatsu family. The same reference page also shows that the part belongs to a broader Komatsu application group rather than a single one-off machine.

The GD511A-1 manual view adds another important detail: on that parking brake page, the shoe assembly is shown with quantity 2, which strongly suggests a two-shoe arrangement in the brake set for the listed serial range. That is useful for buyers checking service scope and parts planning.

KOMATSU Models Commonly Listed Online

Public compatibility listings connect this brake shoe assembly with a broad grader family that includes GD405A, GD500R, GD505A, GD510R, GD511A, GD521A, GD525A, GD600R, GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, GD661A, and GD663A. Public catalog results also include a GS360 stabilizer application on one listing.

More specific public parts-manual references show serial-sensitive parking brake pages for models such as GD505A-3 S/N 1001-UP and GD511A-1 S/N 10001-UP, while parking brake catalog results also appear for GD605A-3. That is why final fitment should always be confirmed by machine model and serial number before order confirmation.

Why This Part Matters in Maintenance

A parking brake shoe assembly may look simple in a photo, but in operation it directly affects holding reliability and service confidence. When the friction surface is worn or damaged, the brake may no longer hold the machine as intended. If the steel carrier or mounting geometry is off, the rest of the parking brake hardware may not work with the same consistency.

That is why buyers search 2323253130 with high intent. They are usually solving a known parking brake issue on a specific Komatsu grader and need a part page that confirms application, function, and supplier reliability without unnecessary repetition.

Why Buy from 3GEN Export

At 3GEN Export, we supply 232-32-53130 SHOE ASSY KOMATSU as an OEM supplier focused on heavy machinery spare parts for global buyers. For a grader parking brake part, speed and clarity matter because one missing brake component can delay service completion and keep a machine out of work longer than necessary.

We support worldwide delivery in 5 working days, helping customers source this Komatsu brake shoe assembly for urgent repairs, scheduled brake service, and stock replenishment.

Final Summary

2323253130, 232-32-53130 SHOE ASSY KOMATSU is a Komatsu parking brake shoe assembly publicly listed as SHOE ASS’Y, assigned a reference weight of 0.5 kg, and shown in parking brake diagrams with related drum, cam, spring, pin, and plate components. Public sources connect it with multiple GD-series graders and show serial-sensitive applications in the parking brake group, which is why model and serial confirmation remains important before ordering.

For your website, the strongest version is one that keeps the exact number visible, explains the parking brake function clearly, uses natural supporting phrases like Komatsu parking brake shoe and grader brake shoe assembly, and presents 3GEN Export as the OEM supplier with worldwide delivery in 5 working days.

Weight

Reference weight: 0.5 kg.
