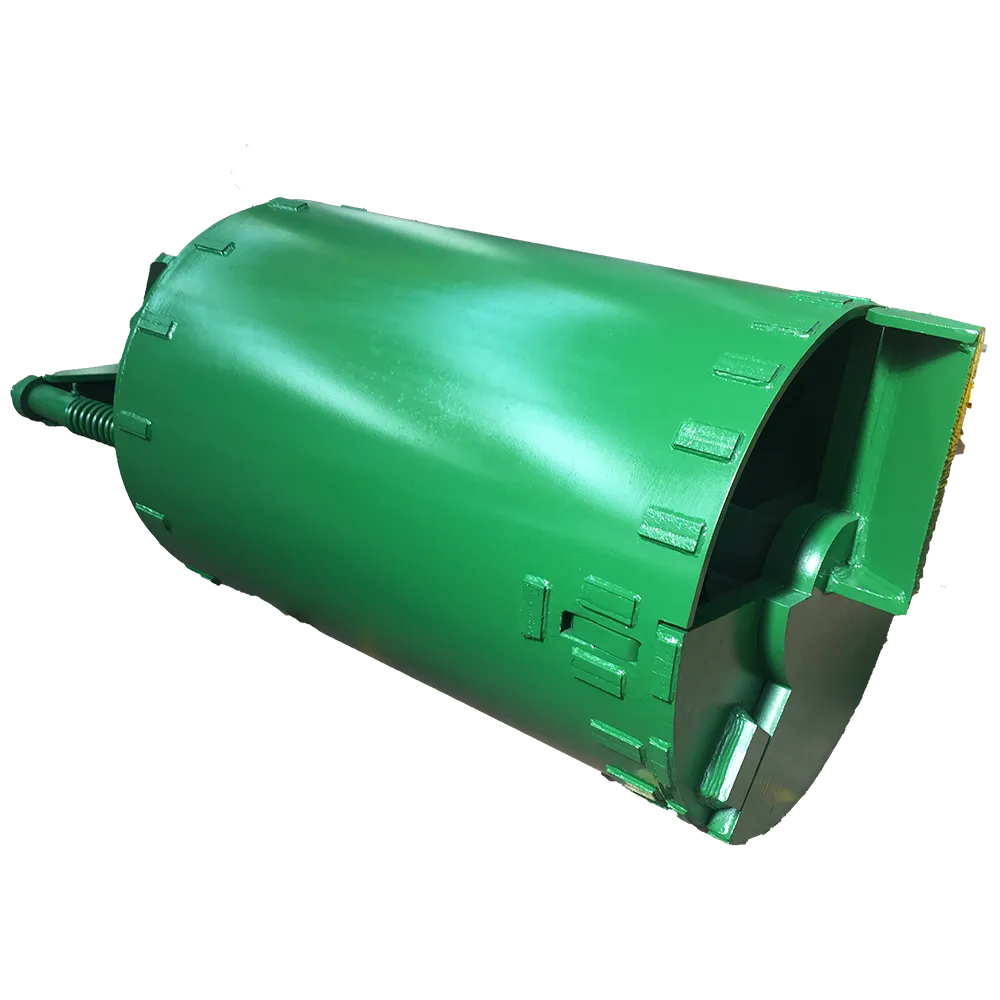

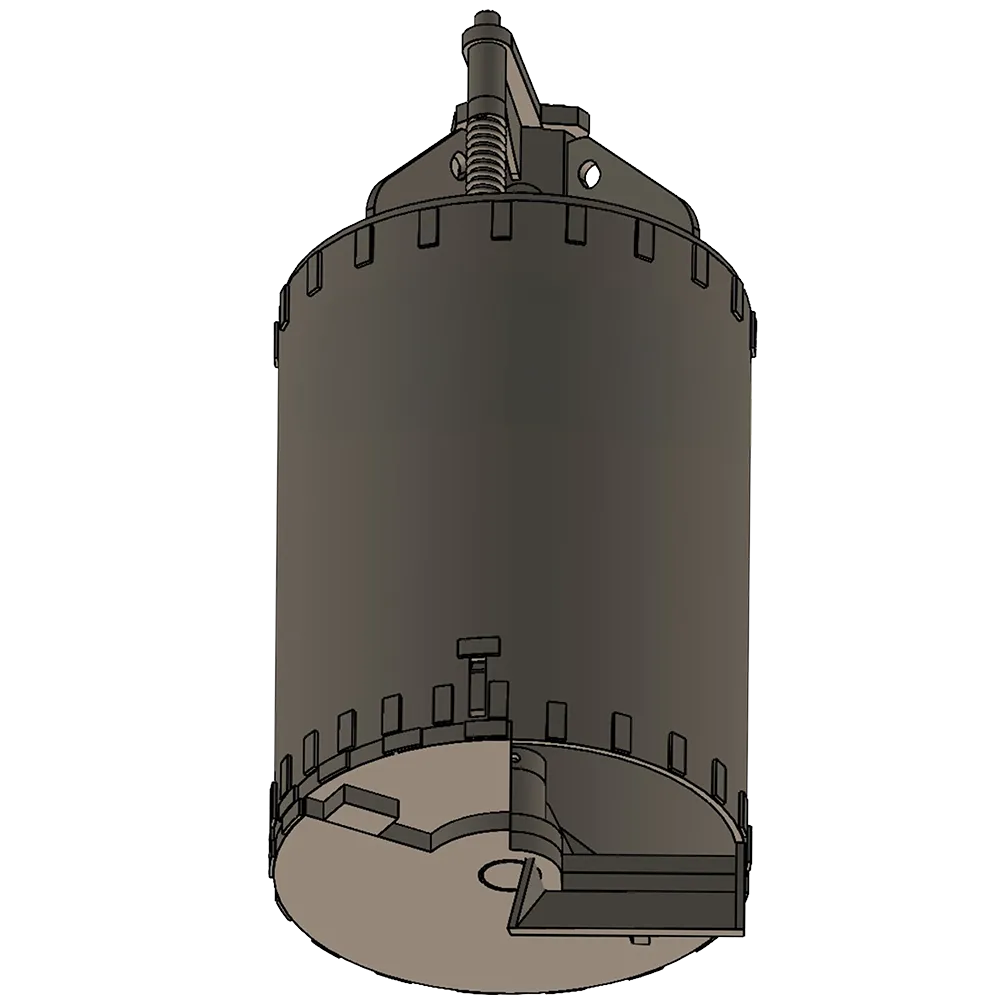

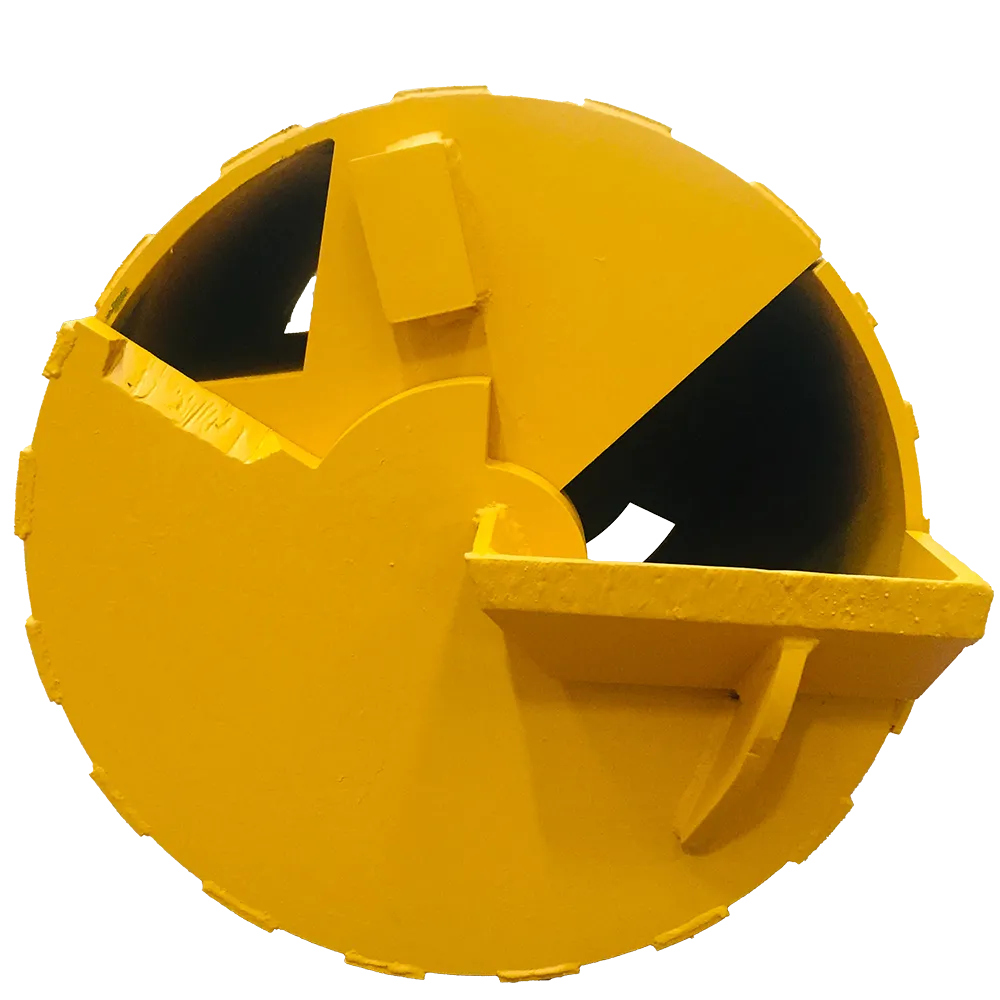

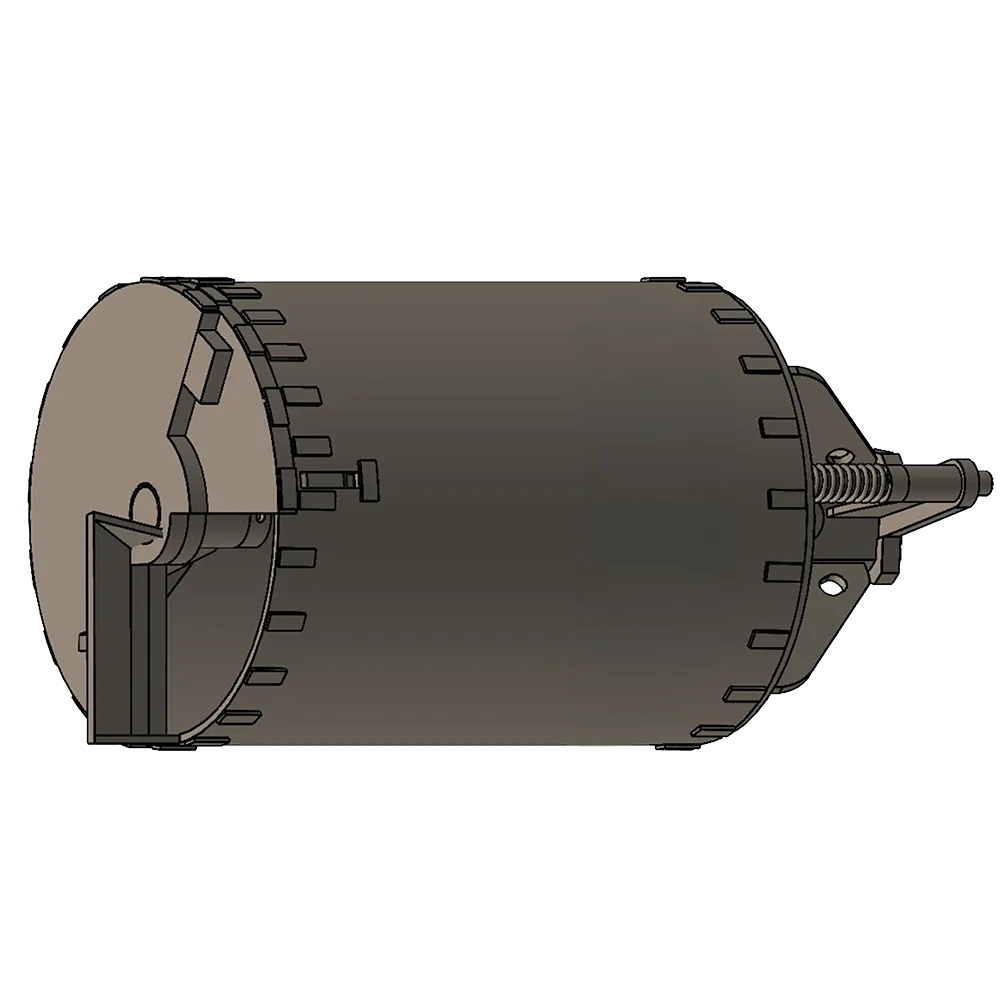

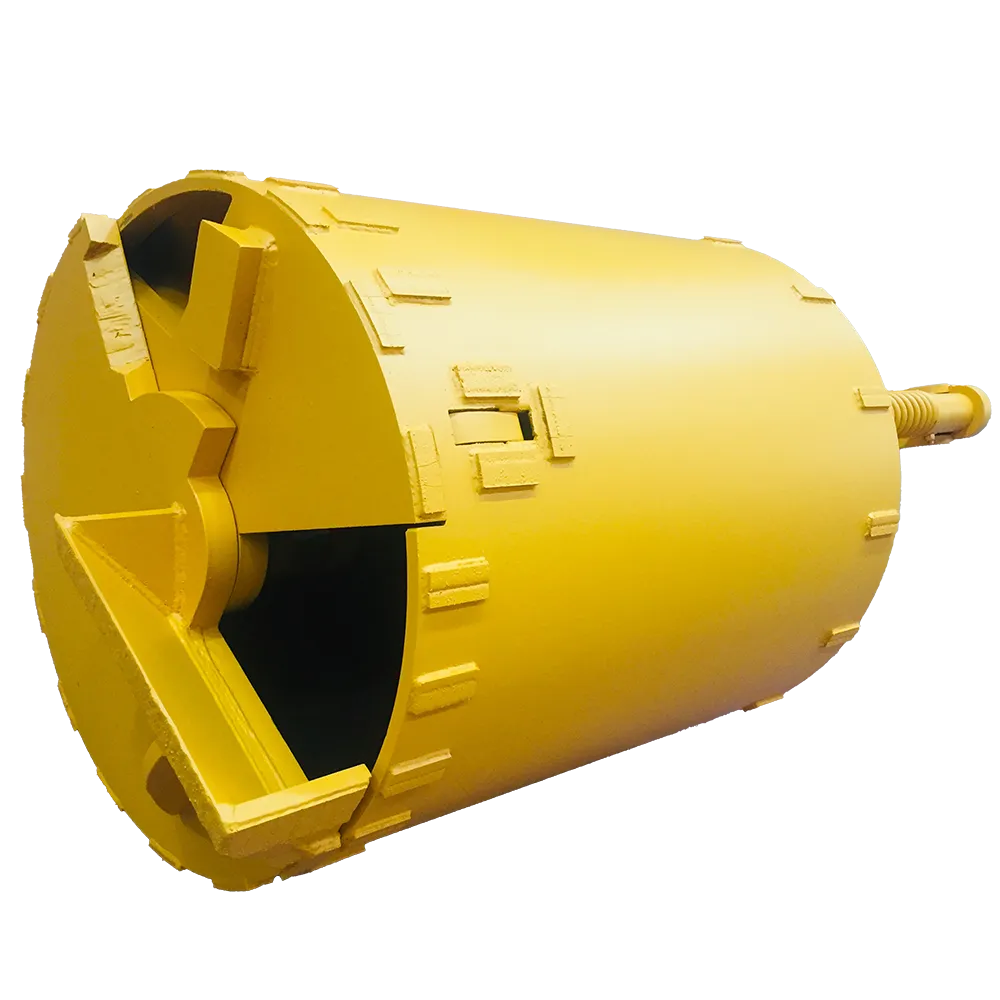

BORED PILE SINGLE CUT CLEANING BUCKET

$14,000.00
Brand: Bauer
Category: Bored Pile Equipment Parts
Part Number: BOREDPILESINGLECUTCLEANINGBUCKET
Availability: In Stock

Description

BORED PILE SINGLE CUT CLEANING BUCKET Overview The Bored Pile Single Cut Cleaning Bucket is a precision-engineered drilling tool designed to deliver a clean, level, and debris-free borehole bottom before concrete pouring. It is an essential part of the foundation construction process, used after drilling with augers or core barrels to remove loose soil, gravel, and slurry residues. Built for accuracy, durability, and compatibility with a wide range of piling rigs, this bucket ensures the highest bearing strength and long-term stability for deep foundations. Manufactured under 3GEN Export’s OEM standards , the BORED PILE SINGLE CUT CLEANING BUCKET offers exceptional performance in both dry and slurry-supported boreholes. Its strong steel body, advanced cutting mechanism, and automatic closing system make it a preferred tool for contractors using Bauer, Soilmec, Liebherr, Junttan, Casagrande, ABI (Banut & Delmag), XCMG, SANY, Woltman, Mait, TYSIM, and Fangyuan piling rigs. Each bucket is manufactured to exact dimensional tolerances and tested for load stability, ensuring reliable operation in soil layers ranging from cohesive clay to dense sand and weathered rock. Function and Application The BORED PILE SINGLE CUT CLEANING BUCKET serves a singular but critical purpose: cleaning the borehole bottom prior to concreting. After the drilling process is complete, fine soil, slurry, and rock fragments often remain at the base. These unwanted materials can compromise the concrete-to-soil bond and reduce load-bearing capacity. When this bucket is lowered into the borehole and rotated, the cutting edge scrapes and collects all residual debris, creating a smooth and solid surface. The flap doors close automatically as the bucket is lifted, securely trapping the collected material. This ensures minimal spillage and efficient discharge at the surface. Applications include: Bridge and viaduct foundations requiring deep, stable piles High-rise building foundations where structural reliability is vital Ports, marine, and offshore piling projects Wind turbine bases in hard or mixed soil conditions Infrastructure and industrial foundation works The BORED PILE SINGLE CUT CLEANING BUCKET is indispensable for projects where precision and stability define success. Design and Construction Features 1. Single-Cut Bottom Design The defining feature of this bucket is its single-cut structure — a heavy-duty bottom plate equipped with sharp, replaceable blades. As the bucket rotates, these blades efficiently scrape off the last layers of sediment and loose materials at the borehole base. The simple mechanical layout guarantees reliability with fewer moving parts, reducing maintenance frequency. 2. Spring-Loaded Bottom Flaps The spring-loaded flap mechanism automatically opens during soil collection and closes when the bucket is lifted. This self-sealing system prevents the loss of collected material during lifting and transportation, providing a cleaner and faster operation cycle. 3. High-Tensile Steel Cylinder Body Fabricated from heat-treated alloy steel , the cylinder body withstands the extreme torque and vertical pressure generated by heavy drilling rigs. Its reinforced ribs and balanced geometry ensure stability and uniform stress distribution, even under continuous high-load conditions. 4. Replaceable Cutting Teeth and Wear Pads Each tooth and wear segment is manufactured with tungsten-carbide tips , providing long-lasting sharpness and resistance to abrasion. The modular design allows quick replacement of teeth and pads, reducing downtime during maintenance. 5. Kelly Box Interface The upper connection features a standard Kelly box (available in 130 mm, 200 mm, and 250 mm square sizes) for perfect fit with all major rotary drilling rigs. This universal interface simplifies equipment changeovers and ensures torque transfer efficiency. 6. Surface Treatment and Corrosion Protection Every BORED PILE SINGLE CUT CLEANING BUCKET is coated with industrial-grade epoxy paint, ensuring strong resistance to corrosion, slurry, and humidity. The high-gloss yellow or green coating visible in the images also improves visibility and safety on construction sites. Technical Specifications Parameter Specification Product Name BORED PILE SINGLE CUT CLEANING BUCKET Structure Type Single cutting edge with automatic flap Material High-tensile alloy steel Bucket Diameter (D) 520 mm – 2020 mm Outer Diameter (OD) 620 mm – 2200 mm Total Length (GL) 2268 mm – 2318 mm Net Length (NL) 1879 mm – 1929 mm Weight Range 480 kg – 1050 kg Kelly Box Sizes 130 / 200 / 250 mm square Suitable Soil Types Clay, sand, gravel, silt, and soft rock Application Stage Final cleaning before concrete pouring Surface Coating Industrial epoxy anti-corrosion Delivery Time 5 working days worldwide Manufacturer 3GEN Export – OEM Supplier Dimensional Reference Table D (mm) OD (mm) GL (mm) NL (mm) 520 620 2268 1879 630 730 2268 1879 650 750 2268 1879 780 880 2268 1879 880 1000 2268 1879 960 1080 2268 1879 1060 1180 2268 1879 1080 1200 2268 1879 1160 1280 2268 1879 1180 1300 2268 1879 1350 1500 2318 1929 1650 1800 2318 1929 1820 2000 2318 1929 2020 2200 2318 1929 Approximate Weight: 520 – 780 mm : 480 – 650 kg 880 – 1180 mm : 700 – 850 kg 1350 – 1650 mm : 900 – 980 kg 1820 – 2020 mm : 1000 – 1050 kg How It Works Lowering into the Borehole The bucket is attached to the Kelly bar and lowered to the borehole’s base. The spring-loaded flaps open automatically due to hydraulic pressure and gravity. Cutting and Collecting Phase As the rotary drive activates, the single-cut edge scrapes and collects residual debris, sand, and fine particles. The bucket fills evenly without disturbing the surrounding wall. Lifting and Sealing During lifting, the flap closes tightly, trapping all material inside. This prevents debris loss and ensures the borehole bottom remains clean and undisturbed. Discharging at the Surface Once above ground, the flap opens, allowing rapid and complete soil discharge. The process can be repeated until the borehole is perfectly clean and ready for concreting. This efficient operation cycle allows contractors to maintain continuous workflow with minimal downtime. Compatibility with Leading Rig Brands The BORED PILE SINGLE CUT CLEANING BUCKET is compatible with a wide range of international piling rigs. 3GEN Export manufactures the Kelly box and mounting interfaces according to OEM dimensions for universal fit. Bauer (Germany) Models: BG 20, BG 28, BG 36, BG 45 Engineered for high torque applications and bentonite-supported boreholes. Soilmec (Italy) Models: SR-30, SR-45, SR-75, SR-95 Delivers smooth operation with Soilmec’s rotary drives for medium-deep piles. Liebherr (Germany) Models: LB 20, LB 28, LB 36, LB 44 Ensures precise alignment and low vibration for large-diameter shafts. Junttan (Finland) Models: PMx20, PMx22, PMx24, PMx27 Compact design suits limited-access sites and lightweight piling systems. Casagrande (Italy) Models: B125 XP, B200 XP, B300 XP Enhanced for deep foundations where precision and balance are critical. ABI (Banut & Delmag, Germany) Models: RH Series, MIDI Series Reinforced cutting edges withstand high-torque hydraulic systems. XCMG (China) Models: XR220D, XR280D, XR360E Optimized for fast drilling cycles and consistent soil discharge. SANY (China) Models: SR205C10, SR285C10, SR360, SR405R High wear resistance matches SANY’s torque output and drilling depth. Woltman (Netherlands) Models: W Series Piling Rigs Stable and efficient in offshore and deep urban foundations. Mait (Italy) Models: HR130, HR180, HR260, HR300 Strong balance between performance and transport weight. TYSIM (China) Models: KR125A, KR220C, KR300C Compact yet powerful; ideal for urban construction. Fangyuan (China) Models: FYD-Series, FYZ-Series Versatile and robust, perfect for soft to medium-hard formations. Advantages 1. Clean Borehole Finish The single-cut edge design ensures that even fine residues are removed, creating an ideal surface for concrete bonding. 2. Lightweight and Efficient Compared to double-cut buckets, the single-cut design is lighter, allowing faster lifting and higher operational speed without reducing cleaning precision. 3. Minimal Maintenance With fewer mechanical parts and replaceable cutting elements, maintenance costs are significantly reduced. 4. Superior Durability High-strength steel and tungsten-carbide teeth ensure long service life under demanding site conditions. 5. Compatibility and Flexibility Designed for all major rig systems with multiple Kelly box options, making it a universal tool for global contractors. 6. Enhanced Safety and Stability Balanced design minimizes vibration, protecting both the rig and operators during deep foundation work. Manufacturing and Quality Standards All BORED PILE SINGLE CUT CLEANING BUCKETS produced by 3GEN Export follow stringent quality control measures: CNC cutting and plasma welding for dimensional precision Dynamic balance testing to minimize torque loss Ultrasonic weld inspection to prevent fatigue cracks Heat-treated blades for extended durability Epoxy-based coating for corrosion resistance Final assembly inspection ensuring full alignment and operation smoothness Every unit is serialized for traceability, packed securely, and dispatched with inspection certificates and technical documentation. Weight and Handling Diameter (mm) Approx. Weight (kg) 520 – 780 480 – 650 880 – 1180 700 – 850 1350 – 1650 900 – 980 1820 – 2020 1000 – 1050 This balanced weight distribution improves handling and reduces energy consumption during drilling operations. Field Performance Engineers and operators value the BORED PILE SINGLE CUT CLEANING BUCKET for its reliability in real-world construction environments: Urban infrastructure: stable cleaning in restricted spaces Offshore piling: corrosion-resistant coating withstands saline water Bridge foundations: precise cleaning at significant depths Wind energy projects: consistent performance in mixed soil conditions The result is faster project turnover, reduced equipment wear, and uncompromised foundation quality. Packaging and Delivery Each bucket is shipped with: Protective anti-rust coating Customized wooden or steel packaging Serial number and inspection documentation Optional cutting-tooth spare kit 3GEN Export guarantees worldwide delivery within 5 working days , supported by a dedicated logistics team ensuring fast customs clearance and door-to-site delivery. Why Choose 3GEN Export OEM-manufactured spare parts with precision engineering Global distribution network across 5 continents 1-year product warranty Compatible with all leading drilling equipment brands Reliable, tracked international delivery within 5 days 3GEN Export continues to serve the heavy-machinery industry as a trusted OEM supplier, delivering durability, precision, and reliability to global foundation contractors. Conclusion The BORED PILE SINGLE CUT CLEANING BUCKET by 3GEN Export redefines efficiency in final borehole cleaning. With its simplified single-cut design, strong steel structure, and automatic sealing system, it provides consistent performance under all drilling conditions. Engineered to integrate seamlessly with the world’s top drilling rigs, it guarantees clean, stable boreholes ready for concrete placement. Built for performance, precision, and endurance — and shipped worldwide within 5 working days — this bucket stands as a benchmark for quality in the global piling industry. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
