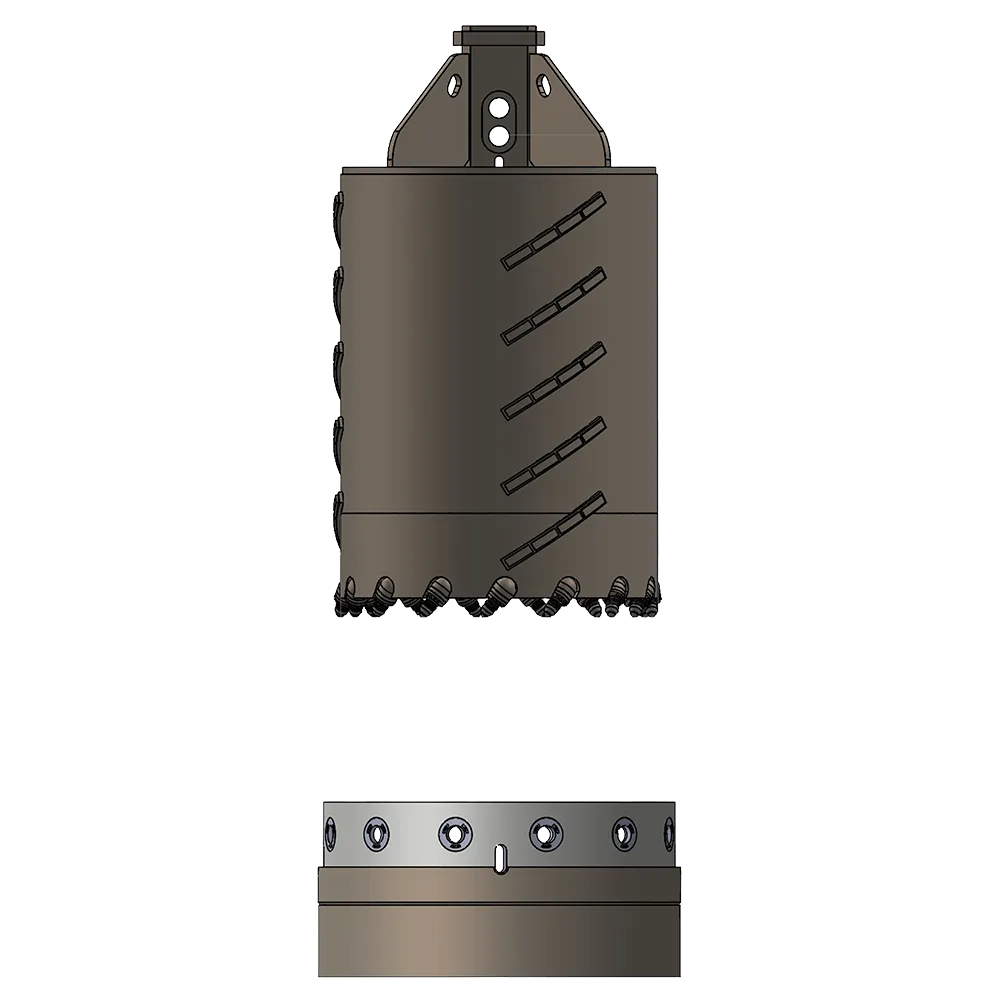

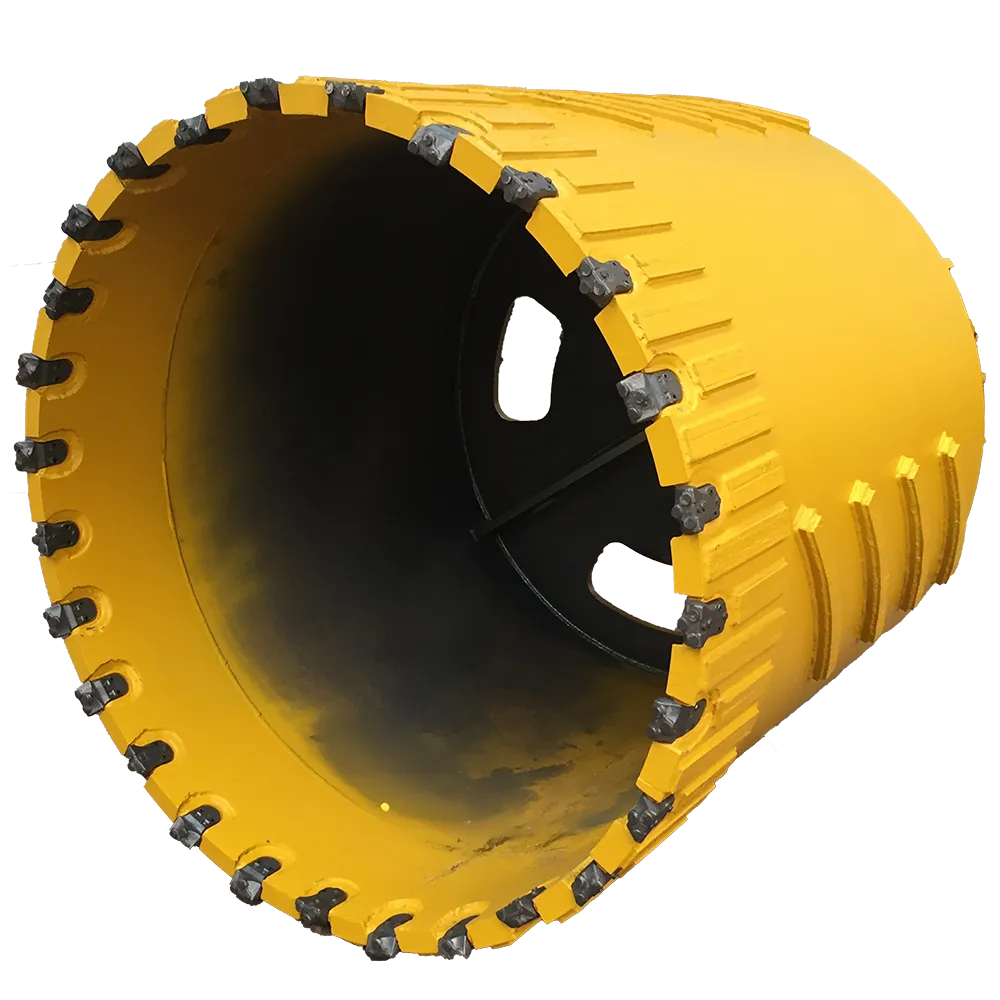

CORE BARREL FOR BORED PILE

$12,000.00
Brand: Bauer
Category: Bored Pile Equipment Parts
Part Number: COREBARREL
Availability: In Stock

Description

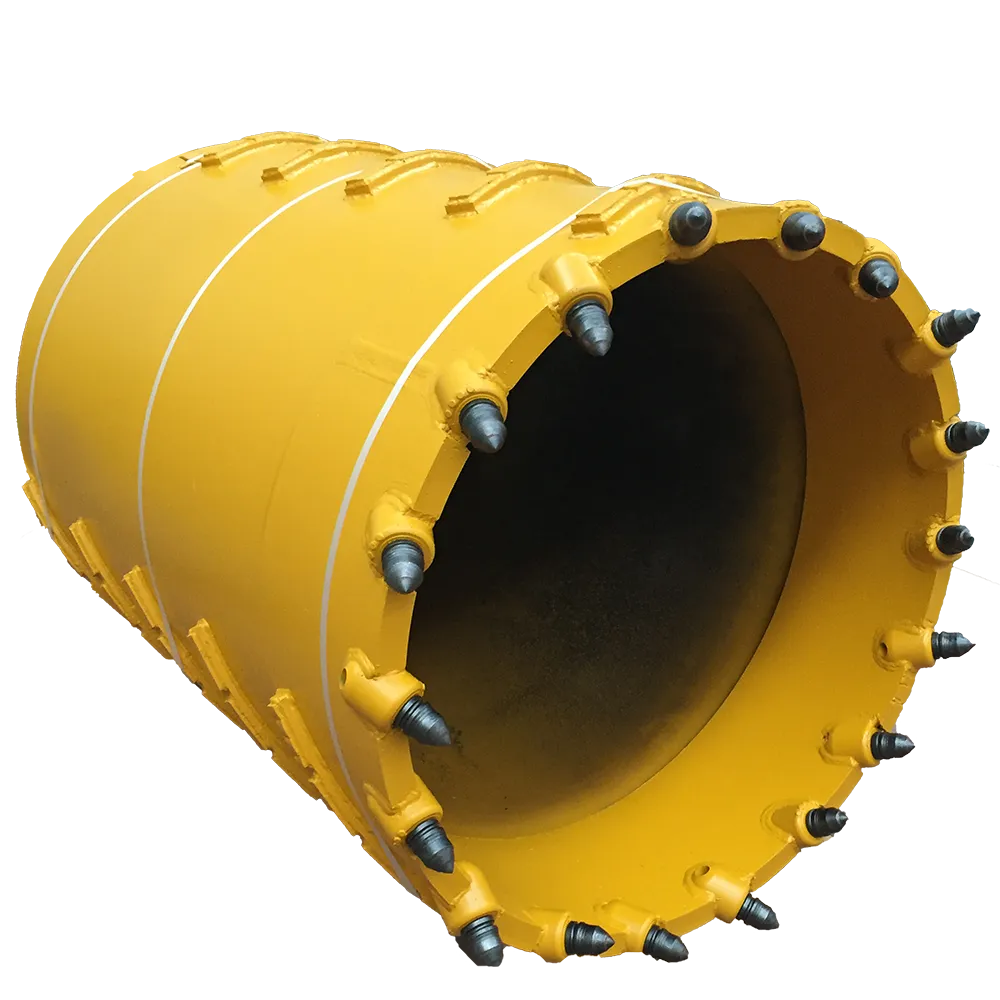

CORE BARREL WITH ROUND SHANK CHISEL – The Ultimate Rock Drilling Solution for BAUER, LIEBHERR, SOILMEC, SANY, and XCMG Rigs When it comes to drilling through rock layers, dense soil strata, or mixed formations, the Core Barrel with Round Shank Chisel stands as an irreplaceable tool in bored pile foundation work. Designed for use with heavy-duty rotary drilling rigs, this core barrel provides exceptional penetration power and material removal efficiency — especially in coring through weathered rock or hard boulders. At 3GEN Export, we offer this vital component in multiple diameters and configurations to perfectly match your rig’s specifications and job site requirements. What is a CORE BARREL WITH ROUND SHANK CHISEL? The Core Barrel with Round Shank Chisel is a specialized drilling tool fitted with round shank chisels, or conical bits, arranged along its cutting ring. These bits are optimized to break, cut, and crush through high-compression materials. As the barrel rotates, the round shank chisels penetrate and dislodge the formation, while the hollow core retains the broken fragments inside for removal. This type of core barrel is ideal for coring fractured or hard rock formations, providing an efficient means of excavation with reduced wear on the primary drilling rig. Technical Specifications Cutting Tool Type: Tungsten carbide round shank chisels Barrel Diameter Range: From 620 mm up to 2200 mm Outer Diameter (OD): Matches casing sizes for precise insertion GL (Total Length): 2090–2140 mm depending on diameter NL (Net Length): 1701–1751 mm for effective cutting depth D (mm) OD (mm) GL (mm) NL (mm) 520 620 2090 1701 630 730 2090 1701 650 750 2090 1701 780 880 2090 1701 880 1000 2090 1701 960 1080 2090 1701 1060 1180 2090 1701 1080 1200 2090 1701 1160 1280 2090 1701 1180 1300 2090 1701 1350 1500 2140 1751 1650 1800 2140 1751 1820 2000 2140 1751 2020 2200 2140 1751 Key Features of CORE BARREL WITH ROUND SHANK CHISEL Rock-Breaking Performance: Designed for medium to hard rock, this tool offers unmatched penetration using hardened tungsten carbide round shank chisels. Heavy-Duty Structure: Reinforced barrel walls and flange sections are built to withstand extreme torque and axial loads. Efficient Material Displacement: Hollow center retains debris for smooth, clean drilling without clogging the hole. Replaceable Cutting Tools: Individual round shank chisels can be replaced without disassembling the entire unit, reducing downtime. Helical Ejector Slots: Spiral slits on the barrel body enhance spoil removal and cooling efficiency during rotation. Applications Bridge and Tunnel Foundations: Essential for drilling rock sockets and piles in challenging geological settings. Urban Skyscraper Projects: Allows controlled rock excavation in compact or vibration-sensitive zones. Marine and Riverbed Drilling: Performs well in submerged rock formations and tidal foundation work. Infrastructure Development: Ideal for hydroelectric dams, highways, and rail foundations requiring deep rock penetration. Rig Compatibility 3GEN Export’s Core Barrel with Round Shank Chisel is fully compatible with leading bored pile rigs and rotary drive systems, including: BAUER: BG 20 / BG 28 / BG 36 / BG 40 LIEBHERR: LB 24 / LB 28 / LB 36 SOILMEC: SR-45 / SR-75 / SR-100 SANY: SR285 / SR360 / SR460 XCMG: XR220DII / XR280D / XR360E Each core barrel is manufactured with flange dimensions that match standard casing connections used by these rig types. Why Choose 3GEN Export? At 3GEN Export , we offer OEM-standard spare parts that are engineered, tested, and trusted by global contractors in the deep foundation industry. Here’s why clients across 5 continents rely on our Core Barrel with Round Shank Chisel : Fast Global Delivery: Ships anywhere in the world within 5 working days. OEM Manufacturing: Precision-built in Turkey with ISO-certified processes. 1-Year Warranty: Each product comes backed with full technical support and a 12-month warranty. Wide Inventory: Multiple diameters and configurations are available in stock for immediate shipment. Maintenance Tips Inspect round shank chisels after each use — worn bits reduce efficiency and increase stress on rigs. Clean the barrel interior regularly to prevent build-up of fine particles that may obstruct spoil flow. Apply anti-corrosion coatings if storing in high humidity environments or offshore areas. Rotate cutting tool positions to extend the life of the full set of chisels. Custom Orders and Bulk Supply 3GEN Export supports project-specific barrel production for unusual diameters or rock types. Whether you need a barrel for granite layers or abrasive sandstone, we offer engineering customization and quantity-based pricing for bulk orders. Conclusion The Core Barrel with Round Shank Chisel is an indispensable tool for deep foundation drilling in harsh geologies. It offers powerful, efficient excavation performance with minimal maintenance, making it ideal for contractors working on infrastructure megaprojects, commercial buildings, and marine environments. Backed by 3GEN Export’s trusted OEM supply chain and technical expertise, it’s the smart choice for precision and power below the surface. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
