DOUBLE CUT SOIL BUCKET FOR BORED PILE

$12,000.00
Brand: Bauer
Category: Bored Pile Equipment Parts
Part Number: DOUBLECUTSOILBUCKET
Availability: In Stock

Description

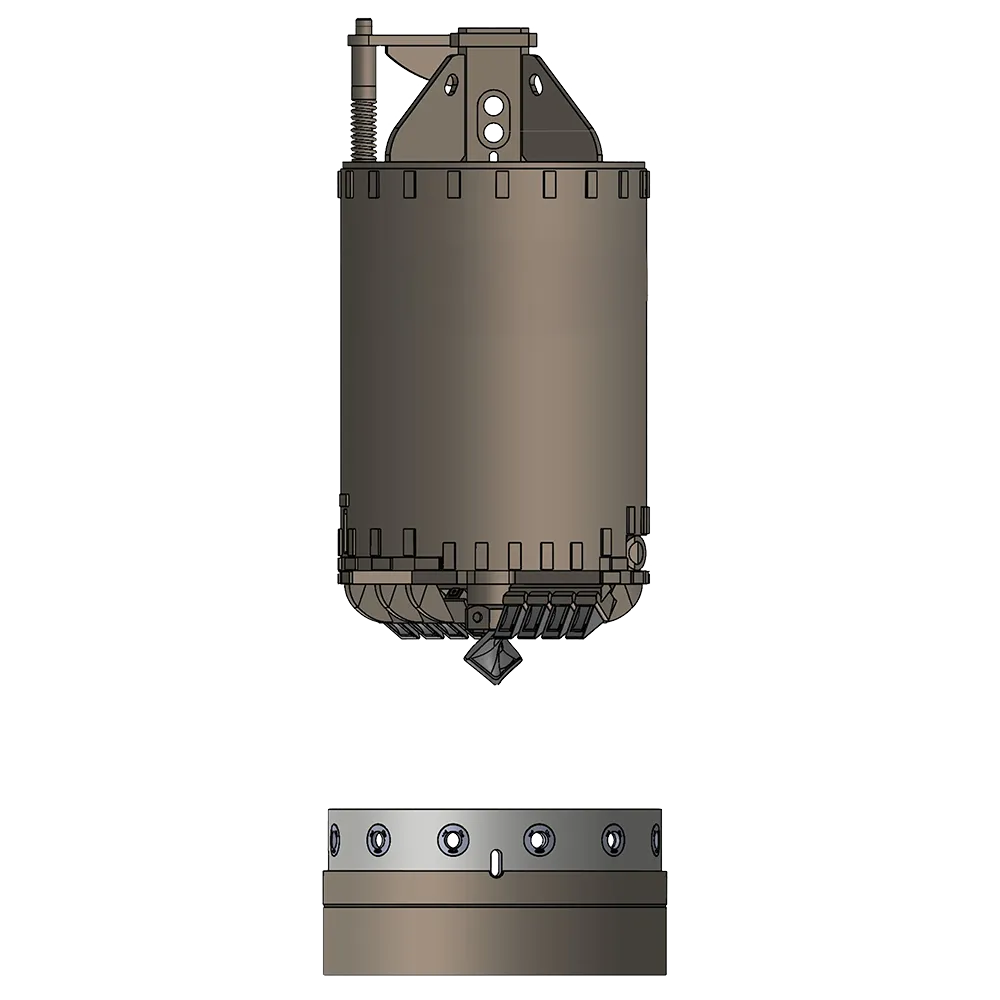

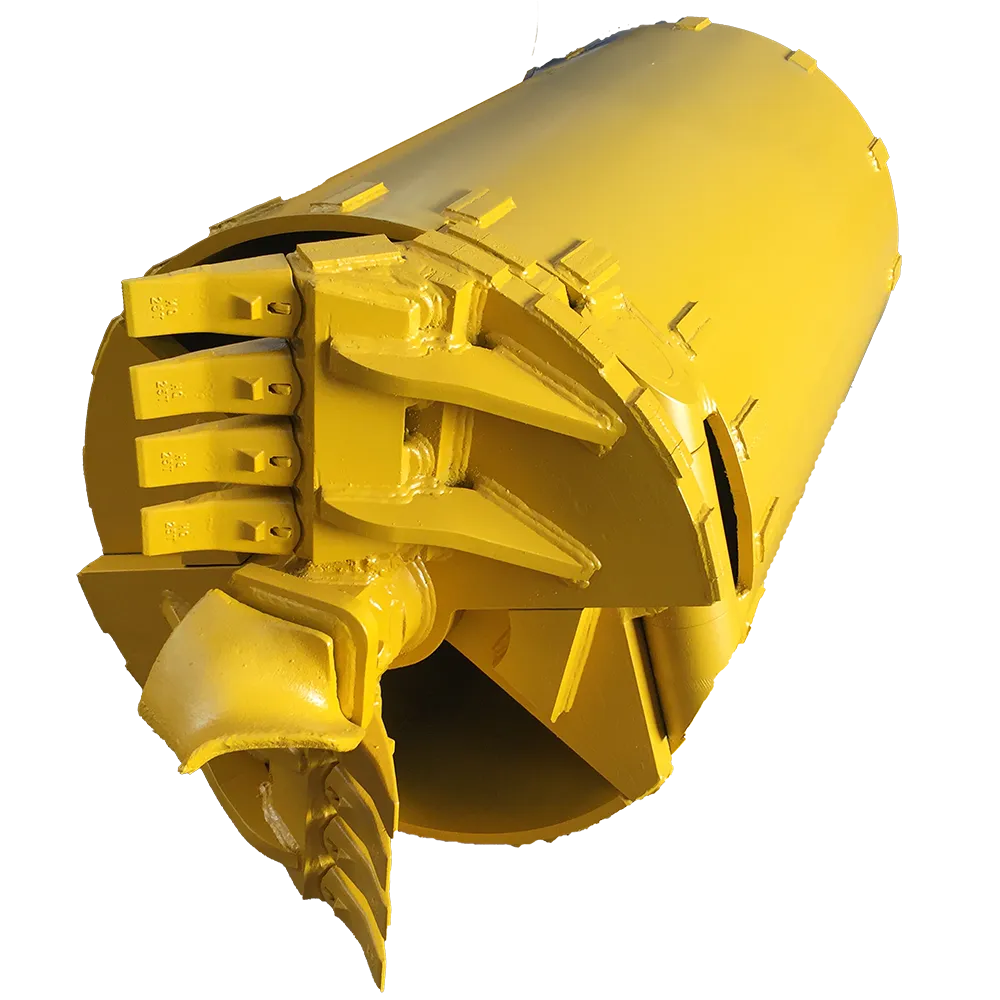

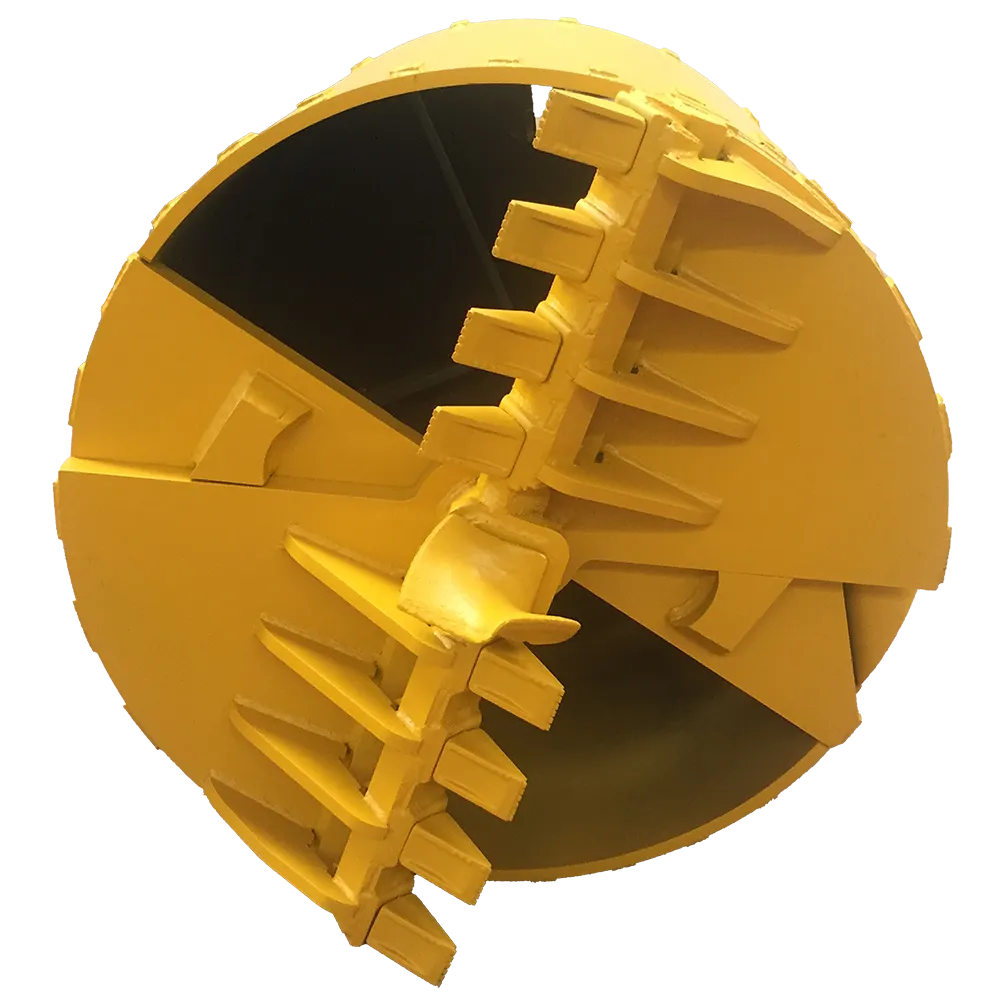

DOUBLE CUT SOIL BUCKET – The Ultimate Tool for Efficient Soil Excavation in Foundation Drilling When it comes to drilling deep foundation piles in cohesive or medium-density soil, the right bucket makes all the difference. The Double Cut Soil Bucket (Bored Pile Machine Spare Parts) is purpose-built to deliver optimal excavation performance and increased spoil intake in every rotation. Whether you’re working with silt, clay, or loose gravel, this bucket ensures that no material is left behind. Developed by 3GEN Export as an OEM-compatible solution, the Double Cut Soil Bucket is fully compatible with major drilling rigs including BAUER , LIEBHERR , SOILMEC , SANY , and XCMG . Built in Türkiye and globally trusted, this tool combines innovation, rugged design, and unmatched reliability. Product Overview The Double Cut Soil Bucket is a cylindrical excavation tool equipped with two horizontally mounted cutting plates — an upper and a lower one — that slice into soil layers with synchronized efficiency. This dual cutting action creates a powerful scooping motion, gathering and trapping soil into the bucket with minimal resistance. It's ideal for use in both dry and wet drilling conditions, ensuring stable, centered bores in complex strata. Typical use cases: Deep pile foundations Pile shaft cleaning Water-retaining structures Infrastructure foundations in soft to medium-hard soil layers Technical Specifications D (Diameter) OD (Outer Diameter) GL (Total Length) NL (Useful Length) 520 mm 620 mm 2446 mm 2057 mm 630 mm 730 mm 2446 mm 2057 mm 650 mm 750 mm 2446 mm 2057 mm 780 mm 880 mm 2446 mm 2057 mm 880 mm 1000 mm 2446 mm 2057 mm 960 mm 1080 mm 2451 mm 2062 mm 1060 mm 1180 mm 2451 mm 2062 mm 1080 mm 1200 mm 2451 mm 2062 mm 1160 mm 1280 mm 2451 mm 2062 mm 1180 mm 1300 mm 2451 mm 2062 mm 1350 mm 1500 mm 2461 mm 2072 mm 1650 mm 1800 mm 2461 mm 2072 mm 1820 mm 2000 mm 2461 mm 2072 mm 2020 mm 2200 mm 2461 mm 2072 mm These configurations allow you to select the ideal size based on your rig's torque limits and the soil profile of the project site. Key Features Dual Cutting Blades : Two-tiered cutting edges increase spoil entry, improving cycle efficiency in soft to cohesive soil types. Strong Central Axis : Maintains vertical stability even in sticky or shifting materials. Replaceable Scraper Teeth : Hard-faced teeth ensure maximum penetration and can be quickly swapped out for continued performance. Openable Bottom Door : Hydraulic or mechanical discharge system for fast spoil removal. Optional Wear Protection : Side wear pads and reinforced cutting edges extend operational life in abrasive soils. Compatible Models The Double Cut Soil Bucket is engineered to match the performance requirements of top-tier rotary drilling rigs: BAUER : BG 20, BG 26, BG 36 LIEBHERR : LB 24, LB 36, LB 44 SOILMEC : SR-45, SR-65, SR-95 SANY : SR200, SR280, SR360 XCMG : XR220D, XR280D, XR360E Whether you’re mobilizing for a metro project, bridge foundation, or high-rise development, this bucket is ready to slot into your rig with minimal adjustment. Advantages at a Glance Higher Soil Retention : Dual blades create a denser fill per pass compared to single-blade buckets. Smoother Bore Walls : Keeps the shaft clean and straight, reducing the need for post-drilling stabilization. Minimized Torque Demand : Efficient rotation with lower energy use, increasing fuel savings and rig longevity. Adaptable for Wet Conditions : Performs reliably in mudstone, clay, and water-bearing formations. Fast Discharge Cycle : Open-bottom design reduces spoil release time, maximizing daily output. Trusted OEM Quality by 3GEN Export Precision Manufacturing : Made in Türkiye with cutting-edge production methods and strict quality control. Global Shipping in 5 Working Days : Wherever you are in the world, we get your bucket there on time — no excuses. OEM-Compatible : Built to integrate perfectly with industry-standard rigs. 1-Year Warranty : Your purchase is protected with guaranteed operational support. Customer-First Approach : Need custom dimensions or adapter solutions? We’re ready to help. Typical Applications Deep foundation piles for commercial/residential buildings Bridge columns and infrastructure foundations High-capacity borehole cleaning Wind turbine base preparation Retaining structures and dam foundations If your jobsite demands deep and clean boreholes through soft to dense soils, this bucket brings consistency and performance to every dig. Maintenance & Operation Tips Inspect scraper bars and discharge hinge regularly for wear Apply corrosion protection after prolonged wet drilling Grease pivot pins after every shift Avoid exceeding specified RPM/torque recommendations Store in a sheltered area to protect coatings and edge wear plates Conclusion The Double Cut Soil Bucket from 3GEN Export isn’t just another drilling attachment — it’s your guarantee for efficient soil excavation, cycle after cycle. Designed to increase productivity, reduce mechanical wear, and deliver perfect boreholes, this tool is an essential asset for every serious contractor involved in foundation piling. No matter your project’s complexity, trust in our expertise and global reach to keep your rigs moving. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
