SINGLE CUT SOIL BUCKET FOR BORED PILE
Product Gallery
$12.000,00
5 in stock
- Our spare parts are engineered to seamlessly integrate with your machinery.
- Delivery anywhere in the world in max. 10 days
- 1 year manufacturer warranty
- Your transactions are protected by the most advanced security measures.
- Shipping fees are included in the prices of all our products.
Product Video
Product Description

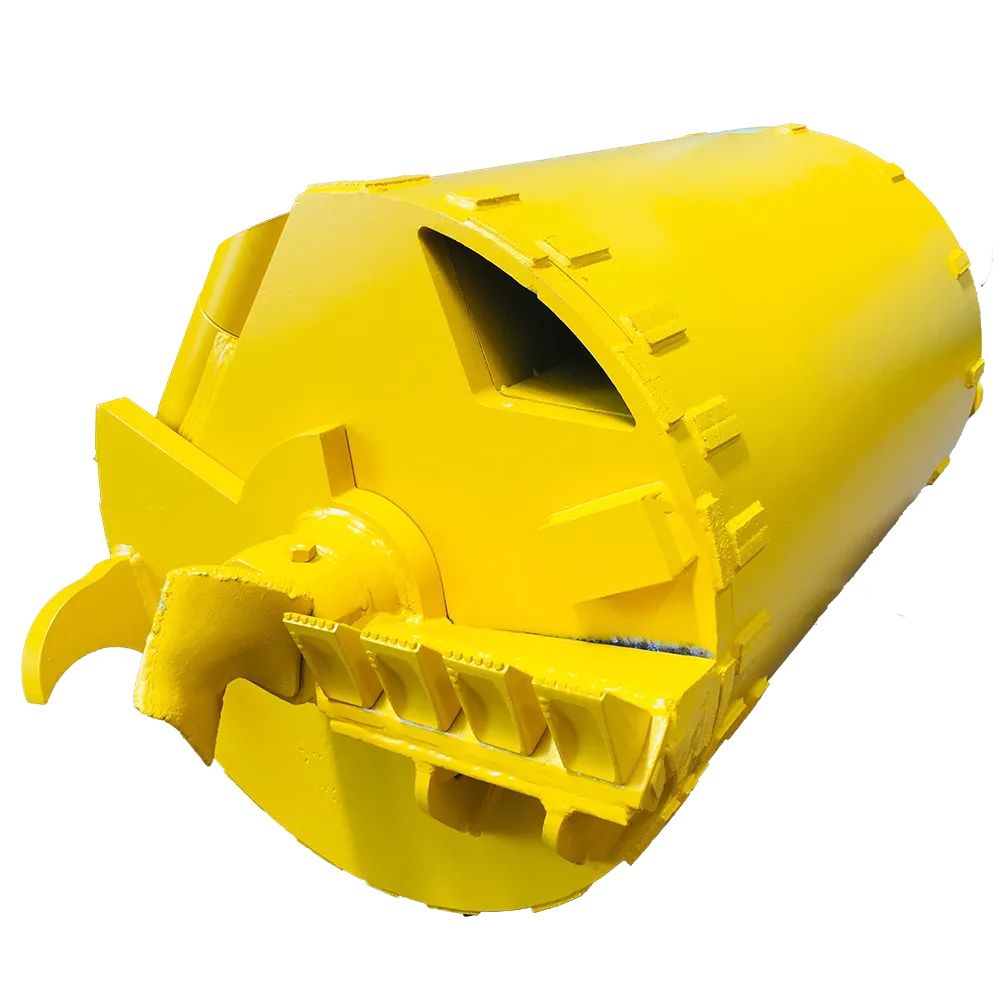

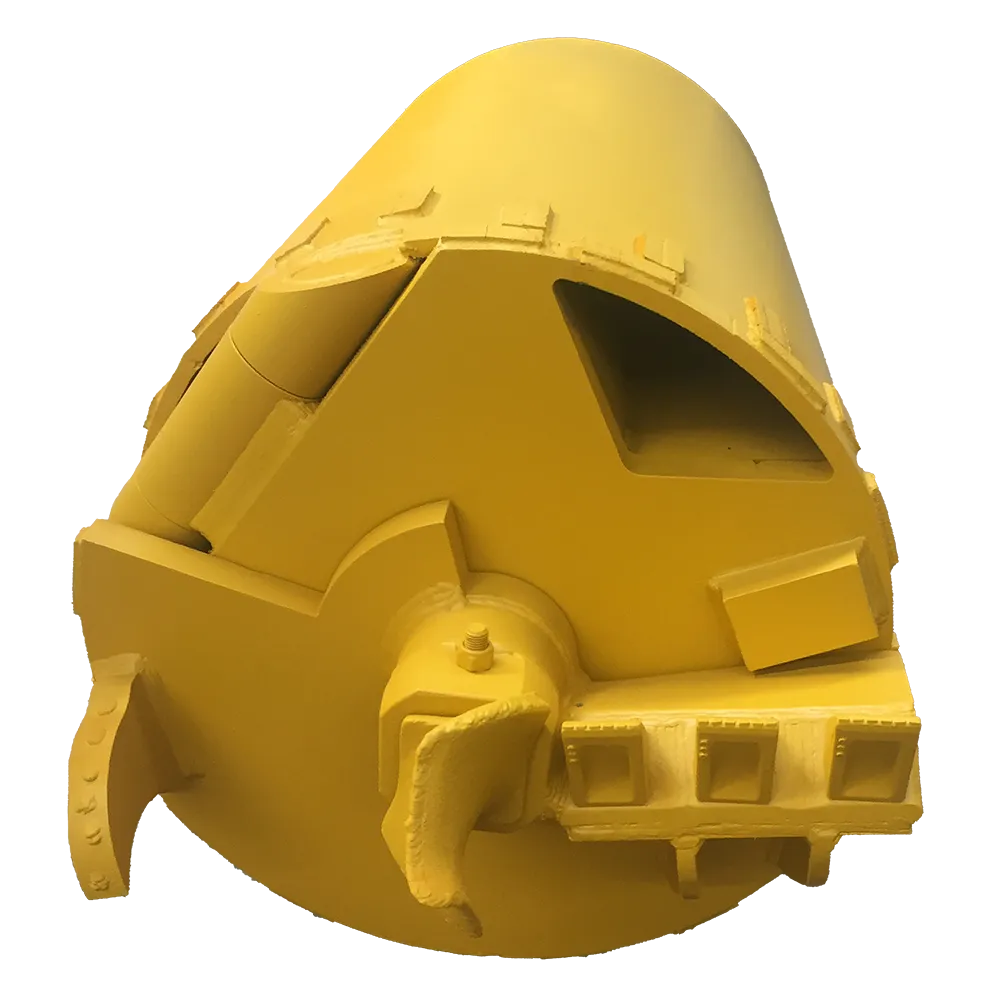

SINGLE CUT SOIL BUCKET – High-Performance Excavation Bucket for Cohesive Soils in Foundation Drilling
When foundation work demands reliable performance in clay-rich or loose soil formations, the Single Cut Soil Bucket (Bored Pile Machine Spare Parts) is the go-to attachment for bored pile drilling. Designed for precise vertical digging, this bucket ensures efficient spoil loading and consistent borehole geometry with every pass.
Manufactured by 3GEN Export to OEM standards, the Single Cut Soil Bucket is engineered for full compatibility with leading bored pile machine brands including BAUER, LIEBHERR, SOILMEC, SANY, and XCMG. With robust construction and fast global delivery, it’s a must-have tool for any project dealing with medium to soft soils.
Product Overview

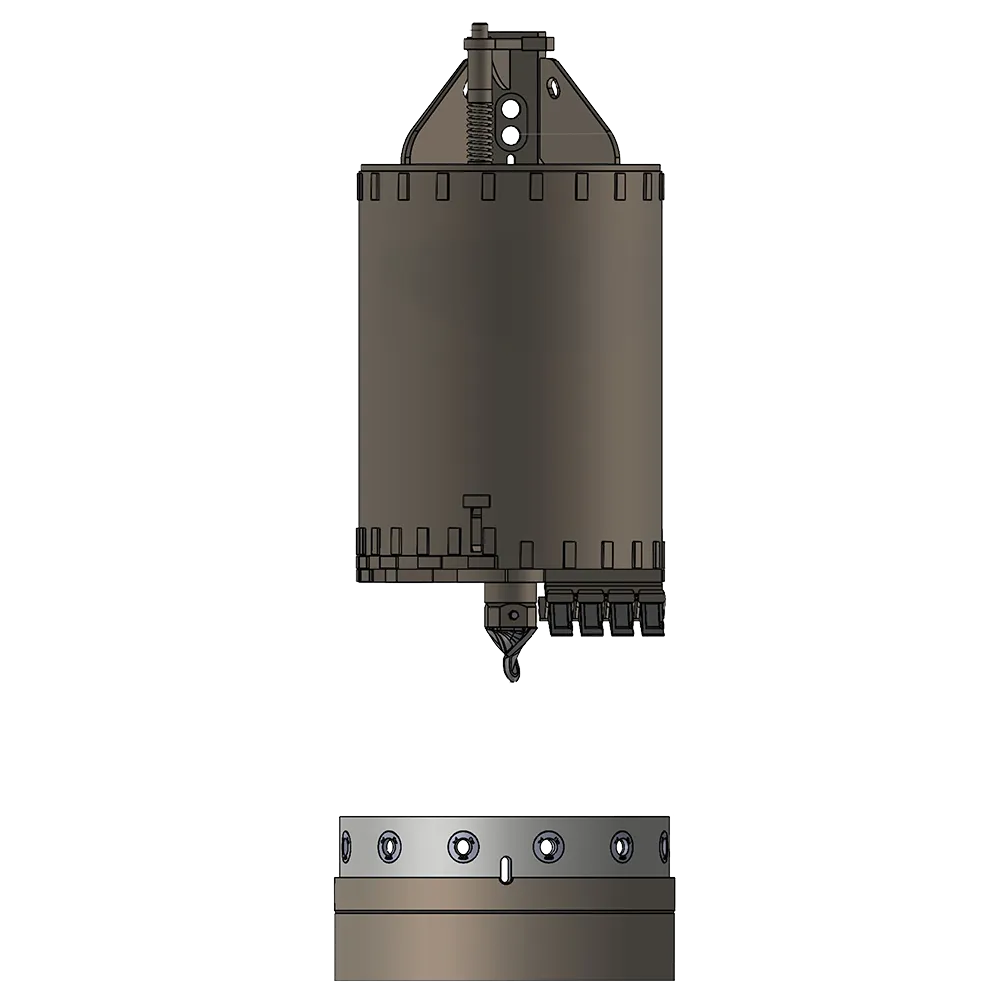

The Single Cut Soil Bucket is a cylindrical rotary drilling bucket equipped with a single cutting edge at the base. It is specially developed for soft to cohesive soils where the dual-blade approach might be excessive. Thanks to its clean-cutting geometry and central discharge system, the bucket delivers exceptional productivity, even in sticky or moist conditions.
It is ideal for:
-
Clay and loam
-
Loose or silty sand
-
Gravel-infused soil with low rock content
-
Soft soil layers below the water table
Technical Specifications
| D (Diameter) | OD (Outer Diameter) | GL (Total Length) | NL (Useful Length) |
|---|---|---|---|
| 520 mm | 620 mm | 2446 mm | 2057 mm |
| 630 mm | 730 mm | 2446 mm | 2057 mm |
| 650 mm | 750 mm | 2446 mm | 2057 mm |
| 780 mm | 880 mm | 2446 mm | 2057 mm |
| 880 mm | 1000 mm | 2446 mm | 2057 mm |
| 960 mm | 1080 mm | 2451 mm | 2062 mm |
| 1060 mm | 1180 mm | 2451 mm | 2062 mm |
| 1080 mm | 1200 mm | 2451 mm | 2062 mm |
| 1160 mm | 1280 mm | 2451 mm | 2062 mm |
| 1180 mm | 1300 mm | 2451 mm | 2062 mm |
| 1350 mm | 1500 mm | 2461 mm | 2072 mm |
| 1650 mm | 1800 mm | 2461 mm | 2072 mm |
| 1820 mm | 2000 mm | 2461 mm | 2072 mm |
| 2020 mm | 2200 mm | 2461 mm | 2072 mm |
The wide range of sizes supports rig-specific torque limits and site-specific excavation depths.
Key Features
-
Single Blade Design: Ideal for loose or sticky soils where a dual-cutting system may overload the rig or reduce efficiency.
-
Openable Base: Optional hydraulic or mechanical bottom for quick spoil discharge and reduced cycle time.
-
Heavy-Duty Construction: Manufactured from abrasion-resistant steel for long-term durability.
-
Central Axis Balance: Optimized for vertical alignment and precise borehole integrity.
-
Reinforced Tooth System: Cutting teeth are easily replaceable and designed to maintain productivity even in semi-abrasive soils.
Compatible Drilling Rigs
The Single Cut Soil Bucket integrates smoothly with the following bored pile machine models:
-
BAUER: BG 20 H, BG 28, BG 36
-
LIEBHERR: LB 16, LB 24, LB 36
-
SOILMEC: SR-40, SR-60, SR-75
-
SANY: SR200, SR285, SR360
-
XCMG: XR180D, XR280D, XR400E
Each model benefits from this bucket’s reduced torque requirements and increased loading efficiency.
Advantages at a Glance
-
Fast Loading Efficiency: Fewer moving parts mean quicker filling and faster discharge cycles.
-
Ideal for Wet Soils: Performs excellently under bentonite or slurry-supported drilling conditions.
-
Cost-Effective: Less wear on cutting components and structure equals lower operational costs.
-
Stable Rotation: Single blade ensures lower vibration and balanced rotary force.
-
Minimal Soil Adhesion: Open design and smooth inner surface prevent clogging, even in sticky clay formations.
Manufactured with Care by 3GEN Export
-
OEM-Compliant Quality: Designed and produced in Türkiye, matching international compatibility standards.
-
5-Day Global Delivery: Fast dispatch and secure worldwide shipping for every project timeline.
-
One-Year Warranty: Backed by our confidence in build quality and real-site performance.
-
Expert Support: Our technical team helps you match the right bucket to your rig and project type.
Use Cases
-
Civil engineering foundation piling
-
Bridge column bases
-
Deep foundation shafts for commercial/residential projects
-
Power plant infrastructure
-
Retaining wall anchoring
This bucket performs best where accuracy, speed, and clean boreholes are essential.
Maintenance Guidelines
-
Grease all pivoting parts every 8 hours of operation
-
Inspect wear plates and edge teeth after each job cycle
-
Use protective coating for wet or saline drilling environments
-
Store bucket on a flat surface to avoid deformation
-
Replace cutting teeth once wear exceeds 25% for optimum performance
Conclusion
The Single Cut Soil Bucket is a precision-engineered solution tailored for bored piling in softer strata. With its clean-cutting mechanism, reinforced structure, and unmatched compatibility, it ensures every excavation is fast, efficient, and safe.
Trust 3GEN Export to supply the tools you need, when you need them — engineered for your rig, built for your success.
Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
