15366818 DISTRIBUTOR SANDVIK – Precision Hydraulic Distribution Unit for Rock Drill Systems

The 15366818 DISTRIBUTOR SANDVIK is a precision-machined hydraulic distribution component designed for high-performance rock drilling and drifter systems. Built for demanding field conditions, this distributor unit manages internal fluid routing, timing balance, and pressure channel control inside the drill assembly. The structure you see in the product images reflects a multi-stage, high-tolerance cylindrical body engineered for stable flow behavior under repeated pressure cycles.

The 153 668 18 DISTRIBUTOR SANDVIK is used inside heavy-duty drilling groups where fluid timing accuracy directly affects percussion efficiency, rotation stability, and overall drilling productivity. In these systems, even a minor deviation in flow timing can reduce strike energy and increase wear. That is why this distributor component is manufactured with strict dimensional tolerances and hardened surface zones.

As 3GEN Export, we supply this part as an OEM-grade replacement component and provide worldwide delivery within 5 working days.

Function and Role of the 15366818 DISTRIBUTOR SANDVIK in Rock Drill Assemblies

The 15366818 DISTRIBUTOR SANDVIK acts as a controlled routing core inside the hydraulic drill circuit. Its main function is to distribute pressurized fluid between internal channels in a synchronized pattern. This controlled switching enables:

• Correct percussion cycle timing
• Balanced forward and return flow
• Stable pressure distribution
• Reduced hydraulic shock
• Improved energy transfer efficiency

The 153 668 18 DISTRIBUTOR SANDVIK typically operates in coordination with pistons, valve housings, control sleeves, and rotation groups. It ensures that each motion phase receives the correct pressure at the correct moment.

Because distributor timing affects the full drilling cycle, this component is considered performance-critical rather than auxiliary.

Structural Characteristics of 153 668 18 DISTRIBUTOR SANDVIK

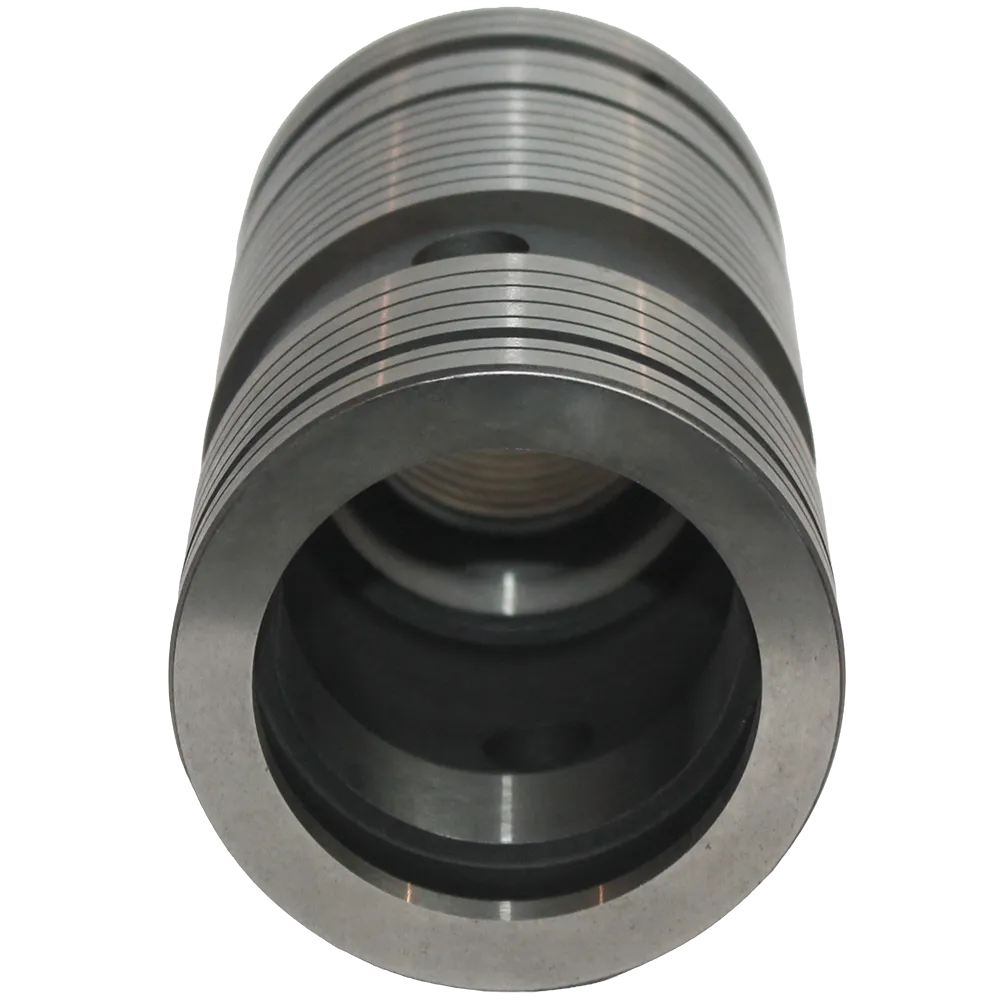

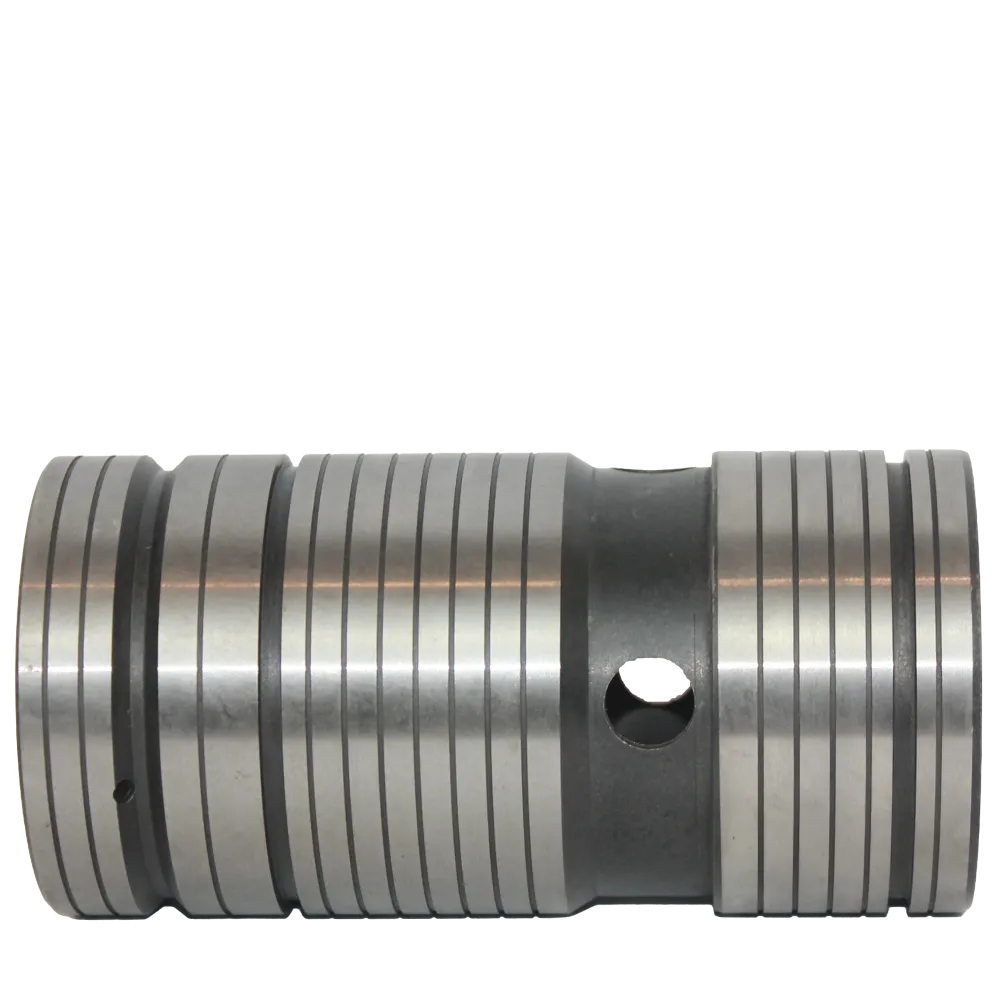

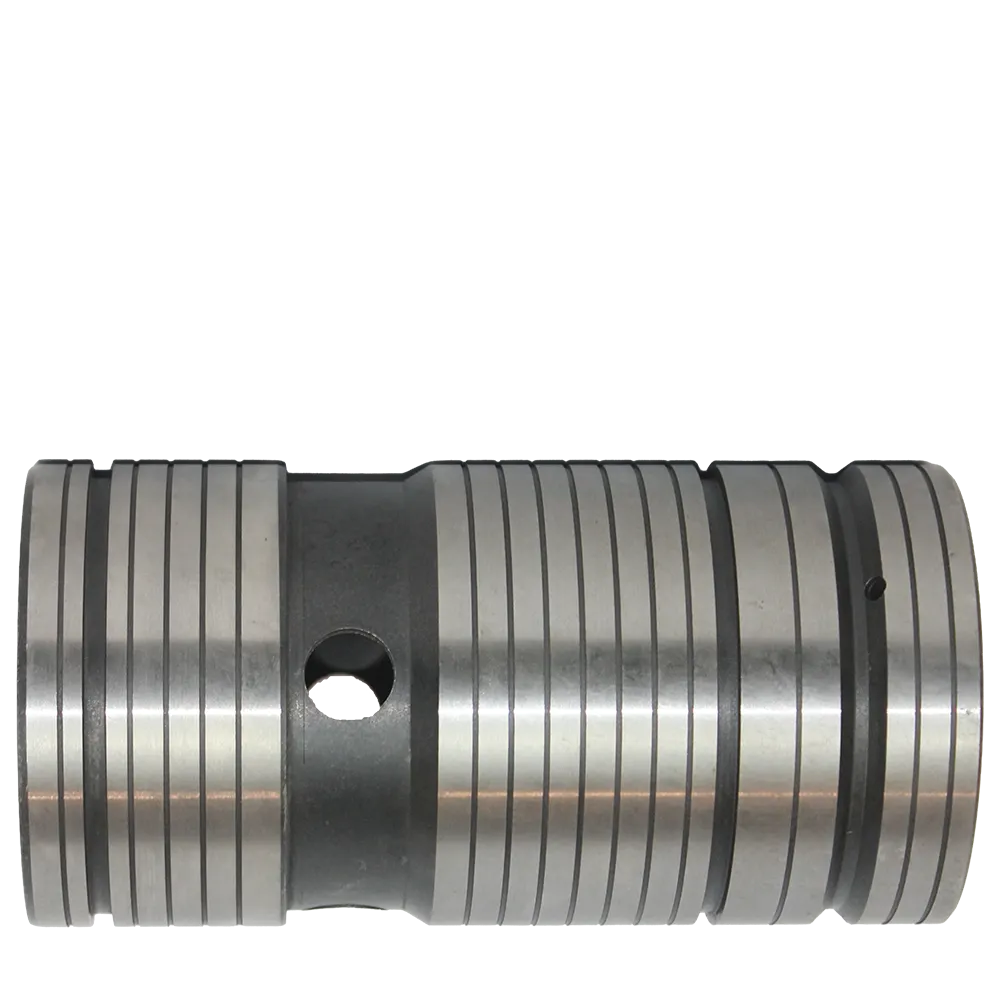

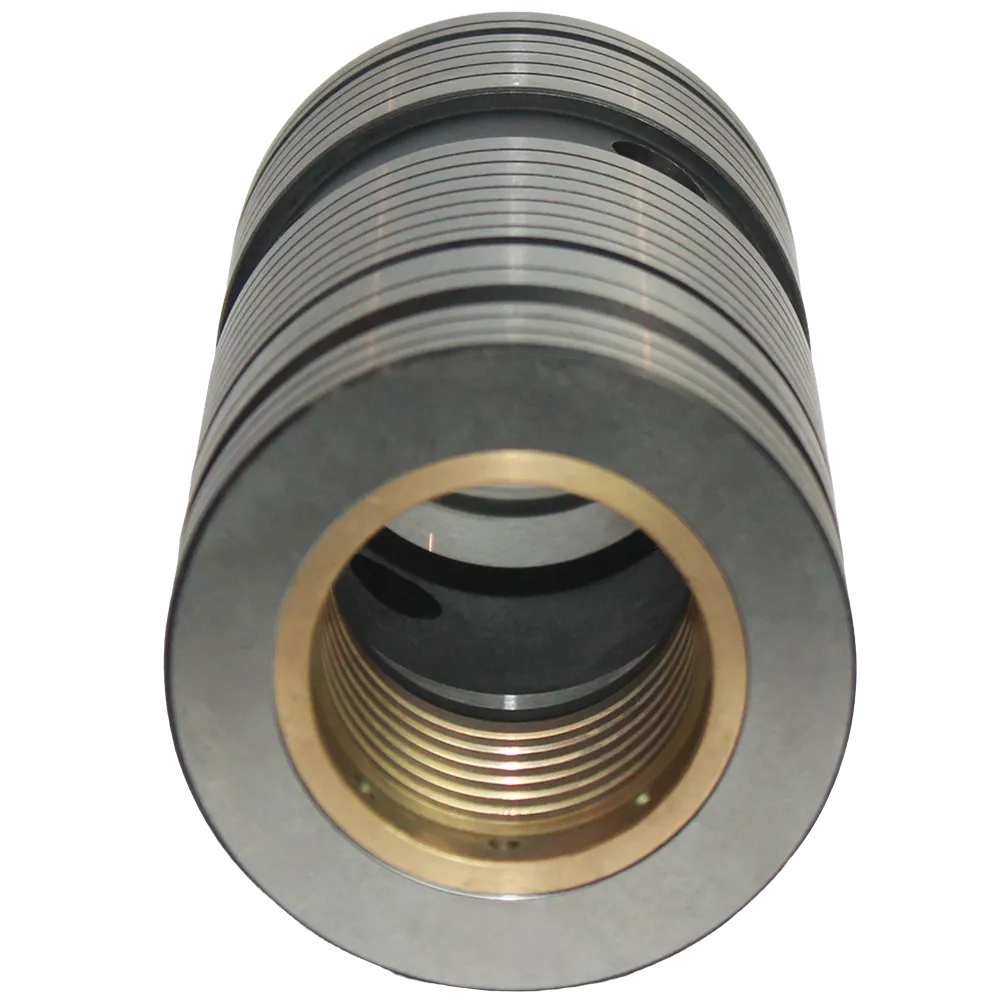

Based on the geometry and machining visible in the product, the 15366818 DISTRIBUTOR SANDVIK includes several advanced structural features.

Multi-Zone Cylindrical Body

The body is divided into multiple precision bands and channels. These zones are used for:

• Pressure staging
• Flow separation
• Seal interface positioning
• Internal routing alignment

Each band is machined to tight tolerance to maintain predictable hydraulic behavior.

Internal Channel Architecture

The inner bore and cross-drilled passages allow staged pressure routing. The 153 668 18 DISTRIBUTOR SANDVIK is not a simple sleeve — it is a timed flow director. Channel geometry supports:

• Fast switching response
• Smooth transition between pressure phases
• Reduced turbulence
• Controlled pressure decay

Surface Treatment and Wear Resistance

The outer surfaces of the 15366818 DISTRIBUTOR SANDVIK are processed for wear resistance and dimensional stability. Typical treatments include:

• Hardened outer layers
• Precision grinding
• Micro-finish sealing surfaces
• Friction-optimized contact zones

These features extend service life under continuous drilling cycles.

Compatible Sandvik Rock Drill and Drifter Models

The 15366818 DISTRIBUTOR SANDVIK is used across selected Sandvik hydraulic drifter and rock drill assemblies. Compatibility can vary by drill generation and configuration, but it is commonly found in systems such as:

• Sandvik HL series rock drills
• Sandvik hydraulic drifter groups
• Selected Sandvik underground drill rigs
• Sandvik surface drilling units
• Sandvik top hammer drill modules

Typical platform families may include:

• HL510 / HL550 related groups
• HL600 series variants
• HL700 series variants
• Certain RD-series drifter assemblies

Model fitment should always be confirmed by part number, drill serial number, or assembly drawing. At 3GEN Export, we verify compatibility before shipment.

Technical Specification Overview – 15366818 DISTRIBUTOR SANDVIK

While exact dimensions vary by drill configuration, the 153 668 18 DISTRIBUTOR SANDVIK generally follows these technical characteristics.

Material Class

• High-strength alloy steel
• Pressure-rated hydraulic grade metal
• Wear-resistant outer surface
• Fatigue-resistant core structure

Manufacturing Method

• CNC precision machining
• Multi-stage boring and channel drilling
• Fine tolerance grinding
• Seal-surface finishing

Functional Design Features

• Multi-channel flow routing
• Pressure timing zones
• Seal interface bands
• Cross-port hydraulic passages

Estimated Weight

Estimated weight of the 15366818 DISTRIBUTOR SANDVIK:

Approximately 2.1 – 2.6 KG depending on revision and machining variant.

Performance Impact of a Healthy Distributor Unit

A properly functioning 15366818 DISTRIBUTOR SANDVIK directly supports drilling performance. When this part is in correct condition, the drill system benefits from:

• Stable percussion rhythm
• Accurate hydraulic timing
• Reduced internal leakage
• Lower heat generation
• Better strike energy consistency
• Reduced secondary component wear

When distributor wear increases, operators may observe:

• Irregular strike pattern
• Pressure fluctuation
• Reduced drilling speed
• Increased vibration
• Higher oil temperature

Replacing the 153 668 18 DISTRIBUTOR SANDVIK at correct intervals protects the full drill assembly.

Installation Guidelines for 153 668 18 DISTRIBUTOR SANDVIK

Correct installation is essential for distributor performance and lifespan.

Pre-Installation Steps

• Clean housing and channels fully
• Flush hydraulic residues
• Inspect seal grooves
• Check mating bore condition
• Verify part number 15366818 DISTRIBUTOR SANDVIK

Installation Notes

• Lubricate with compatible hydraulic assembly oil
• Insert without forced rotation unless specified
• Align channel orientation correctly
• Replace associated seals and O-rings
• Torque surrounding fasteners to spec

Post-Installation Checks

• Pressure test at low load first
• Monitor flow stability
• Check for leakage
• Confirm percussion rhythm

Maintenance and Service Strategy

To maximize the service life of the 15366818 DISTRIBUTOR SANDVIK, preventive maintenance is recommended.

Best Practices

• Use clean hydraulic fluid
• Maintain filtration quality
• Monitor pressure spikes
• Avoid dry starts
• Replace seals on schedule

Inspection Indicators

Service teams should inspect the 153 668 18 DISTRIBUTOR SANDVIK for:

• Scoring marks
• Edge rounding
• Channel wear
• Seal band damage
• Surface discoloration

Early replacement reduces total ownership cost.

Why Buy from 3GEN Export

3GEN Export supplies the 15366818 DISTRIBUTOR SANDVIK as an OEM-grade spare part for global heavy machinery operations.

We provide:

• OEM-quality manufacturing standard
• Part number verified supply
• Cross-check support by model and serial
• Fast global logistics
• Delivery in 5 working days worldwide
• Marketplace of heavy machinery spare parts

Our supply model is built for drilling contractors, mining operators, and service workshops that cannot afford downtime.

Summary – 15366818 DISTRIBUTOR SANDVIK

The 15366818 DISTRIBUTOR SANDVIK is a core hydraulic control component inside high-performance rock drill systems. Its channel architecture, hardened surfaces, and precision geometry allow accurate pressure routing and stable drilling cycles. Correct distributor condition directly affects percussion efficiency and system durability.

For operations that depend on continuous drilling performance, selecting a correctly specified 153 668 18 DISTRIBUTOR SANDVIK from a verified OEM supplier is a critical maintenance decision. 3GEN Export supports this requirement with verified parts and fast worldwide delivery.
