3176000589, 3176 0005 89 RELAY ATLAS COPCO
Description

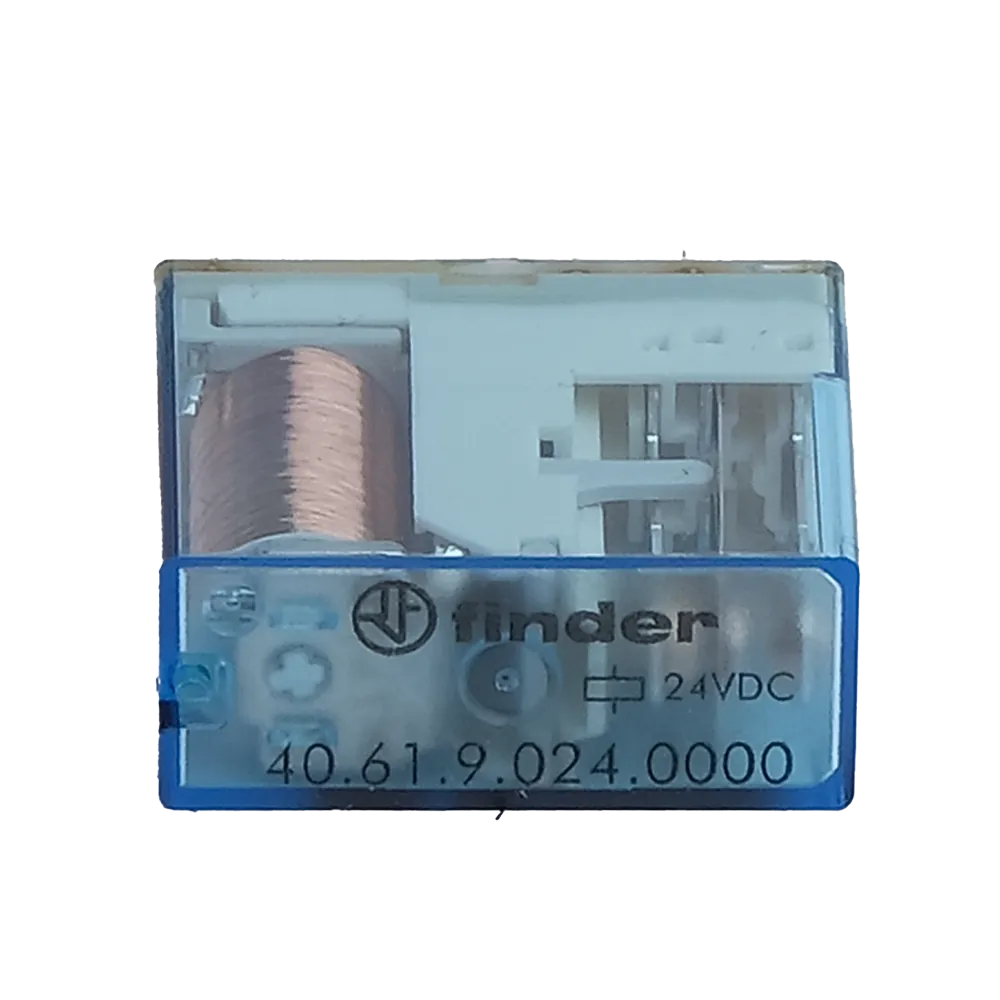

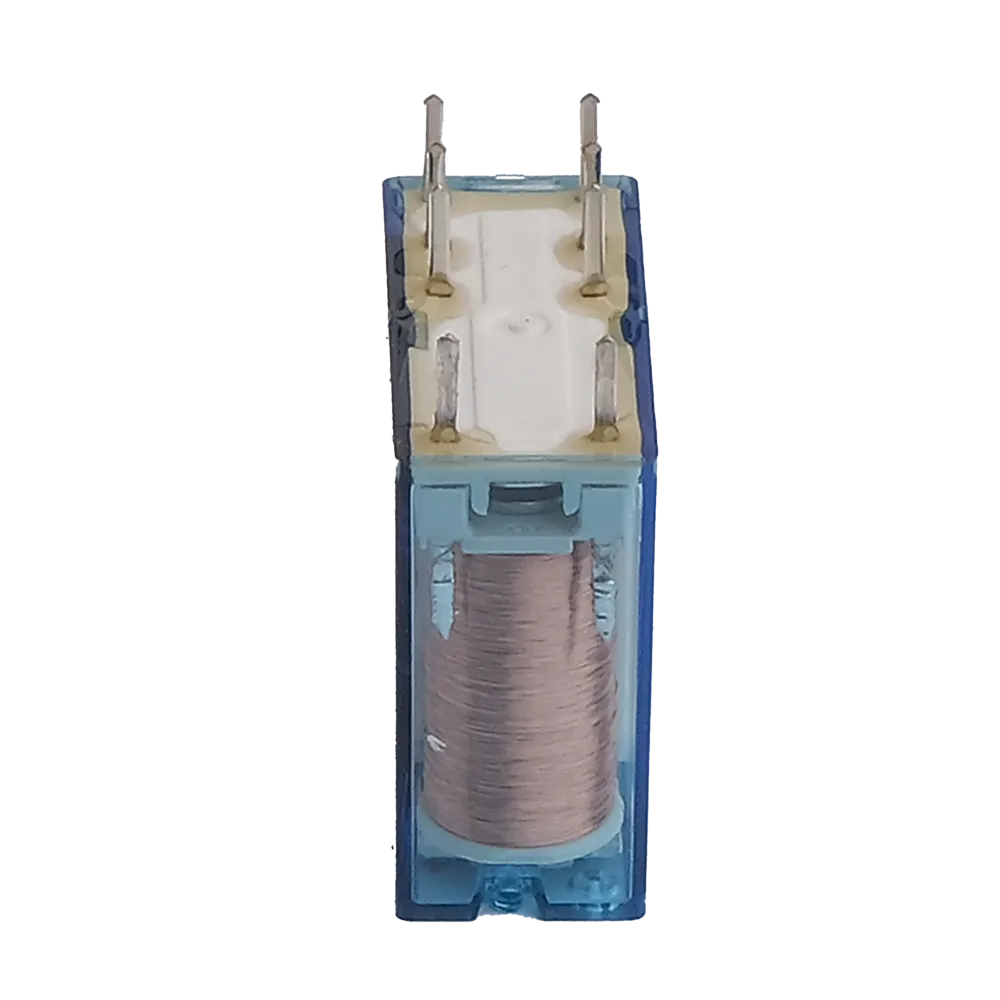

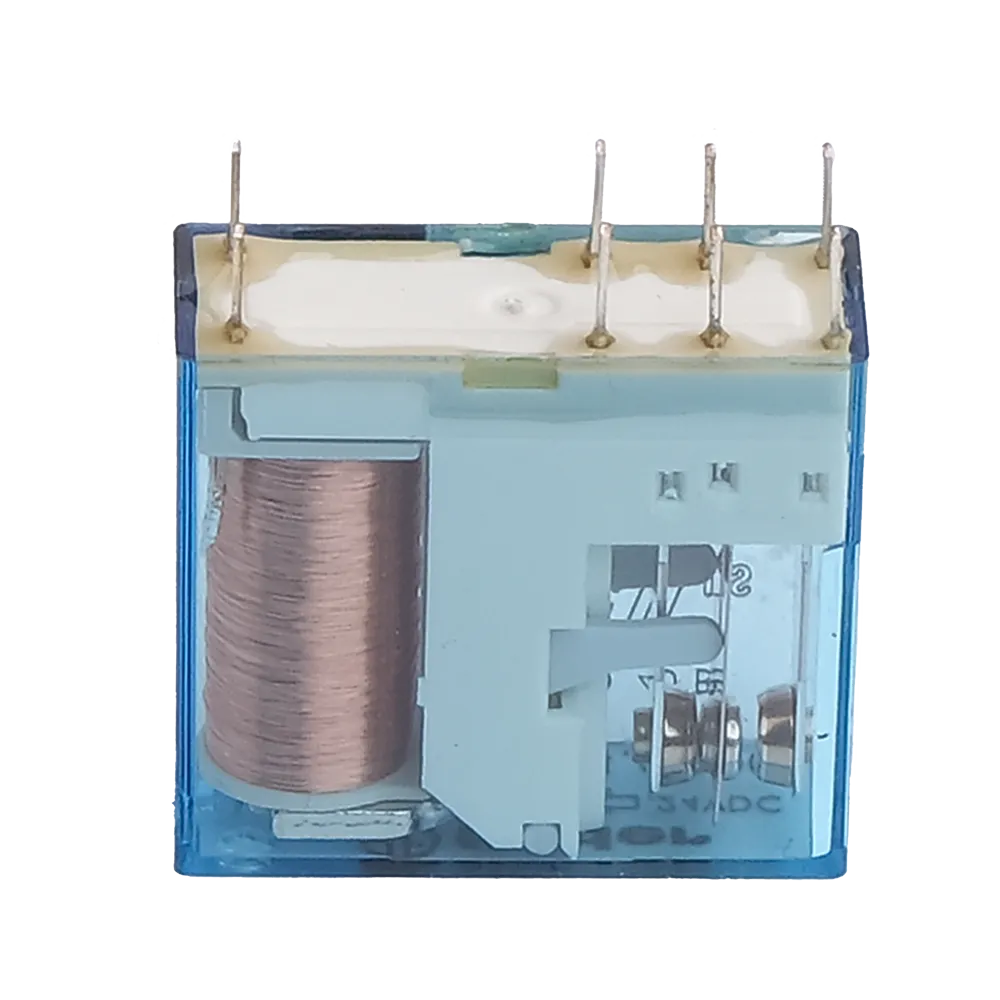

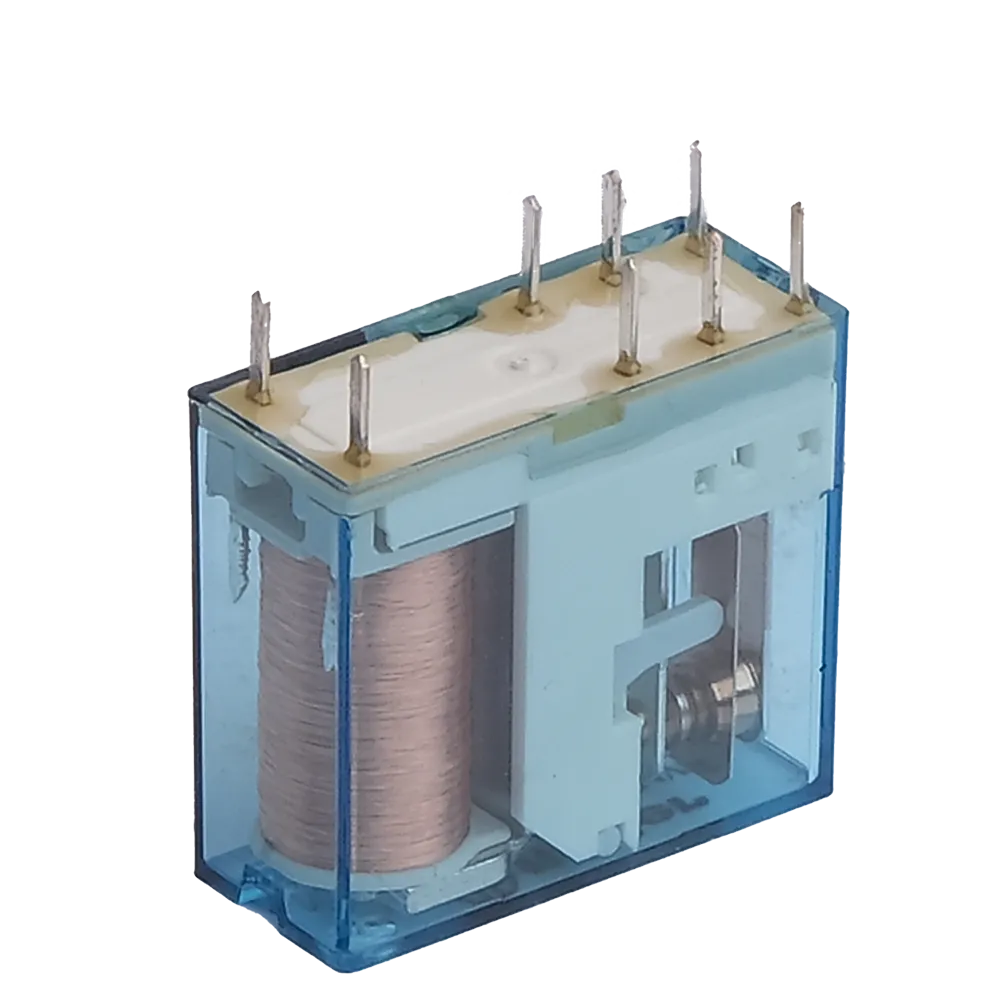

3176000589 RELAY ATLAS COPCO Reliable Electrical Control for Industrial Power Systems The 3176000589 RELAY ATLAS COPCO is a precision-engineered electrical relay component designed to ensure stable and safe power control within Atlas Copco drilling and mining systems. Built for demanding heavy-duty applications, this relay regulates electrical circuits with precision, maintaining consistent current flow even under extreme vibration, temperature variation, and continuous operation. As part of Atlas Copco’s advanced hydraulic and electrical architecture, the 3176000589 relay acts as a signal-switching unit that converts low-voltage control signals into high-power outputs. It provides dependable control to systems such as hydraulic pumps, compressors, rotation motors, and electronic safety circuits. Manufactured to OEM specifications and distributed globally by 3GEN Export , it guarantees long-term reliability and easy integration into existing Atlas Copco assemblies. Functionality and Design The 3176000589 RELAY ATLAS COPCO is a compact electromagnetic switch that controls high-power electrical circuits through low-voltage input. It uses a copper coil to create an electromagnetic field that triggers its contact mechanism, enabling stable and rapid switching with minimal heat generation. Voltage rating: 24 V DC coil Contact configuration: SPDT (Single Pole Double Throw) , standard industrial design Insulation: High-density polycarbonate casing for dielectric strength Mounting style: PCB or base-mounted socket compatible Switching frequency: Up to 1,200 operations per minute Operating temperature range: –25 °C to +70 °C Its transparent housing allows visual inspection of the internal contact state, while the silver-nickel contact material ensures low contact resistance and long service life. Weight: 0.036 kg (36 grams) Core Advantages Efficient Power Regulation The 3176000589 RELAY ATLAS COPCO ensures that electrical signals between control modules and load devices remain stable, even when voltage fluctuations occur. This enhances both the precision and safety of the machine’s control systems. Extended Durability Manufactured using high-grade materials, this relay withstands heavy vibration, dust, and moisture found in quarry and mining environments. The copper coil winding is sealed against corrosion, protecting the relay’s electromagnetic integrity for over 1 million cycles . Compact Integration Its low-profile design allows direct placement within control cabinets, relay blocks, and PCB assemblies without requiring additional adapters. Installation takes only minutes, making maintenance straightforward and efficient. Application in Atlas Copco Systems This relay is found in multiple Atlas Copco rock-drilling and hydraulic rig assemblies, where it functions as the main intermediary between the electrical control unit and the hydraulic actuators. Its consistent switching response ensures proper timing and sequencing of machine operations. Common applications include: Power supply control for hydraulic pumps and drifters Relay interface in control panels and automation cabinets Signal isolation in monitoring systems and safety shutdown circuits Voltage distribution in compressor control boards Compatible Atlas Copco Models The 3176000589 RELAY ATLAS COPCO is suitable for a broad range of Atlas Copco drilling and rock-rig systems, including: ROC L8 and ROC D9 surface drill rigs SmartROC T35 / T40 / T45 FlexiROC T20 / T30 Boomer L2 / L3 underground mining rigs COP 1238 / 1638 / 1838 series drifters PowerROC D50 and D60 Because Atlas Copco often uses shared relay architecture across control platforms, this component provides cross-compatibility with multiple machine generations, reducing the need for model-specific spares. Technical Specifications Specification Description Part Number 3176000589 Product Type Industrial Relay Operating Voltage 24 V DC Current Rating 10 A @ 250 V AC / 10 A @ 30 V DC Contact Form 1 CO (SPDT) Coil Resistance 1.1 kΩ ± 10 % Insulation Resistance 100 MΩ min. @ 500 V DC Dielectric Strength 2,500 V AC between coil and contacts Response Time ≤ 10 ms operate / ≤ 5 ms release Mechanical Life 10 million operations minimum Electrical Life 100 k operations minimum @ rated load Mounting Base DIN rail socket / PCB mount Protection Class IP40 Weight 0.036 kg Manufacturer 3GEN Export (OEM Supplier) Electrical Reliability and Safety The relay’s coil and contacts are designed to provide high isolation between the control circuit and power circuit, preventing voltage leakage. Its enclosure complies with IEC 61810 and EN 60947-5-1 safety standards. In hazardous drilling zones, where electrical interference can cause severe downtime, the 3176000589 RELAY ATLAS COPCO delivers robust reliability, eliminating false triggers and minimizing signal noise. Quality Manufacturing by 3GEN Export Each relay distributed by 3GEN Export is manufactured in accordance with strict ISO 9001:2015 standards and subjected to multi-stage inspection: Coil continuity testing for accurate resistance High-voltage dielectric verification Contact endurance under thermal load Vibration and shock simulation The result is an OEM-grade product designed to perform seamlessly within Atlas Copco’s electrical ecosystems. Global Delivery and Warranty All 3176000589 RELAY ATLAS COPCO units from 3GEN Export are supplied with: A 1-year manufacturer warranty OEM compatibility certificate Full tracking and customs support With warehouses and logistics hubs in Europe, the Middle East, and Asia, 3GEN Export ensures delivery to any global location within five working days . Why Choose 3GEN Export OEM-standard electrical spare parts for Atlas Copco Worldwide delivery within 5 business days Guaranteed compatibility and safety certifications 24/7 technical support and consultation Trusted supplier to over 600 industrial clients globally Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
