3217988005, 3217 9880 05 BRUSH HOLDER ATLAS COPCO

If your rig’s electrical rotation system is the “heartbeat,” the brush assembly is the “pulse” that keeps current moving smoothly. The 3217988005 Brush Holder Atlas Copco is designed to keep stable electrical contact against a rotating surface (typically a slip ring or commutator), helping your machine maintain reliable power transfer without the voltage drops, arcing, and heat spikes that quickly turn small electrical inconsistencies into expensive downtime.

Unlike generic holders that “fit close enough,” the 3217 9880 05 Brush Holder Atlas Copco is built around controlled geometry: brush alignment, contact pressure, and conductor routing are engineered so the current path stays efficient while vibration stays manageable. In drilling and rock excavation environments, where dust, shock loads, and temperature swings are routine, this kind of controlled design matters. A brush holder that sits a fraction off-axis can create uneven wear, chatter, accelerated ring damage, and a chain reaction of performance loss.

At 3GEN Export, we supply the 3217988005 Brush Holder Atlas Copco as an OEM-grade spare part for heavy machinery applications. We ship worldwide in 5 working days, helping maintenance teams restore performance fast without gambling on uncertain substitutes. 3GEN Export

What the 3217988005 Brush Holder Atlas Copco does

A brush holder assembly has one core job: maintain consistent electrical contact with a moving conductor while the machine is operating under load. The 3217988005 Brush Holder Atlas Copco supports that job by holding multiple carbon brush elements in the correct position while conductive leads (often copper shunts/braids) carry current to/from the stationary side of the system.

This is especially critical when your machine depends on stable electrical transfer for:

Power delivery to rotating components

Control signal continuity in rotating assemblies

Charging/excitation circuits in rotating electrical units

Reliable operation under vibration, shock, and dust exposure

In real-world drilling conditions, “contact stability” is not a luxury, it is a requirement. When brushes bounce, tilt, or develop uneven pressure, the system starts to arc. Arcing leads to heat, heat leads to ring scoring, ring scoring increases electrical noise, and noise disrupts sensors and controllers. Over time, the entire electrical rotation group becomes a wear accelerator.

The 3217 9880 05 Brush Holder Atlas Copco is made to reduce those failure patterns by keeping brush pressure and positioning consistent across the full working cycle.

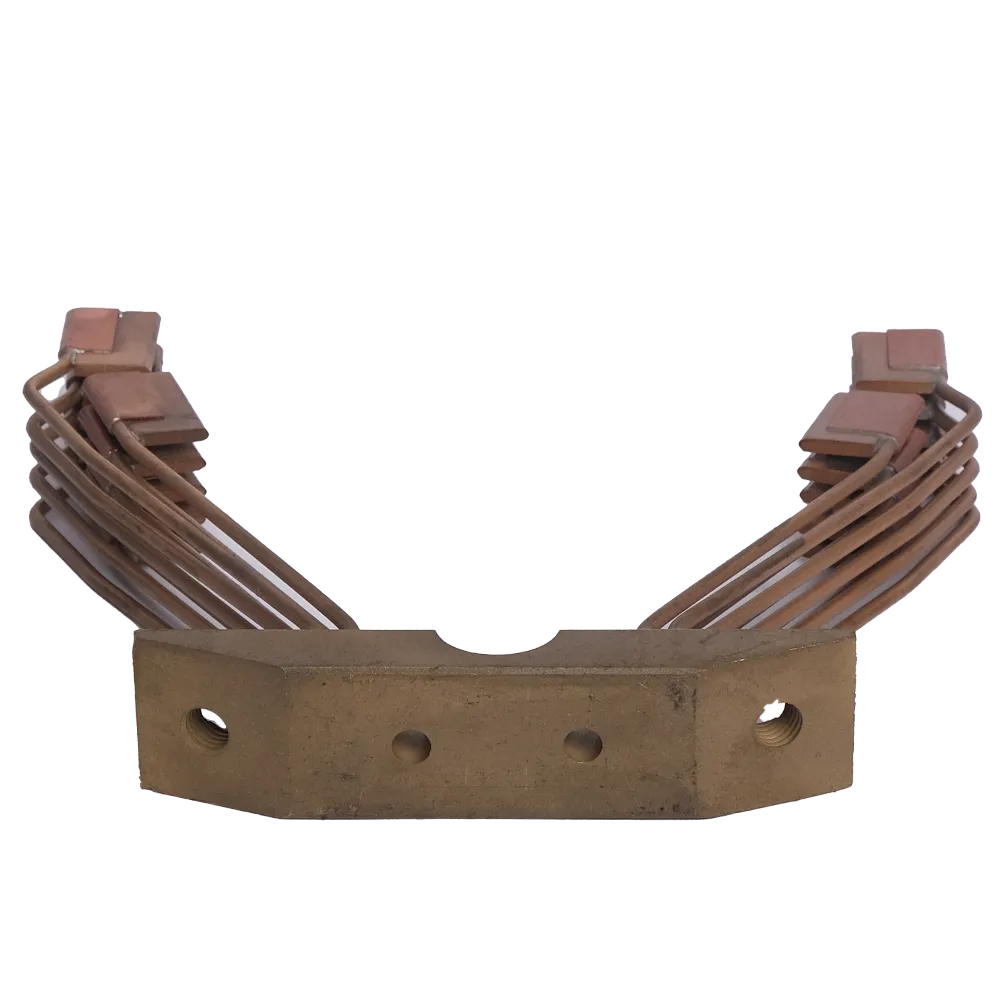

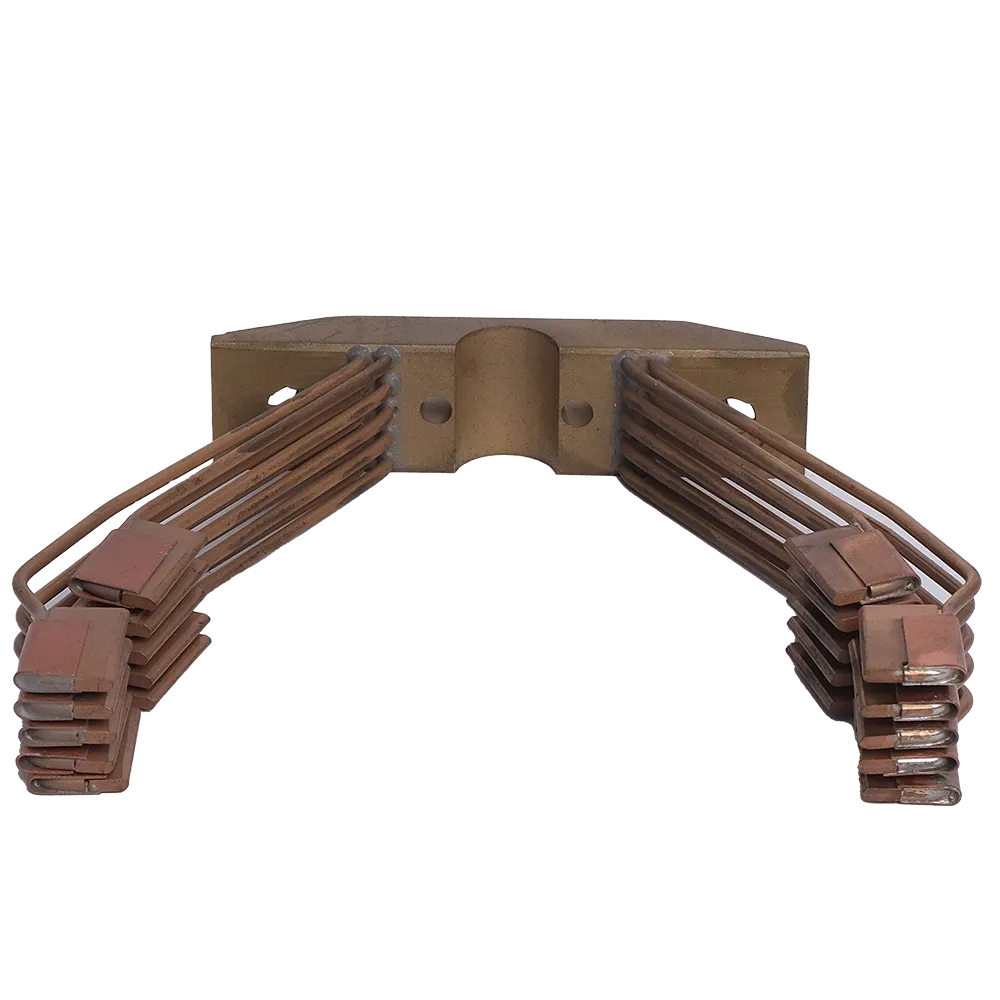

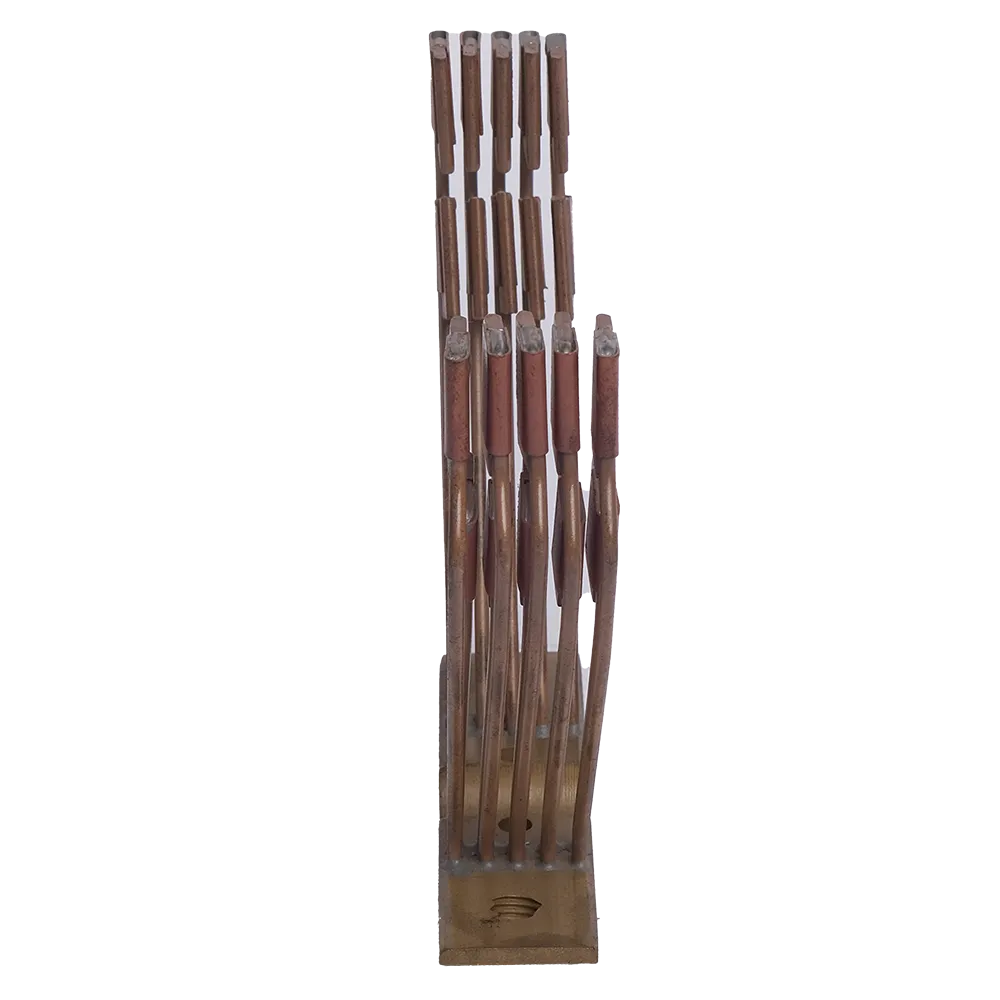

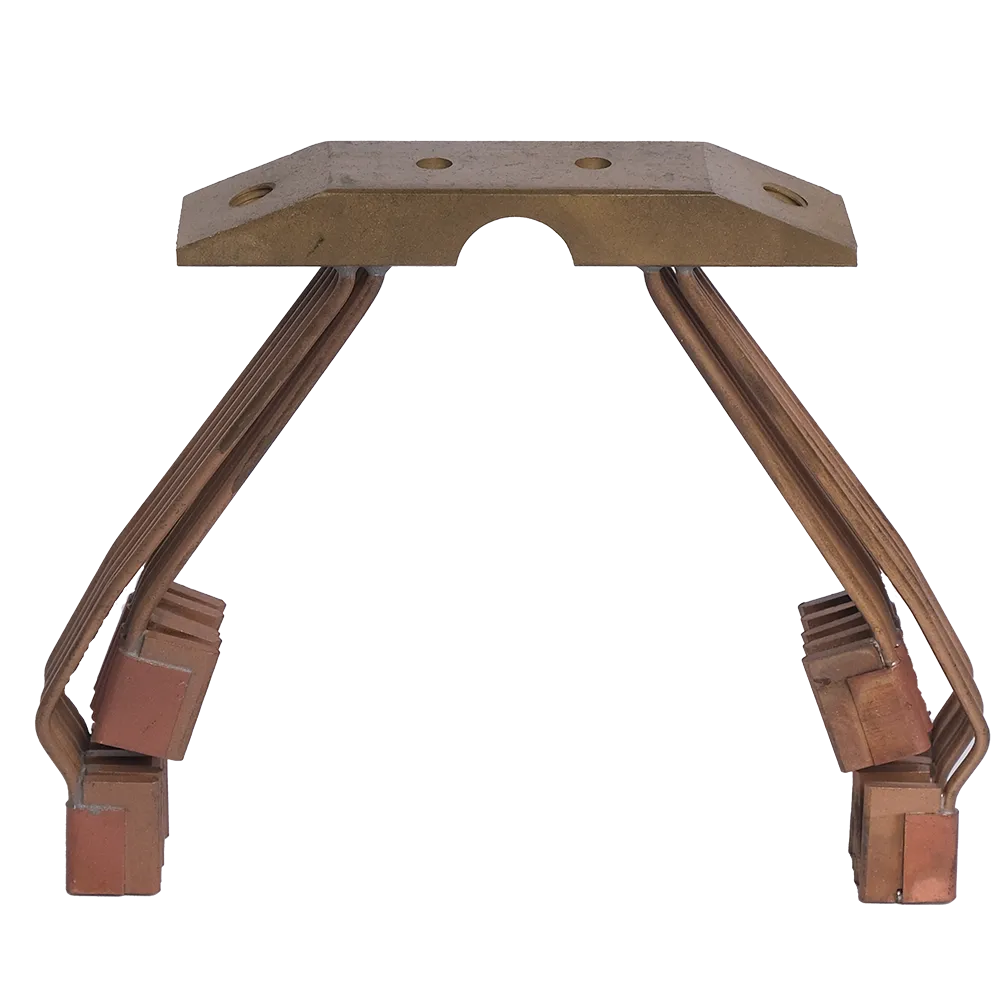

Key design features you can see from the part

Based on the part images you provided, the 3217988005 Brush Holder Atlas Copco includes several functional design elements typically required in heavy-duty rotating electrical systems:

Multiple brush contact blocks
The assembly uses multiple brush elements to distribute current load and improve stability. This helps reduce localized heating and lowers the chance of single-point failure.

Flexible copper conductors
Braided conductors are used to carry current while absorbing vibration. In harsh equipment environments, rigid conductors can fatigue and crack; flexible braids help preserve electrical continuity.

Solid mounting base with machined seating
The base is designed for rigid mounting and consistent alignment. Alignment is one of the biggest determinants of ring life and brush wear rate.

Balanced lead routing
Lead routing matters more than people expect. If conductors are forced into sharp bends or strained during installation, resistance and heat rise. A properly routed assembly supports long service intervals.

In short: the 3217988005 Brush Holder Atlas Copco is not just “a set of brushes.” It’s a complete contact-management component designed to keep current transfer smooth, quiet, and repeatable.

Where the 3217 9880 05 Brush Holder Atlas Copco is used

Brush holders like the 3217988005 Brush Holder Atlas Copco are typically used in assemblies that include a slip ring or commutator, especially where rotating electrical continuity must be maintained under load and vibration.

Common use locations in heavy machinery can include:

Rotating electrical groups tied to drilling functions

Electrical rotation assemblies where current must pass between stationary and rotating structures

Systems where stable electrical transfer helps power or regulate rotating components

Because brush holders are part-number-specific, correct matching is essential. Even if something “looks similar,” small differences in mounting height, brush channel width, and lead geometry can create chronic arcing and accelerated ring wear.

Compatible ATLAS COPCO models

From available public listings, the 3217988005 Brush Holder Atlas Copco is referenced with Atlas Copco Boomer 282 and Boomer L2D (telescope set applications).

Compatibility note (important)

Boomer platforms can have configuration differences by serial range, retrofit kit history, and electrical group variants. Before ordering, match:

Part number (3217988005 / 3217 9880 05)

Your machine model and serial number

The brush holder’s mounting pattern and lead orientation

If you share the machine serial range or the assembly the brush holder mounts into (e.g., slip ring group reference), compatibility verification becomes much faster and safer.

Technical overview and practical specifications

Exact dimensions can vary by machine configuration, and OEM documentation is the best source for precision measurements. That said, the 3217988005 Brush Holder Atlas Copco can be described with practical specifications that matter for maintenance planning:

Component type

OEM-grade brush holder assembly (multi-brush, braided conductor leads)

Typical material set

Carbon/graphite brush elements (wear component)

Copper braided leads (high conductivity + vibration absorption)

Metal mounting base (rigid alignment platform)

High-temperature insulation and mechanical retention features (application-dependent)

Electrical role

Maintains current transfer between stationary wiring and rotating electrical surfaces (slip ring/commutator)

Environmental tolerance expectations (typical for drilling equipment)

Designed for vibration exposure

Designed for dust-heavy environments (with correct sealing and maintenance)

Supports stable operation during temperature cycles common to mining and tunneling work

Approximate weight

Approx. 1.3–1.8 kg (estimate based on the assembly size/materials visible in the images; exact weight should be confirmed against your packing list or OEM reference).

If you want, tell me whether your logistics team prefers a conservative shipping estimate (higher) or a tighter estimate for quoting, both approaches are common.

Why the 3217988005 Brush Holder Atlas Copco matters for reliability

Brush systems fail quietly at first. Most machines won’t immediately stop when brush contact quality degrades, they will simply become “less stable.” That instability shows up as:

Intermittent faults that are hard to reproduce

Hot spots on slip rings

Unusual electrical noise in the system

Reduced efficiency or weaker performance at load

Faster wear on the ring surface (scoring/pitting)

Higher maintenance frequency

Eventually, the damage becomes mechanical: rings get deeply grooved, brushes wear unevenly, springs lose tension, and the entire electrical rotation group becomes a recurring downtime source.

Replacing the holder with the correct OEM-grade geometry, like the 3217 9880 05 Brush Holder Atlas Copco, protects not only the brush elements but the more expensive surfaces they run against.

Common failure symptoms that indicate replacement

If your machine is showing any of the following, the 3217988005 Brush Holder Atlas Copco should be inspected:

Visible arcing or burn marks near the contact area

Brush dust accumulation in abnormal patterns

Uneven brush wear (one side worn faster)

Excessive sparking during load changes

Grooves or pitting on the ring surface

Overheating near the slip ring/brush zone

Intermittent electrical issues that correlate with rotation speed or vibration

A brush holder is often replaced not because the base “breaks,” but because alignment, retention, or lead integrity is no longer perfect, and perfection is what stable contact requires.

Installation guidance for the 3217 9880 05 Brush Holder Atlas Copco

Below is a practical installation approach used by many field technicians. Always follow your machine’s service manual and lockout/tagout procedures.

1) Safety lockout and access

Isolate power sources

Confirm the rotating system is fully stopped and cannot move

Clean the work area to prevent dust contamination during assembly

2) Document the existing setup

Before removal, record:

Lead positions and routing

Fastener locations and torque pattern

Brush contact orientation

Any shims, spacers, or alignment plates used

A phone photo set can prevent hours of troubleshooting later.

3) Remove and inspect related components

When removing the old assembly, inspect:

Slip ring surface condition (scoring, pitting, discoloration)

Brush dust channels and ventilation

Lead connections (heat discoloration = resistance)

Mounting face flatness (impact damage can cause misalignment)

If the ring surface is deeply grooved, installing a new 3217988005 Brush Holder Atlas Copco alone may not restore stability, you may also need ring resurfacing or replacement.

4) Fit the new brush holder

Mount the 3217988005 Brush Holder Atlas Copco and ensure:

The base seats flat with no rocking

Leads are not twisted, pinched, or forced into sharp bends

Brushes move freely in their channels

Contact pressure feels even and stable

5) Run-in and verification

Brushes often benefit from a controlled run-in period. After installation:

Start with a low-load test cycle if possible

Monitor heat and sparking behavior

Recheck fastener tightness after initial operation (per manual)

If sparking is excessive from the first start, stop and re-check alignment and ring condition.

Maintenance tips to extend service life

To get the most from the 3217 9880 05 Brush Holder Atlas Copco:

Keep the contact zone clean (dry compressed air is commonly used, avoid forcing debris deeper)

Avoid oil or solvent contamination on brush surfaces unless the manual specifically allows it

Inspect brush length regularly (replace before reaching minimum length)

Check spring tension and brush travel (binding causes bounce and arcing)

Inspect rings for early signs of pitting or discoloration

Stable maintenance is cheaper than ring replacement. Rings and commutators are the surfaces you want to protect; brushes are meant to wear, but they should wear evenly and predictably.

Why buy from 3GEN Export

With parts like the 3217988005 Brush Holder Atlas Copco, speed and correctness matter. A wrong-fit brush holder can create damage in hours. A correct OEM-grade assembly restores stability and protects the full rotating electrical group.

3GEN Export supplies this part as an OEM supplier and ships worldwide in 5 working days, helping you minimize downtime and keep maintenance schedules under control. 3GEN Export

Summary: When to choose the 3217988005 Brush Holder Atlas Copco

Choose the 3217988005 Brush Holder Atlas Copco when you need:

Stable electrical contact in a rotating system

OEM-grade geometry to protect rings/commutators

A multi-brush assembly built for drilling equipment conditions

A correct-fit replacement associated with Boomer 282 / Boomer L2D telescope set applications

If you want, paste your machine model + serial range and I’ll format a clean “compatibility + ordering checklist” you can hand to your purchasing team.
