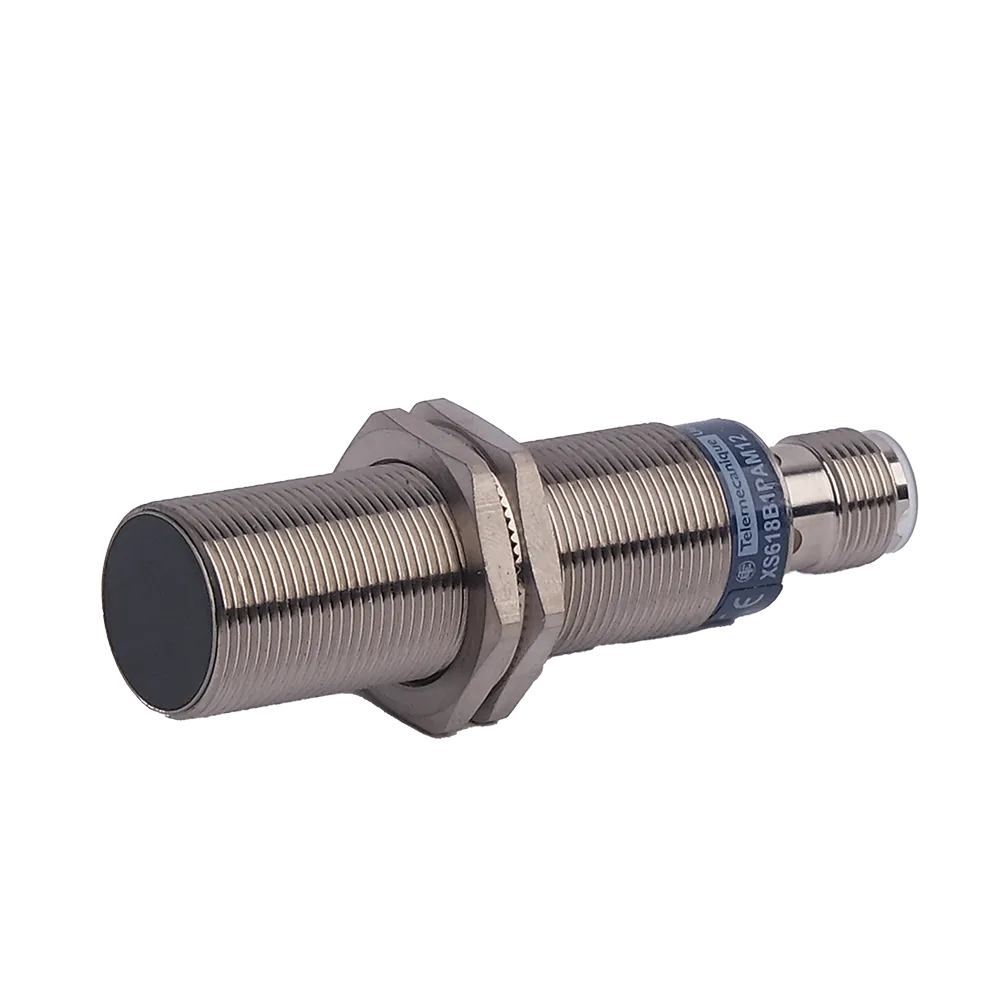

3222148800 SENSOR ATLAS COPCO – High-Precision Detection Component for Rock Drilling Systems

Introduction

The 3222148800 SENSOR ATLAS COPCO, also referenced as 3222 1488 00 SENSOR ATLAS COPCO, is a vital detection and feedback component specifically engineered for precision control within Atlas Copco heavy machinery. Designed for the most demanding drilling and construction environments, this sensor ensures continuous, accurate detection and signal transmission, optimizing automation, performance, and safety in rock drill systems.

As part of the sophisticated control network of Atlas Copco equipment, the 3222148800 SENSOR ATLAS COPCOdelivers real-time data on motion, proximity, or position, allowing for seamless coordination between hydraulic, pneumatic, and electrical systems. Its rugged stainless-steel construction, industrial-grade sealing, and electromagnetic interference protection make it a long-lasting and reliable solution for all field applications.

---

Function and Working Principle

This sensor is built for the detection of metallic targets or machine components moving within a set range. The 3222148800 SENSOR ATLAS COPCO operates on an inductive proximity principle, meaning it detects objects without physical contact. When a metal object approaches the sensor face, it changes the oscillation field and triggers a change in output, allowing the control system to interpret the signal for positioning, speed control, or protection mechanisms.

The sensor is particularly essential in automation-heavy Atlas Copco machines, where precision feedback is necessary to:

• Control drilling feed and rotation systems

• Detect piston or hammer position in drifters

• Ensure tool alignment and safety during drilling cycles

• Monitor operational performance of hydraulic actuators

This non-contact functionality drastically reduces mechanical wear, extends the part’s lifespan, and ensures stable performance in high-vibration, high-moisture conditions.

---

Technical Specifications

These features allow the 3222148800 SENSOR ATLAS COPCO to deliver high response speed and unmatched reliability across all operating conditions.

---

Structural Design and Durability

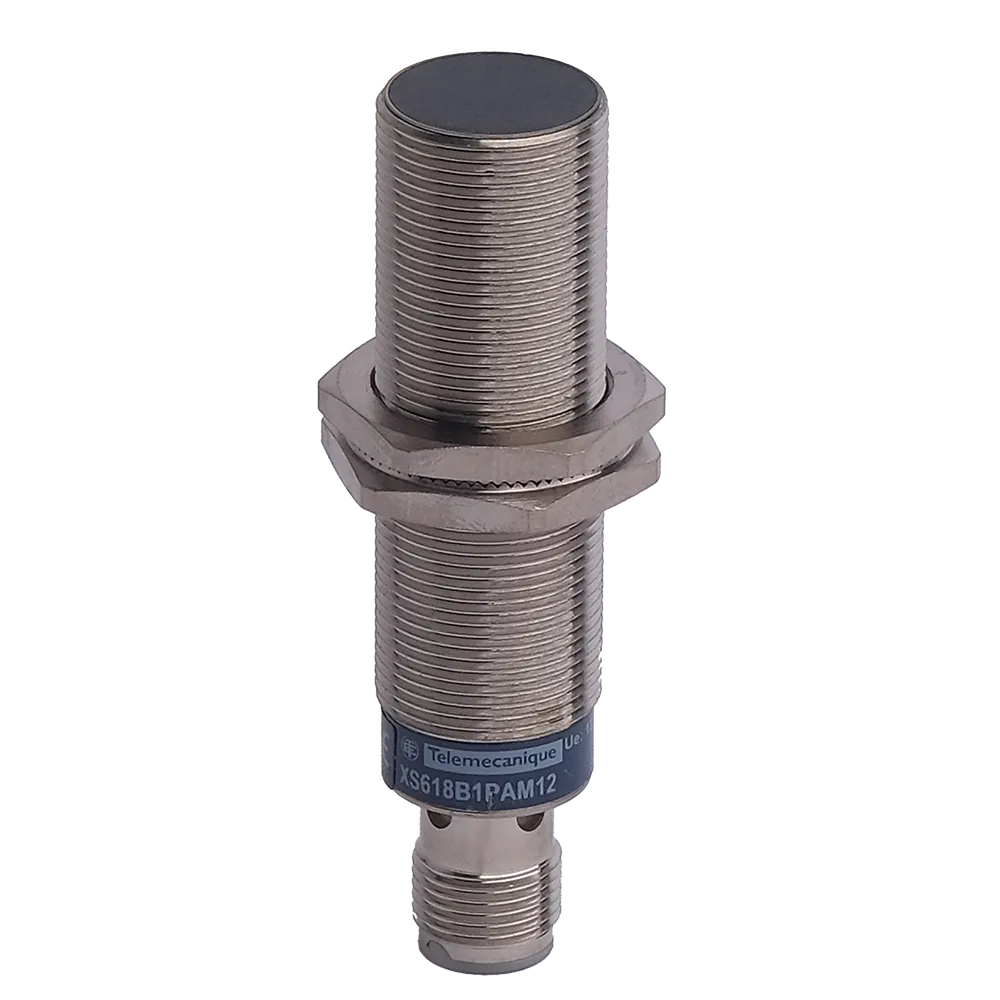

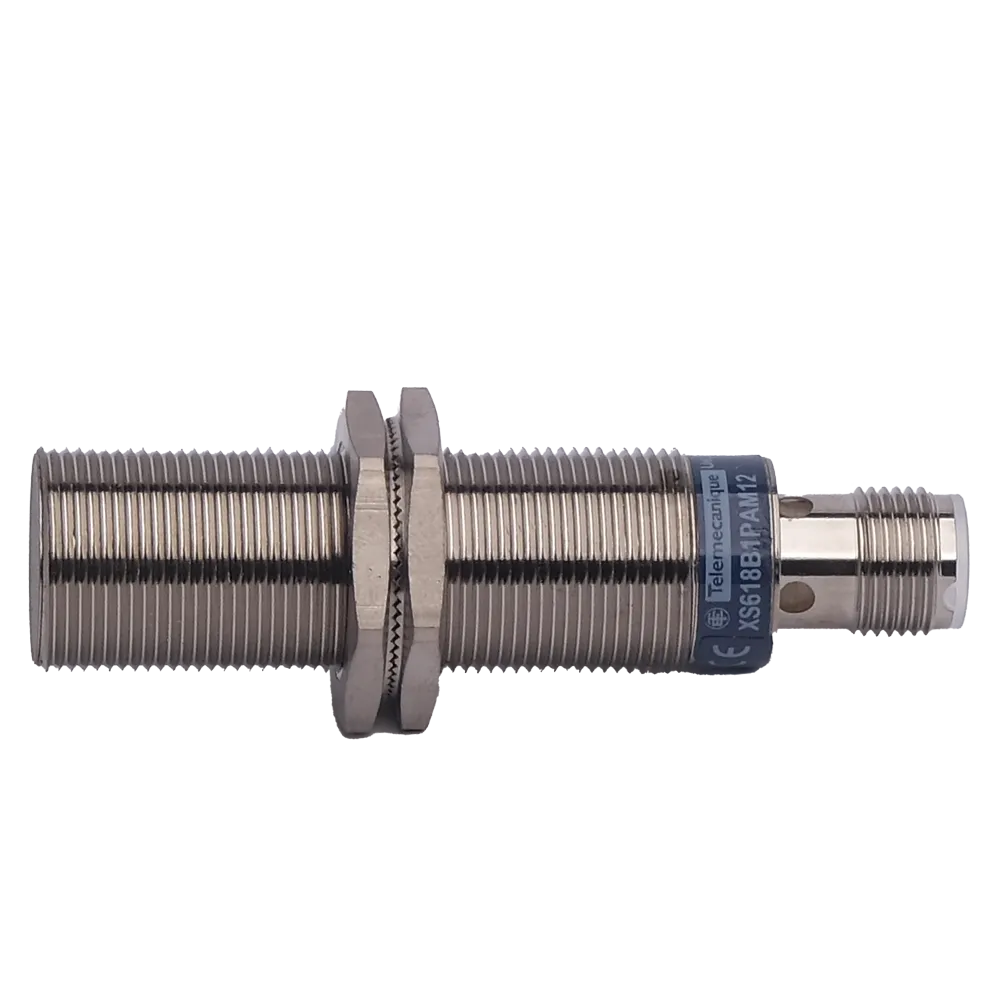

The cylindrical metal housing is crafted from nickel-plated brass, combining strength and corrosion resistance. Its design allows for quick panel or bracket mounting using the supplied lock nuts.

The sensing head is engineered with a rugged, flush-mounted face, providing immunity to abrasion and drilling dust. Additionally, the M12 connection design offers convenient plug-and-play installation without soldering or special tools.

Key Design Highlights:

• Fully shielded sensing face for precise detection in confined machine spaces.

• High electromagnetic immunity, ensuring uninterrupted signal transmission in high-current environments.

• Integrated LED status indicator, providing immediate visual feedback of operational state.

• Double-sealed enclosure, ensuring long-term stability in humid or dusty drilling environments.

---

Advantages of the 3222148800 SENSOR ATLAS COPCO

1. Unmatched Precision and Repeatability

The sensor delivers consistent detection accuracy even under vibration, temperature variation, and fluctuating current loads.

2. Extended Operational Lifespan

With no moving parts, the 3222148800 SENSOR ATLAS COPCO achieves long-term reliability and reduces maintenance frequency.

3. Compact and Versatile Design

Its M18 threaded body fits seamlessly into multiple mounting configurations, suitable for control panels and direct equipment installations.

4. Enhanced Environmental Resistance

Its IP67 protection ensures durability in water-spray, mud, and dust-prone worksites typical of quarries and underground mines.

5. Quick Replacement and Integration

The standard M12 connector interface allows fast installation or replacement without disrupting machine operation.

---

Compatibility with ATLAS COPCO Models

The 3222148800 SENSOR ATLAS COPCO is widely used across numerous Atlas Copco drilling and mining machine series, including both surface and underground applications:

• SmartROC T40 / T45 / T50 / T55

• FlexiROC T35 / T40 / T45 / T50 / T55

• ROC L8 / ROC L6 / ROC L7 hydraulic crawler drills

• Boomer Series (E2C, E3C, M2C, M2D)

• Simba Series (M6, S7, S9) underground rigs

• PowerROC and AirROC D50 / D55 / D60 rock drilling rigs

• ROC D7 / D9C / D9R crawler drills

• Atlas Copco Air Compressors GA and GX series (control feedback circuits)

These models rely on proximity sensors for the synchronization of drilling arms, feed movement, and percussion systems.

---

Engineering and Performance Characteristics

Signal Stability

The 3222148800 SENSOR ATLAS COPCO maintains output signal consistency with less than ±1% deviation across the entire sensing range, guaranteeing high process accuracy.

Electrical Reliability

Designed to resist short-circuit and reverse polarity damage, it ensures machine protection during installation or unexpected voltage spikes.

Vibration Endurance

Tested to withstand up to 10G mechanical vibration and 50G shock loads, ensuring continued function in heavy-duty drilling conditions.

Thermal Resilience

Performs reliably under extreme thermal cycles experienced in outdoor and underground operations, maintaining precision even in freezing or high-heat environments.

Installation Flexibility

The sensor’s design allows both flush and non-flush mounting, giving operators flexibility depending on machine configuration.

---

Applications

The 3222148800 SENSOR ATLAS COPCO is used in multiple industrial and mining applications such as:

• Position sensing of feed cylinders and drilling rods.

• Detection of metal targets within automation systems.

• Control feedback in air compressors and hydraulic pumps.

• Monitoring piston movement in rock drill assemblies.

• Real-time position feedback for drilling automation control.

---

Installation Guidelines

Installing the 3222148800 SENSOR ATLAS COPCO requires standard mechanical tools and basic electrical knowledge.

Steps:

1. Power off the machine and isolate the control circuit.

2. Mount the sensor in the designated threaded hole or bracket using supplied nuts.

3. Connect the M12 cable (4-pin) securely to prevent moisture ingress.

4. Adjust the detection distance to ensure proper metal target sensing.

5. Power on and verify operation using the built-in LED indicator.

Routine inspection should be performed every 1000 operating hours to ensure the sensor’s sensing face remains clean and unobstructed.

---

Manufacturing and Quality Control

Each 3222148800 SENSOR ATLAS COPCO is produced under strict OEM manufacturing standards. Before shipment, sensors undergo rigorous tests including:

• Electrical insulation and polarity testing

• Functional response timing verification

• Water ingress resistance (IP67)

• Thermal cycle testing (-25°C to +70°C)

• Mechanical vibration and impact simulation

Only components that meet or exceed OEM certification requirements are distributed by 3GEN Export.

---

3GEN Export – Global OEM Supplier

At 3GEN Export, we specialize in providing premium-quality Atlas Copco OEM spare parts that guarantee long-term machine efficiency. As an official OEM supplier, 3GEN ensures every component—including sensors, valves, switches, and hydraulic assemblies—matches original factory standards in material, performance, and precision.

What Makes 3GEN Export the Global Choice:

• OEM standard parts tested for industrial reliability.

• Worldwide delivery in just 5 working days.

• Transparent pricing including shipping.

• Secure international packaging and documentation.

• 1-year warranty against manufacturing defects.

We understand the cost of downtime in drilling operations, which is why our logistics system prioritizes fast, trackable, and insured global delivery.

---

Quality and Sustainability

3GEN Export adheres to ISO 9001 quality standards and sustainable sourcing policies. Each 3222148800 SENSOR ATLAS COPCO is designed for extended lifecycle use, minimizing waste and maximizing reliability under continuous workloads.

By partnering with certified manufacturers, we contribute to reducing environmental impact while maintaining the precision and performance your equipment demands.

---

Summary of Key Features

• OEM-grade proximity sensor for Atlas Copco heavy machinery.

• Nickel-plated brass housing with IP67-rated sealing.

• Accurate detection up to 8mm distance.

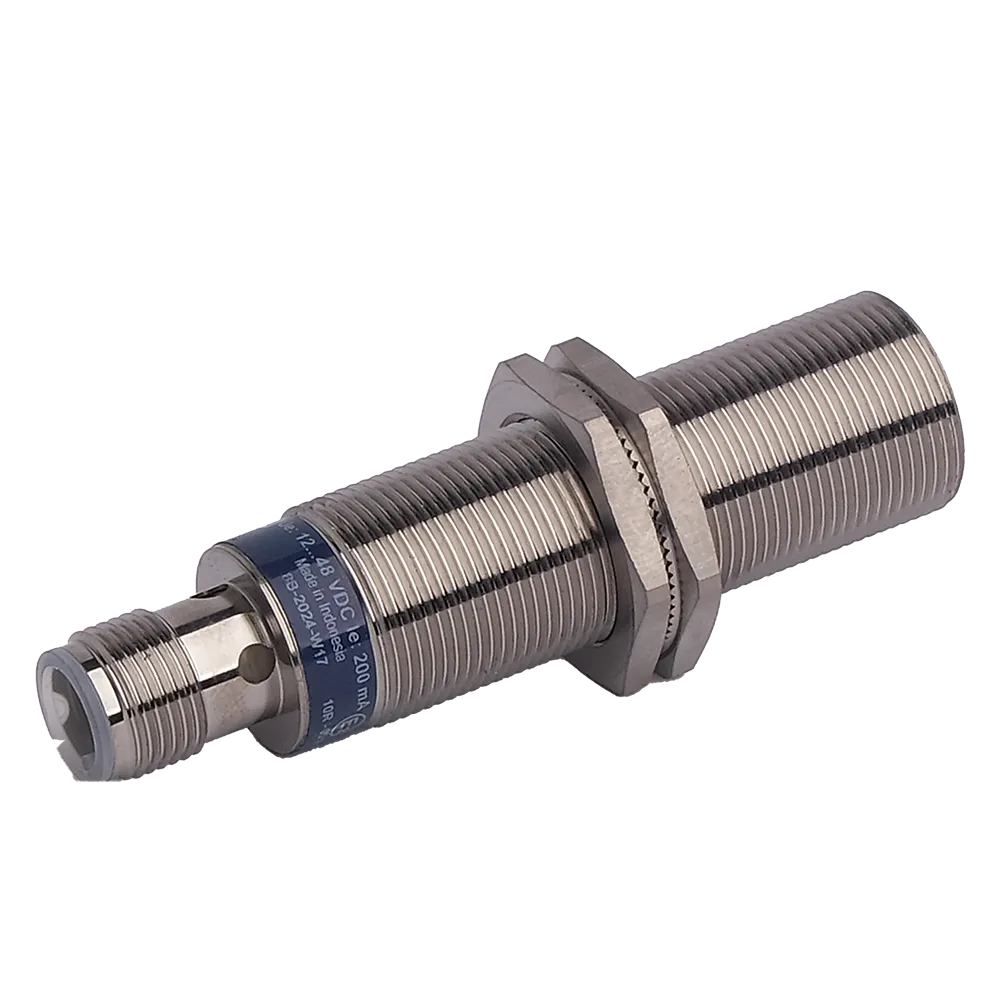

• Operates between 12–48V DC with high switching frequency.

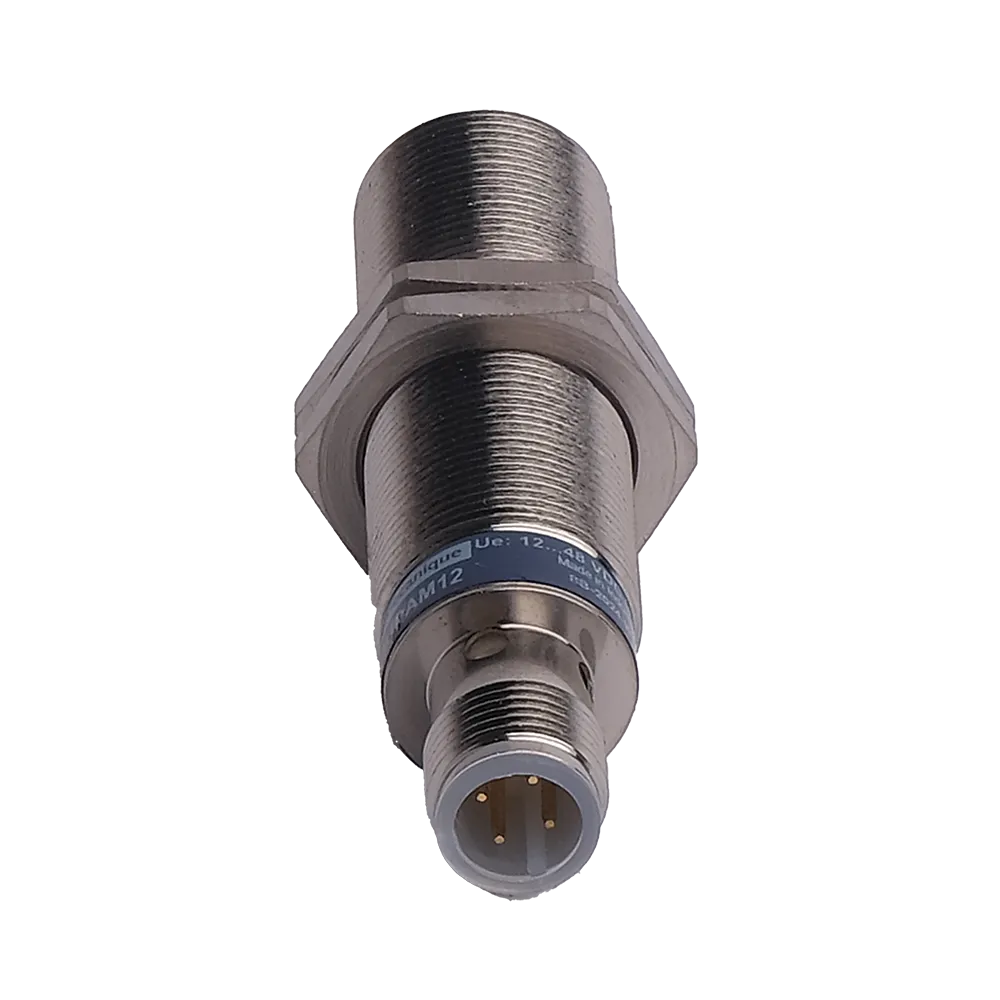

• M12 quick-connect system for easy replacement.

• Vibration-resistant and thermally stable for harsh field conditions.

• Backed by 3GEN Export with worldwide delivery in 5 working days.

---

Conclusion

The 3222148800 SENSOR ATLAS COPCO (3222 1488 00) stands as an essential part of Atlas Copco’s intelligent machine control ecosystem. Combining robust construction with high detection accuracy, it ensures reliable automation and control in drilling, mining, and construction applications.

Supplied exclusively by 3GEN Export, this part represents the best in OEM quality assurance, precision manufacturing, and worldwide accessibility—keeping your machinery performing at peak efficiency wherever your project operates.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
