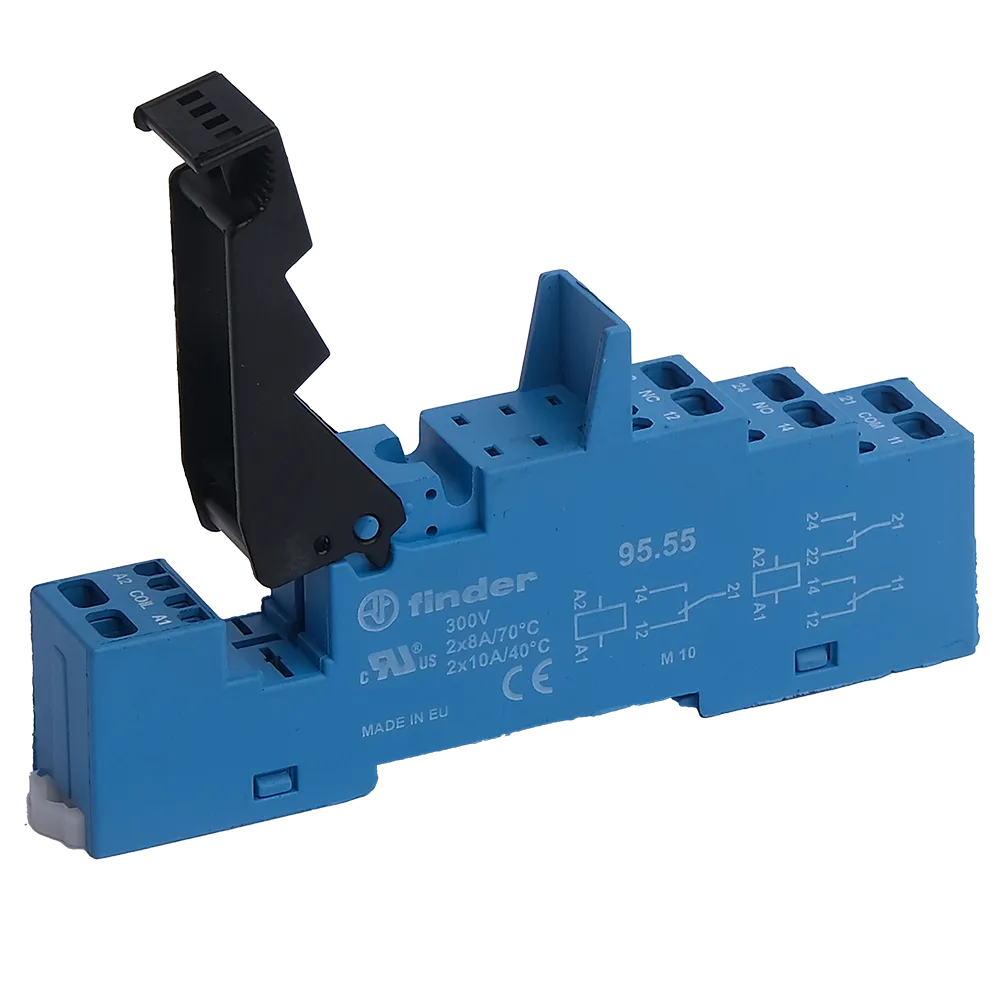

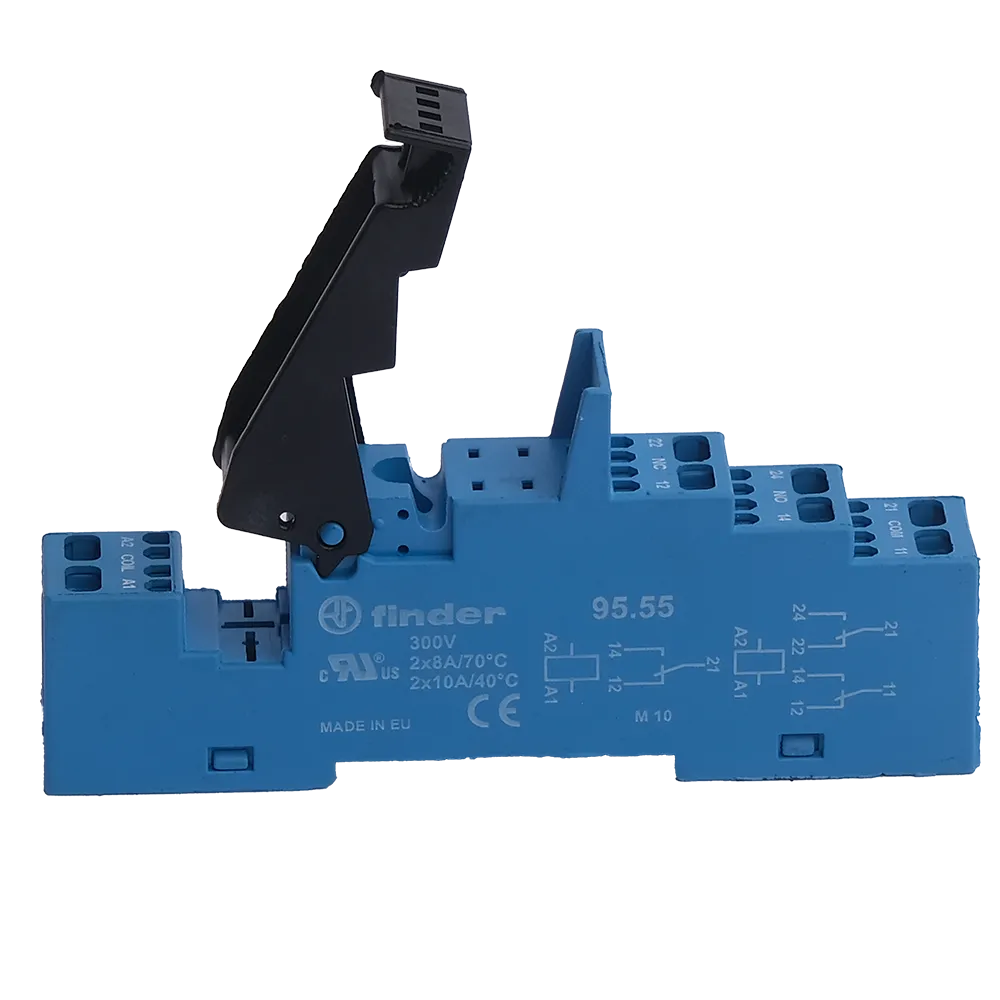

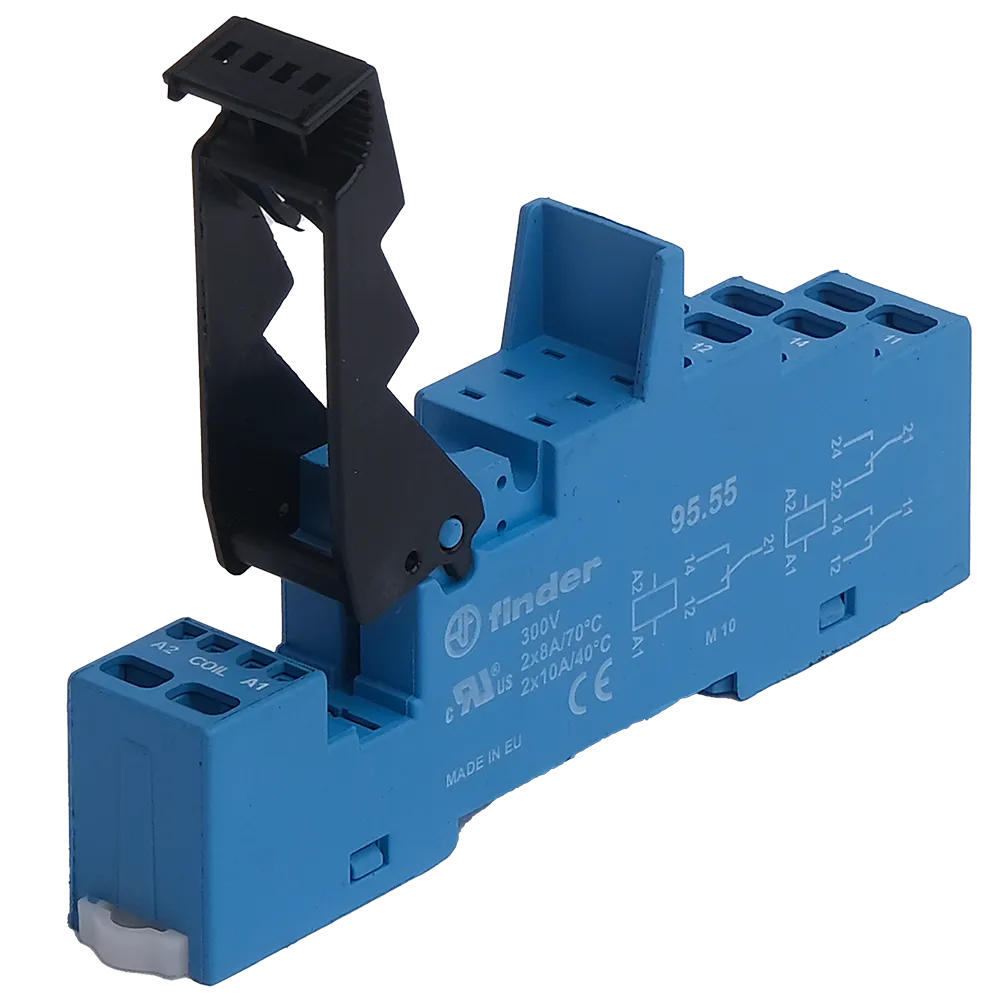

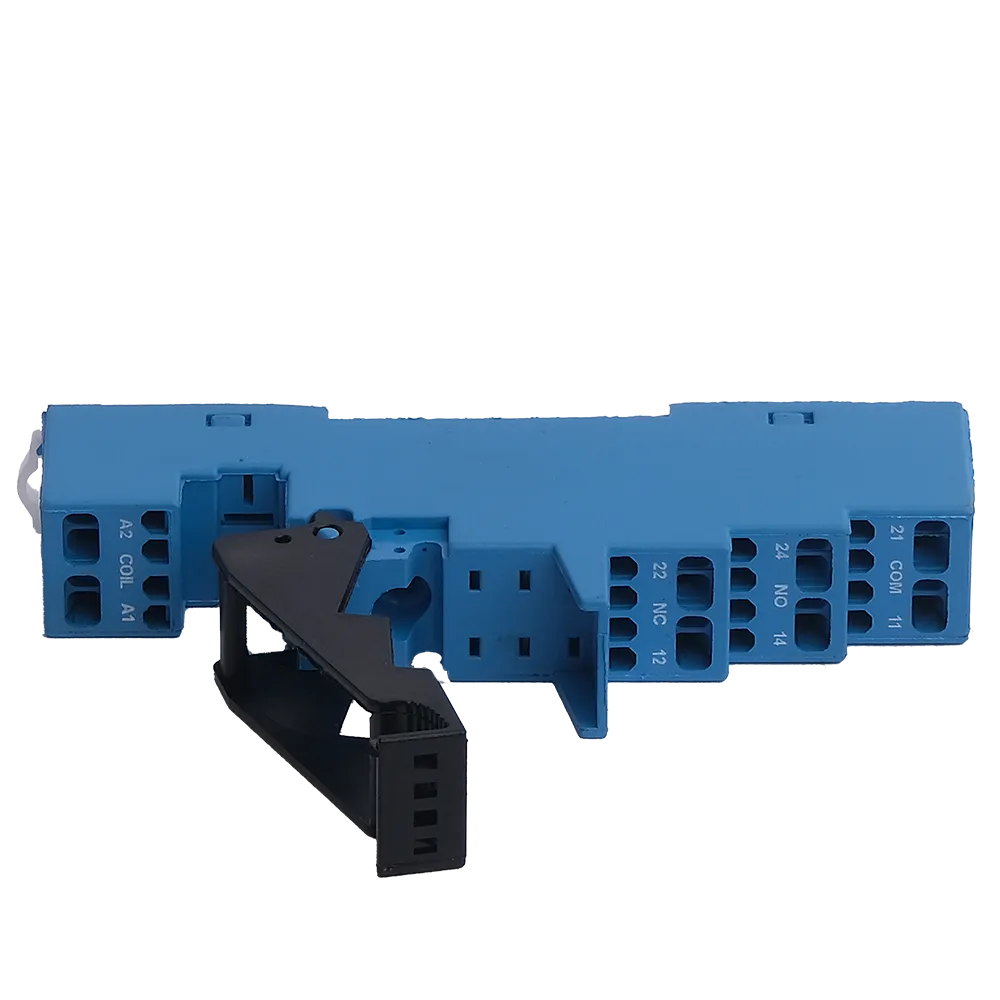

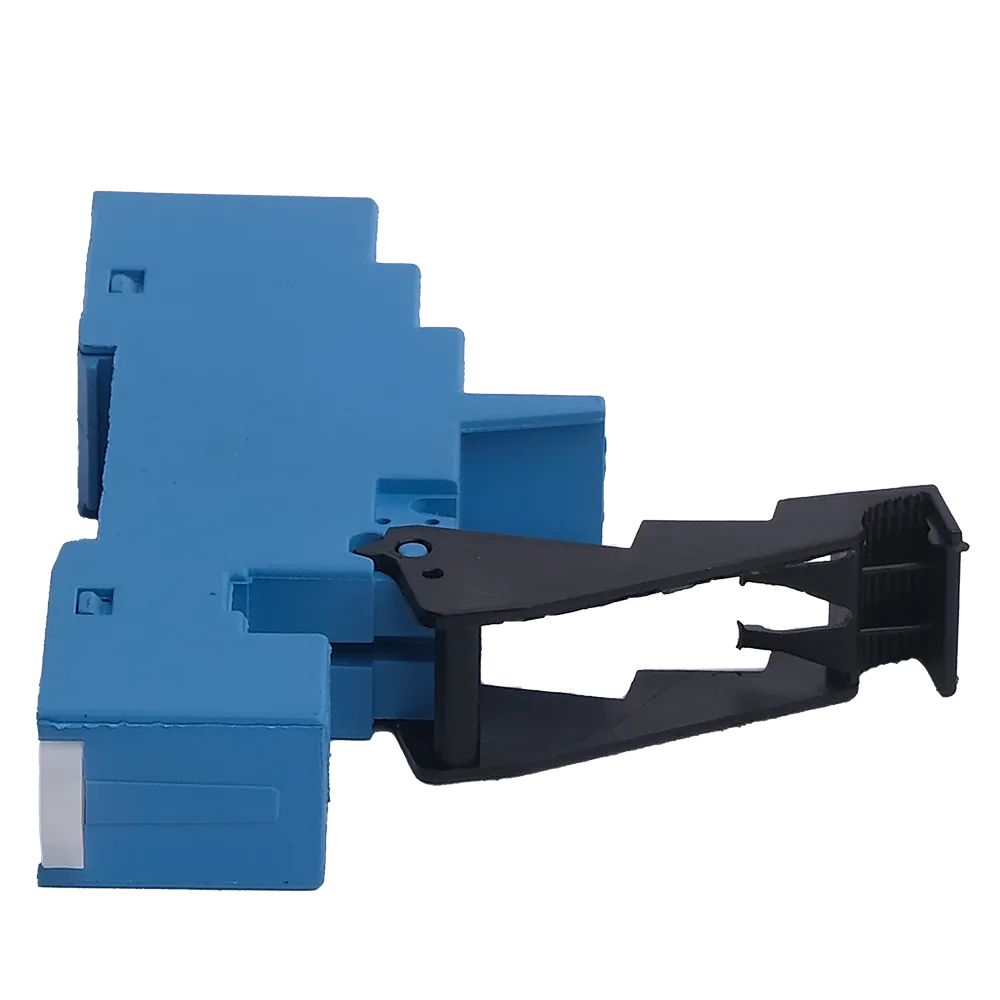

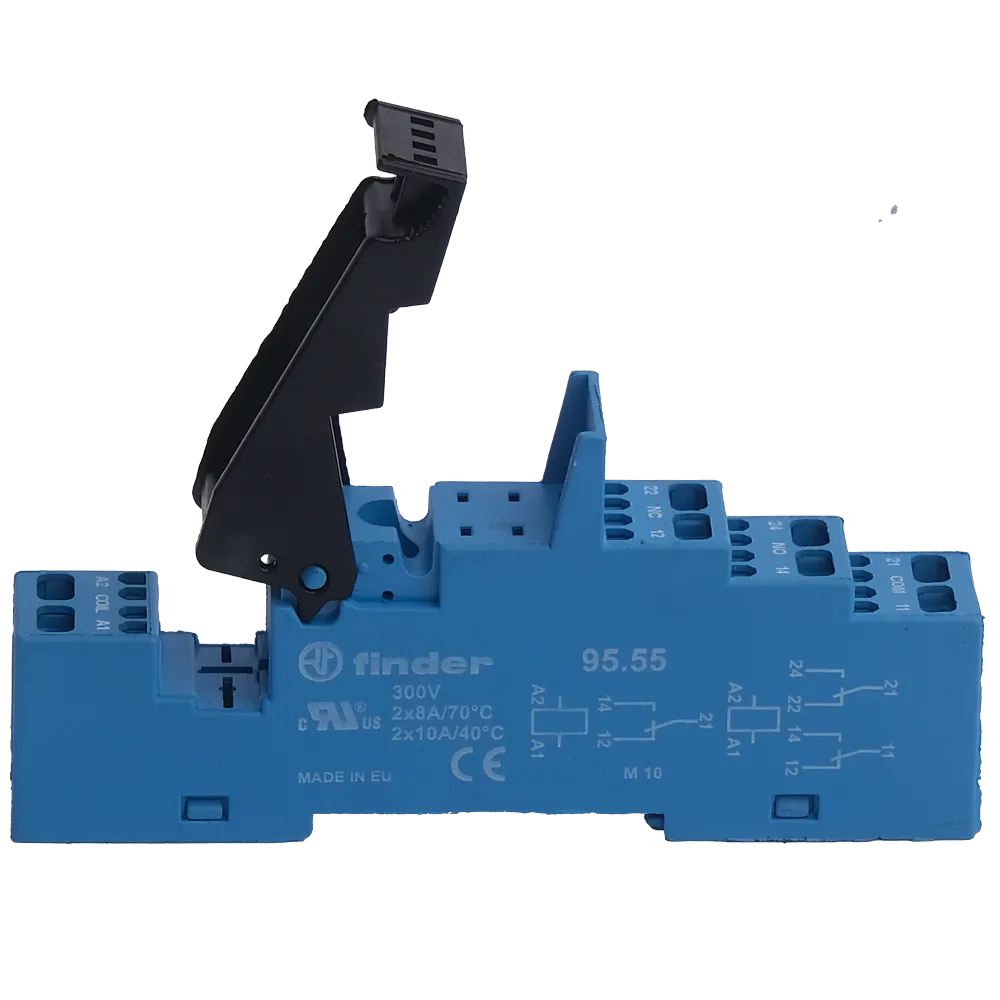

3222333319 , 3222 3333 19 RELAY SOCKET ATLAS COPCO

Reliable Base Connection for Atlas Copco Electrical Systems

The 3222333319 RELAY SOCKET ATLAS COPCO is an essential connection interface that enables secure and efficient installation of relay components within heavy machinery control systems. Designed specifically for industrial-grade performance, this relay socket acts as the primary electrical base for relays operating in Atlas Copco drilling, mining, and compressor systems. It ensures that each relay maintains a stable, vibration-resistant connection—critical in environments where electrical integrity directly affects operational safety and machine reliability.

Built with precision engineering and high-durability materials, this socket ensures tight-fit conductivity and extended lifespan, even under continuous vibration, dust, and temperature fluctuations. Distributed by 3GEN Export, the component offers OEM-level reliability and is available with worldwide delivery in just five working days.

---

Purpose and Functionality

The 3222333319 RELAY SOCKET ATLAS COPCO provides a secure mounting base for industrial relays, enabling easy installation, maintenance, and quick relay replacement without rewiring. It is engineered for compatibility with standard 24V DC or 230V AC relays used across Atlas Copco’s drilling and compressor units.

Its modular design allows technicians to integrate it into existing control panels, electrical cabinets, and automation circuits. The socket’s superior insulation, corrosion-resistant terminals, and tight-fit locking system prevent disconnection during heavy-duty machine operation.

Key Functions:

• Provides a stable interface between relay coils and control circuits.

• Ensures rapid replacement and minimal downtime during maintenance.

• Reduces wiring errors through standardized pin configuration.

• Offers electrical safety via high-quality dielectric insulation.

Weight: 0.065 kg (65 grams)

---

Technical Design and Material Structure

Structural Durability

The body of the 3222333319 RELAY SOCKET ATLAS COPCO is made from industrial-grade thermoplastic polymer, resistant to heat, oil, and high-frequency vibration. Its metal contact inserts are composed of nickel-plated copper, ensuring long-term conductivity and oxidation resistance.

• Socket type: Finder 95.55-style industrial relay base

• Voltage rating: 300V (UL/CSA compliant)

• Current capacity: Up to 10A at 40°C / 8A at 70°C

• Contact configuration: 2-pole (DPDT) compatible

• Operating temperature range: –40°C to +85°C

• Dielectric strength: 2.5kV between coil and contacts

• Mounting style: DIN-rail or screw-mount adaptable

• Insulation class: V-0 flame-retardant

The socket includes a spring clamp retention arm (black component) designed for tool-free relay locking. This ensures secure seating, preventing electrical arcing or accidental detachment during vibration.

---

Electrical and Operational Performance

The 3222333319 RELAY SOCKET ATLAS COPCO forms a critical part of the control relay circuit, allowing rapid relay switching while maintaining electrical isolation between control and power signals. Its reinforced contact structure enables consistent operation even under fluctuating voltage conditions.

Electrical Features:

• Rated voltage: 24–300V

• Maximum switching current: 10A

• Terminal torque: 0.5–0.6 Nm

• Pin configuration: 8-pin dual relay channel

• Compatible wire size: 0.5–2.5 mm² (solid or stranded)

This combination of specifications ensures excellent performance for both automation and protection systems inside drilling rigs and rock processing machinery.

---

Compatibility with Atlas Copco Models

The 3222333319 RELAY SOCKET ATLAS COPCO is widely compatible with Atlas Copco machinery using advanced relay-based control systems. It is primarily used in electrical control boxes, compressor automation panels, and safety relay banks.

Compatible Models:

• SmartROC T35, T40, and T45 series

• PowerROC D50 and D60 surface drill rigs

• ROC L8 and ROC D9 drilling systems

• FlexiROC T20 / T30 / T40 hydraulic rigs

• Boomer L2 and L3 underground rigs

• COP 1838, 1840, and 2560 rock drifters

• XAS and XRVS portable compressor lines

This relay socket provides direct compatibility with standard Finder-style relays used across Atlas Copco’s electrical and automation setups, ensuring efficient integration without modification.

---

Key Benefits of the 3222333319 RELAY SOCKET ATLAS COPCO

1. Simplified Maintenance and Replacement

With its modular structure, the socket allows for easy relay insertion and removal without disassembling the wiring harness. This significantly reduces downtime during servicing, a crucial factor in field operations.

2. Enhanced Electrical Safety

The socket’s robust insulation and contact protection prevent accidental short circuits and voltage leakage. Each terminal is recessed, reducing the risk of technician shock during relay servicing.

3. Long-Term Resistance to Harsh Conditions

Designed for rugged mining and drilling sites, the material resists mechanical stress, temperature variations, and contamination from oil or dust. The nickel-plated terminals maintain consistent conductivity over years of continuous use.

4. Universal Compatibility

The 3222333319 RELAY SOCKET ATLAS COPCO supports both mechanical and solid-state relays, giving maintenance teams flexibility in replacement and upgrade scenarios.

5. Compact and Modular Design

With its slim profile, the relay socket can be installed on densely packed DIN rails without spacing concerns, maximizing space efficiency in control panels.

---

Installation and Wiring Guidelines

For optimal operation, technicians should ensure proper mounting and wiring according to Atlas Copco’s OEM specifications.

Mounting Options

• DIN-rail installation: Snap-fit mounting on 35mm industrial rails.

• Screw mount: Two-point secure fastening on metallic panels.

Wiring Instructions

1. Disconnect power supply before installation.

2. Strip wire ends to 8–10mm.

3. Insert wires into terminal clamps and tighten screws to the specified torque.

4. Insert relay into socket ensuring full engagement.

5. Close the retention clip to secure the relay.

These steps ensure mechanical stability and long-term electrical reliability.

---

Technical Specifications

---

Quality Standards and OEM Assurance

Each 3222333319 RELAY SOCKET ATLAS COPCO supplied by 3GEN Export is tested under ISO 9001:2015 standards to ensure electrical safety and dimensional accuracy. The sockets are produced using precision molding and high-voltage endurance testing for guaranteed performance in industrial systems.

• Dielectric breakdown testing up to 2500V AC

• Thermal cycling to simulate long-term operation

• Salt-mist resistance for corrosion prevention

• Vibration and shock testing for mining and drilling machinery environments

---

3GEN Export – Your Global OEM Supplier

3GEN Export specializes in the global distribution of OEM-quality Atlas Copco parts, including electrical and hydraulic components. Each product is designed for direct compatibility and delivered within five working days worldwide.

Our Service Advantages:

• Genuine OEM-compatible spare parts

• 1-year warranty and quality certification

• Secure packaging and express international delivery

• Dedicated technical assistance for all Atlas Copco models

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
