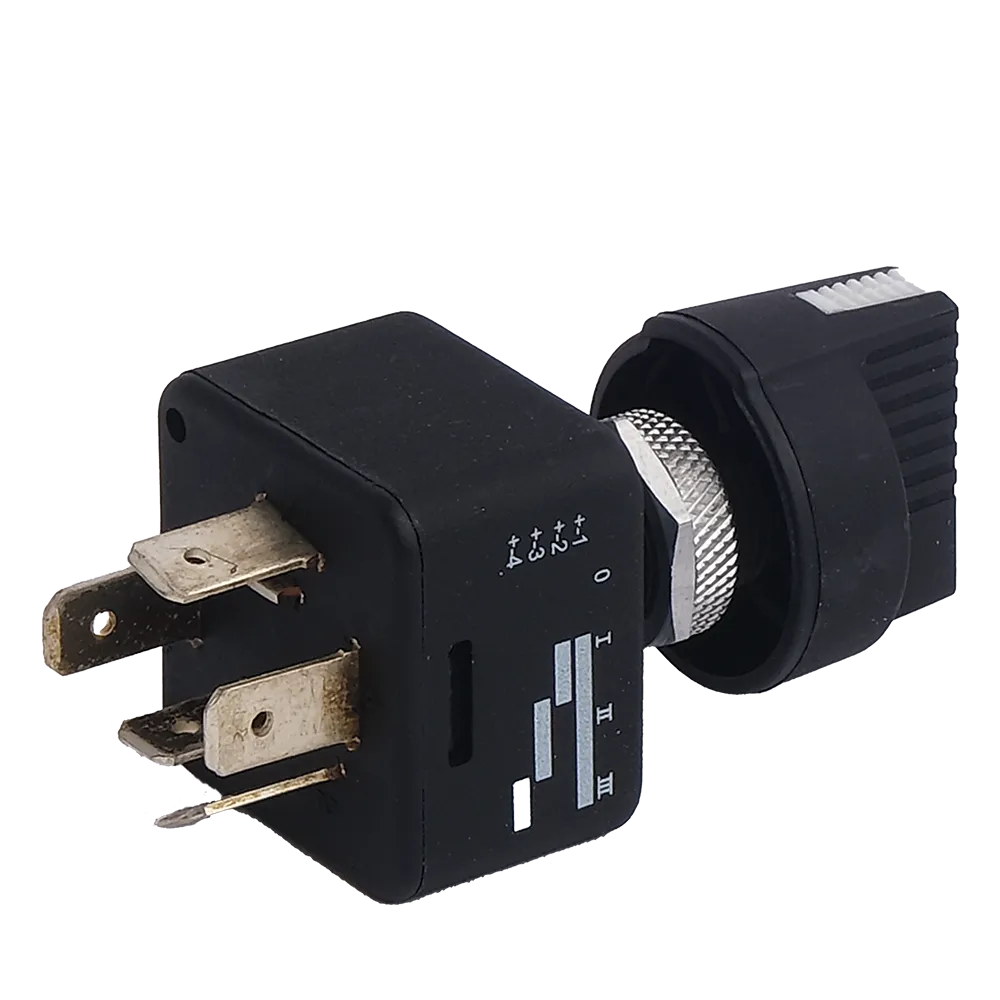

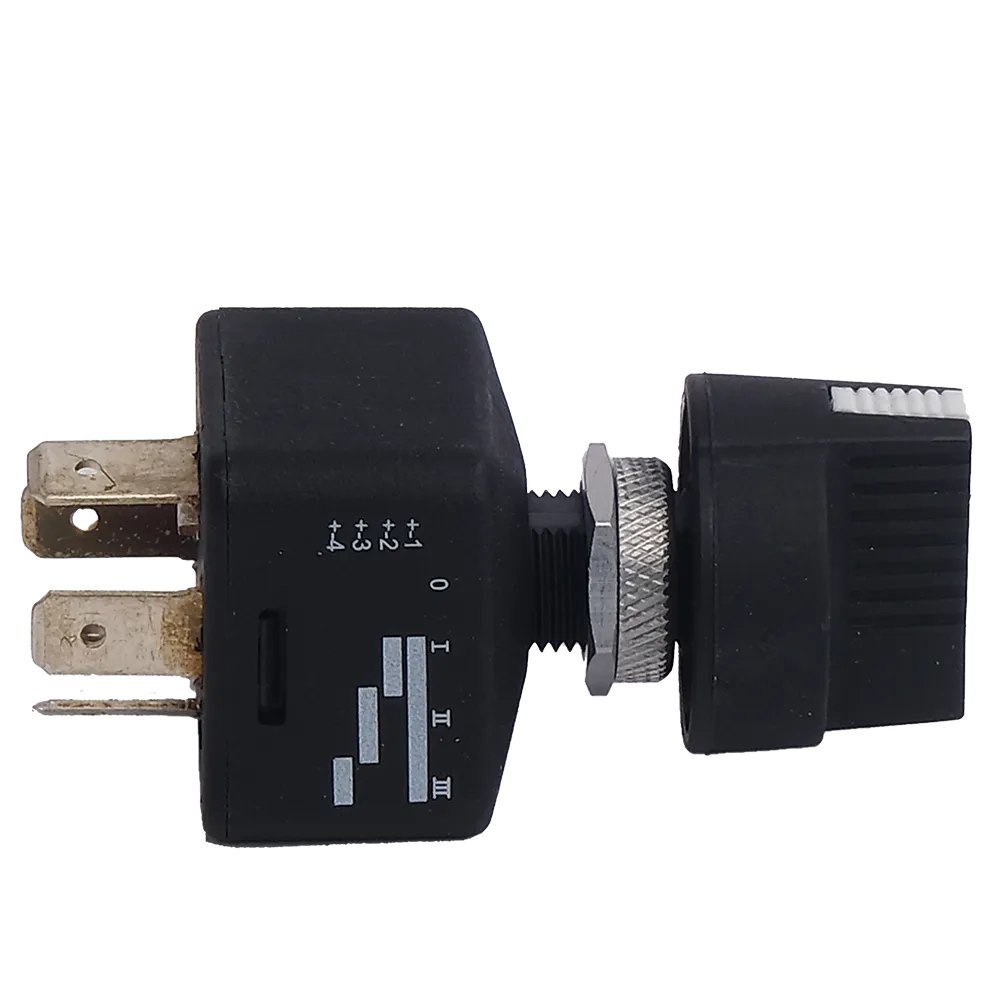

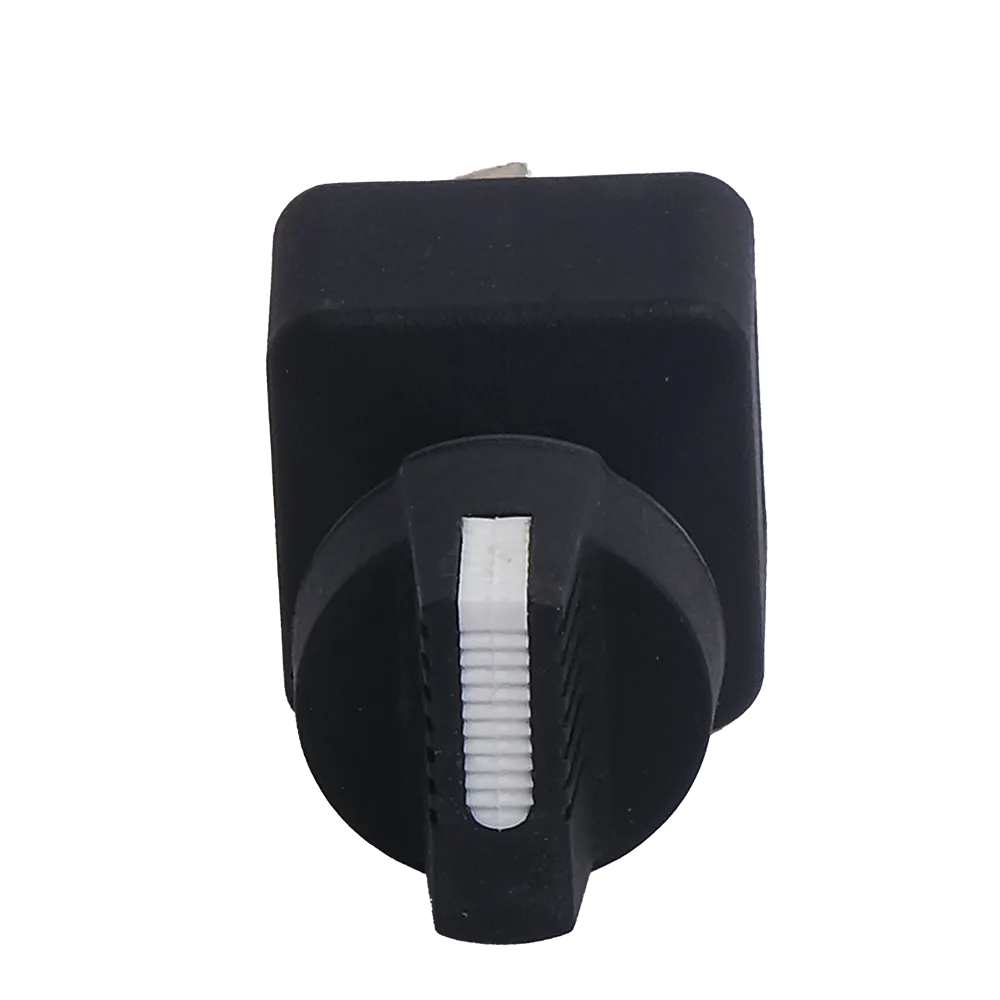

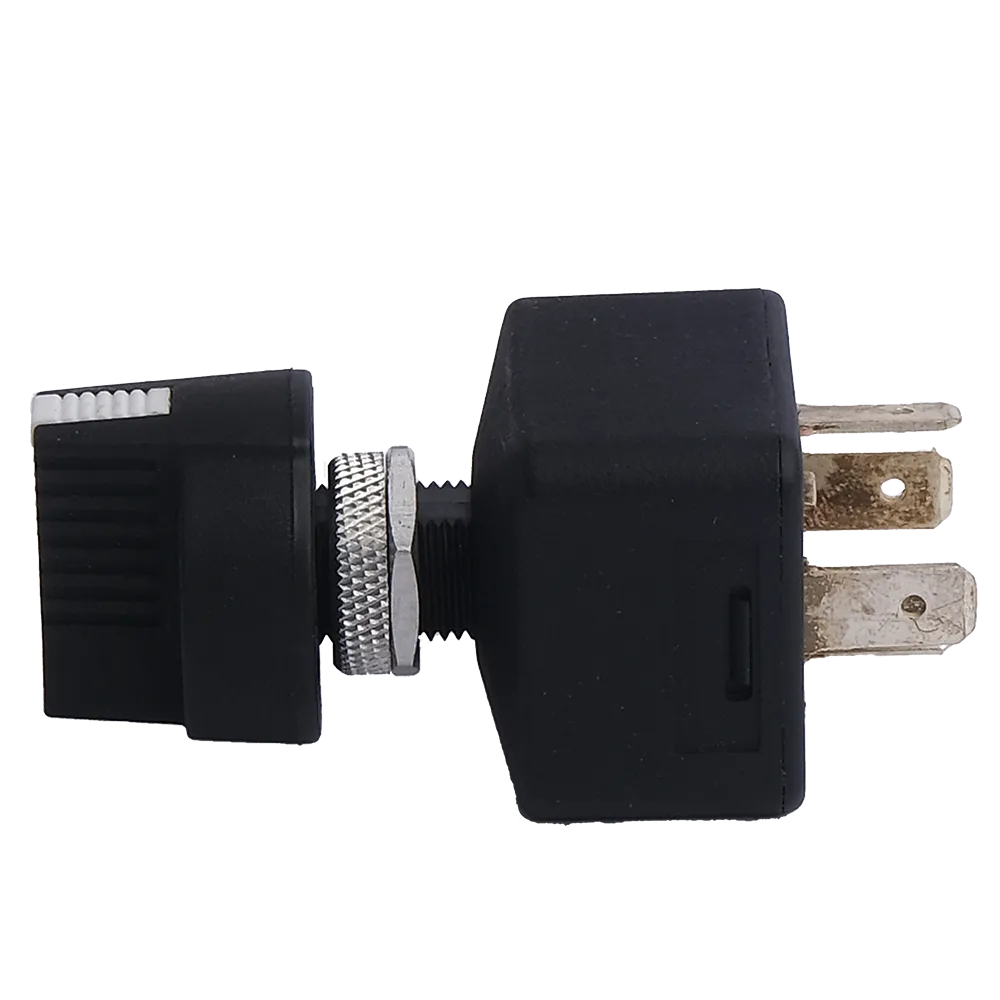

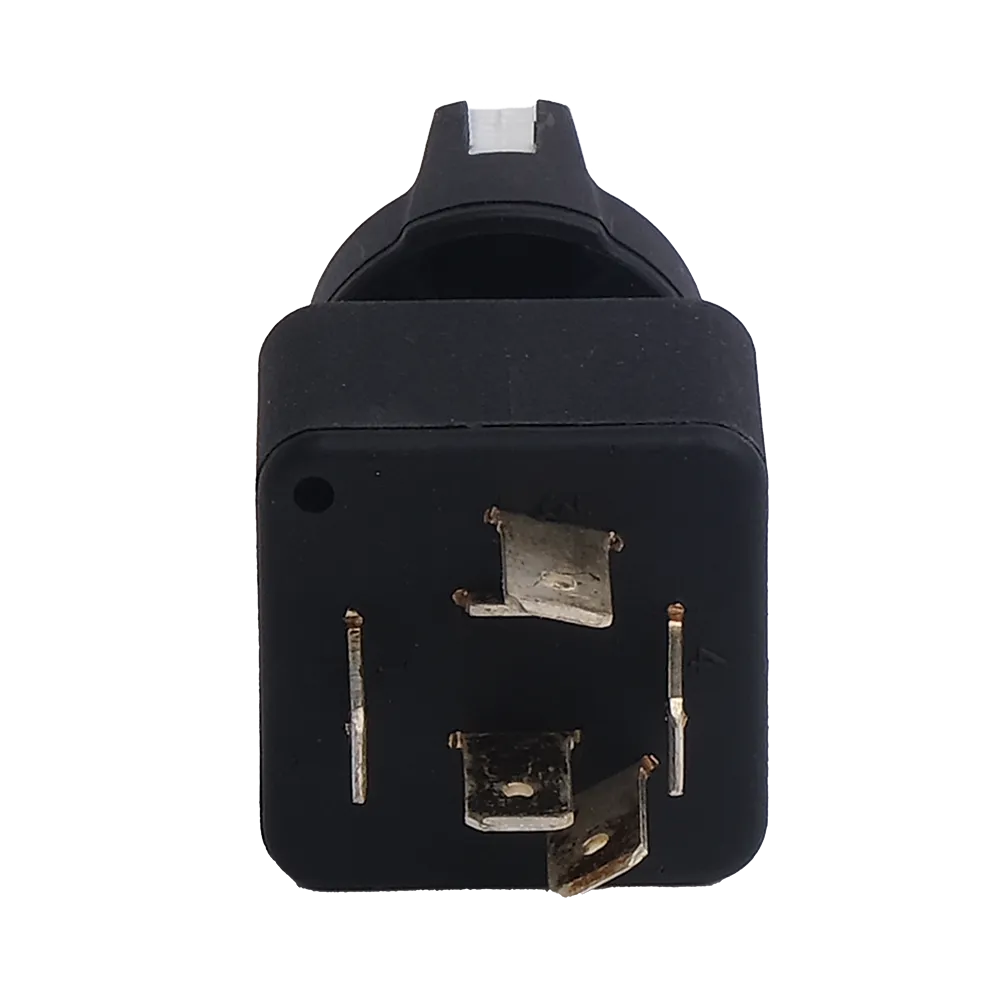

5112313808 SWITCH ATLAS COPCO

The 5112313808 SWITCH ATLAS COPCO (also known as 5112 3138 08 SWITCH ATLAS COPCO) is a high-performance electrical control component designed for precise operation in heavy-duty drilling, excavation, and pneumatic systems. This switch plays a critical role in controlling electrical currents within the machinery, ensuring seamless power distribution and operational safety across multiple circuits.

Engineered to meet rigorous industrial standards, the 5112313808 SWITCH ATLAS COPCO combines compact design, high durability, and excellent conductivity. As a control switch used in Atlas Copco’s advanced rock drills and compressor systems, it ensures accurate command input, fast response, and long-term reliability even under vibration and extreme temperature conditions.

Supplied by 3GEN Export, this switch comes as an OEM-quality replacement part compatible with several Atlas Copco models. It is ready for worldwide delivery within 5 working days, ensuring you can restore your machinery’s full function without operational delays.

---

Function and Importance of 5112313808 SWITCH ATLAS COPCO

The 5112313808 SWITCH ATLAS COPCO serves as a multi-position rotary control switch, providing the operator with a reliable interface for managing power flow and operational modes within drilling systems. Its purpose extends beyond a simple ON/OFF mechanism, it allows the operator to fine-tune machine responses across several speed or power levels, typically marked as 0, I, II, III.

In Atlas Copco machinery, this switch controls key systems such as:

• Compressor speed selection

• Blower control and fan operation

• Drilling speed and percussion rate adjustment

• Lighting and auxiliary circuit activation

The design enables quick toggling between operational modes while ensuring stable contact connections through solid brass terminals that minimize electrical resistance.

---

Construction and Material Features

The 5112 3138 08 Switch Atlas Copco is designed for endurance and safety. Every aspect of its construction, from the housing material to the internal contacts, has been carefully chosen for reliability in industrial environments.

Material Composition:

• Body: Industrial-grade thermoplastic for heat resistance and insulation

• Shaft: Reinforced nylon with anti-slip grip texture

• Terminals: Heavy-duty brass contacts with anti-corrosive plating

• Mounting Nut: Nickel-plated steel for secure fastening and vibration resistance

This combination ensures that the switch can endure continuous mechanical stress, high ambient temperatures, and exposure to dust or moisture. The metal contacts maintain stable conductivity, ensuring reliable current transmission even after thousands of operational cycles.

---

Technical Specifications

---

Compatibility with Atlas Copco Models

The 5112313808 SWITCH ATLAS COPCO is compatible with multiple Atlas Copco drilling and compressor units that rely on precise electrical switching systems. It is often used in the control panels and operating consoles of high-performance equipment.

Compatible Models Include:

• Atlas Copco ROC L6 Series

• Atlas Copco ROC L8 Series

• Atlas Copco SmartROC T35 and T40

• Atlas Copco Boomer 282 and 353 Series

• Atlas Copco Simba M4 and S7 Series

• Atlas Copco ROC D3 / D5 Drills

• Atlas Copco Air Compressors XAS 97, XAS 137, XAS 186

Each of these machines utilizes the 5112313808 switch for managing multi-stage electrical functions, improving operator control and precision during field operations.

---

Key Performance Advantages

1. High Conductivity and Stability

The use of brass contacts ensures excellent conductivity with minimal resistance, preventing overheating and maintaining stable electrical flow even under heavy load.

2. Ergonomic Rotary Design

The switch features a textured rotary knob that allows operators to easily change modes, even while wearing gloves. The tactile feedback ensures precise switching without slippage.

3. Resistance to Harsh Conditions

Its robust housing provides resistance to vibration, dust, and humidity, making it ideal for mining, tunneling, and quarry environments.

4. Long Service Life

Designed for over 100,000 switch cycles, the 5112313808 Switch Atlas Copco guarantees longevity and consistent performance over time.

5. Compact, Modular Integration

The switch’s compact profile and standardized mounting thread allow for direct replacement without modification, minimizing downtime during maintenance.

6. Electrical Safety Assurance

It complies with industrial safety standards for insulation resistance, preventing accidental short circuits and ensuring operator protection.

---

Working Principle

When the 5112313808 Switch Atlas Copco is rotated through its positions, the internal contact plates connect different terminal pairs, routing the electrical current through specific pathways.

Each position (0, I, II, III) corresponds to a unique operational mode:

• Position 0: System OFF – No current flow

• Position I: Low-speed / standby mode

• Position II: Normal operation

• Position III: High-power mode or auxiliary activation

This configuration allows operators to control machinery output seamlessly without requiring external controllers or relays, simplifying the overall electrical system design.

---

Installation and Maintenance Guide

Proper installation of the 5112 3138 08 Switch Atlas Copco ensures maximum efficiency and safety.

Installation Steps:

1. Disconnect the Power Source: Always isolate the electrical circuit before installation.

2. Mount the Switch: Insert the switch through the panel cutout and tighten the locknut using moderate torque.

3. Connect Terminals: Attach the spade connectors to their designated pins following the wiring schematic.

4. Verify Connections: Ensure there are no loose or crossed wires.

5. Function Test: Rotate through all positions to confirm correct operation.

Maintenance Tips:

• Inspect the contacts periodically for corrosion or wear.

• Clean terminals using contact cleaner every 1,000 operating hours.

• Avoid over-tightening the mounting nut to prevent thread damage.

---

Durability and Quality Standards

The 5112313808 SWITCH ATLAS COPCO undergoes strict quality control testing to meet international OEM standards. Each unit is subjected to:

• Electrical endurance testing (100,000 cycles)

• Vibration and shock resistance tests

• Temperature and humidity exposure validation

• Contact resistance and continuity inspection

These processes ensure flawless performance even in demanding applications, providing a dependable solution for long-term use in mining and drilling equipment.

---

Packaging and Shipping

Every 5112313808 Switch Atlas Copco supplied by 3GEN Export is securely packaged in anti-static, moisture-resistant material to prevent oxidation and terminal damage during transport. Each unit is individually boxed and labeled with:

• Part number and compatibility reference

• Quality control seal

• Batch tracking code for warranty assurance

Delivery: Global shipping within 5 working days, handled through insured and trackable logistics partners.

---

Why Choose 3GEN Export

3GEN Export is a trusted international supplier of OEM-quality spare parts for heavy machinery and rock drilling equipment. With a global network and commitment to excellence, we ensure that every component you receive meets or exceeds OEM standards.

3GEN Export Advantages:

• OEM-grade parts for all major machinery brands

• Fast global delivery within 5 working days

• Secure payment and logistics tracking

• Expert technical support for compatibility verification

• Over 1,000 product references for Atlas Copco, Sandvik, Komatsu, Volvo, and more

When you choose 3GEN Export, you’re not just buying a spare part, you’re investing in performance continuity and machine reliability.

---

Summary

The 5112313808 SWITCH ATLAS COPCO is a durable, precision-built control component designed for industrial drilling and compressor systems. With its reinforced thermoplastic housing, brass contacts, and multi-position rotary control, it provides reliable performance and easy integration into Atlas Copco equipment.

Built to withstand vibration, temperature extremes, and continuous operation, this switch exemplifies quality and functionality. Supplied by 3GEN Export, it arrives ready for immediate installation and backed by rapid worldwide delivery.

Weight: 0.095 kg
Supplier: 3GEN Export – OEM Supplier
Delivery: 5 Working Days Worldwide

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
