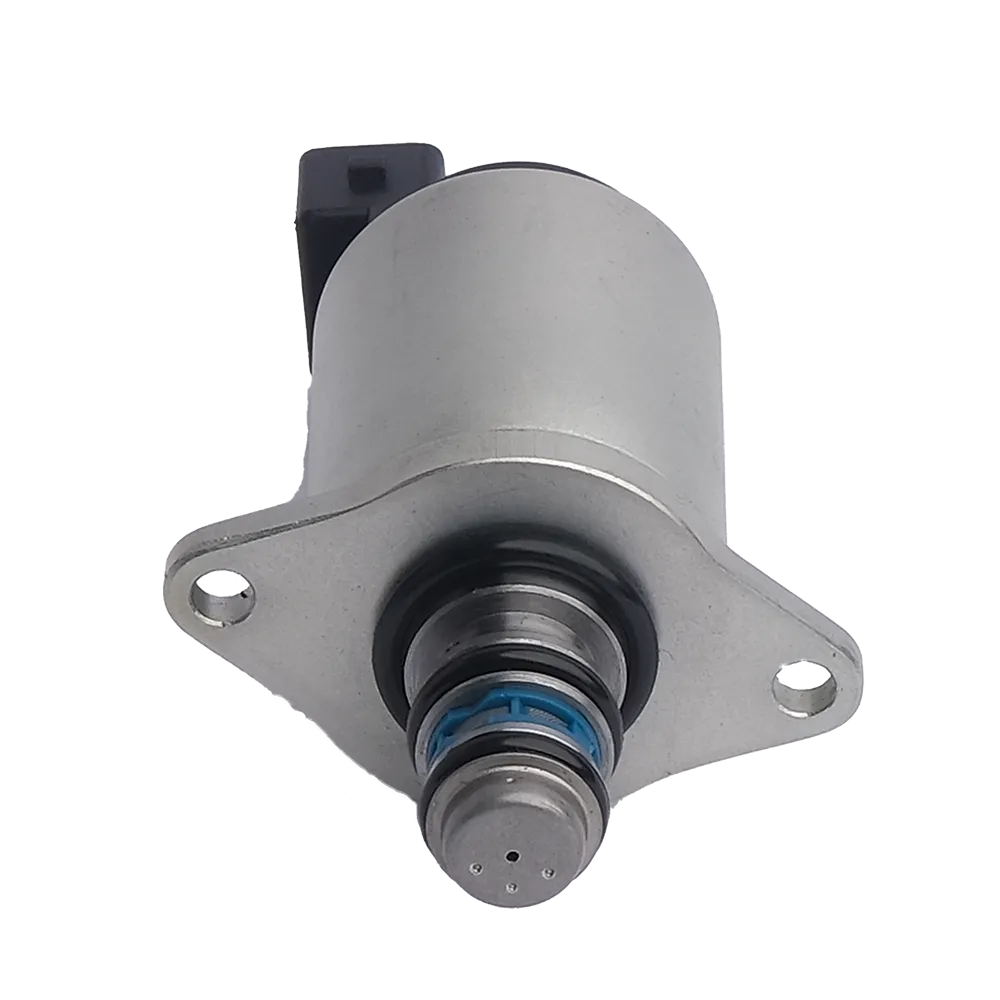

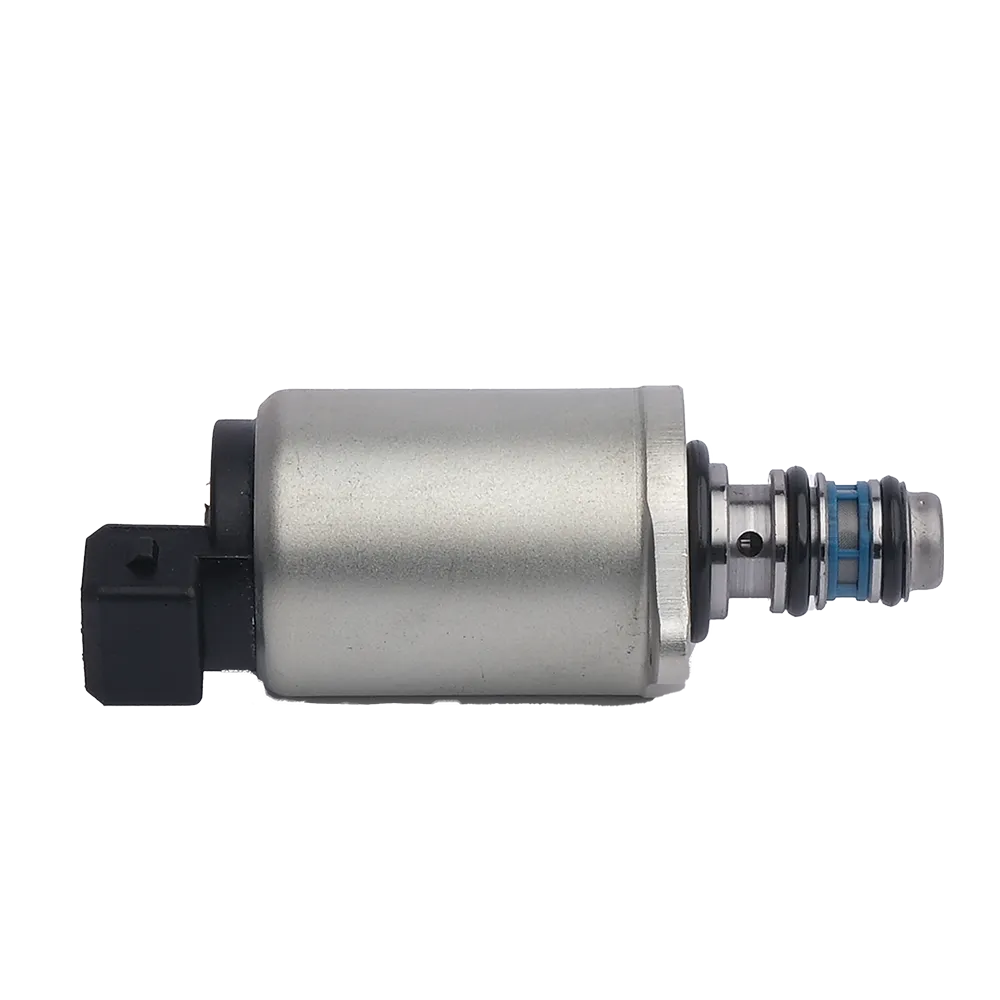

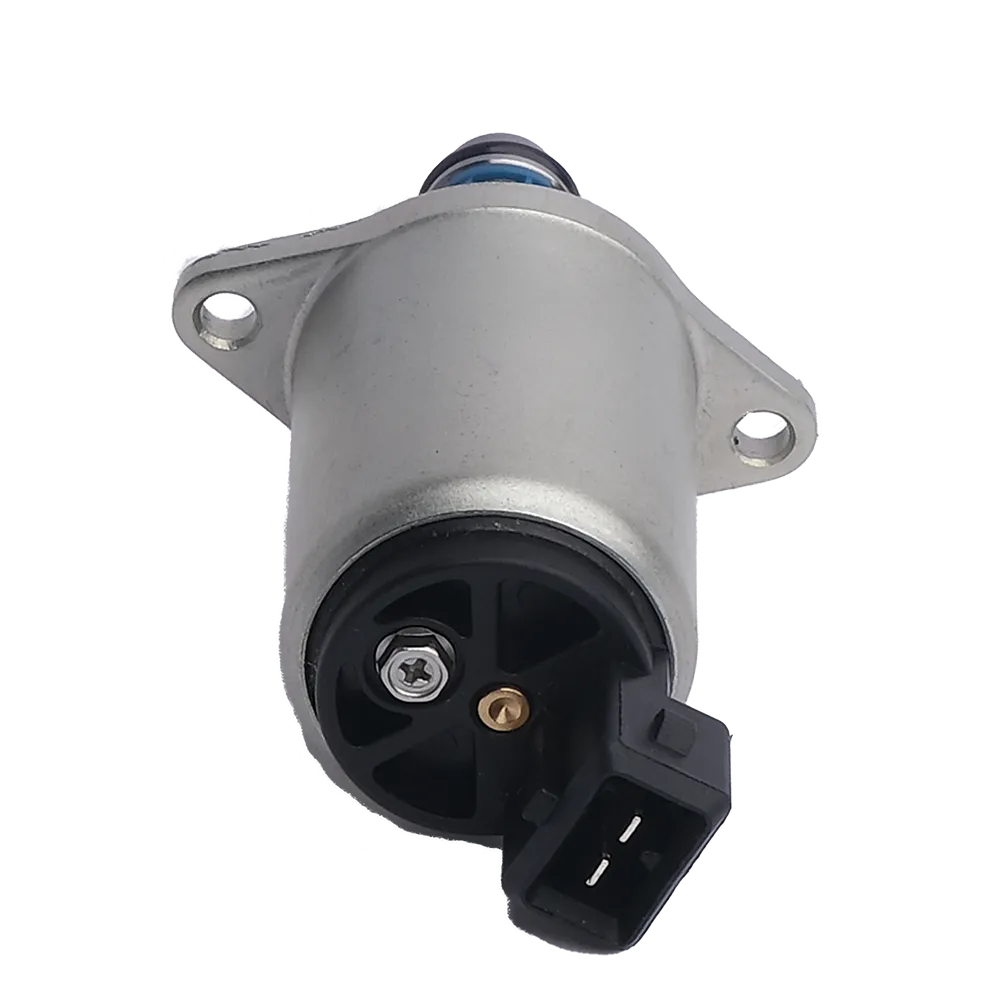

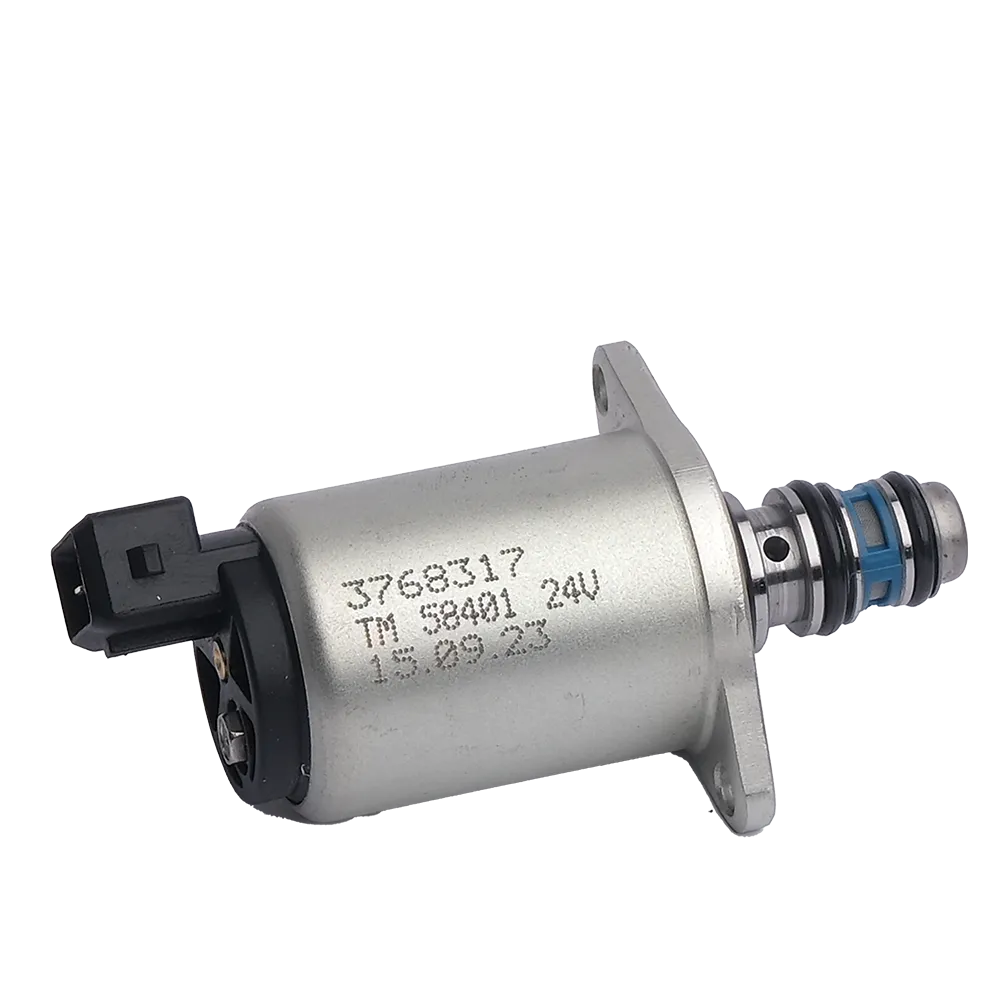

9106130509 , 9106 1305 09 SOLENOID ATLAS COPCO

The 9106130509 SOLENOID ATLAS COPCO is a precision-engineered electro-hydraulic component designed for dependable performance in heavy machinery and rock drilling applications. Manufactured to OEM standards and optimized for efficient hydraulic control, this solenoid is an essential part of the Atlas Copco drilling system, ensuring precise valve actuation, stable hydraulic flow, and reliable operation under extreme working conditions.

With its robust construction and high response accuracy, the 9106130509 SOLENOID ATLAS COPCO contributes to consistent drilling efficiency, reduced downtime, and enhanced overall machine performance.

---

Product Overview

The 9106130509 SOLENOID ATLAS COPCO functions as a key actuator that controls hydraulic or pneumatic flow within the drilling system. This electromechanical valve operates by converting electrical energy into linear motion, opening and closing fluid passages in a controlled manner.

In Atlas Copco’s rock drilling rigs, this solenoid valve plays a critical role in regulating pressure distribution to vital components such as the hammer, feed, and rotation systems. Its fast response time and tight sealing ensure that each command from the operator or control module is executed with precision, enhancing drilling speed, torque control, and energy efficiency.

---

Technical Specifications

The solenoid’s design follows strict industrial standards, combining mechanical precision with electrical reliability.

• Part Number: 9106130509 / 9106 1305 09

• Component Type: Hydraulic Solenoid Valve

• Voltage Rating: 24V DC

• Operating Pressure: Up to 350 bar

• Flow Capacity: 15–25 L/min (depending on hydraulic circuit)

• Response Time: <30 milliseconds

• Material: Stainless steel housing with nickel-plated core

• Connector Type: 2-pin male (AMP Superseal type)

• Temperature Range: -25°C to +90°C

• Weight: 0.85 kg

• Mounting Type: Flange mount with dual bolt holes

• Seal Type: NBR or Viton, depending on hydraulic fluid compatibility

These specifications make the 9106130509 SOLENOID ATLAS COPCO one of the most reliable control components available for rock drilling and surface mining machines.

---

Design and Construction

Each solenoid is constructed from corrosion-resistant materials to ensure maximum durability under heavy-duty operation. The stainless steel plunger, reinforced electromagnetic coil, and precision-ground seat work together to achieve leak-free performance even at maximum system pressure.

Key design elements include:

• High-Strength Coil Housing: Protects the electromagnetic core from vibration and moisture.

• Precision-Ground Armature: Ensures fast linear motion and consistent pressure control.

• Sealed Electrical Connector: Prevents contamination from dust or water ingress.

• Low-Noise Operation: Designed for smooth engagement without pressure spikes or valve chatter.

Every 9106130509 SOLENOID ATLAS COPCO undergoes advanced CNC machining and rigorous pressure testing to guarantee dimensional accuracy and flawless operation in demanding field environments.

---

Working Principle

This solenoid functions by energizing an electromagnetic coil that drives a plunger, allowing or blocking hydraulic flow within the valve body. When energized, the coil’s magnetic field pulls the plunger upward, opening the valve and allowing fluid to pass. When de-energized, a return spring forces the plunger back into the closed position, instantly stopping flow.

This on/off action provides highly accurate timing control of hydraulic functions such as:

• Percussion power regulation

• Feed system synchronization

• Rotation speed adjustment

• Auxiliary hydraulic circuit management

In Atlas Copco rock drills, these precise actions translate to smoother operation, higher penetration rates, and improved overall efficiency.

---

Compatibility with Atlas Copco Equipment

The 9106130509 SOLENOID ATLAS COPCO is compatible with multiple drilling rigs, including both surface and underground units. Its standardized design allows it to integrate seamlessly into hydraulic control modules across various models:

• Atlas Copco PowerROC T35, T45, T50 Series

• Atlas Copco SmartROC D60, D65, T45, T55

• Atlas Copco Boomer 281, 282, E2C, E3C Underground Drills

• Atlas Copco Simba S7, S8, E7 Production Rigs

• Atlas Copco ROC L8, L6 Surface Drills

• Atlas Copco FlexiROC T20 and T25 Series

This compatibility ensures a universal fit and consistent performance across a wide range of hydraulic control assemblies.

---

Functional Role in Drilling Systems

In Atlas Copco’s hydraulic network, the 9106130509 SOLENOID ATLAS COPCO serves as the control mechanism for valve actuation. It modulates oil flow in coordination with other system sensors and controllers to achieve:

• Smooth control of percussion and rotation synchronization

• Instant adjustment to drilling resistance and rock density

• Reduced hydraulic shock during direction changes

• Enhanced fuel and energy efficiency

By controlling the opening and closing of specific valves within milliseconds, the solenoid ensures that each drilling cycle operates with optimal fluid dynamics and mechanical coordination.

---

Performance Advantages

The 9106130509 SOLENOID ATLAS COPCO provides several performance benefits that make it the preferred choice for high-performance drilling applications:

• Fast Response: Millisecond-level actuation improves drilling accuracy and power delivery.

• Low Energy Consumption: Efficient coil design minimizes electrical load on the control system.

• Extended Service Life: Hardened steel components resist wear from continuous cycling.

• Leak-Proof Operation: Advanced sealing eliminates internal and external leakage.

• Vibration Resistance: Built to endure high-impact environments typical of rock drills.

Each unit is endurance-tested for over one million cycles, ensuring unmatched reliability in harsh working environments.

---

Installation and Maintenance Guidelines

Installing the 9106130509 SOLENOID ATLAS COPCO requires minimal effort but must follow correct procedures to ensure optimal performance:

Installation Steps

1. Depressurize the system before removing any hydraulic connections.

2. Clean all ports and threads to prevent contamination.

3. Mount the solenoid using its flange holes and tighten bolts to specified torque (15–18 Nm).

4. Connect the electrical terminal securely and verify polarity.

5. Run a test cycle to confirm activation and fluid response.

Maintenance Tips

• Inspect connectors every 500 hours for corrosion or loose fittings.

• Clean coil housing periodically to avoid dirt accumulation.

• Replace O-rings and seals during routine hydraulic maintenance intervals.

• Avoid exposure to direct high-pressure washing jets or high-heat zones.

Following these guidelines helps extend the component’s lifespan and maintain stable system performance.

---

Field Applications

The 9106130509 SOLENOID ATLAS COPCO is used extensively across industries that rely on heavy-duty drilling equipment:

• Mining: Ensures consistent hammer actuation in hard rock extraction.

• Tunneling: Provides reliable pressure modulation in confined underground systems.

• Construction: Supports foundation drilling and anchoring operations.

• Quarrying: Controls drilling depth and precision for aggregate production.

It is also found in custom-built hydraulic systems for energy and exploration projects where fast-response solenoid control is vital.

---

Engineering Precision and Quality Control

Every solenoid manufactured under 3GEN Export’s OEM standards undergoes a strict quality control process that includes:

• Dimensional inspection using coordinate measuring machines (CMM).

• Coil integrity and resistance verification under 24V DC load.

• Pressure testing at 1.5× rated operating pressure for leakage evaluation.

• Functional simulation on Atlas Copco-compatible test benches.

Only solenoids that meet 100 % of performance and tolerance requirements receive the 9106130509 marking for final packaging.

---

Durability and Environmental Resistance

Designed for the toughest work environments, the 9106130509 SOLENOID ATLAS COPCO offers:

• Corrosion Resistance: Nickel-plated housing and stainless steel internals.

• Thermal Endurance: Coil insulation withstands up to 150°C intermittently.

• Vibration Resistance: Tested for frequencies up to 30 Hz.

• Ingress Protection: IP67-rated enclosure protects against dust and water exposure.

These characteristics make the solenoid suitable for both open-pit and underground operations in varying temperature and humidity levels.

---

Replacement and Interchangeability

The 9106130509 SOLENOID ATLAS COPCO can replace equivalent solenoid valves in multiple Atlas Copco control blocks and systems without modification. Its standard mounting pattern and electrical connector allow for direct interchange with compatible valves such as:

• Atlas Copco control manifold solenoid modules (ROCL8, FlexiROC, SmartROC)

• Hydraulic flow control assemblies for rotation and feed regulation

• Electro-hydraulic conversion kits on legacy Atlas Copco units

This interchangeability minimizes downtime and simplifies inventory management for maintenance teams.

---

OEM Supply Advantage – 3GEN Export

3GEN Export is a globally recognized OEM supplier for heavy machinery components, specializing in Atlas Copco rock drill parts and hydraulic systems. The company’s products are designed for direct installation without modification, offering a seamless fit and consistent performance.

Advantages of sourcing from 3GEN Export:

• OEM-grade solenoid manufacturing

• Global delivery within 5 working days

• Quality assurance through ISO-certified processes

• Transparent pricing and documentation

• 1-year warranty on all components

• Expert technical support for installation and system integration

With 3GEN Export, clients receive both engineering precision and logistical efficiency for uninterrupted operations.

---

Packaging and Shipping

Each 9106130509 SOLENOID ATLAS COPCO is securely packed to prevent damage during transport. Packaging includes:

• Oil-resistant protective wrapping

• Shock-absorbing foam enclosure

• Moisture barrier layer for long-distance shipping

• Barcode label with part number and batch information

Shipments are managed through 3GEN Export’s global logistics network, ensuring fast, traceable delivery to over 60 countries within five working days.

---

Sustainability and Production Responsibility

The manufacturing process for the 9106130509 SOLENOID ATLAS COPCO adheres to eco-efficient practices that minimize environmental impact.

• 90 % of machining materials are recycled.

• Non-toxic coating and cleaning agents are used during production.

• Energy-efficient CNC machining reduces power consumption.

• Packaging materials are fully recyclable.

By maintaining sustainable engineering and logistics practices, 3GEN Export contributes to a cleaner and more responsible global supply chain.

---

Conclusion

The 9106130509 SOLENOID ATLAS COPCO stands as a benchmark of precision, reliability, and performance within hydraulic control systems. Engineered for demanding rock-drilling environments, it provides unmatched response accuracy, long service life, and seamless compatibility with a broad range of Atlas Copco equipment.

Supplied exclusively by 3GEN Export, this solenoid ensures OEM-grade quality, rigorous testing, and rapid worldwide delivery within five working days. Whether for maintenance, repair, or complete system rebuilds, it guarantees dependable performance that keeps your machinery running at peak efficiency.

---

Technical Summary

• Product: 9106130509 SOLENOID ATLAS COPCO

• Voltage: 24V DC

• Pressure: Up to 350 bar

• Response Time: <30 ms

• Weight: 0.85 kg

• Material: Stainless steel and nickel-plated body

• Supplier: 3GEN Export

• Global Delivery: 5 working days

    Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
