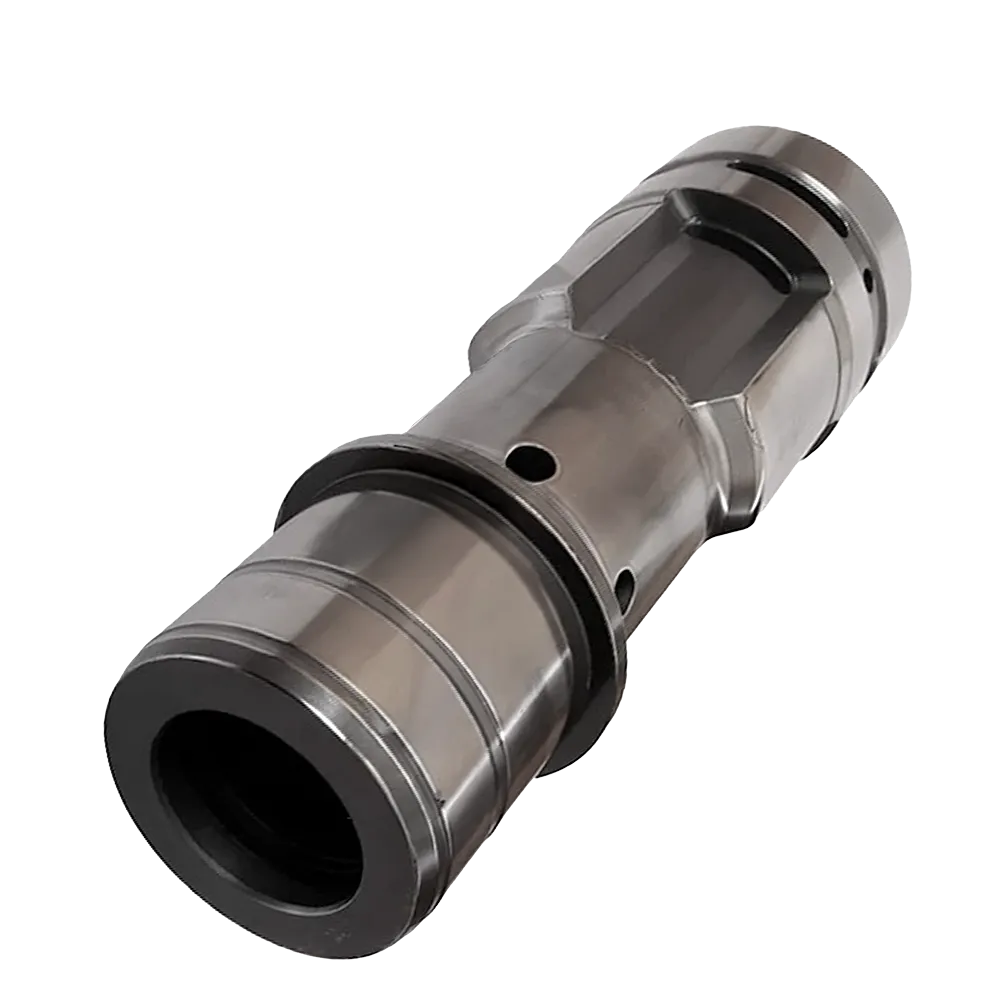

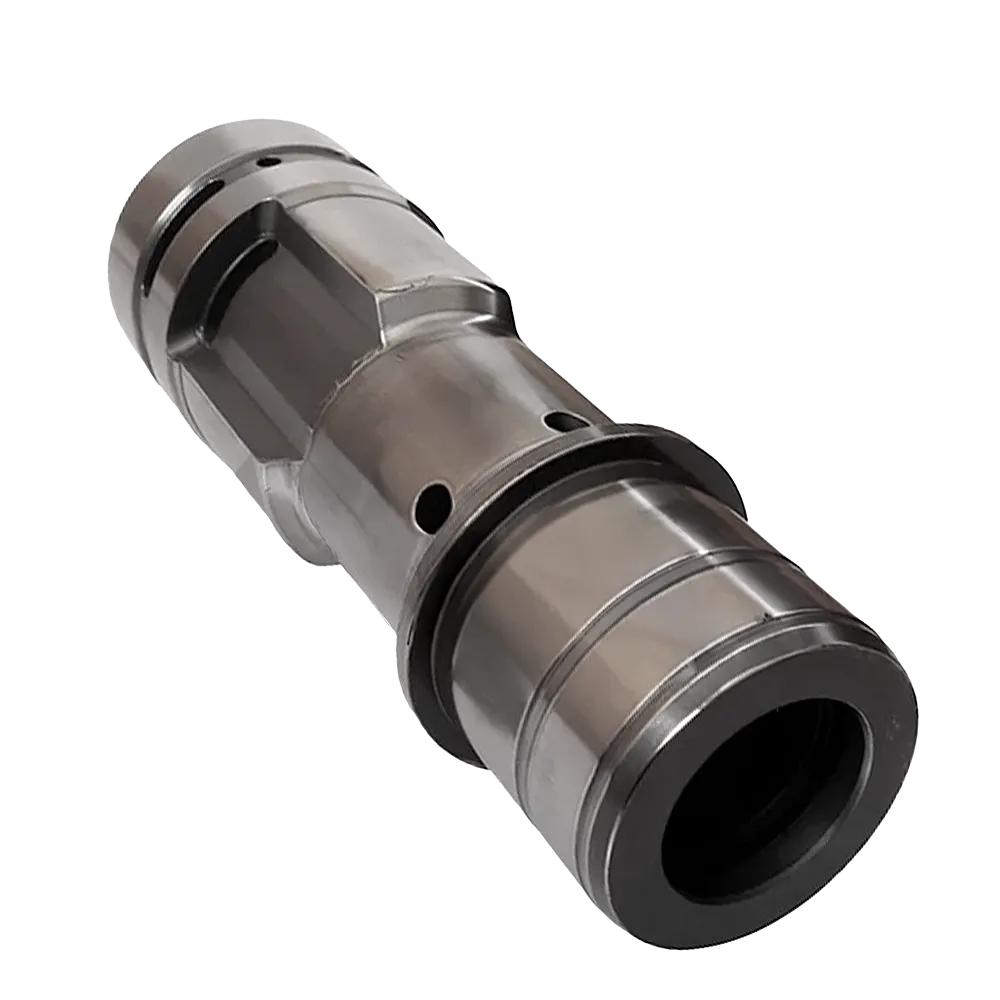

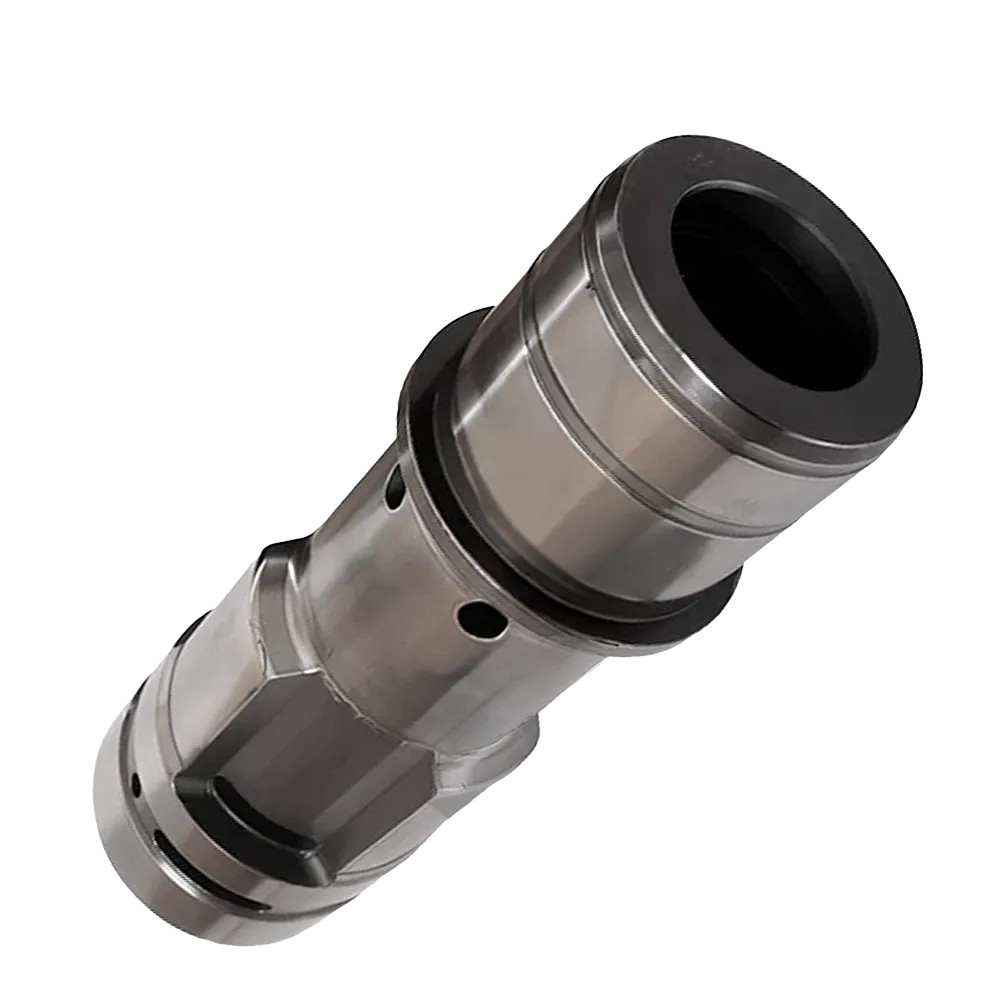

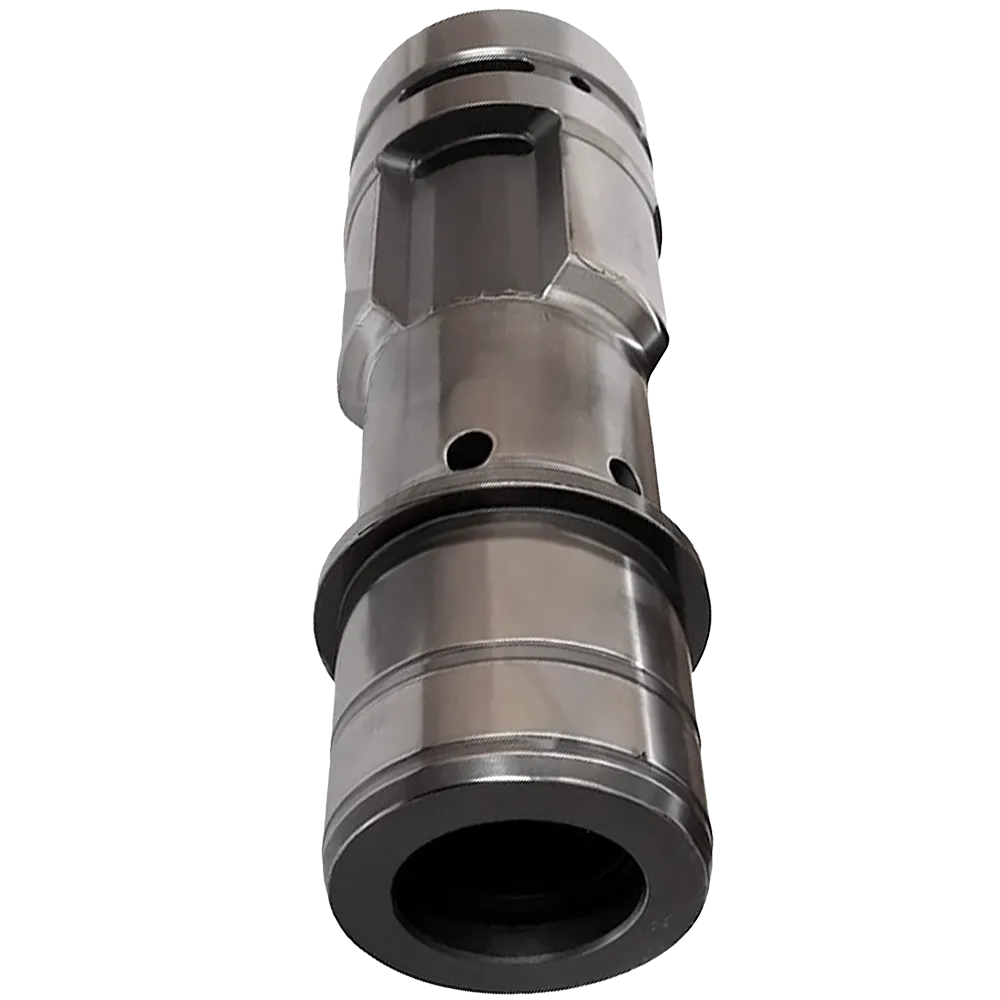

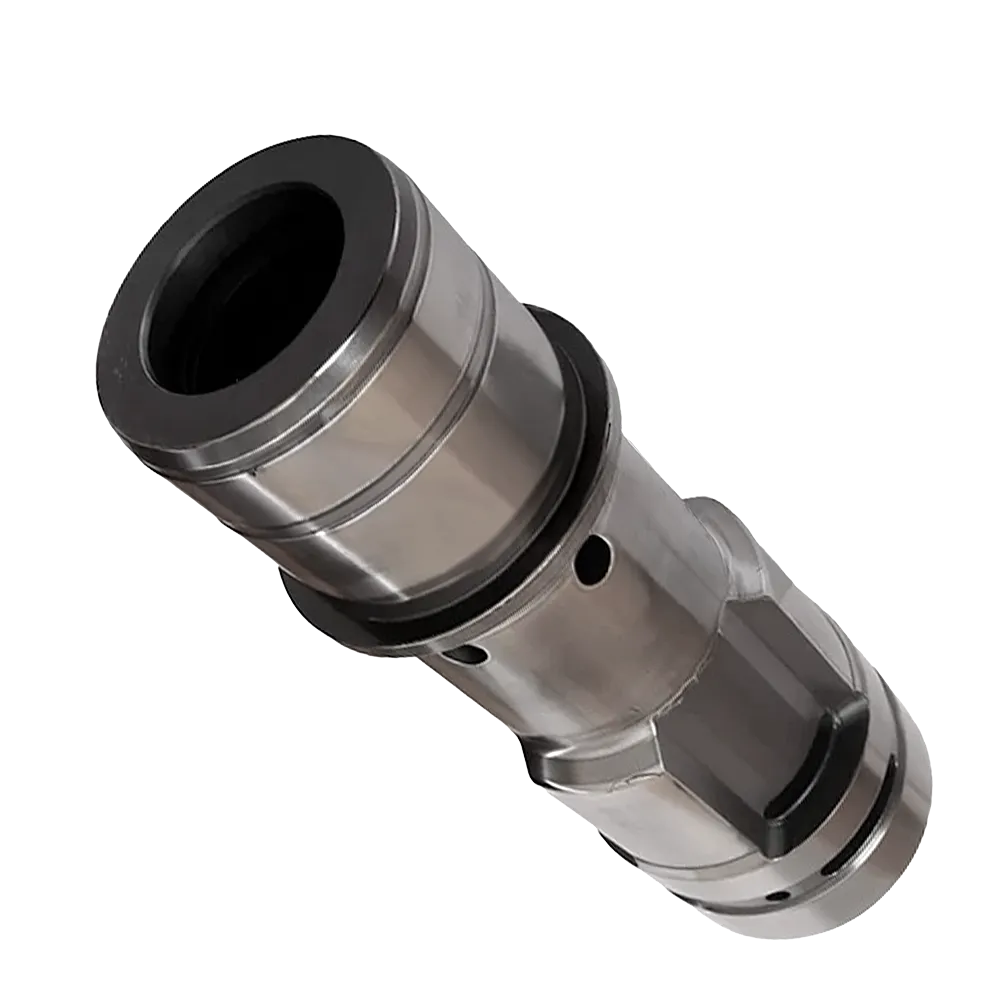

51317303, 513 173 03 LINER CYLINDER INGERSOLL RAND

$6,580.00
Brand: Ingersoll Rand
Category: Engine & Powertrain Components
Part Number: 51317303
Availability: In Stock

Description

51317303 / 513 173 03 Liner Cylinder – Ingersoll Rand Rock Drill Spare Part OEM Manufactured by 3GEN Export – Worldwide Delivery in 5 Working Days Professional Replacement Solution for High-Impact Rock Drilling Systems The 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand is a critical internal wear component designed to support piston movement and stabilize percussion energy inside hydraulic rock drilling equipment. This precision-machined liner creates a controlled operating surface for the hammer piston, helping maintain impact consistency, internal alignment, and long-term structural integrity of the drilling unit. At 3GEN Export , we manufacture this liner cylinder as an OEM-standard replacement, engineered to match original dimensional tolerances and operational characteristics. We supply this part globally with 5 working days delivery , supporting mining, quarrying, tunneling, and foundation drilling operations worldwide. What the 51317303 Liner Cylinder Does Inside the Drill In hydraulic rock drills, the liner cylinder functions as the internal guide and protection layer for the main percussion piston. During continuous high-frequency impacts, enormous forces are generated. The liner absorbs surface wear while preserving the geometry of the main housing. The 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand provides: A smooth, hardened running surface for the piston Structural protection for the drill body Consistent impact alignment Reduced internal friction Improved service life of surrounding components Without a properly manufactured liner cylinder, vibration increases, piston scoring occurs, and drilling efficiency drops rapidly. OEM-Level Manufacturing by 3GEN Export 3GEN Export produces this liner cylinder using CNC-controlled machining and high-grade alloy steel selected for impact resistance and dimensional stability. Every unit is processed to achieve: Exact internal bore tolerance High concentricity for piston alignment Polished working surfaces Uniform wall thickness Pressure-resistant structural integrity Each liner is inspected before shipment to ensure compatibility with existing rock drill assemblies. We do not sell branded originals. Instead, we operate as an OEM supplier , delivering performance-focused replacements engineered to meet professional field demands. Key Engineering Features Hardened Alloy Steel Body Manufactured from impact-resistant alloy steel, designed to withstand continuous percussion loads and thermal fluctuations common in drilling environments. Precision Internal Bore The internal diameter is machined to tight tolerances, ensuring stable piston travel and minimizing side loading. Optimized Oil Flow Ports Side openings allow proper lubrication circulation, reducing friction and heat buildup during operation. Corrosion-Resistant Surface Finish Protective treatment helps resist moisture, abrasive dust, and underground humidity. Balanced Geometry Maintains axial alignment inside the hammer housing, preventing premature wear on pistons and seals. Typical Applications The 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand is commonly installed in hydraulic rock drilling systems used across: Surface mining Underground mining Quarry operations Tunnel excavation Foundation drilling Infrastructure construction It supports both crawler-mounted rigs and stationary drilling platforms. Compatible Ingersoll Rand Equipment Groups This liner cylinder is typically used in multiple Ingersoll Rand hydraulic rock drill assemblies, including selected configurations from: YH80 HL series drifters Surface drill rigs Crawler drill platforms Heavy-duty mining percussion systems Exact compatibility may vary by production year and configuration. If you provide your machine model or serial number, 3GEN Export can confirm fitment quickly. Approximate Technical Specifications Representative OEM-style values: Part Numbers: 51317303 / 513 173 03 Component Type: Internal liner cylinder Material: Hardened alloy steel Manufacturing Method: CNC precision machining Surface Finish: Industrial anti-corrosion treatment Function: Piston guidance and housing protection Approximate Weight: ~6.8 kg Installation Position: Inside percussion housing Installation Overview Professional installation is recommended. Typical procedure: Disassemble hammer housing following service guidelines Remove worn liner carefully Clean internal cavity thoroughly Insert new liner cylinder with correct orientation Verify lubrication ports alignment Reassemble and test piston movement Correct alignment is essential to avoid uneven wear. Operational Benefits in the Field Replacing a worn liner with a properly machined 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand delivers immediate performance improvements: More stable percussion energy Reduced vibration transmission Improved piston lifespan Lower internal friction Consistent drilling penetration Extended service intervals These advantages directly translate into higher productivity and reduced maintenance costs. Built for Harsh Environments Rock drilling exposes internal parts to extreme stress, dust, heat, and vibration. This liner cylinder is engineered to remain dimensionally stable under continuous load, protecting the main housing while maintaining smooth piston operation. Why Choose 3GEN Export 3GEN Export is a global OEM spare parts supplier specializing in heavy machinery and rock drilling components. With every order, you receive: OEM-standard manufacturing Strict dimensional inspection Worldwide shipping in 5 working days Technical compatibility assistance Consistent stock availability We support mining contractors, service centers, and infrastructure projects across multiple continents. Long-Term Reliability Strategy Replacing liner cylinders at proper intervals prevents: Piston scoring Housing deformation Oil contamination Energy loss Unexpected downtime The 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand supplied by 3GEN Export is designed to be a long-term structural safeguard for your drilling equipment. Summary The 51317303 / 513 173 03 Liner Cylinder Ingersoll Rand is a vital internal component that supports piston guidance, protects the hammer housing, and stabilizes impact energy in hydraulic rock drills. Manufactured by 3GEN Export to OEM standards, this liner delivers durability, precision fitment, and dependable performance. With worldwide delivery in just 5 working days , 3GEN Export helps you keep drilling operations moving without delay. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
