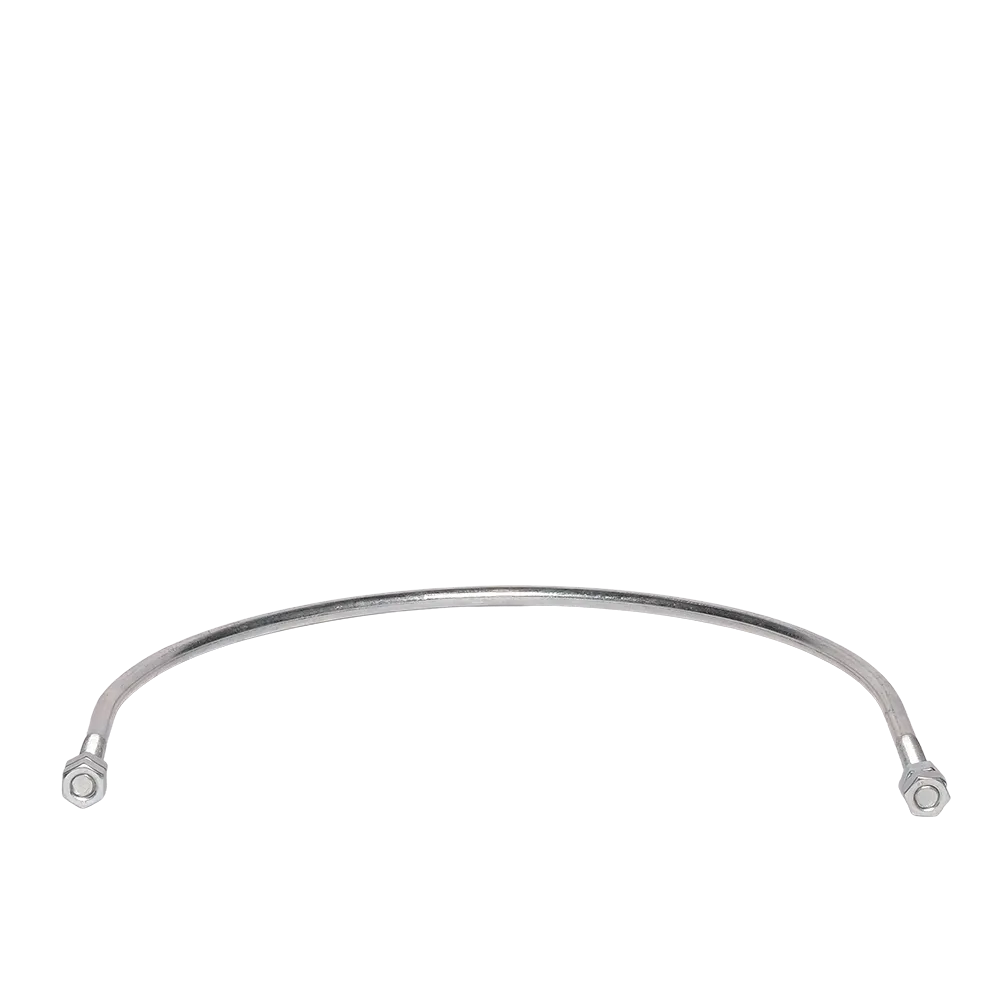

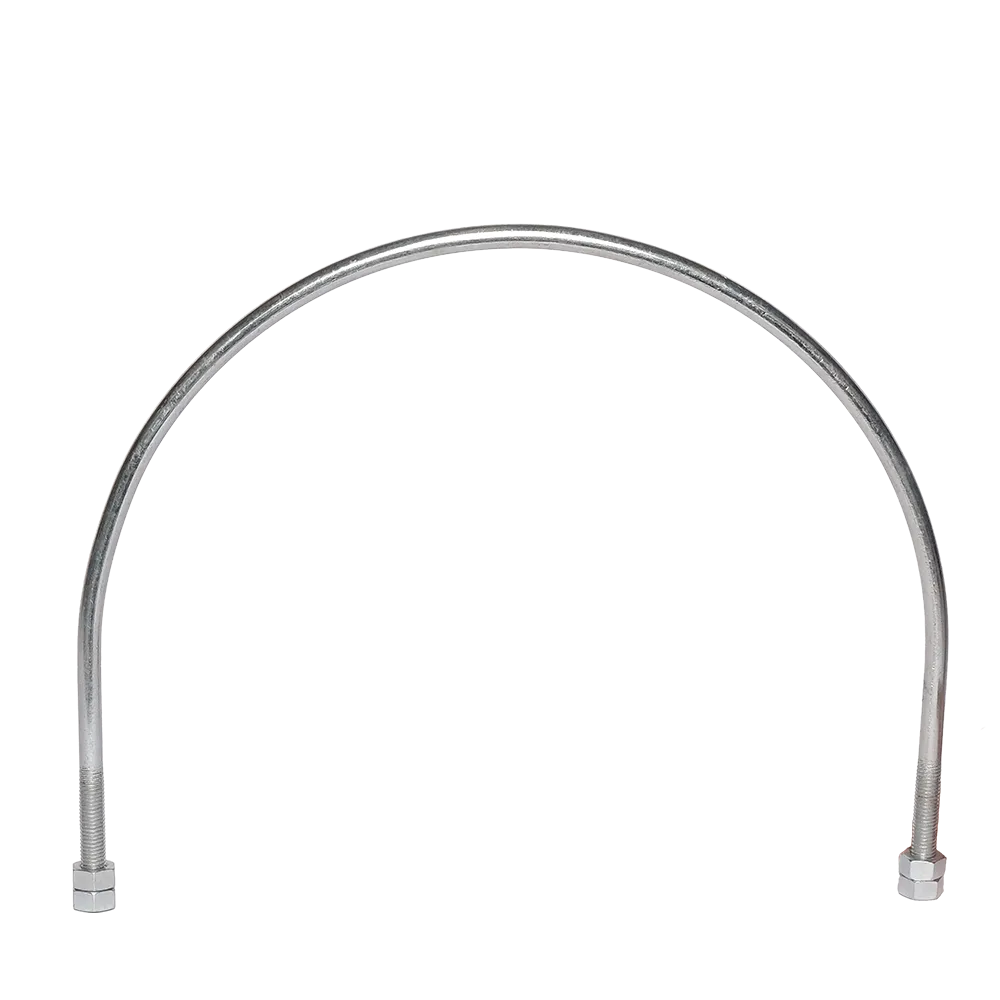

1318847, 131-8847 U BOLT CATERPILLAR

Heavy-Duty U Bolt for Caterpillar Equipment

The 1318847 U BOLT CATERPILLAR (also referenced as 131-8847) is a precision-engineered fastening component designed to deliver maximum strength, reliability, and vibration resistance in demanding Caterpillar machinery applications. Built from high-tensile steel and treated for corrosion resistance, this U bolt ensures structural stability in the most extreme working environments.

Designed to OEM specifications, the 1318847 U BOLT CATERPILLAR plays a vital role in maintaining the secure alignment of pipes, suspension assemblies, exhaust systems, and framework components across Caterpillar’s heavy-duty fleet. Whether in mining, construction, or earthmoving applications, this part guarantees unmatched holding power and consistent performance.

Supplied exclusively by 3GEN Export, a trusted global OEM supplier for heavy machinery spare parts, this U bolt is available for worldwide delivery in 5 working days, offering reliability and speed that support your operations anywhere in the world.

---

The Function of the 1318847 U BOLT CATERPILLAR

The 1318847 U BOLT CATERPILLAR is a load-bearing fastener used to hold cylindrical or structural components firmly in place. It typically supports round pipes, axle housings, drive shafts, and exhaust tubes within Caterpillar equipment.

Shaped like the letter “U,” it consists of a curved steel body with threaded ends that allow for easy installation using matching nuts and washers. Its primary function is to clamp and stabilize components, ensuring they stay aligned and vibration-free even under heavy mechanical stress or shock loads.

In Caterpillar machinery, U bolts such as the 131-8847 are often found in:

• Exhaust and emission systems

• Frame and chassis mounts

• Engine pipe assemblies

• Suspension and axle housings

• Hydraulic line supports

By providing a secure, adjustable clamping force, this component prevents displacement or damage caused by vibration, pressure, and motion — ensuring your equipment continues to perform efficiently in the toughest environments.

---

Key Features and Benefits

1. High-Tensile Steel Construction

The 1318847 U BOLT CATERPILLAR is manufactured from high-strength alloy or carbon steel, capable of withstanding extreme tension and compression forces without deformation. This ensures consistent reliability under heavy-duty use.

2. OEM Precision Fit

Engineered according to Caterpillar’s exact OEM specifications, this U bolt provides a perfect fit and alignment with corresponding factory components, ensuring flawless performance and quick installation.

3. Corrosion-Resistant Zinc Coating

Each unit features a hot-dip galvanized finish or zinc electroplating, providing long-term protection against rust, moisture, and chemical exposure — essential for outdoor or high-humidity work environments.

4. High Vibration Resistance

The fine-threaded design and precision-machined nuts ensure maximum grip, preventing loosening under continuous machine vibration or torque load.

5. Uniform Stress Distribution

The U bolt’s geometry and threading are optimized to distribute stress evenly, reducing metal fatigue and extending component lifespan.

6. Easy Installation

This part is designed for seamless installation without specialized tools. The threaded ends allow for quick tightening and torque adjustment.

7. Extended Service Life

Thanks to its advanced surface treatment and material quality, the 1318847 U BOLT CATERPILLAR delivers exceptional durability, even in environments involving dirt, water, and corrosive gases.

---

Technical Specifications

---

Compatible Caterpillar Models

The 1318847 U BOLT CATERPILLAR is compatible with multiple Caterpillar machines where secure clamping of exhaust, frame, or suspension components is required.

Commonly used in the following Caterpillar models:

• Caterpillar 320D, 323E, and 330C Excavators

• Caterpillar D6R, D7G, and D8T Track-Type Tractors

• Caterpillar 950H, 966M, and 972K Wheel Loaders

• Caterpillar 140M, 150H, and 160M Motor Graders

• Caterpillar 725, 730, and 740 Articulated Trucks

• Caterpillar 773B, 775E, and 777F Off-Highway Trucks

• Caterpillar 785C and 789D Mining Trucks

• Caterpillar 345C, 349D, and 365B Hydraulic Excavators

• Caterpillar C13 and C15 Engine Assemblies

This part is used across Caterpillar’s heavy construction, mining, and transport fleets, providing essential fastening integrity for vital system components.

---

Engineering and Manufacturing Quality

Precision Machined for OEM Accuracy

The 1318847 U BOLT CATERPILLAR is CNC-machined to maintain perfect dimensional accuracy. Each curve and thread conforms to Caterpillar’s engineering blueprints for exact OEM compatibility.

Advanced Galvanization Process

A triple-layer zinc electroplating process provides superior corrosion resistance, ensuring this component withstands humid, saline, or chemically reactive work conditions.

Strength and Fatigue Testing

Each unit undergoes rigorous tensile and fatigue tests to validate strength consistency under continuous mechanical load. Typical load-bearing capacity exceeds 8,000 N of clamping force.

Certified Quality Standards

This product complies with international OEM and industrial standards, including:

• ISO 898-1 for mechanical properties of fasteners

• ISO 3506 for stainless and alloy steel bolts

• ASTM A193 and ASTM F568 standards for tensile strength

• ISO 9001:2015 certified production line

---

Functional Applications

The 1318847 U BOLT CATERPILLAR is a versatile component used across Caterpillar systems to ensure structural rigidity and operational safety.

1. Exhaust Systems

Secures exhaust pipes, mufflers, and shields to prevent vibration-related noise and misalignment.

2. Frame and Chassis Assembly

Reinforces connections between heavy structural components, ensuring frame stability.

3. Axle and Suspension Support

Holds leaf springs, brackets, and suspension assemblies securely in place under varying loads.

4. Hydraulic and Fuel Line Mounting

Keeps pipes and tubes fixed within engine compartments or undercarriage areas, reducing friction and wear.

5. Custom Repair and Maintenance Uses

The U bolt’s strength and compatibility make it suitable for numerous retrofit applications during maintenance or modification.

---

Performance Benefits

• Enhanced Equipment Safety: Prevents mechanical failures due to loose exhaust or frame assemblies.

• Vibration Isolation: Maintains structural stability even in continuous heavy-duty cycles.

• Corrosion Resistance: Long-lasting performance in harsh outdoor or industrial environments.

• Low Maintenance: Requires minimal inspection and retains torque stability over time.

• OEM Quality Assurance: Guaranteed compatibility and performance equal to original Caterpillar parts.

---

Installation and Maintenance

Installation Instructions

1. Preparation: Clean the surface where the U bolt will be applied, ensuring no debris or rust.

2. Alignment: Position the U bolt over the target component (pipe, frame, etc.) ensuring uniform curvature.

3. Fastening: Tighten nuts evenly on both ends using a torque wrench to prevent uneven stress distribution.

4. Torque Specification: Apply torque as per Caterpillar’s technical manual (typically 45–65 Nm for M12 threads).

5. Final Inspection: Confirm secure alignment and absence of vibration play.

Maintenance Recommendations

• Reinspect torque settings every 1000 operating hours.

• Apply anti-seize compound during reinstallation.

• Replace the U bolt if visible deformation, thread wear, or corrosion appears.

---

Quality Assurance and Testing

Every 1318847 U BOLT CATERPILLAR supplied by 3GEN Export undergoes a strict quality control regimen:

• Thread Fitment Check: Ensures smooth nut engagement.

• Coating Integrity Test: Confirms rust resistance for up to 500 salt spray hours.

• Dimensional Inspection: 100% checked using digital calipers.

• Tensile Load Verification: Validated against OEM load standards.

• Batch Traceability: Each unit serialized for production tracking.

---

Environmental Compliance

• Manufactured under ISO 14001 environmental management standards.

• RoHS and REACH compliant, ensuring materials are free from hazardous substances.

• Fully recyclable material composition, supporting sustainable operations.

---

Packaging and Worldwide Delivery

Each 1318847 U BOLT CATERPILLAR is packaged in corrosion-protective wrapping and boxed with product labeling for easy identification. Bulk orders are secured in reinforced crates with additional anti-rust coating on exposed threads.

With 3GEN Export’s logistics network, all orders are shipped globally within 5 working days, ensuring minimal downtime for field or workshop operations.

---

Why Choose 3GEN Export

3GEN Export is a trusted global OEM supplier specializing in high-performance spare parts for heavy machinery brands including Caterpillar, Komatsu, Volvo, and Sandvik.

Why Clients Choose Us:

• OEM Specification Accuracy – Guaranteed fit and function.

• Fastest Global Delivery – 5-day turnaround time worldwide.

• Massive Inventory – Thousands of verified Caterpillar parts in stock.

• Expert Support – Technical team ensuring compatibility and guidance.

• Sustainability Focus – Eco-friendly materials and recyclable packaging.

When quality and speed are essential, 3GEN Export ensures your machinery operates at peak efficiency — anywhere in the world.

---

Summary

The 1318847 U BOLT CATERPILLAR is a high-tensile, corrosion-resistant fastening component essential for securing pipes, frames, and suspension assemblies in Caterpillar heavy machinery. With OEM-grade construction and precision engineering, it guarantees unmatched strength, perfect fitment, and long-term reliability.

Available exclusively from 3GEN Export, this U bolt delivers the assurance of OEM performance with the advantage of fast global delivery — in just 5 working days.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
