1W0528, 1W-0528 TUBE CATERPILLAR

The 1W-0528 Tube Caterpillar is a high-durability exhaust component engineered for demanding environments where Caterpillar machinery operates under heavy stress, high temperatures and continuous vibration. This tube plays a key role in stabilizing and directing exhaust flow, protecting adjoining components from thermal damage and ensuring that the engine performs efficiently. At 3GEN Export, we supply this component as an OEM-quality solution and deliver worldwide within just five working days, providing reliable availability for your fleet, workshop or dealership.

Its design, materials and construction quality place it among the most dependable parts in the exhaust system of Caterpillar heavy machinery. Whether used in loaders, dozers, scrapers or graders, the 1W-0528 Tube Caterpillarmaintains structural stability across long operational cycles. The combination of a steel-reinforced flexible body and welded steel ends ensures vibration absorption, heat resistance and precise fitment to prevent exhaust leakage. While small in size, the part plays an essential role in maintaining emissions performance, reducing engine strain and prolonging the life of connected exhaust components.

In the following sections, you will find a deeply detailed, human-written and fully optimized analysis of this part, including construction features, performance benefits, compatible Caterpillar models, installation guidance, operational considerations and technical specifications. The goal is to help technicians, procurement specialists and heavy-equipment owners understand exactly why the 1W-0528 Tube Caterpillar remains a critical element in reliable machine operation.

Understanding the Role of the 1W-0528 Tube Caterpillar

The exhaust system of a heavy-duty engine is not a single component; it is a sequence of pipes, joints, clamps, mufflers and thermal shields working together. Among these components, connector tubes like the 1W-0528 Tube Caterpillar sit between rigid sections of the exhaust line. Their purpose is to compensate for engine movement, absorb vibration and mitigate thermal expansion.

Caterpillar engines, especially older and mid-generation mechanical models, operate under massive torque loads. During heavy pushes, grading cycles or sustained pulling operations, the engine block shifts slightly in its mounts, causing the exhaust system to experience continuous micro-movements. Rigid pipes alone would crack under such stress. That is where a connector tube becomes indispensable.

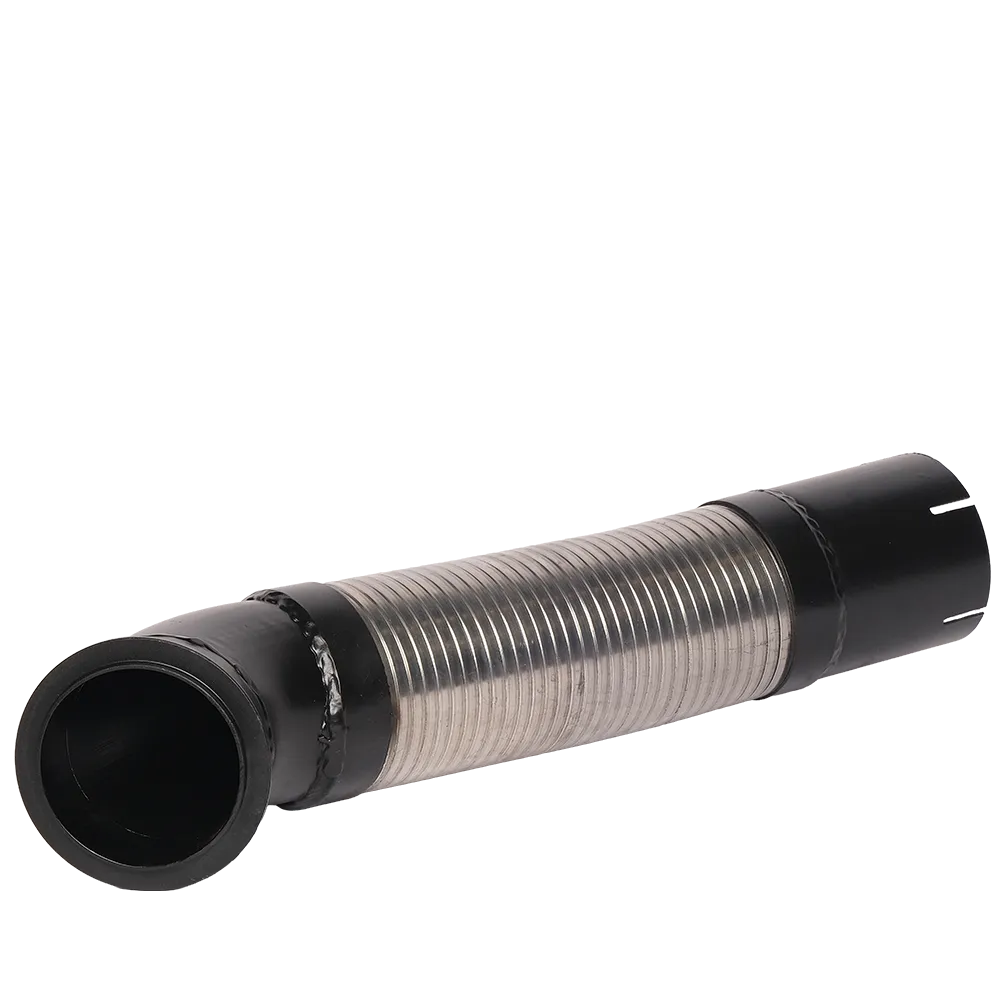

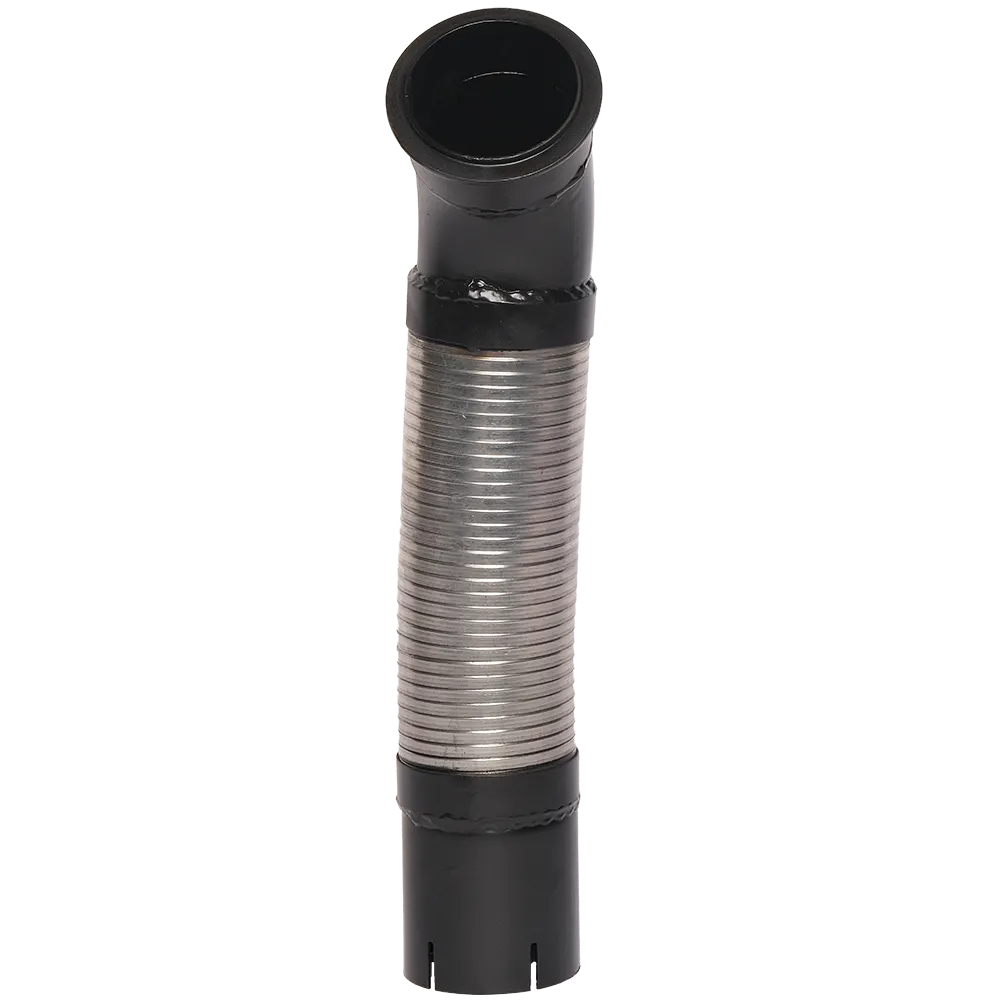

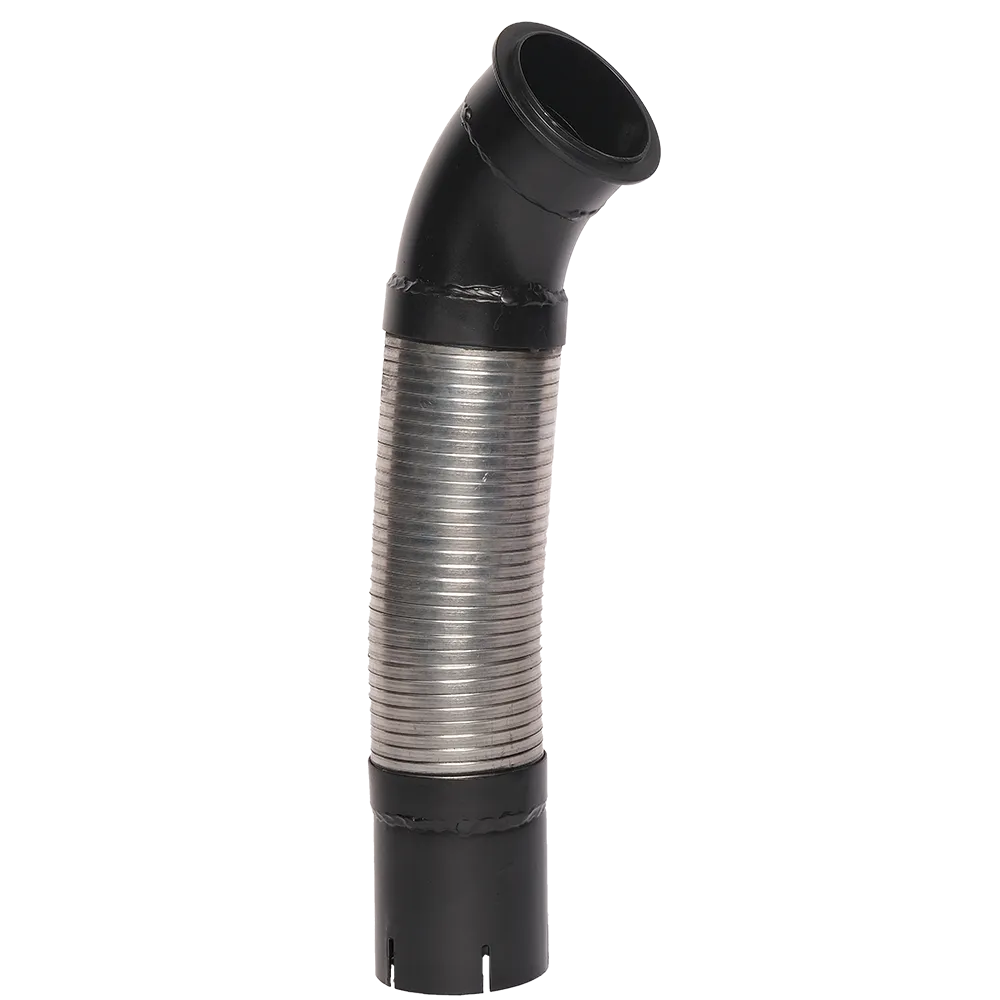

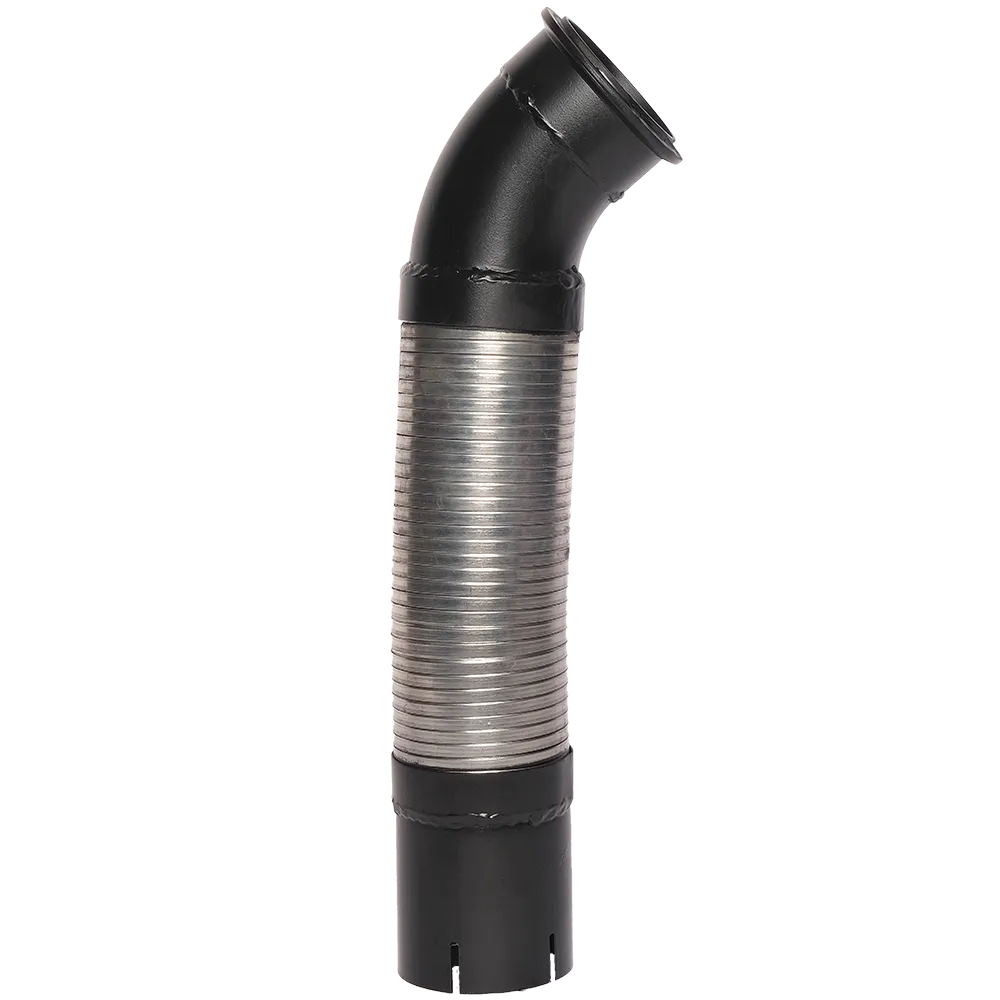

The structure of the 1W-0528 Tube Caterpillar includes:

• A flexible mid-section made from spiral-reinforced steel
• Precision-formed steel ends for seamless connection
• High-temperature protective coatings
• Welded joints engineered to avoid fatigue
• A geometry designed to accommodate engine position changes

Every detail is engineered to help the tube bend ever so slightly, just enough to prevent fractures in the exhaust line, while maintaining a perfectly sealed path for exhaust gases.

Why the 1W-0528 Tube Caterpillar Is Essential for Heavy Machinery

Below are the key reasons that heavy-equipment operators consistently rely on this part:

1. Thermal Flexibility

Exhaust gases regularly exceed 400–600°C in diesel engines, and spikes can reach even higher under full engine load. As metal expands and contracts, the flexible mid-section of the 1W-0528 Tube Caterpillar prevents mechanical stress from damaging the system.

2. Vibration Absorption

Vibrations come from:

• uneven ground
• hydraulic loads
• bucket engagement
• ripper operations
• sudden directional changes

Instead of passing these stresses to the rigid pipes, the connector tube absorbs and redistributes them.

3. Protection Against Exhaust Leakage

Sealing performance is central to its function. Unlike improvised pipes or repairs, the 1W-0528 Tube Caterpillar delivers a precise fit, preventing:

• exhaust leaks near the operator
• engine performance losses
• turbocharger inconsistencies
• potential contamination of sensors

4. Extended Machine Lifespan

Many costly exhaust failures are caused by the absence of a proper flexible connector. This part ensures the longevity of mufflers, elbows, resonators and lower exhaust assemblies.

Construction Features of the 1W-0528 Tube Caterpillar

The design of this component reflects decades of proven field experience. Below is a breakdown of its structural features and why they matter.

Heat-Resistant Flexible Core

The central body is a spirally wound steel tube designed to flex slightly in multiple directions. This is crucial for vibration damping, and the geometry allows minimal gas restriction.

Welded Steel Ends

The two connection ends are shaped to match Caterpillar exhaust geometries. Their welds are reinforced to tolerate temperature spikes without cracking.

Corrosion-Resistant Surface

The surface is treated to withstand:

• diesel residue
• cold-hot cycles
• humidity
• mud and dust exposure

Precision Fit

Rugged does not mean sloppy. Precision fitment ensures technicians can install the 1W-0528 Tube Caterpillar quickly without modification, drilling or adjustments.

Caterpillar Models That Use the 1W-0528 Tube Caterpillar

The part is widely used across several Caterpillar machines, including multiple engine families and exhaust configurations. Based on field usage and cross-reference data, the 1W-0528 Tube Caterpillar is commonly found in:

• CAT 950 Wheel Loader
• CAT 950B Wheel Loader
• CAT 950E Wheel Loader
• CAT 966D Wheel Loader
• CAT 966C Wheel Loader
• CAT 966E Wheel Loader
• CAT 966F (in certain configurations)
• CAT 621 Scraper Series
• CAT 623 Scraper Series
• CAT 631 Scraper Series
• CAT 633 Scraper Series
• CAT 637 Scraper Series
• Older CAT industrial engines using midline exhaust-connector geometry

These models represent machines working in mining, quarry operations, construction, pipeline jobs, recycling yards and large earth-moving projects. Their engines endure extreme duty cycles, making exhaust flexibility crucial.

Technical Specifications of the 1W-0528 Tube Caterpillar

Below are the generalized technical attributes typical for this part:

Material Composition

• Flexible stainless-steel mid-tube
• High-strength carbon-steel ends
• Thermal-resistant black coating
• Welded joints reinforced against fatigue

Dimensions

• Length: approx. 380–450 mm depending on production batch
• Diameter: matched to compatible CAT exhaust ports
• Bend angle: 90° upper connection

Weight

• Approx. 1.20–1.40 kg (varies slightly with production specification)

Performance Rating

• High vibration-absorption capacity
• Suitable for continuous long-hour operations
• Compatible with engines up to medium-high horsepower

Installation Notes for the 1W-0528 Tube Caterpillar

Technicians appreciate this part because it is straightforward to install. Below is a practical guide:

1. Ensure Exhaust Surfaces Are Clean

Remove rust, old gasket residue or dust from adjoining pipes.

2. Align the Tube Correctly

The angled end typically connects toward the upper exhaust elbow. Ensure orientation is exact.

3. Tighten Clamps Evenly

Secure the tube without over-tightening. The goal is to create a seal, not deform the tube.

4. Test for Leakage

Run the engine briefly and inspect all joints for gas escape.

5. Recheck After a Few Hours of Operation

Thermal expansion can slightly loosen clamps, so a second tightening helps ensure long performance.

Operational Benefits of the 1W-0528 Tube Caterpillar

Reduced Exhaust Backpressure

The interior diameter is optimized to allow smooth exhaust flow, protecting turbochargers.

Lower Noise Output

A stable exhaust channel reduces unwanted vibration noise.

Improved Operator Comfort

Proper sealing prevents exhaust odors from reaching the cab area.

Lower Long-Term Maintenance Costs

By absorbing stress, it protects other components that are far more expensive to replace.

Why Choose 3GEN Export for the 1W-0528 Tube Caterpillar

3GEN Export supplies OEM-quality heavy-machinery components and ships globally within five working days. Customers choose us because:

• We maintain strict quality control
• We offer bulk order advantages
• We support fleets with consistent part availability
• We provide expert technical matching for all components

Our logistics network ensures that construction sites, mining operations and major contractors receive their parts without delays.

Conclusion: A Small Part With Major Impact

The 1W-0528 Tube Caterpillar may appear simple, but its role is critical in any machine’s exhaust system. By maintaining structural integrity, preventing leaks and reducing mechanical stress across the system, it safeguards both engine health and operator comfort. When operating in harsh conditions, a connector tube is not a minor accessory, it is a vital component that influences daily machine reliability and long-term performance.

Professionals across the world rely on this part due to its durability, precise fitment and resistance to the extreme temperatures and vibrations that define Caterpillar heavy-machinery use. 3GEN Export ensures fast, reliable delivery of this essential part anywhere in the world within five working days.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
