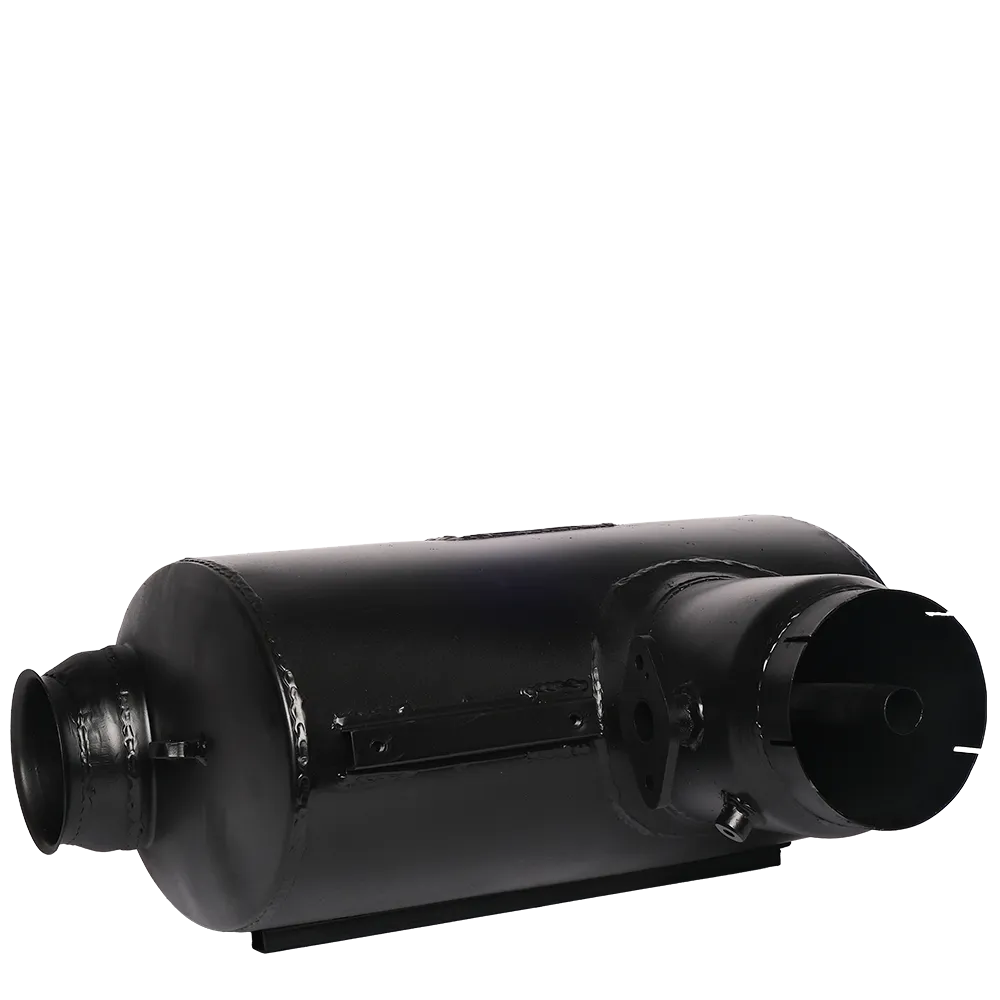

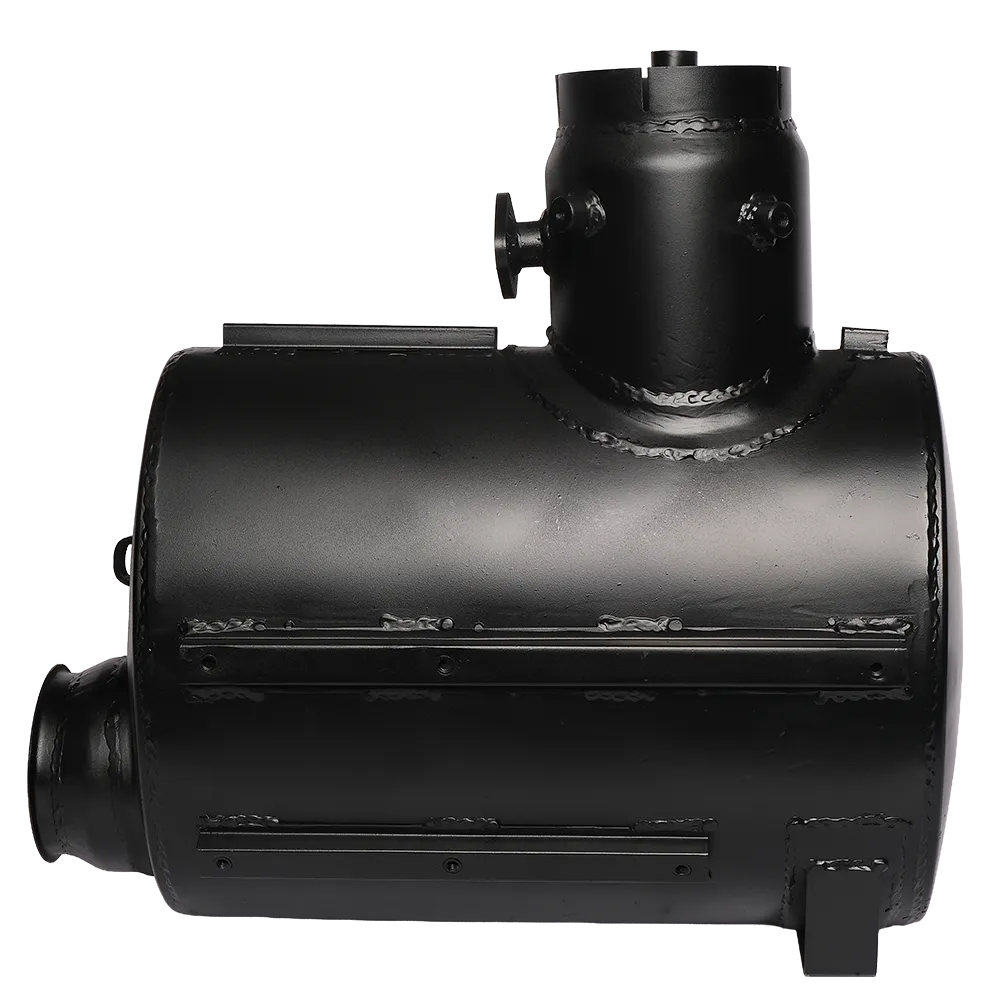

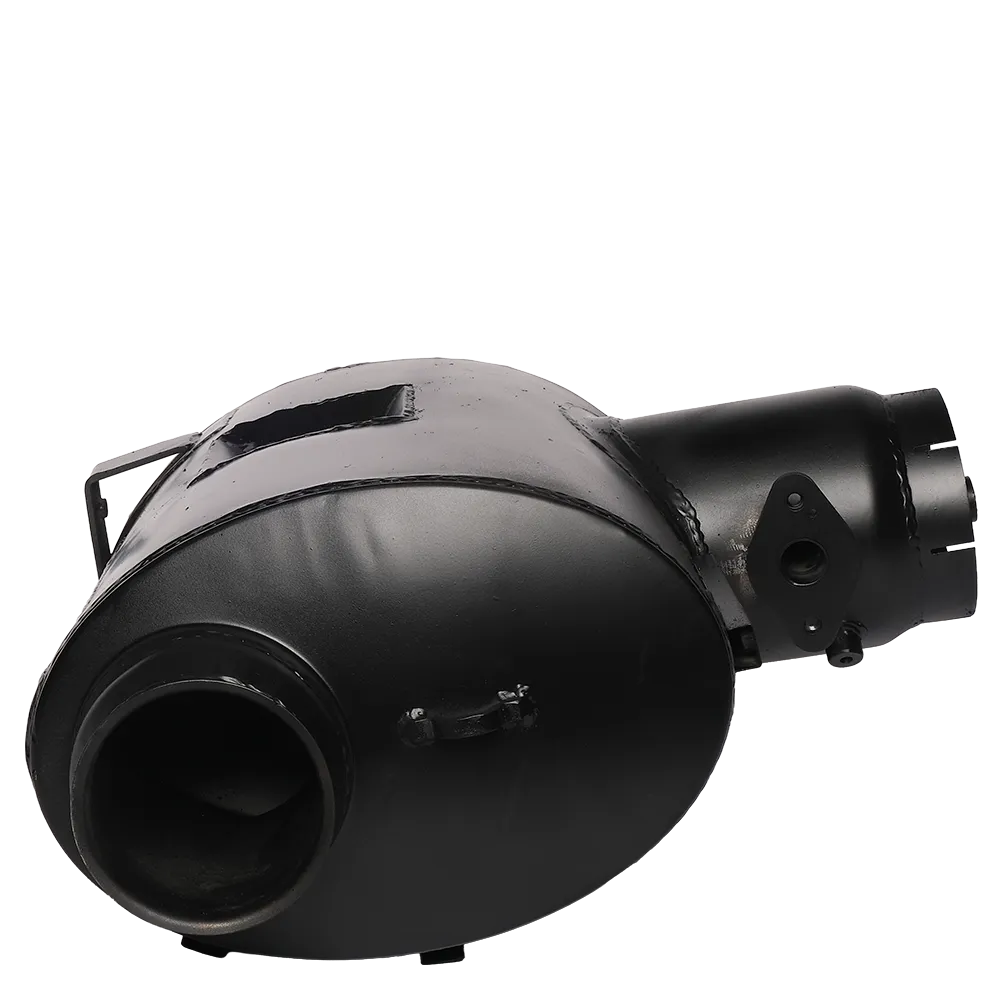

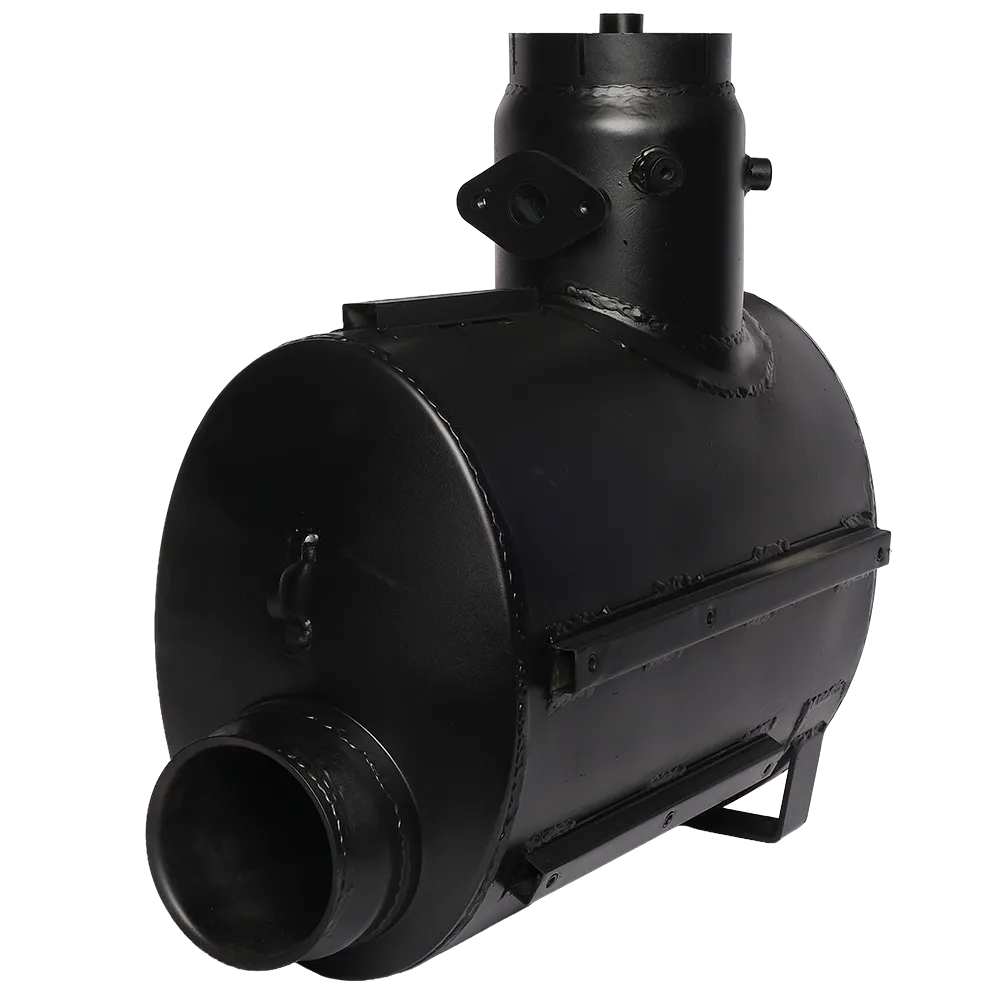

2003200, 200-3200 MUFFLER CATERPILLAR

Premium High-Performance Exhaust Muffler for Caterpillar Heavy Equipment

The 2003200 MUFFLER CATERPILLAR (also referenced as 200-3200) is a heavy-duty exhaust silencing assembly engineered specifically for Caterpillar machinery that operates in demanding, high-load environments. Designed to significantly reduce engine noise, stabilize exhaust flow, and withstand continuous thermal stress, this muffler ensures long-term engine protection and efficiency for a wide range of CAT construction and mining machines.

Crafted with thick-gauge heat-resistant steel, the 2003200 MUFFLER CATERPILLAR delivers exceptional durability against corrosion, vibration, and prolonged exposure to high temperatures. The robust welds, structural reinforcement brackets, and precision-machined inlet/outlet ports make it a long-lasting replacement component for machines that demand peak exhaust performance.

As part of 3GEN Export’s OEM-standard product line, the 200-3200 muffler is manufactured with superior craftsmanship, ensuring perfect compatibility, reliable sealing, and balanced exhaust acoustics. With global delivery in 5 working days, 3GEN Export provides mission-critical components that keep Caterpillar machinery operating efficiently in mining operations, construction sites, quarries, industrial zones, and remote environments where uptime cannot be compromised.

---

Function and Purpose of the 2003200 MUFFLER CATERPILLAR

The 200-3200 muffler serves as a primary exhaust silencing and flow-distribution component within the Caterpillar exhaust system. Positioned between the engine manifold and exhaust outlet pipe, this muffler performs several key functions essential to safe and stable machine operation.

Primary Functions

• Noise Reduction: Minimizes engine exhaust noise through internal baffles and multi-chamber sound-damping architecture.

• Thermal Regulation: Absorbs and disperses heat to protect nearby components and improve engine thermal balance.

• Exhaust Flow Stabilization: Maintains smooth, unrestricted exhaust flow to support optimal engine breathing.

• Emission System Support: Works with downstream emission components (SCR, DOC, DPF) to ensure proper exhaust conditioning.

• Structural Protection: Reduces exhaust pulses and vibrations that would otherwise damage exhaust pipes, brackets, and engine mounts.

A properly functioning 2003200 MUFFLER CATERPILLAR reduces operational noise, protects emissions systems, stabilizes engine performance, and extends the life of connected exhaust components.

---

Key Features and Benefits

1. OEM-Precision Fit

The 200-3200 muffler is manufactured to match Caterpillar’s original mounting dimensions, flange patterns, and pipe geometries. This ensures:

• Zero modifications required

• Seamless fit with existing hardware

• Guaranteed compatibility with OEM exhaust layouts

2. Heavy-Gauge Steel Construction

Crafted from reinforced, heat-resistant carbon steel, the muffler withstands:

• Extreme temperatures

• High-pressure exhaust pulsation

• Long-term exposure to corrosive gases

• Heavy vibration during continuous machine operation

3. Multi-Chamber Noise Reduction

Internal flow chambers dissipate sound waves to ensure:

• Superior noise reduction

• Controlled exhaust pressure levels

• Increased operator comfort

• Compliance with site noise regulations

4. High-Quality Anti-Corrosion Coating

Exterior surfaces are protected with high-temperature black coating resistant to:

• Rust and oxidation

• Acidic exhaust condensation

• Outdoor humidity and moisture exposure

5. Reinforced Structural Welds

Robotic full-penetration welds guarantee:

• Optimal air-tight sealing

• Long-term structural integrity

• No cracking under thermal expansion

6. Engine Performance Optimization

By maintaining stable exhaust back-pressure, the muffler supports:

• Improved torque delivery

• Cleaner combustion

• Reduced fuel consumption

• Extended turbocharger life

7. Maintenance-Free and Long-Lasting

With zero internal moving parts, the muffler requires minimal upkeep and offers long operational life in all environments.

---

Technical Specifications

---

Compatible Caterpillar Models

The 2003200 MUFFLER CATERPILLAR is widely used in multiple medium and heavy-duty CAT machines, especially industrial engines and construction equipment.

Common Compatible Models Include:

• Caterpillar 3304, 3306 industrial engines

• Caterpillar 928G, 930G wheel loaders

• Caterpillar 950B, 950E, 950F series loaders

• Caterpillar 966C, 966D, 966E wheel loaders

• Caterpillar 140G, 12H, 14G motor graders

• Caterpillar D4D, D5B, D6C, D6D bulldozers

• Caterpillar 225, 235, 245 hydraulic excavators

• Various stationary CAT power units powered by 3300-series engines

(Compatibility may vary slightly by machine configuration—3GEN Export can confirm exact fitment.)

---

Engineering and Manufacturing Excellence

Precision Fabrication

The 200-3200 muffler is produced on automated CNC metal-forming machines that ensure:

• Flawless roundness and pipe alignment

• Consistent wall thickness

• Precision flange placement

Reinforced Weld Quality

Each weld is subjected to:

• Ultrasonic weld integrity testing

• Pressure leak testing

• Thermal shock simulation

Internal Acoustic Engineering

Engineered internal chambers and baffles regulate:

• Pressure pulses

• Noise resonance

• Back-pressure stabilization

These features ensure consistent machine performance regardless of load or engine RPM.

High-Temperature Endurance

The advanced steel alloy used allows the muffler to operate safely under sustained thermal pressure, making it ideal for:

• Mining operations

• Long-hour construction activity

• High-altitude or high-temperature environments

---

Functional Advantages

1. Extended Exhaust System Life

Stable exhaust flow reduces stress on pipes, flex sections, and turbochargers.

2. Lower Operational Noise

Proprietary sound-reducing chamber design minimizes engine noise output.

3. Improved Engine Efficiency

Balanced back-pressure contributes to:

• Smoother turbocharger operation

• Cleaner combustion

• Enhanced torque output

4. Reduced Emissions Support

Ensures the emissions system downstream receives conditioned exhaust flow for optimal filtration and chemical conversion.

5. Vibration Dampening

Reinforced brackets absorb engine vibration and prevent premature fatigue of pipes and mounts.

---

Installation and Maintenance

Installation Steps

1. Ensure engine is cool and machine parked safely.

2. Remove old muffler by detaching clamps, bolts, and flanges.

3. Inspect exhaust gaskets and replace if worn.

4. Position the new 2003200 MUFFLER CATERPILLAR onto the mounting brackets.

5. Tighten all bolts to Caterpillar torque specifications.

6. Start the engine and check for leaks at all joints.

Maintenance Recommendations

• Inspect outer coating every 500–1000 operating hours.

• Check mounting bolts for tightness periodically.

• Replace immediately if cracks or corrosion spots are visible.

• Drain condensation periodically if the muffler has a drain plug.

---

Quality Standards and Compliance

The 200-3200 muffler meets or exceeds international manufacturing and safety guidelines including:

• ISO 9001:2015 Quality Management

• ISO 14001 Environmental Standards

• CE Certification for International Export

• RoHS / REACH Material Safety Compliance

Every unit undergoes:

• Pressure testing

• Noise output calibration

• Weld integrity inspection

• Heat cycle testing

---

Environmental and Safety Benefits

• Noise reduction improves operator health and site safety

• Non-toxic high-temperature coating ensures environmental compliance

• Recyclable steel structure supports sustainable equipment maintenance

---

Packaging and Worldwide Delivery

Each 2003200 MUFFLER CATERPILLAR is packaged in:

• Protective bubble and foam layers

• Anti-corrosion wrap

• Reinforced export-grade carton or wooden crate

3GEN Export ships globally in just 5 working days, providing rapid delivery for critical parts used in mining, construction, industrial production, and emergency repairs.

---

Why Choose 3GEN Export

• OEM-compatible precision manufacturing

• Fast worldwide delivery

• Large inventory of Caterpillar, Komatsu, Volvo, Sandvik, and other heavy machinery components

• All parts tested and verified for durability

• Trusted by customers across 120+ countries

When your machinery demands reliability, 3GEN Export delivers the quality and speed you need.

---

Summary

The 2003200 MUFFLER CATERPILLAR is a rugged, high-temperature exhaust silencing solution engineered for heavy-duty Caterpillar equipment. Its reinforced steel construction, precision-engineered chambers, anti-corrosion coating, and OEM-fit design ensure long service life and optimal machine performance.

Supported by 3GEN Export’s unmatched logistics and manufacturing excellence, this muffler guarantees durability, compatibility, and fast global delivery—keeping your Caterpillar machines running efficiently, quietly, and safely.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
