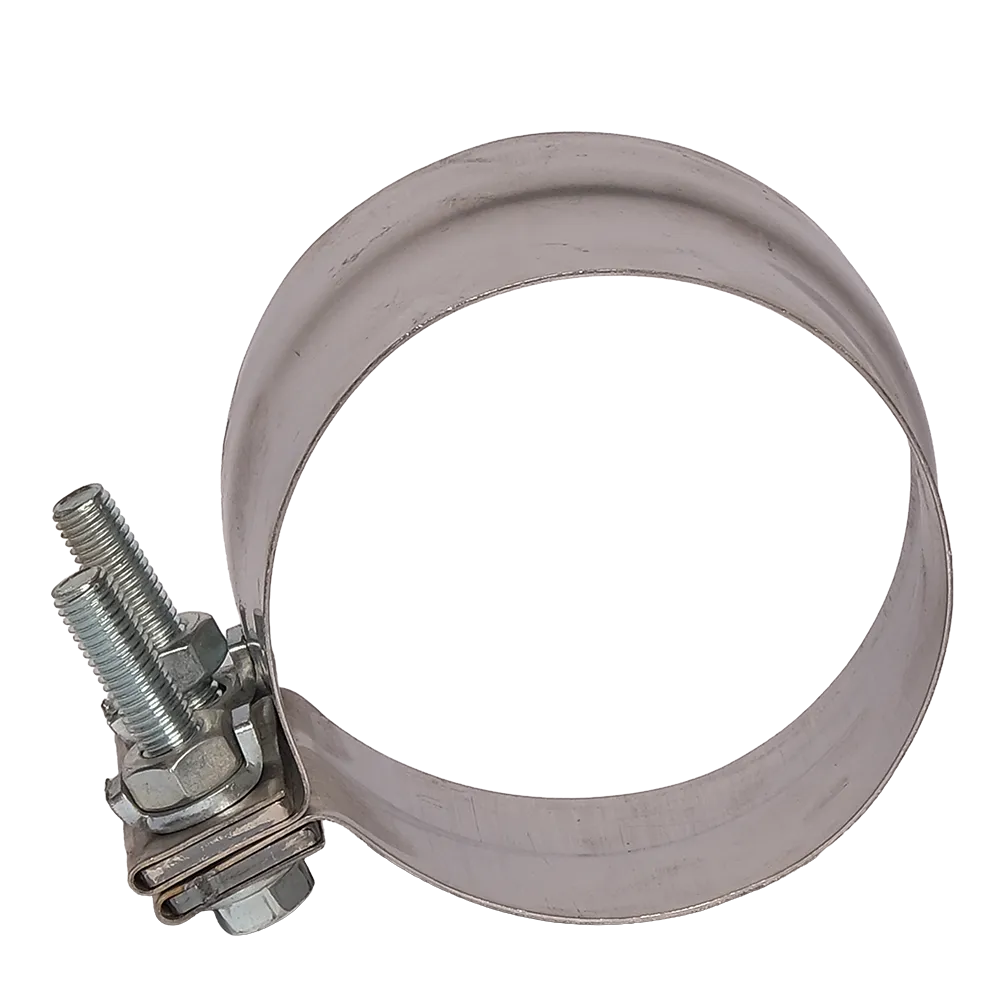

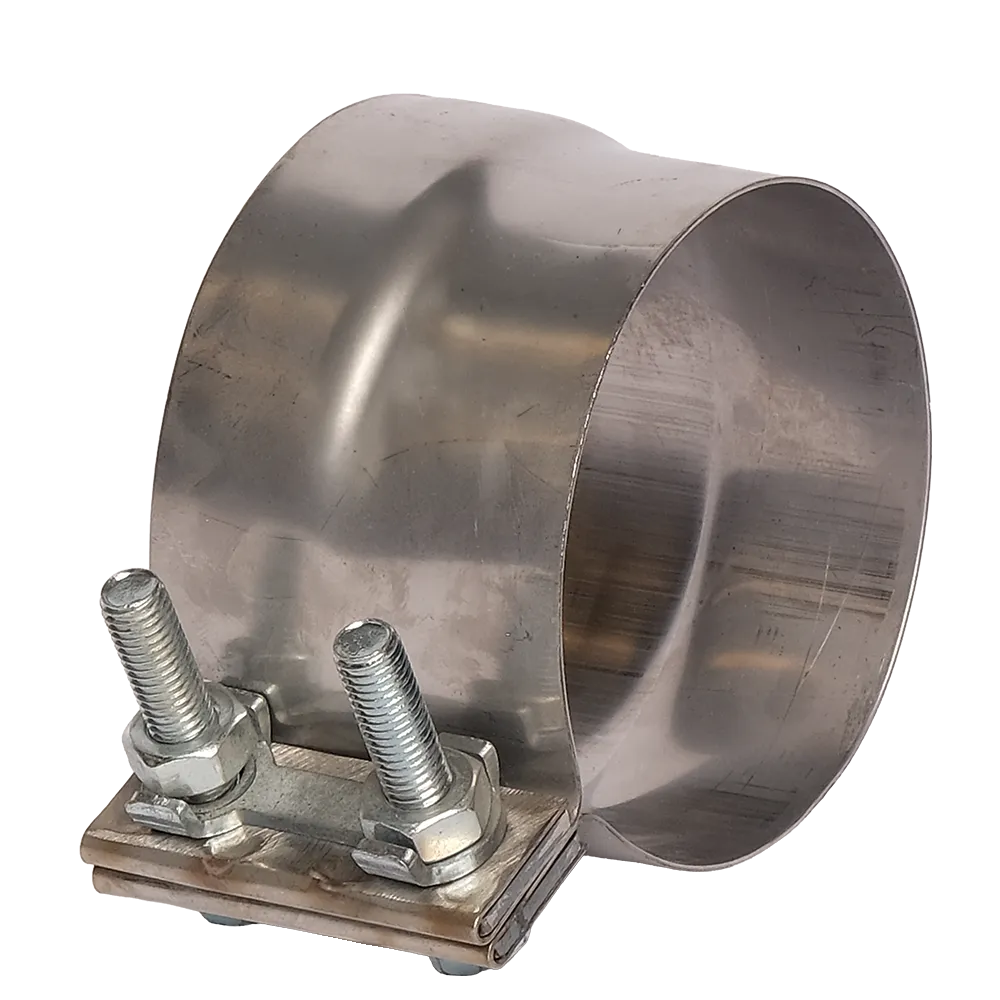

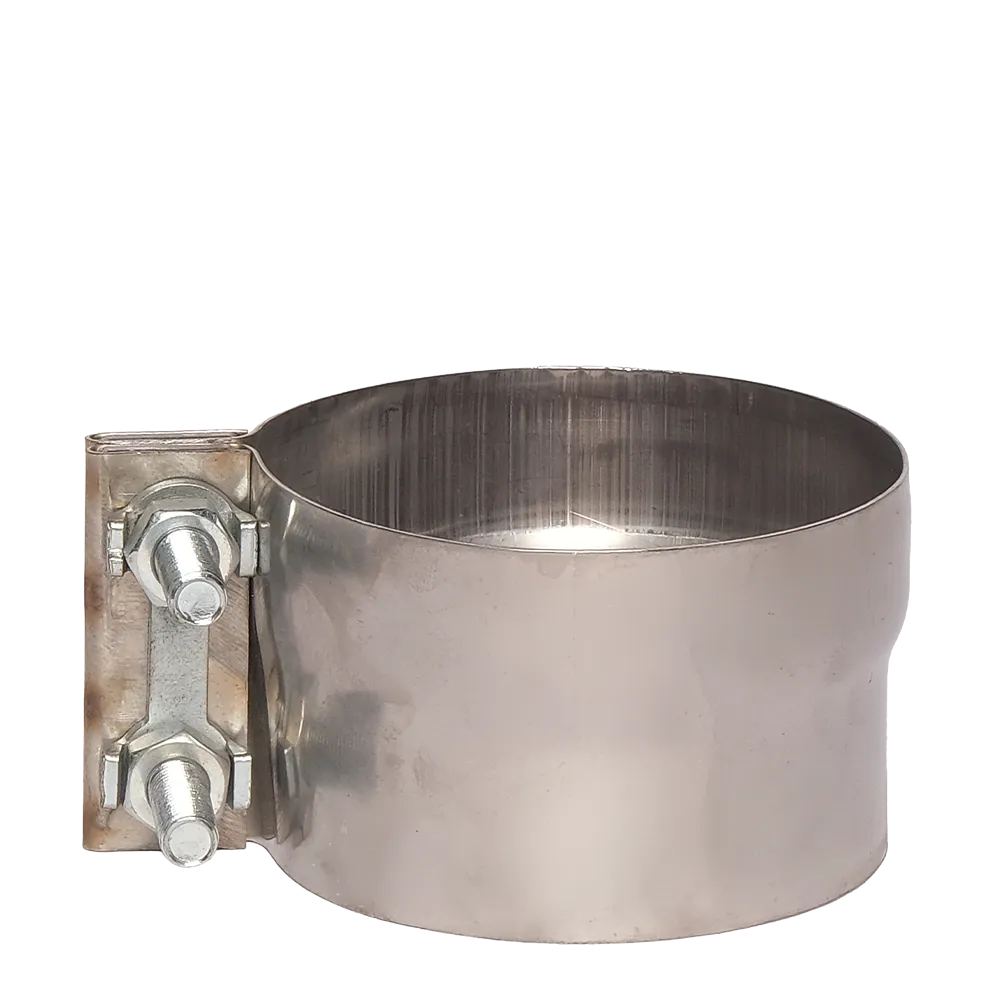

2419264, 241-9264 CLAMP AS CATERPILLAR

The 2419264 Clamp AS Caterpillar is a heavy-duty fastening component engineered to secure exhaust, pipe, and cylindrical connections in demanding Caterpillar machinery applications. Designed to deliver consistent clamping force under vibration, heat, and pressure, this component plays a vital role in maintaining system integrity and operational safety across harsh working environments.

Manufactured from high-strength stainless steel and precision-formed to ensure uniform pressure distribution, the 241-9264 Clamp AS Caterpillar provides a reliable mechanical grip that prevents leakage, loosening, and misalignment during continuous operation. Supplied by 3GEN Export as an OEM-quality solution, this clamp is trusted by equipment operators and maintenance teams worldwide who require durability, accuracy, and fast global availability.

Functional Purpose of the Clamp Assembly

The primary function of this clamp assembly is to secure cylindrical components—such as exhaust pipes, connectors, or ducts—by applying even circumferential pressure. This prevents unwanted movement, vibration-induced loosening, and leakage that could compromise system performance.

In heavy machinery, secure fastening is not optional. A failure at a single connection point can lead to reduced efficiency, increased emissions, overheating, or unplanned downtime. The 2419264 Clamp AS Caterpillar is designed specifically to eliminate these risks by maintaining constant clamping force even under fluctuating operating conditions.

Core Applications in Heavy Machinery Systems

This clamp assembly is commonly used in systems where thermal expansion, vibration, and mechanical stress are present. Typical application areas include:

• Exhaust system connections

• Pipe and duct couplings

• High-temperature flow lines

• Engine outlet and inlet joints

• Structural cylindrical interfaces

The design ensures that once installed, the connection remains secure throughout long operating cycles.

Material Quality and Structural Design

The 241-9264 Clamp AS Caterpillar is produced using corrosion-resistant stainless steel selected for its strength, flexibility, and resistance to thermal fatigue. This material choice allows the clamp to withstand repeated heating and cooling cycles without losing its mechanical properties.

The band structure is carefully formed to maintain uniform thickness, ensuring even load distribution around the entire circumference. The integrated bolt and nut assembly is engineered to deliver controlled tightening torque, preventing over-compression or uneven stress.

Engineering Advantages of the Clamp Assembly

Uniform Clamping Force

The circular band design ensures pressure is evenly distributed around the connection, minimizing stress concentration points and reducing the risk of deformation.

Vibration Resistance

Heavy machinery generates constant vibration. This clamp assembly is designed to resist loosening under dynamic loads, maintaining joint stability over time.

Thermal Stability

Operating near engines and exhaust systems exposes components to high temperatures. The clamp maintains performance without warping or losing tension.

Performance in Harsh Operating Conditions

Construction, mining, and earthmoving environments expose machinery to dust, moisture, temperature extremes, and constant mechanical shock. The 2419264 Clamp AS Caterpillar is engineered to perform reliably under these conditions, ensuring that connected components remain sealed and aligned.

By preventing movement and leakage, the clamp helps protect surrounding components from secondary damage caused by heat escape, vibration, or misalignment.

Compatibility With Caterpillar Equipment

The 2419264 Clamp AS Caterpillar is used across multiple Caterpillar machine platforms where secure cylindrical fastening is required. Common applications include:

• Caterpillar wheel loaders

• Caterpillar track-type tractors

• Caterpillar articulated dump trucks

• Caterpillar motor graders

• Caterpillar industrial engines

Exact compatibility may vary depending on machine configuration and production year. Always verify part numbers against equipment documentation before installation.

Installation Guidelines and Best Practices

Correct installation is essential to ensure long-term performance and safety.

Recommended Installation Steps

• Ensure mating surfaces are clean and properly aligned

• Position the clamp evenly around the connection

• Tighten bolts gradually to maintain uniform pressure

• Avoid over-tightening to prevent material deformation

• Recheck torque after initial operation cycle

Following these steps helps ensure the clamp maintains optimal holding force throughout its service life.

Maintenance and Inspection Considerations

While designed for durability, periodic inspection is recommended as part of routine maintenance programs.

Inspection Tips

• Check for signs of corrosion or surface damage

• Ensure bolts remain properly torqued

• Inspect for deformation caused by over-tightening

• Replace if cracks or material fatigue are observed

Proactive inspection helps prevent unexpected failures and extends the life of connected components.

Why Choose 3GEN Export?

3GEN Export is a global OEM spare parts supplier specializing in heavy machinery components. Each product is manufactured to meet strict dimensional and material standards required for industrial use.

Advantages of Sourcing From 3GEN Export

• OEM-level manufacturing quality

• Consistent fit and reliable performance

• Export-grade packaging for international transport

• Worldwide delivery in 5 working days

• Support for bulk and repeat orders

With 3GEN Export, customers receive dependable components without compromising delivery speed or quality.

Technical Specifications – 2419264 Clamp AS Caterpillar

Weight Information

• Approximate Weight: 1.4 kg

Minor variations may occur due to production tolerances.

Operational Value and Long-Term Benefits

By maintaining secure connections under extreme conditions, this clamp assembly contributes directly to machine reliability, reduced maintenance costs, and extended component life. Its robust construction ensures stable performance over long operating cycles, even in aggressive environments.

For operators focused on uptime, safety, and predictable maintenance schedules, this component offers measurable long-term value.

Ordering and Global Delivery

The 2419264 Clamp AS Caterpillar is available for worldwide shipment through 3GEN Export. Orders are dispatched globally within 5 working days, helping minimize downtime and keep operations on schedule.

International logistics support and bulk order handling are available upon request.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
