2W1080, 2W-1080 ELBOW CATERPILLAR

(2W-1080 ELBOW CATERPILLAR)

The 2W1080 ELBOW CATERPILLAR is a heavy-duty exhaust elbow used on some of the most powerful Caterpillar machines in the world, including large dozers and mining excavators. Designed to handle extreme temperatures, constant vibration and high exhaust flow, the 2W-1080 ELBOW CATERPILLAR keeps the exhaust system breathing freely so that your engine can deliver full torque and long-term reliability in the toughest working conditions.

From ripping rock with a D11R to pushing overburden with a D9R or loading ore with a 5130B, these machines never really rest. That is why the exhaust system cannot be a weak link. This elbow assembly routes hot gases cleanly and efficiently, preventing backpressure build-up and protecting nearby components from heat and corrosion.

As an OEM supplier, 3GEN Export offers the 2W1080 ELBOW CATERPILLAR with worldwide delivery in just 5 working days, helping you minimize downtime and keep every machine on the job.

What Is the 2W1080 ELBOW CATERPILLAR?

The 2W1080 ELBOW CATERPILLAR (often written as 2W-1080 ELBOW CATERPILLAR) is a 90-degree exhaust elbow assembly manufactured from high-grade, heat-resistant steel with a polished outer surface. The part connects major sections of the exhaust line, changing gas flow direction while maintaining smooth internal passages and robust structural strength.

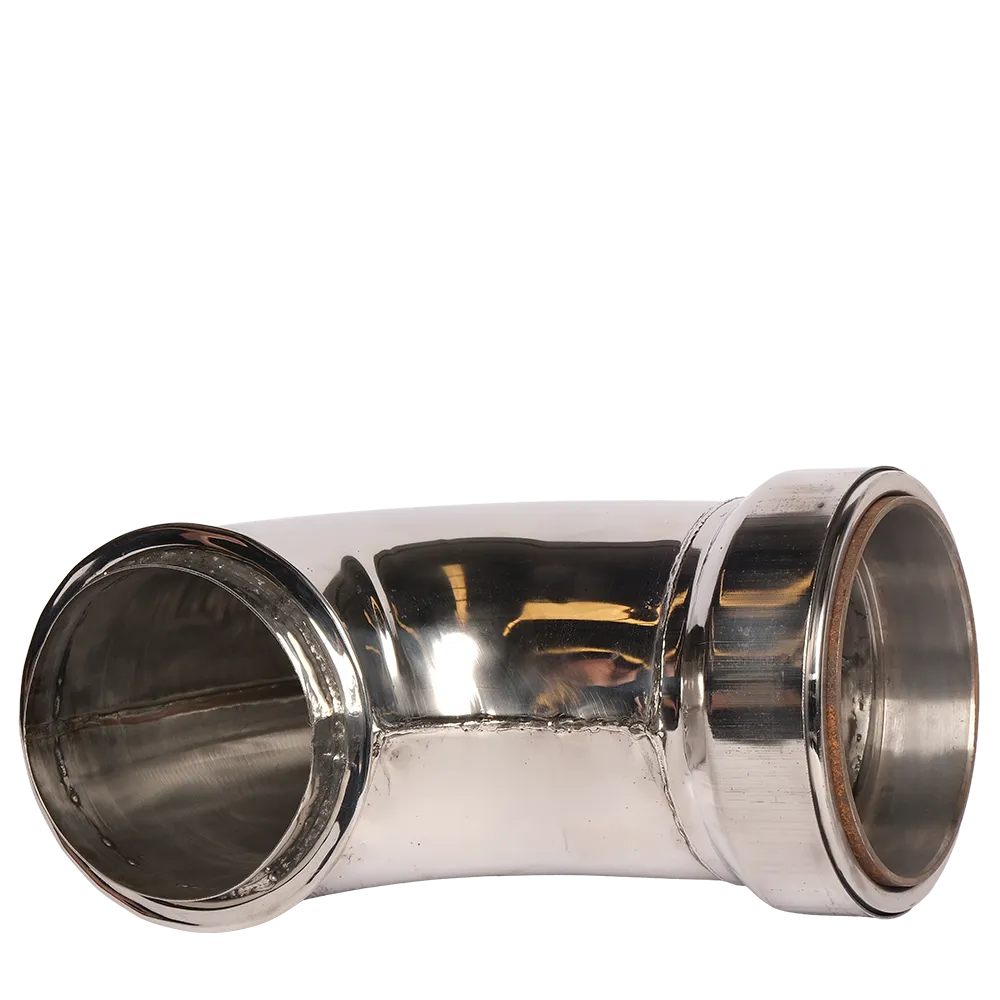

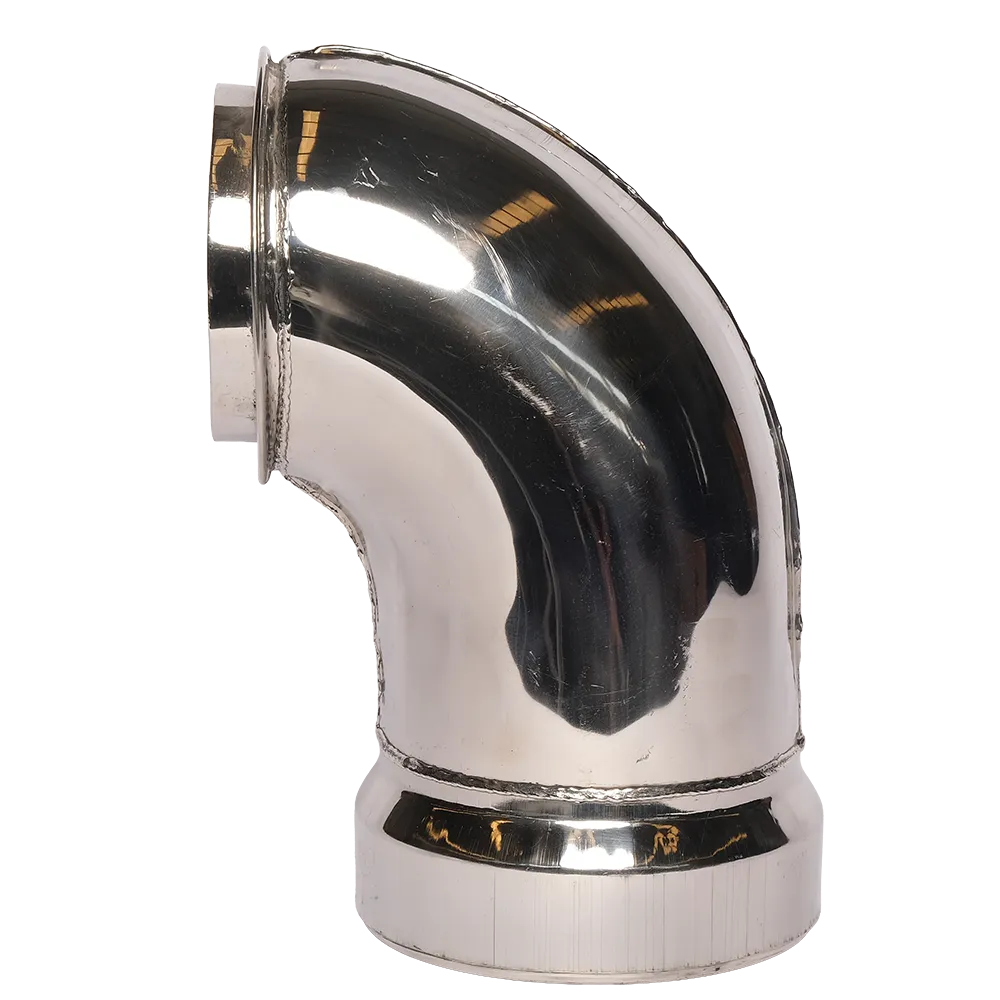

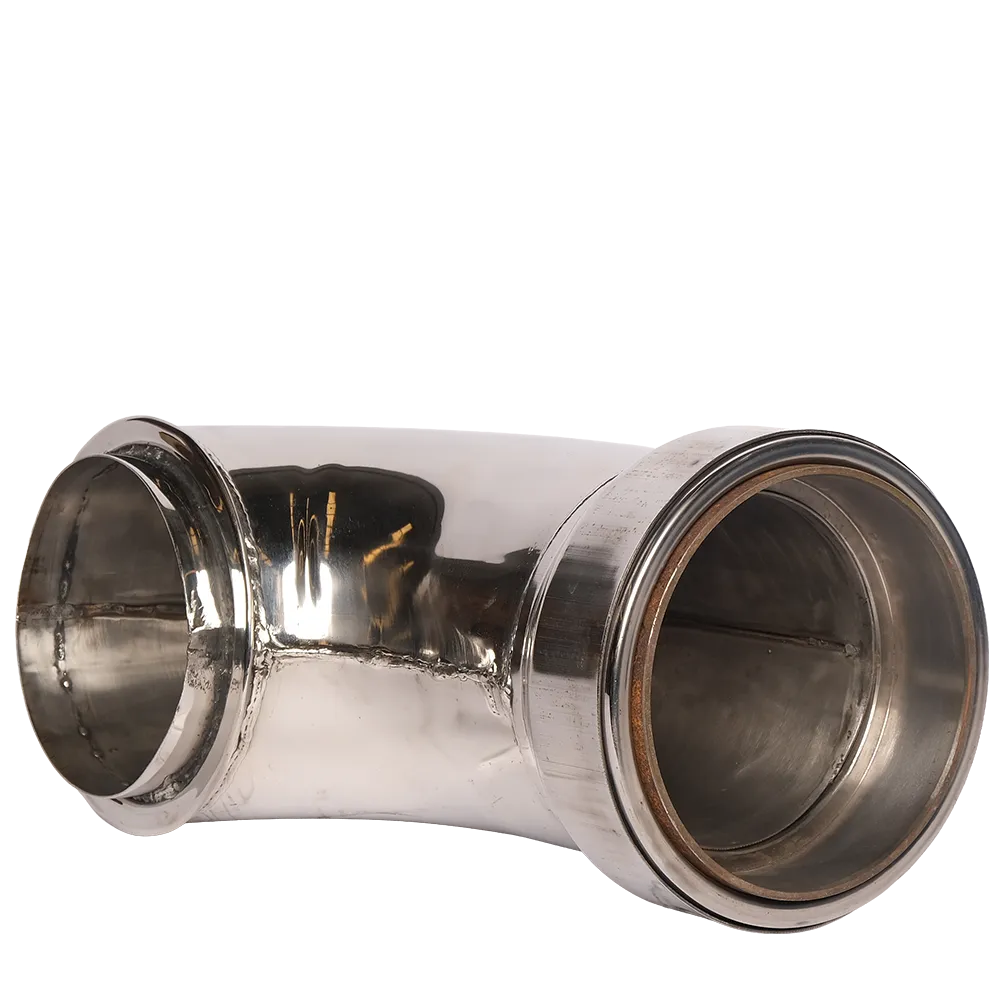

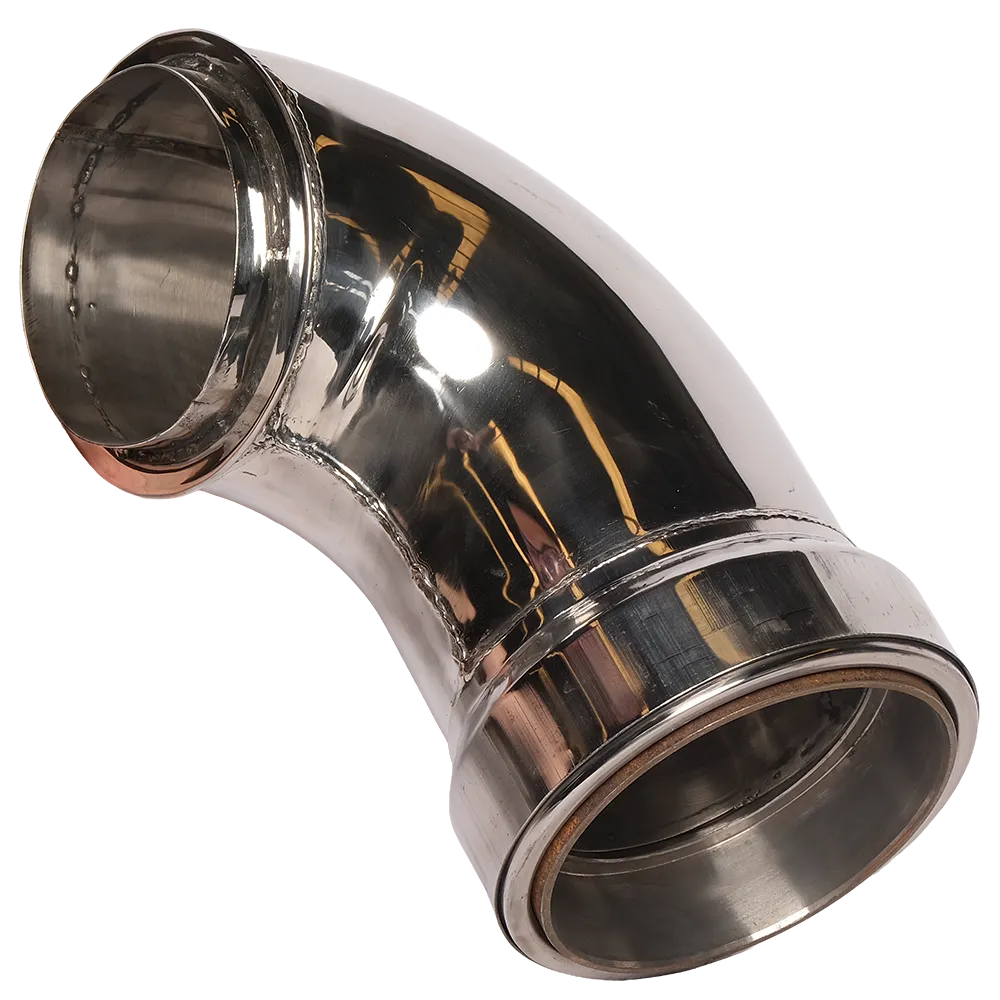

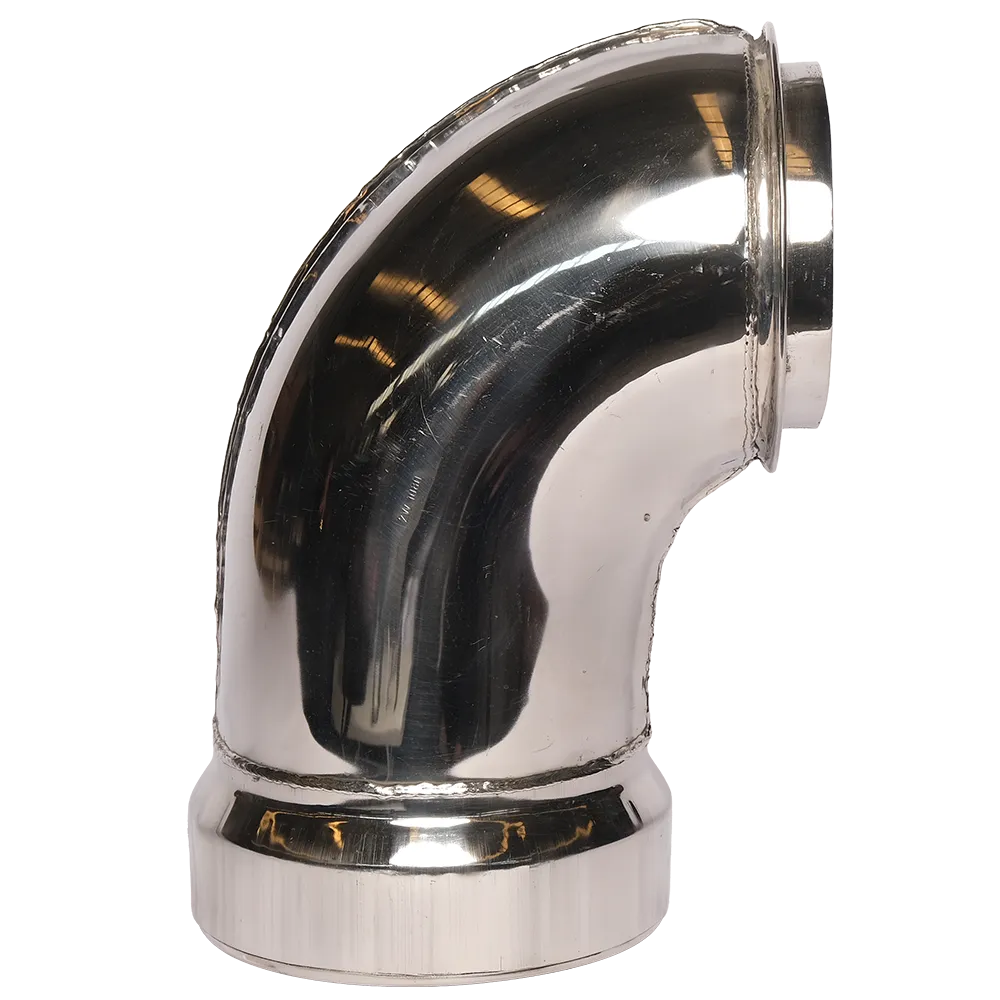

From the images, you can see key design elements:

• Thick-wall steel construction to resist fatigue

• Deep, uniform 90-degree bend for optimized gas routing

• Wide-diameter inlet and outlet ends with rolled lips for secure clamping

• Internal sealing groove for gasket / sealing ring fitment

• Smooth internal surface to minimize flow resistance

This elbow typically sits between the exhaust manifold or turbo outlet and the vertical stack or muffler assembly on large Caterpillar machines.

Main Functions of the 2W-1080 ELBOW CATERPILLAR

1. Directing Exhaust Gases Safely

The primary job of the 2W1080 ELBOW CATERPILLAR is to redirect exhaust gases from the engine towards the main exhaust stack. By using a controlled 90-degree bend, the elbow channels the flow without creating sharp turns that could cause turbulence or excessive backpressure.

This has several advantages:

• Keeps exhaust away from sensitive components

• Ensures fumes are directed above the machine and away from operators

• Maintains consistent flow to downstream components such as mufflers or aftertreatment units

2. Preserving Engine Performance

Diesel engines are very sensitive to exhaust backpressure. If gases cannot leave the cylinders easily, combustion becomes less efficient, temperatures rise and power output drops. The interior geometry of the 2W-1080 ELBOW CATERPILLAR is carefully engineered to keep flow losses low, supporting:

• Stable turbocharger performance

• Correct cylinder scavenging

• Lower exhaust gas temperatures

• Improved fuel efficiency

3. Managing Heat and Vibration

Machines like the D11N or 5130B run under heavy loads for long hours. Exhaust elbows must live in hot, vibrating environments right next to the engine. The 2W1080 ELBOW CATERPILLAR is built with:

• High-temperature steel capable of withstanding repeated thermal cycles

• Strong, continuous welds around the circumference of the elbow

• Thick flanges and lips for clamp retention

This combination helps prevent cracking, distortion and fatigue failures that could lead to leaks.

4. Protecting Adjacent Components

By keeping the exhaust flow contained and correctly routed, the 2W1080 ELBOW CATERPILLAR reduces heat soak and soot deposits on nearby hoses, wiring, cab structures and hydraulic lines. This contributes directly to longer service life for other systems on the machine.

Technical Specifications of the 2W1080 ELBOW CATERPILLAR

The table below summarizes typical technical data for the 2W1080 ELBOW CATERPILLAR based on industry sources and the physical characteristics visible in the photos.

Technical Data

The polished surface is not only aesthetic; it also offers an extra level of corrosion resistance, particularly in wet or chemically aggressive environments such as mining and quarry sites.

Caterpillar Machines Using the 2W1080 ELBOW CATERPILLAR

The 2W1080 ELBOW CATERPILLAR is used on several high-horsepower Caterpillar models, especially large dozers and mining excavators. According to multiple aftermarket and technical references, it fits the following machines:

Compatible Models

• Caterpillar D8L – Track-type tractor

• Caterpillar D9N – Track-type tractor

• Caterpillar D9R – Track-type tractor

• Caterpillar D11N – Large mining dozer

• Caterpillar D11R – Large mining dozer

• Caterpillar 5130 – Mining excavator / shovel

• Caterpillar 5130B – Mining excavator / shovel

Depending on the exact engine configuration and emissions package, some regional variants may also use the same elbow. When in doubt, your machine’s serial number and the part number stamped on the original elbow should be cross-checked before ordering. 3GEN Export can help confirm compatibility for any fleet.

Design Details of the 2W1080 ELBOW CATERPILLAR

High-Flow 90-Degree Bend

The curvature of the 2W-1080 ELBOW CATERPILLAR is engineered to keep the internal radius smooth and consistent. This minimizes turbulence and pressure drops compared with sharp or poorly formed bends. For turbocharged engines running at high load, that small difference in flow can translate into better boost, more stable exhaust temperatures and improved engine breathing.

Wide-Diameter Ports

Both ends of the 2W1080 ELBOW CATERPILLAR have generous internal diameters that match the adjoining exhaust pipes. The rolled bead near each end provides a secure seating surface for clamps or sealing sleeves, helping maintain tight joints even after repeated heat cycles.

Robust Welding and Joint Integrity

At the bend and around the end collars, strong weld seams join the different sections of the elbow. These welds are designed to resist:

• Vibration from heavy ripping and pushing

• Flexing caused by thermal expansion and contraction

• External impact from debris or service tools

The result is a long-lasting elbow that performs reliably on machines working thousands of hours per year.

Corrosion-Resistant Finish

The bright metallic finish seen in the images is not purely cosmetic. A smooth, treated surface helps combat:

• Rust from moisture and humidity

• Chemical attack from exhaust condensate

• Surface pitting that could weaken the tube

For machines operating in coastal mines, fertilizer plants or other corrosive environments, this protection can significantly extend elbow life.

Role of the 2W-1080 ELBOW CATERPILLAR in the Exhaust System

1. Linking Engine and Stack

On Caterpillar dozers and shovels, the exhaust path typically runs from the turbocharger outlet or manifold through one or more elbows to a muffler or vertical stack. The 2W1080 ELBOW CATERPILLAR is one of these critical junction points, making sure gases are routed upwards and away from the machine.

2. Supporting Aftertreatment (Where Equipped)

On later or retrofitted machines with aftertreatment devices, a stable and well-sealed elbow like the 2W-1080 ELBOW CATERPILLAR helps maintain proper flow to catalytic elements, oxidation devices or particulate reduction systems. Smooth flow is essential to keep these systems working correctly and to avoid hotspots.

3. Safety and Comfort

By reliably containing and directing exhaust, the elbow protects operators and maintenance staff from exposure to hot gases. It also plays a role in keeping fumes away from the cab intake, which is crucial for comfort and health during long shifts.

Benefits of Choosing the 2W1080 ELBOW CATERPILLAR

1. Consistent Engine Output

With a correctly specified 2W1080 ELBOW CATERPILLAR installed, your engine can breathe as designed. That means:

• Better throttle response

• Stable power under load

• Reduced fuel burn per hour

2. Extended Component Life

A leaking or cracked elbow can send heat, soot and vibration into components that were never meant to handle them. Replacing it with a high-quality 2W-1080 ELBOW CATERPILLAR helps protect:

• Wiring looms and sensors

• Hydraulic hoses and seals

• Nearby sheet metal and bodywork

• Mufflers and downstream pipes

3. Reduced Downtime

Failures in the exhaust system can take a machine completely out of service, especially in tightly regulated mining and construction sites. Installing a robust 2W1080 ELBOW CATERPILLAR reduces the risk of unscheduled stoppages and keeps your equipment productive.

4. Lower Maintenance Costs

Because the elbow is designed to resist heat, corrosion and vibration, it will typically last far longer than low-grade alternatives. Fewer replacements mean fewer labor hours, less crane or lifting time and fewer stoppages in the production schedule.

Why Buy the 2W-1080 ELBOW CATERPILLAR from 3GEN Export?

3GEN Export specializes in heavy-machinery spare parts and supports customers in construction, mining, quarrying and industrial sectors all over the world.

Key Advantages

• OEM-level quality for the 2W1080 ELBOW CATERPILLAR

• Worldwide delivery within 5 working days

• Expert support to verify compatibility with D8L, D9N, D9R, D11N, D11R, 5130 and 5130B fleets

• Strong packaging to protect the polished elbow in transit

• Ability to consolidate orders with other Caterpillar exhaust, engine and undercarriage parts

Whether you are managing a single dozer or a multi-site mining fleet, 3GEN Export helps keep your machines working and your projects on schedule.

Installation and Maintenance Tips

Installation Steps (General Guide)

1. Shut down the machine and allow the engine and exhaust system to cool completely.

2. Remove guarding as required to access the existing elbow.

3. Loosen and remove clamps or fasteners holding the old elbow in place.

4. Inspect adjoining pipes and gaskets; replace any items that show cracks, heavy corrosion or deformation.

5. Position the new 2W1080 ELBOW CATERPILLAR in the correct orientation, ensuring that the bend direction matches the original routing.

6. Install new clamps and sealing rings as specified by Caterpillar guidelines.

7. Tighten all fasteners to the recommended torque.

8. Start the engine and check for leaks, unusual noises or contact with surrounding components.

9. After a few hours of operation, re-check clamp tightness, especially on high-vibration machines like dozers.

A qualified technician should always follow the machine’s service manual for exact procedures and safety instructions.

Maintenance Recommendations

• Inspect the 2W-1080 ELBOW CATERPILLAR during routine service intervals for signs of cracks, corrosion or impact damage.

• Check clamps and brackets for loosening caused by vibration.

• Look for soot marks around joints, which may indicate small leaks.

• Maintain the exhaust system as a whole, mufflers, pipes and elbows work together, so damage in one area can stress the others.

Weight of the 2W1080 ELBOW CATERPILLAR

Based on multiple parts catalogs, the 2W1080 ELBOW CATERPILLAR has a shipping weight listed around 7.4–7.9 kg, so it is reasonable to consider the working part weight to be approximately 7.5–8.0 kg.

This substantial mass reflects the thick, heat-resistant material needed to survive the harsh environment on large Caterpillar machines.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
