4N4577, 4N-4577 MUFFLER CATERPILLAR

The 4N4577 MUFFLER CATERPILLAR is a heavy‑duty exhaust silencer engineered for large CAT machines that work in the harshest dozing, grading and pipelaying environments. Officially catalogued by CAT as an exhaust muffler, the 4N‑4577 MUFFLER CATERPILLAR is designed to control backpressure, dramatically cut engine noise and withstand constant vibration on legendary models like the D8H, D8K and 16G.

You’re looking at the big can that keeps a big machine civilised. When this muffler fails, the machine suddenly sounds angry, fuel consumption creeps up and heat starts attacking nearby components. Swapping in a properly built 4N4577 MUFFLER CATERPILLAR instantly calms the exhaust, protects the engine and puts your tractor or grader back in its comfort zone.

As 3GEN Export, we manufacture and supply this part as an OEM‑spec muffler assembly and deliver worldwide in 5 working days, so your iron doesn’t sit silent on the jobsite.

What Is the 4N‑4577 MUFFLER CATERPILLAR?

The 4N4577 MUFFLER CATERPILLAR is a cylindrical exhaust silencer used on high‑horsepower Caterpillar equipment. On these machines, hot gases leave the engine’s exhaust manifold, pass through elbows or pipes and then enter the muffler body. Inside, a network of chambers and perforated tubes:

• Smooths out pressure pulses

• Absorbs sound energy

• Controls backpressure for the engine and turbo

The 4N4577 sits vertically or horizontally (depending on the machine) and connects to the inlet and outlet pipes via welded stubs. From there, gases head up the stack and out of the machine.

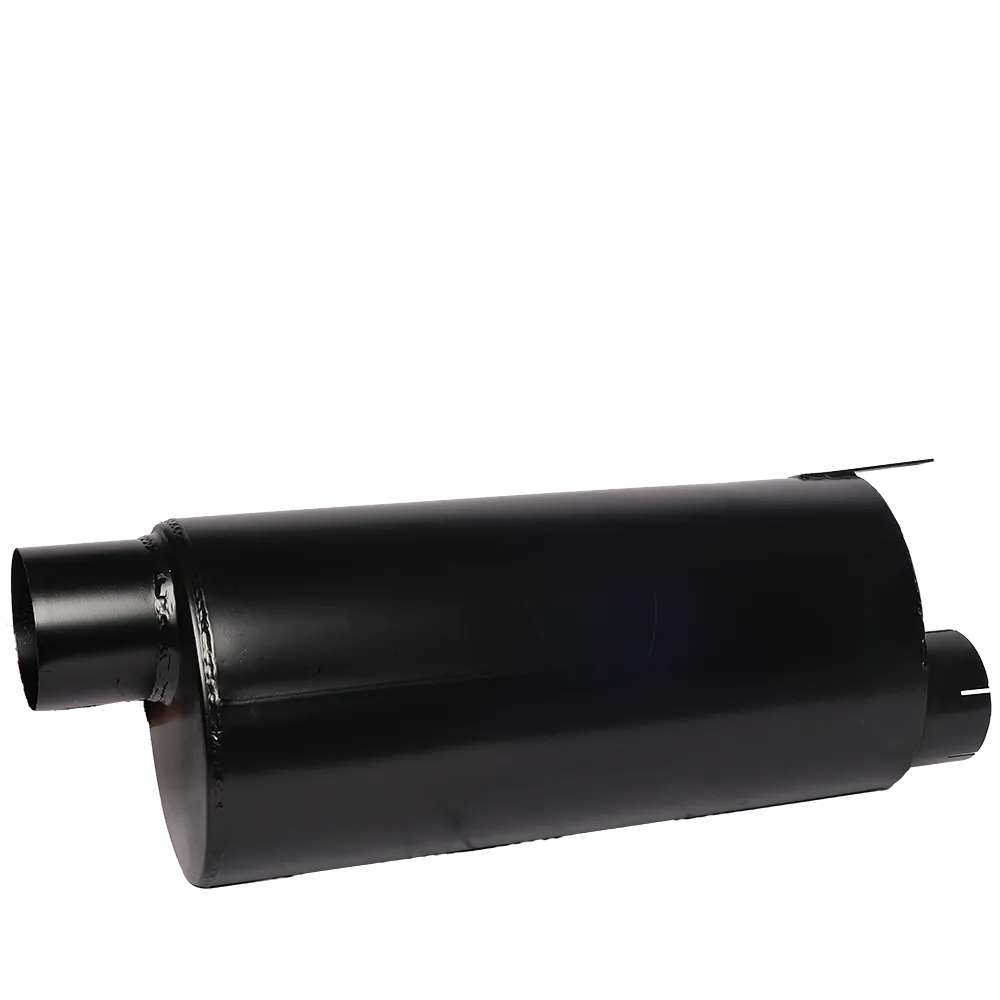

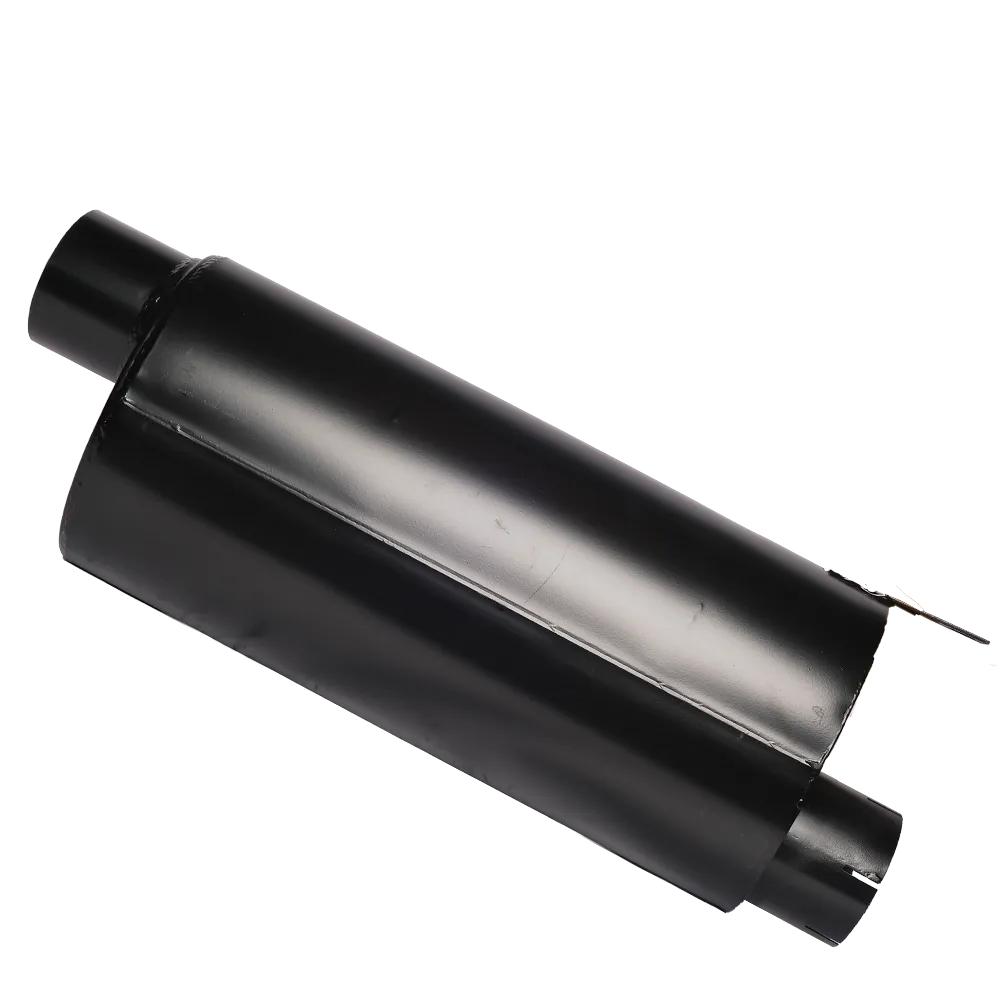

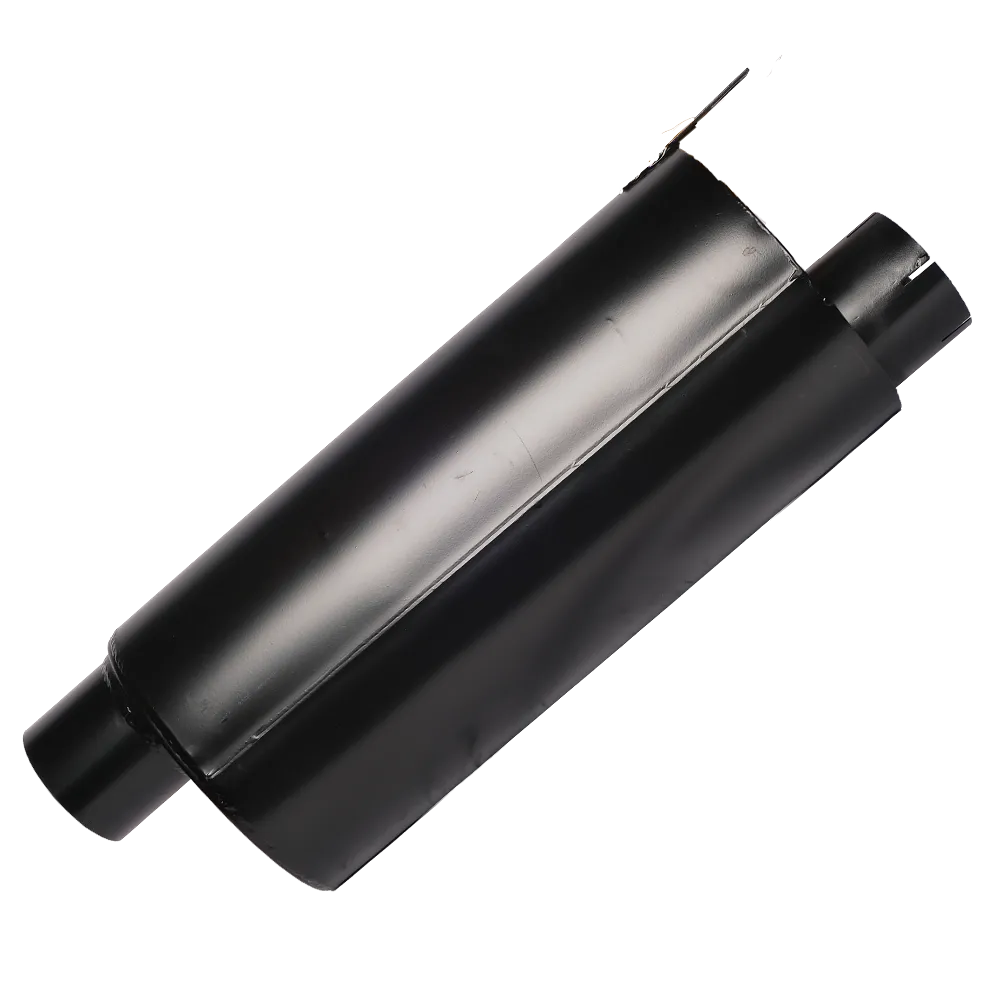

Key design points visible in your photos and confirmed by aftermarket specs:

• Long, oval‑style main body for high internal volume

• Straight‑through inlet and outlet tubes sized for big‑bore exhaust systems

• Heavy seam welds along the body and end caps

• Welded mounting tab to secure the muffler to the chassis or guard

• Durable black, heat‑resistant outer coating

IndustrialStop lists the 4N‑4577 MUFFLER CATERPILLAR with a length of about 858.5 mm, width 348 mm, height 312 mm, and a weight of 14.72 kg, confirming that this is a serious piece of hardware built for large frame machines.

Caterpillar Models Using 4N4577 MUFFLER CATERPILLAR

One reason the 4N4577 MUFFLER CATERPILLAR is such a popular part is its wide application across classic heavy machines.

Track‑Type Tractors and Dozers

HeavyDutyPros and Zbox list the 4N‑4577 MUFFLER CATERPILLAR for these tractors:

• D8

• D8H

• D8K

These D8 models are icons in bulk earthmoving, ripping and push‑loading. The muffler has to deal with long, continuous full‑load operation, often in dusty, abrasive conditions.

Motor Graders

The muffler is also used on large graders where long hours at mid‑RPM are the norm. Sources list:

• 16G Motor Grader (including configurations with C9 engines and CX31‑C9I transmissions)

Pipelayers and Special Equipment

For pipeline and industrial applications, the 4N4577 MUFFLER CATERPILLAR appears on:

• 583K Pipelayer

• Certain RM300 reclaimer/stabilizer configurations working with TH31 transmissions

Loaders and Ancillary Equipment

HeavyDutyPros also lists supporting applications such as:

• 980B Wheel Loader

• 8S Bulldozer / hydraulic control units

• 8D Ripper and 16G Ripper Scarifier assemblies (where the muffler works with dedicated power units)

Cross‑Reference Part Numbers

ReliableAftermarketParts gives a helpful list of equivalent and superseded part numbers that cross to the 4N4577 MUFFLER CATERPILLAR:

• 2P7389 / 2P7389‑A

• 3089877 / 3089877‑A

• 4N8086 / 4N8086‑A

• 8S4708 / 8S4708‑A

• 8S5121 / 8S5121‑A

Including those references in your product listing can capture additional search traffic from customers using alternate codes.

Technical Specifications of 4N4577 MUFFLER CATERPILLAR

Drawing from multiple catalogs, we can build a clear technical profile of the 4N‑4577 MUFFLER CATERPILLAR.

Dimensional Data

IndustrialStop and GT Engine Parts list similar dimensions and weights:

• Length:

  • 858.5 mm overall (approx. 33.8 in)

• Width:

  • 348 mm (approx. 13.7 in)

• Height:

  • 312 mm (approx. 12.3 in)

• Weight:

  • 14.72 kg (IndustrialStop)

  • 14.61 kg (GT EngineParts)

For your website and logistics, quoting weight: 14.7 kg is accurate and professional.

Construction and Materials

From suppliers and from your high‑resolution images:

• Shell material: high‑grade, corrosion‑resistant steel for the body and end caps

• Internal design: multi‑chambered silencing core with perforated tubes (distributor descriptions highlight strong noise reduction and backpressure control)

• Coating: black high‑temperature paint to resist rust and surface oxidation

• Connections: welded inlet and outlet stubs sized for large‑bore CAT exhaust piping

• Mounting: welded bracket/tab on the shell to tie into chassis or guard supports

Operating Role

According to Zbox’s description, this muffler’s mission is to reduce noise pollution and control engine backpressure, directly improving endurance and performance for the engine and overall machine.

In practice, that means:

• Quieting exhaust note to acceptable site levels

• Stabilising backpressure so the engine breathes properly

• Helping maintain exhaust temperature within safe limits

• Supporting compliance with sound and emission expectations

How 4N4577 MUFFLER CATERPILLAR Improves Machine Performance

1. Noise Reduction on Big‑Bore Diesel Engines

D8H, 16G and 980B machines move serious iron, and their engines produce equally serious sound energy. Without an effective muffler, exhaust noise becomes uncomfortable for the operator and disruptive for nearby workers and communities.

The 4N4577 MUFFLER CATERPILLAR uses internal chambers and perforated baffles to break up pressure pulses, absorbing and cancelling much of the harsh exhaust bark. Operators get:

• Lower noise in the cab

• Less fatigue over a long shift

• Easier communication on the ground

2. Correct Backpressure for Power and Efficiency

A muffler is more than a noise box; it’s part of the engine’s breathing system. Too much restriction and the engine works harder to push gas out, raising exhaust temps and cutting power. Too little restriction can cause unstable scavenging and poor turbo performance.

The 4N‑4577 MUFFLER CATERPILLAR is tuned for the displacement and RPM range of C9‑class and older engines used in D8H/16G‑type machines, keeping backpressure within the sweet spot so you get:

• Strong torque at low RPM

• Stable coolant and exhaust temperatures

• Fuel consumption in line with factory expectations

3. Protection for Exhaust Components

A good muffler also acts as a buffer for the rest of the exhaust system. By evening out pulses and absorbing heat, the 4N4577 MUFFLER CATERPILLAR reduces vibration and thermal cycling on:

• Exhaust pipes and elbows

• Mounting brackets and straps

• Engine manifolds and turbo housings

Fewer cracks, fewer leaks and fewer unplanned shutdowns.

4. Cleaner, Safer Engine Compartments

A cracked or rusted muffler lets hot gases and soot escape inside guards and under hoods. That can scorch wiring, degrade hoses and make service areas unpleasant or even unsafe.

A fresh 4N‑4577 MUFFLER CATERPILLAR keeps gases contained and routed up the stack, away from sensitive components and the operator.

Design Details of the 4N4577 MUFFLER CATERPILLAR

Heavy‑Gauge Shell and End Caps

The outer body of the 4N4577 MUFFLER CATERPILLAR is rolled from thick steel plate, then seam‑welded and capped at each end. That heavy steel:

• Resists denting from flying rock or contact with tools

• Handles internal pressure pulses without “oil‑canning”

• Survives many years of thermal expansion and contraction

Optimised Internal Core

Though you can’t see it from the outside, the inside is where the magic happens. Based on typical CAT muffler design and third‑party descriptions, the core of the 4N‑4577 MUFFLER CATERPILLAR likely includes:

• A perforated inlet tube to diffuse gases

• One or more expansion chambers

• Direction changes to cancel sound waves

• A final outlet path aimed at maintaining flow

These features work together to quiet the exhaust without strangling it.

Welded Inlet/Outlet Pipes

The inlet and outlet tubes on your muffler images are straight, robust sections of pipe welded directly to the shell. This gives:

• Simple connection to existing CAT exhaust plumbing

• Strong joints that can withstand vibration and clamp force

• Less chance of fatigue compared to thin or multi‑piece necks

Mounting Tab

The small bracket welded to the shell is more important than it looks. It ties the 4N4577 MUFFLER CATERPILLAR to a fixed point on the chassis or protective guard, preventing:

• Excess movement that could crack pipes

• Chafing against panels or handrails

• Stress on the manifold or turbo from the muffler’s weight

Practical Installation Notes

Always follow the Caterpillar service manual for your specific model; the notes below are general best practice.

Removal

1. Allow the engine and exhaust to cool completely.

2. Remove guarding or panels around the muffler.

3. Support the muffler’s weight using a strap, jack or helper.

4. Loosen clamps on inlet and outlet pipes.

5. Undo mounting bolts from the bracket/tab.

6. Carefully slide the old muffler free.

Check the pipes, gaskets and clamps for wear; it’s smart to replace any tired hardware along with the 4N4577 MUFFLER CATERPILLAR.

Installation

1. Position the new muffler roughly in place and attach it lightly to the mount bracket.

2. Slide inlet and outlet pipes fully into the muffler necks.

3. Align the muffler body so it clears guards and panels all around.

4. Tighten mounting bolts to spec, then tighten clamps evenly.

5. Refit any shields or covers that were removed.

Final Checks

• Start the engine and idle; listen around the muffler joints for hissing.

• Look for any soot paths at flanges or clamps.

• After the first full workday, re‑check clamp and bracket fasteners—heat cycling can settle things slightly.

Installed properly, the 4N‑4577 MUFFLER CATERPILLAR should give years of service with only routine visual inspections.

Why Choose 3GEN Export for Your 4N4577 MUFFLER CATERPILLAR?

OEM‑Level Quality

Our 4N4577 MUFFLER CATERPILLAR is built to OEM‑style specifications using high‑grade, corrosion‑resistant steel and modern manufacturing processes. It’s engineered to handle the same loads, temperatures and vibration as the muffler your machine left the factory with.

Day Global Delivery

Downtime on a D8H or 16G is not cheap. That’s why 3GEN Export focuses on fast logistics: we target worldwide delivery within five working days on the 4N‑4577 MUFFLER CATERPILLAR, so your machine is back in the dirt or on the grade with minimal delay.

Built for Heavy Construction, Mining and Pipeline Work

The machines that use the 4N4577 MUFFLER CATERPILLAR spend their lives ripping rock, shaping haul roads and building pipe strings. Our mufflers are tested in those same conditions, giving you:

• Strong welds that resist cracking

• Coatings that stand up to mud, salt and moisture

• Consistent sound‑damping performance over time

Expert Support and Cross‑Reference Help

Not sure if you need 4N4577, 4N8086 or one of the 8S‑series numbers? Send us your model and serial, and our team will cross‑reference according to CAT data and aftermarket databases, so you get the right 4N4577 MUFFLER CATERPILLAR for your machine the first time.

Weight of 4N4577 MUFFLER CATERPILLAR

Multiple industrial parts distributors list the 4N‑4577 MUFFLER CATERPILLAR with a weight between 14.6 kg and 14.72 kg.

For your product page and shipping calculations, you can confidently state:

Weight: 14.7 kg
