7C7004 Pipe , 7C-7004 Pipe CATERPILLAR

High-Performance Exhaust & Flow System Component for Heavy-Duty CAT Machinery

The 7C7004 Pipe, also widely searched as 7C-7004 Pipe CATERPILLAR, is a precision-engineered exhaust and flow transfer component designed for heavy-duty Caterpillar machines operating under intense thermal, mechanical, and environmental stress.
This part is an essential link in the exhaust system, ensuring proper heat movement, vibration absorption, and stable flow routing from engine to outlet components. For construction, mining, quarrying, and large-scale industrial applications, the durability and thermal stability of the 7C7004 Pipe directly influence machine longevity, fuel efficiency, and operational safety.

At 3GEN Export, we provide the 7C7004 Pipe as an OEM-level replacement, helping operators, suppliers, and maintenance teams drastically reduce machinery downtime. With our global logistics network, we ship this part to any country within 5 working days, making us a reliable partner for urgent maintenance and fleet-wide support.

The Role of the 7C7004 Pipe CATERPILLAR in the Exhaust System

A Critical Component for Heat Transfer and Engine Safety

The exhaust system of a heavy-duty Caterpillar machine does far more than expel combustion waste. It is responsible for managing heat, maintaining structural stability, and ensuring that machinery can operate under continuous load without overheating.
The 7C7004 Pipe CATERPILLAR functions as a thermal and mechanical transition piece, linking the exhaust elbow to the flexible or rigid sections of the exhaust circuit.

Its tasks include:

• Maintaining strong structural continuity under vibration
• Preventing exhaust backflow that could damage the engine
• Handling intense high-temperature cycles
• Absorbing dynamic forces produced during heavy operation
• Reducing stress on adjacent muffler and manifold components

Because of these roles, a poorly functioning exhaust pipe can negatively affect engine torque, fuel efficiency, and turbocharger pressure balance. This makes the durability and precision fitment of the 7C7004 Pipe non-negotiable for any operator who aims to maintain machine performance at optimal levels.

Structural Features of the 7C-7004 Pipe CATERPILLAR

Built to Withstand Extreme Working Conditions

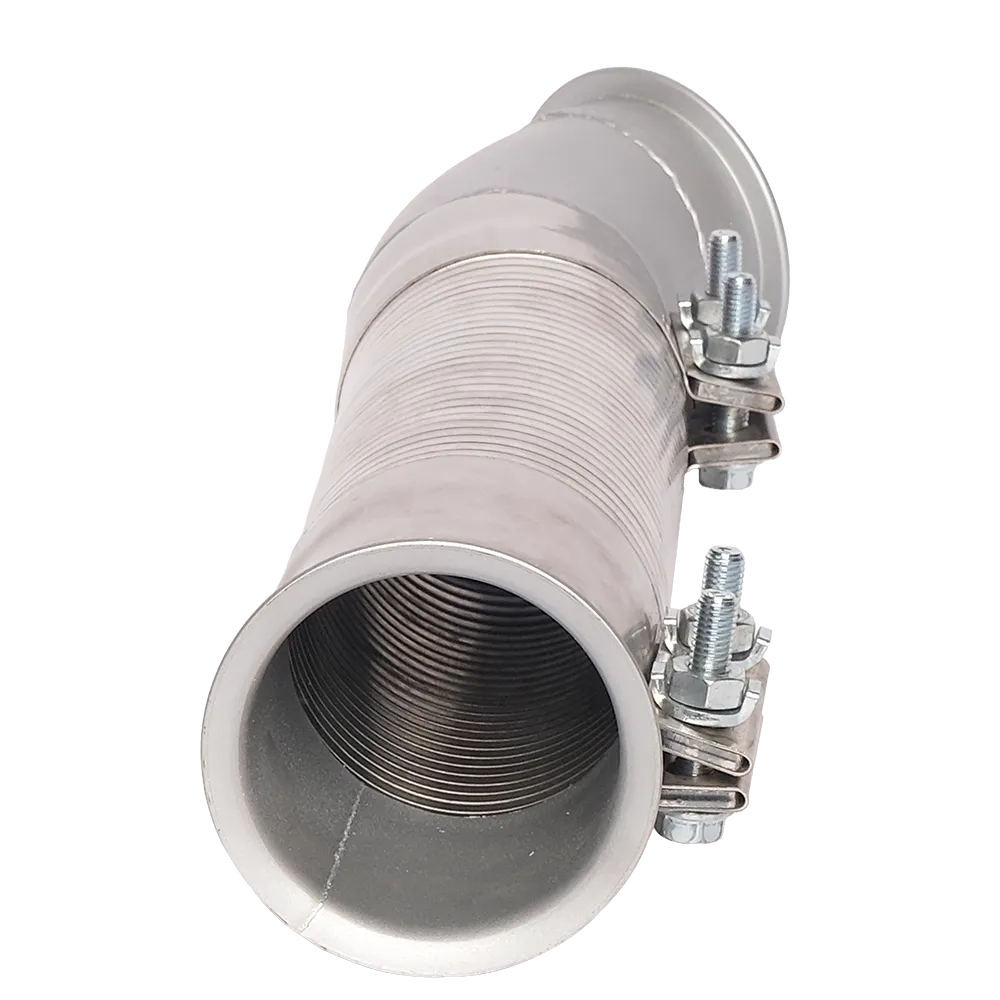

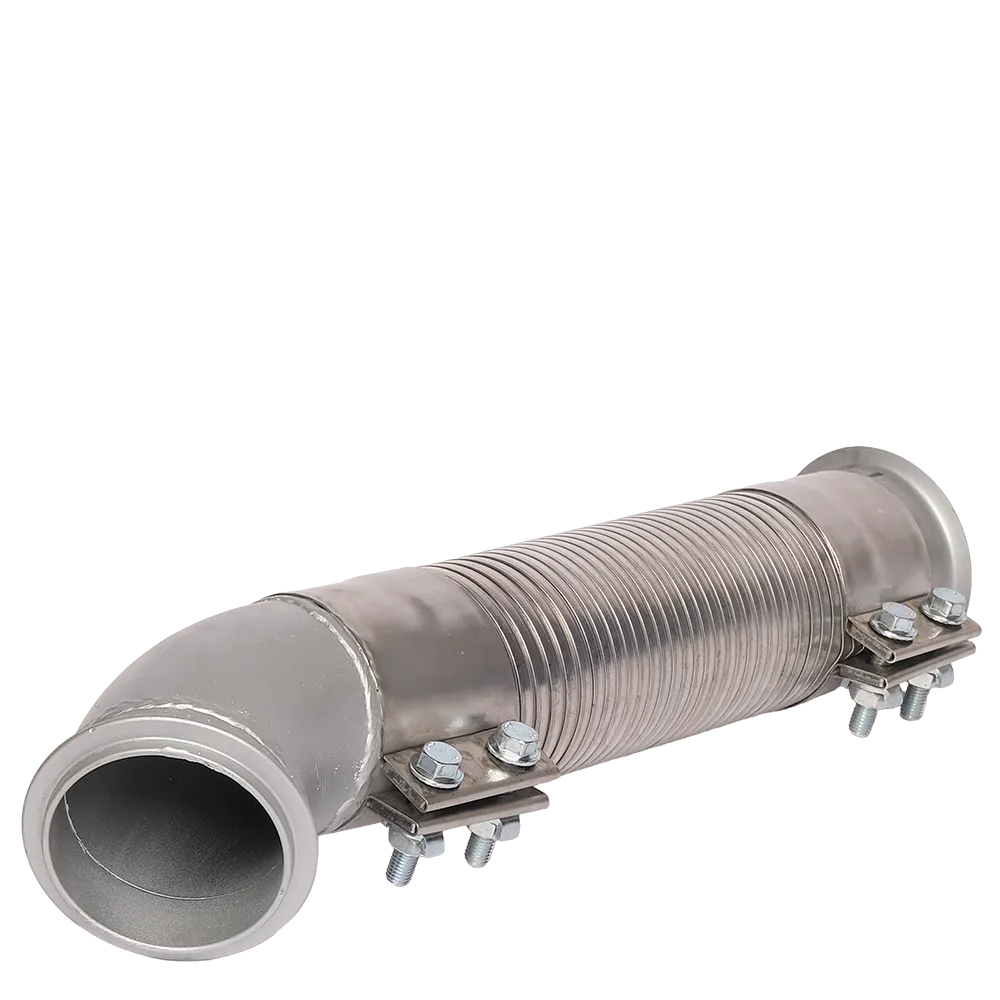

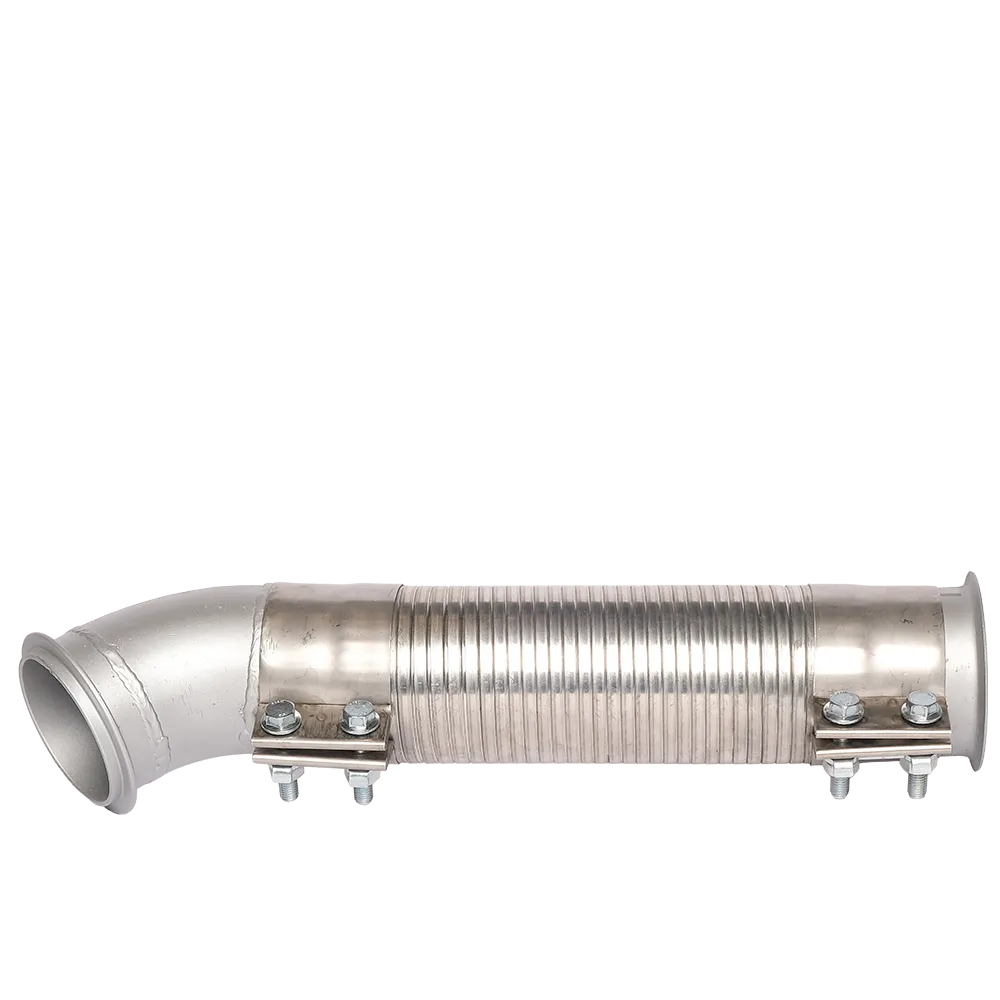

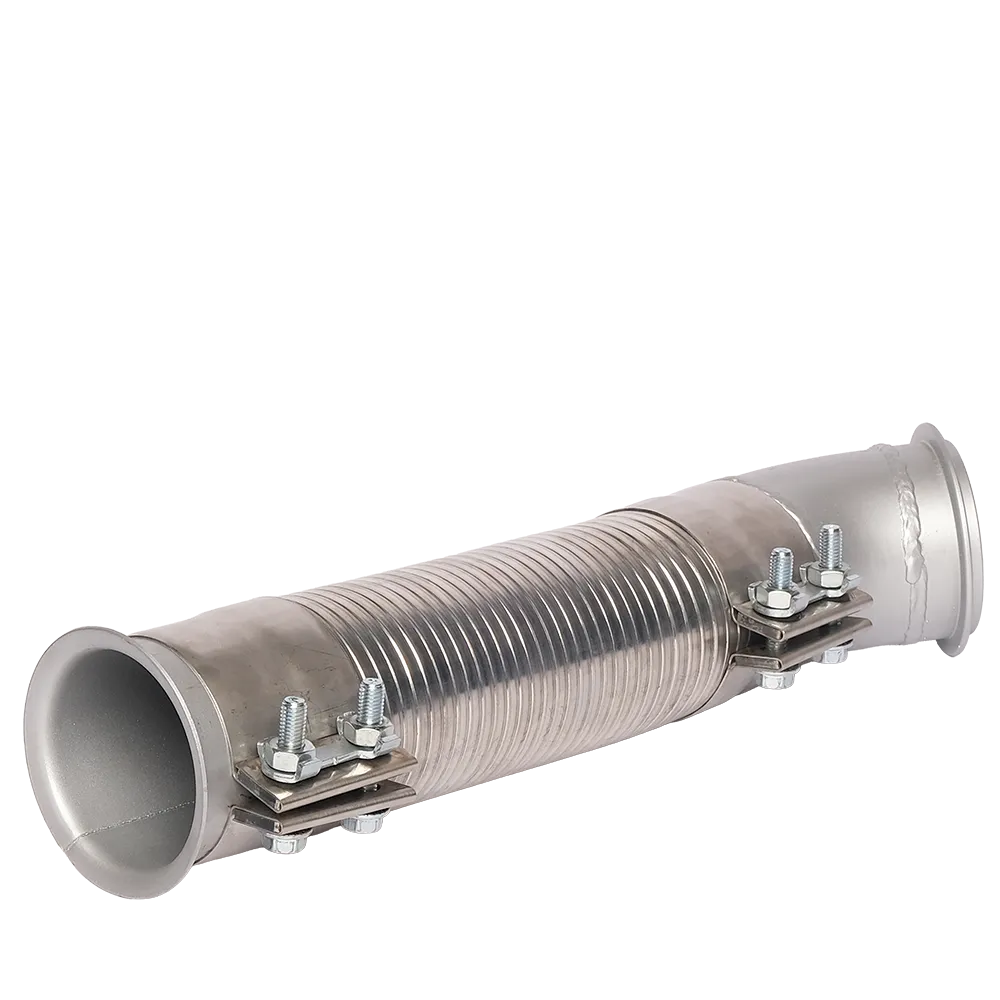

The product images show a highly reinforced, heat-resistant pipe designed with:

• A ribbed flexible center structure
• Heavy-duty, multi-bolt clamps
• Heat-resistant metal alloy construction
• A curved elbow inlet section
• A strengthened end flange for high-pressure sealing

These features are specifically optimized for Caterpillar machines that work in harsh, dusty, and temperature-intense environments.

Flexible Ribbed Section

This ribbed section allows controlled movement, absorbing vibration and preventing micro-fractures that commonly occur in rigid pipes. This design reduces stress on the manifold, turbo outlet, and muffler further along the exhaust path.

Clamped Reinforcement System

The multi-layer clamp setup ensures the pipe stays locked into position even when the machine is experiencing high RPM levels, constant direction changes, and shock loads. The clamps are positioned in a way that maximizes pressure distribution and prevents structural deformation.

High-Temperature Metal Alloy

The 7C-7004 Pipe CATERPILLAR must remain stable under extreme exhaust temperatures. The material used is engineered to resist oxidation, thermal expansion fatigue, and cracking caused by sudden temperature drops or spikes.

Why the 7C7004 Pipe Is Important for Operational Efficiency

Protects Engine Components from Stress Damage

Because exhaust systems run through several interconnected parts, even a slight failure in one component increases the strain on the rest. When the 7C7004 Pipe begins to crack, leak, or deform, exhaust pressure changes rapidly. This can:

• Reduce fuel efficiency
• Increase exhaust temperature
• Create turbo lag or pressure loss
• Cause harmful gases to leak
• Result in early engine wear

Using an OEM-standard replacement pipe helps maintain pressure equilibrium and ensures that machines perform safely and efficiently.

Compatibility – Which Caterpillar Models Use the 7C7004 Pipe?

The 7C7004 / 7C-7004 Pipe CATERPILLAR is commonly used in multiple Caterpillar engines and machine families widely deployed across construction and mining industries.
Typical compatible models include:

• CAT 3304 engines
• CAT 3306 engines
• CAT industrial power units using 3300-series configurations
• Select CAT loaders, graders, and dozers powered by 3304/3306 platforms

(The exact compatibility may vary slightly depending on serial prefixes. Many aftermarket catalogs and Caterpillar reference lists confirm these engine families as primary users of this part number.)

This makes the 7C-7004 Pipe a highly demanded replacement part globally, due to the widespread use of CAT 3304 and 3306 engines in heavy machinery fleets.

Installation Guidelines for the 7C7004 Pipe

Designed for Quick and Secure Fitment

While installation should always be handled by trained heavy-equipment mechanics, the design of this pipe makes the process straightforward.

Steps Usually Followed:

1. Inspection of adjoining components
   Technicians first check the exhaust elbow, manifold outlet, or muffler inlet for carbon buildup or damage.

2. Correct alignment of the pipe curves
   The angled elbow section must sit precisely where the original pipe was positioned.

3. Bolt-on clamp tightening
   The multi-bolt clamps must be tightened using torque-appropriate values to avoid overtightening, which could deform the ribbed flexible section.

4. Checking for exhaust leaks
   After installation, mechanics run the engine to verify backpressure consistency and ensure no gases escape through the joints.

Safe Operation After Installation

Once fitted, the 7C7004 Pipe CATERPILLAR stabilizes exhaust flow, reduces stress on connecting parts, and restores the engine’s optimal breathing capacity.

Manufacturing Quality and Structural Reliability

At 3GEN Export, we emphasize the highest OEM-level production standards. The 7C7004 Pipe is engineered to withstand:

• Continuous high heat above 500°C
• Extreme vibration from uneven terrain
• Long operational cycles in mining and construction
• Dust, corrosion, and moisture exposure

Each pipe undergoes:

• Dimensional accuracy checks
• Weld integrity inspections
• Pressure sealing tests
• Thermal expansion tolerance checks

This ensures that every piece shipped is ready for immediate installation without modification, aligning perfectly with the original system structure for Caterpillar engines.

Weight of the 7C-7004 Pipe CATERPILLAR

Based on its construction—stainless alloy elbow, ribbed steel flexible section, clamp system, and end flanges—the approximate weight of the 7C7004 Pipe is:

7C7004 / 7C-7004 Pipe Weight: 4–5 KG (estimated)

This estimation aligns with typical exhaust pipe assemblies for Caterpillar’s 3300-series engine platforms.

Why Choose 3GEN Export for the 7C7004 Pipe?

Your Reliable OEM Supplier with Global Delivery in 5 Days

3GEN Export stands apart in the heavy-machinery spare-parts market by offering:

• OEM-quality components at competitive pricing
• Global delivery capability across all continents
• 5 working-day express shipment
• Professional packaging for protection during transport
• Dedicated support for Caterpillar, Komatsu, Volvo, Hitachi, Sandvik, and more

Our marketplace supplies thousands of high-demand engine, exhaust, hydraulic, and undercarriage components. Fleet managers, distributors, construction companies, and mining operators rely on us for consistency, availability, and uninterrupted machine operation.

When you purchase the 7C7004 Pipe, you receive a product that meets the durability standards required by heavy industries worldwide.

Conclusion: A High-End Exhaust Pipe for Demanding CAT Machinery

The 7C7004 Pipe and 7C-7004 Pipe CATERPILLAR stand as essential performance components that directly affect machine reliability, fuel efficiency, and exhaust safety. Built from reinforced, heat-resistant materials and equipped with a vibration-absorbing ribbed structure, this part is engineered for long-term operation under extreme working conditions.

With wide compatibility across CAT 3304 and 3306 engines, the 7C7004 Pipe remains one of the most requested exhaust components in global heavy-equipment markets.

When sourced from 3GEN Export, customers receive OEM-standard durability, precise engineering, and rapid global delivery within 5 working days.
