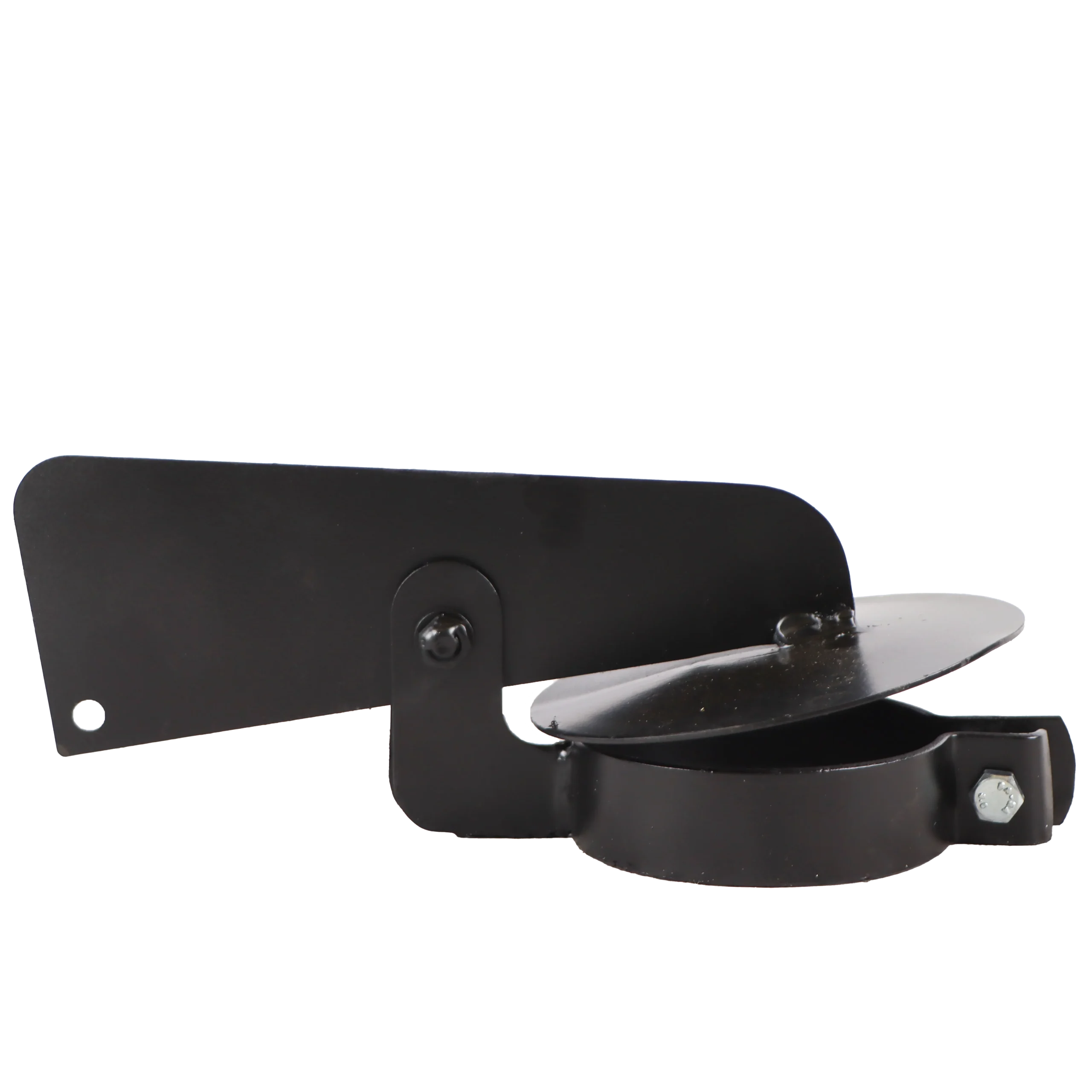

7S4994 RAIN CAP CATERPILLAR – Optimal Exhaust Protection for Heavy Machinery

The 7S4994 RAIN CAP CATERPILLAR is a robust and purpose-built exhaust protection accessory designed for use in a wide range of Caterpillar heavy machinery. Crafted to shield vertical exhaust stacks from moisture, dust, and debris infiltration, this rain cap is a critical part of maintaining optimal performance and longevity of your equipment’s engine system.

Built from heavy-duty powder-coated steel, the 7S4994 rain cap automatically opens under engine pressure and closes once the engine is turned off, preventing water or particulate matter from entering the exhaust outlet. Its simplified, mechanical design makes it a low-maintenance yet highly effective component for machine fleets operating in harsh outdoor environments such as construction, mining, and agriculture.

---

Key Features of the 7S4994 RAIN CAP CATERPILLAR

• Weather-Activated Flap Mechanism
  The cap’s flap opens with the force of the exhaust gases and closes automatically when the machinery shuts down, ensuring a sealed system when not in use.

• Corrosion-Resistant Steel Construction
  Built using black powder-coated steel, this rain cap endures extreme heat, corrosion, and prolonged outdoor exposure without compromising functionality.

• Secure Bolt-On Mounting
  Features a rugged clamp-and-bolt design for effortless installation and a vibration-resistant fit, ideal for heavy-duty applications.

• Maintenance-Free Performance
  Thanks to its mechanical simplicity and high-grade materials, the 7S4994 operates smoothly with minimal need for service or replacement.

• Universal Fit for Vertical Exhausts
  Engineered to fit exhaust outlets of specific Caterpillar machinery, ensuring compatibility and easy replacement.

---

Technical Specifications

• Product Name: 7S4994 RAIN CAP CATERPILLAR

• Material: Industrial-grade powder-coated steel

• Mechanism: Pivoting exhaust-pressure flap

• Diameter Fitment: 3.5″ (approx. 89 mm) vertical stacks

• Installation Type: Bolt-on clamp

• Color: Black

• Weight: Approx. 1.4 kg

• Temperature Resistance: High-heat tolerance up to 400°C

---

Compatibility – Caterpillar Models Using 7S4994 RAIN CAP

The 7S4994 RAIN CAP CATERPILLAR is compatible with numerous Caterpillar machines that utilize vertical exhaust configurations. Typical applications include:

• Caterpillar D7 and D8 Dozers

• Caterpillar 966 & 972 Wheel Loaders

• Caterpillar 345 and 349 Excavators

• Caterpillar 160H and 160M Motor Graders

• Caterpillar 432F and 444F Backhoe Loaders

• Caterpillar 740 and 745 Articulated Dump Trucks

• Caterpillar 988H Wheel Loaders

• Caterpillar 980C & 980G Loaders

These machines frequently operate in open, rugged environments where the risk of environmental infiltration into exhaust systems is high. The 7S4994 is your defense against unexpected downtime due to moisture or dust entry.

Tip: Always verify fitment via your machine’s parts catalog or consult a 3GEN Export representative for tailored guidance.

---

Practical Use Cases

The 7S4994 RAIN CAP CATERPILLAR proves indispensable in sectors where machines operate under open skies and unpredictable weather:

• Construction and Infrastructure Projects – Protects idle machines overnight or during inclement weather.

• Mining Operations – Keeps exhaust stacks free of dust, rock particles, and moisture.

• Agricultural and Forestry – Shields equipment from debris, leaf matter, and rainfall in seasonal environments.

• Municipal and Waste Management – Helps prolong engine life in utility and sanitation fleets parked outdoors.

---

Why the 7S4994 RAIN CAP Matters

While small in size, the 7S4994 rain cap plays a large role in system protection. Unchecked water or debris infiltration through the exhaust can lead to:

• Internal engine corrosion

• Starter motor damage

• Turbocharger failure

• Reduced combustion efficiency

Investing in a rain cap like the 7S4994 ensures a cost-effective layer of protection and helps extend the time between engine overhauls or repairs.

---

Installation Process

Installing the 7S4994 rain cap is quick and requires no specialized tools:

1. Inspect the exhaust stack to confirm a clean, round surface.

2. Loosen the cap’s integrated bolt and fit the clamp around the stack.

3. Position the cap so the flap swings freely and is aligned with exhaust direction.

4. Tighten the bolt using a socket wrench to ensure a snug, secure fit.

5. Start the engine to verify proper flap movement.

This easy installation allows for fast replacement in the field with minimal downtime.

---

Maintenance Recommendations

• Inspect periodically for corrosion or carbon buildup.

• Confirm free movement of the flap after long idle periods.

• Re-tighten bolts occasionally in high-vibration environments.

• Replace the unit if flap mechanism becomes bent or misaligned.

---

Why Buy from 3GEN Export?

At 3GEN Export, we supply high-performance, OEM-quality spare parts that keep your machinery operating in peak condition. The 7S4994 RAIN CAP CATERPILLAR is part of our global inventory, available with delivery anywhere in the world within just 5 working days.

• Premium build quality

• OEM-level design compatibility

• Fast international delivery

• 1-year manufacturer’s warranty

• Secure, damage-resistant packaging

We help minimize downtime and ensure you have the right part, right when you need it.

---

Conclusion

The 7S4994 RAIN CAP CATERPILLAR is a small yet vital component engineered to deliver maximum protection against weather and environmental damage. Built tough for tough machines, it ensures your Caterpillar equipment remains efficient, protected, and operational in all conditions.

Order the 7S4994 today from 3GEN Export, your trusted OEM supplier for heavy machinery components — and keep your fleet protected from the elements.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
