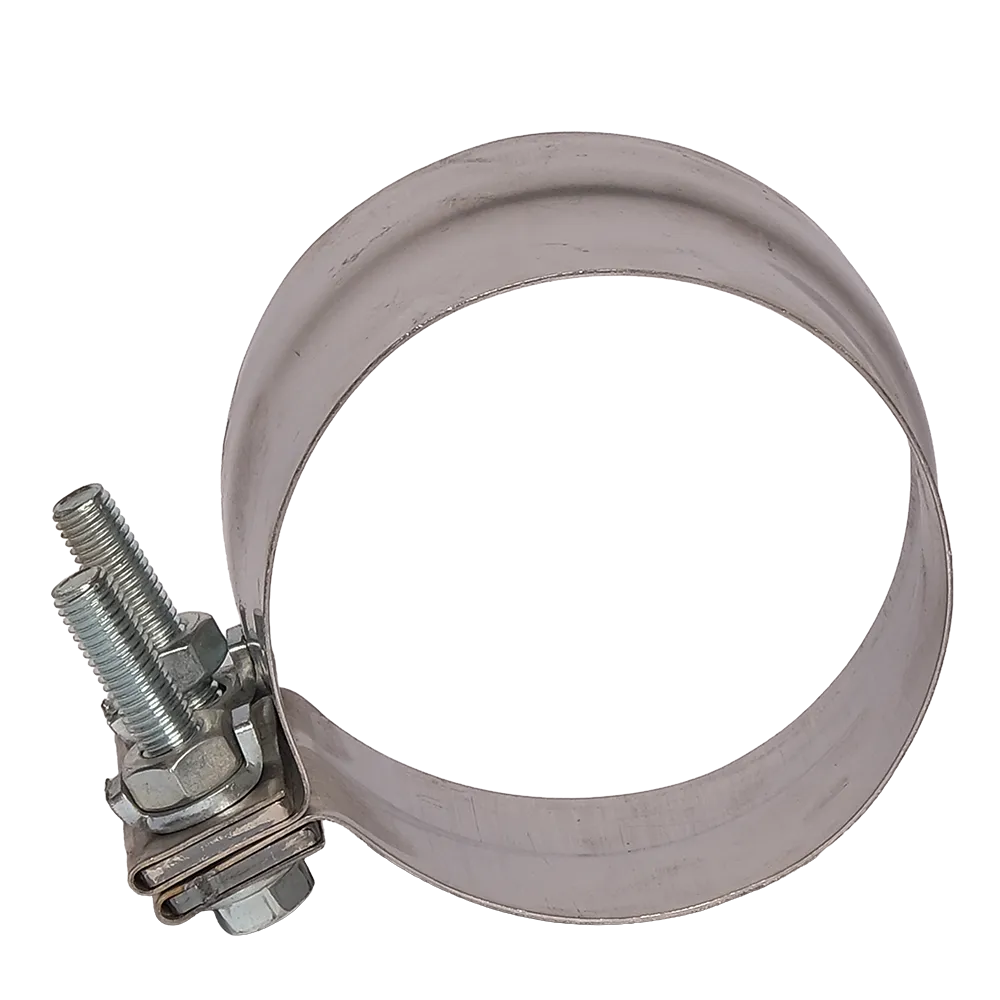

7Y1532 – 7Y-1532 CLAMP AS CATERPILLAR

In any heavy-duty Caterpillar machine, even the smallest fastening hardware can make a big difference in uptime. The 7Y1532 – 7Y-1532 CLAMP AS CATERPILLAR is one of those parts: a robust exhaust connection component that keeps pipes perfectly sealed, aligned and stable under extreme working conditions.

Designed for demanding environments such as mining, construction, quarrying and industrial earthmoving, this clamp assembly is built to withstand heat, vibration and load cycles that would quickly defeat standard hardware. It protects the integrity of the exhaust line, helps maintain engine performance and reduces the risk of unplanned downtime.

Role of the 7Y1532 Clamp in Caterpillar Exhaust Systems

On a working jobsite, your machine’s exhaust components are exposed to constant stress. Temperature swings, engine pulses and chassis vibration all try to loosen joints and open gaps. The 7Y1532 clamp assembly is engineered specifically to counter these forces.

By tightly securing adjoining sections of exhaust pipe, this part:

• Keeps gases flowing in the correct direction

• Prevents hot fumes from leaking into sensitive areas

• Helps protect nearby hoses, wiring and body panels

• Supports optimal backpressure so the engine can work efficiently

A fatigued or corroded clamp can allow misalignment, rattling or leaks, which then create higher maintenance costs. Replacing that weak link with a new, properly sized 7Y1532 clamp significantly improves reliability.

Construction and Design Features

High-grade band material

The main body of the clamp is produced from high-strength steel with excellent thermal and mechanical properties. The band maintains its shape even when exposed to long periods of high exhaust temperatures. Its resistance to corrosion helps extend service life, especially in wet or chemically aggressive environments like quarries and coastal jobsites.

Dual-bolt compression design

Instead of a simple single-screw layout, this assembly uses a two-bolt clamping system. The bolts draw the band evenly around the pipe joint, distributing pressure uniformly across the entire circumference. That balanced compression improves sealing and reduces the risk of deforming the pipe wall.

The bolts themselves are heavy-duty fasteners with matching nuts and washers, chosen to handle repetitive tightening, vibration and load without stretching or backing off.

Reinforced clamping plate

A thick, precision-formed plate joins the ends of the band. When you tighten the bolts, this plate spreads the load, ensuring that each turn of the wrench converts directly into clamping force rather than bending the metal. The result is a secure, rigid connection that stays tight after thousands of working hours.

Built for heat and vibration

Caterpillar engines can run for entire shifts at high load, pushing exhaust gas temperatures up while the whole machine vibrates across rough terrain. This clamp assembly is manufactured so that it keeps its grip in precisely these conditions. Its material thickness, band width and bolt specification were selected to tolerate both intense heat and constant motion.

Typical Applications and Compatible Caterpillar Machines

Exhaust clamps of this type are widely used across multiple Caterpillar product families. The 7Y1532 part number is commonly found in applications such as:

• Medium and large hydraulic excavators

• Wheel loaders in the 950 size class and similar models

• Track-type tractors (dozers) in the D6 and D7 range

• Motor graders such as the 140 series

• Off-highway trucks and rigid dump trucks

• Industrial power units and stationary applications

Exact usage can vary by engine variant and exhaust configuration. When in doubt, always cross-check your serial number and parts diagrams. If your bill of materials or service manual references 7Y1532 or 7Y-1532 in the exhaust section, this is the clamp assembly you need.

Technical Data and Estimated Weight

The values below are typical for exhaust clamps of this size and design class and are provided as a practical guideline for technicians and parts buyers.

This weight estimate is useful for shipping calculations, inventory planning and checking that you are working with the correct size of clamp during installation.

Benefits of Choosing a Correct, High-Quality Clamp Assembly

1. Improved system reliability

A secure exhaust joint reduces the chance of leaks and mechanical failure. When pipes are correctly clamped with the right part number, they are much less likely to come loose or crack at the welds. Over time this lowers repair costs and extends the life of other exhaust components.

2. Optimized engine performance

Exhaust leaks can change backpressure and affect sensor readings, which in turn may cause poor fuel economy or loss of power. Using the proper 7Y1532 clamp helps the engine maintain its designed operating characteristics.

3. Noise and vibration reduction

Loose joints rattle. A correctly installed clamp assembly tightens the joint, which reduces metallic noise and helps keep machine operation smoother and more comfortable for the operator.

4. Safer working environment

Uncontrolled exhaust gases can pose a risk to people and surrounding equipment. Sealed joints limit the escape of hot fumes and protect nearby components like hydraulic hoses, electrical harnesses and plastic panels.

Installation Tips for Technicians

While each Caterpillar model has its own service procedure, the following general guidelines are helpful when fitting a new exhaust clamp:

Prepare the joint

• Allow the system to cool before starting work.

• Remove the old clamp and clean the pipe surfaces with a wire brush.

• Check for cracks or excessive corrosion; repair or replace damaged sections.

Position the clamp

• Slide the band so it sits evenly straddling the joint.

• Make sure there is sufficient overlap on both sides of the connection.

• Align the clamp so the bolts are accessible for future inspection.

Tighten gradually

• Start tightening both bolts by hand until the band contacts the pipe all the way around.

• Use a torque wrench and alternate between bolts, increasing torque in small increments to keep pressure even.

• Follow any torque recommendations in your Caterpillar service manual.

Recheck after heat cycles

After the machine has been run through a few heating and cooling cycles, it is good practice to recheck the bolts. Thermal expansion can slightly relax the joint, so a quick final tightening helps lock everything in place.

Why Source Your 7Y1532 Clamp from 3GEN Export?

For professional fleet owners and maintenance managers, the part itself is only half the equation. Availability, quality assurance and delivery time are equally important. 3GEN Export specializes in heavy machinery spare parts and offers a reliable sourcing channel for the 7Y1532 clamp assembly.

When you order through us:

• You receive OEM-level spare parts selected for compatibility with your equipment.

• Orders are prepared quickly and dispatched within 5 working days.

• We arrange worldwide shipping, supporting customers in construction, mining, quarrying and industrial sectors across multiple regions.

• Each item is carefully packed to minimize the risk of damage during transit.

Our role is to make it easy for you to keep your Caterpillar machines working at full capacity, with the right component arriving on time and ready to fit.

Practical Use Cases in the Field

Quarry and mining operations

In rock quarries and open-pit mines, trucks, loaders and excavators run around the clock. Dust, moisture and constant vibration make life hard on exhaust systems. A robust clamp such as the 7Y1532 helps these machines run for long intervals between service stops, even when working on steep haul roads or loading heavy blasted rock.

Earthmoving and construction projects

On major infrastructure projects—highways, tunnels, dams, residential developments—machines often move between sites and must be ready the moment they arrive. Quick replacement of worn clamps with the correct assembly keeps the exhaust system tight and compliant with on-site safety and noise regulations.

Industrial and stationary engines

Power units used on barges, generators, pumps and crushers frequently rely on Caterpillar engines. In these applications, cramped engine rooms and enclosed spaces make leak-free exhaust systems essential. A correctly sized clamp assembly helps maintain safe, predictable gas paths.

Stocking Strategy for Fleet Owners and Dealers

Because exhaust components experience gradual wear and are sometimes damaged during other repairs, it is smart to keep spare clamps on the shelf. For operators running multiple machines with similar engines, keeping several units of 7Y1532 in stock can:

• Shorten downtime when a failure is discovered

• Avoid emergency shipping charges

• Allow proactive replacement during scheduled service intervals

If you manage a mixed fleet, our team at 3GEN Export can help you build a recommended stocking list based on the models and machine hours you operate.

Summary

The 7Y1532 – 7Y-1532 CLAMP AS CATERPILLAR is a compact but critical exhaust component for many Caterpillar machines. With a high-strength band, dual-bolt compression system and reinforced plate, it is designed to hold pipe joints securely through intense temperature and vibration cycles. Correct use of this clamp assembly supports:

• Reliable exhaust sealing

• Better engine performance

• Reduced noise and vibration

• Safer, cleaner operation

Supplied by 3GEN Export as an OEM-level spare part and shipped worldwide in as little as 5 working days, this exhaust clamp is an excellent choice for workshops, fleet owners and distributors who want dependable quality and professional logistics.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
