8N1594 SHIELD CATERPILLAR / 8N-1594 SHIELD CATERPILLAR

Introduction to the 8N1594 SHIELD CATERPILLAR

The 8N1594 SHIELD CATERPILLAR is a precision-engineered thermal protection component designed for durability, heat resistance, and long-term safeguarding of nearby engine and exhaust system parts. This robust heat shield plays a vital role in maintaining optimal performance by deflecting, absorbing, and isolating excessive temperatures produced during heavy-duty operation. Whether installed on loaders, bulldozers, graders, or track-type tractors, the 8N-1594 SHIELD CATERPILLAR ensures that the machine continues to perform efficiently, safely, and reliably in the harshest work environments.

In industries where machinery is pushed to its limits, mining, quarrying, construction, forestry, demolition, and earthmoving, thermal management is essential. High-output diesel engines generate extreme heat, especially around manifolds, exhaust pipes, turbo housings, and emission control modules. Without the right shielding, sensitive components may degrade prematurely. The 8N1594 SHIELD CATERPILLAR prevents this risk by delivering long-lasting thermal insulation and structural reinforcement.

At 3GEN Export, we supply this part as an OEM-grade replacement with worldwide delivery in 5 working days, enabling businesses to minimize downtime and maintain continuous operational flow.

Purpose and Function of the 8N1594 SHIELD CATERPILLAR

High-Temperature Protection for Critical Systems

The primary purpose of the 8N1594 SHIELD CATERPILLAR is to limit radiant and conductive heat transfer from engine-side and exhaust-side components. Thermal shielding is a crucial engineering requirement, especially on heavy machinery operating for extended periods at high load. This shield forms a barrier that prevents heat damage to hoses, wiring harnesses, coverings, fuel lines, control cables, and adjacent metal surfaces.

By maintaining stable internal temperatures, the 8N-1594 SHIELD CATERPILLAR extends the life expectancy of the machine’s mechanical and electrical systems.

Increased Operator Safety

Operators frequently work near these high-temperature areas during daily service routines: inspections, refueling, maintenance, or minor repairs. The 8N1594 SHIELD CATERPILLAR reduces burn-risk during access and provides an extra layer of safe handling.

Structural Reinforcement and Vibration Resistance

This part is shaped with a strong double-curved geometry, adding rigidity and deflection capability. Heavy machinery creates intense vibration; exhaust components are especially prone to fatigue failure. By acting as both a heat guard and a structural stabilizer, the 8N1594 SHIELD CATERPILLAR improves long-term reliability.

Material Composition and Manufacturing Quality

High-Temperature Steel with Protective Coating

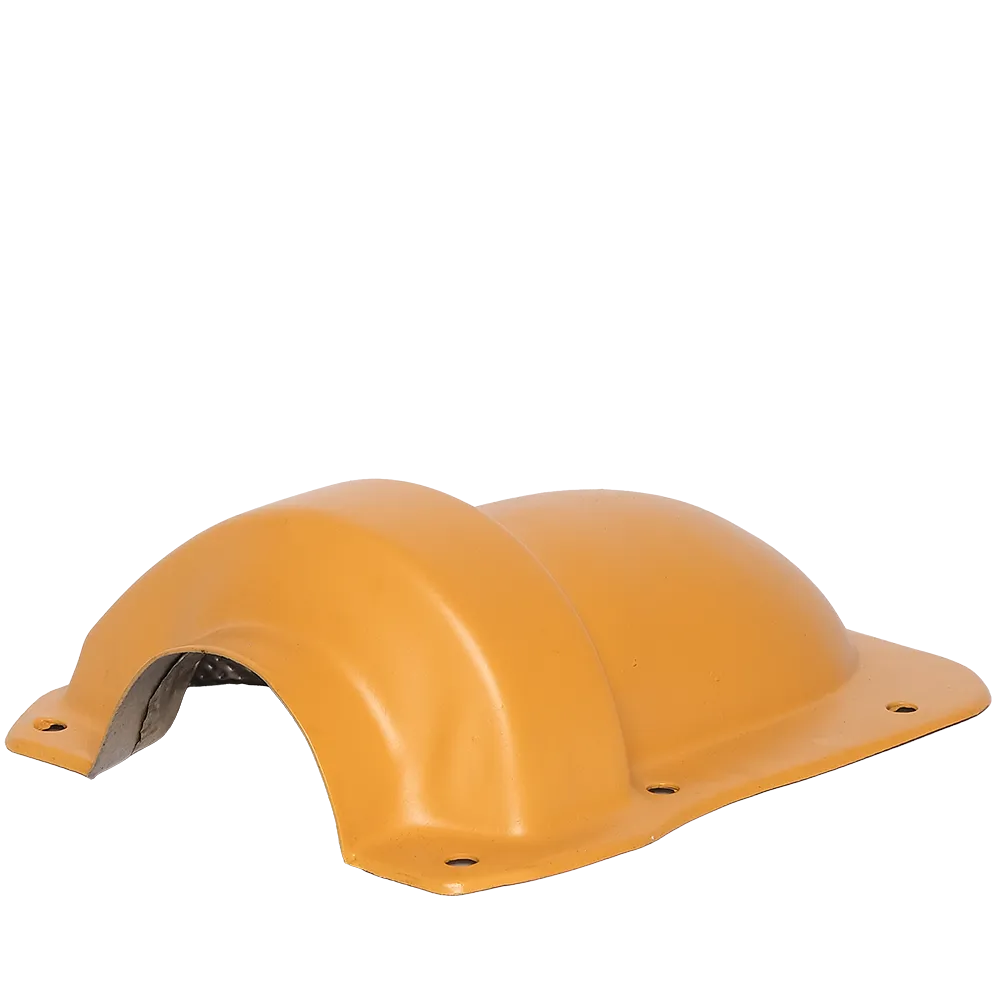

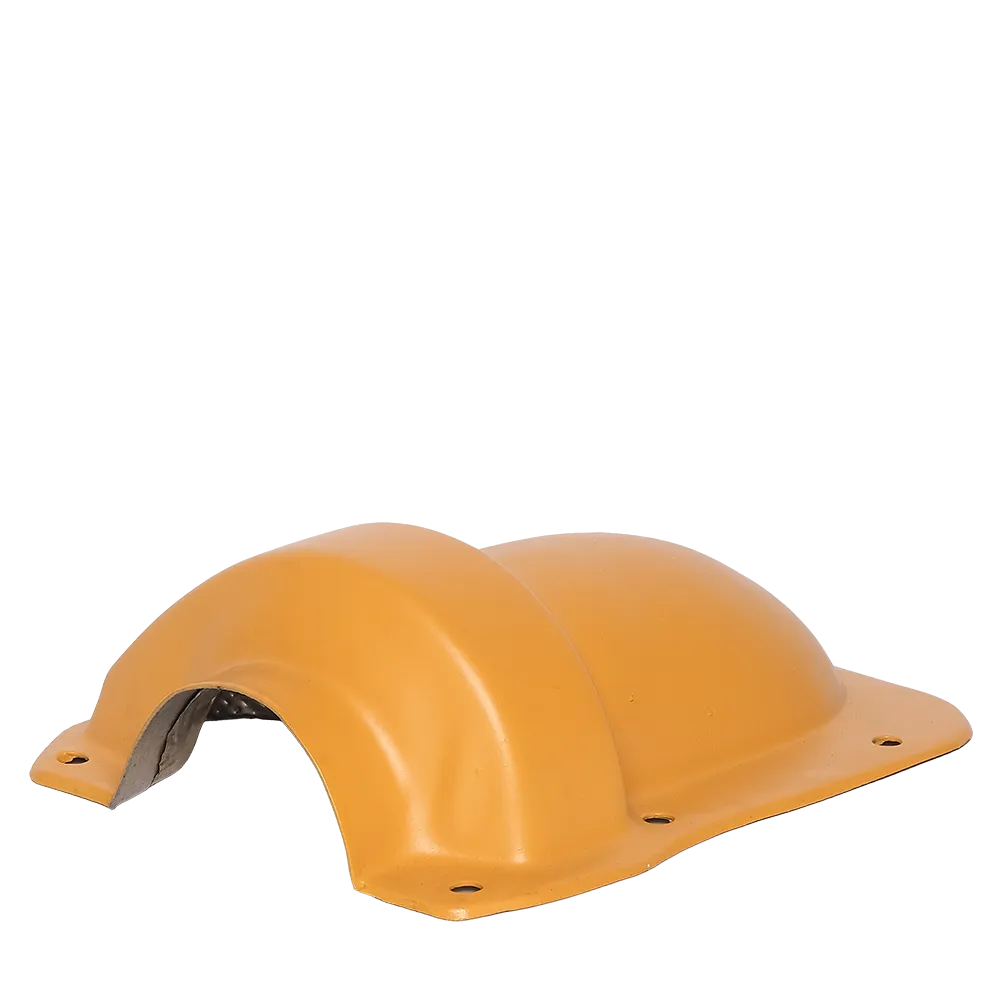

The outer surface features a yellow-gold protective coating that withstands harsh working conditions, including:

• Abrasion from debris

• High-temperature cycles

• Corrosion from moisture and mud

• Exposure to diesel fumes and engine oils

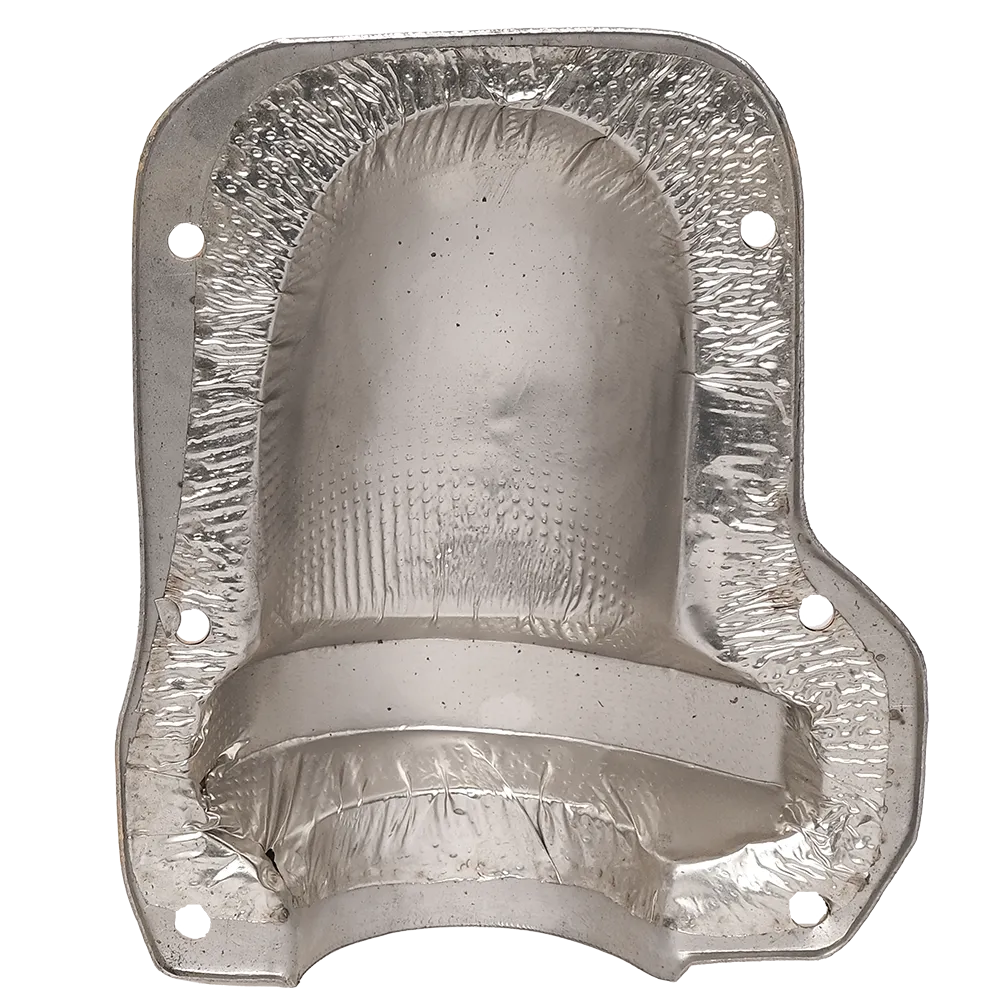

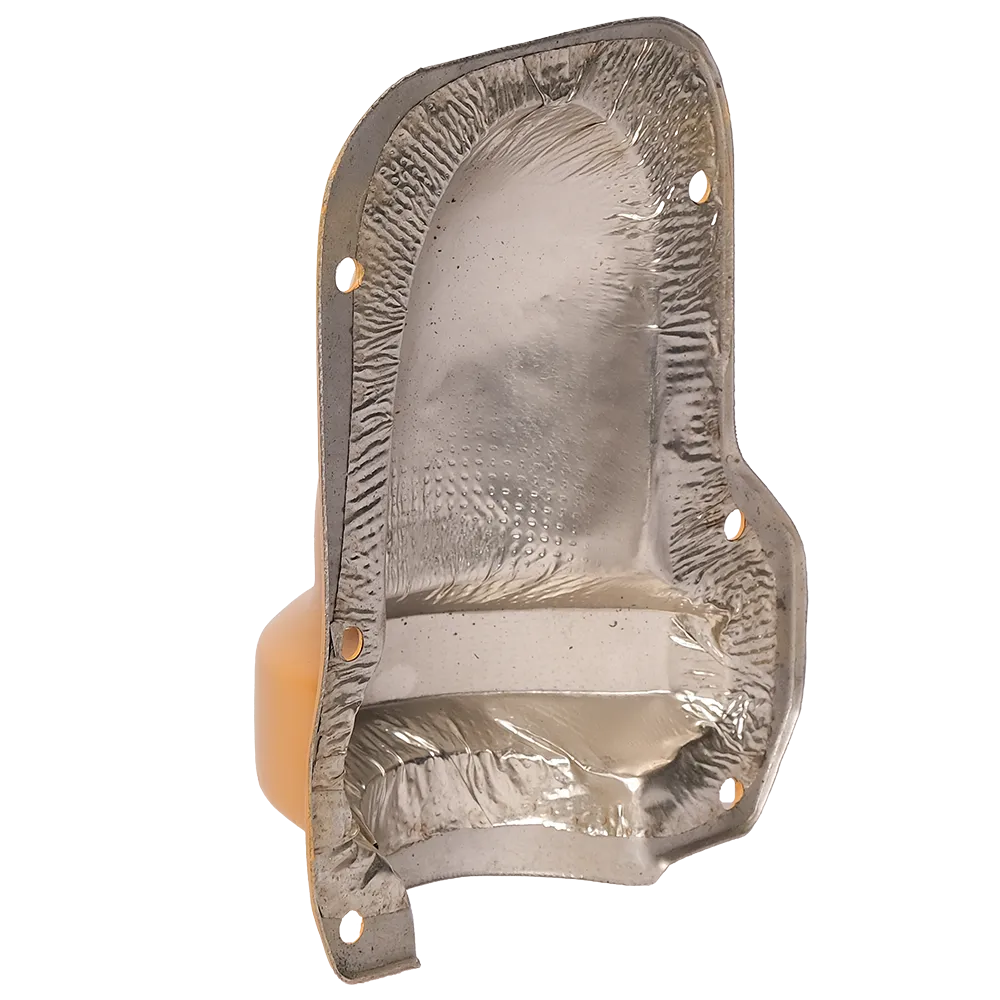

The inner surface of the 8N1594 SHIELD CATERPILLAR is composed of a textured metallic lining engineered for thermal dissipation. Its embossed pattern increases surface area and maximizes heat dispersion.

Multi-Layer Thermal Barrier

The interior of the 8N-1594 SHIELD CATERPILLAR includes a finely formed insulated layer designed to absorb radiant heat. This allows the shield to retain shape even under constant thermal cycling.

Precision Mounting Holes for Easy Installation

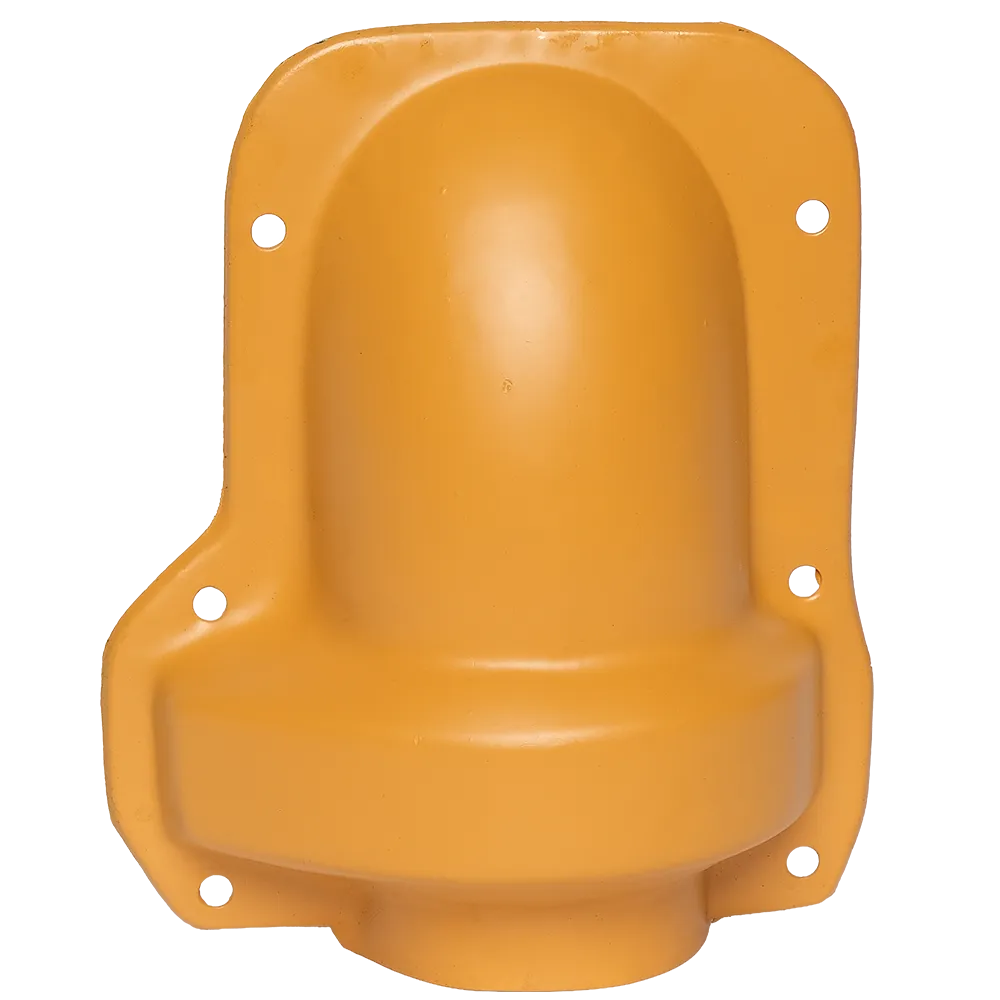

Seen clearly in the images, the part includes accurately spaced mounting flanges and bolt-through holes, enabling:

• Tight sealing

• Stable positioning

• Direct compatibility with Caterpillar OEM mounting points

This ensures a secure fit without modification.

Compatibility: Which CATERPILLAR Machines Use the 8N1594 SHIELD CATERPILLAR?

The 8N1594 / 8N-1594 SHIELD CATERPILLAR is commonly used in the exhaust and engine-side thermal protection assemblies of multiple Caterpillar machine groups.

Based on part catalog data and cross-reference use, it is typically found on:

Compatible CATERPILLAR Models

• CAT D5 Series bulldozers

• CAT D6 Series bulldozers

• CAT D7 Series bulldozers

• CAT 950 loaders

• CAT 966 loaders

• CAT 12G graders

• CAT 14G graders

• CAT 120G motor graders

• CAT 325 excavators

• CAT 330 excavators

(Note: Compatibility varies according to engine arrangement and emission tier. 3GEN Export can verify compatibility for your serial number.)

Detailed Technical Description of the 8N1594 SHIELD CATERPILLAR

Engineering Geometry

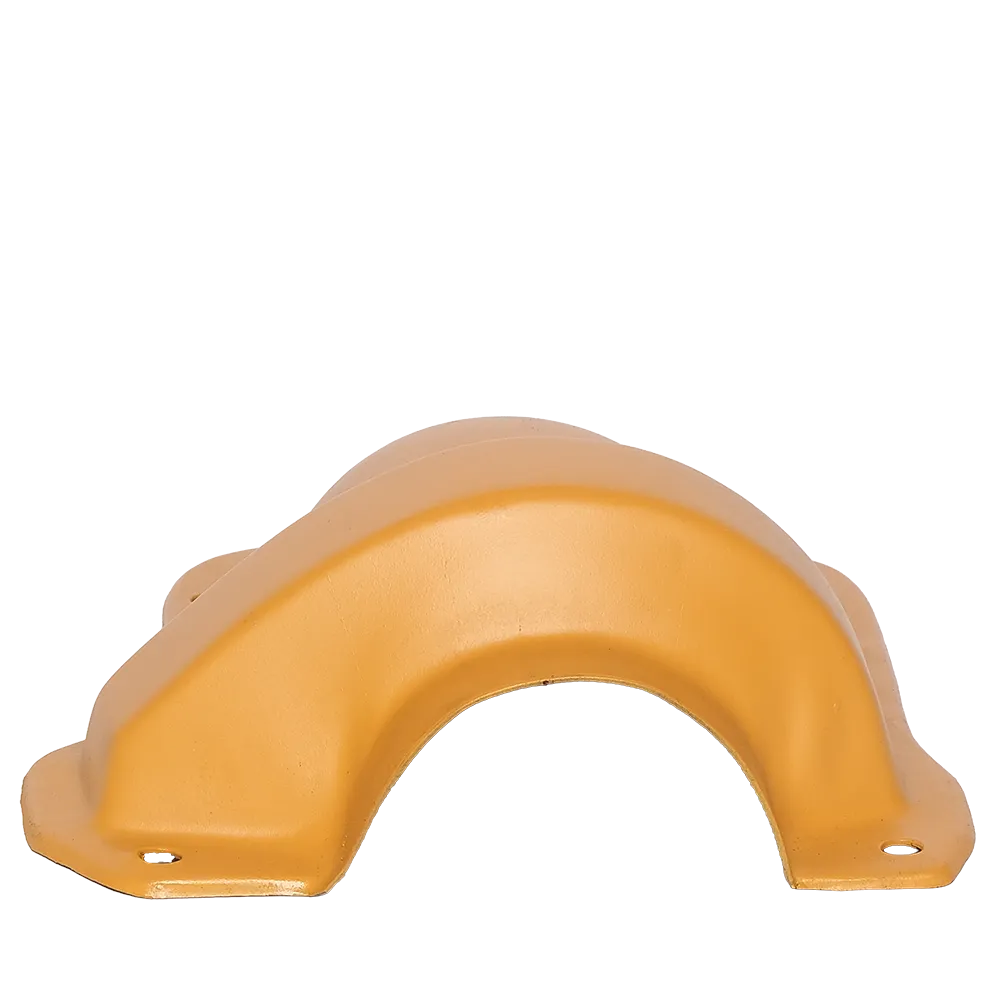

The shield has a domed, multi-radius curvature designed for:

• Enhanced heat deflection

• Reduced structural stress

• Optimized airflow around high-temperature zones

Its 3D-formed contour allows the 8N1594 SHIELD CATERPILLAR to fit tightly over exhaust elbows, manifold bends, turbo connectors, or pre-muffler areas.

Surface Profile

• Smooth, contoured exterior finish

• Reinforced edges with integrated bolt mounts

• Inner textured metal shielding layer for heat diffusion

The contrasting interior and exterior visually confirm that the part is built for demanding heat management.

Mounting System

Each flange includes bolt holes aligned to standard Caterpillar engine configurations. Installation requires no welding or cutting.

Thermal Performance

The 8N-1594 SHIELD CATERPILLAR protects against:

• Continuous heat exposure above 450°C

• Sudden temperature spikes

• Direct heat radiation

• Long-term vibration and shock

This is especially important in environments where machines run 10–16 hours per day, often under heavy load.

Mechanical Strength

Its rigid steel frame prevents deformation and acts as an additional barrier against dust, rock fragments, or accidental impact.

Applications of the 8N1594 SHIELD CATERPILLAR in Real-World Conditions

Construction and Earthmoving

Excavators, bulldozers, and loaders require strong heat shielding to protect the surrounding parts during trenching, ripping, leveling, or material transport. The 8N1594 SHIELD CATERPILLAR maintains performance even when the machine operates in sandy, clay-rich, or gravel-dense soil.

Mining and Quarry Sites

Constant exposure to dust, stone fragments, and heavy vibration makes thermal shielding crucial. This shield prevents overheating and protects wiring and fluid systems against thermal wear.

Forestry and Logging

Heavy timber environments introduce constant debris that may land around engine areas. Heat shielding ensures no accidental ignition, protecting both machine and operator.

Road Construction and Asphalt Work

Machines near asphalt plants encounter extremely high ambient temperatures. This shield helps stabilize the engine bay environment.

Why the 8N1594 SHIELD CATERPILLAR Matters for Machine Longevity

Heat is one of the leading causes of:

• premature wiring failure

• hose cracking

• sensor malfunction

• turbo fatigue

• fuel system issues

• gasket deterioration

By installing a properly designed shield such as the 8N1594 SHIELD CATERPILLAR, owners significantly increase the life span of high-value components and reduce unexpected downtime.

The savings from protecting a turbocharger, manifold, or exhaust bend often exceed the cost of replacement shielding tenfold.

Weight Information

• Estimated Weight: 1.6 kg

Weight may vary slightly depending on production batch. 3GEN Export provides OEM-grade units with stable manufacturing standards.

Why Order the 8N1594 SHIELD CATERPILLAR from 3GEN Export?

At 3GEN Export, we supply OEM-quality heavy machinery spare parts with:

• Fast worldwide delivery in 5 working days

• Full support for part number cross-matching

• Secure global shipping

• Reliable sourcing for all Caterpillar parts

• Competitive OEM-level pricing

• Dedicated export service for construction, mining, and industrial clients

We help customers reduce downtime, lower maintenance costs, and keep their fleets operating at maximum efficiency year-round.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
