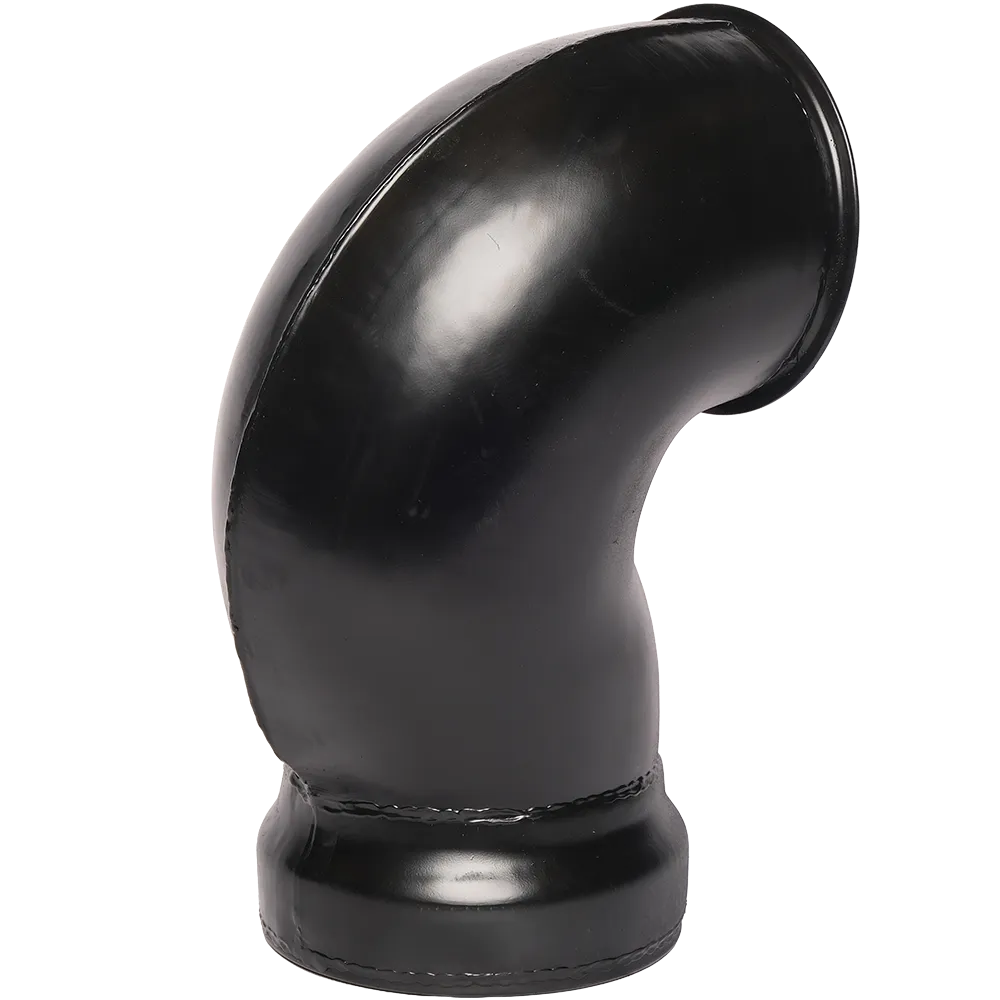

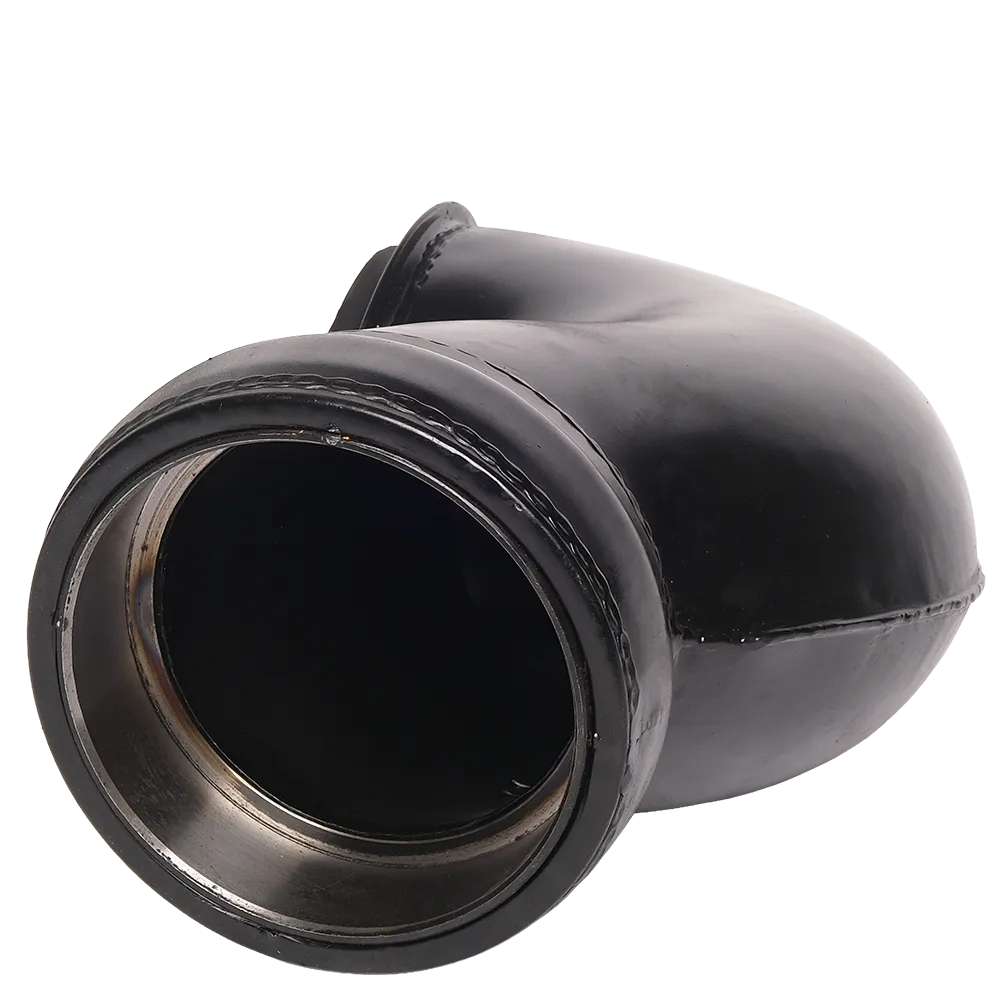

8N9961, 8N-9961 ELBOW CATERPILLAR
Description
8N9961, 8N-9961 ELBOW CATERPILLAR – High-Performance Exhaust Elbow for Demanding Heavy Machinery The 8N9961 ELBOW CATERPILLAR is a precision-engineered exhaust elbow designed to withstand the extreme working environments of earthmoving, mining, construction, and rock-drilling applications. As one of the most structurally essential exhaust pathway components, the 8N-9961 ELBOW CATERPILLAR plays a direct role in durability, thermal management, and engine efficiency. Whether used on loaders, graders, dozers, or off-road equipment, this part ensures optimal exhaust redirection and mechanical reliability under continuous heavy load. At 3GEN Export , we supply this part as a high-quality OEM-level product and ship worldwide within 5 working days . Overview of the 8N-9961 ELBOW CATERPILLAR The 8N9961 ELBOW CATERPILLAR is manufactured from high-temperature, corrosion-resistant steel and has been shaped into a smoothly curved elbow that efficiently channels high-velocity exhaust gases. Exhaust elbows function within an environment where mechanical stress, vibration, thermal cycling, and corrosive gases are constant. This component is engineered to handle all these factors with long-lasting structural integrity. This elbow is commonly used across a wide range of Caterpillar machines, especially those featuring mid-range to large industrial engines. High-horsepower machinery requires robust exhaust architecture, and this part supports that demand through reinforced welds, precision interior shaping, and a geometrically optimized curvature that minimizes backpressure. Why the 8N9961 ELBOW CATERPILLAR Is Essential Thermal Endurance Exhaust elbows endure temperatures far beyond moderate operating levels. Within large Caterpillar engines, exhaust manifolds and elbows endure temperatures climbing above 600°C. Inferior parts lose shape, warp, or crack under this stress. The 8N-9961 ELBOW CATERPILLAR , however, is engineered for continuous exposure to extreme heat. Its design prevents cracking or warping, which is essential for stable exhaust flow and engine performance. Structural Strength Under Vibration Caterpillar machines operate in conditions where vibration is not the exception, it is constant. Mining trucks, bulldozers, and loaders generate heavy vibration through the chassis. Exhaust elbows are especially susceptible to metal fatigue at weld seams and flanges. The 8N9961 ELBOW CATERPILLAR is built with reinforced weld lines designed to absorb and redistribute vibration evenly across the part, preventing premature failure. Reduction of Exhaust Backpressure Exhaust elbows directly influence how efficiently gases exit the combustion chamber. A poorly designed or worn-out elbow bottlenecks exhaust flow, raising backpressure and reducing engine output. The 8N-9961 ELBOW CATERPILLAR maintains a smooth inner passage with an optimized curvature, ensuring: Lower backpressure Smoother exhaust flow More efficient engine cycles Better fuel economy Reduced overheating risks This adds to overall machine output and long-term cost efficiency. Material and Manufacturing Excellence High-Temperature Steel Alloy The 8N9961 ELBOW CATERPILLAR is crafted from premium, heat-resistant metal. This alloy composition ensures: Protection against oxidation Resistance to acidic exhaust vapors Structural integrity at high temperatures Long working life under continuous load Precision Welding The weld lines on this exhaust elbow show uniform bead work, a sign of controlled manufacturing and proper joint reinforcement. Since weld joints are historically the failure point for exhaust elbows, this reinforced welding dramatically increases lifespan. Interior Surface Optimization The interior is smooth to reduce turbulence. Turbulence causes pressure fluctuations that reduce engine efficiency. This part’s interior design contributes to smoother airflow, quieter exhaust performance, and more efficient thermal dissipation. Compatible Caterpillar Models for the 8N-9961 ELBOW CATERPILLAR The 8N9961 ELBOW CATERPILLAR is used in a variety of Caterpillar machines equipped with specific engine series. While compatibility varies across production years and engine types, this part is commonly found in: Caterpillar 330 Series Excavators Caterpillar 950 & 966 Series Wheel Loaders Caterpillar D5–D7 Dozers Caterpillar 12H/14H Motor Graders Caterpillar Industrial Engine Platforms (various mid-range applications) Additional applications include power systems, quarry machines, and heavy-duty loaders using compatible exhaust configurations. Technical Specifications of the 8N9961 ELBOW CATERPILLAR Specification Details Product Name 8N9961 / 8N-9961 ELBOW CATERPILLAR Component Type Exhaust Elbow Material High-temperature steel alloy Finish Heat-resistant black industrial coating Function Redirection of exhaust gases Compatibility Various Caterpillar loaders, dozers, graders, and excavators Weight 3.20 KG (approx.) Weld Construction Reinforced arc welding Shape Curved elbow with optimized geometry Temperature Resistance Up to 600–900°C operating conditions Installation Direct fit replacement Installation and Maintenance Guidance Easy Direct-Fit Installation The 8N-9961 ELBOW CATERPILLAR is designed as a direct replacement part. Its dimensional accuracy ensures that technicians can mount it without modifications. Proper installation includes: Ensuring flange alignment Using correct torque values on mounting bolts Checking gasket condition Inspecting adjacent components for wear Maintenance Recommendations Although exhaust elbows require minimal maintenance, visual inspection during routine servicing is essential. Look for: Surface cracks Weld fatigue Hot spots or discoloration Excessive vibration signs Replacing elbows before they fail prevents costly downtime and engine damage. Performance Benefits of the 8N9961 ELBOW CATERPILLAR Enhanced Fuel Efficiency Smooth exhaust flow reduces engine strain, improving fuel economy during long operation cycles. Lower Thermal Stress Its design minimizes heat concentration, allowing surrounding components to last longer. Improved Machine Reliability By stabilizing exhaust output, it supports consistent torque and power delivery. Longer Component Life High-grade materials and reinforced welding ensure durability even under extreme working environments. Reduced Downtime Fewer failures means machines remain operational, increasing productivity on job sites. Why Purchase from 3GEN Export? At 3GEN Export , we provide OEM-standard heavy machinery spare parts to over 90 countries. The 8N9961 ELBOW CATERPILLAR is supplied with: High-precision manufacturing quality Competitive pricing Global delivery within 5 working days Dedicated support for Caterpillar spare parts Our expertise ensures that your equipment receives dependable replacement parts built for long operational life. Conclusion: The Reliability of the 8N-9961 ELBOW CATERPILLAR The 8N9961 ELBOW CATERPILLAR is more than a curved piece of metal, it is a vital component engineered to safeguard engine performance, efficiency, and long-term stability. With its reinforced welding, optimized airflow design, superior durability, and compatibility across multiple Caterpillar models, this exhaust elbow ensures operational reliability where it matters most. Whether you manage a fleet of heavy machinery or maintain a single high-performance unit, selecting a durable and precisely engineered exhaust elbow can significantly improve productivity and lower operational costs. With 3GEN Export , you receive OEM-grade quality and fast global delivery, ensuring your machinery keeps running without delays. Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
