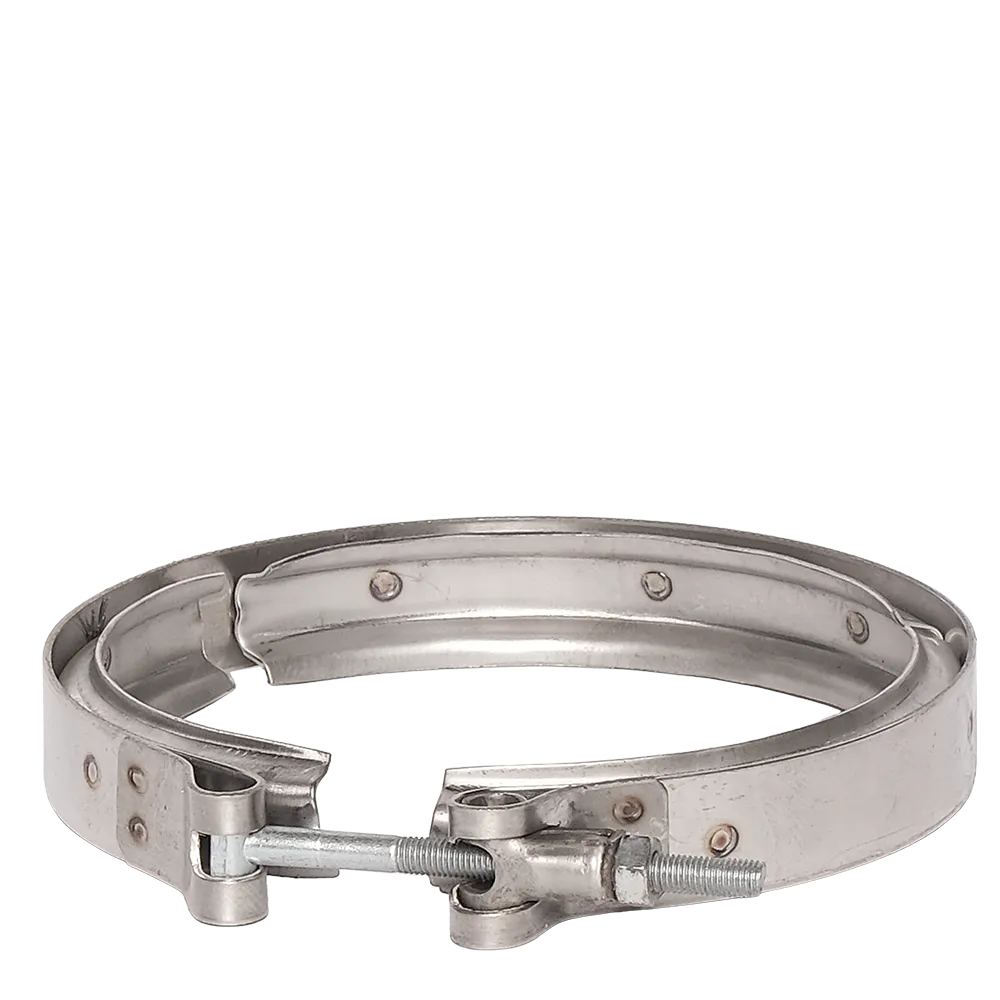

9N1941, 9N-1941 CLAMP V CATERPILLAR – Premium Exhaust & Pipe Securing Component

The 9N1941 CLAMP V CATERPILLAR (also written as 9N-1941 CLAMP V CATERPILLAR) is a critical mounting and sealing component used across a wide range of Caterpillar heavy machinery. Designed to secure exhaust pipes, turbocharger outlets, and high-temperature tubing systems, this clamp provides the fastening strength required for machines that operate under extreme pressure, vibration, and heat.

As the demand for safe, efficient, and stable exhaust systems continues to rise across construction, mining, and earthmoving operations, the 9N1941 CLAMP V CATERPILLAR remains one of the most widely used V-band clamps in Caterpillar equipment platforms.

3GEN Export supplies this part as a high-quality OEM-grade component and ships worldwide within only 5 working days, ensuring operational continuity for machinery fleets in any region.

Overview of the 9N1941 / 9N-1941 CLAMP V CATERPILLAR

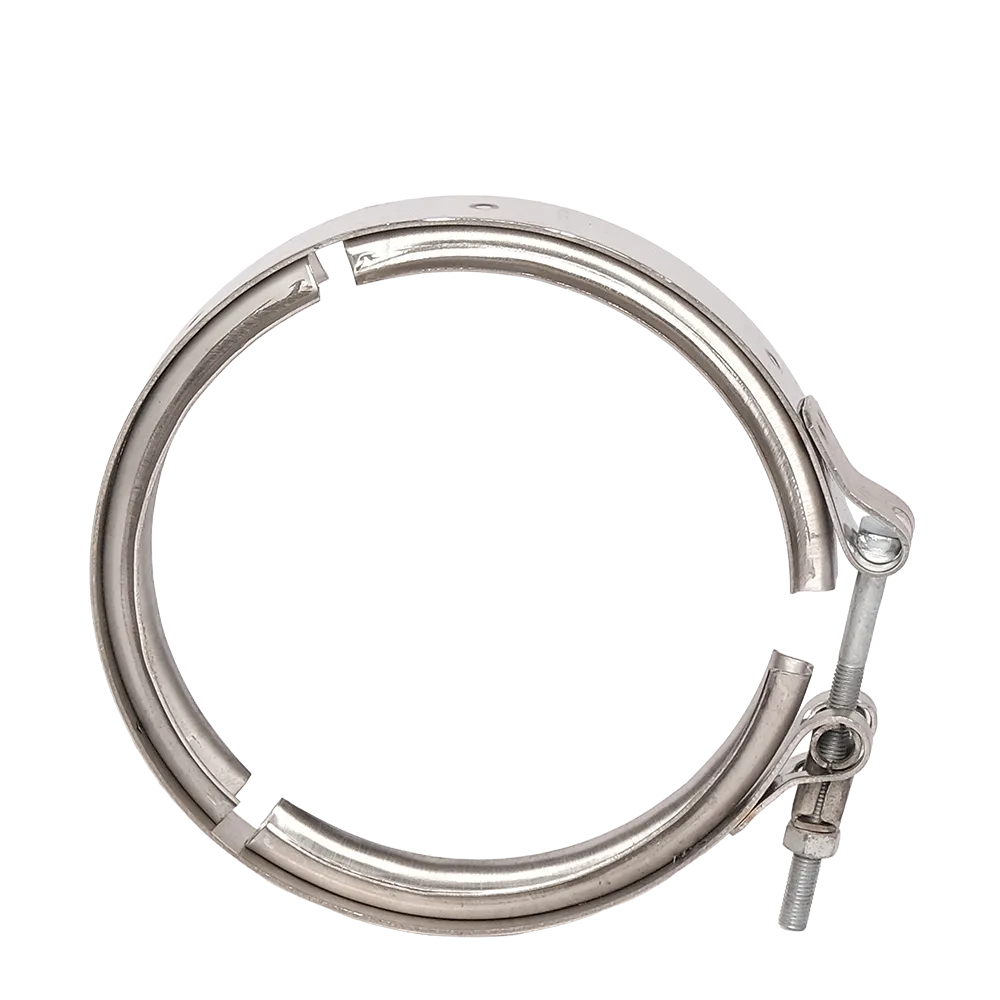

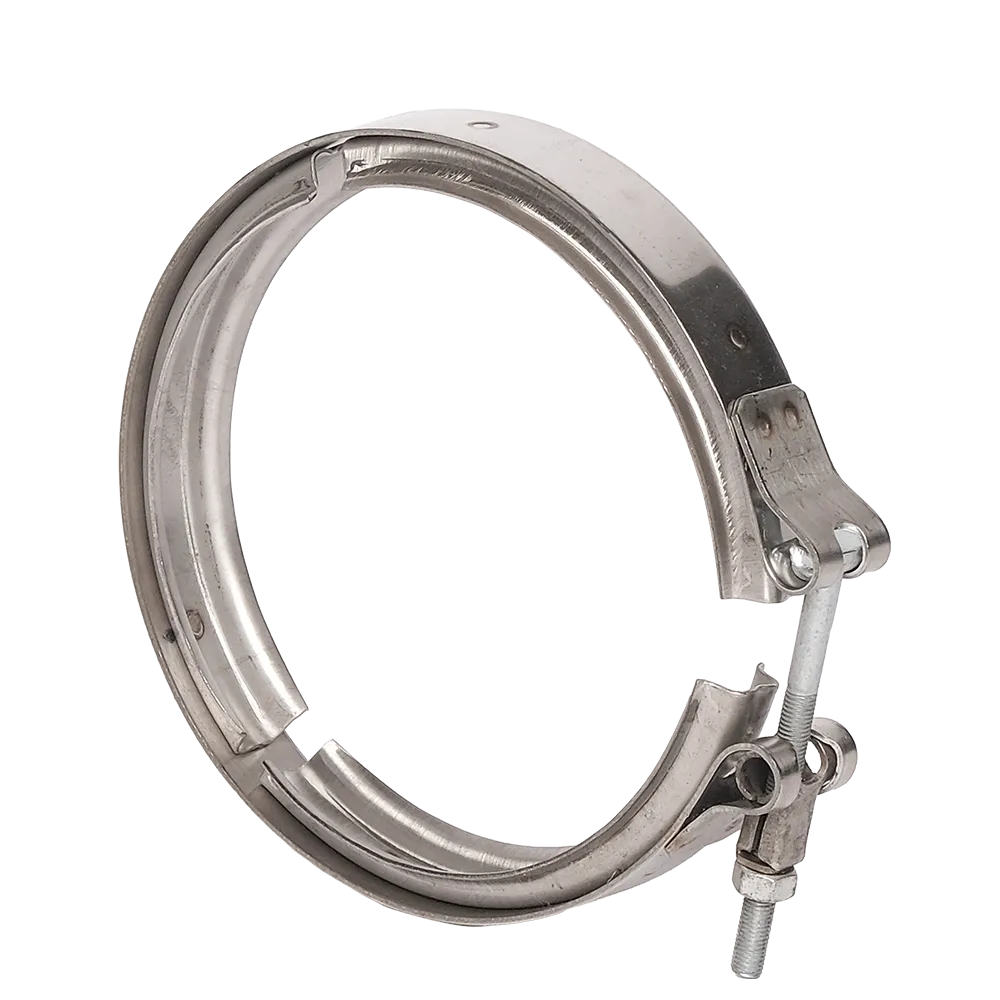

The 9N1941 CLAMP V CATERPILLAR is a V-type band clamp engineered to provide airtight sealing around cylindrical exhaust and pressure-bearing tubing connections. This clamp uses a precision-shaped stainless band combined with a reinforced threaded tightening mechanism to maintain uniform clamping pressure.

Because exhaust systems expand and contract under thermal loads, the clamp must compensate for thermal cycling while maintaining a perfect seal. The design ensures a consistent 360-degree grip, preventing leaks that could compromise emissions performance or engine efficiency.

This particular clamp is often used at connection points such as:

• Turbocharger to downpipe

• Muffler inlet to exhaust tube

• Flexible exhaust pipe junctions

• Transition joints in emission and cooling lines

Its robust mechanical structure allows the 9N1941 CLAMP V CATERPILLAR to withstand both extreme heat and continuous vibration—conditions typical in heavy-duty machinery such as loaders, excavators, motor graders, and mining trucks.

Engineering, Material Composition, and Structural Design

High-Strength Stainless Steel Band Construction

The clamp is manufactured using heat-resistant stainless steel that offers:

• Excellent corrosion resistance

• Structural integrity under high temperatures

• Long-term resistance to oxidation and exhaust chemicals

The stainless steel band is formed into a precision V-shape. This geometry serves multiple functions:

• Optimizes clamping surface contact

• Ensures lock-tight mechanical stability

• Prevents slipping under vibration

• Provides uniform radial force distribution

This special V-belt structure is essential for exhaust systems that must remain sealed even under fluctuating temperatures.

Heavy-Duty Bolt Mechanism

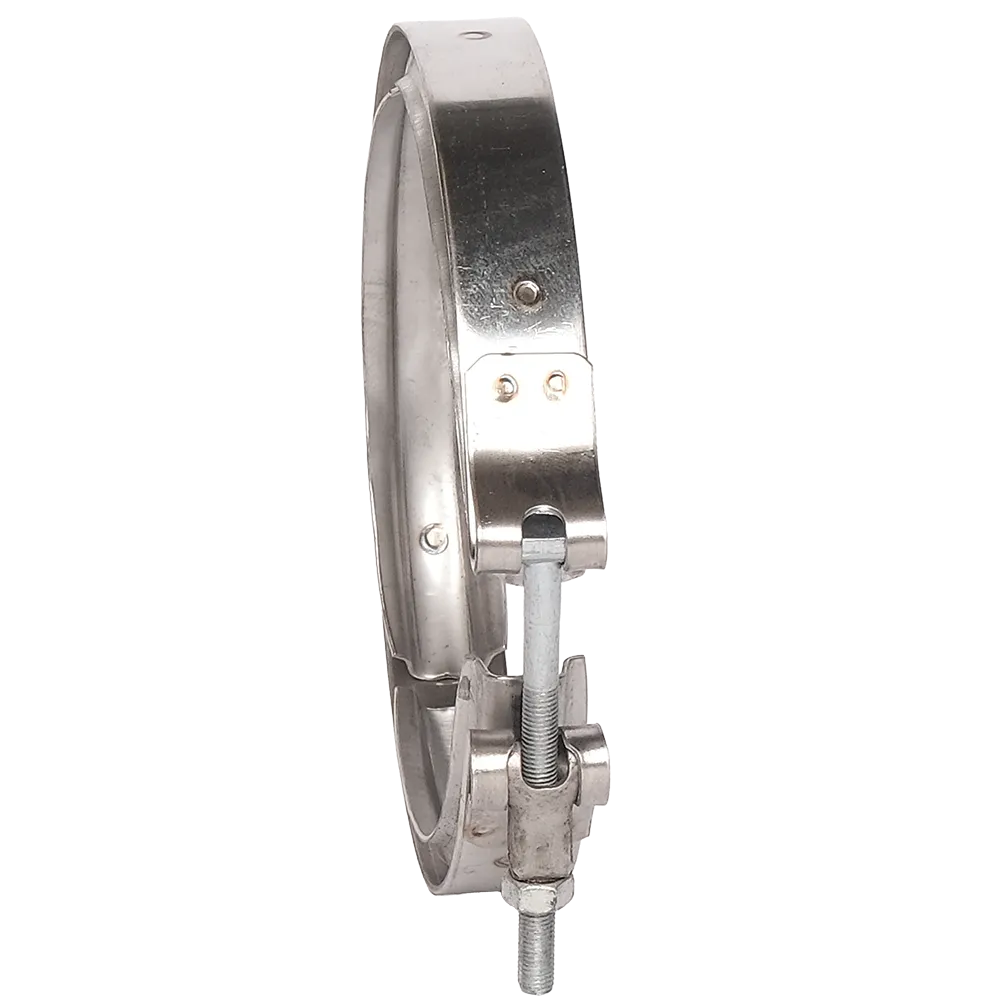

The 9N1941 / 9N-1941 features a reinforced bolt mechanism, using a threaded steel fastener equipped with a high-strength nut.
This tightening assembly ensures:

• Precise torque adjustment

• Reliable sealing performance

• Long-lasting fastening security

• Easy removal and reinstallation for maintenance

The engineering focus behind this component is to provide maintenance crews with a clamp that can be adjusted or replaced without requiring specialized tools.

Functional Role of the 9N1941 CLAMP V CATERPILLAR

The primary function of the 9N1941 CLAMP V CATERPILLAR is to create a secure, sealed connection between two cylindrical components—usually within the exhaust or air handling system of Caterpillar machinery.

Its operational importance includes:

1. Leak Prevention

Exhaust leaks cause:

• Performance loss

• Turbo inefficiency

• Engine imbalance

• Higher fuel consumption

This clamp prevents leaks by maintaining a compression seal even under constant thermal expansion.

2. Vibration Resistance

Heavy equipment operates under continuous vibration. The clamp prevents housing separation or tube misalignment, ensuring stable operation.

3. Structural Reinforcement

The clamp adds mechanical stability to piping systems, reducing stress on welds and joints.

4. Heat Management

It remains dimensionally dependable even at elevated exhaust temperatures.

5. Safety Compliance

Properly sealed exhaust systems protect operators and meet emission control guidelines.

Compatible Caterpillar Machines Using 9N1941 / 9N-1941

This V-band clamp is used across a large range of Caterpillar models, commonly in the exhaust assembly. Models include:

• CAT 966 Wheel Loader

• CAT 950 Wheel Loader

• CAT 936 Wheel Loader

• CAT 330 Excavator

• CAT 325 Excavator

• CAT 3406 Engine Series

• CAT C9 and C7 Industrial Engines

• CAT 140G Motor Grader

• CAT 12G Motor Grader

• CAT 621 Scraper

• CAT 623 Scraper

• CAT D6 Dozer

• CAT D5 Dozer

• CAT 773 Mining Truck

• CAT 769 Haul Truck

• CAT 980 Loader Series

This list may vary depending on configuration, but the 9N1941 CLAMP V CATERPILLAR is widely recognized as a highly universal clamp across mid-size and large Cat equipment platforms.

Technical Specifications of the 9N1941 CLAMP V CATERPILLAR

This weight may vary slightly depending on production batch, but it reflects the typical mass of a stainless steel clamp within this size category.

Performance Benefits of the 9N1941 CLAMP V CATERPILLAR

Long-Term Durability

The stainless steel design extends service life, making it appropriate for machines that undergo extreme duty cycles.

Thermal Stability

The clamp remains rigid and structurally sound during repeated heat cycling, which is essential in diesel-powered heavy equipment.

Easy Installation and Removal

Maintenance professionals prefer this clamp due to its accessible tightening mechanism and simple structure.

Improved Sealing

The V-band geometry provides an impeccable 360-degree seal.

Reduced Vibration-Induced Wear

Its consistent grip minimizes rattling and exhaust pipe movement.

Lower Operating Costs

A properly fastened exhaust system improves:

• fuel efficiency

• horsepower performance

• turbocharger pressure stability

Installation Notes for 9N1941 / 9N-1941

To ensure proper installation of the 9N1941 CLAMP V CATERPILLAR, technicians should:

1. Clean Contact Surfaces

Ensure both pipe ends and V-flanges are free from debris, rust, or oil.

2. Align Flanges Carefully

Exhaust and turbo joints rely on perfect alignment for leak-free performance.

3. Tighten Evenly

Gradually torque the bolt, ensuring the clamp seats evenly around the entire circumference.

4. Recheck After Thermal Cycling

After the machine reaches operating temperature, re-torque if necessary.

Industry Applications

The 9N1941 clamp is widely used in:

• Mining operations

• Construction equipment fleets

• Aggregate and quarry operations

• Heavy earthmoving

• Oil & gas support machinery

• Industrial diesel engine platforms

Anywhere Caterpillar machines operate under high pressure and heat, this clamp is a core exhaust system component.

Why Choose 3GEN Export for 9N1941 CLAMP V CATERPILLAR?

3GEN Export supplies this clamp with:

• OEM-grade manufacturing quality

• No delays and global shipping within 5 working days

• Competitive pricing

• Extensive stock availability

• Expert support for part identification

We support large fleets, contractors, dealers, and distributors across more than 50 countries.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
