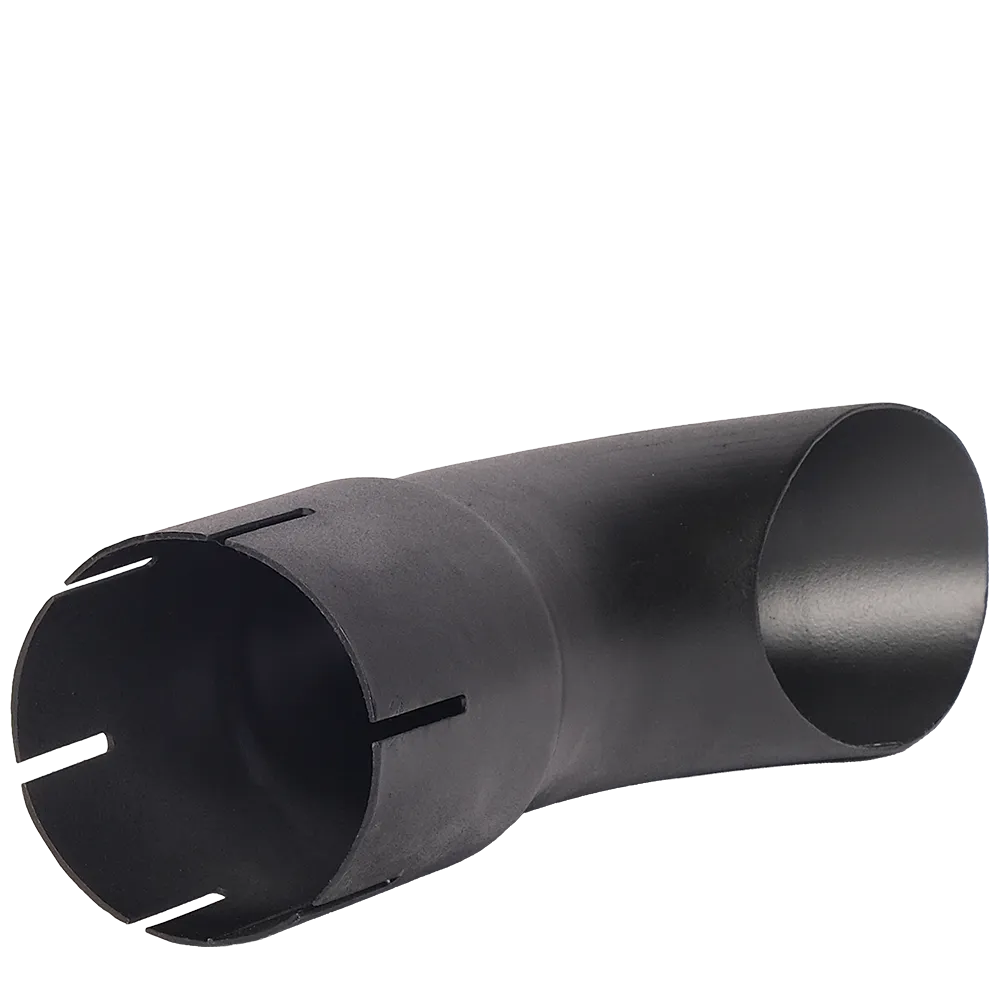

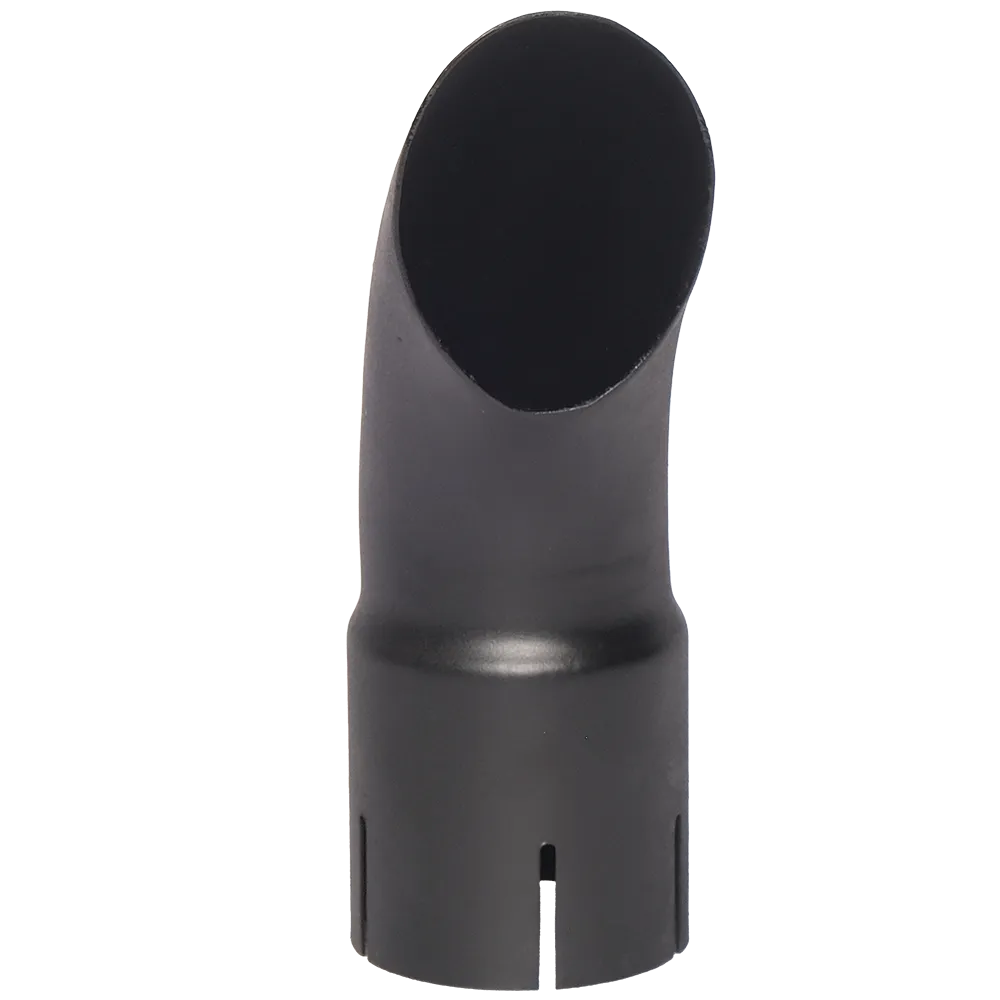

9S7534, 9S-7534 PIPE CATERPILLAR – Heavy-Duty Exhaust Outlet Pipe for Tough Jobs

The 9S-7534 PIPE CATERPILLAR is a robust exhaust outlet pipe designed for demanding off-highway machines that work long hours under heat, vibration and dust. By guiding hot gases away from the engine bay and the operator, it helps protect critical components, keeps visibility clear and supports cleaner, more efficient operation.

When you choose this exhaust extension through 3GEN Export, you get an OEM-quality solution that fits, lasts and arrives quickly—wherever your machine is working in the world.

Role of the 9S-7534 PIPE CATERPILLAR in Your Exhaust System

In heavy machinery, the exhaust system has three key tasks:

• Safely discharge high-temperature gases

• Reduce back-pressure so the engine can breathe

• Keep fumes and soot away from the operator and the surrounding work area

The 9S-7534 pipe works as an exhaust outlet extension. Mounted at the stack, it directs gases at a controlled 45° angle away from the cab, hood and service platforms. This not only protects painted surfaces and glass from hot emissions, but also improves operator comfort by preventing fumes from rolling back toward the machine.

Because exhaust components operate under constant thermal cycling, they must resist cracking, warping and corrosion. A worn or damaged outlet pipe can lead to:

• Hot gases escaping in the wrong direction

• Exhaust staining on cab glass and body panels

• Increased noise levels around the machine

• Potential risk to hoses, wiring looms and other heat-sensitive parts

Replacing a compromised outlet with a correctly specified 9S-7534 PIPE CATERPILLAR restores the intended flow path and helps maintain the engineered performance of the complete system.

Key Design Features and Engineering Details

45° Square-Cut Outlet for Optimised Flow

According to Caterpillar’s exhaust and air-intake catalog, the 9S-7534 is defined as a “45° Square Cut Outlet (D)” exhaust pipe extension.

That means:

• The outlet is angled at 45°, which directs gases away from sensitive areas above the engine.

• The square-cut design provides a clean, uniform edge, helping minimise turbulence at the exit point and reducing the likelihood of exhaust being drawn back toward the cab.

This geometry has been selected to balance effective gas discharge, reduced back-pressure and practical routing on a wide array of machines.

Precisely Controlled Dimensions

The same catalog lists the 9S-7534 PIPE CATERPILLAR with:

• Outside diameter: 80.3 mm (3.16 in)

• Overall length: 248.9 mm (9.80 in)

These dimensions are critical. The 80.3 mm outside diameter allows the pipe to mate accurately with matching exhaust stacks, clamps and elbows. The 248.9 mm length provides enough extension to clear the cab structure and body panels without compromising mounting stiffness.

By using a pipe that matches these precise dimensions, you avoid the alignment issues, vibration and premature wear that can result from improvised or off-size exhaust components.

Rugged Steel Construction

The 9S-7534 exhaust pipe is manufactured from heavy-wall steel tubing suitable for continuous high-temperature service. The material choice offers:

• Excellent resistance to thermal fatigue

• High strength under vibration and bending loads

• Good weldability at the joints and bracket points

A dark, high-temperature coating helps protect the external surface from corrosion and provides a clean, professional appearance on the machine.

Typical Applications and Compatible Machine Types

The 9S-7534 PIPE CATERPILLAR is used as an exhaust outlet extension on a wide range of Caterpillar equipment where an 80.3 mm stack diameter and 45° exit are specified.

Typical machine groups include:

• Track-type tractors working in quarrying, mining and bulk earthmoving

• Wheel loaders loading blasted stone, aggregate or ore

• Motor graders operating on haul roads or site access tracks

• Off-highway trucks hauling overburden and rock

• Large hydraulic excavators in quarry and construction environments

Because specific model usage can vary by serial number, engine arrangement and regional configuration, 3GEN Export strongly recommends confirming fitment using your parts book or by sharing your machine serial number with our sales team. We will verify that the 9S-7534 PIPE CATERPILLAR is suitable for your particular unit before you order.

Installation Guidelines for the 9S-7534 Exhaust Pipe

Preparation

Before installing the new pipe:

• Park the machine on level ground, apply the parking brake and follow all lockout / tagout procedures in the maintenance manual.

• Allow the exhaust system to cool fully; components can retain high temperatures long after the engine stops.

• Inspect the existing stack, elbows, clamps and brackets for cracks, heavy corrosion or distortion. Replace damaged hardware during the same service.

Mounting the Pipe

1. Test fit the 9S-7534 PIPE CATERPILLAR onto the mating stack or elbow to confirm that the 80.3 mm diameter engages properly along the full depth of the joint.

2. Align the 45° outlet so that exhaust is directed away from the cab roof, service platforms and any nearby handrails.

3. Install the specified clamp, tightening evenly to avoid ovalising the pipe. Use high-temperature anti-seize on clamp bolts if recommended in your manual.

4. If your configuration includes braces or straps, reconnect them to support the pipe against vibration and avoid fatigue at the joint.

5. Start the engine and let it idle. Check around every joint for leaks, soot traces or unusual noise. Re-torque clamps if necessary.

Safety Considerations

A correctly installed 9S-7534 exhaust pipe:

• Moves hot gases safely away from personnel working near the machine

• Prevents flammable debris from contacting red-hot exhaust components

• Reduces the risk of heat damage to hydraulic hoses, electrical harnesses and plastic trim

Regular visual checks should be part of your daily walk-around inspection.

Maintenance and Service Tips

Although exhaust pipes are passive components, they still require attention:

• Inspect for cracks: Thermal cycling can cause fine cracks, especially near welds. Early replacement avoids unexpected failures on site.

• Check for corrosion: In humid or coastal environments, external rust can thin the pipe wall. Any deep pitting is a sign that the pipe should be changed.

• Monitor support hardware: Loose clamps or broken braces transfer extra loads into the pipe, shortening its life. Tighten or replace as needed.

• Keep clear of impacts: Excavator booms, loading tools or falling rocks can dent or deform the pipe. Any significant distortion may restrict flow or create stress concentrations.

By replacing the outlet with a properly specified 9S-7534 PIPE CATERPILLAR at the first sign of deterioration, you protect both your exhaust system and your engine investment.

Why Order the 9S-7534 PIPE CATERPILLAR from 3GEN Export?

3GEN Export specialises in heavy machinery spare parts, supplying contractors, mining operations, quarries and rental fleets worldwide. When you source your 9S-7534 exhaust pipe through us, you benefit from:

• OEM-level quality: Our parts are produced to rigorous dimensional and material standards so they integrate seamlessly with Caterpillar exhaust systems.

• Global delivery in 5 working days: Whether your machine is in a European quarry, a Middle Eastern mine or a remote construction site, we organise fast, reliable shipping from our stock network.

• Specialist support: Share your machine serial number and exhaust configuration with our team. We help confirm whether the 9S-7534 PIPE CATERPILLAR is the correct match or suggest alternatives if needed.

• Wide product coverage: Alongside exhaust pipes and stacks, we supply air-intake components, engine parts, undercarriage, hydraulics, cabin glass and many other critical items from a single source.

This combination of quality, speed and technical expertise helps minimise downtime and keeps your equipment earning money instead of waiting for parts.

Technical Specifications – 9S-7534 Pipe

• Part number: 9S-7534 / 9S7534

• Component type: Exhaust outlet extension pipe

• Outlet style: 45° square-cut outlet (type D)

• Outside diameter: 80.3 mm (3.16 in)

• Overall length: 248.9 mm (9.80 in)

• Typical material: Heavy-duty steel tubing, high-temperature coated

• Function: Directs exhaust gases safely away from the machine structure and operator area

• Approximate dry weight: around 2.6 kg (actual shipping weight may vary slightly depending on batch and hardware)

• Application: Suitable for various Caterpillar heavy-duty machines that specify the 9S-7534 pipe in their exhaust stack assembly

For precise machine compatibility, please contact 3GEN Export with your serial number, or refer to the exhaust section of your official parts book where 9S-7534 is listed.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
