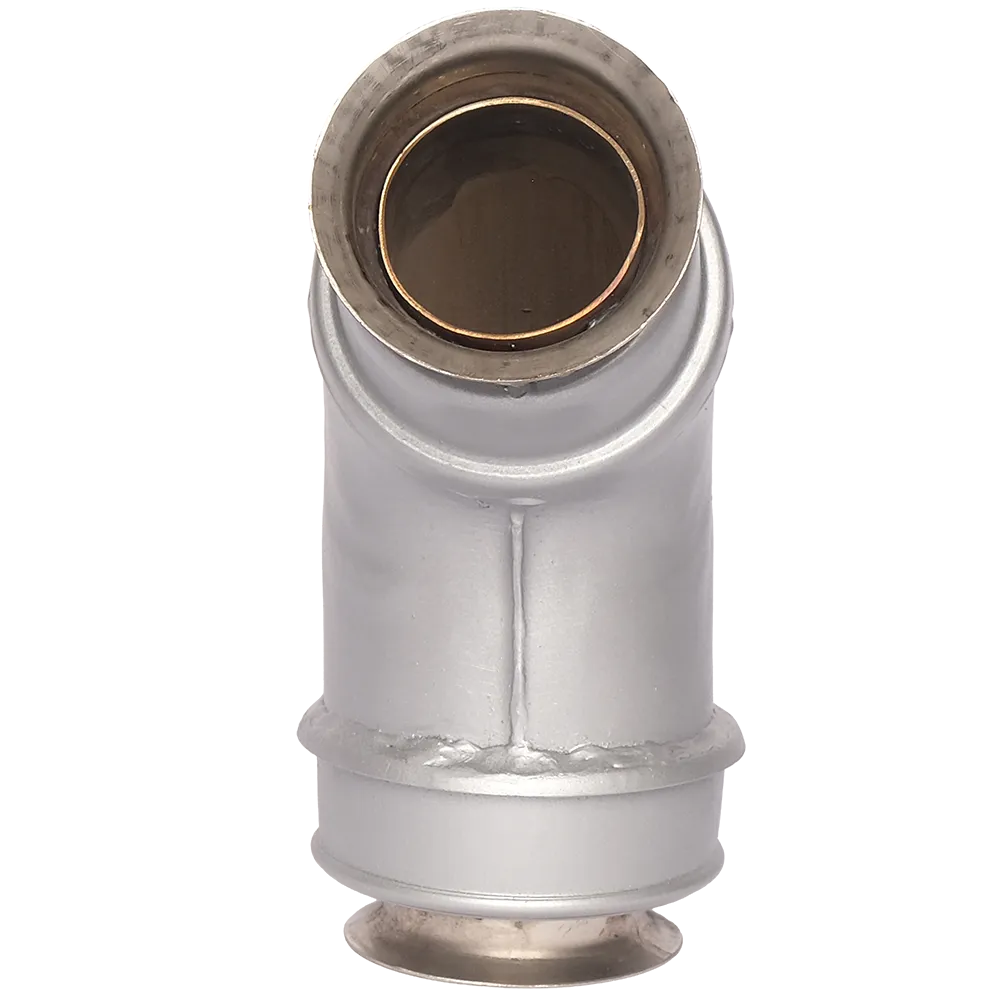

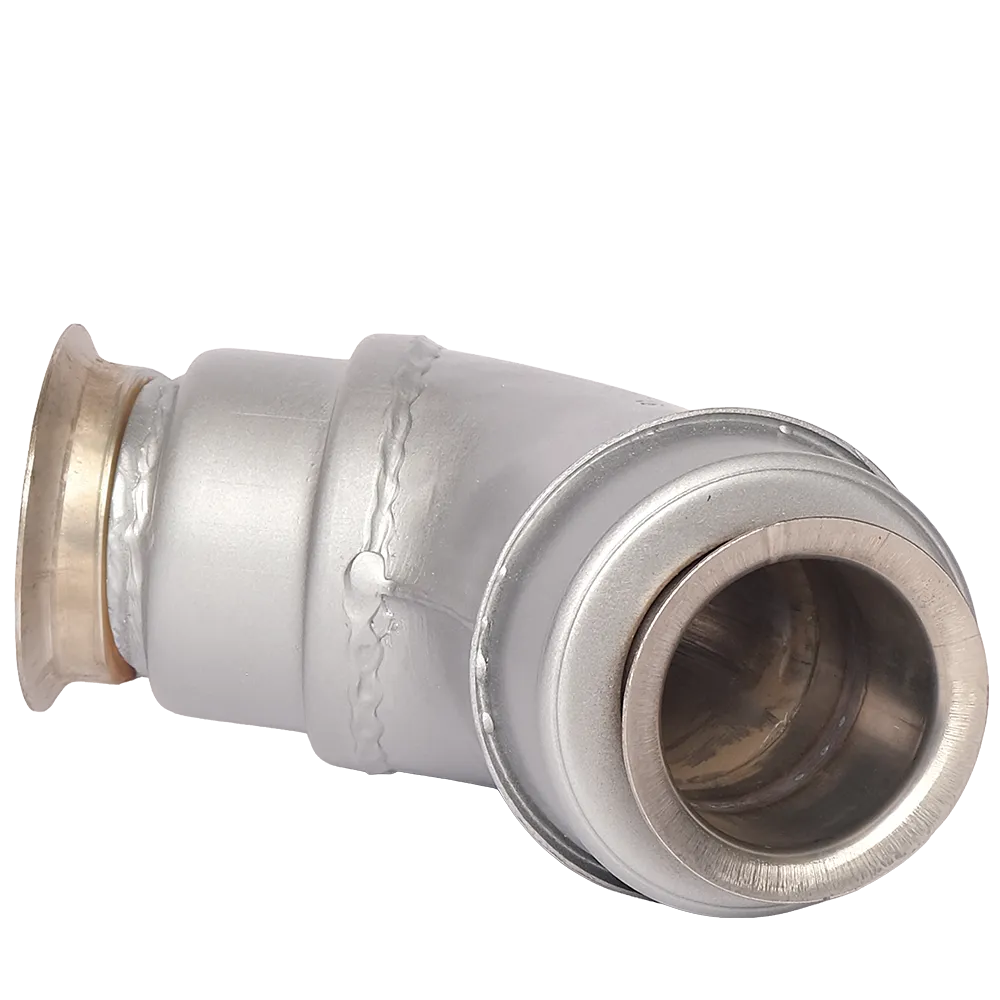

9Y2150 TUBE CATERPILLAR (9Y-2150) | Slip-Fit Exhaust Elbow Tube Assembly

If you’re maintaining a high-hour Cat fleet, the exhaust line is one of those systems that quietly decides whether your machine runs clean, cool, and consistent—or starts bleeding time through leaks, heat stress, and power loss. 9Y2150 TUBE CATERPILLAR (also searched as 9Y-2150) is an upper left-hand side exhaust tube used in the engine exhaust tubing circuit on selected Caterpillar machines. It’s built to route hot exhaust flow through a tight bend while keeping alignment, sealing surfaces, and thermal stability under heavy load.

At 3GEN Export, we supply this part as an OEM-standard replacement and ship worldwide in 5 working days, so your maintenance schedule doesn’t get held hostage by sourcing delays.

What 9Y2150 TUBE CATERPILLAR does in the exhaust system

9Y2150 TUBE CATERPILLAR is essentially a formed steel elbow/tube segment that connects exhaust components in a way that:

• Maintains a controlled exhaust gas path (minimizing turbulence where possible for stable flow)

• Handles repeated thermal cycles (heat-up / cool-down) without warping the joint surfaces

• Supports reliable sealing with the appropriate rings/seals and clamp interfaces

• Preserves correct routing clearance around engine bay components and shielding

Caterpillar identifies this part as an upper left-hand side exhaust tube in the exhaust tubing group.

Why this part matters for uptime

Exhaust tubing is not just “a pipe.” On large track-type tractors and scraper/pipelayer/ripper configurations, exhaust routing impacts:

• Turbo/engine breathing stability (backpressure management)

• Under-hood heat control (protecting wiring, hoses, and nearby assemblies)

• Operator comfort and safety (reducing exhaust leaks and hot spots)

• Emissions-system stability (where applicable to machine configuration)

A fatigued or poorly fitting tube can cause leaks at the joints, soot buildup, higher heat near sensitive components, and repeated clamp/seal failures.

Common symptoms that indicate replacement is needed

If your machine uses 9Y2150 TUBE CATERPILLAR, typical replacement triggers include:

• Visible soot trails near clamp joints or flange seats

• A sharper exhaust tone (“tick” or “puff” under load)

• Smell of exhaust in areas it shouldn’t be

• Heat discoloration around couplings or at the elbow seam

• Repeated seal-ring or clamp loosening after short service intervals

When these show up, replacing 9Y2150 TUBE CATERPILLAR before it compromises nearby parts often reduces total downtime cost.

Material, build logic, and design notes

Caterpillar’s listing indicates structural steel and related alloy/thermal considerations for this tube category.
In practical terms, the part is engineered to:

• Resist scale and surface oxidation under exhaust temperatures

• Hold geometry at the bend (where thermal stress concentrates)

• Maintain consistent sealing diameter at the ends

For field reliability, the key is correct pairing with the proper seal rings and tight, even clamp loading—not over-torquing one side and distorting the seat.

Technical specifications for 9Y2150 TUBE CATERPILLAR

Below are published physical specs for part number 9Y-2150 (the same item searched as 9Y2150 TUBE CATERPILLAR):

Dimensions (as listed)

• Width: 167.64 mm

• Height: 167.64 mm

• Length: 350.52 mm (13.8 in)

• Material: structural steel / alloy notes per listing

Weight (kg)

Because official listings commonly publish dimensions but not a consistent net weight for this tube category (weights can vary slightly by manufacturing batch, wall thickness, or bundled hardware), the most reliable approach for planning is to use a practical handling estimate.

• Estimated weight (typical handling range): ~2.3–2.8 kg

• Working estimate to use for shipping calc: ~2.5 kg

If you want, you can share your target courier/packing method and we can recommend a conservative volumetric + packing allowance for your logistics lane.

Compatible Caterpillar models (where 9Y-2150 is used)

Caterpillar’s parts listing provides compatibility categories and models for part number 9Y-2150.

Track-Type Tractors

• D8L

• D9N

• D9R

• D10N

Wheel Tractor

• 631E

• 637E

Wheel Scraper

• 657E

Pipelayer

• 589

Ripper

• 8

• 9

• 10

Bulldozer

• 8A

• 8S

• 9SU

• 9U

• 10SU

• 10U

Winch

• 58L

• 59L

• 58

• 59

• 59N

If you’re matching by serial number or arrangement number, tell me the machine model + prefix and I’ll help you confirm the safest fit path for 9Y2150 TUBE CATERPILLAR.

Related parts often purchased with 9Y2150 TUBE CATERPILLAR

In real maintenance, exhaust tube replacement is rarely “tube only.” The listing shows frequently-associated parts in the same exhaust tubing area, such as:

• 9Y-2151 (lower left-hand side exhaust tube)

• 9Y-2149 (upper right-hand side exhaust tube)

• 9Y-2148 (lower right-hand exhaust tube)

• 106-9408 (knitted wire seal, 64 mm internal diameter)

• 1W-0481 (exhaust seal ring, 64.5 mm inner diameter)

If you’re ordering 9Y2150 TUBE CATERPILLAR, it’s smart to renew seals at the same time—especially if soot leakage is already present.

Installation notes and a practical mounting guide

This is a field-focused guide intended for experienced technicians. Always follow your machine’s service documentation and site safety rules.

Preparation

• Allow the exhaust path to cool fully (burn risk and warped-seat risk)

• Inspect clamps, flanges, and seal ring grooves for deformation

• Clean mating surfaces: soot and scale prevent proper sealing

Removal

• Loosen clamps gradually and evenly

• Support the tube to avoid stressing adjacent components

• Remove old seal rings; do not reuse compressed rings if leakage was present

Installation of 9Y2150 TUBE CATERPILLAR

• Dry-fit 9Y2150 TUBE CATERPILLAR first to confirm routing clearance

• Install new seal rings (recommended) and align the tube ends square to the seats

• Tighten clamps in stages (alternate sides) to avoid cocking the joint

• After first heat cycle, re-check clamp seating (common best practice)

Post-install checks

• Start, idle, and inspect for soot puffing at joints

• Listen under load for leak “ticks”

• Confirm there is no contact with shields, hoses, or harnesses

Maintenance tips to extend exhaust tube life

To get the most service life out of 9Y2150 TUBE CATERPILLAR:

• Avoid clamp over-tightening (distorts seats and accelerates leak cycles)

• Replace seal rings when you see soot trails—don’t just “tighten more”

• Confirm engine mounts and brackets are healthy; excess vibration kills exhaust joints

• Watch thermal shielding integrity around the exhaust route

A tube that’s perfectly fine can still fail early if the system is misaligned or vibrating abnormally.

Why source 9Y2150 TUBE CATERPILLAR from 3GEN Export

3GEN Export focuses on keeping heavy equipment moving with OEM-standard parts supply and fast global dispatch.

• OEM supplier support: consistent quality expectations for fit and durability

• Global delivery in 5 working days: reduce downtime exposure

• Export-ready packing: suited for international logistics lanes

• Multi-brand sourcing: helpful if your order includes other wear parts or assemblies

When you’re ordering 9Y2150 TUBE CATERPILLAR, you’re usually solving a downtime problem—not shopping a commodity. Our job is to make the supply side predictable.

Frequently asked questions

Is 9Y2150 the same as 9Y-2150?

Yes. 9Y2150 TUBE CATERPILLAR and 9Y-2150 are two common ways people search the same part number format.

What system does it belong to?

It’s part of the engine exhaust tubing pathway and is identified as an upper left-hand side exhaust tube in the exhaust system category.

Should I replace seals when changing the tube?

Strongly recommended. Exhaust leaks are often caused by hardened or crushed seal rings; replacing the tube without seals can bring the same leak back quickly.

What machines commonly use it?

Compatibility includes track-type tractors like D8L, D9N, D9R, D10N and several scraper/pipelayer/winch/ripper categories as listed above.
