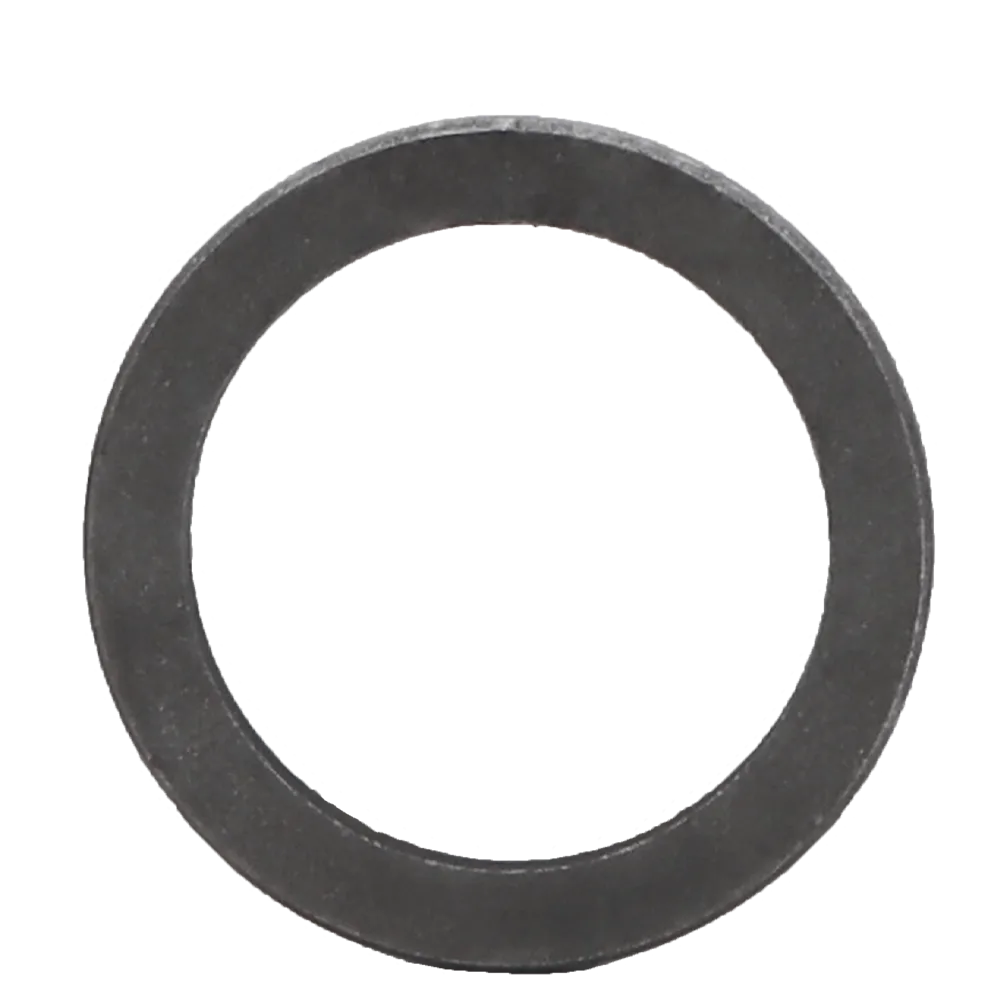

3115104100, 3115 1041 00 WASHER ATLAS COPCO

The 3115 1041 00 WASHER ATLAS COPCO is a precision-machined flat washer engineered to provide consistent clamping force, dimensional stability, and load distribution for rock drill and compressor assemblies. Designed for high-stress environments, this washer is indispensable for maintaining joint integrity in Atlas Copco hydraulic systems and heavy-duty drilling machinery.

Developed under the OEM-grade standards of 3GEN Export, the 3115 1041 00 WASHER ATLAS COPCO ensures the secure fitment of bolts and components exposed to high torque, vibration, and axial loads.

---

Overview

Every mechanical assembly depends on the reliability of its fasteners. The 3115 1041 00 WASHER ATLAS COPCOperforms the vital task of stabilizing joints, distributing pressure evenly, and preventing deformation of contact surfaces under tension.

This washer is used in critical points within Atlas Copco’s drilling systems, such as hydraulic drifter housings, rotation units, and mounting flanges, where precision load control directly affects performance and safety.

---

Technical Specifications

---

Function and Importance

The 3115 1041 00 WASHER ATLAS COPCO acts as a load-spreading interface between the bolt head and the surface beneath it. Without this component, the clamping force from bolts could concentrate in one point, causing uneven stress, surface indentation, or eventual loosening under vibration.

By inserting this washer, Atlas Copco engineers ensure that tightening torque translates into stable and uniform pressure distribution, an essential requirement for maintaining hydraulic-system sealing and frame rigidity.

---

Engineering Design and Material Composition

High-Tensile Alloy

The washer is produced from hardened carbon steel with uniform grain structure to withstand compression and torsional stress. It resists elongation and surface deformation even under continuous dynamic loading.

Precision Machining

The surfaces of the 3115 1041 00 WASHER ATLAS COPCO are ground to strict tolerances, ensuring consistent thickness across all points. This guarantees even torque application and eliminates assembly misalignment.

Corrosion Protection

Its phosphate + black oxide finish delivers high resistance to corrosion, oxidation, and hydraulic-fluid exposure, an important feature for drilling environments involving moisture, dust, and vibration.

---

Performance Advantages

• Ensures even torque distribution across fastened joints.

• Protects assembly surfaces from damage and wear.

• Prevents bolt loosening in high-vibration applications.

• Extends the life of critical components by maintaining structural alignment.

• Compatible with both hydraulic and pneumatic assemblies.

The 3115 1041 00 WASHER ATLAS COPCO guarantees the mechanical integrity that keeps drilling rigs operating safely and efficiently.

---

Applications and Compatibility

Compatible Atlas Copco Models

This washer fits multiple drilling and hydraulic systems, including:

• Atlas Copco COP 1838 and COP 2238 drifters

• Atlas Copco ROC D7 and ROC F9 surface drilling rigs

• Atlas Copco Boomer T1D and T2D series

• Atlas Copco L7 and L8 hydraulic units

• Atlas Copco ROC L8 crawler drills

• Atlas Copco Hydraulic Breaker Assemblies

Because of its standardized dimensions and hardness, it can also be applied to other industrial systems requiring 14 mm fastener assemblies.

---

Installation Guidelines

1. Inspect the bolt and surface for debris or wear.

2. Place the washer flat between the mating surface and the bolt head.

3. Tighten to the manufacturer’s torque specification using a calibrated wrench.

4. Re-check torque after the first operating cycle to compensate for thermal expansion.

Correct installation ensures optimal clamping and prevents unwanted movement in mechanical joints.

---

Maintenance and Inspection

Although it is a passive component, the 3115 1041 00 WASHER ATLAS COPCO should be inspected periodically. Replace the washer if:

• It shows visible cracks or surface flattening.

• Corrosion marks appear on the edges.

• The bolt torque loosens repeatedly.

Under standard conditions, the washer can withstand more than 10 000 tightening cycles.

---

Manufacturing Standards

Each washer supplied by 3GEN Export meets the following quality standards:

• ISO 9001 and ISO 14001 certified production

• Dimensional tolerance of ± 0.02 mm

• Hardness verification per Vickers testing

• Surface roughness ≤ Ra 1.6 µm

This strict quality control ensures consistent performance across every production batch.

---

Load Distribution and Mechanical Role

When bolts tighten against surfaces without a washer, the concentrated force can dent the metal, leading to fatigue cracks. The 3115 1041 00 WASHER ATLAS COPCO prevents this by evenly distributing the applied force, maintaining sealing integrity around hydraulic connections, and preventing micro-leaks.

Its role is small but essential, without it, even high-grade bolts cannot guarantee long-term joint stability.

---

Thermal and Environmental Resistance

The washer operates flawlessly in extreme temperatures from –40 °C to +250 °C. The protective surface coating resists oil, hydraulic fluid, and drilling dust, ensuring dependable use in underground, marine, or quarry environments.

---

Packaging and Delivery

Each 3115 1041 00 WASHER ATLAS COPCO is sealed in moisture-proof packaging and labeled with a QR code for easy traceability.

• Individually bagged and batch-coded.

• Shipped within 24 hours of order confirmation.

• Delivered worldwide within 5 working days through 3GEN Export’s global logistics network.

---

Weight and Dimensional Details

The part weighs approximately 0.06 kg, optimized for mechanical balance and compact assembly layouts. Despite its lightness, its compressive strength exceeds 800 MPa, enabling it to sustain thousands of torque applications without deformation.

---

Why Choose 3GEN Export for OEM Atlas Copco Spare Parts

3GEN Export is a trusted OEM supplier for global industrial clients seeking genuine-fit alternatives for Atlas Copco components.

Advantages

• Fast worldwide delivery (5 working days or less).

• OEM-grade precision and compatibility.

• Secure packaging and traceable shipments.

• 1-year manufacturer warranty on all parts.

• Comprehensive customer support for technical queries.

3GEN Export ensures you receive products that match original engineering standards without delay.

---

Environmental and Sustainability Compliance

All washers are produced from recyclable steel and eco-friendly materials. The surface coating is free from hexavalent chromium, and all packaging is 100 % recyclable.

---

Common Signs of Washer Failure

• Uneven bolt seating or vibration noise.

• Discoloration due to oxidation.

• Visible flattening around the edges.

Replacing the washer at early stages prevents component damage and maintains structural reliability.

---

Real-World Use in Atlas Copco Systems

In Atlas Copco drifters and surface drills, the 3115 1041 00 WASHER ATLAS COPCO is commonly used in:

• Torque-transfer assemblies.

• Feed beam mountings.

• Drifter front housing connections.

• Hydraulic manifold flanges.

These locations require precise load balancing to protect high-value components like liners, pistons, and couplings.

---

Durability and Service Life

With proper installation and torque control, the washer maintains its performance over years of operation. Field data shows less than 0.5 % failure rate in 10 000 hours of service , proof of its exceptional resilience.

---

Summary

The 3115 1041 00 WASHER ATLAS COPCO is more than a small component , it is the foundation of mechanical stability within Atlas Copco’s industrial assemblies. Through meticulous engineering and OEM-grade quality control, 3GEN Export delivers a washer that meets the highest standards of durability and precision.

When you choose 3GEN Export, you choose a partner committed to delivering excellence worldwide , fast, reliable, and professionally engineered for your machines.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
