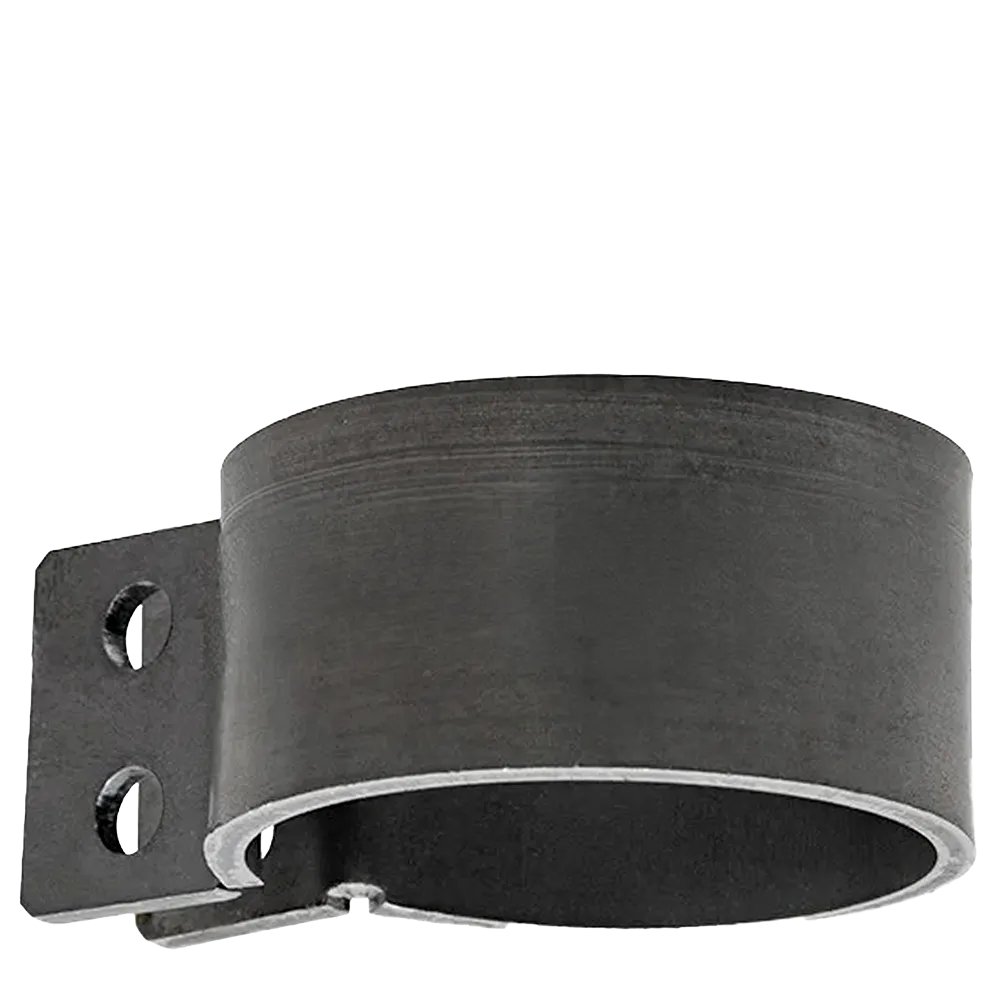

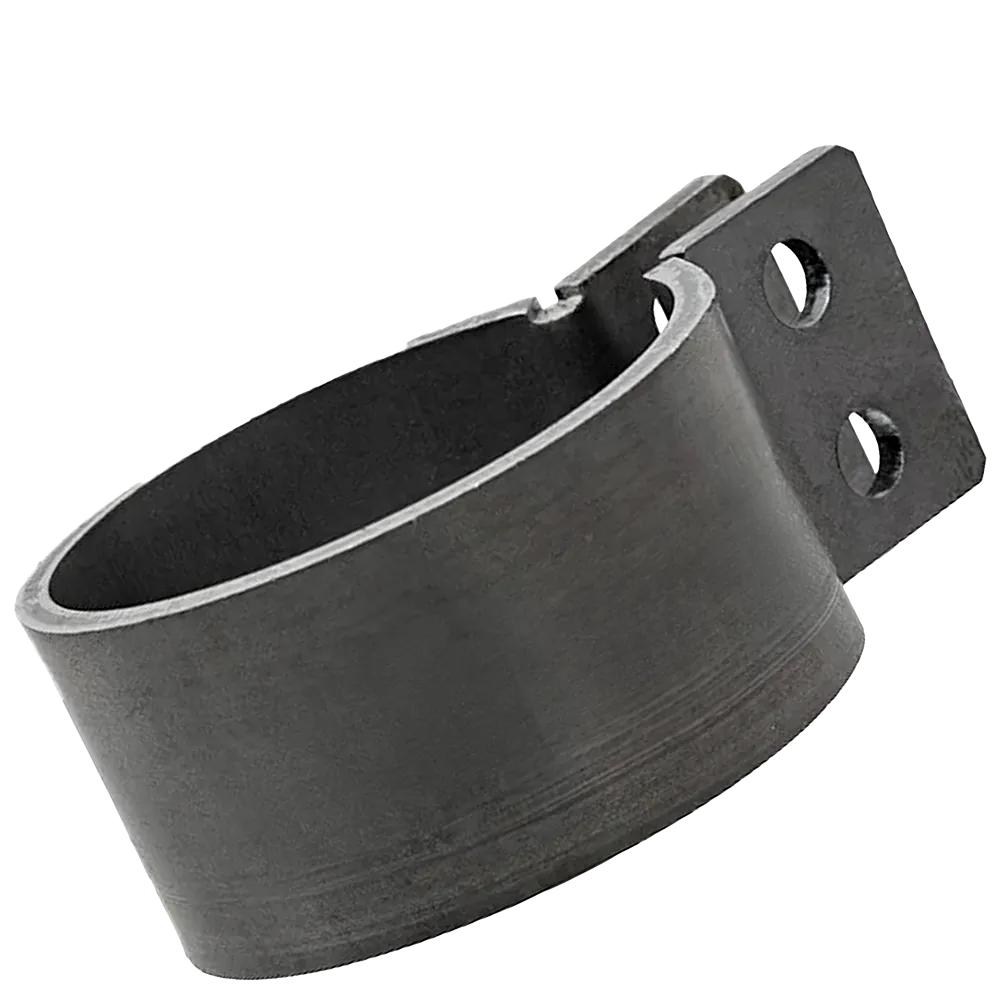

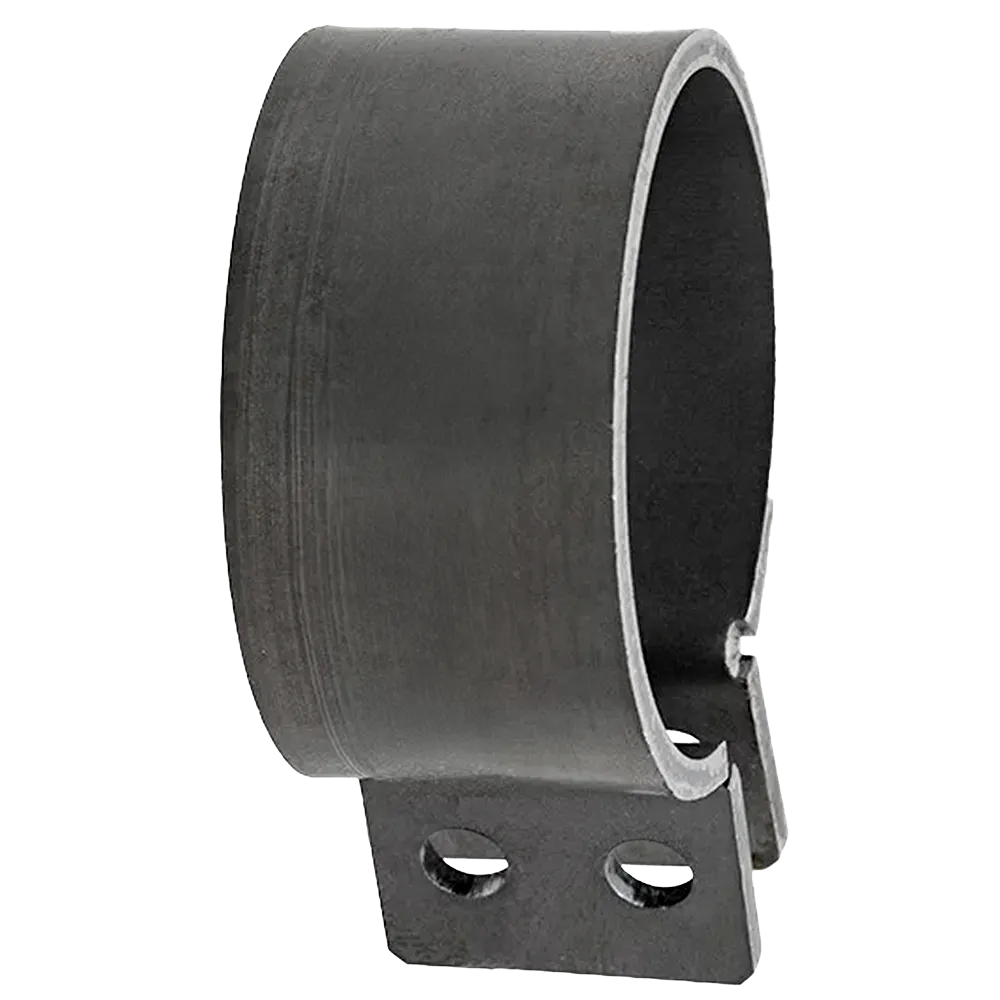

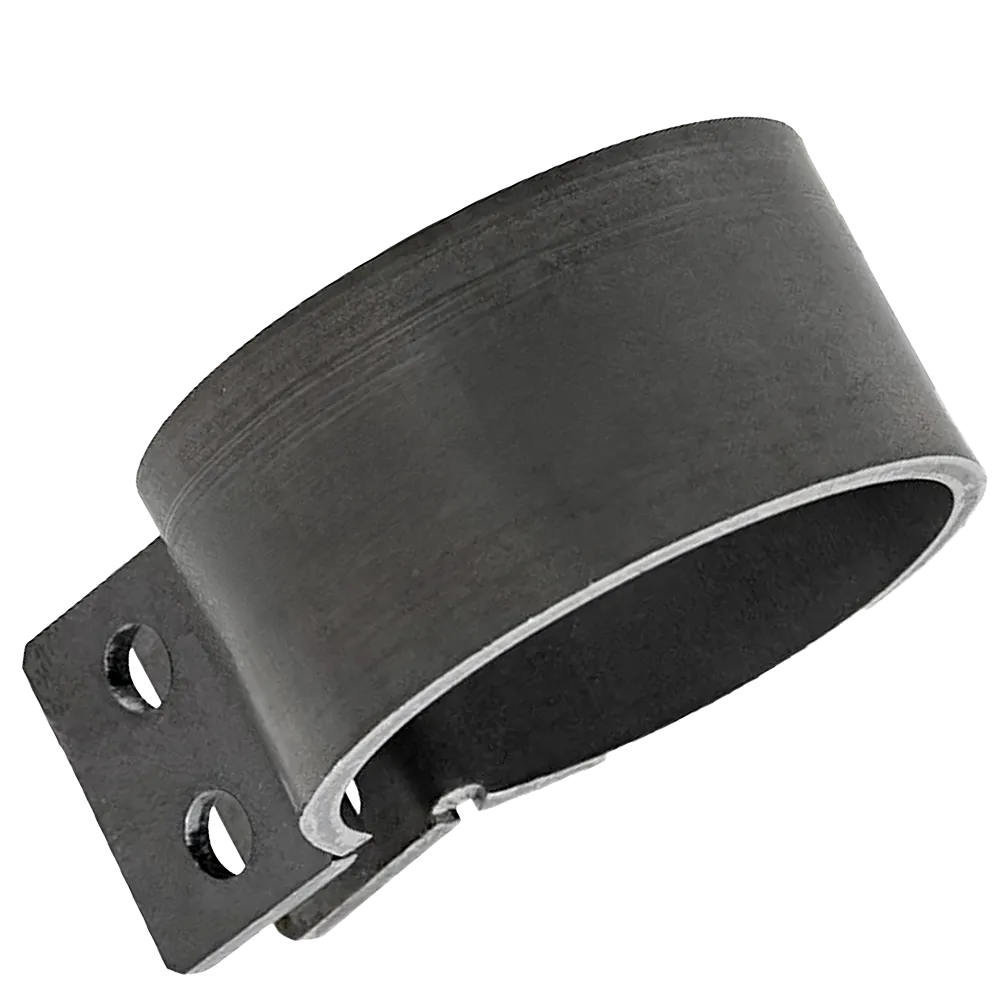

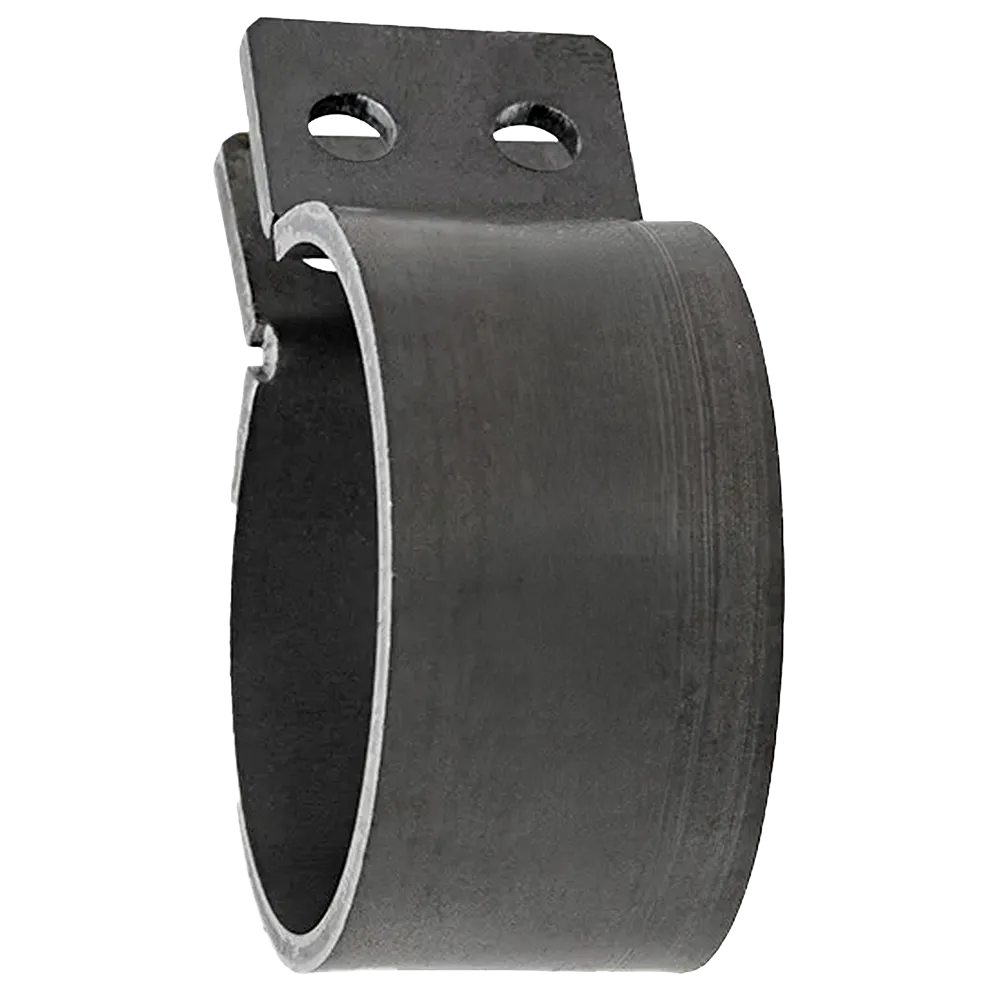

3115227500 Clamp – 3115 2275 00 ATLAS COPCO

The 3115227500 clamp is a structural holding component designed for heavy drilling systems manufactured by Atlas Copco. Engineered to stabilize cylindrical assemblies inside hydraulic and percussion units, this part ensures secure positioning under extreme vibration and mechanical stress.

In rock drilling environments where alignment precision determines performance, the 3115 2275 00 clamp plays a stabilizing role that directly affects machine durability and operational consistency.

At 3GEN Export, we supply this component as an OEM-grade replacement and deliver globally within 5 working days.

Product Function and Engineering Purpose

This clamp is designed to secure cylindrical components such as liners, sleeves, or housing elements within drilling assemblies. Its circular body distributes clamping pressure evenly while the integrated mounting plate allows rigid attachment to the machine frame.

Heavy-duty drilling systems generate continuous vibration due to percussion impact and rotation forces. Without proper stabilization, micro-movements begin to develop inside the assembly. Over time, this leads to:

• Misalignment
• Surface scoring
• Premature wear
• Increased vibration transfer
• Reduced drilling accuracy

The 3115227500 clamp prevents these issues by creating firm circumferential support around the protected component.

Structural Design Characteristics

The 3115 2275 00 clamp features a split circular construction. This design allows installation without complete disassembly of surrounding components.

Key structural elements include:

• Precision-machined inner diameter
• Reinforced mounting ears
• Dual bolt fixing points
• High-strength industrial steel body
• Surface-treated corrosion-resistant finish

The mounting bracket is engineered to transfer operational loads safely into the machine structure rather than allowing stress concentration within the cylindrical assembly.

Material Composition

Manufactured from high-strength carbon steel, this clamp is designed to resist:

• Fatigue cracking
• Deformation under load
• Abrasive environmental exposure
• Long-term vibration stress

Its material hardness ensures dimensional stability even in continuous mining or quarry operations.

Technical Specifications

Product Code: 3115227500
Alternative Format: 3115 2275 00
Component Type: Structural holding clamp
Design Type: Split circular clamp
Mounting: Dual bolt plate
Material: Industrial-grade carbon steel
Surface Treatment: Anti-corrosion coating
Estimated Weight: 2.4 – 2.8 KG

Weight may vary slightly depending on production tolerance.

Compatible Atlas Copco Equipment

This clamp is commonly used in multiple drilling platforms produced by Atlas Copco, including:

COP1238

COP1338

COP1440

COP1638

COP1838

COP1838HD

COP1

• ROC series rigs
• SmartROC drilling systems
• FlexiROC models
• Selected COP drifter assemblies
• Underground hydraulic drill units

Compatibility can vary depending on machine generation and serial configuration. 3GEN Export can verify fitment upon request.

Operational Advantages

Using the correct 3115227500 clamp ensures:

• Reduced vibration transmission
• Improved axial stability
• Longer liner and housing lifespan
• Lower maintenance frequency
• Increased drilling precision
• Better load distribution

Even though it is a relatively compact component, its mechanical impact on system reliability is significant.

Installation Recommendations

For best results:

1. Clean all mating surfaces.

2. Position the clamp evenly around the cylindrical component.

3. Align mounting holes precisely.

4. Tighten bolts gradually and symmetrically.

5. Confirm full contact and proper seating.

Proper torque application is critical to prevent uneven pressure.

Industrial Applications

This component is widely used in:

• Mining operations
• Quarry drilling
• Tunneling projects
• Infrastructure excavation
• Surface rock drilling

Any operation involving high-frequency percussion drilling benefits from stable component retention.

Why Choose 3GEN Export

3GEN Export supplies OEM-grade heavy machinery spare parts for global customers. We operate independently and provide compatible replacement components for major industrial brands.

When ordering from us, you receive:

• OEM-level production quality
• Worldwide delivery in 5 working days
• Export-safe packaging
• Professional documentation
• Reliable logistics coordination

Our focus is minimizing downtime and maximizing equipment uptime.

Conclusion

The 3115227500 clamp, also referenced as 3115 2275 00, is an essential structural holding component within Atlas Copco drilling systems. Its precision-machined circular body and reinforced mounting bracket ensure secure positioning of cylindrical assemblies under extreme mechanical stress.

By preventing vibration-induced movement, it protects critical internal parts and supports long-term machine reliability.

3GEN Export supplies this part globally with fast delivery and professional export handling.
