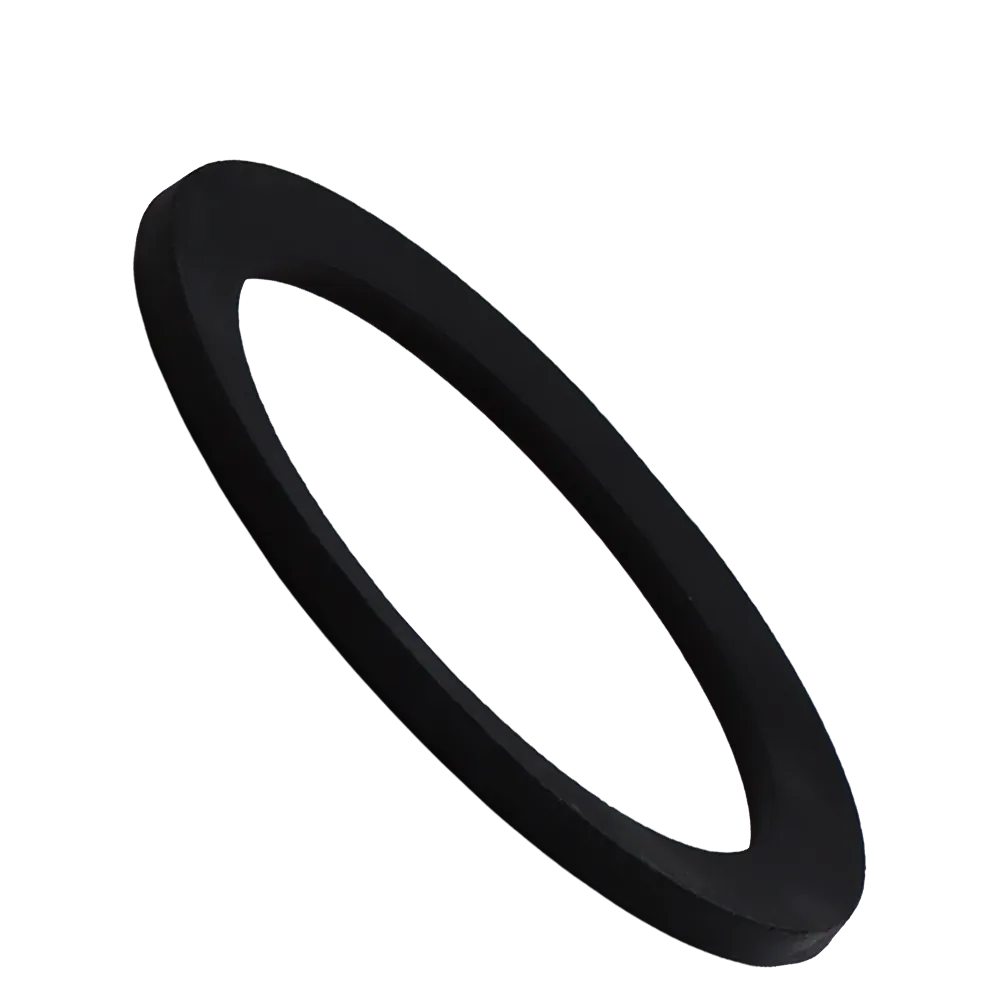

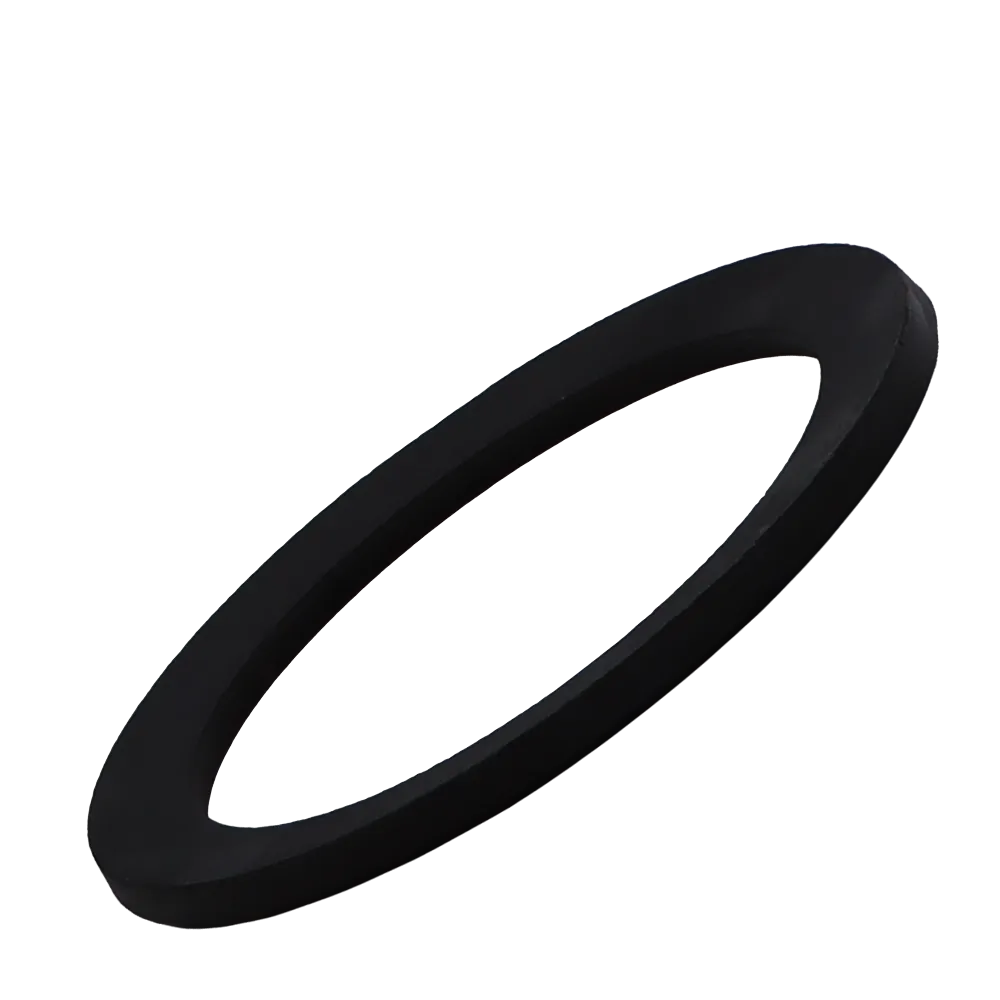

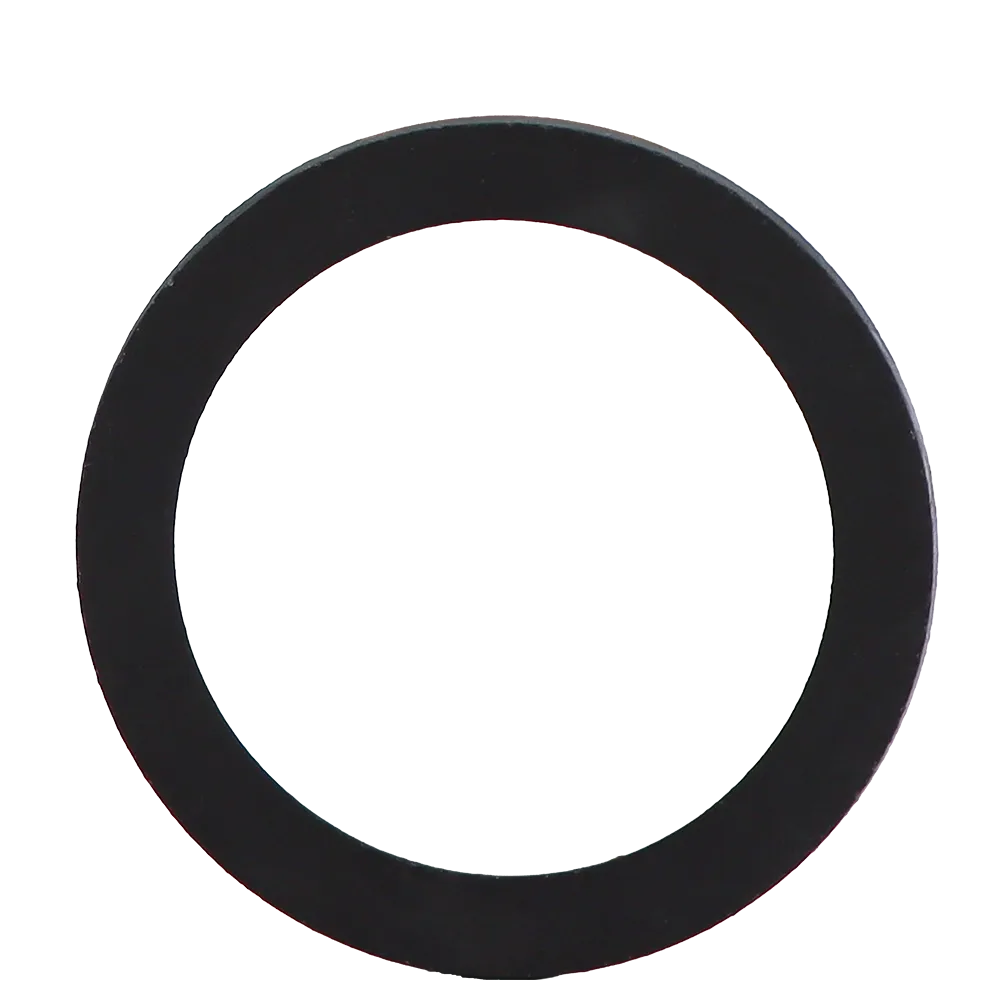

3115536000, 3115 5360 00 DISC SPRING ATLAS COPCO – High-Performance Disc Spring for Rock Drill Systems

The 3115536000 DISC SPRING ATLAS COPCO (also written as 3115 5360 00 DISC SPRING ATLAS COPCO) is a precision-engineered, high-strength spring component designed to withstand the extreme, repetitive loads found within hydraulic and pneumatic rock drilling systems. Manufactured from premium-grade spring steel and engineered for durability, flexibility and fatigue resistance, this disc spring plays a critical role in maintaining stable force distribution inside the drifter assembly of ATLAS COPCO rock drilling equipment.

At 3GEN Export, we supply this part as an OEM-grade solution to meet the operational demands of mining, tunnelling, quarrying and construction drilling environments. With worldwide delivery in only 5 working days, this disc spring ensures that your drilling fleets remain fully functional with minimal downtime.

Below is an in-depth, detailed and SEO-optimized technical explanation of the function, specifications, applications and system integration of the 3115536000 DISC SPRING ATLAS COPCO.

What Is the 3115536000 DISC SPRING ATLAS COPCO?

The 3115536000 DISC SPRING ATLAS COPCO is a circular, conical-shaped spring element that is used in dynamic load environments where controlled elastic deformation is required. Unlike traditional coil springs, disc springs are designed to deliver very high force within a small installation footprint. This makes them ideal for the compact yet high-pressure internal mechanisms of ATLAS COPCO drifters and rock drills.

Disc springs operate by flexing under axial pressure, absorbing impact energy and rebounding to maintain precise mechanical tension. The geometry of the spring allows for predictable load-deflection curves, excellent fatigue life, high load capacity and precise energy management—capabilities that are essential in the harsh conditions of continuous rock drilling.

Within ATLAS COPCO drifters, the 3115536000 DISC SPRING ATLAS COPCO helps stabilize moving components under repetitive strokes, ensuring that the machine delivers consistent impact, rotation performance and energy transmission.

Functional Role of the 3115536000 DISC SPRING ATLAS COPCO

Shock Absorption and Impact Management

Rock drill drifters produce extremely high-frequency impacts—often thousands of strokes per minute. These impulses create shock waves that travel through the striker, piston and adjoining components. The disc spring serves as a mechanical buffer, absorbing sudden load spikes and preventing damage to the drifter housing and internal assemblies.

This protection helps maintain:

• Stable impact force

• Reduced component wear

• Lower vibration transfer

• Enhanced operator safety

Maintaining Axial Preload

Many internal systems within an ATLAS COPCO drifter require specific axial tension levels to function correctly. The 3115536000 DISC SPRING ATLAS COPCO provides controlled preload, ensuring all internal components remain correctly seated and aligned during operation.

Proper preload helps maintain:

• Seal integrity

• Bearing alignment

• Smooth piston movement

• Consistent hydraulic functionality

Enhancing Drifter Lifespan

Because disc springs resist deformation and fatigue, they extend the service life of multiple internal parts that would otherwise wear out prematurely under cyclic loading.

Why the 3115536000 DISC SPRING ATLAS COPCO Is Critical for Drifter Performance

The internal mechanics of a rock drill rely heavily on components working together under precise loads. Even small deviations in spring deflection or tension can impact drilling performance, fuel consumption and maintenance intervals.

With the 3115536000 DISC SPRING ATLAS COPCO, operators benefit from:

• Consistent and powerful impact energy

• Less internal component wear

• Reduced overheating of moving parts

• Improved hydraulic efficiency

• Optimized drilling penetration rate

This part is not optional—it is vital for maintaining the factory-standard performance of ATLAS COPCO drilling equipment.

Technical Characteristics of the 3115536000 DISC SPRING ATLAS COPCO

The following attributes define the engineering value of this disc spring:

• Material: High-strength heat-treated spring steel / alloy steel

• Surface Condition: Smooth, precision-machined for accurate load distribution

• Shape: Conical disc (Belleville-type configuration)

• Load Capacity: Designed for high axial compression and cyclic frequency

• Temperature Resistance: Suitable for extreme drilling environments

• Fatigue Strength: Exceptional fatigue life, ideal for repetitive shock loading

• Compatibility: Fully aligned with OEM specifications for ATLAS COPCO drifters

The manufacturing accuracy guarantees that each disc spring delivers predictable load-deflection performance, a key requirement for advanced drilling systems.

Compatible ATLAS COPCO Models

The 3115536000 DISC SPRING ATLAS COPCO is commonly used across multiple hydraulic drifter systems. Depending on the specific configuration, it can be found in models such as:

• ATLAS COPCO COP 1838

• ATLAS COPCO COP 1838ME

• ATLAS COPCO COP 1838HD

• ATLAS COPCO COP 2238

• ATLAS COPCO COP 2238ME

• ATLAS COPCO COP 2560

• ATLAS COPCO COP 2560ME

• Various Boomer, Simba and ROC drill rigs

If you need confirmation for your exact drifter, 3GEN Export provides compatibility verification.

Applications of the 3115536000 DISC SPRING ATLAS COPCO

Underground Mining

Disc springs in ATLAS COPCO drifters play an essential role in hard rock mining, where long drilling hours and high vibration levels demand durable energy-absorbing components.

Tunnelling Systems

Construction sites that employ jumbo drills rely on disc springs to maintain strong and steady impact force.

Quarrying & Surface Drilling

Whether for blasting or aggregate extraction, disc springs ensure that the drifter maintains consistent penetration speed and power.

Installation Notes

Although the 3115536000 DISC SPRING ATLAS COPCO is a relatively simple component, improper installation can lead to premature wear or even system failure.

3GEN Export recommends the following:

• Ensure correct orientation of the spring.

• Replace disc springs as a set when required.

• Inspect adjacent parts for wear.

• Use OEM-spec lubricants and assembly torque.

• Always avoid reusing worn or deformed disc springs.

Weight

The 3115536000 DISC SPRING ATLAS COPCO typically weighs:

≈ 0.08 KG

(Weight can vary slightly depending on batch specifications.)

Technical Specifications Table

Why Choose 3GEN Export for Your 3115536000 DISC SPRING ATLAS COPCO?

3GEN Export is the world’s first global marketplace dedicated exclusively to heavy machinery spare parts. We are not a reseller—we supply OEM-grade components manufactured to meet the durability and performance standards required for industrial applications.

Clients rely on us because:

• We ship worldwide in 5 working days.

• We provide OEM-grade parts at competitive prices.

• We support thousands of machinery models.

• We serve mining firms, drilling contractors and distributors globally.

With 3GEN Export, you always get reliable, traceable and industry-standard spare parts.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
