23B1500230 / 23B-15-00230 HOUSING ASSY KOMATSU

The 23B1500230 / 23B-15-00230 HOUSING ASSY KOMATSU is a code-specific Komatsu transmission component publicly identified in parts catalogs as a reverse-clutch housing assembly. Catalog references consistently describe this part as “HOUSING ASS’Y, REVERSE,” which places it inside the reverse-clutch section of the transmission rather than in a general structural category. That distinction matters because buyers searching 23B1500230 or 23B-15-00230 are usually not looking for a generic ring-shaped casing. They are looking for a precise transmission housing that supports alignment, oil control, clutch-pack stability, and the mechanical accuracy of the reverse-drive circuit in Komatsu graders.

From the product images, this housing assembly has the visual language of a heavy transmission carrier: a machined circular bore, a large bolt-circle pattern, reinforced wall sections, and cast support towers around the perimeter. In practical workshop terms, this tells the buyer that the part is built to hold internal reverse-clutch elements in exact position while resisting load, heat, oil pressure, and repeated shift cycles. It is not a cosmetic casing. It is a structural and functional transmission part that helps the machine reverse cleanly, hold tolerances inside the clutch group, and protect surrounding rotating components from misalignment and premature wear.

What the 23B-15-00230 housing assembly does

The job of this housing is to create a rigid, accurate mounting environment for the reverse-clutch group. Public Komatsu catalog references place it in the transmission reverse-clutch section, and an aftermarket transmission-parts breakdown linked to this housing shows associated items such as reverse pistons, seal rings, plates, discs, springs, ring gears, pins, dowels, and plugs. In other words, the housing is the base structure around which the reverse-clutch mechanism is organized.

That role is more important than it may seem at first glance. In a grader transmission, reverse selection is not just a matter of a lever command. The machine depends on internal clutch elements engaging with correct pressure, correct spacing, and correct alignment. A housing like 23B1500230 supports that whole internal logic. If the bore geometry is off, if the mounting faces are unstable, or if the internal seating surfaces wear unevenly, reverse performance can become noisy, inconsistent, or unreliable. That can show up as engagement delay, rough shifting, abnormal wear on related clutch parts, or oil sealing problems that spread beyond the original failure point.

So when a buyer replaces the 23B-15-00230 housing assembly, they are not simply changing one metal ring for another. They are restoring the structural base of the reverse-clutch area. That is why the quality of machining, surface accuracy, and casting integrity matter so much on this kind of part.

Why this part matters in grader operation

A Komatsu motor grader works in a very different rhythm from a standard road vehicle. Operators repeatedly move between directional corrections, speed ranges, and load changes while working on road shaping, slope grading, site finishing, shoulder trimming, and haul-road maintenance. In that environment, reverse gear engagement is not an occasional backup action. It is part of the machine’s everyday working cycle.

Because of that, the reverse-clutch housing has a direct influence on uptime. If the housing is worn, cracked, distorted, or poorly machined, the transmission may still function for a while, but shift behavior often becomes less predictable. Small internal alignment errors can create larger downstream costs: plates wear faster, sealing performance drops, oil control becomes less stable, and the operator starts to feel the machine losing its crisp, dependable shift character. That is why a housing assembly like 23B1500230 deserves to be treated as a performance-critical transmission component, not just a support casting.

In fleet terms, this means the right housing assembly protects both the clutch pack and the service schedule. A correct replacement can help reduce secondary damage, lower the risk of repeated teardown, and give technicians a more stable foundation when rebuilding or servicing the reverse section of the transmission.

Product identity confirmed by public sources

Publicly accessible references support three key facts about this part.

1. It is a reverse-clutch housing

Multiple parts references identify 23B-15-00230 as HOUSING ASS’Y, REVERSE.

2. It belongs to Komatsu grader transmission applications

Parts listings and grader catalogs connect this housing with Komatsu grader transmission and torque-part groupings, especially GD-series machines.

3. It is used with related reverse-clutch components

Aftermarket transmission breakdowns tied to this housing show matching reverse pistons, clutch discs, plates, springs, seals, and ring gears, confirming its function inside the reverse-clutch assembly rather than as an isolated casing.

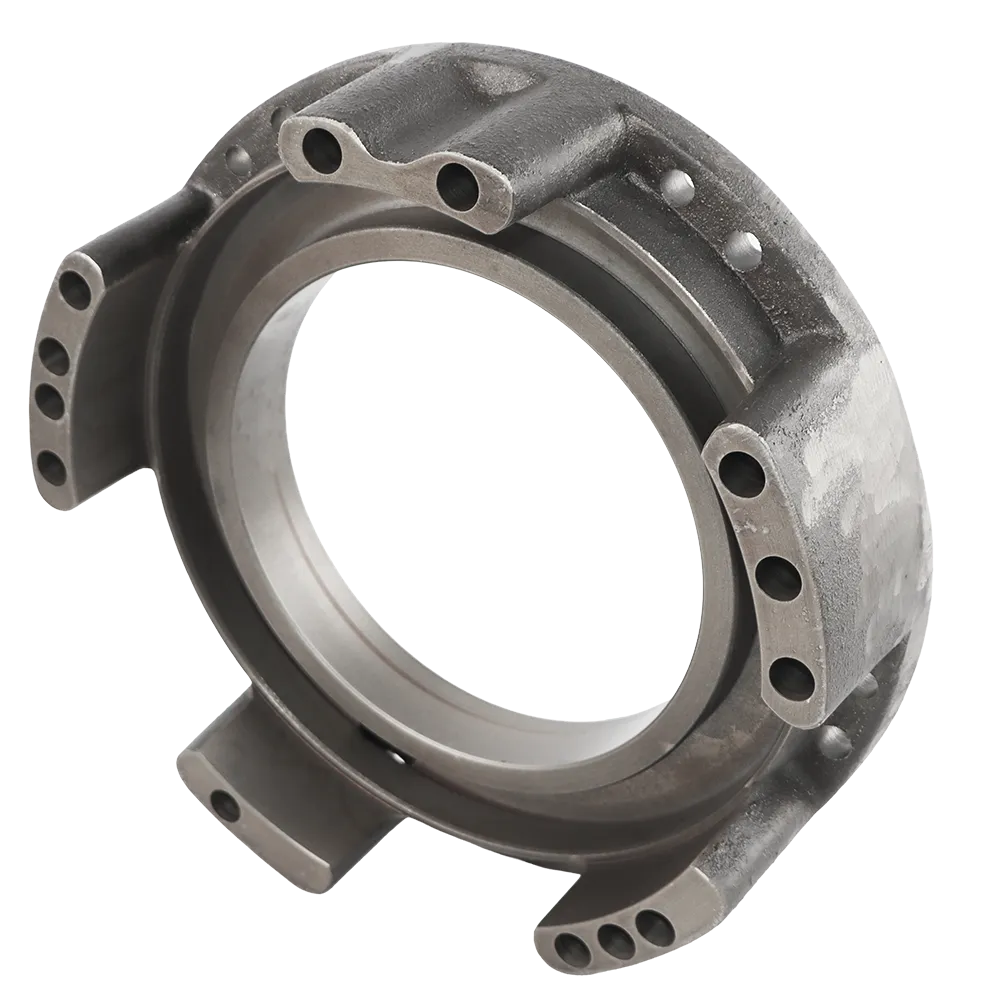

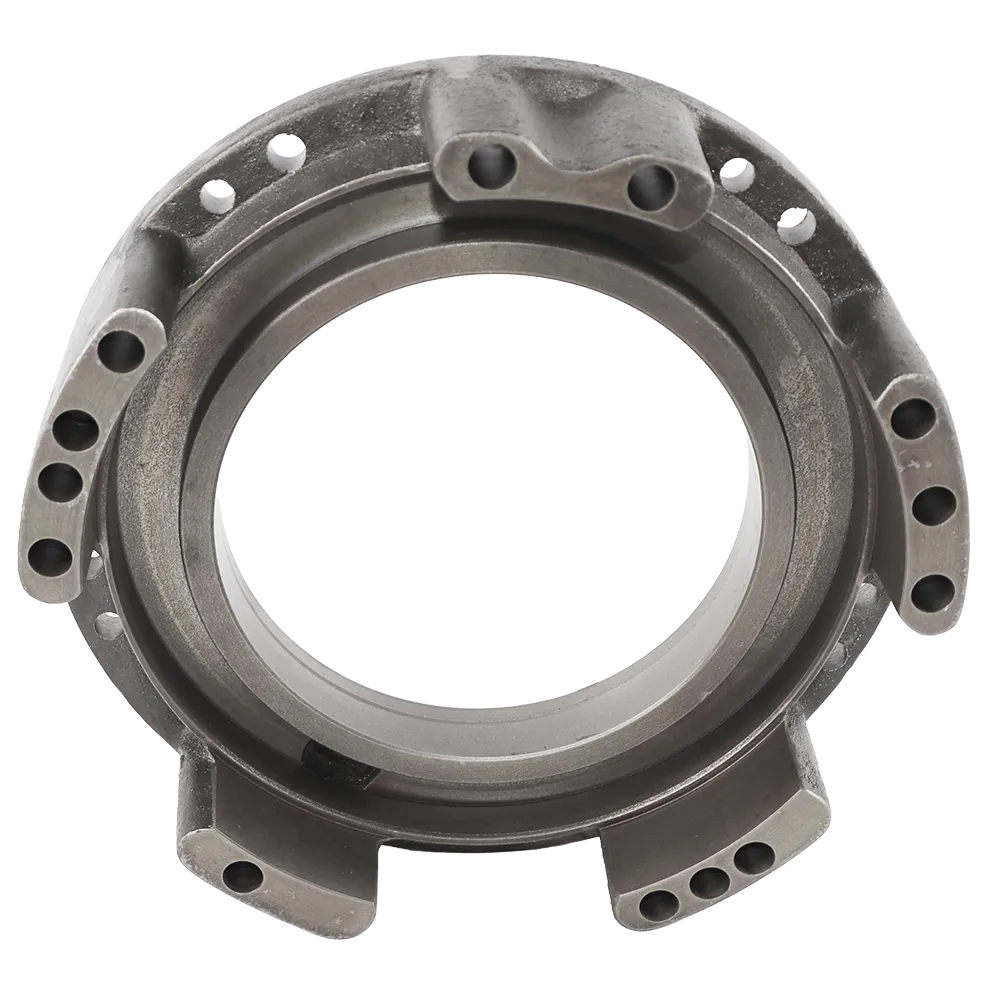

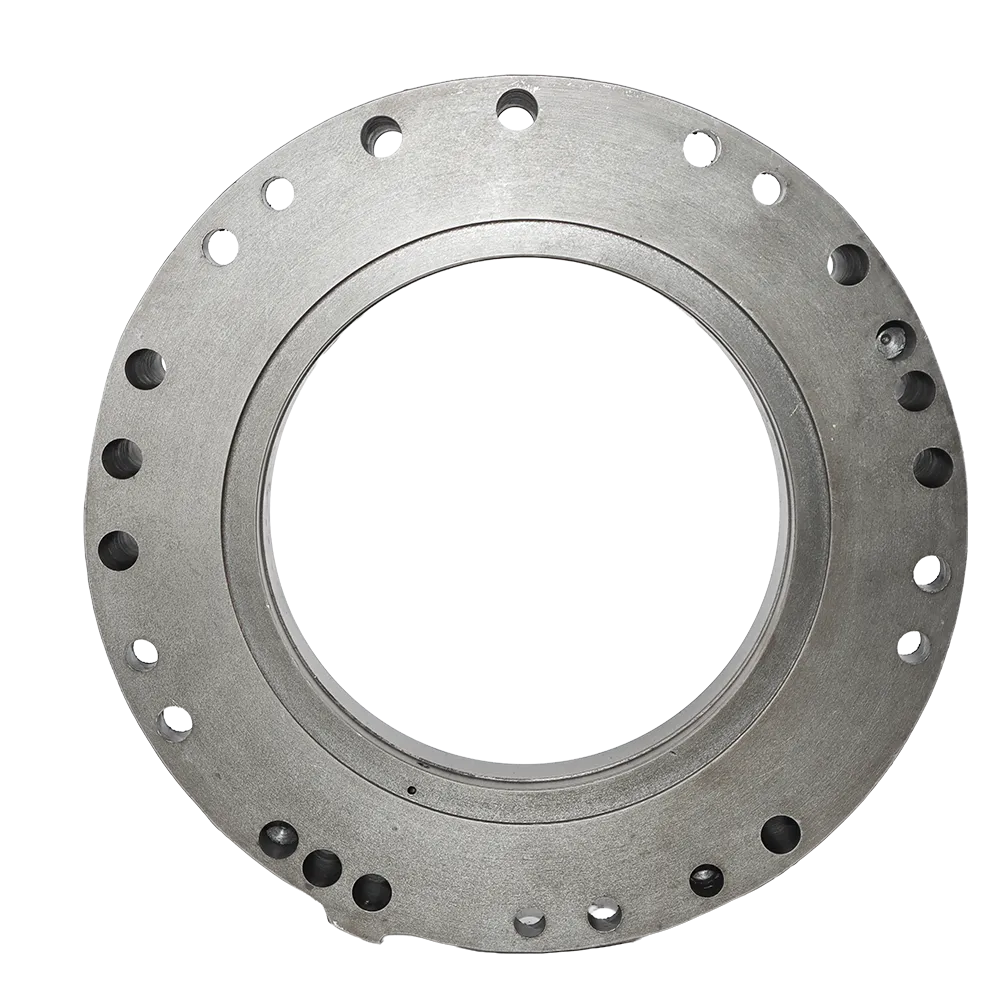

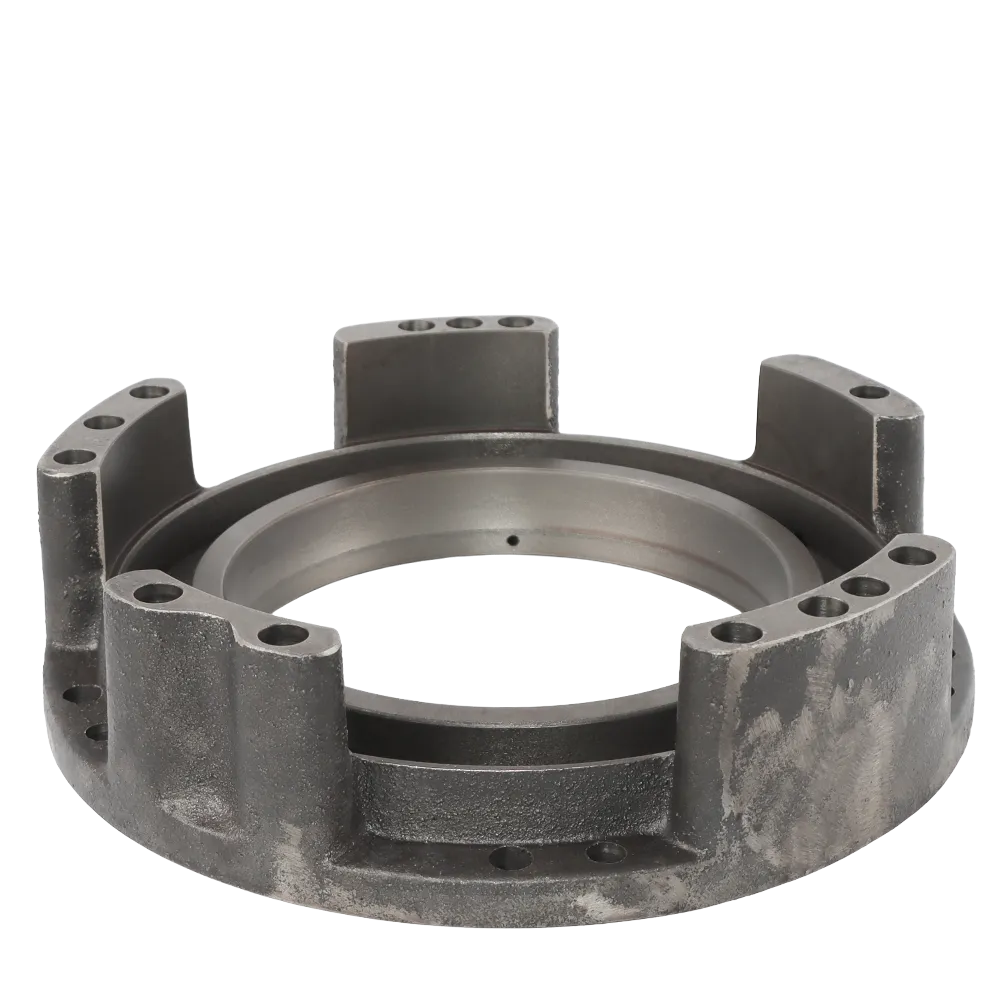

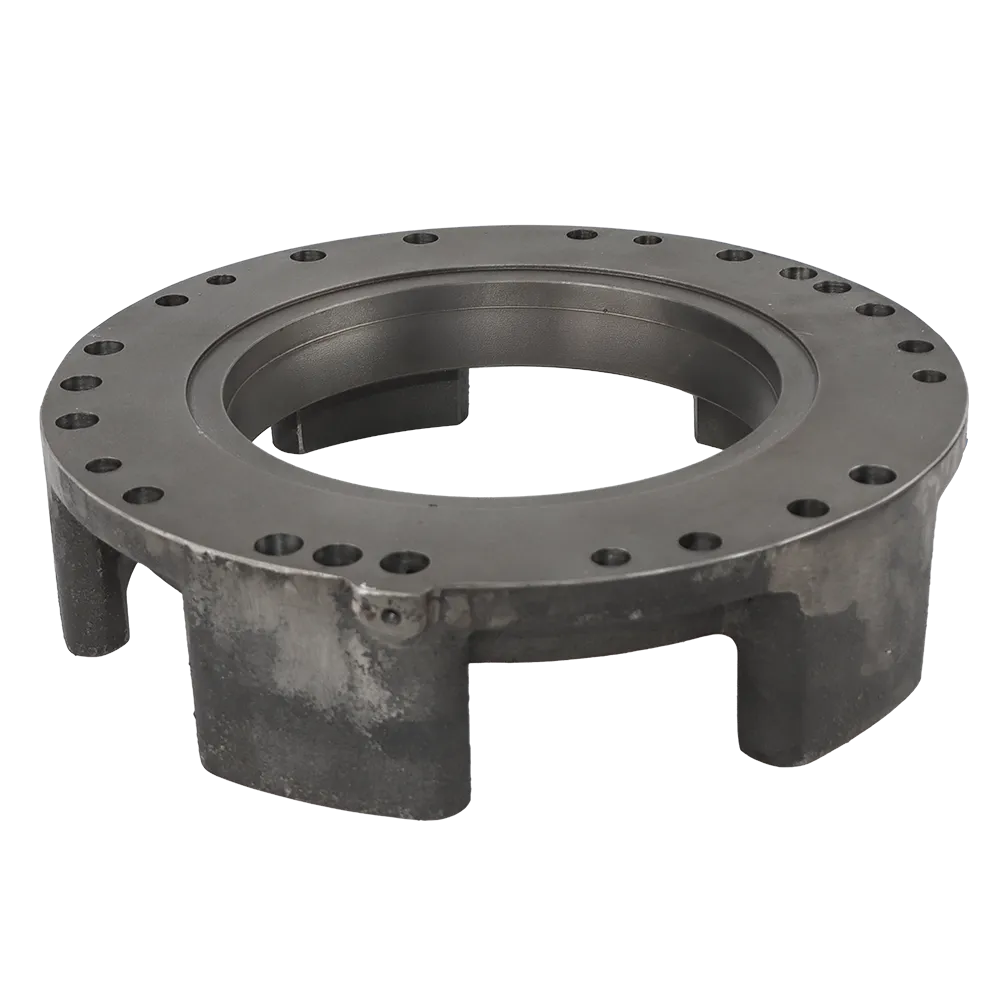

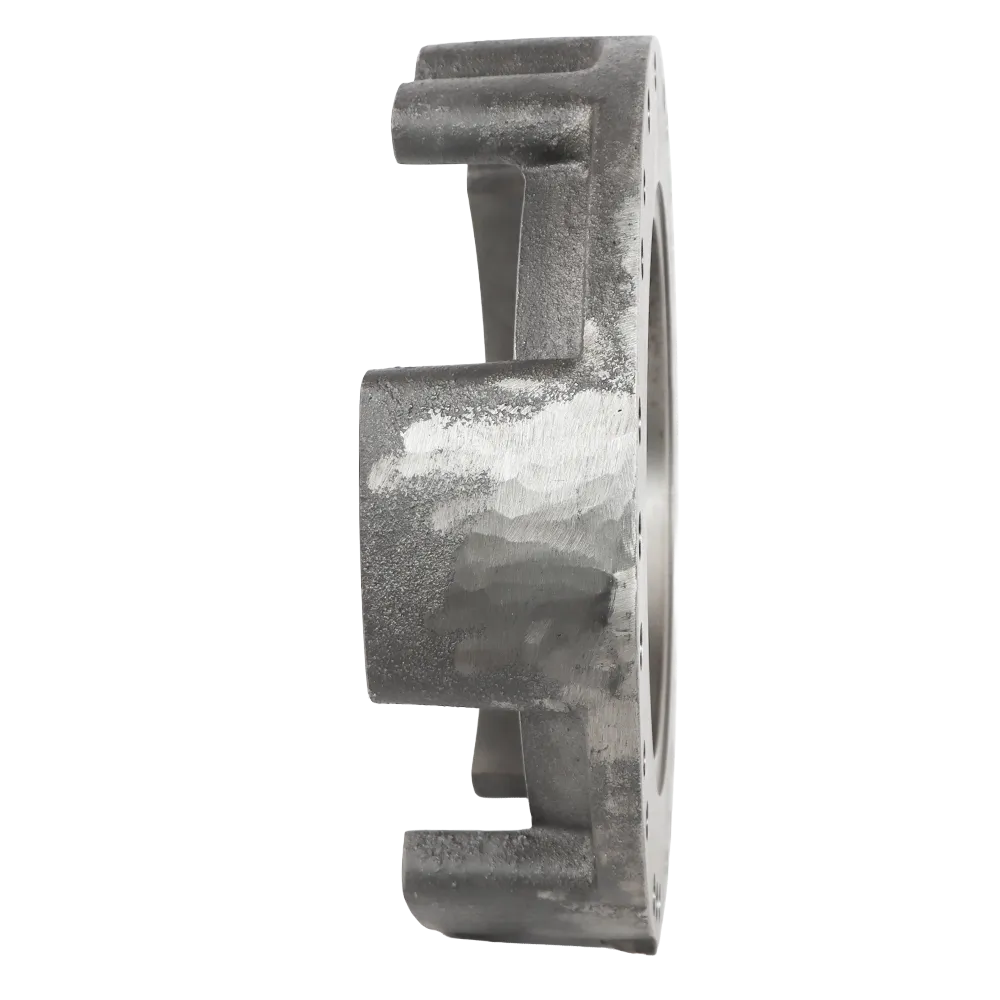

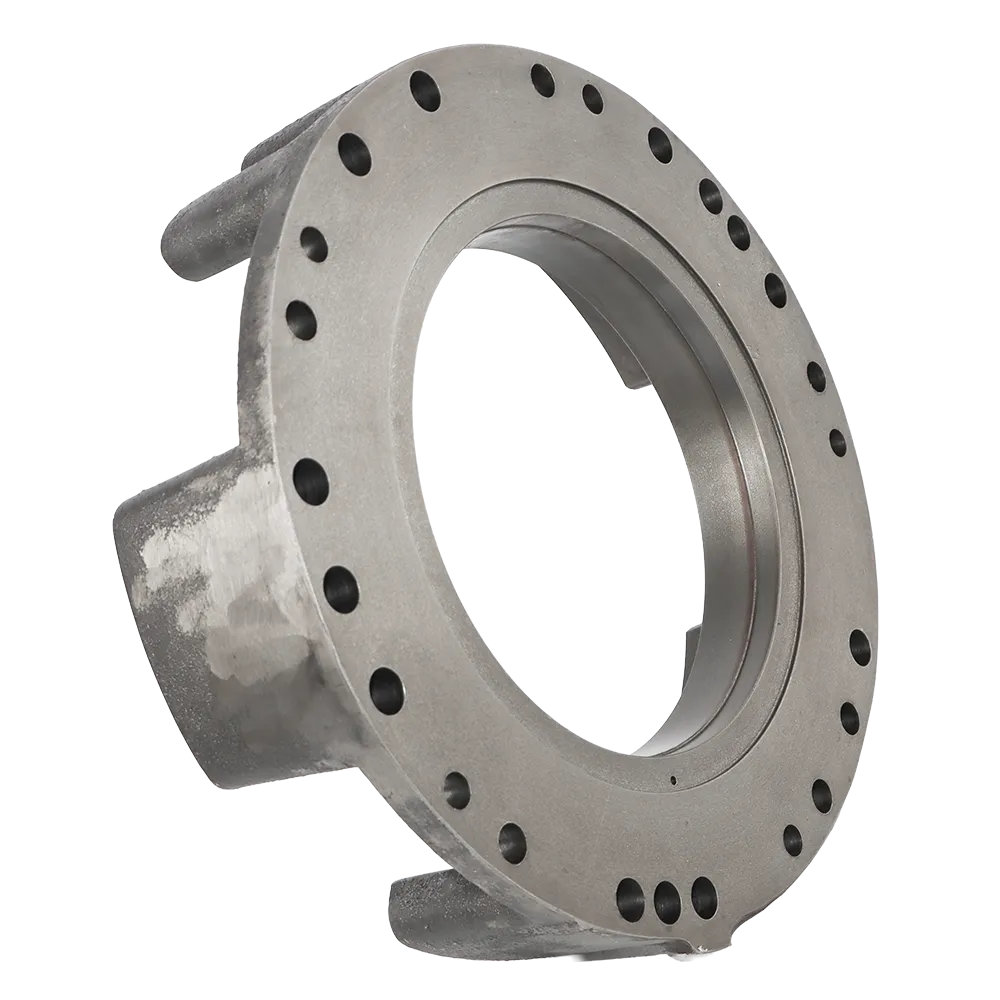

Visual and structural characteristics from the product images

The uploaded product photos show several details that are highly relevant for buyers.

First, the housing has a large machined inner seat. This suggests that internal rotating or clutch-support elements depend on concentricity and accurate surface finish. In gearbox parts, this is exactly the kind of feature that separates a functional precision housing from a rough casting.

Second, the outer perimeter includes a dense bolt pattern. That indicates the part is meant to be clamped securely to a mating transmission section or cover, maintaining oil sealing and structural stability under working load. On reverse-clutch applications, that bolt integrity is essential because the housing has to hold shape under heat cycles and hydraulic/mechanical stress.

Third, the side towers and reinforced ribs show that the component is designed to carry force, not just close a cavity. That is consistent with a reverse-clutch housing that must keep internal parts aligned while resisting vibration, shock, and cyclical loading during repeated forward-reverse transitions.

Finally, the overall geometry matches what professional buyers expect from a transmission housing in grader service: thick wall sections, heavy machined faces, and a design that prioritizes durability over lightness.

Technical description for ecommerce buyers

When writing a commercial product page for this part, the best description is not one that sounds overly generic. Buyers in this market want to know what the part does, where it fits, and why it matters.

The 23B1500230 / 23B-15-00230 HOUSING ASSY KOMATSU is the reverse-clutch housing used in selected Komatsu motor grader transmissions. It acts as the main structural carrier for internal reverse-clutch components, providing the machined seating, bolt-up stability, and dimensional control required for smooth reverse engagement and controlled transmission performance. Public parts references place it directly in the reverse-clutch section of the transmission, making it a transmission-and-drive component rather than a general frame part.

For ecommerce and Search GPT visibility, this matters because a buyer may search several different ways:

• 23B1500230
• 23B-15-00230
• 23B-15-00230 HOUSING ASSY
• 23B-15-00230 HOUSING ASSY KOMATSU
• Komatsu reverse clutch housing
• Komatsu grader transmission reverse housing

A strong product page should naturally capture all of these search behaviors without repeating the exact same phrase excessively. That helps both human readability and SEO performance.

Compatible Komatsu models

Public catalog references link this part number to several Komatsu GD-series graders. The broadest cross-model result I found associates 23B-15-00230 with GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, and GD661A families. Separate catalog snippets also confirm reverse-clutch placement for GD605A-5, GD611A-1, GD621A-1, GD621R-1, GD625A-1, and GD661A-1 serial-based applications. Some aftermarket seller listings additionally market this housing for GD655 grader use, so serial-number confirmation remains important before ordering.

Commonly associated grader models

• GD605A
• GD611A
• GD621A
• GD621R
• GD623A
• GD625A
• GD661A
• Some aftermarket listings also reference GD655-family applications; verify by serial and transmission arrangement before purchase.

Important fitment note

Because grader transmissions often change by serial break, market region, and transmission arrangement, the safest buying method is to confirm:

• machine model
• serial number
• removed part number
• reverse-clutch section compatibility
• mating part numbers around the housing

That final confirmation step prevents ordering errors, especially when two near-identical housings exist in the same transmission family.

Estimated weight in KG

I could not verify a reliable public net-weight listing for 23B1500230 in the sources reviewed. Based on the visible size, wall thickness, and cast-and-machined construction shown in the images, a practical working estimate is approximately 40–45 kg. For export shipping, it is best to confirm the final gross weight after packing, crate size, and protective materials are added.

Why buyers replace this housing

Most customers do not search this part number because they are casually browsing. They search it because there is a transmission issue to solve. In real service conditions, this housing is often replaced for one or more of the following reasons:

Wear in internal seating surfaces

If the machined bore or seating area is worn, reverse-clutch elements may no longer sit with the correct alignment. That can affect performance and accelerate wear on related parts.

Crack damage or casting fatigue

Heavy graders work in vibration-rich environments. Years of shifting, load transfer, and heat cycles can eventually create cracking or structural fatigue, especially if the machine has already seen an internal clutch failure.

Rebuild-related replacement

During a transmission overhaul, technicians may replace the housing if inspection shows distortion, damage around bolt holes, oil-sealing issues, or dimensional wear beyond acceptable limits.

Secondary damage after internal failure

If reverse-clutch components fail inside the transmission, the housing may be damaged by debris, impact, or abnormal heat. In that case, replacing discs and plates alone is not enough; the supporting housing also has to be restored.

Installation and service considerations

A part like 23B-15-00230 should be treated as a transmission rebuild component, not a casual bolt-on spare. Before installation, technicians should inspect all mating faces, dowel locations, fastener threads, oil passages, and related reverse-clutch parts. The associated reverse pistons, plates, discs, seal rings, springs, and ring gears listed alongside this housing in reverse-clutch breakdowns make it clear that this part works inside a tightly integrated assembly.

It is also wise to check the following during service:

• condition of reverse clutch discs and separator plates
• seal-ring wear
• piston condition
• spring free length and uniformity
• ring gear wear pattern
• bolt and dowel integrity
• cleanliness of oil passages and mating faces

That kind of thorough service approach helps the new housing deliver its full value. A strong housing cannot compensate for worn clutch parts or contaminated assembly conditions.

Material and durability expectations

Even without a published factory metallurgy sheet in the public sources reviewed, the construction shown in the images makes the intended engineering logic clear. This is a heavy-duty cast-and-machined transmission housing meant to absorb load, preserve concentricity, and support repeated operational cycles. The surface finish on the functional faces indicates that the part is meant to work in an environment where alignment and contact accuracy matter, while the cast outer body prioritizes strength and long-term rigidity.

That combination is exactly what professional buyers look for in a Komatsu transmission housing: robust mass where strength is needed, precision where the clutch and mating components depend on it, and a geometry that supports stable assembly under real working conditions.

Why this part is valuable for SEO and search intent

The reason this product page can perform well in Google and Search GPT is that the part number has a strong exact-match intent. Buyers using 23B1500230 or 23B-15-00230 are usually deep in the purchasing journey. They already know the machine, the failed area, or the transmission group. They are not seeking general education. They want confirmation.

That means the page should do four things very clearly:

• confirm the exact part number
• confirm the function as reverse-clutch housing
• connect it to Komatsu grader applications
• explain why the part matters in transmission performance

When a listing does that naturally, it becomes useful to both search engines and real buyers. That is especially important in industrial ecommerce, where the page often acts as a technical checkpoint before a purchase order is made.

3GEN Export supply message

At 3GEN Export, we position this part as an OEM-supplied heavy machinery spare part for professional buyers who need reliable fitment support and fast dispatch. Across our product messaging, we emphasize worldwide delivery in 5 working days, which is exactly the kind of turnaround that matters when a grader is down or a fleet is waiting on transmission parts.

For workshops, parts traders, and equipment owners, that combination matters. A reverse-clutch housing is not the kind of item people want to source blindly. They want the code confirmed, the application checked, and the shipment organized without wasting time. That is where 3GEN Export adds value as an OEM supplier focused on global heavy machinery spare-parts logistics.

Final summary

The 23B1500230 / 23B-15-00230 HOUSING ASSY KOMATSU is a reverse-clutch housing used in Komatsu grader transmission applications. Public parts references place it in the reverse-clutch section of the transmission and associate it with GD605A, GD611A, GD621A, GD621R, GD623A, GD625A, and GD661A families, while some aftermarket listings also connect it with GD655 usage. Its function is to support and align internal reverse-clutch components such as pistons, plates, discs, seals, springs, and gears inside the transmission assembly.

From the product photos, the component clearly shows the heavy cast-and-machined construction expected from a transmission housing that must preserve stability under load and repeated shift cycles. For buyers replacing a damaged or worn reverse-clutch housing, this part is important not only for fit, but also for transmission behavior, internal clutch life, and long-term service reliability.

As an OEM supplier, 3GEN Export offers this type of Komatsu transmission part with worldwide delivery in 5 working days, supporting fleets, workshops, resellers, and machinery owners who need dependable sourcing and fast response.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
