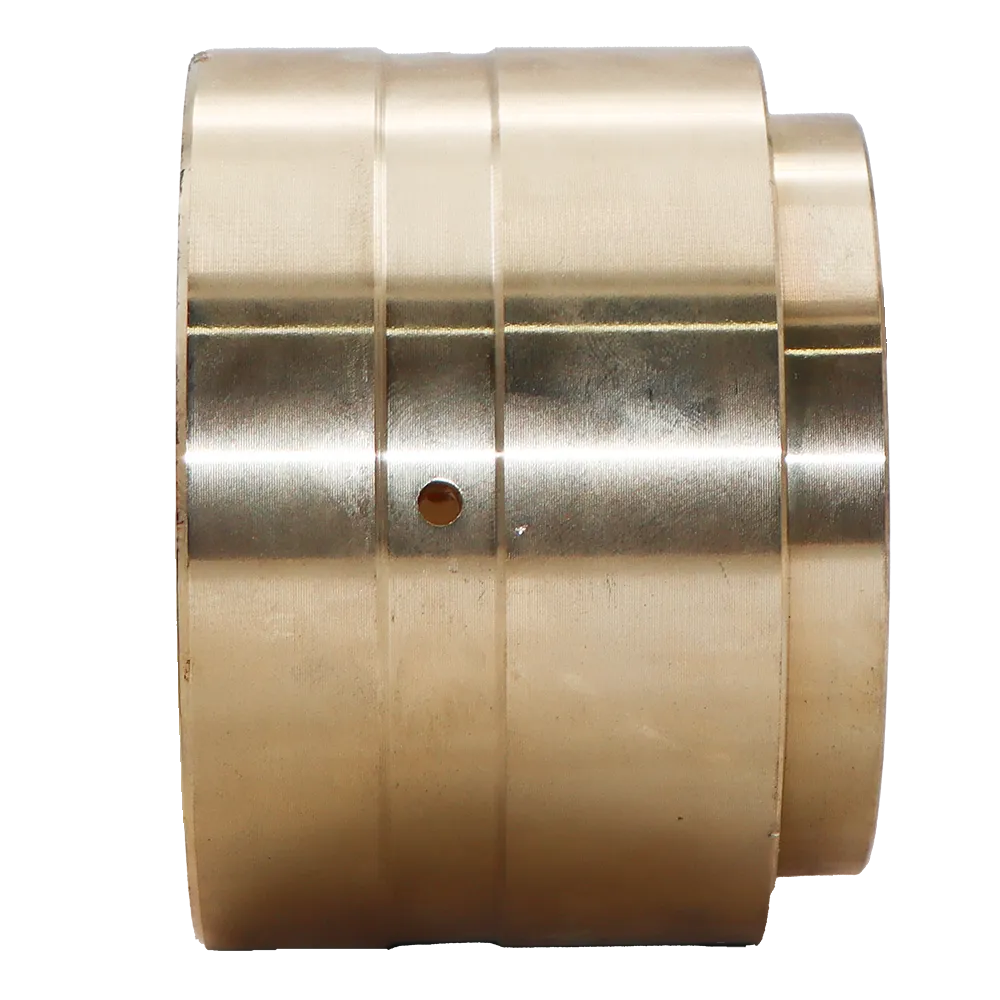

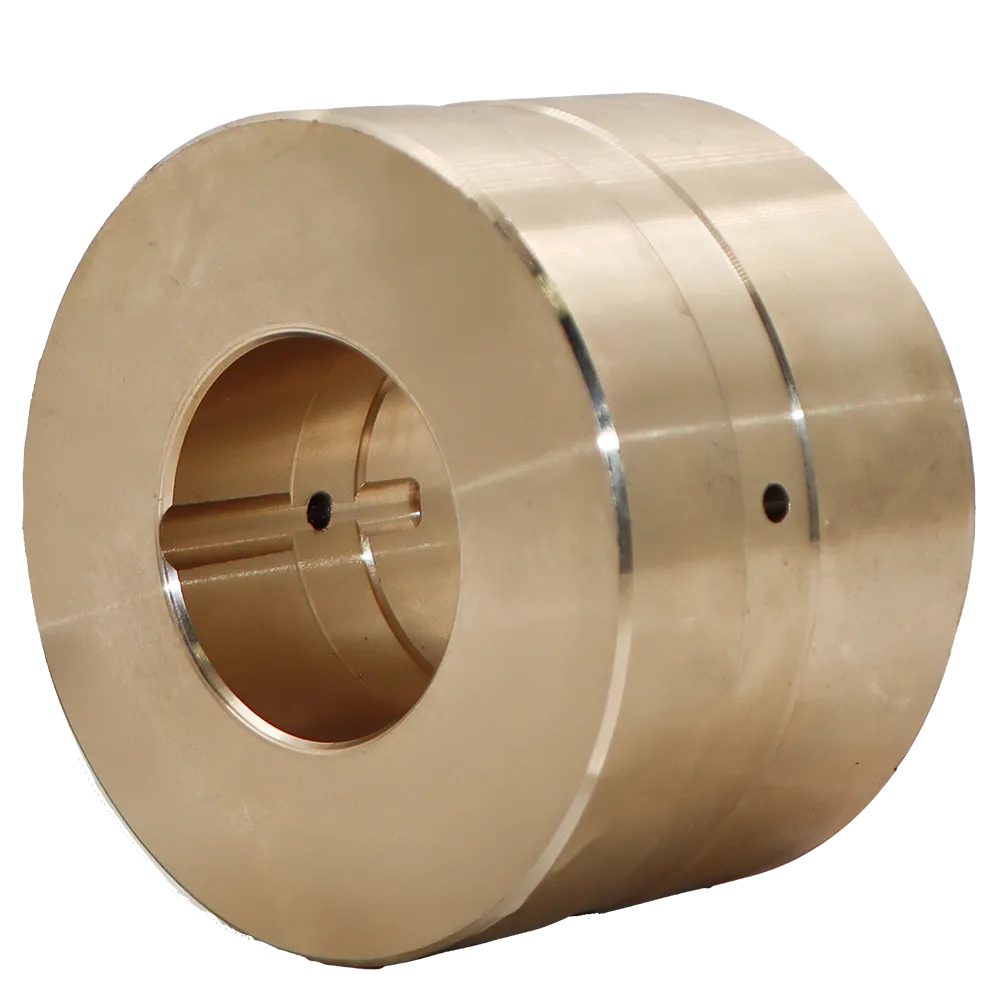

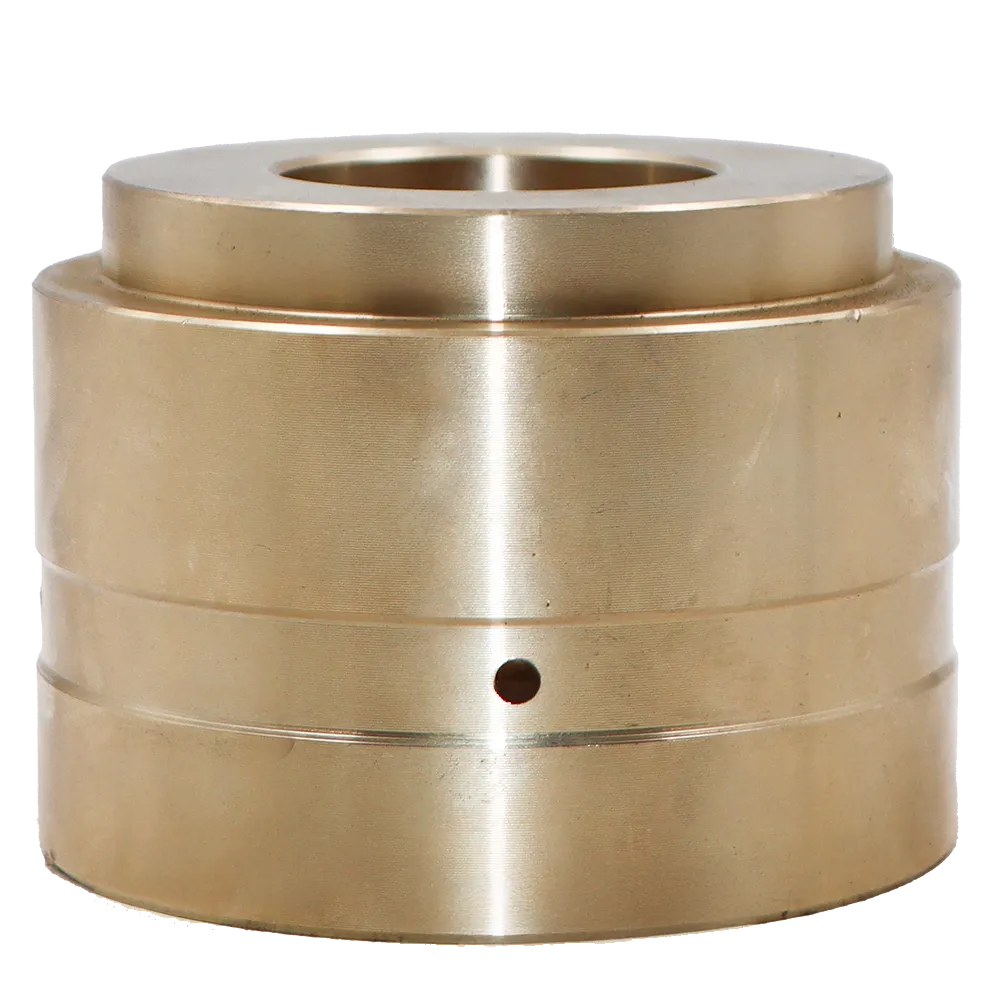

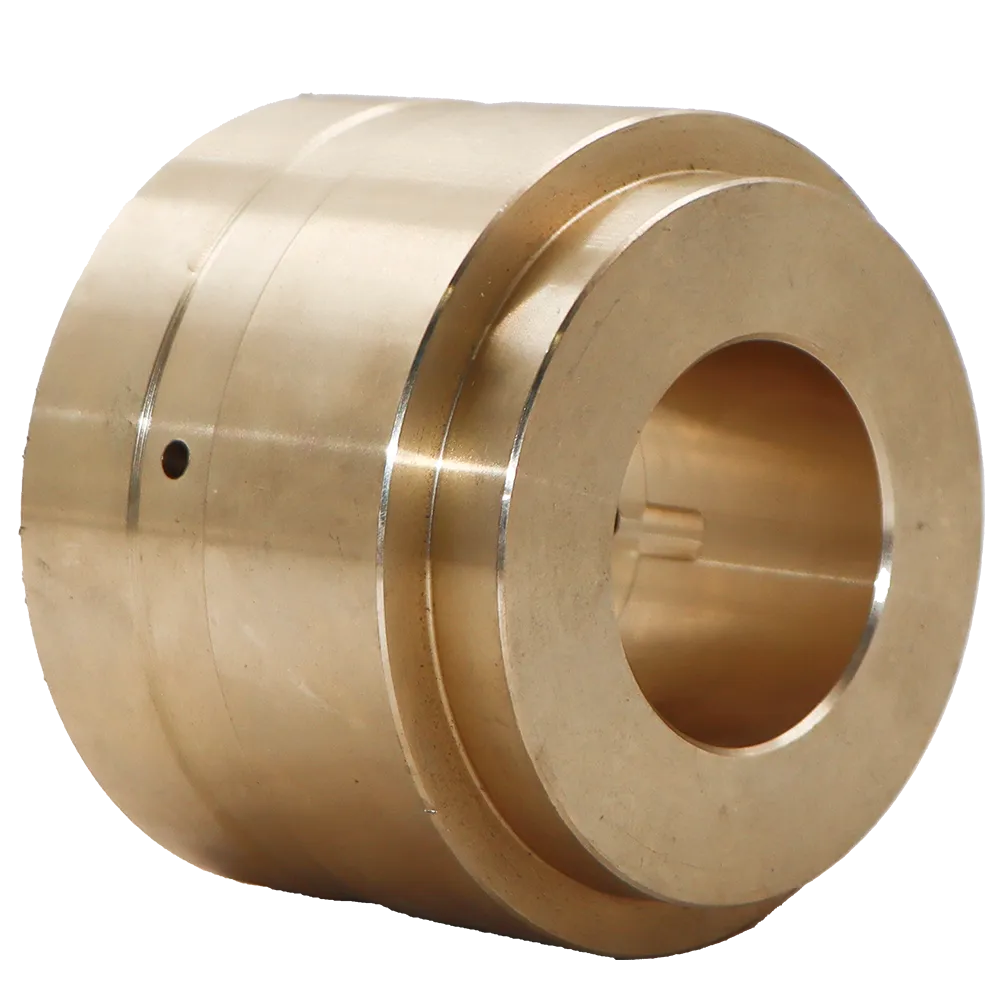

3115211800, 3115 2118 00 GUIDE ATLAS COPCO

(OEM-Precision Front Guide Bushing for Atlas Copco Hydraulic Drifters by 3GEN Export)

---

Overview

The 3115211800 , 3115 2118 00 GUIDE ATLAS COPCO is a precision-engineered front guide bushing that serves a critical role in the structural and mechanical stability of hydraulic drifters. Manufactured with high-strength brass alloy and finished through advanced CNC machining, this part ensures flawless alignment between the piston, shank adapter, and chuck housing within the rock drill assembly.

This guide minimizes vibration, ensures concentric rotation, and absorbs dynamic impact loads during continuous drilling operations. Each component supplied by 3GEN Export is built to OEM-level standards, combining dimensional accuracy with superior wear resistance.

Engineered for durability, the 3115 2118 00 GUIDE ATLAS COPCO performs reliably in demanding mining, tunneling, and construction environments, offering long-term performance stability even under extreme operating pressures.

---

Functional Importance

In hydraulic drifters, guides are designed to maintain precise alignment and reduce friction between reciprocating and rotating components. The 3115211800 GUIDE ATLAS COPCO supports the drifter’s piston and chuck assembly, ensuring linear motion stability and preventing misalignment that can lead to vibration, torque fluctuation, or mechanical fatigue.

Its bronze alloy composition provides self-lubricating properties, allowing the bushing to endure high temperatures and repetitive impact cycles without surface scoring or deformation.

Core Functions:

• Aligns the piston and chuck within the drifter housing

• Absorbs axial and radial loads during percussion drilling

• Reduces wear between contact surfaces

• Maintains proper lubrication flow through its internal oil channel

• Extends operational life of critical drilling components

This part is essential for sustaining the drifter’s mechanical integrity, directly influencing drilling precision, impact energy transfer, and the overall lifespan of the hydraulic system.

---

Technical Specifications

---

Engineering Design and Construction

The 3115 2118 00 GUIDE ATLAS COPCO features a robust yet precisely machined structure that ensures optimum load distribution and alignment accuracy. Its dual-groove design facilitates consistent lubrication flow, preventing surface seizure during high-speed operation.

Key Design Attributes:

• Precision Inner Bore: Maintains minimal clearance between the piston and the guide bore for consistent performance.

• Oil Feed Hole: Central lubrication port guarantees steady oil circulation, reducing friction and temperature rise.

• Chamfered Edges: Ease installation and prevent burr-related assembly issues.

• Polished Surface: Achieves low-friction contact, ensuring stable movement even during prolonged percussion cycles.

By combining mechanical balance with metallurgical stability, this guide enhances the overall durability of the drifter and improves drilling performance under continuous operation.

---

Material Science and Manufacturing Process

The 3115211800 GUIDE ATLAS COPCO is manufactured from a specialized brass alloy, carefully selected for its combination of ductility, hardness, and self-lubrication properties.

Material Composition and Benefits:

• Copper (Cu): Provides high thermal conductivity and impact resistance.

• Tin (Sn): Increases hardness and wear resistance.

• Lead (Pb): Improves machinability and reduces friction under dry conditions.

• Zinc (Zn): Enhances strength and corrosion resistance.

Each unit undergoes CNC machining with micro-level precision, achieving tolerance levels within ±0.01 mm. Post-machining, it is heat treated and surface polished to eliminate micro-burrs, ensuring smooth operation within the hydraulic housing.

This combination of material engineering and precision manufacturing guarantees a part that performs consistently across thousands of drilling hours without premature degradation.

---

Compatibility with Atlas Copco Models

The 3115211800 , 3115 2118 00 GUIDE ATLAS COPCO is designed for a wide range of Atlas Copco hydraulic drifters. It ensures a perfect fit and optimal alignment across various models used in surface and underground drilling systems.

Compatible Drifter Models:

• COP 1238

• COP 1638

• COP 1838

• COP 1840

• COP 1850

• COP 2238

• COP 2240

These drifters are commonly installed on Atlas Copco Boomer, ROC, and FlexiROC rigs, widely used across mining, quarrying, and tunneling projects. The guide ensures consistent drilling performance and reduces mechanical stress on the drifter’s internal assembly.

---

Role in the Hydraulic Drifter Assembly

The guide bushing is located at the forward end of the drifter housing, positioned between the piston and chuck. It acts as a stabilizing support and friction-reducing sleeve for the reciprocating components, facilitating smooth axial motion.

Mechanical Functions:

• Keeps piston travel linear and concentric

• Supports rotational load transfer to chuck assembly

• Reduces mechanical noise and vibration

• Preserves impact efficiency of the percussion system

• Prevents leakage of lubricants through internal sealing grooves

By ensuring structural alignment and efficient lubrication, the 3115 2118 00 GUIDE ATLAS COPCO contributes directly to the drifter’s consistent drilling accuracy and energy efficiency.

---

Performance Advantages

1. Superior Durability

Engineered from corrosion-resistant brass alloy, this guide can withstand continuous exposure to dust, high temperatures, and hydraulic oil without losing dimensional integrity.

2. Low Friction and Smooth Operation

The polished inner bore and oil channels maintain a continuous lubrication film, significantly reducing metal-to-metal contact and extending service intervals.

3. Enhanced Equipment Longevity

By absorbing vibration and reducing misalignment, it prevents excessive wear on pistons, couplings, and chuck housings.

4. Easy Installation

Its perfectly machined edges and balanced geometry enable quick replacement without requiring additional fitting adjustments.

5. Thermal Stability

Remains dimensionally stable under rapid temperature fluctuations, ensuring reliable performance during prolonged drilling cycles.

---

Installation and Maintenance

Installation Procedure:

1. Clean the housing bore thoroughly to remove debris and oil residues.

2. Apply light lubricant to the outer surface of the guide.

3. Press-fit the bushing evenly into the housing without applying excess force.

4. Ensure alignment of the lubrication port with the oil feed channel.

5. Verify free piston movement after installation.

Maintenance Recommendations:

• Inspect every 1000 drilling hours for wear or surface scoring.

• Keep lubrication passages free of debris or blockages.

• Replace when radial clearance exceeds OEM tolerance limits.

• Use compatible greases and hydraulic oils as recommended by the manufacturer.

Proper care and periodic inspection of the guide can prevent unplanned downtime and maintain consistent drilling output.

---

Applications

The 3115211800 , 3115 2118 00 GUIDE ATLAS COPCO is utilized in heavy-duty rock drilling applications where high impact frequency and torque loads are constant.

Industry Uses:

• Mining Operations: Hard rock excavation and ore extraction.

• Tunneling: Underground infrastructure and metro construction.

• Quarrying: Precision rock cutting and fragmentation.

• Hydraulic Drifter Maintenance: Essential for rebuild and servicing of drilling rigs.

Its combination of strength, corrosion resistance, and dimensional precision ensures reliable performance across all field conditions.

---

Quality Assurance and Testing

Every 3115 2118 00 GUIDE ATLAS COPCO supplied by 3GEN Export undergoes rigorous quality control checks:

Quality Process:

• Dimensional inspection using coordinate measuring machines (CMM)

• Hardness and microstructure testing

• Lubrication flow testing under pressurized conditions

• Vibration and endurance testing simulating field environments

Only components that meet or exceed OEM-quality standards are packaged and certified for export.

---

Why Choose 3GEN Export

3GEN Export stands as a trusted global OEM supplier for heavy machinery and drilling equipment components. With over 15 years of precision engineering experience, 3GEN delivers performance-oriented spare parts that ensure durability, reliability, and compatibility.

Our Advantages:

• OEM-Level Engineering: 100% compatible with Atlas Copco standards.

• Global Delivery: All shipments are dispatched within 5 working days.

• Comprehensive Range: Complete solutions for rock drills, compressors, and hydraulic systems.

• 1-Year Manufacturer Warranty: Confidence and reliability guaranteed.

• Customer-Centric Service: Dedicated support for installation, compatibility, and after-sales care.

3GEN Export products are trusted by global contractors and maintenance professionals who demand precision and dependability in every operation.

---

Environmental and Production Standards

All 3115211800 , 3115 2118 00 GUIDE ATLAS COPCO components are produced under environmentally responsible manufacturing practices. The production process follows ISO-compliant quality systems, ensuring minimal waste generation and full recyclability of raw materials.

3GEN Export actively integrates sustainable sourcing and energy-efficient machining techniques to align industrial performance with ecological responsibility.

---

Conclusion

The 3115211800 , 3115 2118 00 GUIDE ATLAS COPCO represents the perfect blend of precision, reliability, and material excellence. Built for Atlas Copco’s COP-series drifters, this part ensures smooth motion alignment, superior vibration control, and consistent torque transmission throughout extended drilling operations.

With its robust brass alloy construction and precision-engineered design, it delivers long service life even in the most demanding industrial environments.

By sourcing through 3GEN Export, you benefit from OEM-level performance, global logistics efficiency, and the assurance of a manufacturer committed to engineering excellence. Delivered worldwide within 5 working days, this guide bushing keeps your drilling equipment operating at peak productivity.

      Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.

---
