3115504312 CONNECTING PLATE ATLAS COPCO (3115 5043 12)

If you’re rebuilding or maintaining an underground drilling system, small structural interface parts can decide whether the whole machine runs smoothly or starts “walking” out of alignment under vibration. The 3115504312 Connecting Plate Atlas Copco is one of those critical interfaces: a precision-machined connecting plate that helps hold components in position, keeps mating parts aligned, and supports stable operation in demanding rock drilling conditions.

In real sites, a connecting plate is rarely “just a plate.” It is a load path. It is a locator. It is the quiet part that makes the noisy parts behave. The 3115504312 Connecting Plate Atlas Copco is designed to sit between connected elements of the assembly and maintain geometry under cyclic stress, impact pulses, and hydraulic vibration—exactly the kind of environment where loose tolerances and weak finishes fail early.

At 3GEN Export, we supply the 3115504312 Connecting Plate Atlas Copco as an OEM-spec replacement part for international customers who need fast, dependable fulfillment. We ship worldwide in 5 working days, supporting mining and construction operations that cannot afford downtime.

What the 3115504312 Connecting Plate Atlas Copco does in the system

A connecting plate’s job is to keep multiple components acting like one stable structure. The 3115504312 Connecting Plate Atlas Copco functions as a rigid interface point, helping prevent micro-movement that can cause:

• Misalignment in mounted components

• Uneven wear on pins, bushings, and mating faces

• Noise and vibration amplification

• Premature loosening of fasteners

• Stress concentration and cracking in neighboring parts

Because rock drilling creates repeated shock loading, even tiny shifts compound quickly. The 3115504312 Connecting Plate Atlas Copco helps protect the wider assembly by spreading forces across a broader surface area and keeping the contact faces seated as designed.

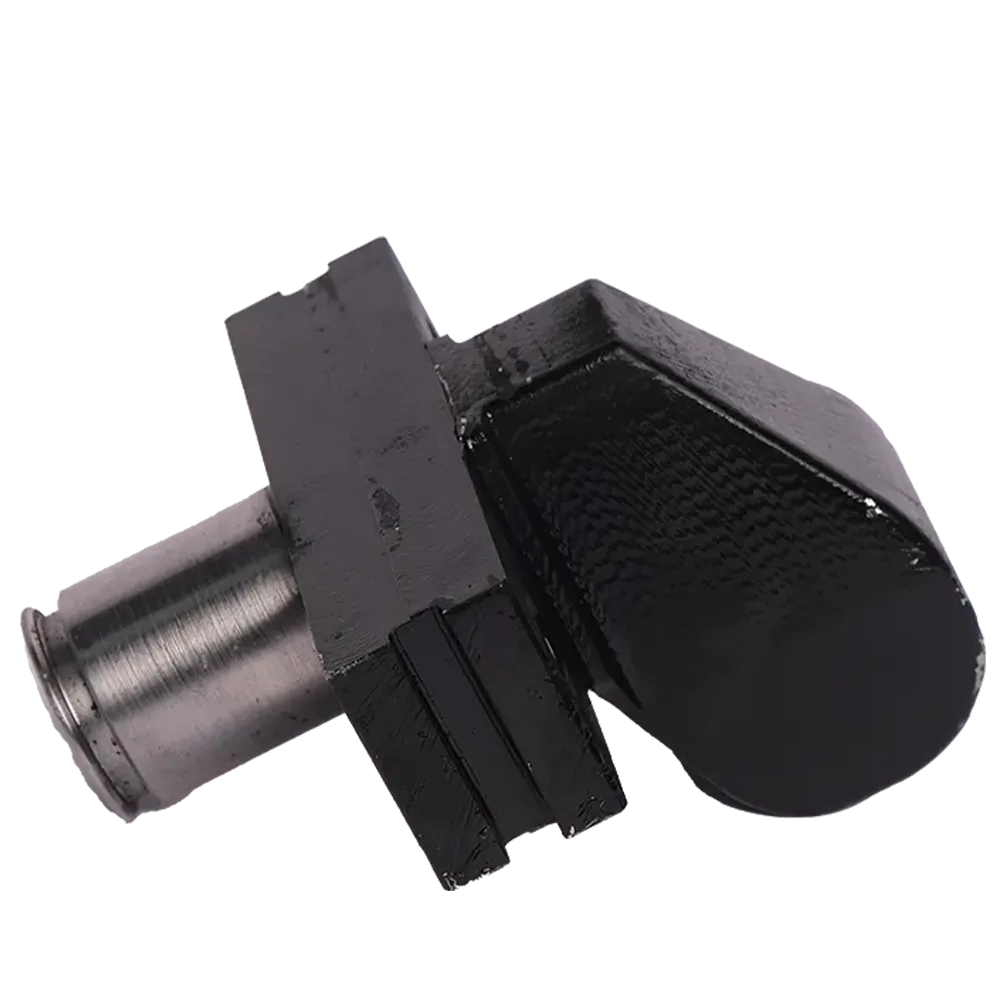

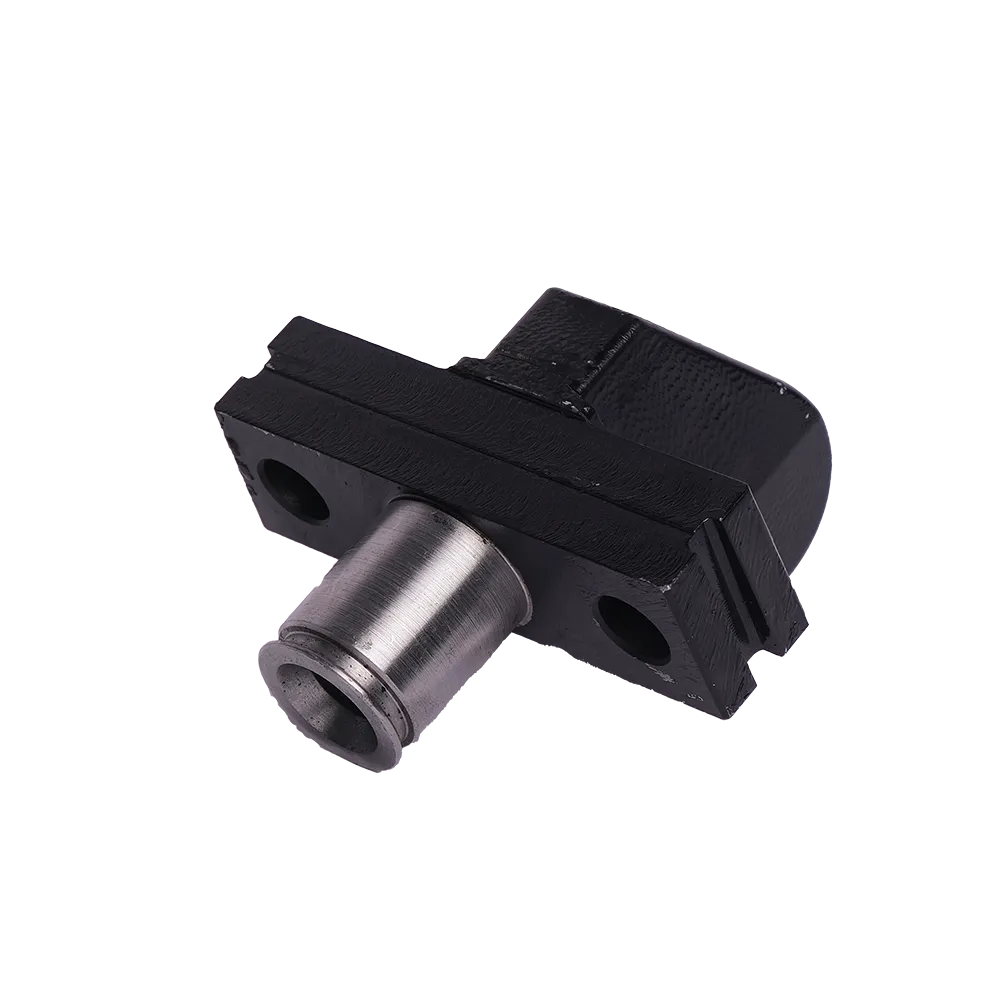

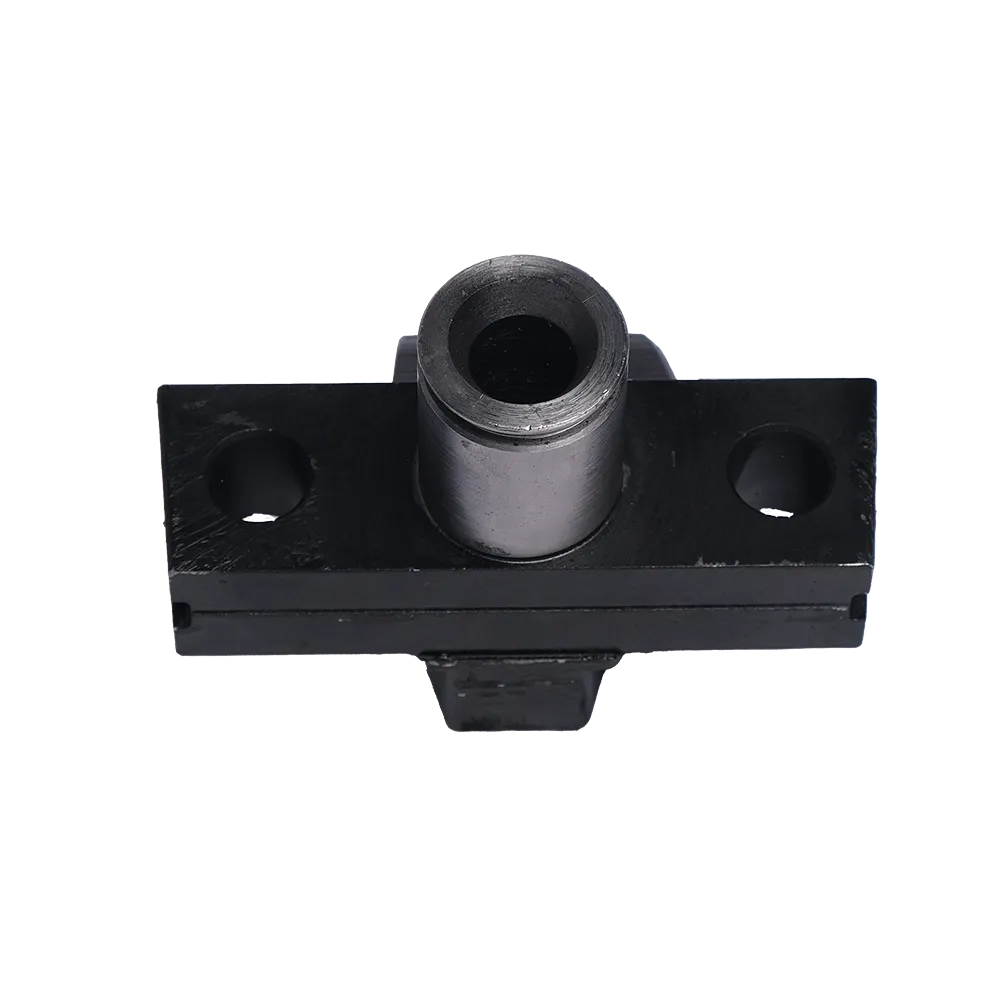

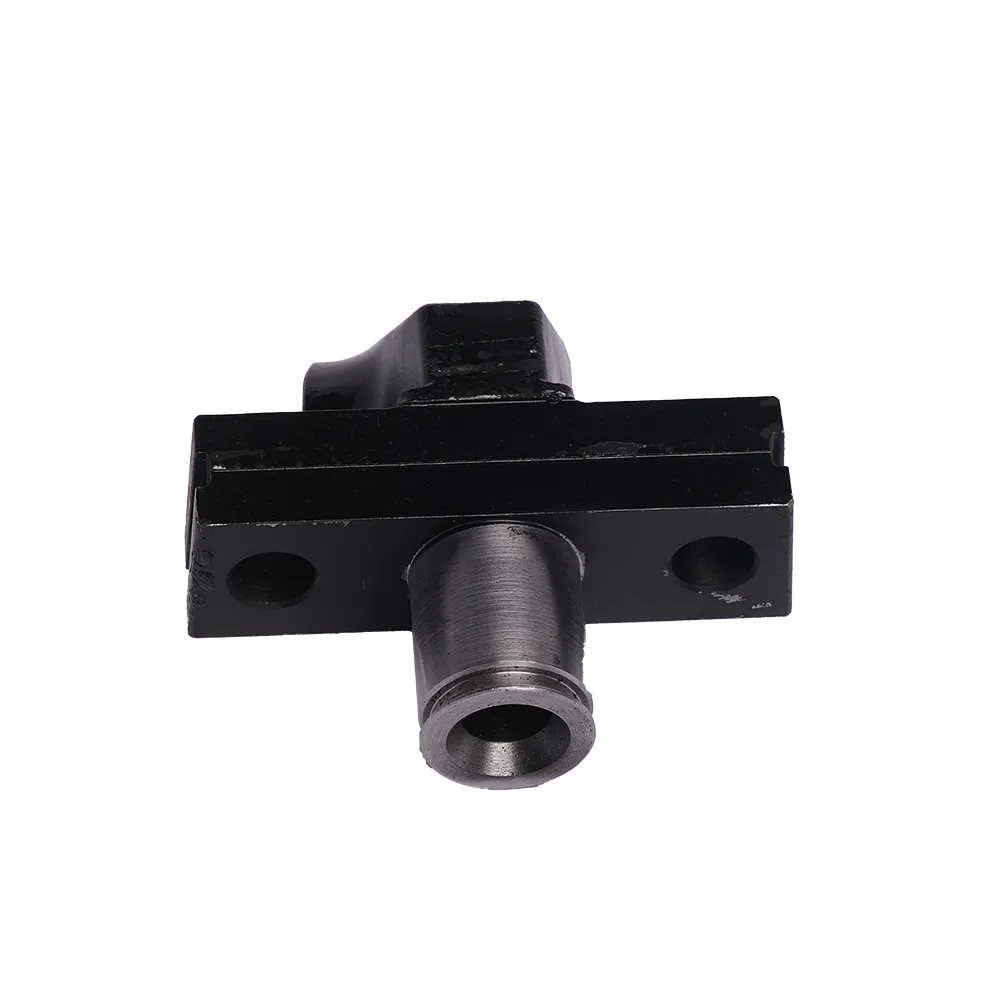

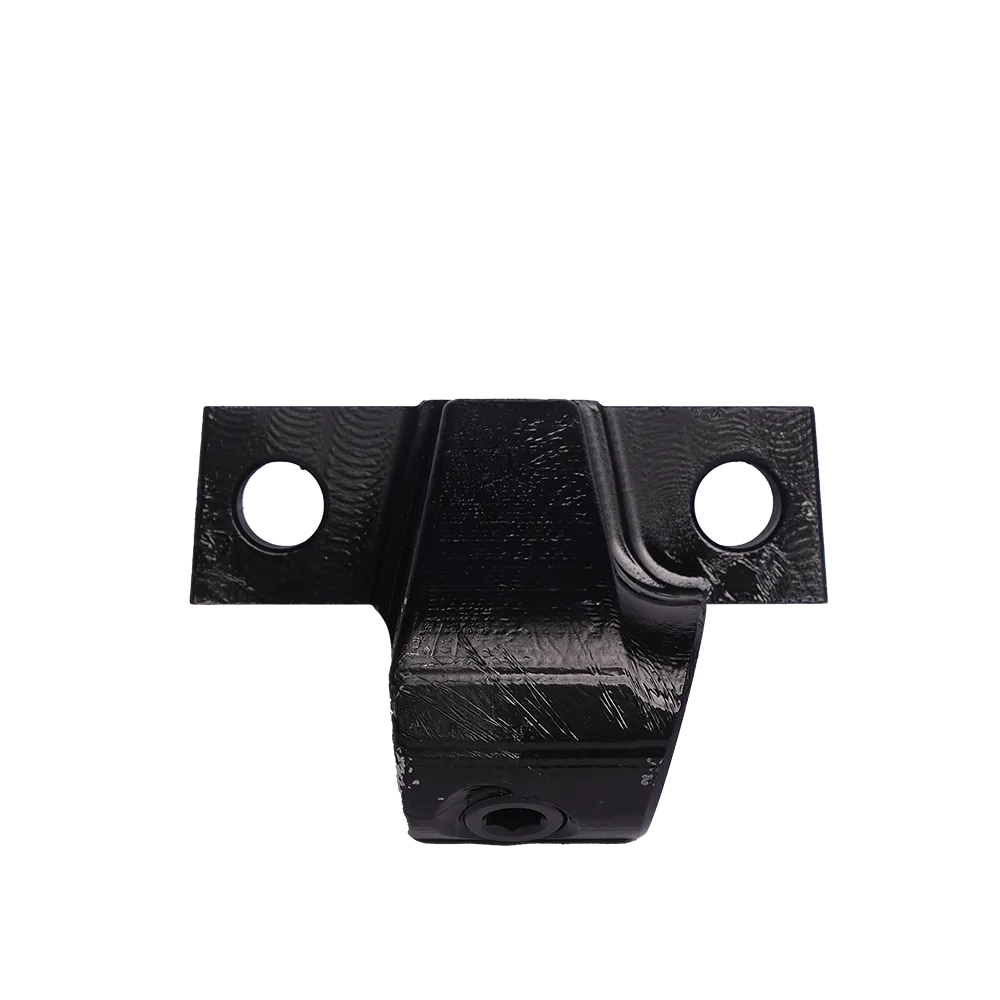

From the images, the part shows a heavy, machined body with a cylindrical sleeve/boss feature and dual through-holes for mounting. That geometry strongly suggests an alignment + mounting role—where the boss supports accurate positioning while the bolt holes clamp the plate into the structure.

When you install a correctly made 3115504312 Connecting Plate Atlas Copco, you’re not only replacing a worn component—you’re restoring the designed geometry that keeps the rest of the system working in-spec.

Why this component matters in rock drilling environments

Underground and surface rock drilling systems don’t fail politely. They fail by vibration, heat, contamination, and repeated impact. In that context, the 3115504312 Connecting Plate Atlas Copco matters because it supports:

Dimensional stability under shock

Rock drills create high-frequency impact cycles. If the interface plate flexes or creeps, bolt preload changes, mating surfaces fret, and cracks can initiate. A properly machined 3115504312 Connecting Plate Atlas Copco helps reduce these risks by maintaining rigidity where it counts.

Alignment that protects wear parts

When the interface geometry is correct, load transfers as intended. That means bushings wear evenly, pins stay seated, and adjacent components aren’t forced to “compensate” for an out-of-square connection. Over time, this can noticeably reduce secondary failures.

Predictable serviceability

Maintenance teams need parts that fit without drama. A correctly produced 3115504312 Connecting Plate Atlas Copco supports repeatable assembly: holes line up, contact faces seat, and torque specs actually hold.

Construction and design features of the 3115504312 Connecting Plate Atlas Copco

While exact material grades and dimensions should be verified by the machine manual and serial-specific parts book, a quality OEM-spec 3115504312 Connecting Plate Atlas Copco generally reflects the functional needs seen in the component design:

Precision-machined mounting faces

Flatness and parallelism matter. A connecting plate that rocks on its seat or has uneven faces will never clamp correctly. The 3115504312 Connecting Plate Atlas Copco is built to sit flush so bolt preload is distributed, not concentrated.

Robust mounting holes for secure fastening

The two large side holes shown in the images indicate mounting points designed for stable clamping. On drilling equipment, this is essential to prevent the gradual loosening caused by vibration.

Cylindrical boss/sleeve section for alignment

The protruding cylindrical section appears to act as a locating feature or interface sleeve, helping ensure that connected parts align concentrically and maintain stable positioning. This is exactly the type of geometry that turns a “plate” into a true connector.

Protective coating/finish

The dark surface finish suggests a protective coating intended to resist corrosion and surface wear in harsh environments. Underground applications often involve moisture, dust, and chemical exposure—so surface protection isn’t cosmetic; it’s life extension.

Benefits of choosing the 3115504312 Connecting Plate Atlas Copco (OEM-spec replacement)

When you select the 3115504312 Connecting Plate Atlas Copco for service work, you’re buying back stability. The practical benefits usually show up as:

Reduced vibration-related loosening

A stable interface helps fasteners keep their preload longer. That means fewer re-torque cycles and less “mystery movement” during inspections.

Lower risk of cascading wear

Misalignment can destroy expensive components indirectly. The 3115504312 Connecting Plate Atlas Copco helps protect neighboring parts by keeping the assembly geometry correct.

Cleaner rebuilds, faster installation

Parts that fit right reduce install time and reduce rework. In the field, that’s money. In underground operations, it’s also safety and scheduling.

More consistent drilling performance

When mechanical interfaces stay aligned, performance tends to be more consistent: less chatter, fewer unusual noises, and less heat generated by friction where friction shouldn’t exist.

Part numbers and search visibility: use both formats

For purchasing, stocking, and cross-referencing, it’s smart to use both part number formats:

• 3115504312 Connecting Plate Atlas Copco

• 3115 5043 12 Connecting Plate Atlas Copco

Some catalogs and sellers format Atlas Copco / Epiroc numbers differently. The 3115504312 Connecting Plate Atlas Copco and 3115 5043 12 Connecting Plate Atlas Copco references point to the same component listing in multiple sources.

Compatibility: Which Atlas Copco / Epiroc models use this part

Based on publicly available parts listings, the 3115504312 Connecting Plate Atlas Copco is shown as suitable for:

• Epiroc / Atlas Copco underground drilling: Boomer S1D

• Epiroc / Atlas Copco drifter-related references: COP 1638HD+, COP 1838HD+, COP 2238HD+

Important practical note: drilling equipment configurations vary by build, serial range, and installed options. So treat the list above as a strong starting point, then confirm with the machine serial number and the parts manual before final installation—especially if your assembly has been modified in previous rebuilds.

Typical use cases for the 3115504312 Connecting Plate Atlas Copco

The 3115504312 Connecting Plate Atlas Copco is commonly ordered during:

Planned rebuilds and overhauls

When you’re already disassembling major components, replacing structural interfaces is a smart move. It restores the assembly geometry and reduces “return-to-shop” failures.

Vibration and looseness troubleshooting

If your team notices repeated loosening, fretting marks near interfaces, unusual vibration, or alignment drift, replacing worn interface parts like the 3115504312 Connecting Plate Atlas Copco can be part of the corrective plan.

Component replacement sequences

Connecting plates are often replaced alongside:

• fasteners and washers (when stretch or thread wear is suspected)

• bushings or sleeves that show scoring or oval wear

• mating brackets that have fretting marks

• nearby seals (if disassembly exposes them)

Technical details and specifications (practical, field-focused)

Exact dimensions and tolerances should be confirmed in the OEM parts documentation for your machine. However, these are the most useful, real-world “spec” checkpoints technicians use when handling the 3115504312 Connecting Plate Atlas Copco:

Functional characteristics to verify

• Mounting hole condition: roundness, edge integrity, and surface contact

• Flatness of the seating faces: no rocking on a flat reference

• Boss/sleeve integrity: no scoring, dents, or deformation

• Coating condition: no deep rust pitting or peeling near contact faces

• Threaded areas (if present): clean engagement and no cross-thread damage

Approximate net weight

A published listing shows the weight as 1.5 kg for this part reference.

Practical note: packaged shipping weight may be higher depending on boxing and protective materials, but for inventory planning and internal BOMs, 1.5 kg is a useful baseline for the 3115504312 Connecting Plate Atlas Copco.

Installation guidance for the 3115504312 Connecting Plate Atlas Copco

Below is a safe, field-usable installation approach that fits most connector/plate interfaces on drilling rigs. Always follow the machine’s service manual torque values and lock procedures.

1) Prepare the work area and lockout

• Isolate hydraulic pressure (lockout/tagout).

• Clean the work zone to prevent contamination entering open interfaces.

• Support the connected components to prevent load shift during removal.

2) Remove the existing plate and inspect mating surfaces

• Mark the orientation before removal (photo + paint mark).

• Remove fasteners in a controlled pattern to avoid sudden movement.

• Inspect the mating faces for fretting (fine metallic dust), scoring, or high spots.

3) Clean and correct the mounting interface

• Use a non-aggressive cleaning method first (solvent + lint-free wipes).

• If needed, lightly dress burrs—do not remove material from critical faces beyond what the manual allows.

• Confirm that the mounting face is flat and free of debris.

4) Test-fit the 3115504312 Connecting Plate Atlas Copco

• Confirm bolt holes align without forcing.

• Confirm the boss/sleeve seats correctly into the mating feature.

• Ensure the plate sits flush—no visible gap.

5) Install fasteners and torque correctly

• Use the correct grade fasteners per the manual.

• Apply thread treatment only if specified (some assemblies require dry torque).

• Torque in stages using a cross pattern to seat the plate evenly.

6) Re-check after initial run-in

After the first operating period, re-check torque or clamp condition if the manual recommends it. In high-vibration environments, a post-install inspection is cheap insurance.

Maintenance tips to extend service life

The 3115504312 Connecting Plate Atlas Copco will last longer when the surrounding system stays healthy. The best habits are:

Keep fastener integrity high

Loose bolts turn a plate into a grinder. Always investigate why fasteners loosen (vibration, wrong torque, damaged threads, mating face contamination).

Watch for fretting marks

If you see fine dust, polished rubbing patches, or “smoking” around interfaces, the plate may be moving. Address it early before the movement damages larger components.

Control contamination

Dust and moisture accelerate surface wear and corrosion. If your operation is wet, consider adding maintenance steps around cleaning and inspection frequency.

Why 3GEN Export for the 3115504312 Connecting Plate Atlas Copco

Buying a part is easy. Buying certainty is harder. With 3GEN Export, you get an OEM-supplier approach built for industrial uptime:

OEM-spec supply for industrial reliability

We source and supply the 3115504312 Connecting Plate Atlas Copco as an OEM-spec replacement—made to match fit and functional expectations for heavy-duty drilling applications.

Fast global logistics

Downtime is expensive everywhere, but in mining it’s brutal. We deliver worldwide in 5 working days, helping you keep planned maintenance on schedule and reduce idle machine time.

Parts support mindset

If you’re matching the 3115504312 Connecting Plate Atlas Copco to a specific drill configuration, we can support cross-checking using your part number format and equipment reference list so your procurement is cleaner and faster.

Quick reference recap

• Product: 3115504312 Connecting Plate Atlas Copco

• Alternate format: 3115 5043 12 Connecting Plate Atlas Copco

• Compatible references: Boomer S1D; COP 1638HD+, COP 1838HD+, COP 2238HD+

• Approx. net weight: 1.5 kg

• Supplier: 3GEN Export (OEM supplier)

• Shipping: worldwide delivery in 5 working days
