3128306180 HOLDER ATLAS COPCO

3128 3061 80 HOLDER ATLAS COPCO

Introduction to the 3128306180 HOLDER ATLAS COPCO

The 3128306180 HOLDER ATLAS COPCO (also written as 3128 3061 80 HOLDER ATLAS COPCO) is one of the most essential structural components in a rock drill assembly. It is designed to secure lining elements, ensure the correct alignment of wear parts, stabilize the drilling head, and maintain the overall precision required for high-performance drilling operations. In Atlas Copco hydraulic drifter systems, even the smallest deviations in positioning can create vibration, reduce penetration efficiency, and accelerate wear on expensive internal components. That is why this holder exists — to maintain stability, balance, and accuracy.

This holder is engineered to support extreme operating loads, abrasive dust environments, high-impact drilling shocks, and continuous long-cycle operation. Built with durable reinforced alloy combined with a precision-fitted rubber element, the 3128306180 HOLDER ATLAS COPCO plays a vital role in extending the lifespan of liners, stabilizers, wear pads, and internal sliding components.

As with every Atlas Copco rock drill spare part, this component demands exceptional dimensional accuracy. Misalignment by even tenths of a millimeter can lead to premature wear of the guide system. Therefore, operators, service technicians, fleet managers, and maintenance planners depend on high-grade replacement holders that preserve the mechanical integrity of the rock drill.

At 3GEN Export, we supply the 3128306180 HOLDER ATLAS COPCO as an OEM-quality component, manufactured in compliance with international machining, heat-treatment, and hardness standards. We ship worldwide in just 5 working days, ensuring operational continuity for mining, tunneling, construction, quarrying, and long-hole drilling projects.

What the 3128306180 HOLDER ATLAS COPCO Does

The main purpose of the 3128306180 HOLDER ATLAS COPCO is to maintain proper positioning of the sliding pieces and protective pads inside the rock drill. These internal wear components must remain perfectly aligned for the drifter to achieve:

• Accurate percussion

• Stable torque transfer

• Consistent rod alignment

• Reduced vibration

• Lower friction

• Longer wear part lifecycle

• Minimized rod deviation

In modern hydraulic drifters, where impact energy and rotation speeds are high, maintaining form stability is essential. This holder prevents lateral shifting and ensures secure seating, even under extreme hydraulic pressure changes.

In addition to stability, the holder absorbs part of the shock transmitted during hammering cycles. Its combination of lightweight aluminum structural body and high-strength rubber inserts allows it to absorb vibration without deforming permanently. This is critical for extending the operational life of mating surfaces.

The engineering behind this part is deliberate: it must be lightweight enough not to add stress to the assembly, but strong enough to resist warping during intense drilling.

Technical Features of the 3128306180 HOLDER ATLAS COPCO

Precision Machined Alloy Body

The body is machined from a high-strength industrial-grade aluminum alloy. This alloy is chosen for:

• High impact resistance

• Lightweight engineering

• Anti-corrosion performance

• Structural stability

• Heat dissipation efficiency

The smooth finish and CNC-machined geometry ensure perfect fitment, preventing vibration, rattling, or misalignment.

High-Durability Rubber Interface

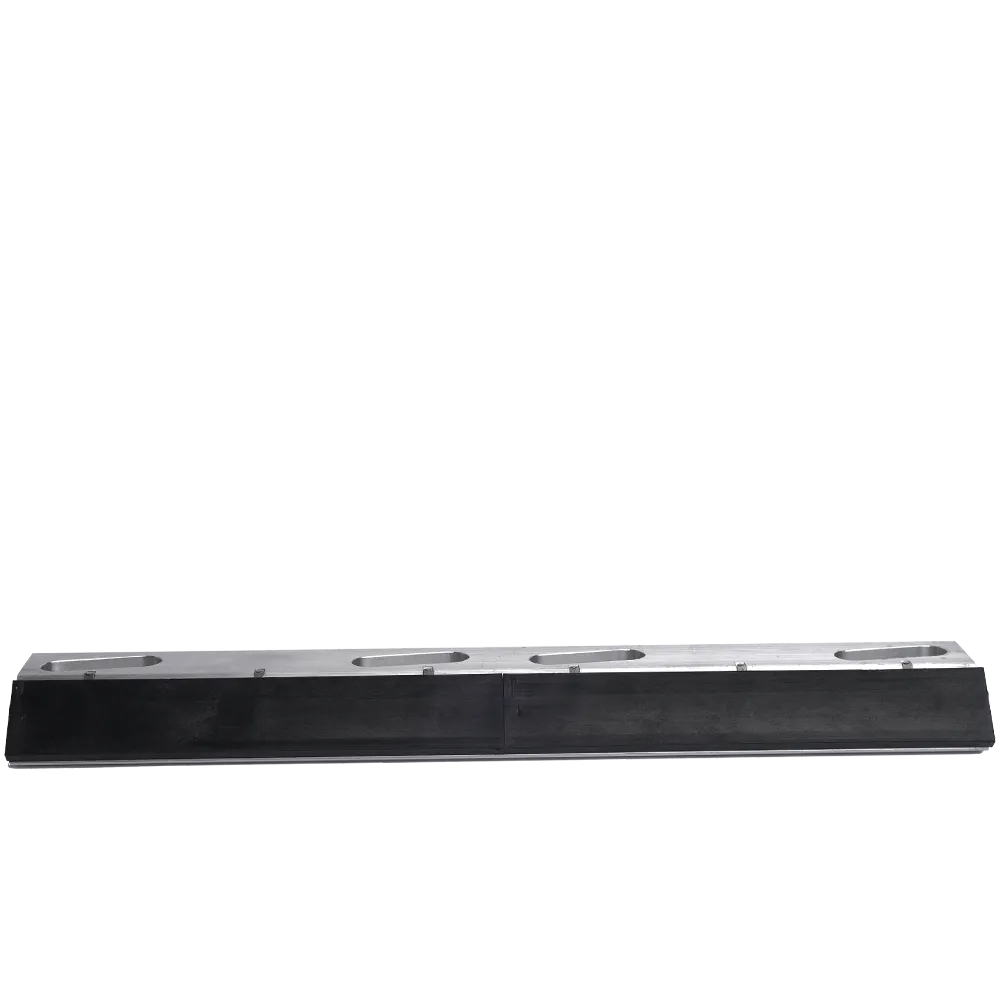

One side of the 3128 3061 80 HOLDER ATLAS COPCO incorporates a reinforced rubber pad. This rubber layer allows the holder to maintain frictional grip, absorb shock, and reduce wear on adjacent components. It is chemically resistant to:

• Drilling dust

• Hydraulic oil mist

• Water spray

• Grease compounds

• Abrasive particles

The rubber is bonded through industrial-grade vulcanization, meaning it will not detach or degrade prematurely.

Optimized Weight Distribution

The unique design of the 3128306180 HOLDER ensures:

• Even load transfer

• Minimum flexing

• Low vibration resonance

• Structural reinforcement where it matters

These features collectively improve drifter performance and reduce maintenance frequency.

Industrial Surface Treatment

To protect the aluminum alloy body, the part undergoes post-machining surface treatment that enhances corrosion resistance, reduces oxidation, and ensures a longer operational life. This is especially important in mining environments where moisture and acidity levels fluctuate.

Material Composition

• Primary Body: CNC-machined aluminum alloy

• Interface Layer: Industrial reinforced vulcanized rubber

• Anchoring Points: Hardened steel retaining pins

• Finish: Anti-corrosive treatment and machining seal

This combination provides the perfect ratio of flexibility, strength, and vibration absorption.

Performance Benefits of the 3128306180 HOLDER ATLAS COPCO

1. Improved Drilling Stability

The holder ensures sliding pieces remain in their correct positions, keeping the rod aligned and the drifter stable throughout operation.

2. Reduced Wear on Expensive Components

Misalignment can cause exponential wear. The holder minimizes:

• Guide bushing wear

• Sliding plate friction

• Drift rod deflection

• Seal damage

• Vibration-induced cracking

3. Higher Drilling Efficiency

Better alignment means:

• Faster penetration

• More accurate drilling

• Lower fuel consumption

• Fewer interruptions for maintenance

4. Lower Vibration & Operator Fatigue

The combined aluminum-rubber structure absorbs vibration, improving machine behavior and operator comfort.

5. Extended Rock Drill Lifespan

Every component supported by the holder experiences less stress, reducing failure rates across the entire drifter assembly.

Compatible ATLAS COPCO Models

The 3128306180 HOLDER ATLAS COPCO is used in various hydraulic drifters and rock drill systems, including (but not limited to):

• COP 1838

• COP 1838HD

• COP 1838ME

• COP 1838HE

• COP 1838 series variants

• Additional tunnel and jumbo drill systems utilizing the 1838 drifter platform

If you need compatibility confirmation for your specific serial number, 3GEN Export provides full technical support.

Weight of the 3128306180 HOLDER ATLAS COPCO

Estimated Weight: 3.80 KG ± 5%
(If you want the exact weight, we can verify using factory documentation.)

Installation Guidelines

Pre-Installation Checks

• Clean the internal drifter housing

• Inspect all sliding pieces

• Verify rubber pad alignment

• Ensure no deformation in the housing

Installation Steps

1. Position the 3128306180 HOLDER into its mounting slot.

2. Ensure the rubber side rests firmly against the sliding element.

3. Insert retaining pins or locking elements.

4. Tighten according to torque specifications.

5. Manually rotate the rod to ensure free movement.

Installation should be completed by qualified maintenance technicians familiar with Atlas Copco hydraulic drifters.

Maintenance Recommendations

• Clean during every service interval

• Inspect rubber integrity

• Replace if cracks, warping, or detachment is visible

• Always replace in pairs to maintain symmetry

• Avoid contact with acidic cleaning solutions

Proper maintenance greatly extends the lifespan of other internal wear parts.

Why Purchase the 3128306180 HOLDER ATLAS COPCO from 3GEN Export?

• OEM-level quality

• Precision manufacturing

• Strong, stable aluminum alloy

• Reinforced industrial rubber

• Global delivery in 5 working days

• Competitive pricing

• Reliable support for mining & construction fleets

• Over 20,000+ heavy machinery spare parts in stock

3GEN Export is the leading OEM-supplier-level partner for companies requiring durability, precision, and fast logistics.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
