BG00437457, BG00437457 FRAME

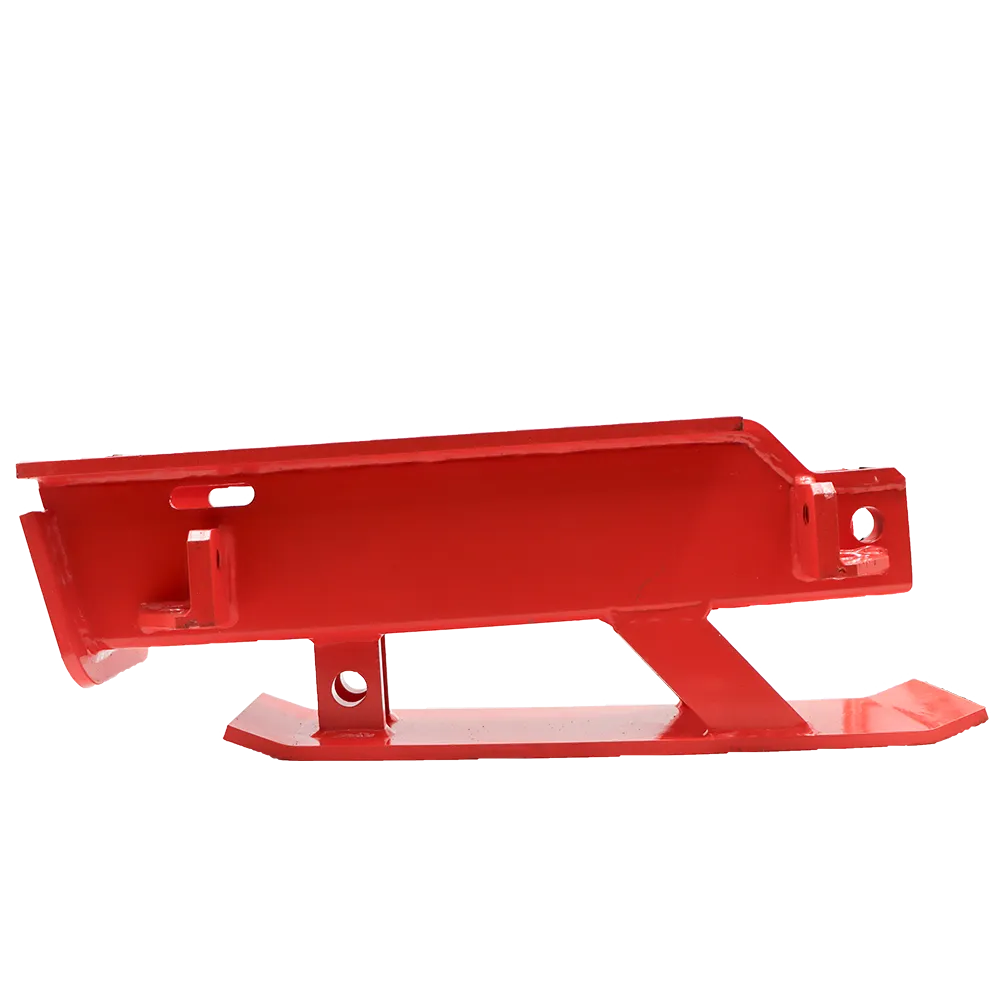

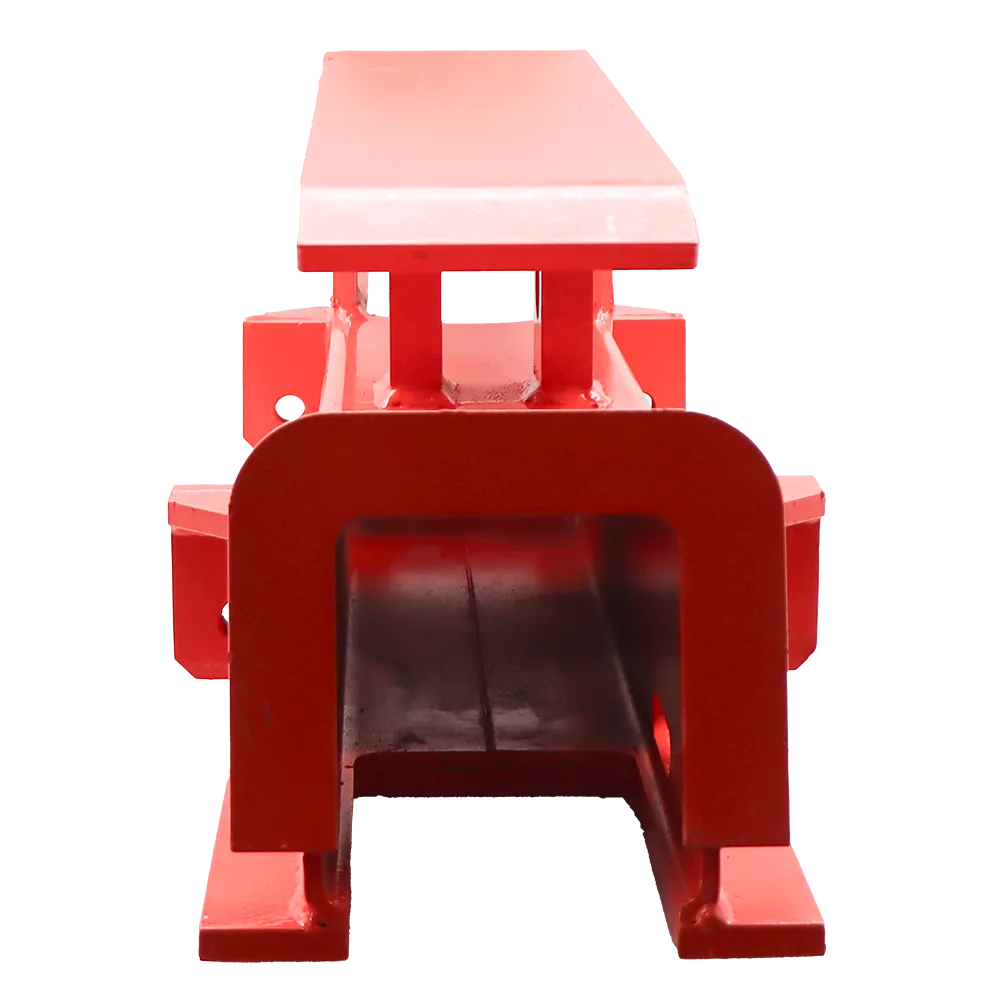

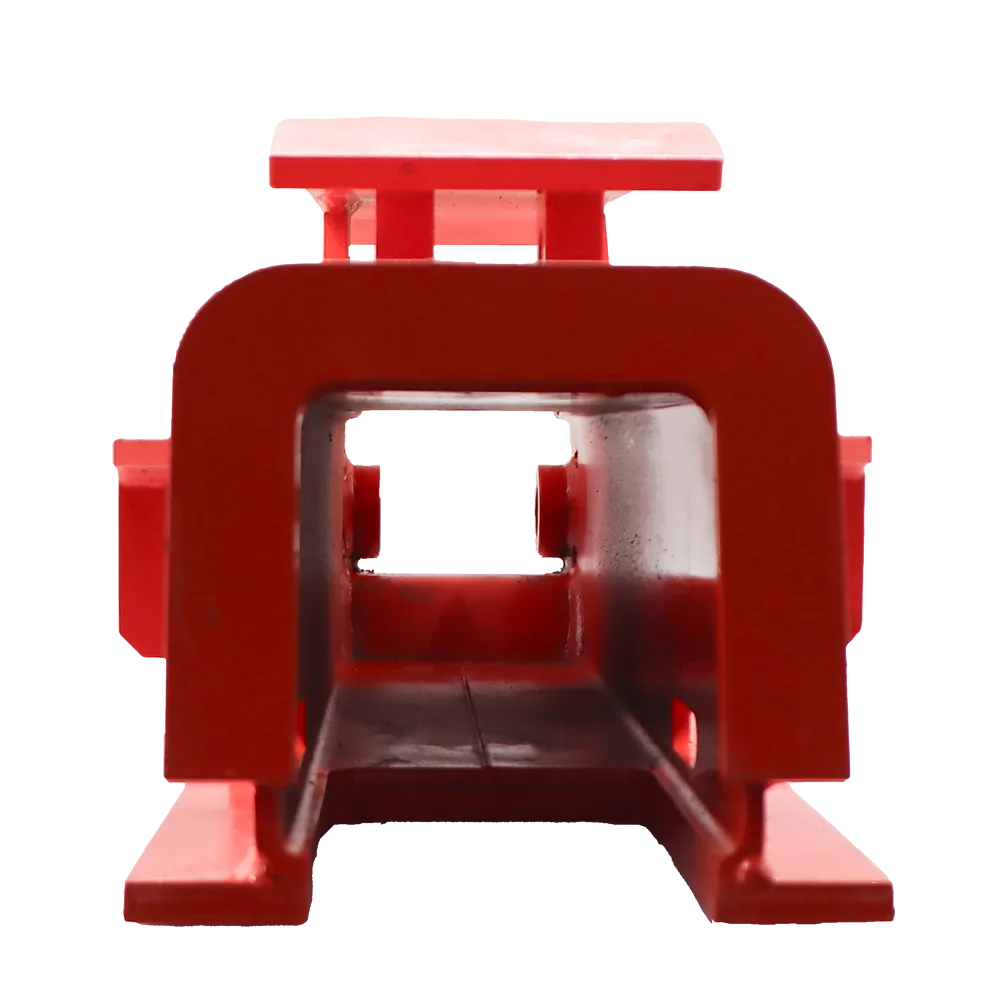

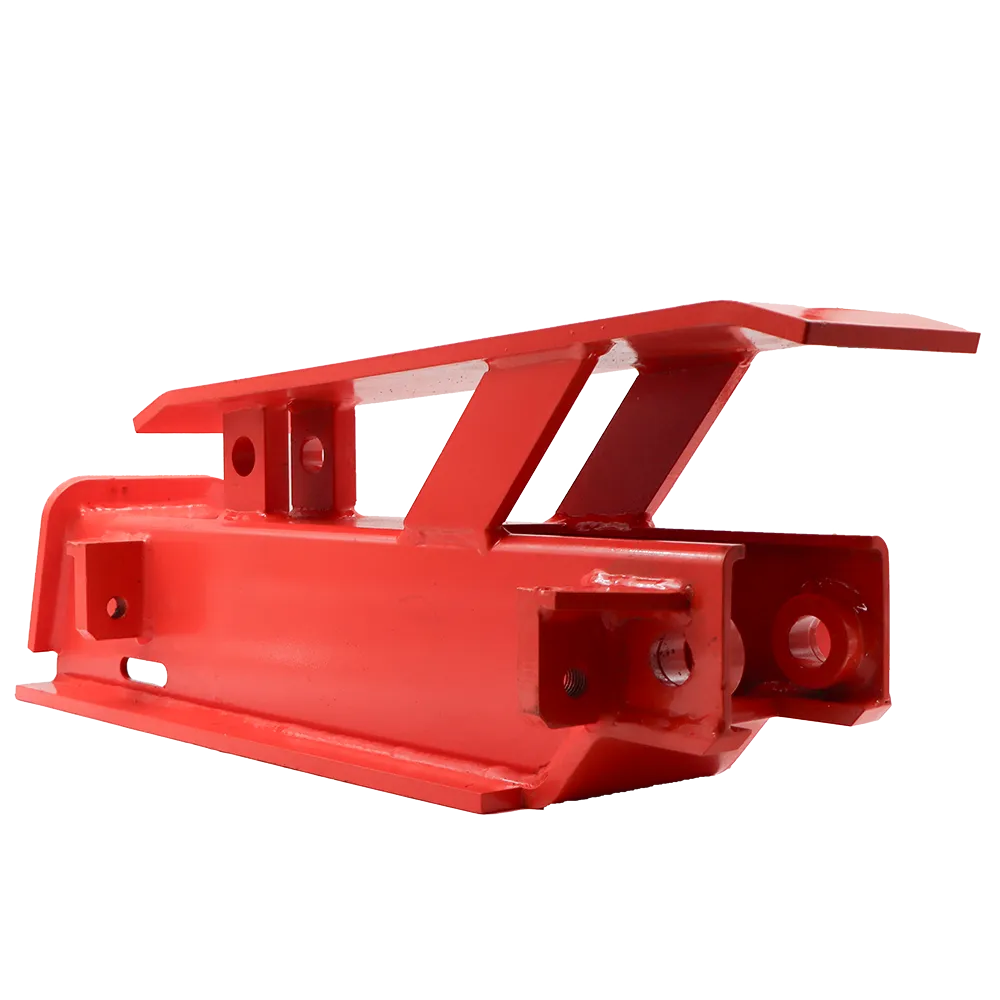

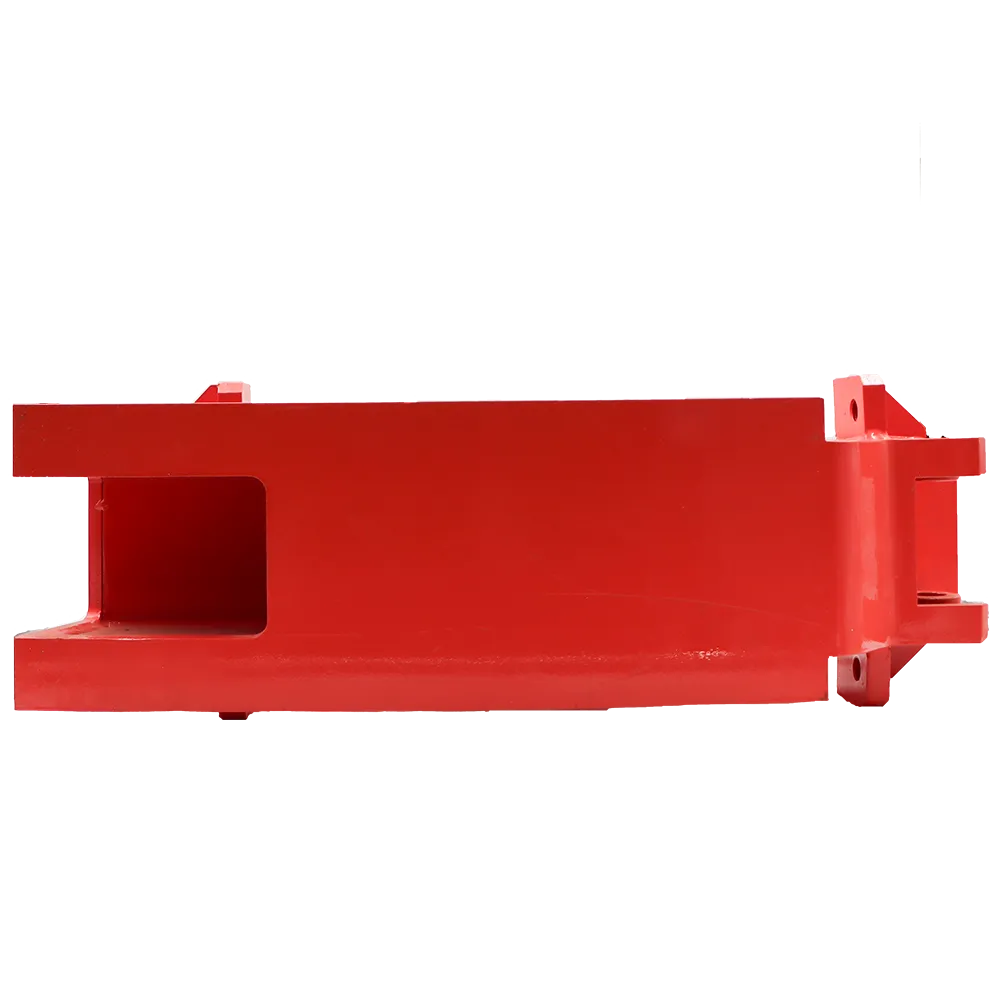

BG00437457 FRAME SANDVIK — OEM Replacement Frame Component for Heavy-Duty Drilling Operations

The BG00437457 FRAME SANDVIK is a precision-engineered structural part developed for high-performance drilling systems and rock excavation units. Designed to ensure the mechanical integrity and alignment of drilling components, this frame provides the robust support needed in heavy-duty underground and surface mining environments. At 3GEN Export, we supply this frame as an OEM-compatible part, delivering top-tier reliability and compatibility without the inflated costs of original branding. We ship globally within just 5 working days.

---

Key Features of BG00437457 FRAME SANDVIK

• Durable Structural Steel Build:
  Manufactured from high-grade welded steel, the BG00437457 FRAME is built to withstand harsh mining environments. Its rigid structure resists deformation under dynamic load, ensuring alignment integrity even in the most intense operating cycles.

• Precision-Cut Mounting Points:
  Designed with multiple pre-aligned mounting holes and guide brackets, this frame ensures seamless assembly with adjoining components such as guide rods, support bars, or carriage structures.

• Corrosion-Resistant Coating:
  The frame is coated with high-adhesion red industrial-grade paint, offering both aesthetic uniformity and rust resistance. This coating improves longevity, especially in humid and abrasive conditions underground.

• Optimized Weight-to-Strength Ratio:
  Engineered to support heavy components without adding unnecessary load to the machine’s operating structure, this part is carefully balanced for strength and efficiency.

• Reinforced Welded Edges:
  All high-stress zones—particularly corners and attachment brackets—are double-welded and inspected to eliminate microfractures, cracks, or deformation risks.

---

Technical Specifications

• Part Number: BG00437457

• Material: Reinforced high-tensile steel

• Surface Finish: Red powder-coated finish (anti-corrosive)

• Installation Type: Bolt-on, pre-machined interface

• Weight (approximate): ~38–45 kg depending on variant

• Mounting Holes: Precision bored, compatible with SANDVIK standard fasteners

• Weld Type: MIG welded, edge-beaded for strength

• Machining Tolerances: ±0.2 mm on mating surfaces

• Design Standard: Compatible with Sandvik ISO-fit systems

---

Functionality & Applications

The BG00437457 FRAME SANDVIK serves as a structural mounting and guiding platform within rock drilling machines, specifically supporting drive systems, feeding mechanisms, or chuck assemblies. Its geometry is tailored to anchor major subassemblies while maintaining rigidity and vibration damping during intense drilling sequences.

In typical use, this frame is:

• Installed as part of the feed mechanism chassis

• Responsible for carrying both static and kinetic loads from the drifter and boom

• Interfacing with hydraulic lines, gear supports, and auxiliary tensioners

• A component subject to repetitive vibration, torque transmission, and thermal cycles

---

Compatible Sandvik Machines

This frame is found in multiple Tamrock and Sandvik drilling rigs, particularly models within the Axera, Commando, and Ranger series. Based on historical fitment and part distribution analysis, it is primarily compatible with:

• Sandvik Axera 7 Series

• Sandvik Axera T12

• Sandvik Tamrock Commando 300

• Sandvik Ranger 500/700 series

• Sandvik DC130 and DC125 variants

Please confirm fitment with your equipment’s technical documentation or contact our 3GEN Export technical support team for precise model compatibility.

---

Why Choose 3GEN Export?

At 3GEN Export, we understand that downtime in mining means lost revenue. That’s why we ensure:

• OEM-Level Compatibility:
  Our spare parts, including the BG00437457 FRAME SANDVIK, are engineered to match original specifications and installation tolerances.

• Global Delivery in 5 Working Days:
  We’ve streamlined our supply chain to guarantee that your part reaches any continent within a maximum of 5 working days, minimizing downtime and maintaining your operations.

• No Hidden Shipping Costs:
  The listed price includes all logistics. No additional shipping fees, customs calculations, or surprise tariffs.

• 1-Year Manufacturing Warranty:
  We stand behind our components with a full-year warranty, ensuring peace of mind and operational continuity.

• Technical Advisory Available:
  Need help verifying part compatibility? Our expert advisors can provide model matching, diagrams, and 3D visuals to ensure fitment.

---

Ideal for Rebuilds, Maintenance, and Equipment Upgrades

Whether you are planning a complete drifter rebuild, replacing fatigued parts in your rig, or conducting scheduled preventive maintenance, the BG00437457 FRAME SANDVIK is a perfect replacement to restore structural integrity. Its engineered fitment ensures your machine continues to perform at peak efficiency without risking alignment issues or frame distortion during operation.

---

Quality Control & Packaging

Each unit of the BG00437457 FRAME SANDVIK is:

• Individually inspected for welding consistency and machining accuracy

• Surface coated in anti-corrosion packaging wrap for protection during transit

• Shipped with a certificate of compliance from our engineering department

---

Conclusion

For operators looking to reduce machine downtime, maintain high drilling precision, and avoid the premium costs of original branded parts, the BG00437457 FRAME SANDVIK from 3GEN Export is a proven solution. Backed by rapid international delivery and a commitment to OEM-level quality, it’s the ideal part for keeping your Sandvik equipment in top form.

---

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
