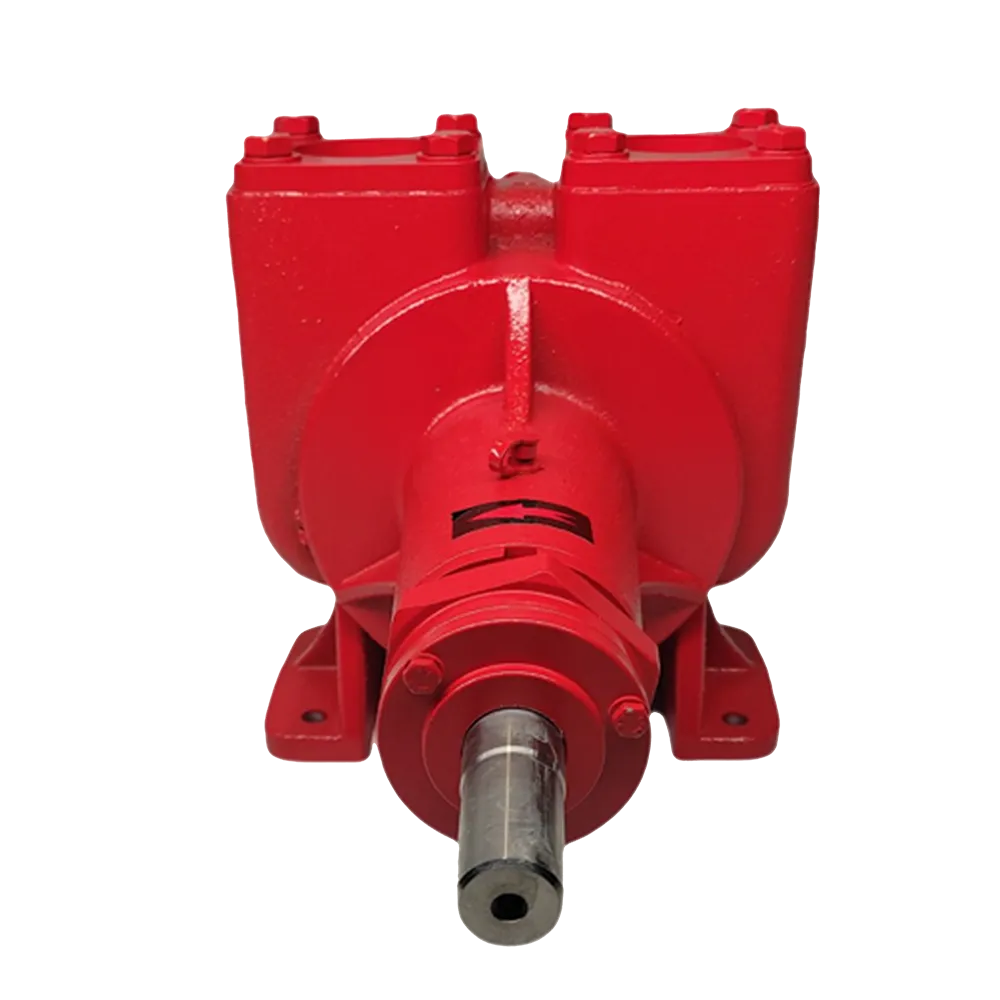

ER 1114 Y FUEL PUMP

ER 1114 Y Fuel Pump: High-Performance Positive Displacement Pump

The ER 1114 Y Fuel Pump is a high-pressure, idler-type pump that combines exceptional performance, robust construction, and versatility. Specifically designed for refined petroleum products, this pump is ideal for various industrial and commercial applications. With its 360° connection capability, it ensures ease of installation and reliable operation even in demanding environments.

Key Features of the ER 1114 Y Fuel Pump

1. Advanced Positive Displacement Technology:
   • Internal eccentric gear design for consistent and smooth fuel flow.
   • Ensures precise fluid transfer with minimal pulsation.
2. High Flow Rate:
   • Delivers an impressive flow rate of up to 500 liters per minute (lpm) at 750 rpm.
   • Capable of transferring up to 25 tons of diesel per hour.
3. Wide Operating Range:
   • Operates efficiently under varying conditions with a working temperature range of -20°C to +60°C.
   • Supports a maximum working pressure of 10 bar (145 psi) and a discharge head of 100 meters for fuel oil.
4. Robust Construction:
   • Manufactured using high-quality materials such as cast iron (PIG GG 25) for the pump casing and idler.
   • Rotor options include standard cast iron (SPHERO GGG 40) and bronze (Rg7) for mechanical seal configurations.
   • Equipped with a durable steel shaft (AISI 4140) to ensure long-lasting performance.
5. Integrated By-Pass Valve:
   • Coupled directly to the pump body, providing pressure relief and enhancing operational safety.
6. Versatile Flange Design:
   • Features inlet/outlet dimensions of 2″ to 2 ½” with connections on the same plane for streamlined installation.

Technical Specifications

Specification	Details
Type	Positive Displacement, Internal Eccentric Gear
Flow Rate	500 lpm @ 750 rpm
Max Working Pressure	10 bar (145 psi)
Working Temperature	-20°C to +60°C
Max Discharge Head	100 meters (fuel oil)
Viscosity	65 cP
Motor Power	7.5 kW (11 HP)
Weight	49 kg
Dimensions (WLH)	60×24×27 cm
Flange Diameter	2” to 2 ½”
Material – Pump Casing	Cast Iron (PIG GG 25)
Material – Rotor	Cast Iron (SPHERO GGG 40) / Bronze (Rg7)
Material – Shaft	Steel (AISI 4140)

Applications of the ER 1114 Y Fuel Pump

The ER 1114 Y Fuel Pump is designed to handle a wide range of fluids, making it suitable for numerous industries and applications:

1. Petroleum and Fuel Transfer:
   • Ideal for transferring leaded and unleaded gasoline, fuel oil, diesel, biodiesel, and kerosene.
   • Provides efficient and precise pumping for fuel storage facilities, tanker loading/unloading, and fuel stations.
2. Chemical and Industrial Processes:
   • Supports a wide range of chemical substances, including solvents, adhesives, alcohol, and nitrogen solutions.
   • Suitable for transferring lubricants, molasses, liquid sugar, and frost-free liquids.
3. Specialized Applications:
   • Handles refined petroleum products as well as challenging liquids such as nitric acid, phosphoric acid, antifreeze solutions, and vinegar.
   • Capable of processing fruit juices and other sensitive fluids in food-grade setups (using stainless steel components).

Pump Types and Compatibility

The ER 1114 Y Fuel Pump is available in three specialized configurations to suit diverse operational needs:

1. SP Series (Standard Petroleum):
   • Optimized for handling leaded and unleaded gasoline, fuel oil, diesel, biodiesel, kerosene, and jet fuel.
   • Ideal for industries focused on refined petroleum products.
2. AF Series (All Ferrous):
   • Designed for chemical substances such as pesticides, paints, inks, adhesives, and motor oils.
   • Suitable for applications requiring robust material handling.
3. SS Series (Stainless Steel):
   • Equipped to process both SP and AF liquids, along with specialized fluids like acidic solutions and food-grade products.
   • Ideal for applications requiring corrosion resistance and hygiene.

Why Choose the ER 1114 Y Fuel Pump?

1. Exceptional Performance:
   • High flow rate and pressure capabilities ensure efficient fuel and liquid transfer.
2. Versatility:
   • Compatible with a wide range of fuels, chemicals, and specialized liquids.
3. Robust and Durable Design:
   • Constructed with premium-grade materials for long-term reliability.
4. Integrated Safety Features:
   • Built-in by-pass valve for pressure regulation and operational safety.
5. Ease of Use and Maintenance:
   • Streamlined installation process with accessible components for hassle-free upkeep.
