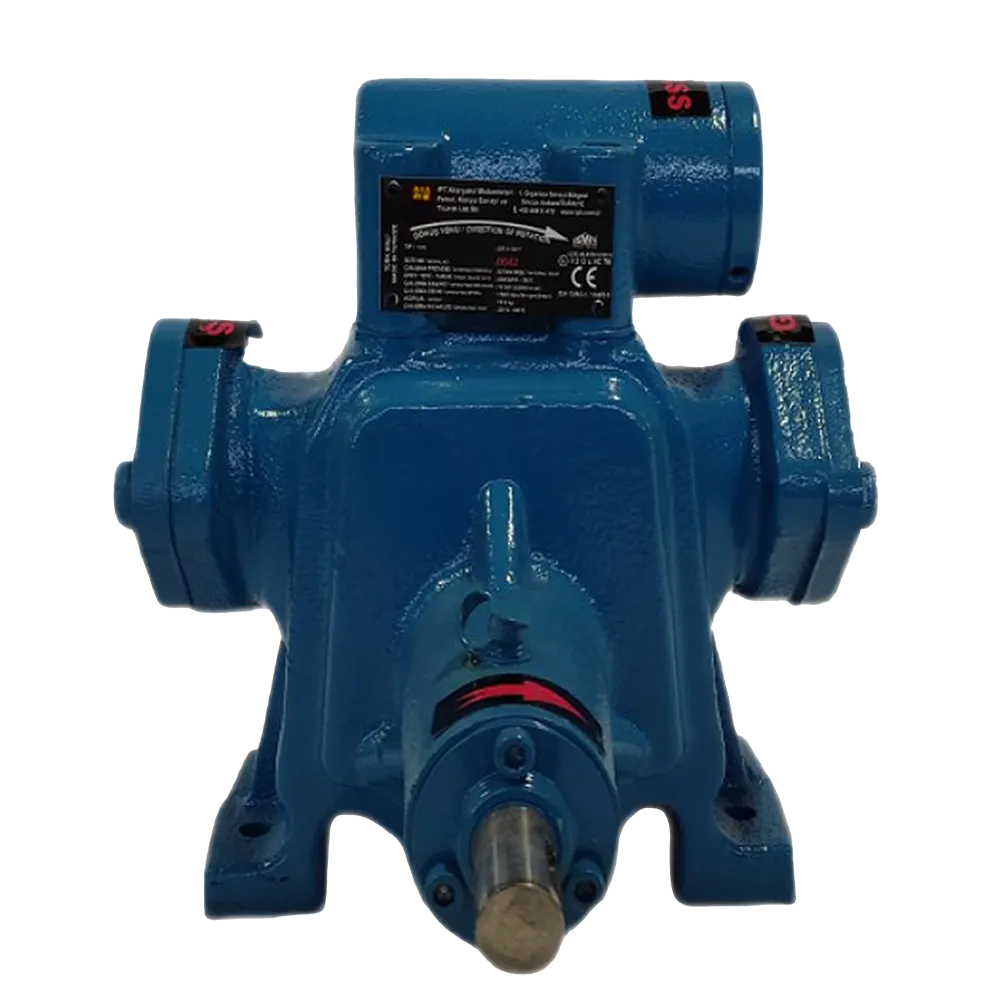

ER 1134 Y FUEL PUMP
Description
ER 1134 Y Fuel Pump: Unparalleled Efficiency and Reliability The ER 1134 Y Fuel Pump is a state-of-the-art positive displacement pump designed for precise fuel transfer and fluid handling. Featuring an internal eccentric gear mechanism with a 90° connection design, this pump offers unmatched performance in various industrial applications. Whether you’re managing refined petroleum products, chemicals, or specialized fluids, the ER 1134 Y stands as the epitome of durability and efficiency. Key Features and Benefits Flow Rate and Performance : With a flow rate of 140 liters per minute at 900 RPM , the ER 1134 Y delivers reliable and consistent fluid transfer. Capable of handling up to 8 tons of diesel per hour , this pump is perfect for high-demand applications. Pressure and Temperature : The pump operates efficiently under a maximum working pressure of 6 bar (87 psi) and a wide temperature range from -20°C to +60°C , making it adaptable to diverse environments. Compact and Lightweight Design : Weighing just 20 kg , the pump’s compact dimensions ( 18×27×15 cm ) make it an ideal choice for installations where space is limited. Technical Specifications Feature Details Pump Type Positive Displacement Connection Angle 90° Flow Rate 140 LPM @ 900 RPM Max Working Pressure 6 bar (87 psi) Discharge Head Up to 60 m (diesel) Viscosity Range 65 cP Inlet/Outlet Diameter 1½” Motor Power 1.1 kW (1.5 HP) Material Cast Iron, Bronze, Induction-Hardened Steel By-Pass Valve Coupled to Body High-Quality Materials for Extended Longevity Pump Casing : Fabricated from Cast Iron (PIG GG 25) for superior durability and corrosion resistance. Idler and Rotor Options : Diesel Applications : Cast Iron Rotor ensures long-lasting service life. Gasoline Applications : Bronze Rotor provides exceptional performance and durability. Shaft Material : Induction-hardened Ck55 steel , offering enhanced strength for high-pressure operations. Dynamic Seals/Gaskets : Constructed using FKM or Teflon materials, these components provide leak-proof performance even under extreme conditions. Versatile Applications Across Industries The ER 1134 Y Fuel Pump is designed for use in a wide array of industries and applications, making it one of the most versatile pumps in its category. Petroleum and Oil : Leaded and unleaded gasoline Diesel, biodiesel, and kerosene Jet fuel and vegetable oils Chemical and Industrial : Fertilizers, nitrogen solutions, and solvents Alcohols, adhesives, and paints Molasses, liquid sugar, and antifreeze liquids Food and Beverage : Vinegar and fruit juice transfer High-viscosity liquids for food processing Compatible Pump Types The ER 1134 Y Fuel Pump is engineered for compatibility with the following configurations: SP (Standard Petroleum) : Optimized for refined petroleum products, including fuels, oils, and lubricants. AF (All Ferrous) : Suitable for handling pesticides, solvents, and other industrial fluids. SS (Stainless Steel) : Ideal for handling aggressive chemicals like nitric and phosphoric acids, as well as food-grade liquids. Why Choose the ER 1134 Y Fuel Pump? Enhanced Safety : Built-in bypass valve and explosion-resistant design ensure safe operation in hazardous environments. Low Maintenance : Easy to install and maintain, thanks to its user-friendly design and robust construction. Unmatched Accuracy : Engineered for precision, delivering consistent performance even with varying viscosities. Applications in Action The ER 1134 Y Fuel Pump is widely used in industries such as: Fuel Distribution Terminals : Facilitates efficient fuel loading and unloading operations. Chemical Processing Plants : Ensures safe transfer of corrosive and high-viscosity fluids. Food Production Facilities : Supports hygienic transfer of liquid ingredients in compliance with industry standards.
