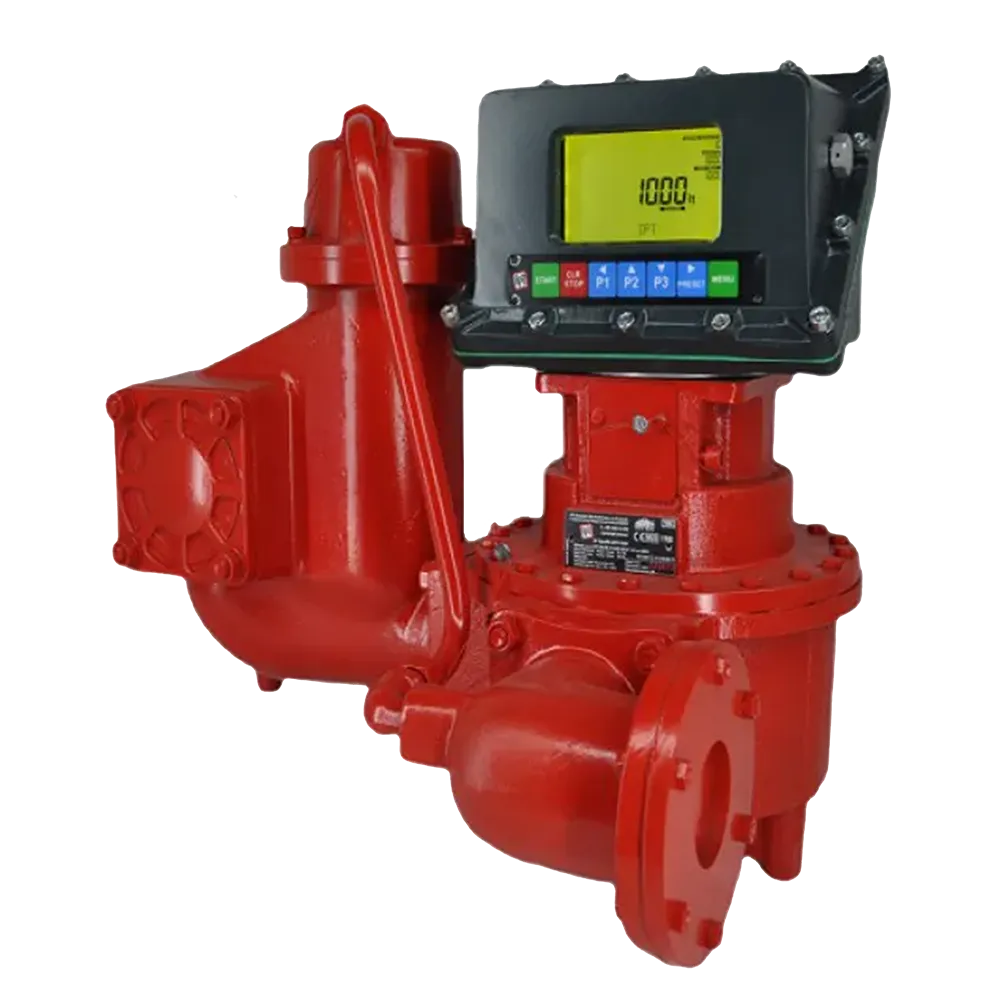

ER 72 E FUEL COUNTER

ER 72 E Fuel Counter: Precision Fuel Measurement Redefined

The ER 72 E Fuel Counter is a cutting-edge, positive displacement meter designed to deliver unmatched accuracy and reliability across various fuel measurement applications. Built to accommodate a wide range of refined petroleum products and chemical substances, this fuel counter stands out with its advanced design, robust construction, and exceptional performance. Whether you need precision in monitoring fuel flow rates or assurance of durability in harsh environments, the ER 72 E is the ultimate solution for your operational needs.

Key Features of the ER 72 E Fuel Counter

1. Exceptional Accuracy:
   • Achieves a precision level of ±0.25% across all pressure and flow rates.
   • Provides consistent and reliable readings even under challenging conditions.
2. Advanced Design:
   • Features a 90° inlet and outlet connection with a 3” diameter for seamless integration.
   • Positive displacement mechanism with a double pallet, single rotor system ensures optimal performance.
3. Robust Construction:
   • Meter Casing: Cast iron (PIG GG 25) for enhanced durability.
   • Air Separator Casing: Lightweight yet sturdy cast aluminum (AlSi10Mg).
   • Counter Register Screen: Polycarbonate material ensures clarity and resilience.
4. Wide Operating Range:
   • Flow Rate: 70 liters per minute (lpm) to 700 lpm.
   • Pressure: Normal operating pressure of 3.5 bar (51 psi) with a maximum of 10 bar (145 psi).
   • Temperature: Operates efficiently within -20°C to +40°C.
5. Versatile Applications:
   • Supports a wide variety of liquids, including leaded and unleaded gasoline, diesel, kerosene, biodiesel, jet fuel, vegetable oil, antifreeze, and more.

Technical Specifications

Specification	Details
Flow Rate	70-700 lpm
Max Operating Pressure	10 bar (145 psi)
Temperature Range	-20°C to +40°C
Accuracy	±0.25%
Viscosity	Up to 440 cP
Meter Body Material	Cast Iron (PIG GG 25)
Air Separator Material	Cast Aluminum (AlSi10Mg)
Counter Register Screen	Polycarbonate
Weight	61.5 kg
Dimensions (L x W x H)	48 × 59 × 51 cm
Flange Diameter	2” – 2.5” – 3”

Material Composition

• Meter Casing: Made of durable cast iron (PIG GG 25), providing excellent resistance to wear and tear.
• Air Separator Casing: Constructed from high-quality cast aluminum (AlSi10Mg) to ensure lightweight functionality and long-term reliability.
• Dynamic Seals/Gaskets: Engineered with FKM or Teflon materials for superior performance with high-petroleum products.

Applications of ER 72 E Fuel Counter

The ER 72 E Fuel Counter is tailored for diverse applications and is compatible with various fuel counter models. It is suitable for the following uses:

1. Refined Petroleum Products:
   • Leaded and unleaded gasoline
   • Diesel, biodiesel, and fuel oil
   • Kerosene, jet fuel, and lubricant oil
   • Ethylene glycol (antifreeze)
2. Chemical Substances:
   • Solvents, adhesives, and pesticides
   • Fertilizers and nitrogen solutions
   • Paints, inks, and alcohols
3. Specialized Liquids:
   • Molasses, liquid sugar, and vinegar
   • Frost-free liquids and fruit juices
   • Nitric and phosphoric acids

Compatible Models

The ER 72 E Fuel Counter is designed to integrate seamlessly with various fuel counter models, ensuring optimal compatibility and ease of use. Some compatible models include:

• SP Series (Standard Petroleum): For measuring refined petroleum products.
• AF Series (All Ferrous): Tailored for chemical substances like adhesives and solvents.
• SS Series (Stainless Steel): Ideal for specialized liquids and acidic substances.

These series provide flexibility and adaptability, making the ER 72 E a universal choice for fuel metering across industries.

Why Choose the ER 72 E Fuel Counter?

1. Precision Engineering: Offers unmatched accuracy and reliability.
2. Durable Construction: Built with robust materials for longevity.
3. Wide Compatibility: Works with an extensive range of liquids and models.
4. Ease of Integration: Compact dimensions and smart design make installation simple.
5. Proven Performance: Trusted by industries worldwide for dependable fuel measurement.
