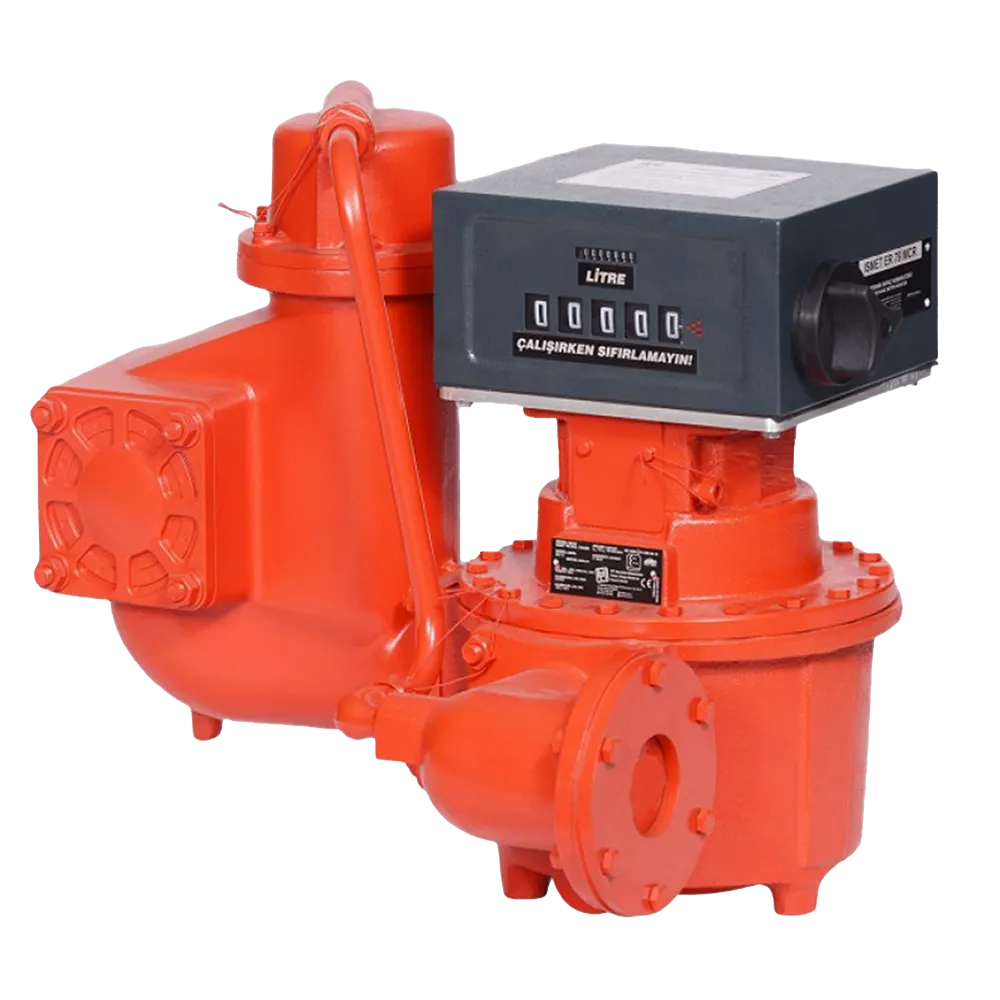

ER 72 M FUEL COUNTER
Description
ER 72 M Fuel Counter: Superior Precision for Fuel Monitoring The ER 72 M Fuel Counter is a state-of-the-art positive displacement meter designed to deliver accurate fuel flow measurements for various industrial and commercial applications. With its robust design, exceptional precision, and wide compatibility, the ER 72 M stands as a reliable solution for industries requiring dependable fuel metering systems. Crafted with high-quality materials and advanced engineering, this meter ensures long-lasting performance, even in demanding environments. Key Features of the ER 72 M Fuel Counter Outstanding Accuracy : Maintains a precision level of ±0.25% under all pressure and flow conditions. Guarantees consistent performance across diverse fuel types and operating environments. Advanced Mechanical Design : Incorporates a 90° inlet and outlet design for efficient installation. Positive displacement mechanism ensures precise fuel flow readings with minimal maintenance. Premium Material Composition : Meter Casing : Durable cast iron (PIG GG 25) for extended longevity. Air Separator Casing : Lightweight yet robust cast aluminum (AlSi10Mg). Counter Register Screen : Constructed from polycarbonate for durability and clarity. Optimized Operating Range : Flow Rate : 70 liters per minute (lpm) to 700 lpm. Pressure Range : Normal operation at 3.5 bar (51 psi) with a maximum of 10 bar (145 psi). Temperature Range : Reliable operation from -20°C to +40°C. Versatility Across Applications : Suitable for handling a wide array of refined petroleum products, chemicals, and specialized liquids. Technical Specifications Specification Details Flow Rate 70-700 lpm Max Operating Pressure 10 bar (145 psi) Temperature Range -20°C to +40°C Accuracy ±0.25% Viscosity Up to 440 cP Meter Body Material Cast Iron (PIG GG 25) Air Separator Material Cast Aluminum (AlSi10Mg) Counter Register Screen Polycarbonate Weight 56 kg Dimensions (L x W x H) 45 × 61 × 49 cm Flange Diameter 2” – 2.5” – 3” Material Composition Meter Casing : High-strength cast iron (PIG GG 25) provides excellent resistance to wear and tear. Air Separator Casing : Cast aluminum (AlSi10Mg) offers lightweight functionality without compromising durability. Dynamic Seals and Gaskets : Made from FKM or Teflon materials, ensuring reliability in high-petroleum environments. Applications of the ER 72 M Fuel Counter The ER 72 M Fuel Counter is designed for diverse applications, making it a versatile solution across industries. Its uses include: Refined Petroleum Products : Compatible with leaded and unleaded gasoline, diesel, biodiesel, fuel oil, and kerosene. Ideal for measuring jet fuel, lubricant oil, and vegetable oil. Chemical Substances : Perfect for handling solvents, adhesives, pesticides, fertilizers, and nitrogen solutions. Also suitable for paints, inks, alcohols, and antifreeze liquids. Specialized Liquids : Can be used with molasses, liquid sugar, vinegar, fruit juice, and frost-free liquids. Efficient in measuring nitric and phosphoric acids, as well as other chemical substances. Compatible Models The ER 72 M Fuel Counter is engineered to work seamlessly with a variety of fuel counter models, including: SP Series (Standard Petroleum) : Optimized for refined petroleum products such as diesel, gasoline, and kerosene. AF Series (All Ferrous) : Designed for handling chemical substances like solvents, adhesives, and motor oils. SS Series (Stainless Steel) : Suitable for measuring specialized liquids and acidic substances like nitric acid and fruit juices. These compatible series offer a tailored solution for every application, ensuring maximum efficiency and reliability. Why Choose the ER 72 M Fuel Counter? High Precision : Achieves unparalleled accuracy in fuel flow measurement. Robust Build : Manufactured with top-grade materials for durability and longevity. Wide Compatibility : Integrates effortlessly with various liquids and fuel counter models. User-Friendly Design : Compact dimensions and 90° inlet/outlet design simplify installation and operation. Proven Performance : Trusted by industries worldwide for consistent and reliable fuel measurement.
