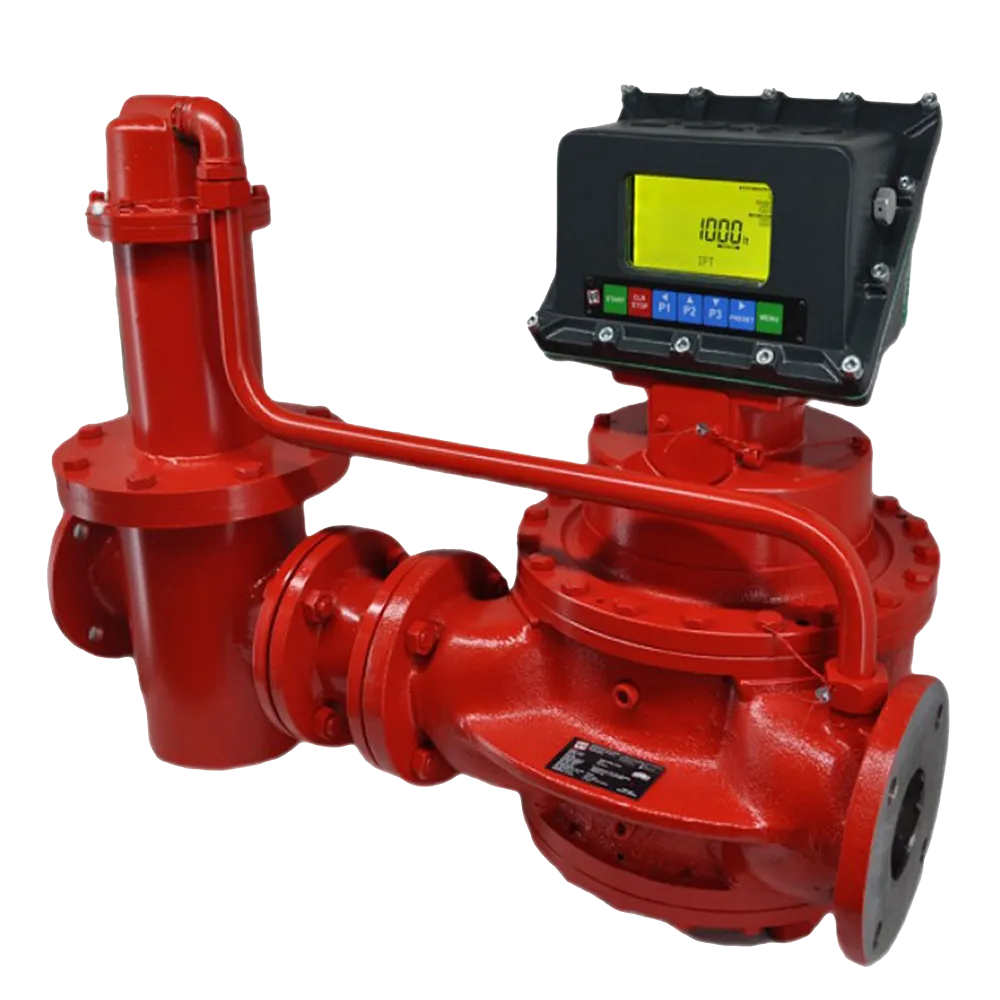

ER 73 E FUEL COUNTER

ER 73 E Fuel Counter: Advanced Fuel Monitoring for High-Flow Operations

The ER 73 E Fuel Counter is a premium, high-performance solution for monitoring and managing fuel flow in large-scale industrial and commercial settings. With its advanced engineering, this positive displacement meter ensures exceptional accuracy, reliability, and durability even in demanding environments. The ER 73 E is specifically designed to handle high flow rates, making it an ideal choice for industries requiring fast and efficient fuel management systems.

Key Features of the ER 73 E Fuel Counter

1. Exceptional Accuracy:
   • Achieves a precision level of ±0.25% for consistent and reliable measurements across varying pressure and flow conditions.
   • Optimized for high-flow operations, maintaining accuracy even at maximum capacity.
2. Innovative Design:
   • Features a 180° inlet and outlet route with a 3” diameter, ensuring efficient integration into complex fuel systems.
   • Utilizes a double pallet, single rotor rotary mechanism for smooth and precise fuel flow measurement.
3. Robust Construction:
   • Meter Casing: Made from durable cast iron (PIG GG 25) for long-lasting performance.
   • Air Separator Casing: Built with steel construction (St52) for enhanced strength and reliability.
   • Counter Register Screen: Manufactured from polycarbonate material, offering excellent visibility and resilience.
4. Wide Operational Range:
   • Flow Rate: Operates efficiently between 450 liters per minute (lpm) and 1580 lpm.
   • Pressure Range: Supports normal operating pressure of 3.5 bar (51 psi) and a maximum pressure of 10 bar (145 psi).
   • Temperature Range: Reliable performance from -20°C to +40°C.
5. Multi-Liquid Compatibility:
   • Designed to measure a wide array of refined petroleum products, chemicals, and specialized liquids.

Technical Specifications

Specification	Details
Flow Rate	450-1580 lpm
Max Operating Pressure	10 bar (145 psi)
Temperature Range	-20°C to +40°C
Accuracy	±0.25%
Viscosity	Up to 440 cP
Meter Body Material	Cast Iron (PIG GG 25)
Air Separator Material	Steel Construction (St52)
Counter Register Screen	Polycarbonate
Weight	145.5 kg
Dimensions (L x W x H)	43 × 93 × 65 cm
Flange Diameter	3” – 4”

Material Composition

• Meter Casing: High-strength cast iron (PIG GG 25) ensures durability and resistance to wear in demanding environments.
• Air Separator Casing: Constructed from robust steel (St52) for superior reliability and longevity.
• Dynamic Seals and Gaskets: Made from FKM or Teflon materials, ensuring compatibility with high-petroleum and chemical products.

Applications of the ER 73 E Fuel Counter

The ER 73 E Fuel Counter is engineered for heavy-duty industrial applications and is suitable for monitoring a broad range of liquids, including:

1. Refined Petroleum Products:
   • Effectively measures leaded and unleaded gasoline, diesel, biodiesel, and fuel oil.
   • Ideal for jet fuel, kerosene, lubricant oil, and vegetable oil.
2. Chemical Substances:
   • Efficiently handles adhesives, pesticides, nitrogen solutions, and solvents.
   • Suitable for measuring paints, inks, alcohols, and antifreeze liquids.
3. Specialized Liquids:
   • Accurately measures molasses, liquid sugar, vinegar, and frost-free liquids.
   • Designed to handle nitric and phosphoric acids, as well as fruit juices and other chemical substances.

Compatible Models

The ER 73 E Fuel Counter integrates seamlessly with various fuel counter systems, including:

• SP Series (Standard Petroleum): Tailored for refined petroleum products like gasoline and diesel.
• AF Series (All Ferrous): Designed for chemical substances such as adhesives and solvents.
• SS Series (Stainless Steel): Optimized for specialized liquids and acidic substances such as fruit juices and vinegar.

These compatible models ensure that the ER 73 E Fuel Counter can adapt to diverse operational requirements, offering maximum efficiency and accuracy.

Why Choose the ER 73 E Fuel Counter?

1. High Precision: Delivers accurate fuel flow measurements critical for large-scale industrial operations.
2. Robust Build: Engineered with premium materials for unparalleled durability and performance.
3. Wide Compatibility: Suitable for a broad range of liquids and integrates effortlessly with various fuel counter systems.
4. Large Capacity: Handles high flow rates of up to 1580 lpm, ideal for heavy-duty applications.
5. Proven Performance: Trusted by industries worldwide for its reliability and consistency.
