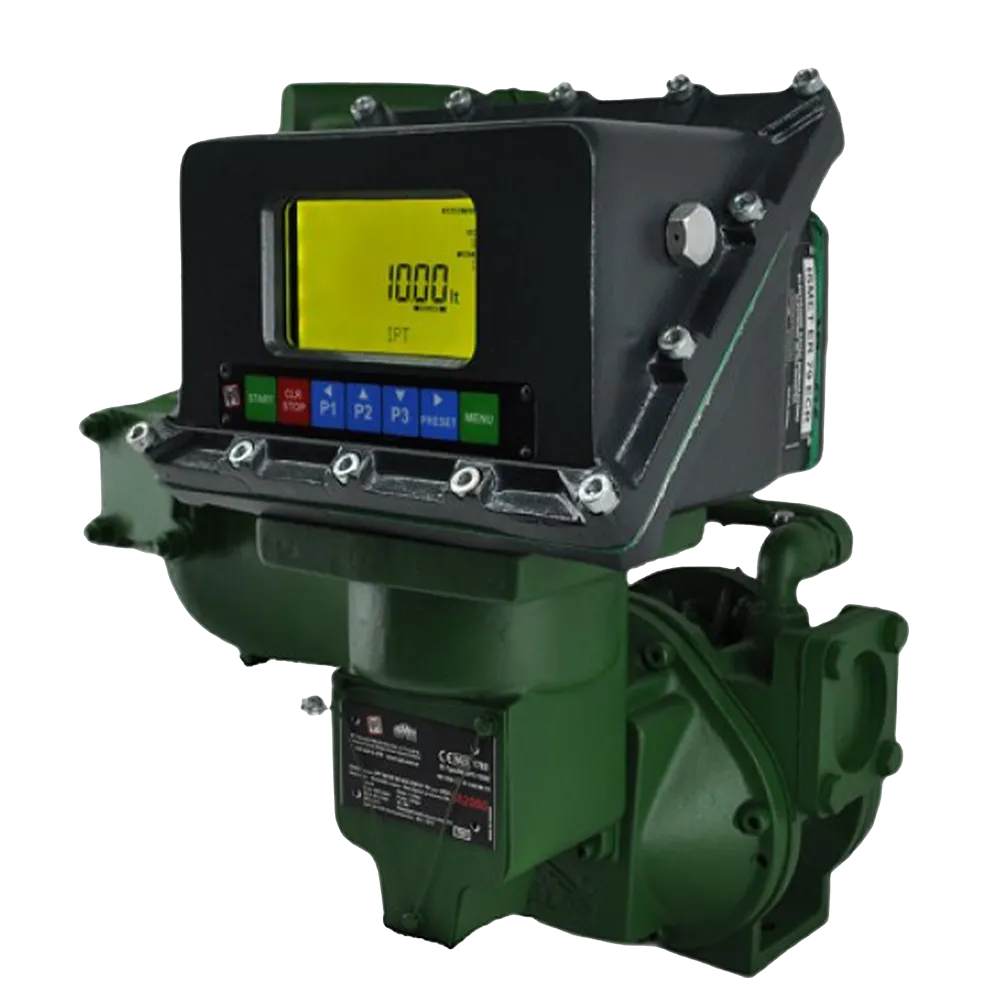

ER 88 E FUEL COUNTER

ER 88 E Fuel Counter: The Ultimate Solution for Precision Fuel Monitoring

The ER 88 E Fuel Counter represents the pinnacle of accuracy and reliability in fuel measurement technology. As a positive displacement meter, this device ensures consistent and precise readings across all pressure and flow conditions. With a robust construction and versatile design, the ER 88 E is the perfect choice for industries seeking dependable and efficient fuel metering solutions. From refined petroleum products to complex chemical substances, the ER 88 E delivers exceptional performance and durability.

Key Features of the ER 88 E Fuel Counter

1. Exceptional Accuracy:
   • Maintains an accuracy level of ±0.25% across all flow rates and pressure ranges.
   • Optimized for diverse applications, ensuring reliable performance in critical operations.
2. Advanced Design:
   • Features a 90° inlet/outlet route with a 2” diameter for streamlined installation.
   • Utilizes a tri-rotor positive displacement mechanism for superior fuel flow monitoring.
3. Durable Materials:
   • Meter Casing: Crafted from cast iron (PIG GG 25) for enhanced strength and longevity.
   • Air Separator Casing: Built with cast aluminum (AlSi10Mg) for lightweight durability.
   • Counter Register Screen: Constructed from polycarbonate glass for optimal clarity and resilience.
4. Wide Operating Range:
   • Flow Rate: 40 liters per minute (lpm) to 400 lpm.
   • Pressure: Operates efficiently under normal pressures of 3.5 bar (51 psi) and up to a maximum of 10 bar (145 psi).
   • Temperature: Designed to perform in temperatures ranging from -20°C to +40°C.
5. Versatile Applications:
   • Handles a variety of refined petroleum products, chemicals, and specialized liquids with ease.

Technical Specifications

Specification	Details
Flow Rate	40-400 lpm
Max Operating Pressure	10 bar (145 psi)
Temperature Range	-20°C to +40°C
Accuracy	±0.25%
Viscosity	Up to 440 cP
Meter Body Material	Cast Iron (PIG GG 25)
Air Separator Material	Cast Aluminum (AlSi10Mg)
Counter Register Screen	Polycarbonate Glass
Weight	30.5 kg
Dimensions (L x W x H)	36 × 50 × 46 cm
Flange Diameter	1.5” – 2”

Material Composition

• Meter Casing: High-strength cast iron (PIG GG 25) ensures durability under demanding conditions.
• Air Separator Casing: Lightweight and sturdy cast aluminum (AlSi10Mg) for reliable operation.
• Dynamic Seals and Gaskets: Made from FKM or Teflon materials to guarantee compatibility with high-petroleum products.

Applications of the ER 88 E Fuel Counter

The ER 88 E Fuel Counter is engineered for versatility, making it suitable for a broad spectrum of industrial applications. Some of its primary uses include:

1. Refined Petroleum Products:
   • Ideal for measuring leaded and unleaded gasoline, diesel, biodiesel, and fuel oil.
   • Perfect for jet fuel, lubricant oil, kerosene, and vegetable oil.
2. Chemical Substances:
   • Efficiently handles solvents, adhesives, pesticides, and fertilizers.
   • Also suitable for nitrogen solutions, paints, inks, alcohols, and antifreeze liquids.
3. Specialized Liquids:
   • Accurately measures molasses, liquid sugar, vinegar, and frost-free liquids.
   • Designed for handling nitric and phosphoric acids as well as fruit juices.

Compatible Models

The ER 88 E Fuel Counter integrates seamlessly with the following fuel counter models:

• SP Series (Standard Petroleum): Optimized for refined petroleum products like gasoline and diesel.
• AF Series (All Ferrous): Designed for chemical substances such as adhesives and solvents.
• SS Series (Stainless Steel): Suitable for specialized liquids and acidic substances like fruit juices and vinegar.

These compatible models ensure that the ER 88 E can be tailored to meet specific operational requirements, offering maximum efficiency and reliability.

Why Choose the ER 88 E Fuel Counter?

1. High Precision: Ensures accurate fuel flow measurements, critical for industrial operations.
2. Robust Build: Constructed with premium materials for unmatched durability.
3. Wide Compatibility: Works with an extensive range of liquids and fuel counter models.
4. User-Friendly Design: Compact dimensions and intuitive interface for easy installation and use.
5. Proven Performance: Trusted by industries globally for its reliability and efficiency.
