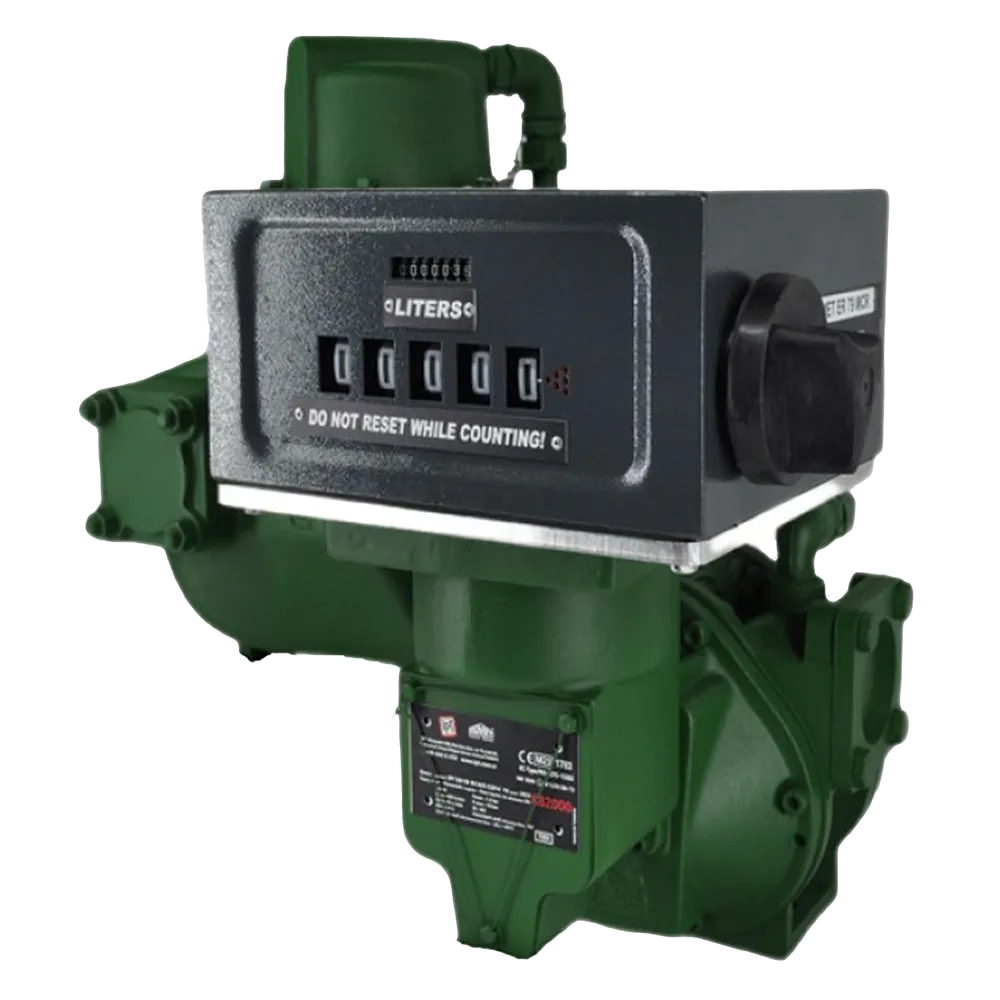

ER 88 M FUEL COUNTER

ER 88 M Fuel Counter: Precision Engineering for Accurate Fuel Monitoring

The ER 88 M Fuel Counter is an advanced fuel metering solution designed to deliver precise and reliable measurements in industrial and commercial applications. As a positive displacement meter, it guarantees accurate flow readings across various pressure and flow rates, making it an essential tool for industries that demand exceptional performance and durability. Engineered with high-quality materials, the ER 88 M Fuel Counter is ideal for measuring refined petroleum products, chemicals, and other specialized liquids.

Key Features of the ER 88 M Fuel Counter

1. Unparalleled Accuracy:
   • Achieves a precision level of ±0.25%, ensuring dependable readings across all operating conditions.
   • Optimized for a wide range of liquid types, maintaining consistent accuracy.
2. Innovative Design:
   • Features a 90° inlet and outlet route with a 2” diameter for easy integration.
   • Incorporates a tri-rotor positive displacement mechanism for seamless operation.
3. Robust Construction:
   • Meter Casing: Made from durable cast iron (PIG GG 25) for long-lasting performance.
   • Air Separator Casing: Lightweight yet strong cast aluminum (AlSi10Mg).
   • Counter Register Screen: Polycarbonate glass for enhanced visibility and durability.
4. Versatile Performance Range:
   • Flow Rate: Operates from 40 liters per minute (lpm) to 400 lpm.
   • Pressure Range: Supports normal pressures of 3.5 bar (51 psi) and up to 10 bar (145 psi).
   • Temperature Range: Functions efficiently between -20°C and +40°C.
5. Multi-Liquid Compatibility:
   • Designed for refined petroleum products, chemicals, and specialized liquids.

Technical Specifications

Specification	Details
Flow Rate	40-400 lpm
Max Operating Pressure	10 bar (145 psi)
Temperature Range	-20°C to +40°C
Accuracy	±0.25%
Viscosity	Up to 440 cP
Meter Body Material	Cast Iron (PIG GG 25)
Air Separator Material	Cast Aluminum (AlSi10Mg)
Counter Register Screen	Polycarbonate Glass
Weight	25 kg
Dimensions (L x W x H)	33 × 55 × 46 cm
Flange Diameter	1.5” – 2”

Material Composition

• Meter Casing: High-strength cast iron (PIG GG 25) ensures durability under demanding conditions.
• Air Separator Casing: Lightweight and sturdy cast aluminum (AlSi10Mg) for reliable operation.
• Dynamic Seals and Gaskets: Made from FKM or Teflon materials to guarantee compatibility with high-petroleum products.

Applications of the ER 88 M Fuel Counter

The ER 88 M Fuel Counter is engineered for versatility, making it suitable for a broad spectrum of industrial applications. Some of its primary uses include:

1. Refined Petroleum Products:
   • Ideal for measuring leaded and unleaded gasoline, diesel, biodiesel, and fuel oil.
   • Perfect for jet fuel, lubricant oil, kerosene, and vegetable oil.
2. Chemical Substances:
   • Efficiently handles solvents, adhesives, pesticides, and fertilizers.
   • Also suitable for nitrogen solutions, paints, inks, alcohols, and antifreeze liquids.
3. Specialized Liquids:
   • Accurately measures molasses, liquid sugar, vinegar, and frost-free liquids.
   • Designed for handling nitric and phosphoric acids as well as fruit juices.

Compatible Models

The ER 88 M Fuel Counter integrates seamlessly with the following fuel counter models:

• SP Series (Standard Petroleum): Optimized for refined petroleum products like gasoline and diesel.
• AF Series (All Ferrous): Designed for chemical substances such as adhesives and solvents.
• SS Series (Stainless Steel): Suitable for specialized liquids and acidic substances like fruit juices and vinegar.

These compatible models ensure that the ER 88 M can be tailored to meet specific operational requirements, offering maximum efficiency and reliability.

Why Choose the ER 88 M Fuel Counter?

1. High Precision: Ensures accurate fuel flow measurements, critical for industrial operations.
2. Robust Build: Constructed with premium materials for unmatched durability.
3. Wide Compatibility: Works with an extensive range of liquids and fuel counter models.
4. User-Friendly Design: Compact dimensions and intuitive interface for easy installation and use.
5. Proven Performance: Trusted by industries globally for its reliability and efficiency.
