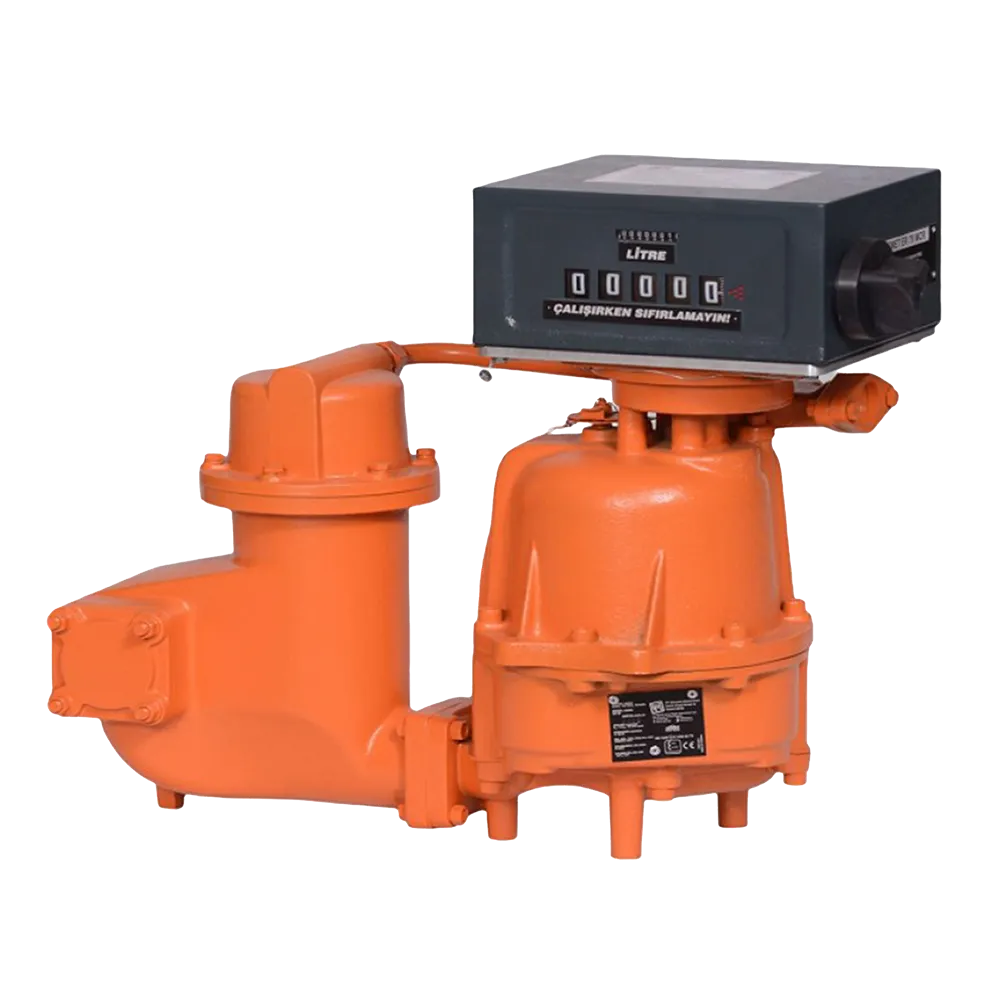

ER 90 M FUEL COUNTER

ER 90 M Fuel Counter: Precision and Reliability in Fuel Measurement

The ER 90 M Fuel Counter is a cutting-edge solution for industries seeking accurate and efficient fuel monitoring systems. Designed with a focus on precision, durability, and versatility, this positive displacement meter ensures consistent and reliable fuel flow measurements. Whether you are dealing with refined petroleum products or specialized liquids, the ER 90 M Fuel Counter is engineered to meet the demands of various industrial and commercial applications.

Key Features of the ER 90 M Fuel Counter

1. Exceptional Accuracy:
   • Maintains a precision level of ±0.25% across diverse pressure and flow conditions.
   • Ensures consistent performance for a wide range of liquid types.
2. Advanced Design:
   • Features a 90° inlet and outlet route with a 1” diameter for seamless installation.
   • Utilizes a tri-piston positive displacement mechanism for enhanced accuracy and durability.
3. High-Quality Materials:
   • Meter Casing: Cast iron (PIG GG 25) for superior strength and durability.
   • Air Separator Casing: Made from lightweight yet durable cast aluminum (AlSi10Mg).
   • Counter Register Screen: Polycarbonate glass for maximum visibility and resilience.
4. Optimized Performance Range:
   • Flow Rate: Operates efficiently between 10 liters per minute (lpm) and 100 lpm.
   • Pressure Range: Normal operation at 3.5 bar (51 psi) and up to a maximum of 10 bar (145 psi).
   • Temperature Range: Reliable performance from -20°C to +40°C.
5. Wide Liquid Compatibility:
   • Compatible with a variety of refined petroleum products, chemicals, and specialized liquids.

Technical Specifications

Specification	Details
Flow Rate	10-100 lpm
Max Operating Pressure	10 bar (145 psi)
Temperature Range	-20°C to +40°C
Accuracy	±0.25%
Viscosity	Up to 440 cP
Meter Body Material	Cast Iron (PIG GG 25)
Air Separator Material	Cast Aluminum (AlSi10Mg)
Counter Register Screen	Polycarbonate Glass
Weight	34 kg
Dimensions (L x W x H)	28 × 62 × 53 cm
Flange Diameter	0.75” – 1”

Material Composition

• Meter Casing: High-strength cast iron (PIG GG 25) ensures robust performance under demanding conditions.
• Air Separator Casing: Crafted from cast aluminum (AlSi10Mg) for lightweight durability.
• Dynamic Seals and Gaskets: Constructed from FKM or Teflon materials to ensure compatibility with high-petroleum products.

Applications of the ER 90 M Fuel Counter

The ER 90 M Fuel Counter is designed for a broad range of industrial and commercial applications, offering unmatched versatility and reliability. Its primary uses include:

1. Refined Petroleum Products:
   • Effectively measures leaded and unleaded gasoline, diesel, biodiesel, and fuel oil.
   • Ideal for jet fuel, kerosene, lubricant oil, and vegetable oil.
2. Chemical Substances:
   • Efficiently handles adhesives, pesticides, nitrogen solutions, and solvents.
   • Suitable for measuring paints, inks, alcohols, and antifreeze liquids.
3. Specialized Liquids:
   • Accurately measures molasses, liquid sugar, vinegar, and frost-free liquids.
   • Capable of handling nitric and phosphoric acids, as well as fruit juices.

Compatible Models

The ER 90 M Fuel Counter seamlessly integrates with the following models:

• SP Series (Standard Petroleum): Tailored for refined petroleum products like gasoline and diesel.
• AF Series (All Ferrous): Ideal for chemical substances such as adhesives and nitrogen solutions.
• SS Series (Stainless Steel): Optimized for specialized liquids and acidic substances like vinegar and fruit juice.

These compatible models ensure that the ER 90 M Fuel Counter meets the operational requirements of a diverse range of industries.

Why Choose the ER 90 M Fuel Counter?

1. Precision Performance: Provides accurate fuel flow measurements, essential for industrial operations.
2. Durable Build: Constructed with premium materials for unmatched longevity and reliability.
3. Wide Compatibility: Suitable for a broad spectrum of liquids and integrates with various fuel counter models.
4. Compact Design: Offers a space-saving design for easy installation and operation.
5. Proven Reliability: Trusted by industries worldwide for consistent and dependable performance.
