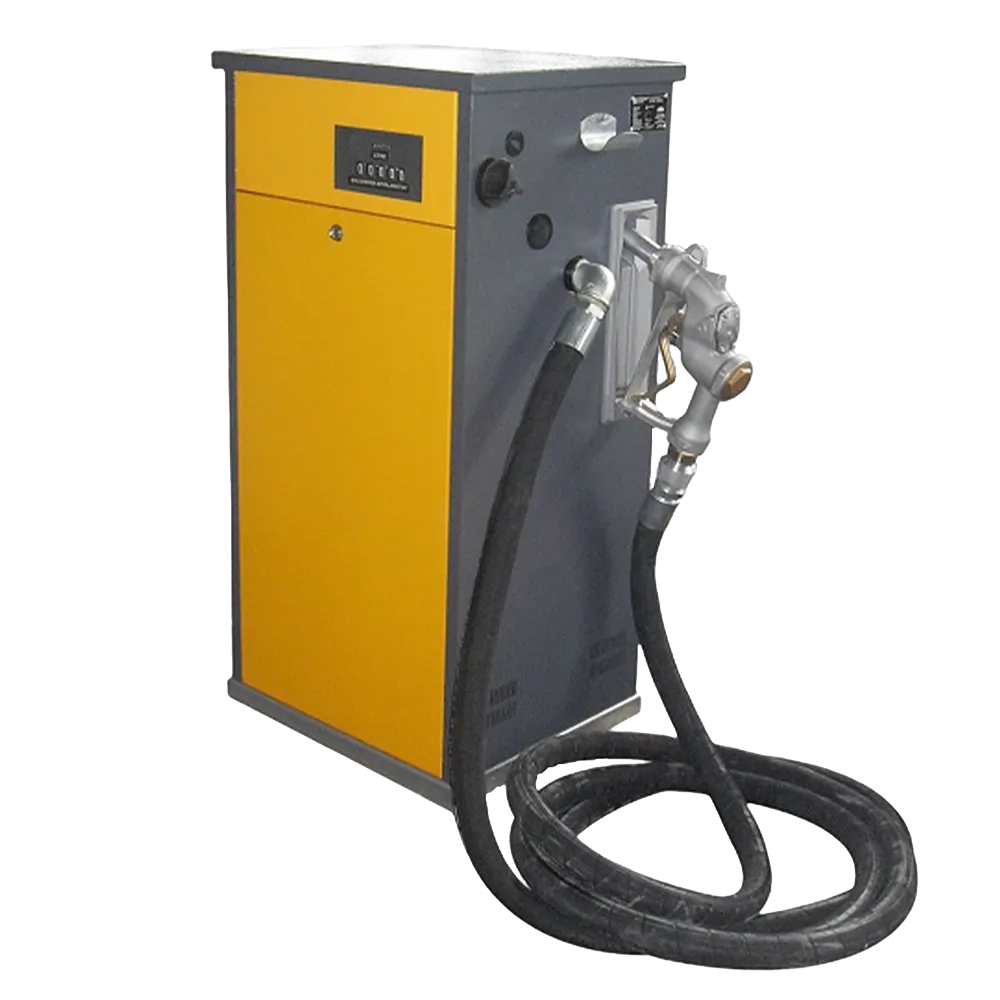

MT 8 DISPENSER

MT 8 Dispenser – The Future of Efficient Fuel Dispensing

The MT 8 Dispenser series is the ultimate solution for modern fuel stations requiring adaptability, efficiency, and accuracy. Designed to cater to diverse fueling needs, the MT 8 series offers unparalleled flexibility, allowing for a customizable configuration that meets the specific requirements of your business. From varying hose reach to high-capacity flow rates, the MT 8 Dispenser sets a benchmark in the industry.

---

Key Features of the MT 8 Dispenser:

1. Customizable Fuel Dispensing: Designed with adaptability in mind, the MT 8 series can be configured for retail or fleet fueling. It accommodates different operational needs with ease, providing a seamless user experience.
2. High Flow Rates: Achieve fast and efficient fueling with flow rates of up to 200 liters per minute. This feature is especially beneficial for fleet fueling operations where speed and efficiency are critical.
3. Accurate Measurement: Equipped with a micro-accurate Positive Displacement (PD) meter, the MT 8 ensures precise fuel tracking and measurement. This feature makes it ideal for stations prioritizing accountability and accurate billing.
4. Advanced Counter Options:
   • SM (Single Mechanic Counter Register): For users who prefer a mechanical interface.
   • SE (Single Electronic Counter Register): For stations that demand a modern, digital approach to fuel management.
5. Enhanced Hose Reach: The MT 8 Dispenser offers hose reach options of up to 7.5 meters, enabling flexible operation even in challenging layouts.
6. Temperature Versatility: Operates effectively within a temperature range of -20°C to +60°C, making it suitable for diverse geographic locations and weather conditions.
7. Durable Construction:
   • Body Material: Made with robust ST52 sheet plates and coated with electrostatic dust paint for maximum durability and corrosion resistance.
   • Shelf: Manufactured from galvanized sheet plates (ST52), ensuring long-lasting reliability.
8. Energy-Efficient Operation: Powered by a 4 kW motor, the MT 8 balances performance and energy consumption efficiently.

---

Technical Specifications:

Feature	SM Model	SE Model
Outlet	Single	Single
Counter Register	Mechanic	Electronic
Nozzle Diameter	1½”	1½”
Maximum Flow Rate	200 lpm	200 lpm
Hose Length	5 m (1½”)	5 m (1½”)
Operating Temperature	-20°C to +60°C	-20°C to +60°C
Voltage	380 AC V	380 AC V
Hydraulics	Suction 1324 P	Suction 1324 P
Inlet Diameter	2″ (5 cm) NPT	2″ (5 cm) NPT
Motor Power	4 kW	4 kW
Weight	190 kg	190 kg
Dimensions (W × L × H)	53 × 75 × 120 cm	53 × 75 × 120 cm
Other Features	Hose hanger	Hose hanger

---

Applications of MT 8 Dispenser:

The MT 8 Dispenser is suitable for a wide range of fuel station setups, including:

• Retail fueling stations
• Fleet fueling operations
• Industrial fueling applications

Whether you operate a busy highway fuel station or a private fleet fueling facility, the MT 8 offers the reliability and efficiency your business requires.

---

Compatible Models and Configurations:

The MT 8 series comes with the flexibility to choose between different register types:

• MT 8 SM: Features a single mechanical counter register, ideal for traditional setups.
• MT 8 SE: Equipped with a single electronic counter register, perfect for modern, high-tech fueling stations.

---

Dispenser Selection Table:

Model	Register Type	Capacity (lpm)	Electric Motor
MT 7	SM / DM / SE / DE	45–75 lpm	380 AC V
MT 8	SM / SE	200 lpm	380 AC V
MT 6	SM	45–75 lpm	380 AC V
MT 6B	SM	45–75 lpm	380 AC V

---

Additional Information:

• Designed for underground tank suction applications. For above-ground tank suction systems, custom solutions are available upon request.
• Non-explosion-proof motors: Electric motors in the MT 8 series are not equipped with explosion-proof features. Please contact us for specialized requirements.

---

Why Choose the MT 8 Dispenser?

1. Precision and Reliability: The micro-accurate PD meter ensures you never miss a drop, providing unmatched reliability.
2. High Capacity: Its capability to handle up to 200 liters per minute makes it ideal for fast-paced operations.
3. Durable and Resilient: Constructed with high-quality materials, the MT 8 Dispenser can withstand challenging environments.
4. Customizable Features: Tailor the MT 8 to your station’s specific needs, from counter registers to hose lengths.

---

Contact Us:

Ready to upgrade your fueling operations? Get in touch with us to learn more about the MT 8 Dispenser and how it can transform your station’s efficiency and accuracy.
