23B2011220, 23B-20-11220 TUBE ASSY KOMATSU

The 23B2011220, 23B-20-11220 TUBE ASSY KOMATSU is a power train spare part used in the drive shaft section of selected Komatsu grader machines. In accessible parts-book material for the GD511A-1, this code appears directly under the DRIVE SHAFT group as “TUBE ASS’Y,” which clearly places it in the driveline rather than in the engine, hydraulic pump, or cooling system. Public aftermarket listings also identify the same number in grader-related transmission and torque categories.

For buyers, that catalog placement is more important than the short name alone. A “tube assembly” in a drive shaft group is not just a generic round tube. It is a structural rotating member or driveline body that works together with the rest of the shaft assembly and must hold alignment, transfer motion, and tolerate repeated torque loads during grader operation. The GD511A-1 parts-book entry shows it as a component of 23B-20-11200 DRIVE SHAFT ASS’Y, confirming that this part belongs inside a larger driveline system.

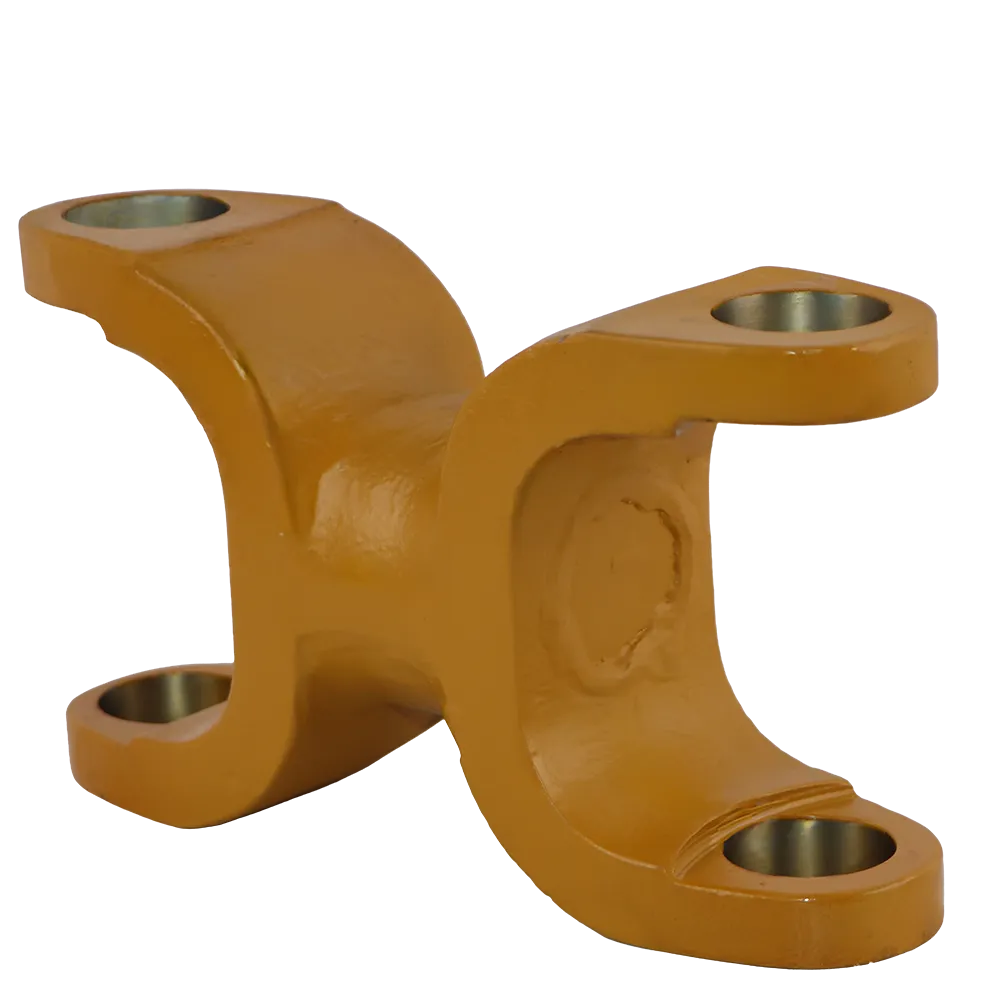

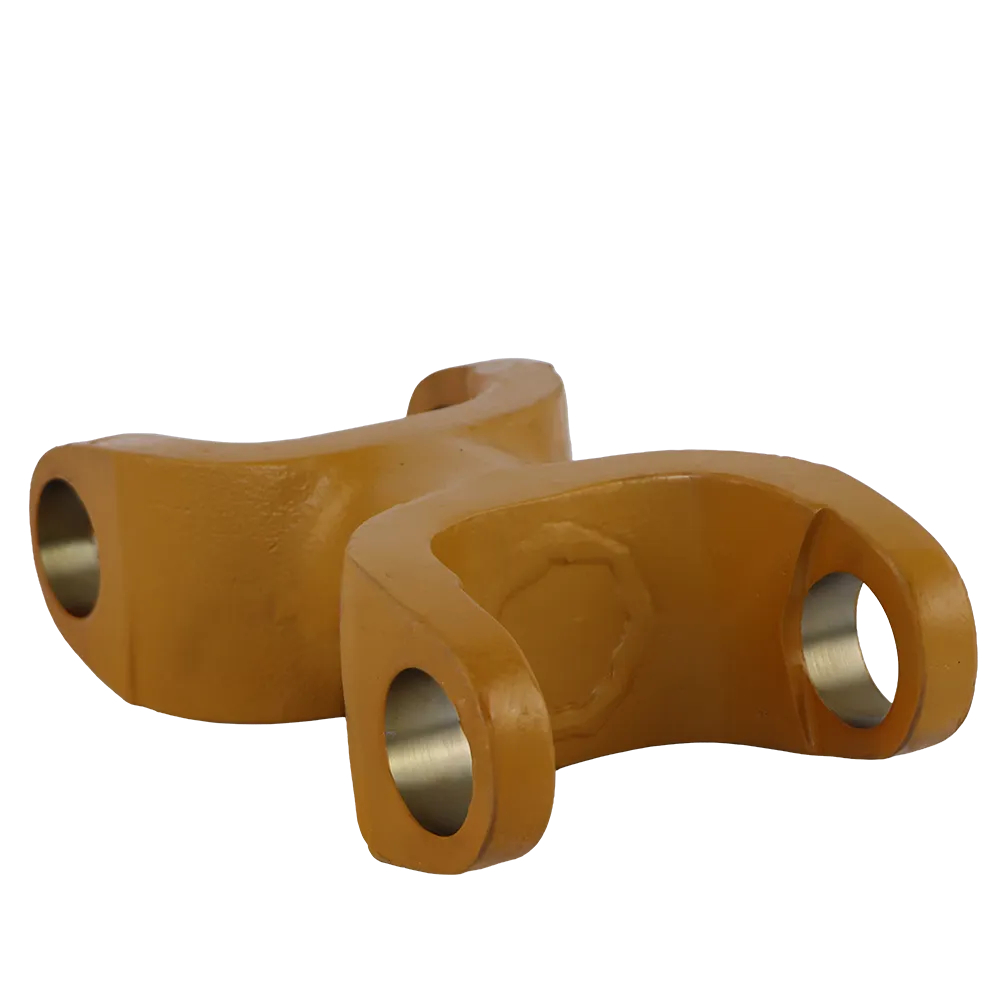

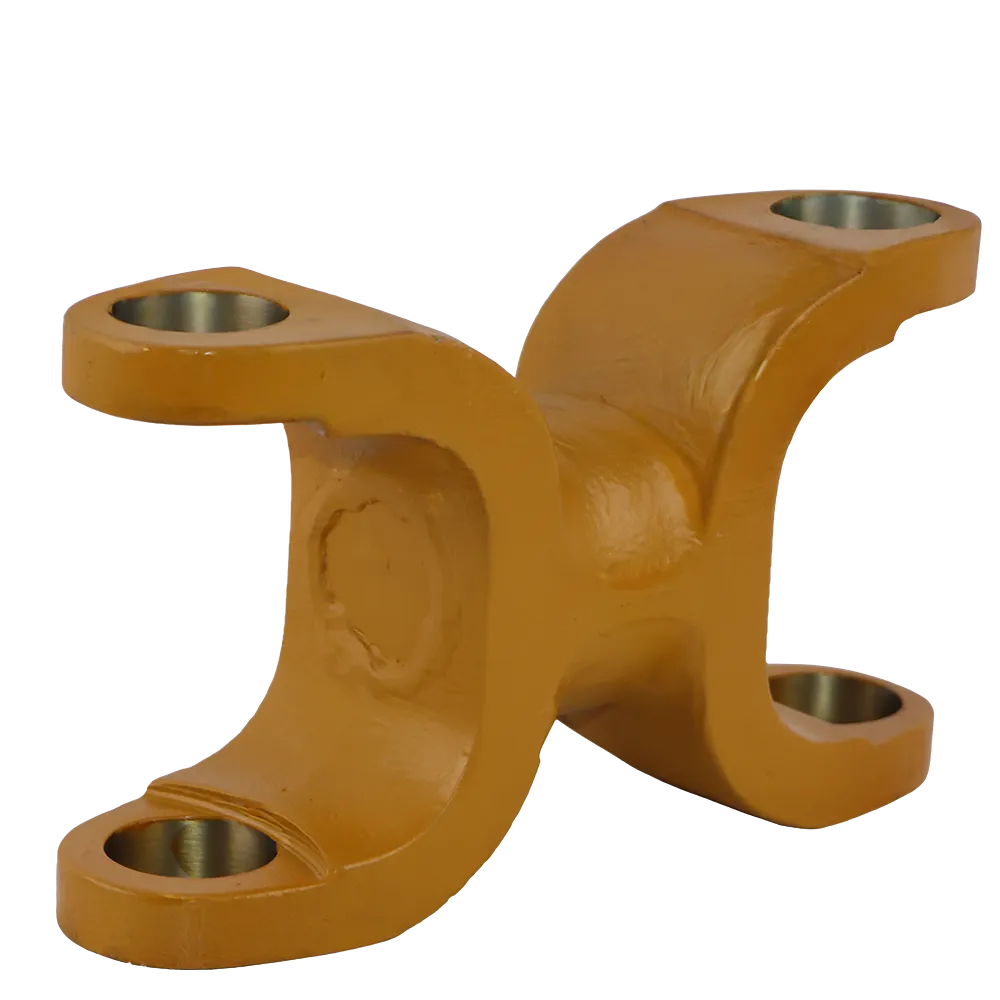

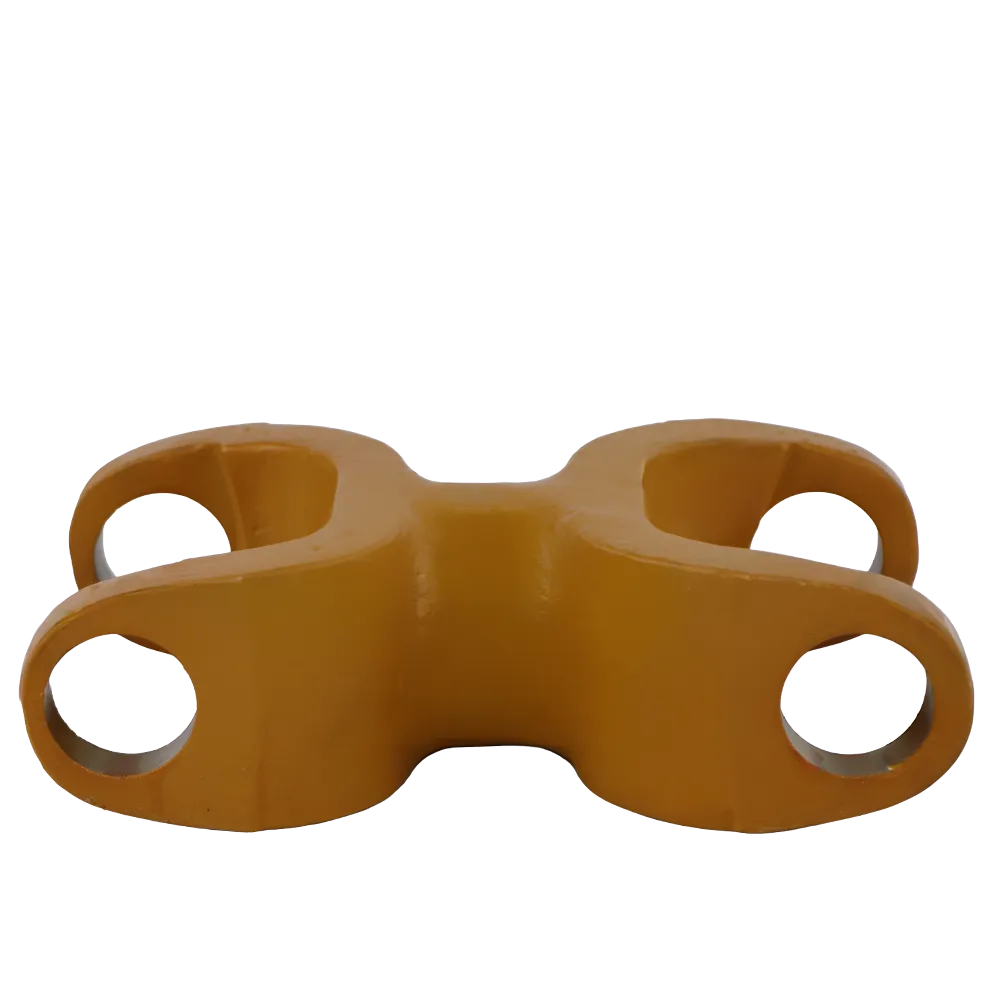

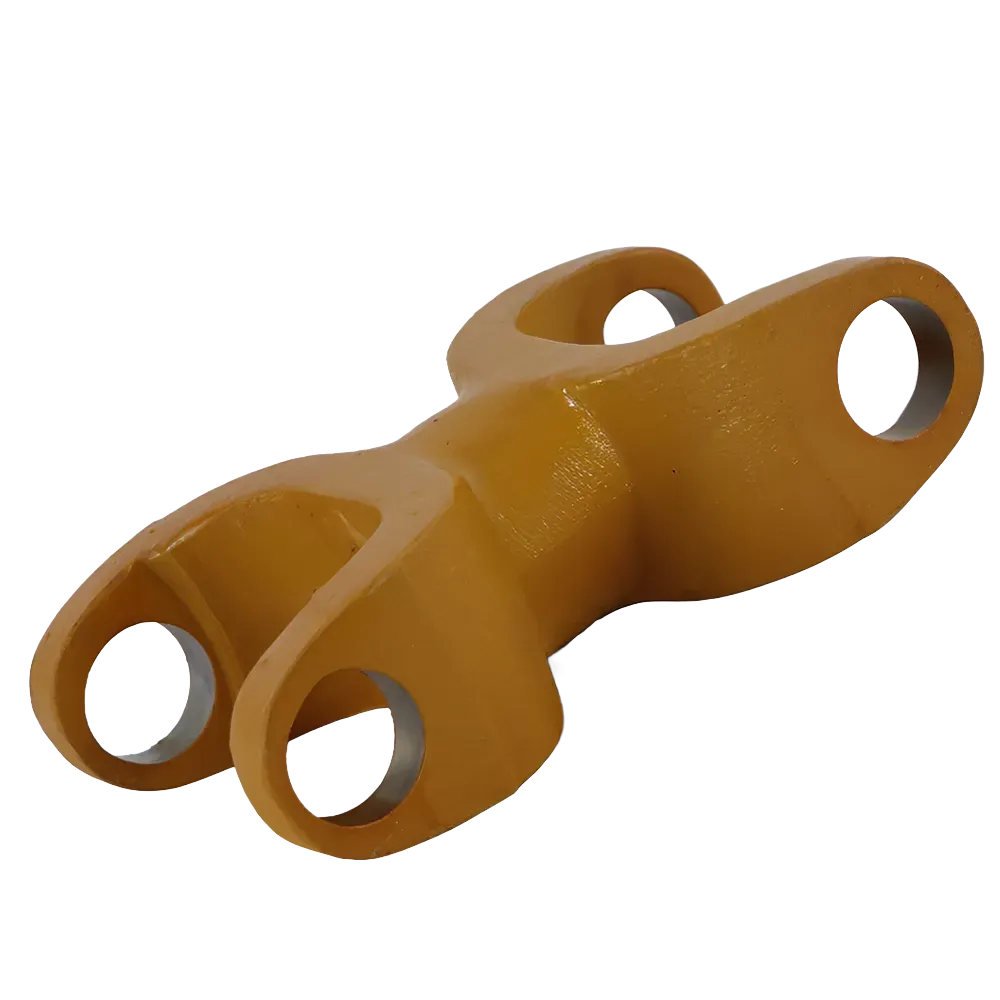

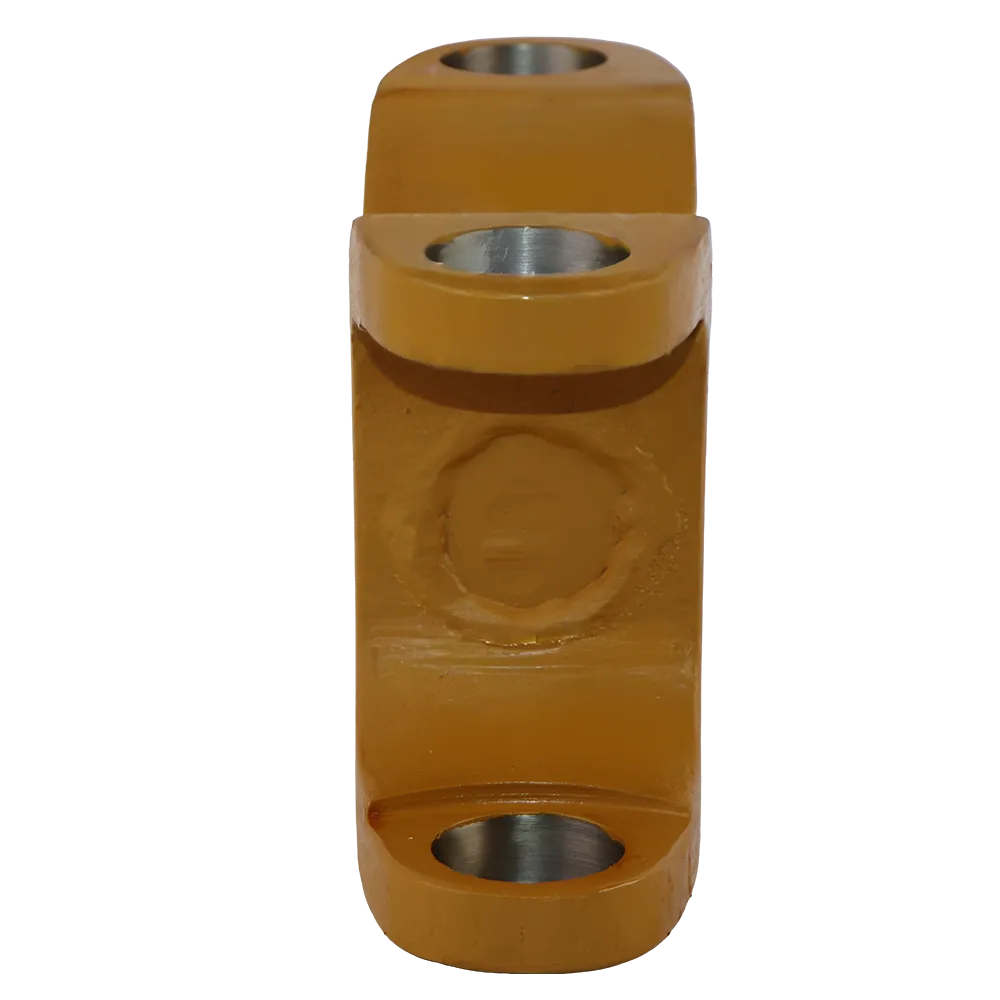

From the uploaded product images, the part also looks far more specialized than a plain pipe. The body has a rigid forked form with four machined bore ends and a reinforced central section, which suggests a load-bearing driveline role. The geometry indicates that fit, bore accuracy, and structural strength are central to its function. That is exactly the kind of part workshops search when they are repairing vibration, looseness, or wear in a grader transmission-to-drive connection.

At 3GEN Export, we supply the 23B2011220, 23B-20-11220 TUBE ASSY KOMATSU as an OEM supplier solution for buyers who need dependable fit, professional export handling, and worldwide delivery in 5 working days. When a grader is down, fast access to the correct replacement matters just as much as the part itself.

What This Komatsu Tube Assembly Does

The clearest public description available for 23B2011220 is simply “TUBE ASS’Y.” That wording appears in the GD511A-1 parts-book material and in catalog-style commercial listings. A Turkish grader parts page also references 23B-20-11220 in connection with GD655, describing it as a grader intermediate shaft body, which supports the same general driveline interpretation.

In practical service terms, the 23B-20-11220 TUBE ASSY KOMATSU should be understood as a key member inside the drive shaft assembly. It helps connect and support the rotating drivetrain path that carries mechanical movement through the grader’s power train. Because it works in the shaft group, the part has to maintain dimensional stability under load, resist deformation, and preserve correct mechanical relationship with the mating pieces around it.

This is why buyers should not treat 23B2011220 as a low-importance item. If the shaft system develops excess play, impact, or misalignment, related components can wear faster, operation can become rougher, and the machine may begin to produce vibration or driveline shock. In graders that work long hours on uneven surfaces, those issues compound quickly.

Why the Design of 23B2011220 Matters

The images show a compact but heavy-looking body with four eye-type ends and a central mass that blends smoothly into each arm. That design is meaningful. Smooth transitions between the arms and the body help distribute force more evenly and reduce local stress concentration. In heavy equipment driveline service, that kind of shape is not cosmetic. It is a durability feature.

The visible machining at the bores is also important. On a part like this, the bore surfaces are among the most critical zones because they control how the assembly locates, pivots, or connects with its mating hardware. A poor bore finish or incorrect size can create extra clearance, poor seating, and accelerated wear once the grader goes back into service.

The outer painted finish and strong section thickness support the same overall impression: the 23B-20-11220 TUBE ASSY KOMATSU is intended for real mechanical work, not light-duty use. For buyers comparing alternatives, this is one of the reasons part-code accuracy matters so much. The right number is not just about naming. It is about making sure the installed component behaves correctly under real operating load.

Publicly Traceable Machine References

Publicly accessible references for this code are not all equally detailed, but several do connect 23B2011220 with Komatsu grader applications.

The clearest traceable machine reference is:

• Komatsu GD511A-1, where 23B-20-11220 appears in the DRIVE SHAFT group as TUBE ASS’Y.

Additional commercial or parts-market references connect the same number with grader-family applications such as:

• Komatsu GD655, where the code is described on a grader parts page as an intermediate shaft body reference.
• Komatsu GD661, where an online grader parts listing includes 23B-20-11220 in the machine’s parts catalogue.

Because grader driveline parts can vary by serial range, production batch, and regional catalog format, final fitment for the 23B2011220, 23B-20-11220 TUBE ASSY KOMATSU should always be confirmed by serial number, original parts book, or existing part markings before shipment. That is the safest approach for any power train component.

Role in the Drive Shaft Assembly

The GD511A-1 parts-book material is especially useful because it shows the relationship of this number to the larger assembly. In that layout, 23B-20-11200 is the drive shaft assembly, 23B-20-11210 is the spider assembly, 23A-20-11130 is the nipple, and 23B-20-11220 is the tube assembly. That tells us the part is not isolated; it works with multiple adjoining elements in a defined mechanical sequence.

This kind of information matters to workshops. When one driveline member fails or wears, the surrounding parts should not automatically be assumed healthy. If a grader has been operating with looseness, poor lubrication, or impact loading, related spiders, fasteners, nipples, seals, and connected shaft members may also need inspection. Ordering the 23B-20-11220 TUBE ASSY KOMATSU is often one step in a wider repair process, not always the whole repair by itself.

That is also why correct sourcing is critical. A component that is slightly off in form, bore size, or structural proportion may install with difficulty or create unwanted play once running. In the power train, small fit errors can become large service problems.

Visual Construction Notes Based on the Uploaded Product

From the images alone, the 23B2011220 component appears to combine several key mechanical advantages.

First, the part body looks thick and rigid. That kind of mass is useful in driveline service because it helps the assembly resist distortion under cyclic loading.

Second, the four bore ends appear evenly machined and consistently finished. Uniformity is essential for alignment and repeatable assembly behavior.

Third, the central section is not overly thin. The stronger center body suggests that the component is built to tolerate force passing through the part rather than just hold static hardware in position.

Fourth, the painted finish helps protect the outer body in storage and service, while the machined internal faces preserve the contact accuracy needed for installation.

These visual traits make the 23B-20-11220 TUBE ASSY KOMATSU suitable for buyers who prioritize practical service life, proper seating, and dependable mechanical behavior.

Technical Overview

Part identification

Part number: 23B2011220

Alternative writing: 23B-20-11220

Catalog-style description: TUBE ASS’Y

Assembly group: Drive shaft / transmission and torque section.

Equipment type

The public references connect this part to Komatsu motor grader platforms rather than to crawler dozers or excavators. The most directly traceable application is GD511A-1, with additional market references pointing to GD655 and GD661 family use.

Estimated material and build logic

While open-access sources do not provide a full metallurgy sheet, the visible form and finish strongly suggest a robust cast or forged-type structural body followed by machining in critical bore areas. That is a common and sensible approach for heavy-duty rotating connection parts because it combines bulk strength with dimensional accuracy where needed.

Estimated weight

A catalog-style listing for 23B-20-11220 shows a weight of 7.46 kg. Another commercial parts listing displays the same number with a 7460 weight value, which is consistent with 7.460 kg when interpreted as grams. For website use, the most practical commercial figure is:

Estimated weight: 7.46 kg.

Why Buyers Search for This Part

Most buyers do not start by searching the full story of a driveline repair. They search by the code on the worn component, the short name in the old invoice, or the machine model in the workshop record. That is why a strong product page for 23B2011220 should support different search habits without sounding repetitive.

Common search forms include 23B2011220, 23B-20-11220, Komatsu tube assy 23B-20-11220, Komatsu drive shaft tube, grader drive shaft tube assembly, and GD511A-1 drive shaft tube. A well-built page should include the number variations naturally while still reading like a real technical sales text.

The smartest SEO approach is not to repeat the exact same phrase in every heading and sentence. Instead, the page should combine the full product name with natural support terms such as drive shaft member, driveline tube assembly, shaft body, rotating power train connection part, and grader transmission shaft component. That keeps the content readable and helps avoid over-optimization.

Ordering Advantages from 3GEN Export

When customers source 23B2011220, 23B-20-11220 TUBE ASSY KOMATSU from 3GEN Export, they are not just buying a code on a page. They are working with an OEM supplier focused on heavy machinery spare parts, export documentation, clear part communication, and fast global logistics.

For international buyers, that matters for several reasons. First, power train parts are rarely impulse purchases. They are usually ordered under downtime pressure. Second, driveline parts demand confidence in identification. Third, shipping delays can be more expensive than the part itself if the machine remains idle.

That is why we position the 23B-20-11220 TUBE ASSY KOMATSU as a practical replacement option for fleets, resellers, service companies, and contractors who need worldwide delivery in 5 working days. Speed, fit confidence, and supplier responsiveness are part of the value.

Installation and Inspection Considerations

When replacing this part, the surrounding shaft assembly should be inspected carefully. Because the number sits in the drive shaft group, workshops should check the related spider assembly, lubrication points, bolts, and adjacent wear areas during the repair process. If a worn or damaged tube assembly is installed alongside already compromised mating parts, service results may be short-lived.

Alignment should also be treated seriously. A grader driveline depends on stable geometry. Improper installation, reused damaged hardware, or forced assembly can create stress that leads to vibration or premature failure. Even when the replacement part itself is correct, the final result depends on the whole repair standard.

This is one more reason why many professional buyers prefer to source from a specialist supplier instead of depending on vague, recycled marketplace descriptions.

Commercial Summary for Buyers

The 23B2011220 number belongs to a Komatsu drive shaft group component described in accessible documentation as TUBE ASS’Y. Publicly traceable references place it in the GD511A-1 drive shaft section, while additional commercial listings connect the same part number to grader-related applications including GD655 and GD661. The most useful publicly visible weight reference is 7.46 kg.

From the product images, the part presents as a rigid, machined, structurally reinforced driveline member designed for fit accuracy and repeated service under mechanical load. For buyers repairing grader transmission and torque systems, that makes it a practical and important replacement item rather than a simple generic tube.

If you are building a high-conversion product page, the best positioning is clear: 3GEN Export supplies the 23B2011220, 23B-20-11220 TUBE ASSY KOMATSU as an OEM supplier with worldwide delivery in 5 working days, supported by professional export handling and heavy machinery spare parts experience.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
