3115143500, 3115 1435 00 GUIDE ATLAS COPCO

Public official Epiroc sources confirm the COP 1238K rock drill family, its underground application, its hole range, and its main drilling interfaces. Public official sources do not seem to publish a freely accessible part-by-part data sheet for 3115 1435 00 itself, so the exact part naming, individual part weight, and detailed fitment list below are based on consistent market cross-references and are labeled that way.

3115 1435 00 GUIDE ATLAS COPCO Product Overview

3115 1435 00 GUIDE ATLAS COPCO is a precision front-end guide component used in the COP 1238 rock drill family. In market cross-references it is commonly described as a guide, a head guide sleeve DIA45, or a front shank bushing, which tells us its job is not passive at all: it helps control alignment, stabilizes moving front-end components, and supports smooth rotation and impact transfer in a demanding hydraulic rock drilling environment. The official Epiroc COP 1238K material confirms that this drill family is designed for underground tunneling and drifting applications in the 51 to 89 mm hole range, which is exactly the kind of heavy-duty service where guide accuracy matters.

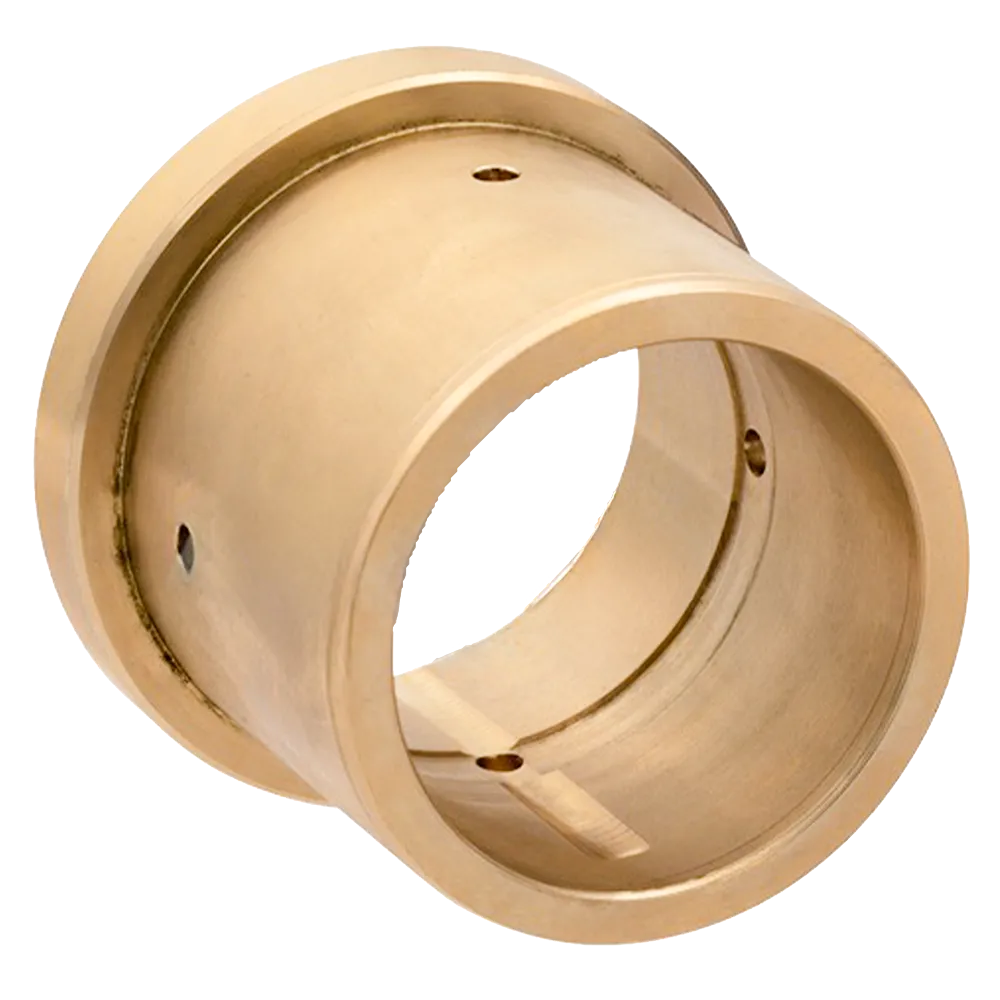

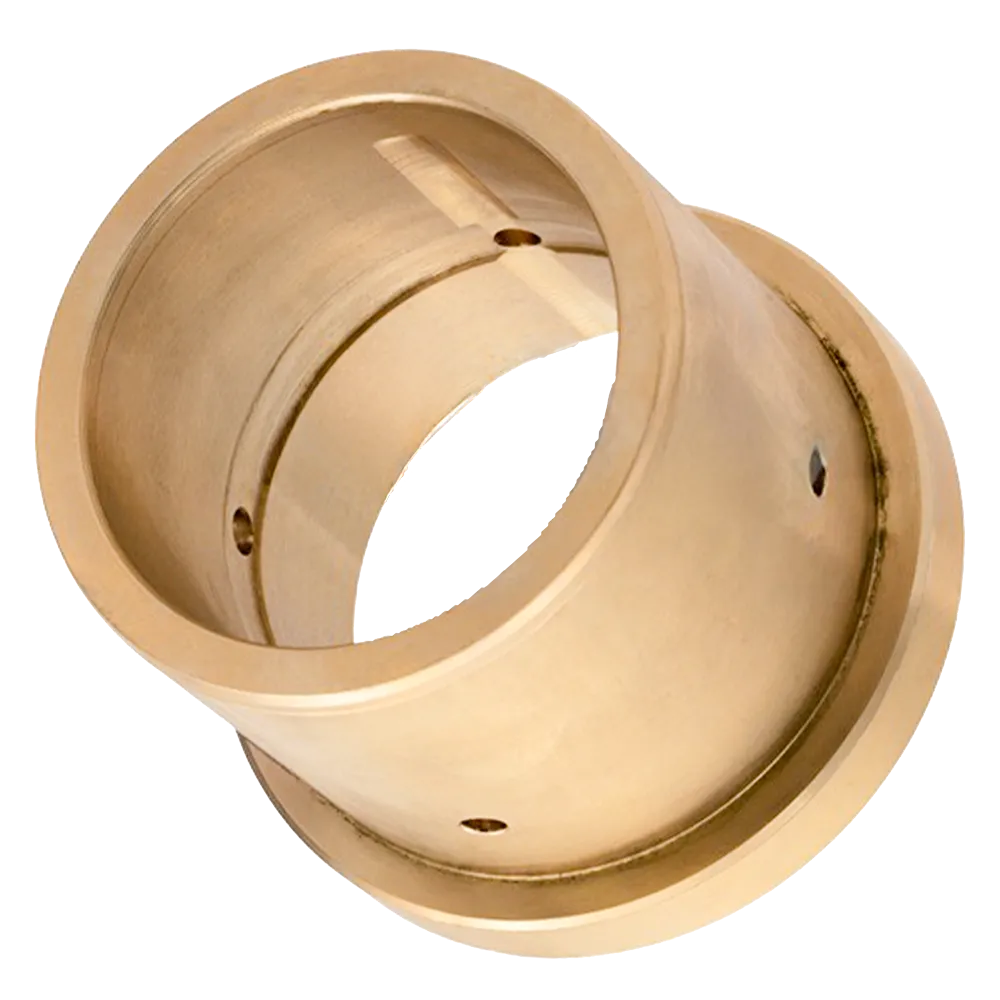

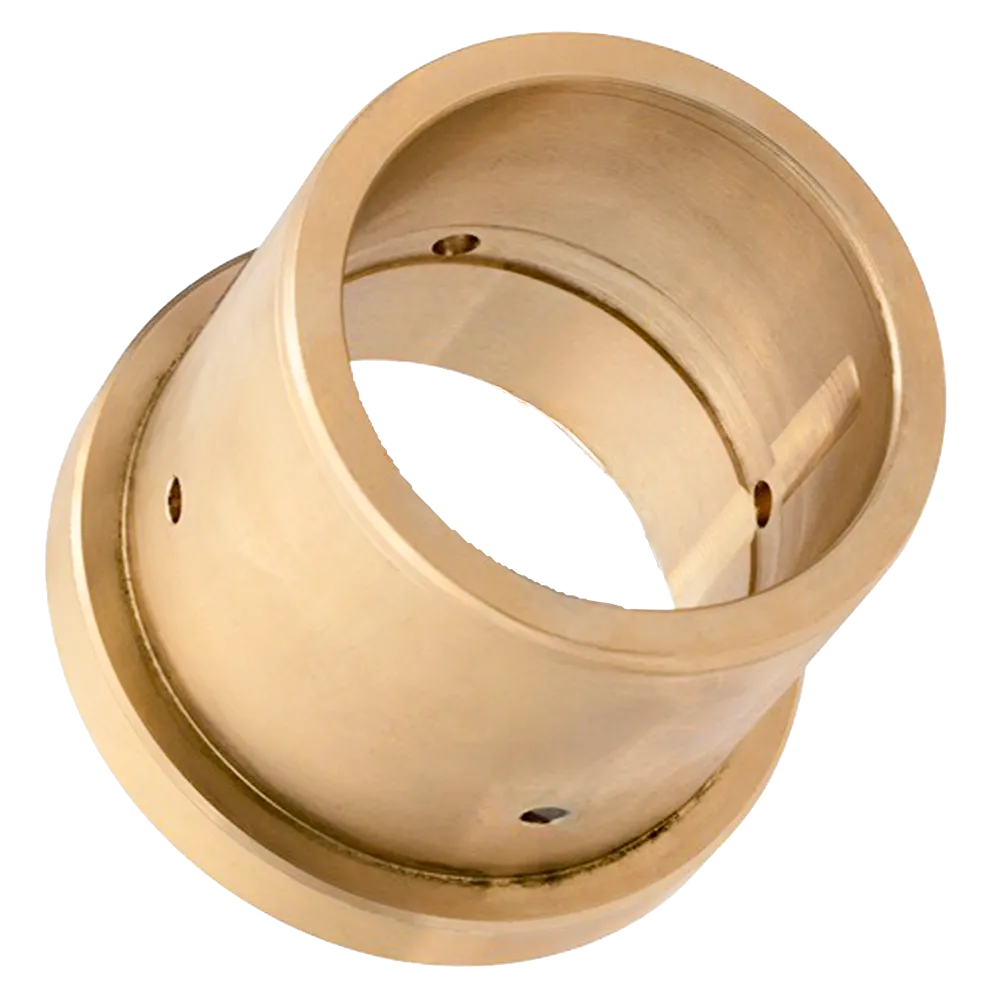

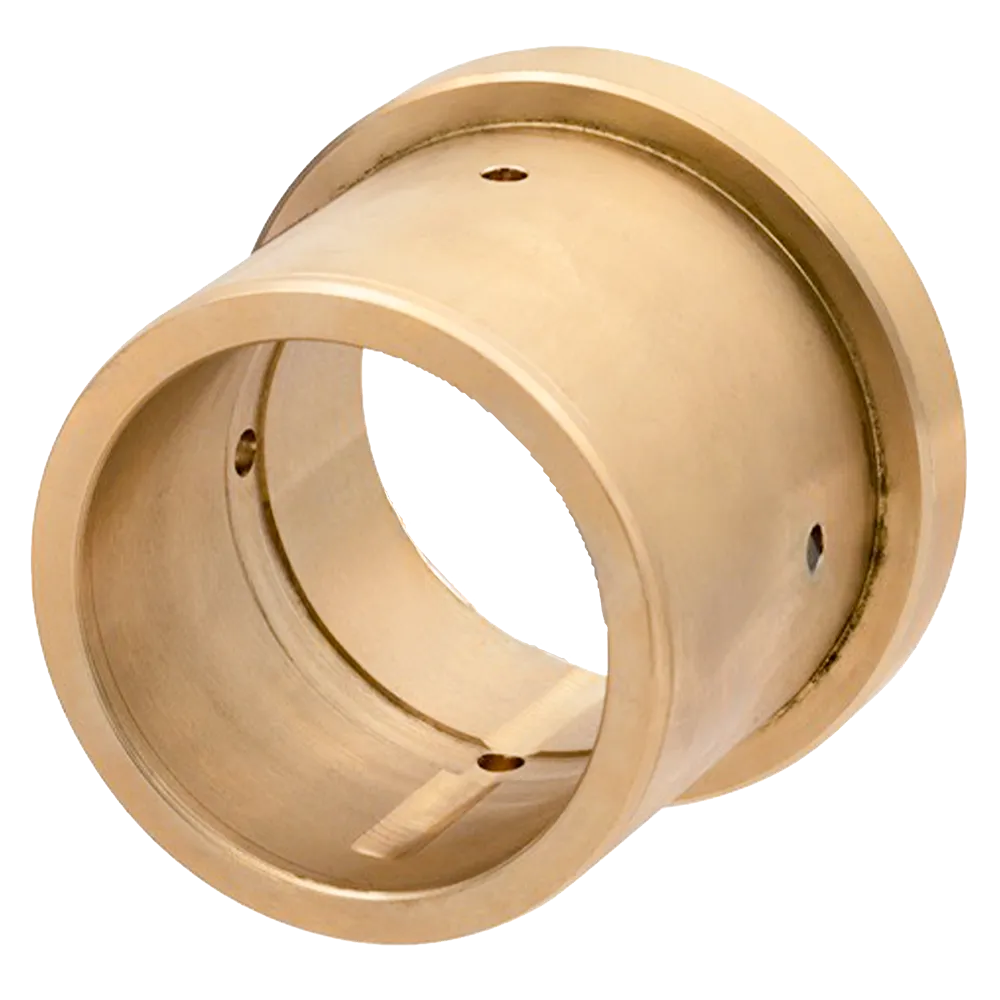

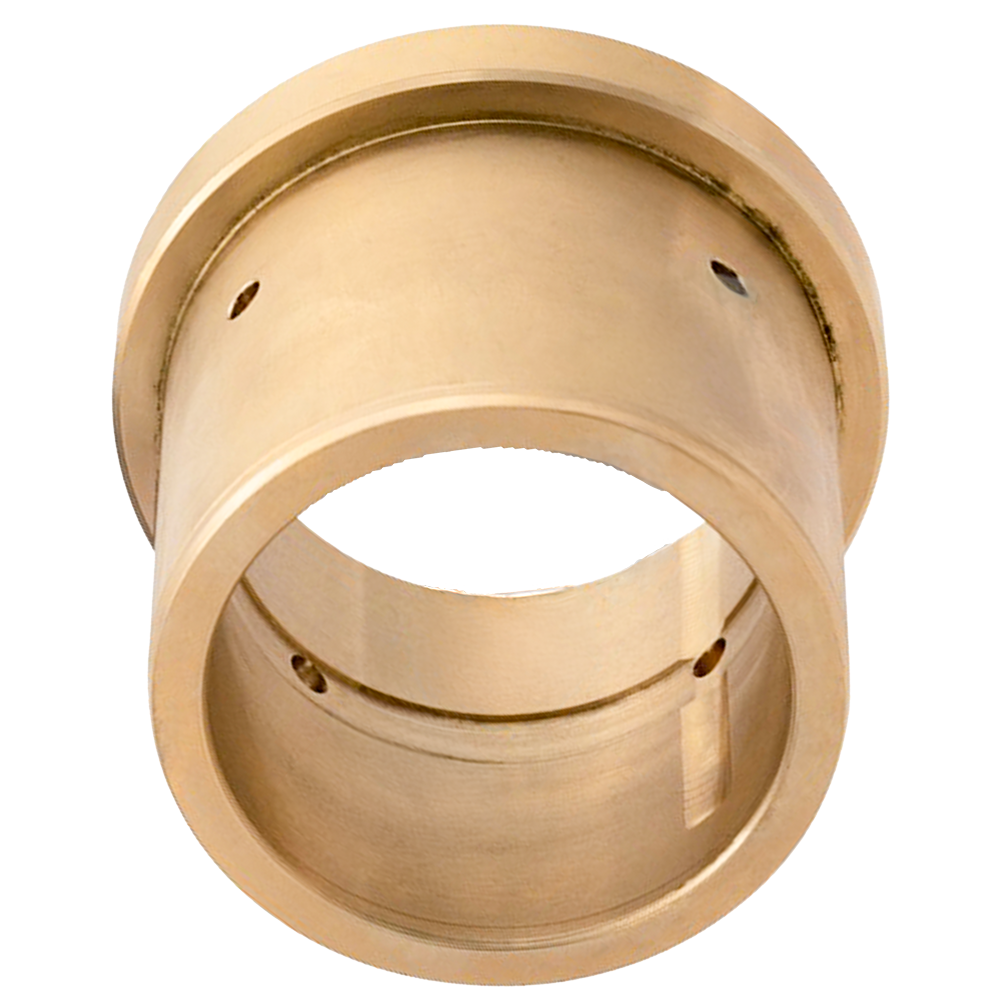

From the product photos, the part has a flanged cylindrical body, machined internal surfaces, and multiple lubrication or oil-feed openings that strongly support its role as a front guide sleeve or bushing in the rock drill head section. That geometry matters because a guide in this location must keep the working assembly centered, maintain controlled clearance, and help reduce uneven wear during repeated percussion cycles. In real drilling conditions, that translates into steadier operation, cleaner force transmission, and lower risk of accelerated damage to neighboring components.

For buyers searching by different formats, this part may be found as 3115143500, 3115 1435 00, or 3115-1435-00. Market listings also consistently connect it to Atlas Copco / Epiroc rock drill applications, especially within the COP 1238 family.

What 3115143500 Actually Does in the Drill

Front-end alignment and guidance

The biggest value of 3115 1435 00 GUIDE ATLAS COPCO is alignment. A rock drill operates under continuous percussion, rotation, vibration, heat, flushing media, and contamination exposure. In that environment, even slight misalignment can increase wear on the shank area, front head, seals, and adjacent support parts. A properly machined guide keeps the working axis stable and helps the drill maintain consistent mechanical behavior during long cycles. That is why a guide component like 3115143500 is far more than a simple sleeve. It is a wear-control and stability part.

Cross-reference catalogs place 3115 1435 00 alongside other front-end COP 1238 components such as the front head, cup seals, flushing head, O-rings, and stop ring. That positioning makes functional sense: the guide works as part of the front assembly where sealing, centering, flushing, and shank support all meet.

Wear reduction under percussion loads

In hydraulic rock drills, the front section sees constant shock loading. A guide that holds its tolerance helps distribute load more evenly and protects surrounding parts from edge contact, chatter, or irregular movement. When a guide wears excessively, the drill can begin to feel rougher in operation, service intervals can shorten, and supporting parts may start to wear faster than expected. Replacing the guide at the right time is therefore a practical maintenance decision, not just a spare-parts purchase.

Lubrication support and operating smoothness

The visible oil holes and internal channeling in the product photos indicate that 3115 1435 00 GUIDE ATLAS COPCO is designed to work in a lubricated environment. This is consistent with the official COP 1238K brochure, which highlights separate lubrication of the front head and driver with pressurized and lubricated mating surfaces for wear and corrosion protection. That official drill-level design philosophy supports the importance of a correctly fitted guide in the front working area.

Technical Details and Specifications for 3115 1435 00 GUIDE ATLAS COPCO

Part identification

3115 1435 00 GUIDE ATLAS COPCO is commonly indexed under the following searchable formats: 3115143500, 3115 1435 00, and 3115-1435-00. Market catalogs also describe it as GUIDE, HEAD GUIDE SLEEVE DIA45, and FRONT SHANK BUSHING for COP 1238 applications.

Product type

Based on cross-reference naming and the visible shape, this part is best described as a front guide sleeve / shank guide bushing for a hydraulic rock drill front-end assembly. The part is flanged, cylindrical, and machined for close-fit guidance.

Application area

Official Epiroc information confirms the COP 1238K as a hydraulic rock drill for tunneling and drifting, intended for underground applications with a 51 to 89 mm hole range. That operating environment tells the buyer exactly what sort of duty this guide is meant to support: repeated high-load drilling cycles in underground production and development work.

Drill interfaces

Official Epiroc brochure data for the COP 1238K lists shank adapter options in R32, R38, T38, and T45 configurations depending on drifting or long-hole drilling setup. That matters because buyers often confirm front-end parts together with their shank and drilling interface configuration.

Weight

A commonly listed market weight for 3115143500 is 0.821 kg. I could not verify an official public Epiroc per-piece weight for this exact part, so the safest way to present it is as a cross-referenced catalog weight: approximately 0.821 kg, or about 0.82 kg in practical sales wording.

Compatible ATLAS COPCO Models for 3115 1435 00 GUIDE ATLAS COPCO

For compatibility, the most responsible wording is this: public official Epiroc pages confirm the COP 1238K drill family, but detailed public fitment for 3115 1435 00 itself is most clearly exposed in aftermarket cross-reference catalogs rather than in open official parts books. Those cross-references consistently associate 3115 1435 00 GUIDE ATLAS COPCO with the COP 1238 family.

Commonly cross-referenced models include COP 1238, COP 1238HE, COP 1238HF, COP 1238LE, and COP 1238ME. One cross-reference source also links the part to Boomer H127 underground drill rig applications where those drifters are fitted.

So, the most useful website fitment note for your product page would be this: 3115 1435 00 GUIDE ATLAS COPCO is commonly used in the Atlas Copco / Epiroc COP 1238 rock drill family, especially COP 1238HE, COP 1238HF, COP 1238LE, and COP 1238ME, and is also cross-referenced to Boomer H127 rig applications depending on rock drill configuration.

Why This Part Matters So Much in Real Drilling Work

In a rock drill, buyers often focus first on larger items like pistons, front heads, shank adapters, or rotation bushings. But small-to-mid-size precision parts often determine whether those major components last. 3115 1435 00 GUIDE ATLAS COPCO belongs in that critical category. It helps protect the front working zone where movement, support, lubrication, and sealing all meet. If that zone loses dimensional control, wear can spread quickly through the assembly.

That is why a guide like 3115143500 should be treated as a performance part, not just a replacement part. In underground drilling, every hour of downtime carries a cost. A well-machined guide helps keep the drill centered, helps protect adjacent wear parts, and supports smooth mechanical action during percussion and rotation. That is especially relevant in the COP 1238 family, which Epiroc positions for tunneling and drifting work, where dependable front-end performance is essential.

Design Characteristics Visible from the Product Images

Flanged body for secure seating

The flange is one of the most important visible design clues. It indicates that the part is meant to seat positively within the housing and resist undesired axial movement. That makes sense in a rock drill front section, where secure positioning is vital under repeated impact loading.

Internal machined running surface

The inner bore appears finely machined, which is exactly what you would expect from a guide that must maintain concentricity and support controlled running clearance. A rough or inconsistent bore would compromise alignment and accelerate wear.

Lubrication or oil-feed holes

The radial holes and internal oil path visible in the images indicate that this is not simply a static spacer. It is designed to operate within a lubricated system, helping distribute lubricant to the contact zone and supporting smooth movement under load.

Bronze-colored wear-focused construction

The bronze-colored finish strongly suggests a wear-focused sleeve or bushing style component. Public cross-reference sources call it a head guide sleeve or front shank bushing, which matches the visual evidence very closely.

Benefits of Replacing 3115 1435 00 GUIDE ATLAS COPCO on Time

A fresh 3115 1435 00 GUIDE ATLAS COPCO can help restore proper front-end support, improve running accuracy, and reduce stress on related sealing and support parts. That matters because front-end wear often develops gradually. The drill may continue to run, but with slightly worse alignment, slightly higher friction, and gradually rising wear across the assembly.

Timely replacement can help reduce avoidable damage to neighboring parts commonly listed around this guide in COP 1238 assemblies, including the front head, flushing head, cup seals, O-rings, and stop ring. In service terms, that means better maintenance economics and a lower chance of compounding repair cost.

For procurement teams, this also improves planning. Ordering 3115143500 before a full front-end rebuild becomes urgent gives maintenance crews more control over workshop time, stock management, and machine availability.

Buying Advice for 3115143500

When ordering 3115 1435 00 GUIDE ATLAS COPCO, the safest approach is to confirm all three items together: the part number format, the exact drill family, and the front-end assembly context. In practical terms, that means checking whether your application is COP 1238 / COP 1238HE / COP 1238HF / COP 1238LE / COP 1238ME, then confirming the neighboring front-end parts being serviced at the same time. Cross-reference listings show this guide repeatedly grouped with the flushing head, stop ring, cup seals, and front head, which makes bundled verification a smart purchasing step.

It is also smart to search both part-number versions on your website because different buyers type it differently. Some users search 3115143500, others search 3115 1435 00 GUIDE ATLAS COPCO, and others will search by drill model plus a functional name such as front shank bushing or head guide sleeve. The more complete your indexing is, the easier it is for the page to rank and convert.

3GEN Export Supply Advantage

At 3GEN Export, we position 3115 1435 00 GUIDE ATLAS COPCO as an OEM supplier solution for buyers who need dependable rock drill spare parts without delay. For global mining contractors, drill rig service companies, and spare-parts distributors, speed matters just as much as fitment. That is why your page should clearly say that 3GEN Export supplies this part worldwide and targets dispatch and delivery support in 5 working days depending on destination and stock planning.

That message fits the buying behavior of this market. Customers searching 3115143500 are usually not browsing casually. They are comparing technical confidence, availability, and logistics response. A strong product page therefore needs to show the exact searchable part number, the functional part identity, the COP 1238 family connection, and the supply promise from 3GEN Export.

Final Product Summary

3115 1435 00 GUIDE ATLAS COPCO is a critical front-end guide component for the COP 1238 rock drill family. Cross-reference sources identify it as a guide, head guide sleeve DIA45, and front shank bushing, while official Epiroc sources confirm that the COP 1238K family is built for underground tunneling and drifting in the 51 to 89 mm range with R32, R38, T38, and T45 interface options. The commonly listed part weight is about 0.821 kg, and the most frequently referenced compatible drill variants are COP 1238, COP 1238HE, COP 1238HF, COP 1238LE, and COP 1238ME, with additional cross-reference mention for Boomer H127 applications depending on configuration.

If you want a part page that speaks to both search engines and real buyers, 3115 1435 00 GUIDE ATLAS COPCO should be presented not as a generic sleeve, but as a precision guide element that supports alignment, wear control, lubrication flow, and dependable front-end rock drill performance. For industrial buyers who need a reliable source, 3GEN Export can present this part as an OEM supplier offering worldwide delivery in 5 working days.

Technical Snapshot

Product name

3115 1435 00 GUIDE ATLAS COPCO

Alternative search formats

3115143500
3115 1435 00
3115-1435-00

Part type

Guide / Head Guide Sleeve DIA45 / Front Shank Bushing

Commonly cross-referenced models

COP 1238
COP 1238HE
COP 1238HF
COP 1238LE
COP 1238ME
Boomer H127 depending on drill configuration

Application

Hydraulic rock drill for underground tunneling and drifting within the COP 1238 family.

Approximate weight

0.821 kg
