3115211789 , 3115 2117 89 STOP RING ATLAS COPCO

(High-Precision Retaining Component for Hydraulic Drifters – OEM Quality by 3GEN Export)

---

Overview

The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO is a precision-engineered retaining element designed to ensure structural stability within Atlas Copco hydraulic rock drills. Manufactured to strict OEM-equivalent tolerances, this stop ring plays a vital role in securing internal assemblies—most notably the piston, chuck, and front bushing components—during high-frequency impact drilling operations.

Supplied by 3GEN Export, a trusted global OEM supplier for heavy machinery spare parts, this stop ring guarantees durability, dimensional accuracy, and perfect alignment for optimal performance. Built from heat-treated alloy steel, it is designed to handle extreme vibration, high-pressure impact forces, and continuous operational loads across mining and construction environments.

---

Function and Role in Hydraulic Drifters

The 3115 2117 89 STOP RING ATLAS COPCO acts as a locking and positioning component inside the hydraulic drifter housing. In the Atlas Copco percussion system, it retains the moving parts in their designated axial positions, preventing unwanted displacement during repeated impact cycles.

Hydraulic drifters like those in the COP series rely on precision synchronization between moving elements—piston, shank adapter, bushings, and chuck components. A stop ring secures these parts against axial drift, which would otherwise cause loss of energy transfer, mechanical imbalance, or catastrophic failure.

By providing a mechanical limit to motion, the stop ring ensures:

• Stable positioning of internal components

• Consistent impact alignment between piston and shank adapter

• Reduction of wear on adjacent parts

• Protection of seals and internal bearings

• Smoother percussion cycles

This makes the 3115211789 STOP RING ATLAS COPCO an indispensable part of the hydraulic drifter’s operational integrity, extending the equipment’s service life and maintaining optimal drilling precision.

---

Technical Specifications

---

Material and Construction

The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO is crafted using hardened chromium-molybdenum steel, renowned for its superior mechanical strength and fatigue resistance. This alloy composition ensures excellent resilience under high-impact conditions while maintaining precise elasticity—critical for locking and absorbing axial forces.

Key Design Features:

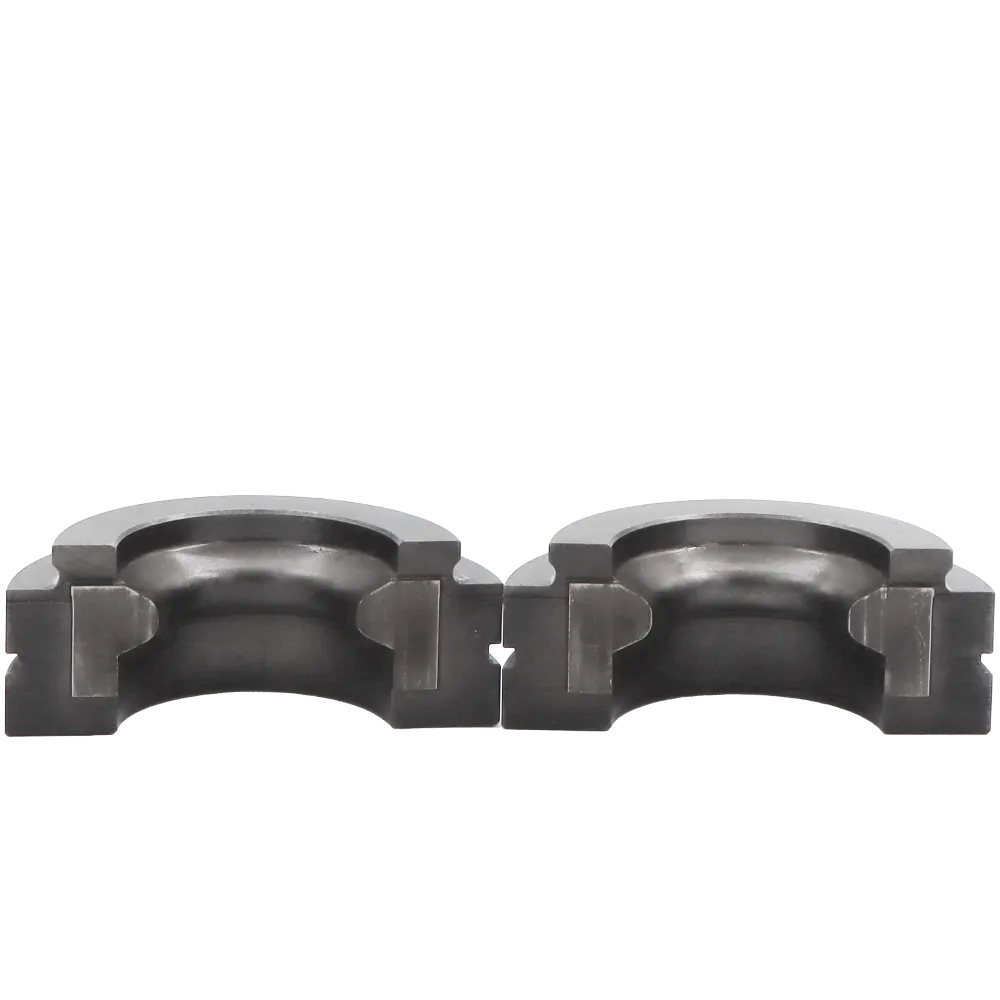

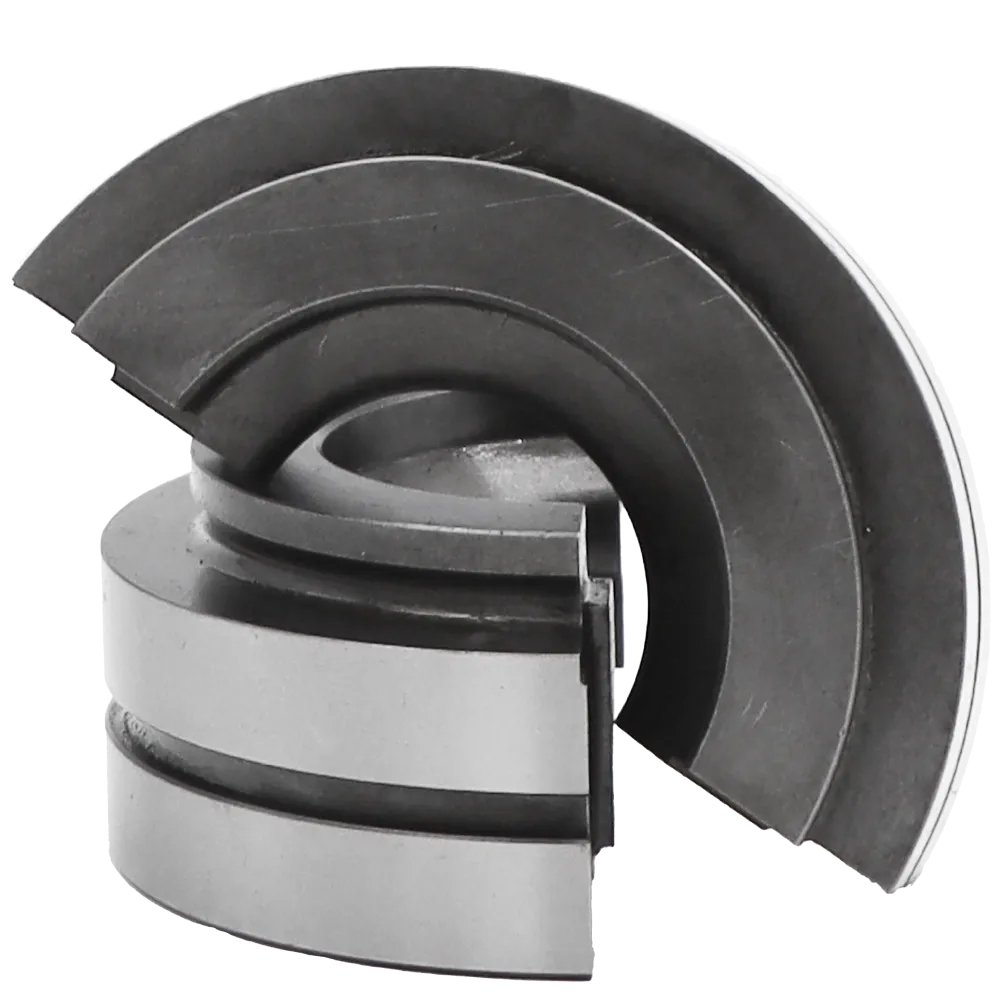

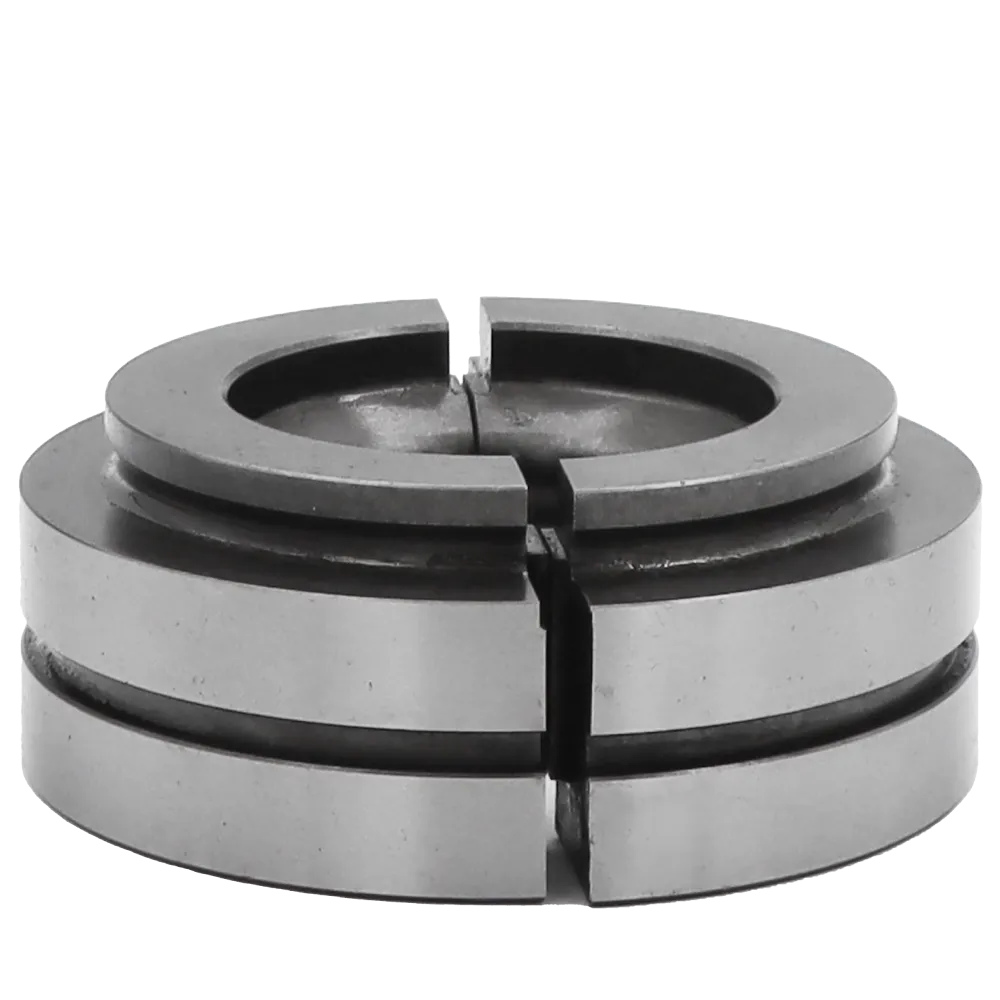

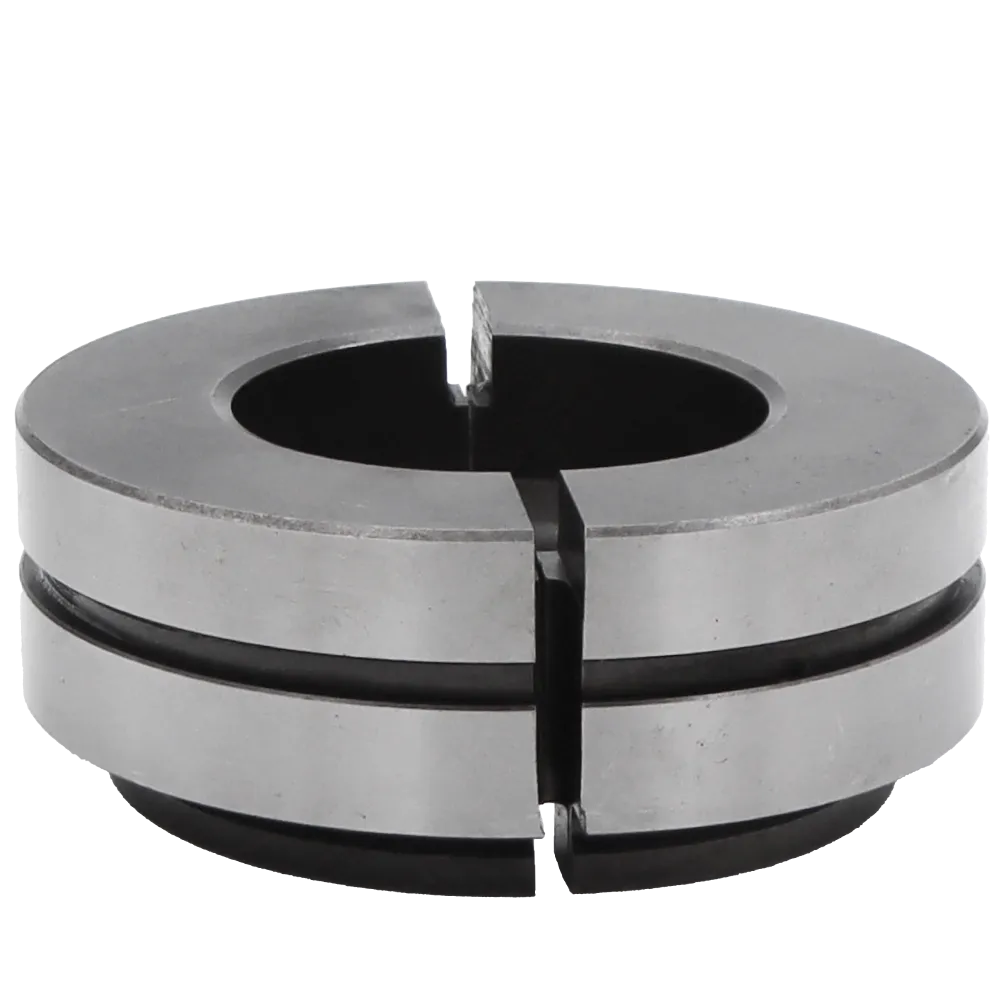

• Split-Ring Construction: The stop ring is split into symmetrical halves to allow easy installation and removal within the drifter housing without full disassembly.

• Precision-Ground Contact Surfaces: Each face is machined and polished to micron-level smoothness to reduce wear and maintain perfect seating.

• High Elastic Modulus: The material’s elasticity ensures the ring maintains clamping tension even under continuous load cycles.

• Thermal Stability: The component retains its mechanical properties at elevated drilling temperatures, ensuring consistent performance across various operating conditions.

These attributes make it one of the most reliable retaining components in modern rock drilling systems, ensuring both operational stability and maintenance efficiency.

---

Manufacturing Excellence and Quality Control

Each 3115 2117 89 STOP RING ATLAS COPCO manufactured under 3GEN Export’s OEM-grade standards goes through an advanced production process that guarantees consistent quality, dimensional accuracy, and metallurgical integrity.

Manufacturing Stages:

1. Forging and CNC Shaping: High-strength steel blanks are forged under controlled temperature conditions, then CNC-machined for dimensional precision.

2. Heat Treatment: The component is induction hardened and oil quenched to enhance wear resistance and structural stability.

3. Grinding and Lapping: Each surface undergoes fine grinding and lapping for perfect roundness and flatness.

4. Inspection: Using 3D coordinate measuring machines, dimensional checks ensure tight tolerance adherence.

5. Surface Treatment: A specialized anti-corrosion coating is applied to improve longevity and reduce oxidation under harsh environments.

Every batch is subjected to tensile testing, Rockwell hardness testing, and non-destructive ultrasonic examination to ensure absolute reliability before global dispatch.

---

Performance Advantages

The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO delivers a range of performance benefits crucial for drilling operations where precision and durability are non-negotiable.

1. Exceptional Retention Strength

Its tight axial clamping force prevents component migration, safeguarding the drifter’s impact assembly from vibration-induced misalignment.

2. Reduced Equipment Wear

By maintaining accurate component placement, it minimizes abrasion and impact loading on other internal parts such as bushings, seals, and pistons.

3. Enhanced Operational Stability

The ring’s elasticity and hardness balance ensure uniform pressure distribution, reducing vibration amplitude during continuous drilling.

4. Low Maintenance Downtime

The split design allows for quick installation and replacement without requiring full teardown, saving valuable maintenance hours and operational costs.

5. Extended Drifter Service Life

Proper installation of this stop ring can extend drifter lifespan by 25–30%, reducing the need for frequent overhauls.

---

Compatibility with Atlas Copco Rock Drills

The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO is fully compatible with a wide range of Atlas Copco hydraulic drifters used in mining, tunneling, and civil engineering projects.

Compatible Models Include:

• COP 1238

• COP 1638

• COP 1838

• COP 1840

• COP 1850

• COP 2238

• COP 2240

These drifters are standard in Atlas Copco’s Boomer, FlexiROC, and ROC L series surface and underground drilling rigs. The stop ring’s precision ensures mechanical harmony with each of these models, guaranteeing seamless interchangeability with original configurations.

---

Installation and Maintenance Guidelines

Proper installation of the 3115 2117 89 STOP RING ATLAS COPCO ensures long-term reliability and mechanical stability of the drifter assembly.

Installation Instructions:

• Clean and inspect all contact surfaces before installation.

• Align both ring halves in their designated grooves.

• Apply a light coat of assembly lubricant to ease placement.

• Confirm proper seating by rotating the assembly manually before full reassembly.

Maintenance Tips:

• Check for microcracks, deformation, or surface scoring every 600 operational hours.

• Always replace the stop ring during major drifter rebuilds to prevent unexpected failures.

• Store in a dry, temperature-controlled environment to avoid corrosion.

• Use torque-verified tools during reassembly to prevent uneven stress on the retaining edges.

Following these steps will ensure optimal retention strength and mechanical integrity throughout the equipment’s operational lifespan.

---

Applications in Mining and Construction

The 3115211789 STOP RING ATLAS COPCO is utilized across industries that demand high-impact precision and endurance:

• Underground Mining: Stabilizes internal components during continuous percussion in hard-rock formations.

• Surface Drilling Operations: Maintains consistent energy transfer in exploration and quarrying rigs.

• Civil Infrastructure: Ensures accurate drilling performance in tunnel boring and foundation piling projects.

• Hydraulic Drifter Servicing: Ideal for maintenance, overhauls, and rebuilds of Atlas Copco rock drill systems.

Its robust structure and precise fit make it an indispensable part of any drifter assembly operating under demanding mechanical conditions.

---

Why Choose 3GEN Export

3GEN Export is a globally recognized OEM supplier specializing in high-precision heavy machinery spare parts. Our engineering focus ensures every component—from small rings to major drifter assemblies—meets international performance and durability standards.

Our Distinct Advantages:

• OEM-Level Precision: All products are designed for perfect fitment and mechanical reliability.

• Worldwide Delivery: We ship globally within 5 working days, ensuring rapid maintenance turnaround.

• Comprehensive Product Range: Thousands of Atlas Copco parts available under one platform.

• 1-Year Manufacturer Warranty: Every part is guaranteed against manufacturing defects.

• Expert Support: Our technical team provides compatibility guidance for every order.

By combining manufacturing precision with efficient logistics, 3GEN Export has become the preferred supplier for global mining and construction companies seeking cost-effective OEM alternatives.

---

Environmental Responsibility

3GEN Export upholds eco-conscious production methods that minimize material waste and energy use. The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO is fully recyclable and manufactured using environmentally responsible heat treatment and coating processes.

Our packaging is made from recyclable materials, and all products are shipped using optimized freight solutions to reduce carbon impact.

---

Customer Assurance and Service Commitment

When you order the 3115211789 STOP RING ATLAS COPCO from 3GEN Export, you receive:

• Verified OEM-level quality assurance

• Secure international shipping

• High-protection packaging for long transit durations

• Technical consultation for part compatibility and installation

Each customer is guaranteed full after-sales support and transparent tracking until delivery.

---

Conclusion

The 3115211789 , 3115 2117 89 STOP RING ATLAS COPCO is a compact yet critical component that ensures mechanical stability and operational precision in hydraulic drifters. Engineered from high-grade steel and built to endure relentless vibration and high-impact forces, this stop ring offers unmatched retention strength, reliability, and longevity.

With 3GEN Export’s proven OEM standards, comprehensive compatibility across Atlas Copco models, and worldwide delivery within 5 working days, this part represents both quality and efficiency for heavy machinery professionals who demand excellence.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
