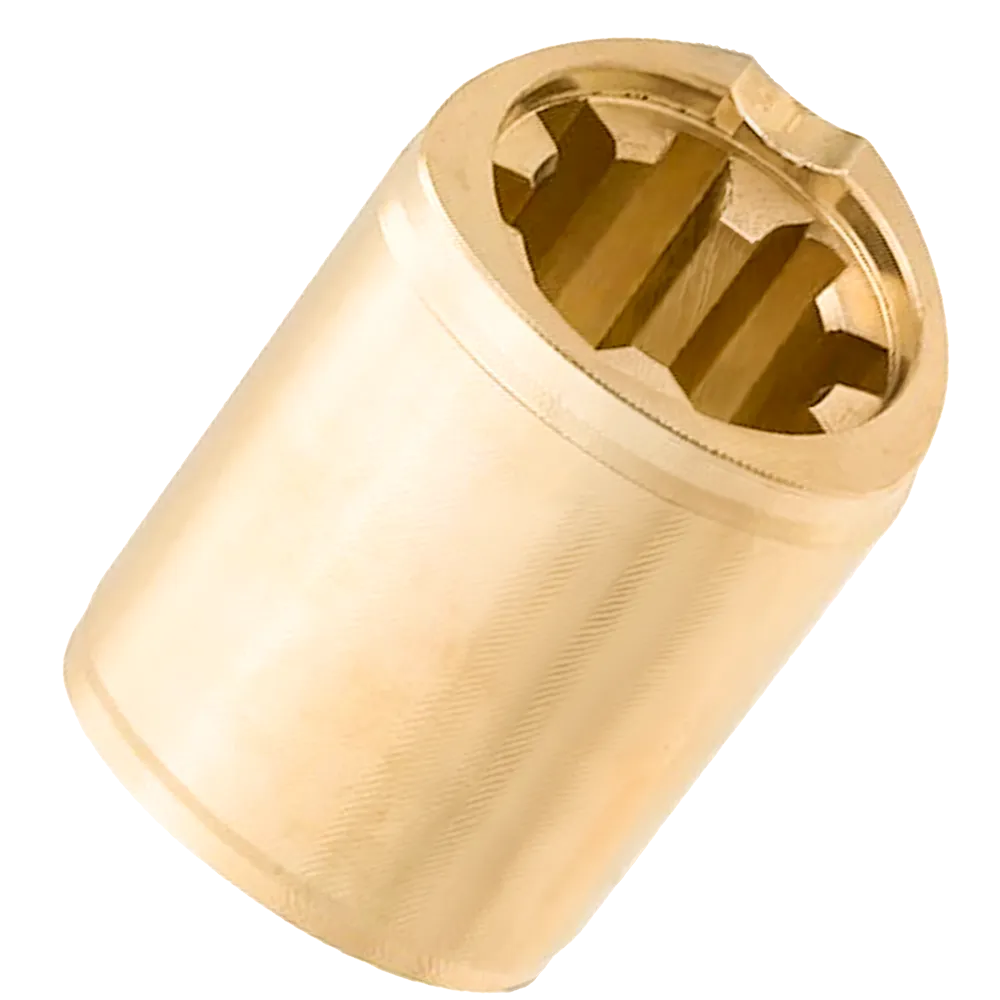

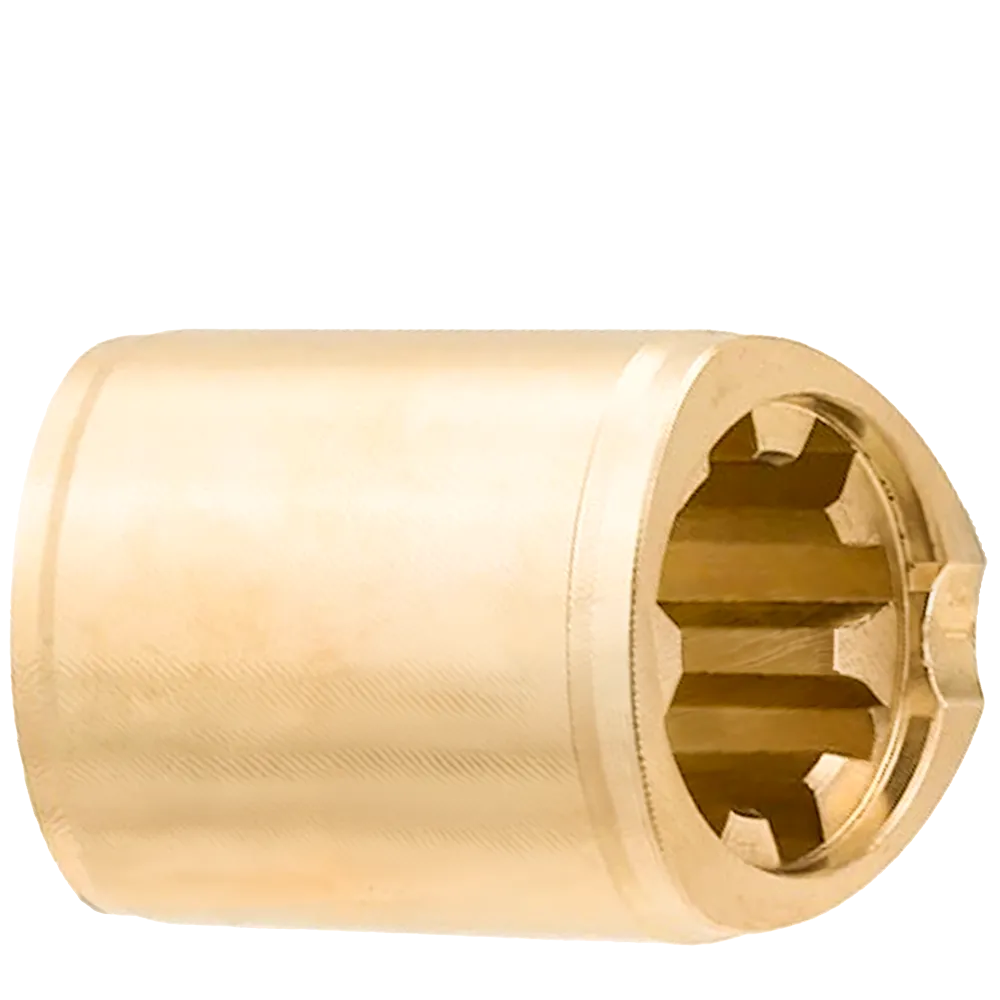

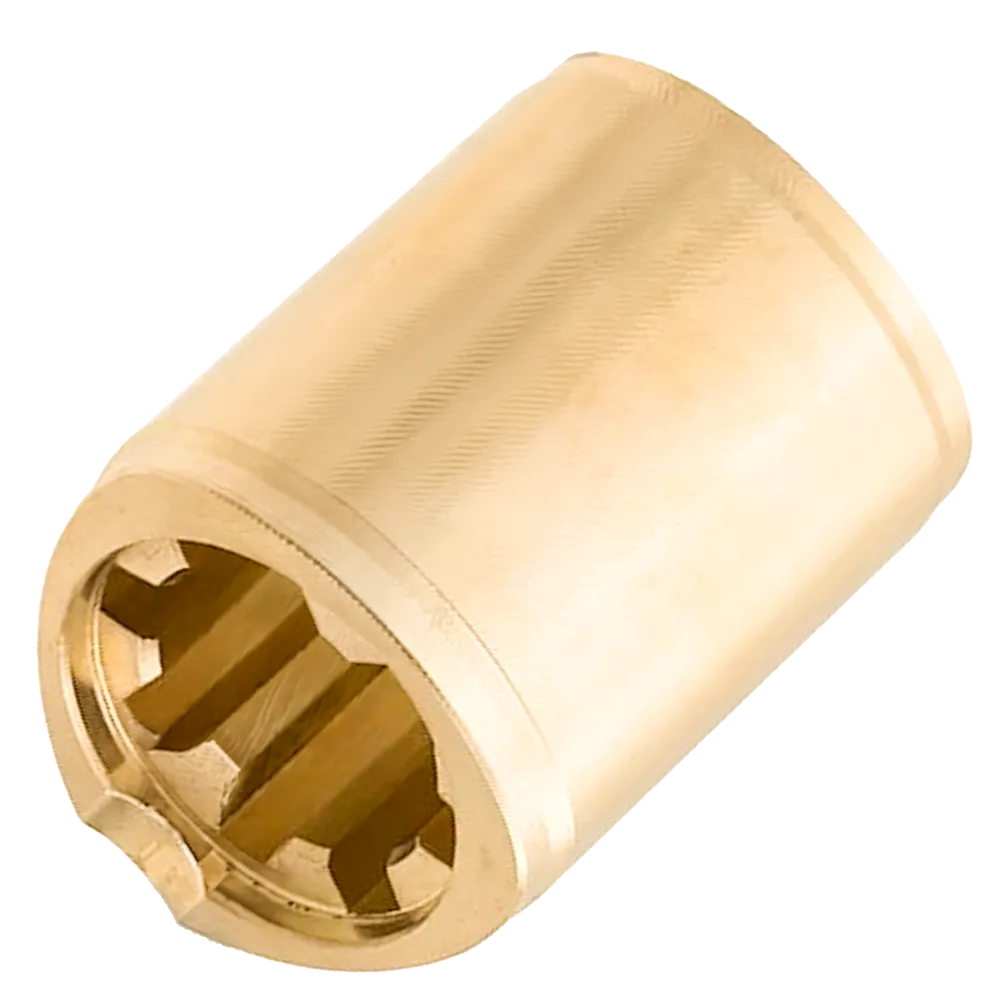

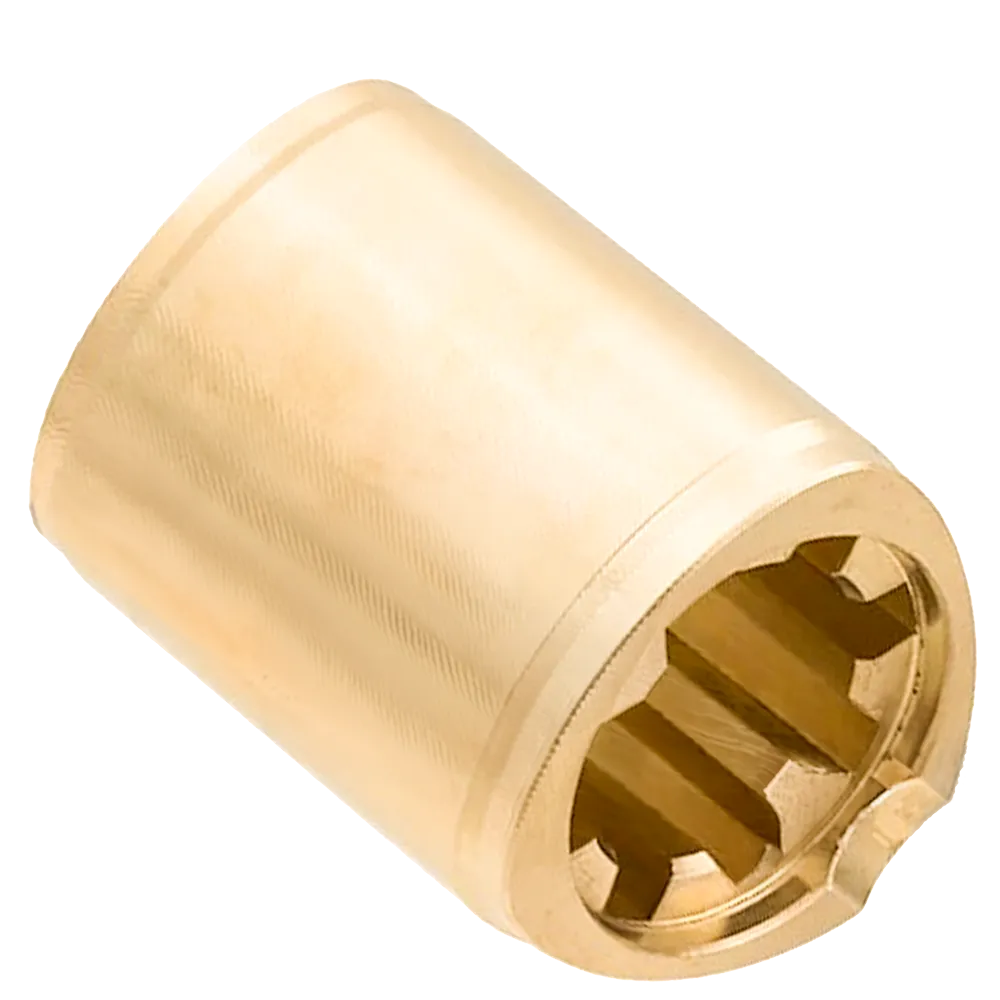

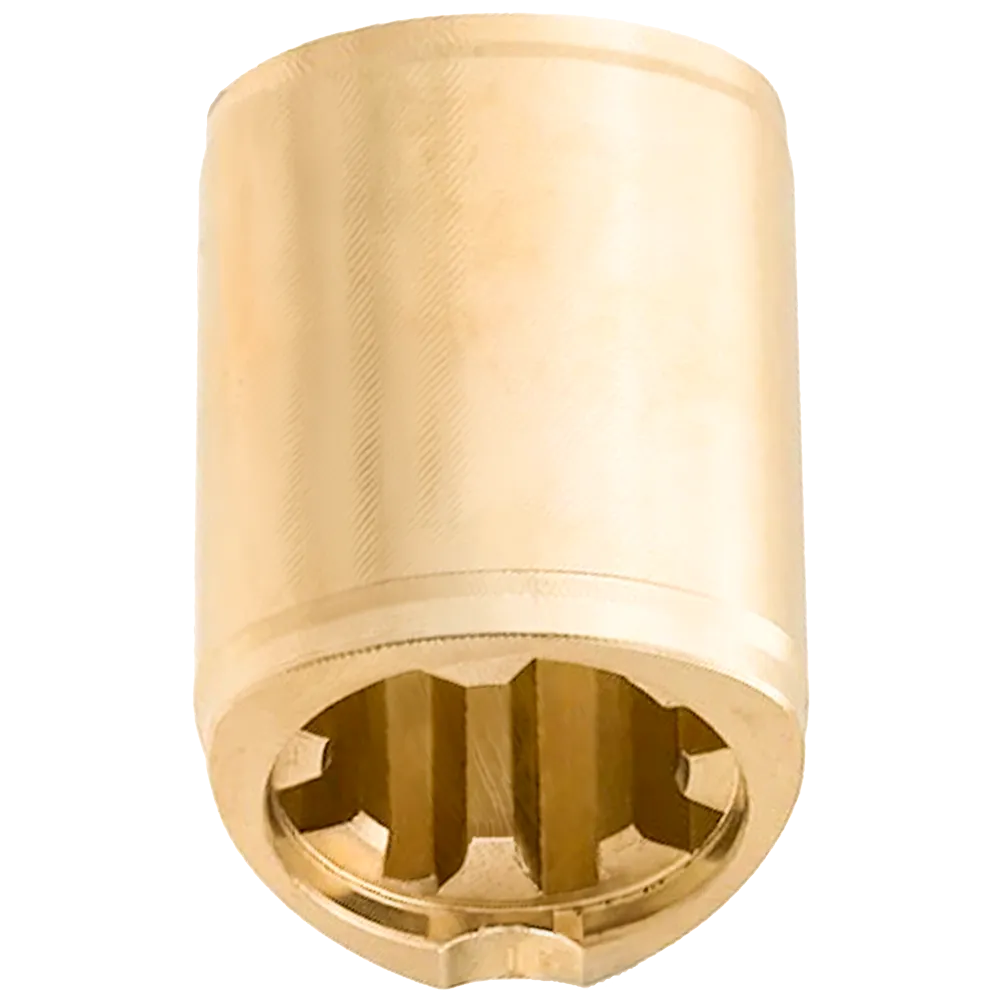

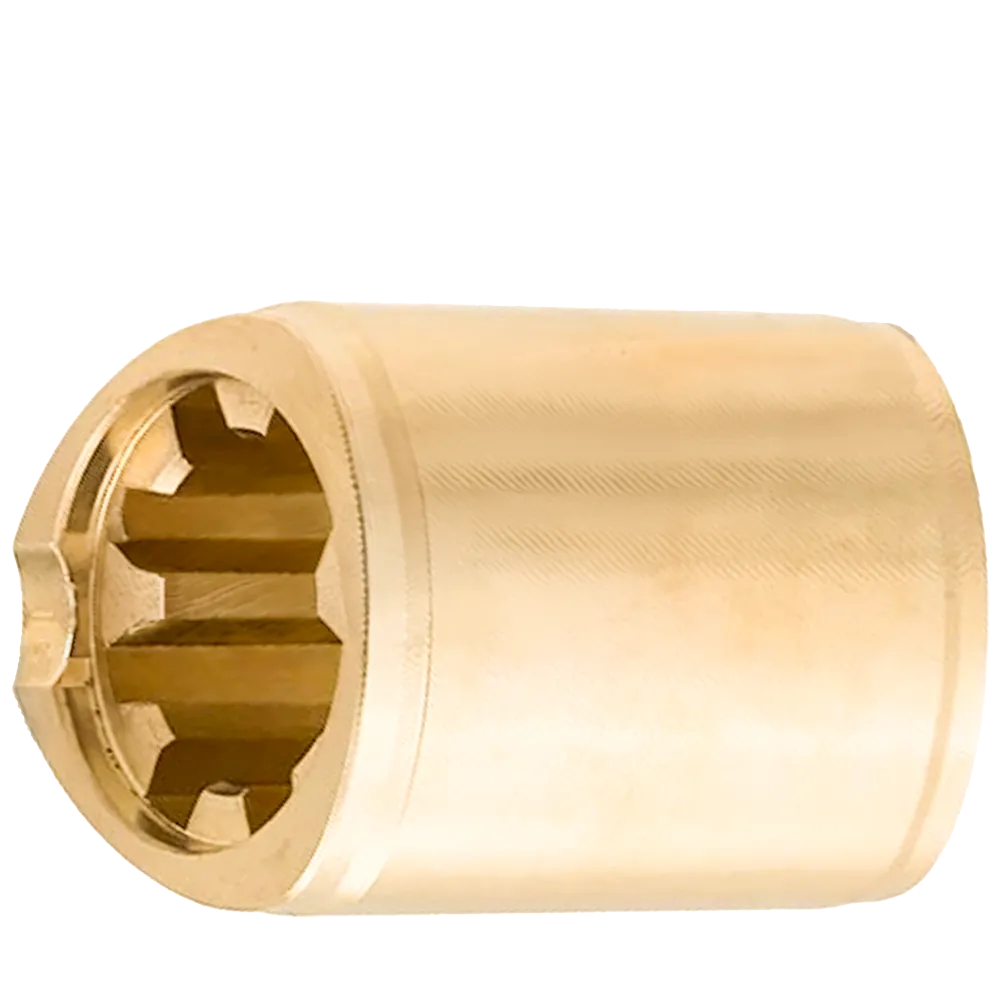

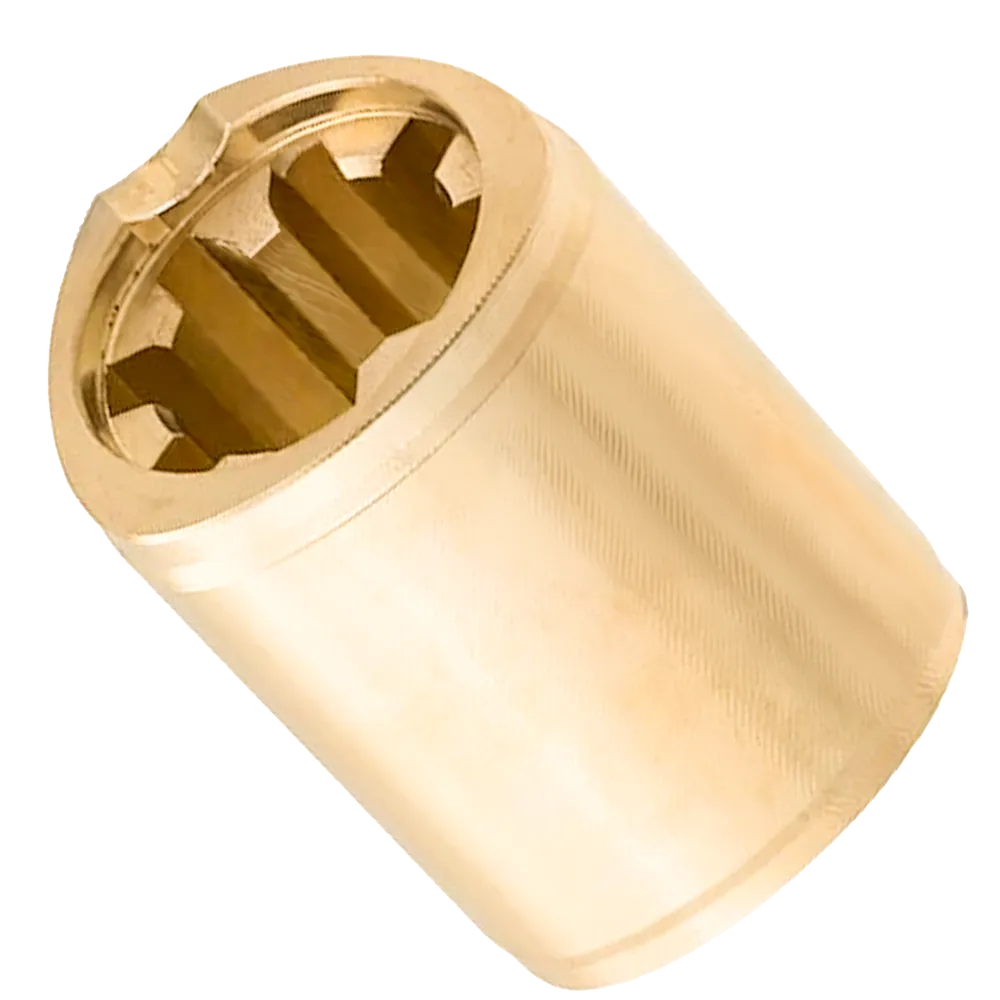

3115326401 / 3115 3264 01 DRIVER – Atlas Copco Rock Drill Spare Part

The 3115326401 / 3115 3264 01 DRIVER ATLAS COPCO is a critical internal transmission component designed to deliver controlled rotational energy from the drive assembly to downstream drilling elements inside hydraulic rock drills. Operating at the core of high-impact drilling systems, this driver plays a vital role in torque continuity, vibration management, and mechanical synchronization.

Manufactured from premium alloy bronze with precision-cut internal splines, this component is engineered to withstand constant cyclic loads, shock impulses, and abrasive environments typically encountered in underground mining, quarrying, and heavy civil construction.

At 3GEN Export, we supply this part as an OEM-grade replacement with dimensional accuracy, surface finish consistency, and metallurgical stability equal to factory specifications — backed by worldwide delivery in just 5 working days.

What Makes the 3115 3264 01 Driver Technically Unique

Unlike generic bushings or couplers, the 3115326401 DRIVER ATLAS COPCO performs simultaneous mechanical functions:

It transmits rotational force.

It absorbs micro-vibrations.

It maintains axial alignment between rotating assemblies.

It protects mating shafts from premature wear.

Its internal spline geometry ensures maximum contact surface while minimizing backlash. This directly improves drilling efficiency and reduces energy loss during percussion cycles.

The outer cylindrical surface is finished to tight tolerances, enabling seamless seating within the housing bore. Internally, hardened spline teeth engage precisely with the mating shaft, allowing smooth torque flow even under extreme load.

Material Engineering and Surface Treatment

The driver is produced from high-density bronze alloy selected for:

High compressive strength
Excellent fatigue resistance
Superior thermal stability
Natural anti-seizing properties

This material choice allows the component to operate reliably without galling, even in poorly lubricated conditions.

Surface finishing includes fine radial machining marks that promote oil retention, reducing friction and extending service life. Internal splines are CNC-cut for perfect symmetry and load distribution.

Primary Functions Inside Rock Drill Assemblies

The 3115 3264 01 DRIVER ATLAS COPCO serves as a mechanical bridge between the rotation motor and percussion components.

Its responsibilities include:

Transmitting rotational motion to the drill string
Maintaining concentric alignment of internal shafts
Dampening torsional vibration
Preventing direct metal-to-metal impact between hardened components

Without a properly machined driver, drilling systems experience accelerated wear, unstable torque delivery, and increased failure risk across adjacent parts.

Typical Applications

This driver is widely used in hydraulic rock drills and top hammer drilling units operating in:

Underground mining
Surface quarrying
Tunnel excavation
Foundation drilling
Slope stabilization projects

It is installed deep within the rotation group, making reliability absolutely essential.

Compatible ATLAS COPCO Rock Drill Models

The 3115326401 / 3115 3264 01 DRIVER ATLAS COPCO is commonly found in multiple rock drill configurations, including:

PR11

COP1435

COP 1838
COP 1840
COP 2150
COP 2160
COP 2560
COP 3060
HLX5
HLX5T
HLX5i
HL1560
HL1565
HL1570

Compatibility may vary depending on production year and configuration. For absolute confirmation, 3GEN Export can verify using your machine serial number.

Approximate Technical Specifications

Part Numbers
3115326401
3115 3264 01

Component Type
Internal spline driver

Material
High-strength bronze alloy

Manufacturing Method
CNC precision machining

Surface Finish
Fine radial oil-retention texture

Spline Configuration
Multi-tooth internal profile

Approximate Weight
0.9 – 1.2 KG (may vary slightly by batch)

Operating Environment
Hydraulic rock drilling systems

Installation Recommendations

Professional installation is strongly advised.

Before fitting:

Clean the housing bore thoroughly.
Inspect mating shaft splines for wear.
Apply assembly lubricant evenly.
Verify axial seating depth.

Improper alignment during installation can cause uneven spline loading and reduce operational lifespan.

After installation, always perform a rotation test before returning the machine to service.

Common Wear Indicators

Over time, drivers may show signs of fatigue due to extreme cyclic loads.

Typical replacement indicators include:

Spline rounding
Increased rotational play
Metallic vibration noise
Irregular torque transfer
Visible surface scoring

Replacing the driver at early wear stages prevents secondary damage to shafts, housings, and rotation motors.

Why Source from 3GEN Export

3GEN Export is an OEM spare parts supplier specializing in heavy machinery and rock drilling components.

Every 3115326401 DRIVER ATLAS COPCO supplied by us undergoes dimensional inspection and material verification before dispatch.

Our advantages include:

OEM-grade manufacturing standards
Global express logistics
Worldwide delivery in 5 working days
Professional export packaging
Technical compatibility support
Bulk and project pricing

We ship daily to mining operations, contractors, and service centers across Europe, the Middle East, Africa, Asia, and the Americas.

Logistics and Global Supply

Whether you operate a single drill rig or manage a fleet across multiple sites, 3GEN Export ensures fast fulfillment through our international logistics network.

All orders are packed in impact-resistant industrial cartons with corrosion protection.

Custom documentation and export compliance are handled internally, allowing smooth cross-border delivery.

Long-Term Operational Value

Choosing a correctly machined driver directly impacts:

Rotation efficiency
Energy transfer stability
Component lifespan
Maintenance intervals

A precision driver like the 3115 3264 01 prevents cascading failures inside the rotation group, protecting higher-value assemblies from premature damage.

Summary

The 3115326401 / 3115 3264 01 DRIVER ATLAS COPCO is a high-precision internal transmission component engineered for demanding rock drilling environments. Manufactured from premium bronze alloy and CNC-machined for exact spline engagement, it ensures reliable torque transfer, vibration control, and mechanical alignment.

Supplied by 3GEN Export as an OEM-grade spare part, this driver is available for worldwide delivery within just 5 working days — helping operators minimize downtime and maintain peak drilling performance.

Manufactured in Turkey, these products are made using the latest technologies and built to meet the highest international standards. Each machine is a high-quality copy of the original, ensuring durability, precision, and performance that you can rely on for modern construction and metalworking projects.
